Laser Cleaning Application

Time: May 24,2024 Author: Sintec Optronics View: 304

What is Laser Cleaning?

Laser cleaning is the process of removing materials from surfaces using a laser beam.

When the laser beam contacts a surface, light is absorbed by the surface. When the ablation threshold is hit, molecular bonds in the surface are broken and ejected from the substrate (“vaporized”).

Features of Laser Cleaning

1.      Non-contact cleaning, little damage to the base substrate layer.

2.      Precise cleaning: Able to clean specific areas using pre-defined beam parameters.

3.      Selective cleaning: Able to remove different types of materials individually, based on the ablation threshold.

4.       High cleaning efficiency.

5.       Stable and compact design, with minimal maintenance efforts.

6.       Easy to operate: Can be used by operator or integrated with a robotic arm for automated cleaning.

7.       No need to use chemicals, waters or other cleaning mediums. No consumables, safe and environmentally-friendly.

Comparisons of Cleaning Methods


Laser   Cleaning

Chemical   Cleaning

Mechanical   Grinding

Dry Ice   Cleaning

Cleaning   Method

Non-contact   cleaning

Contact   cleaning using chemicals

Abrasive   contact cleaning

Non-contact   cleaning

Damage to   Base Material

Low

Yes

Yes

Low

Cleaning   Outcome

Good,   consistent

Medium,   uneven

Medium,   uneven

Good, uneven

Cleaning   Efficiency

High,   selective cleaning possible

Low

Low

Medium

Cleaning   Precision

High,   controllable

Medium

Low to   medium, difficult to control

Low,   difficult to control

Consumables

Power

Chemicals

Abrasive   paper, sand, etc.

Dry ice

Environmental   Impact

Low

Chemical   pollution

Dust   pollution

Low

Ease of   Operation

Easy, either   using operator or robotic arm

Medium,   require manpower.

Medium,   require manpower

Easy, either   using operator or robotic arm

Ownership   and Operating Costs

High upfront investment.   Low operating costs with little consumables and maintenance efforts.

Low upfront   investment. High operating costs with expensive consumables.

Low upfront   investment. High operating costs with expensive consumables.

Medium   upfront investment. High operating costs with expensive consumables.

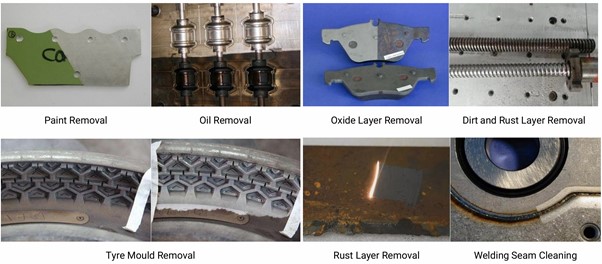

 Examples

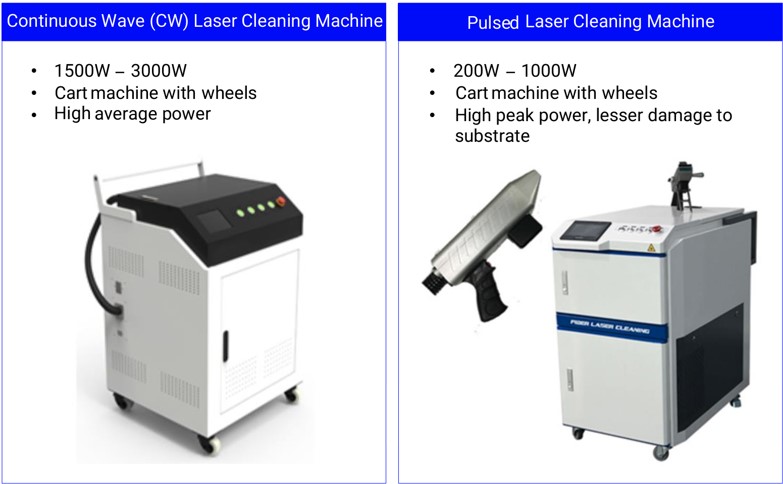

 Our Laser Cleaning Machines

Check out our laser cleaning machines here: https://www.sintec.sg/LaserMachines/356.html
