AOM (Acousto-Optic Modulator)

AOM (Acousto-Optic Modulator)

Keywords: Acousto-Optic Modulator, AO, AOM, Acousto-optical

We offer a wide range of standard AO Modulators for digital or analogue intensity modulation of laser beams from UV visible to IR wavelength and RF frequency of a few tens MHz to a few hundreds MHz.


By virtue of having no moving parts our acousto-optic modulators (AOMs) are able to amplitude modulate a laser beam at very high speed. For example modulation bandwidths in excss of 50MHz are readily achievable.

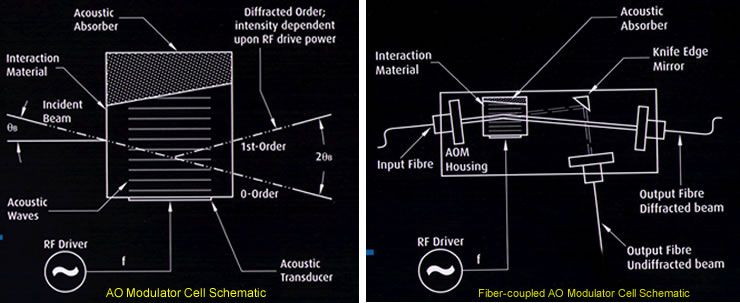

In an AOM a laser beam is caused to interact with a high frequency ultrasonic sound wave inside an optically polished block of crystal or glass (the interaction medium). By carefully orientating the laser with respect to the sound waves the beam can be made to reflect off the acoustic wavefronts (Bragg diffraction). Therefore, when the sound field is present the beam is deflected and when it is absent the beam passes through undeviated. By switching the sound field on and off very rapidly the deflected beam appears and disappears in response (digital modulation). By varying the amplitude of the acoustic waves the intensity of the deflected beam can similarly be modulated (analogue modulation).

It is usual to choose the deflected beam as the one that is used in the optical system because it can be switched on and off with high extinction ratio (typically >40dB) and intensity can be varied from zero to more that 85% of the incident beam. The rate at which the beam can be modulated is governed by the time it takes the acoustic wavefronts to traverse the laser beam, which depends on the beam diameter and the acoustic velocity in the interaction medium.

The sound waves are generated by a transducer, usually a thin wafer of lithium niobate, that is bonded onto the interaction medium using a highly efficient cold-weld metallic bonding process. When a high frequency electrical signal is applied to the transducer it vibrates, generating the acoustic wave. The signal is derived from an RF driver, which generates a high frequency carrier that is itself modulated by an analogue or digital input signal.

Principal applications for AO modulators are pre-press (putting image and text data onto films or plates as part of the printing process), laser imaging and displays, switching in telecom fibres, instrumentation and research.

1. STG Series Free-space Acousto-optical Modulators

We offer a wide range of standard AO Modulators, for digital or analogue intensity modulation of laser beams. Their main specifications are as follows:

  • Wavelength Range: 240nm to 2100nm

  • Drive Frequencies: 20MHz to 350MHz

  • Optical Rise-Times: Down to 5ns

  • Modulation Bandwidths: Up to 100MHz

  • Interaction Materials: Tellurium Dioxide, Lead Molybdate, Fused Silica, Crystal Quartz, Chalcogenide Glass, Flint Glass.

An RF Driver provides the electronic signal operating the AO Modulator. With a digital driver, an external TTL signal enables rapid on and off switching of the optical beam. Alternatively an anologue driver enables a variable intensity output, typically from 0% to 85% of the input beam. The maximum modulation bandwidth, or optical rise-time, is a function of the acoustic transit time across the optical beam. Therefore, for the highest speeds it is often necessary to focus the optical beam down to a small spot inside the modulator.

Our standard AOMs are listed below.

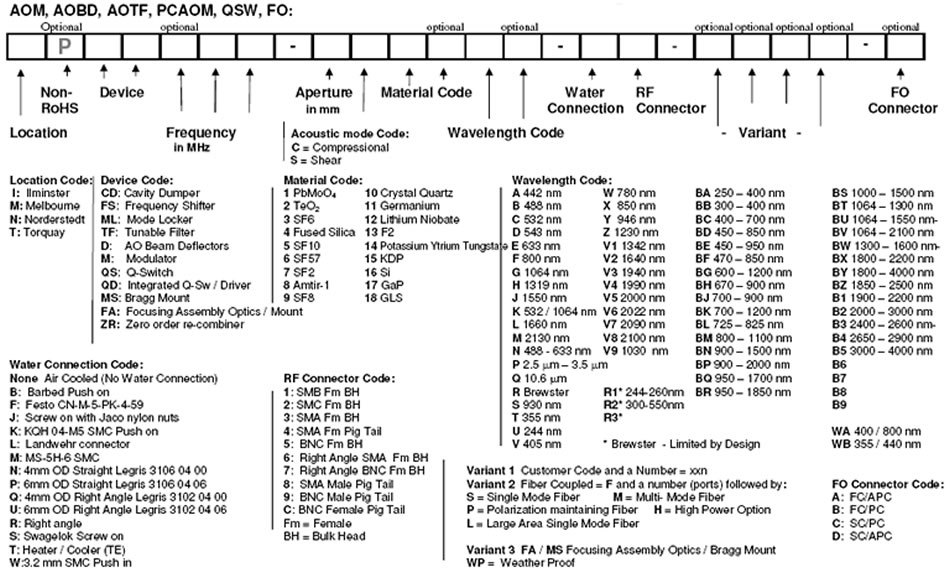

ModelWave lengthRise/ Fall timeActive ApertureOperating FrequencyOptical Material
I-M110-4C19R19-3-GH93193-266nm110ns/mm4mm110MHzFused Silica

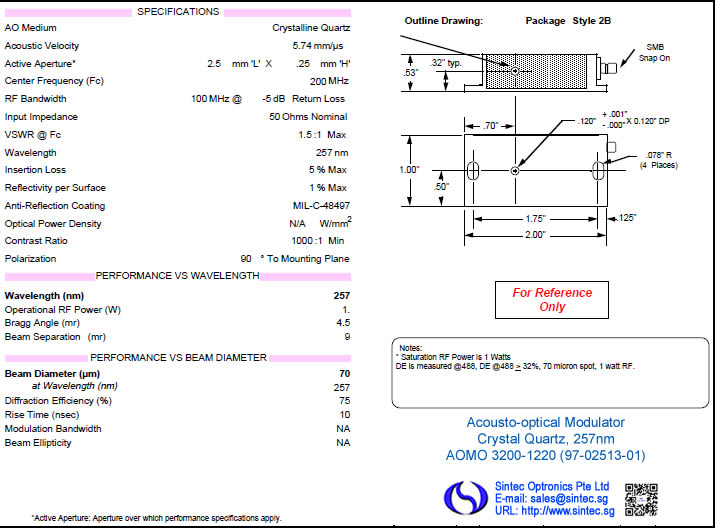

AOMO 3200-1220 (97-02513-01)257nm10ns0.25mm200MHzCrystalline Quartz
I-M110-3C10T-3-GH72355nm113ns/mm3mm110MHzCrystalline Quartz
I-M80-6.5C10T-4-GH60355 nm113 ns/mm6.5 mm80 MHzCrystalline quartz
I-M110-2C10B6-3-GH26400-540 nm113 ns/mm2 mm110 MHzCrystalline quartz

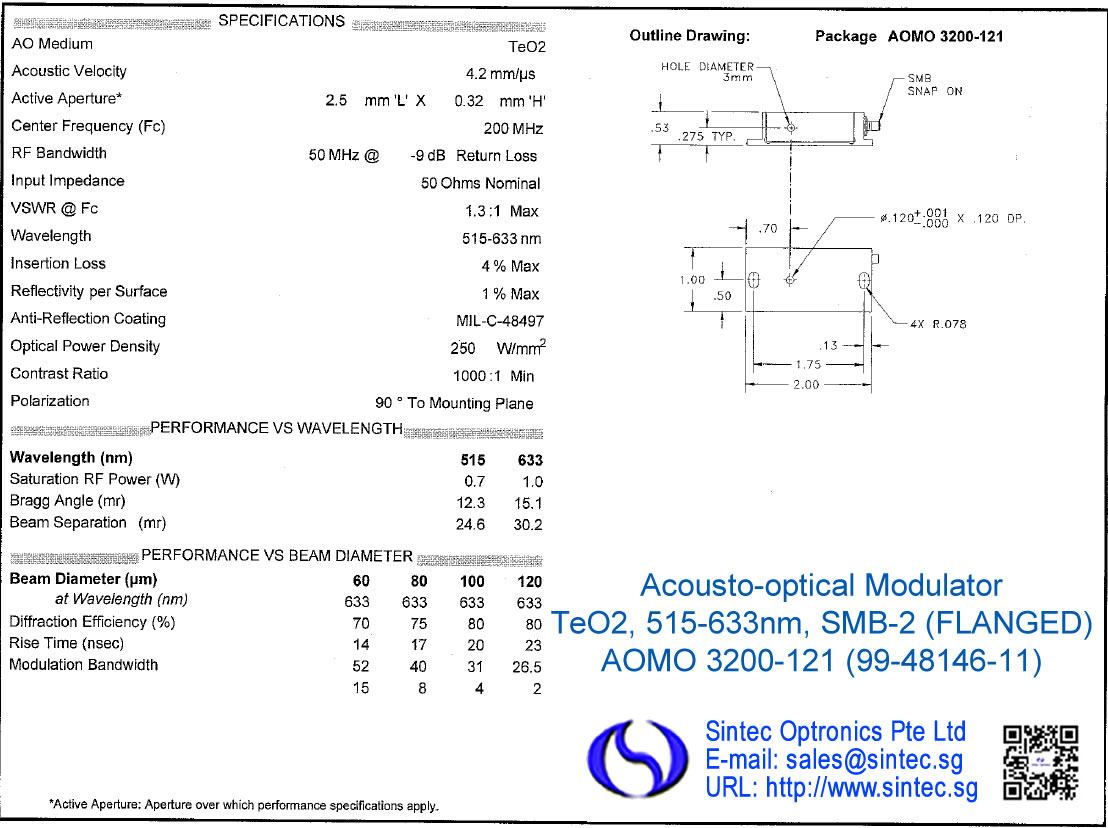

AOMO 3200-121 (99-48146-11)442-488nm153 ns/mm0.32nm200MHzTellurium Dioxide

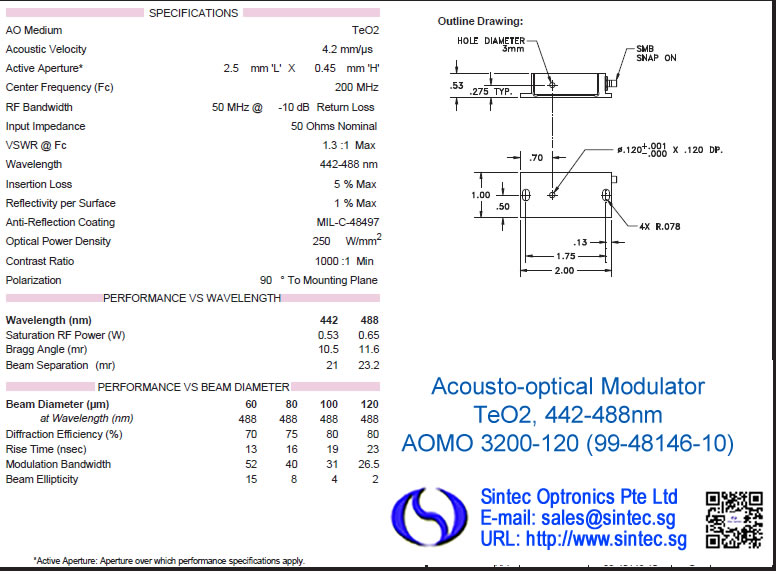

AOMO 3200-120 (99-48146-10)442-488nm153 ns/mm0.45mm200MHzTellurium Dioxide

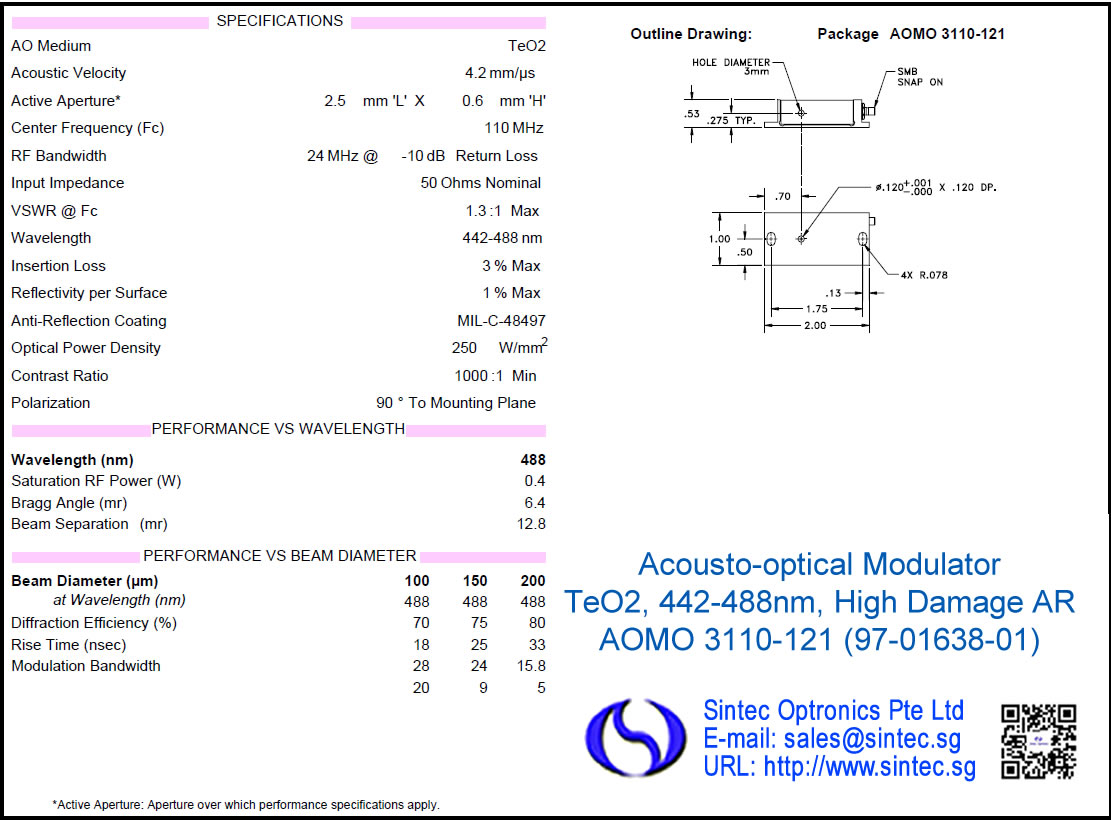

AOMO 3110-121 (97-01638-01)442-488nm153 ns/mm0.6mm110MHzTellurium Dioxide

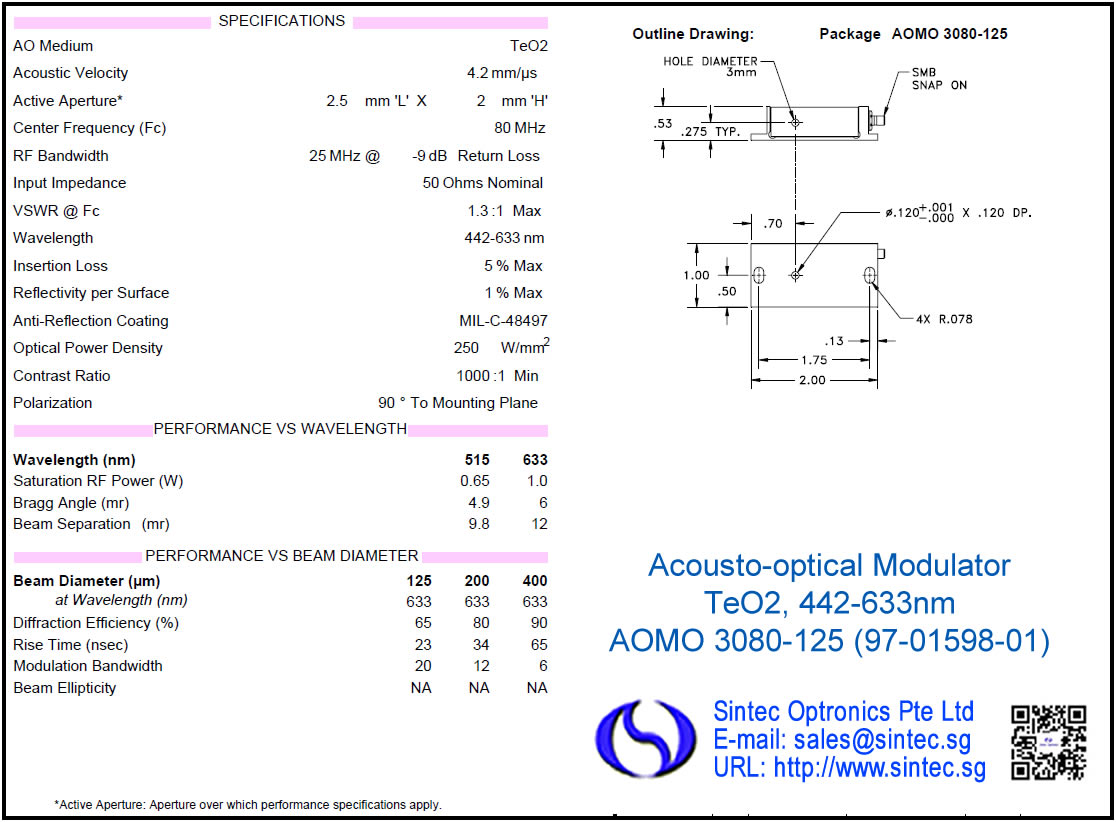

AOMO 3080-125 (97-01598-01)415-900nm153 ns/mm2mm80MHzTellurium Dioxide

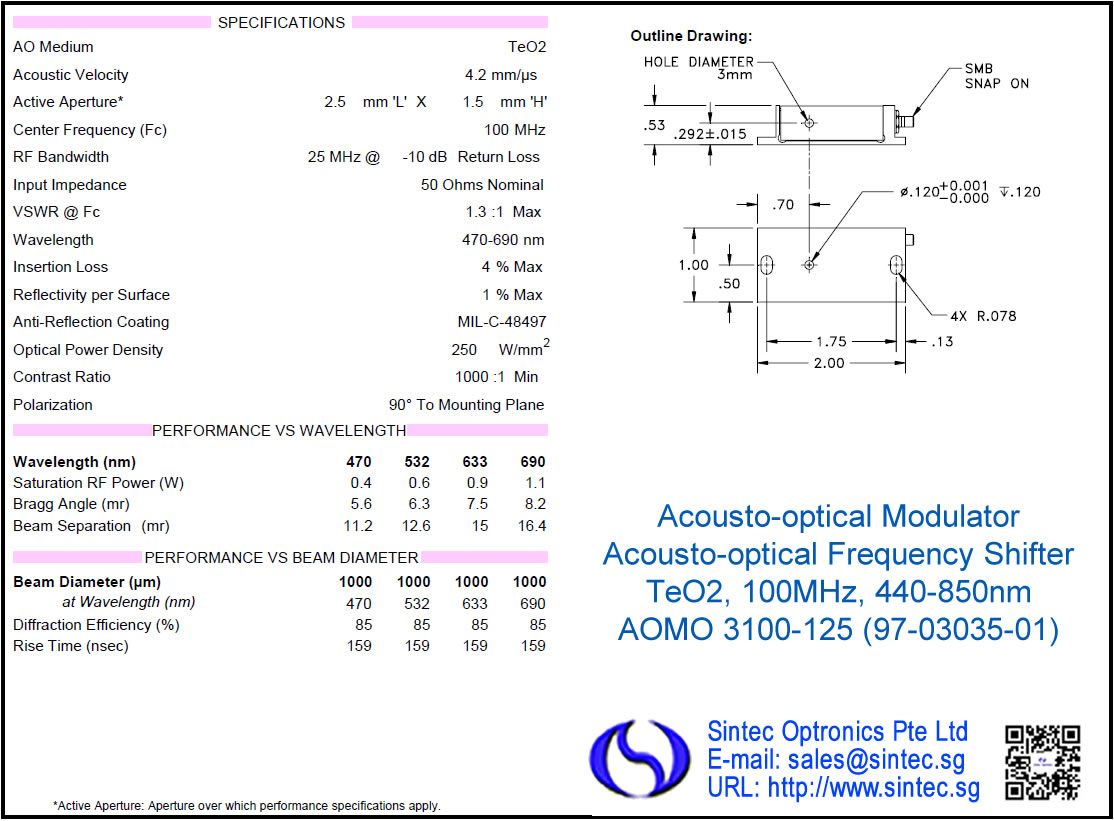

AOMO 3100-125 (97-03035-01)440-850nm153 ns/mm1.5mm100MHzTellurium Dioxide
AOMO 3200-125 (97-03036-01)440-850nm153 ns/mm1.5mm200MHzTellurium Dioxide
AOMO 3350-125440-850nm153 ns/mm1.5mm350MHzTellurium Dioxide

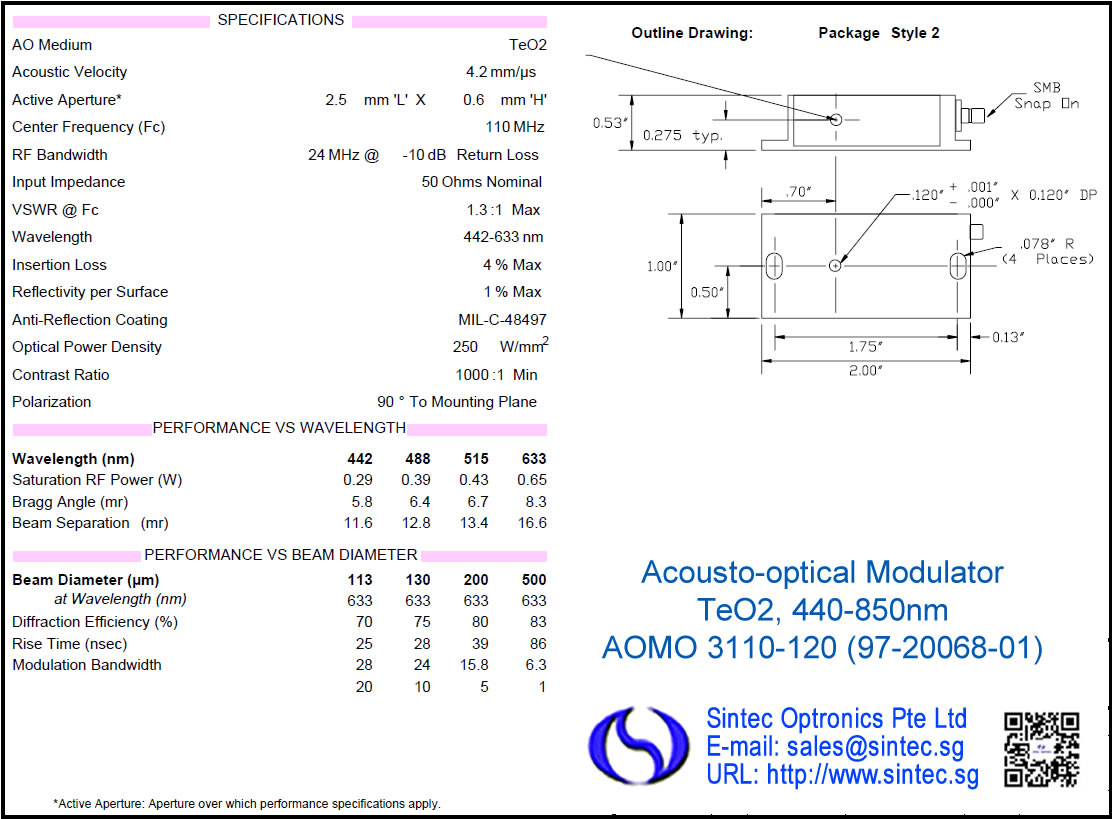

AOMO 3110-120 (97-20068-01)440-850nm153 ns/mm0.6mm110MHzTellurium Dioxide

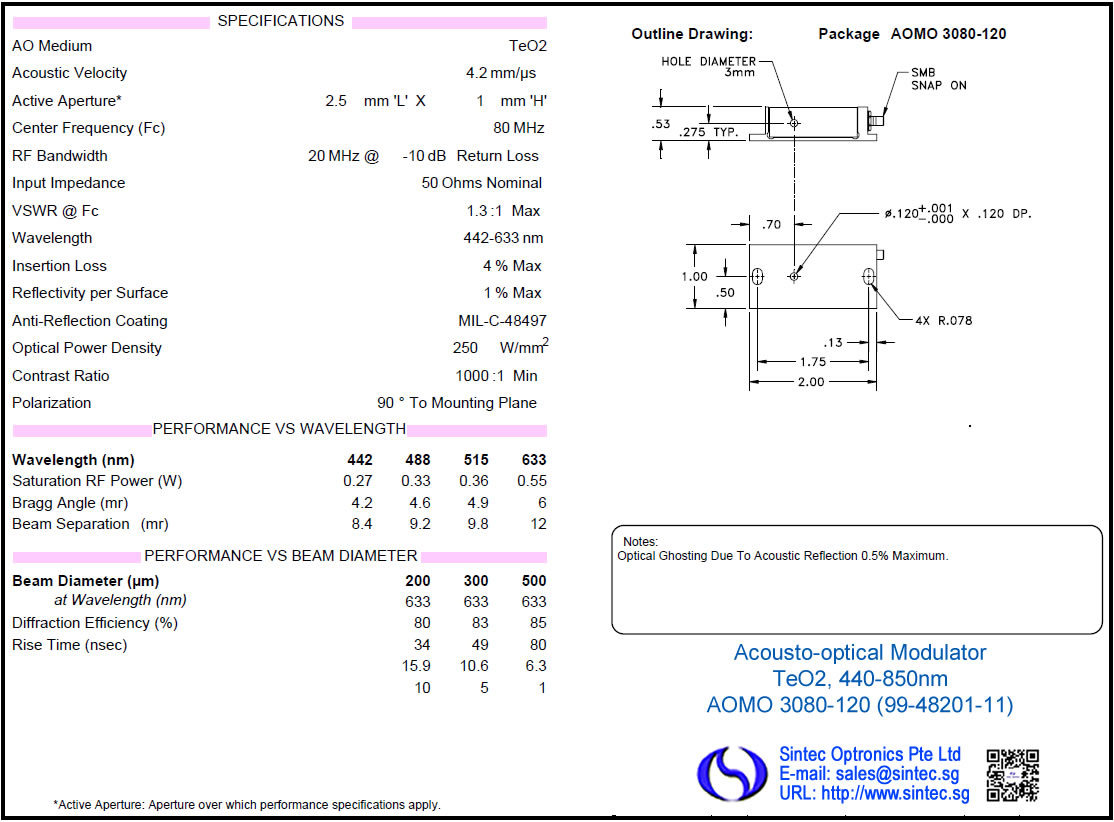

AOMO 3080-120 (99-48201-11)440-850nm153 ns/mm1mm80MHzTellurium Dioxide

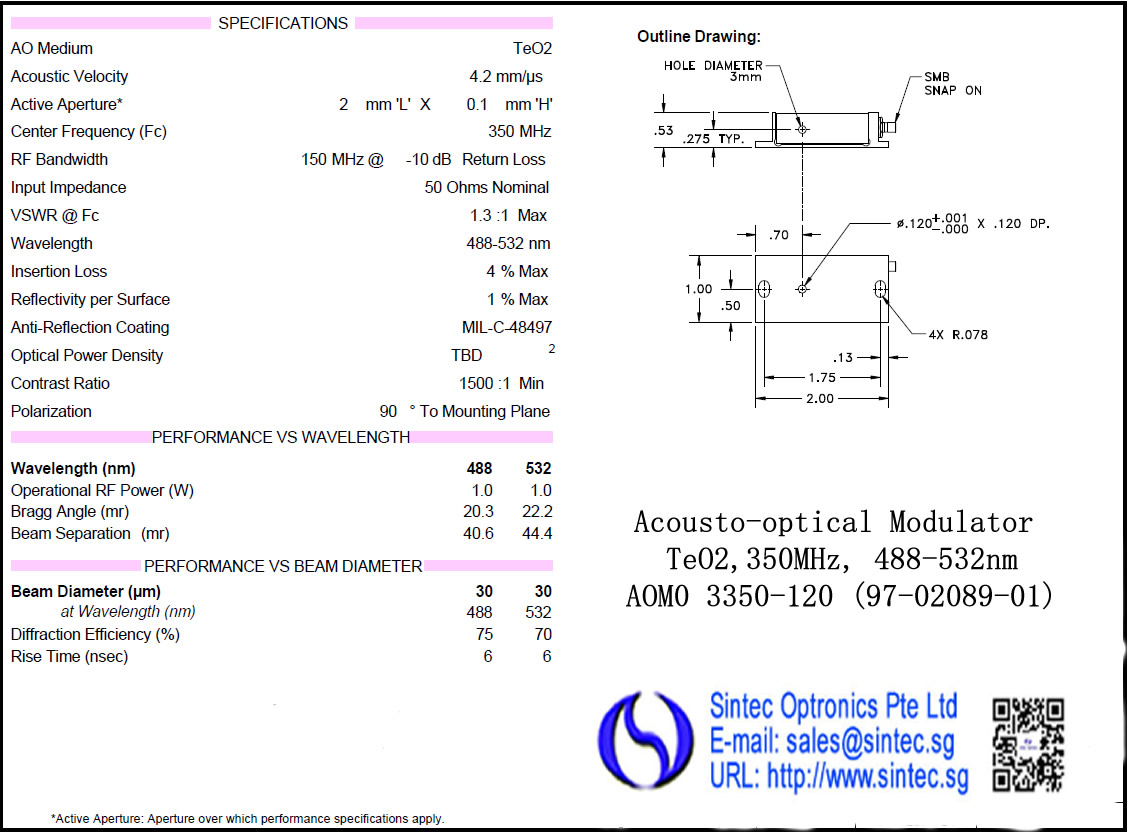

AOMO 3350-120488-532nm153 ns/mm0.1mm350MHzTellurium Dioxide
AOMO 3350-111488-650nm
2mm’L’x0.15’H’350MHzTellurium Dioxide

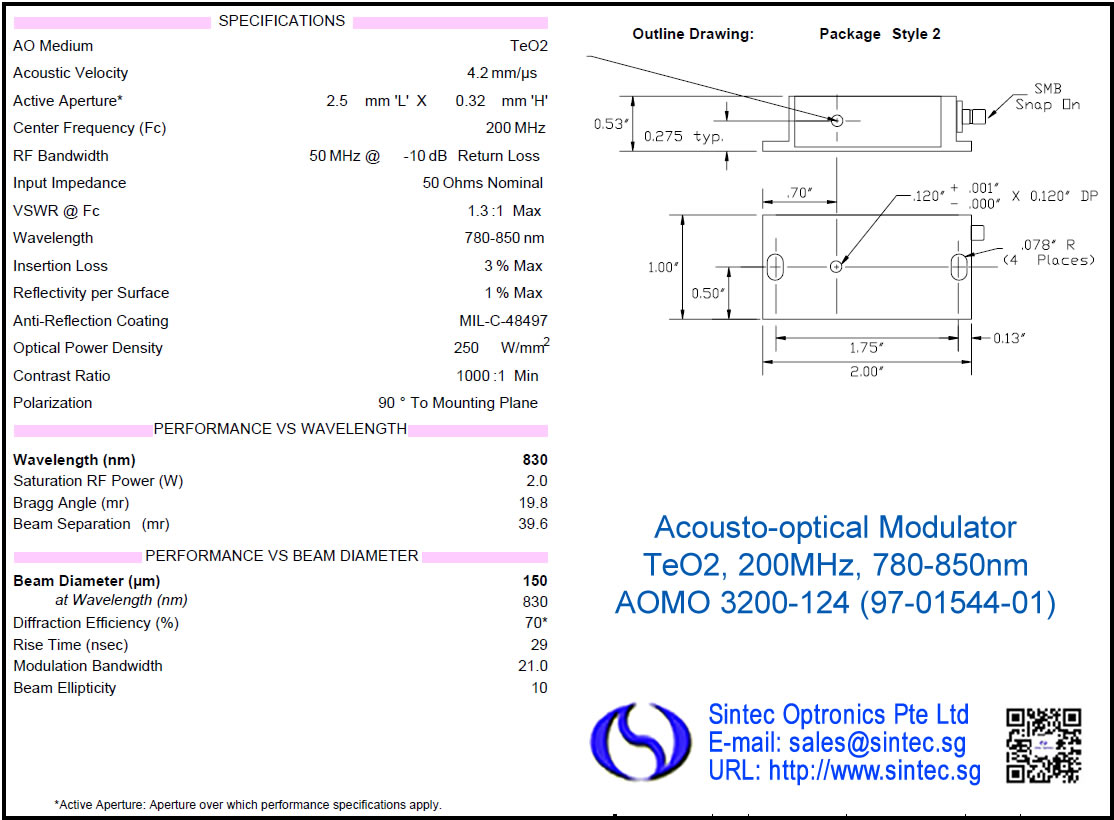

AOMO 3200-124 (97-01544-01)780-850nm113 ns/mm0.32mm200MHzTellurium Dioxide

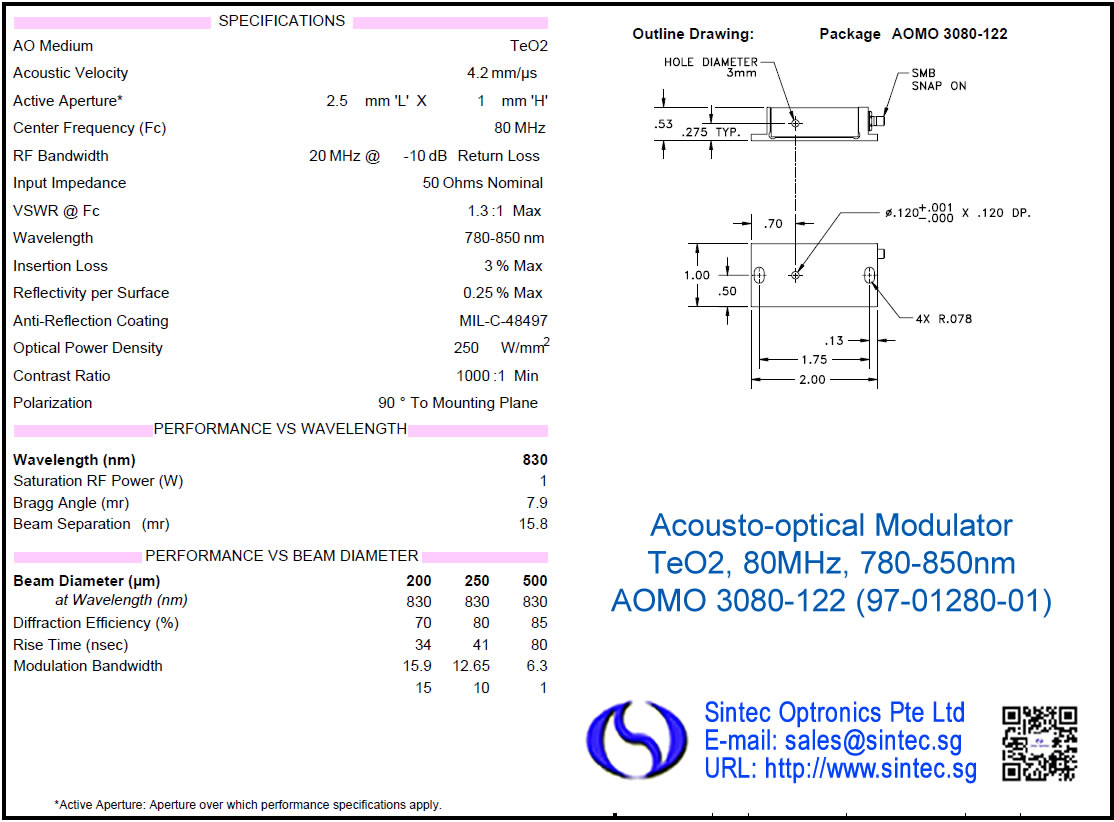

AOMO 3080-122 (97-01280-01)780-850nm153 ns/mm1mm80MHzTellurium Dioxide

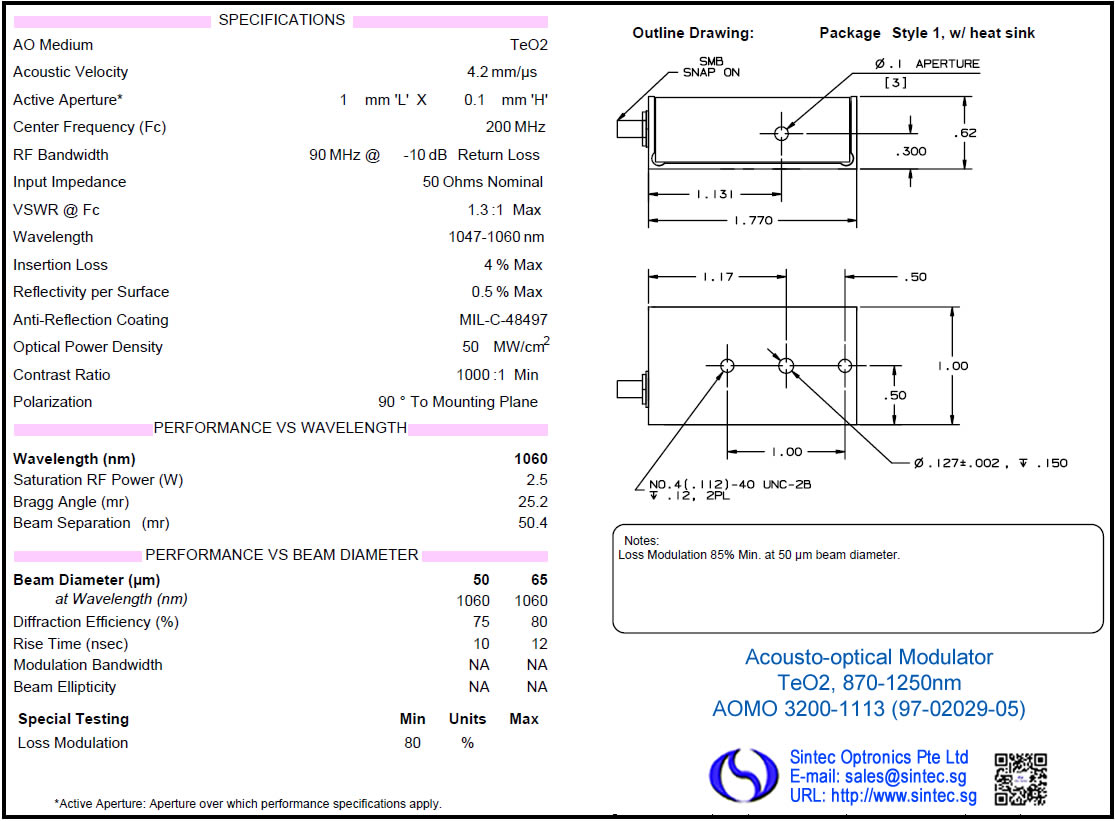

AOMO 3200-1113 (97-02029-05)870-1250nm153 ns/mm0.1mm200MHzTellurium Dioxide
I-M041-2.5C10G-4-GH501030-1064nm113 ns/mm2.5 mm40.68 MHzCrystalline Quartz

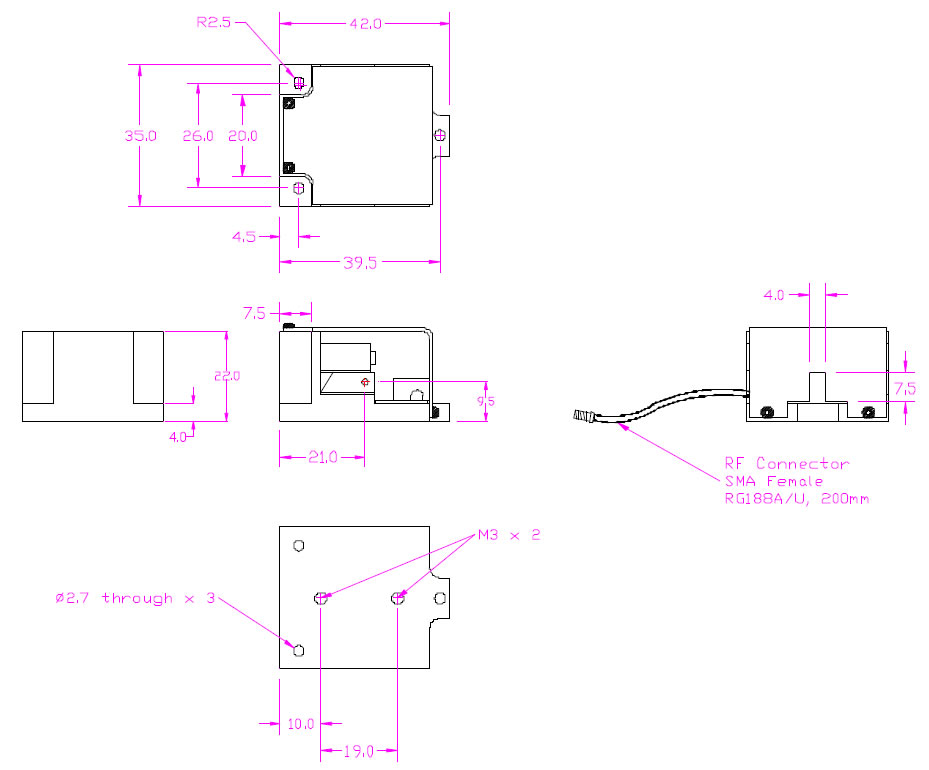

I-M080-2C10G-4-AM31030-1064nm113ns/mm2mm80MHzCrystalline Quartz
I-M080-2.5C10G-4-AM31030-1064nm113ns/mm2.5mm80MHzCrystalline Quartz

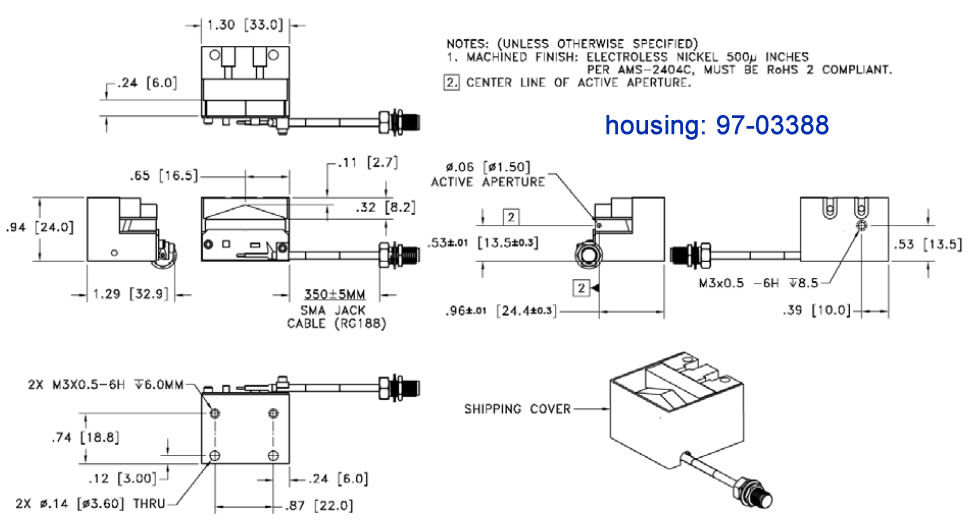

97-03388-03R1 (5080-296)1064nm113ns/mm1.5mm80MHzCrystalline Quartz
97-03388-02R2 (5041-296)1064nm113ns/mm1.5mm40.68MHzCrystalline Quartz
I-M080-4C10G-4-GH601030-1064nm113 ns/mm4 mm80 MHzCrystalline quartz
I-M068-5C10G-U5-GH1001030-1064nm113 ns/mm5 mm68 MHzCrystalline quartz

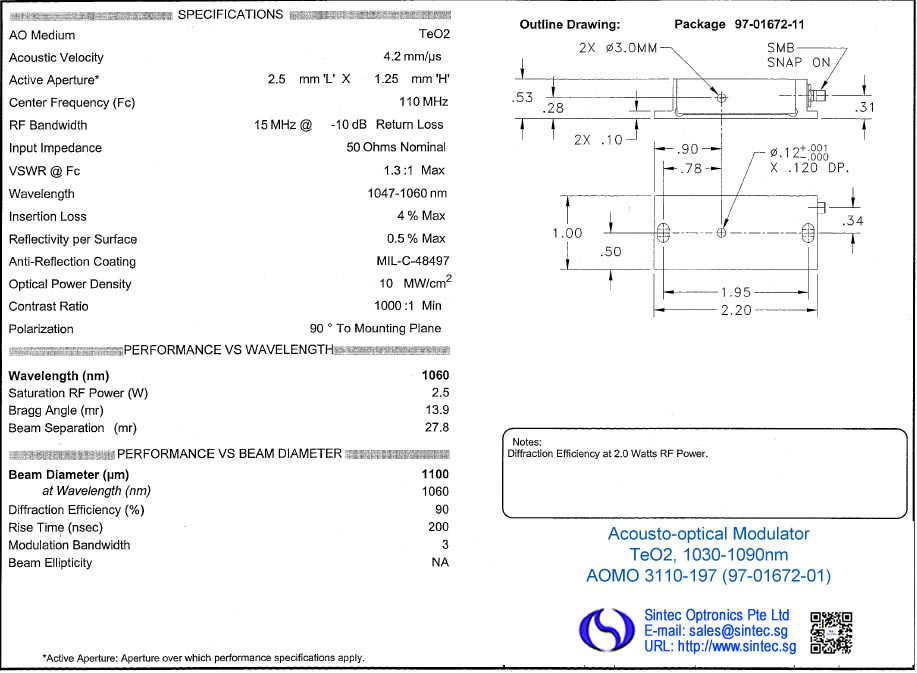

AOMO 3110-197 (97-01672-01)1030-1090nm153 ns/mm1.25mm110MHzTellurium dioxide
AOMO 3080-1941060 nm153 ns/mm1.75 mm80 MHzTellurium dioxide

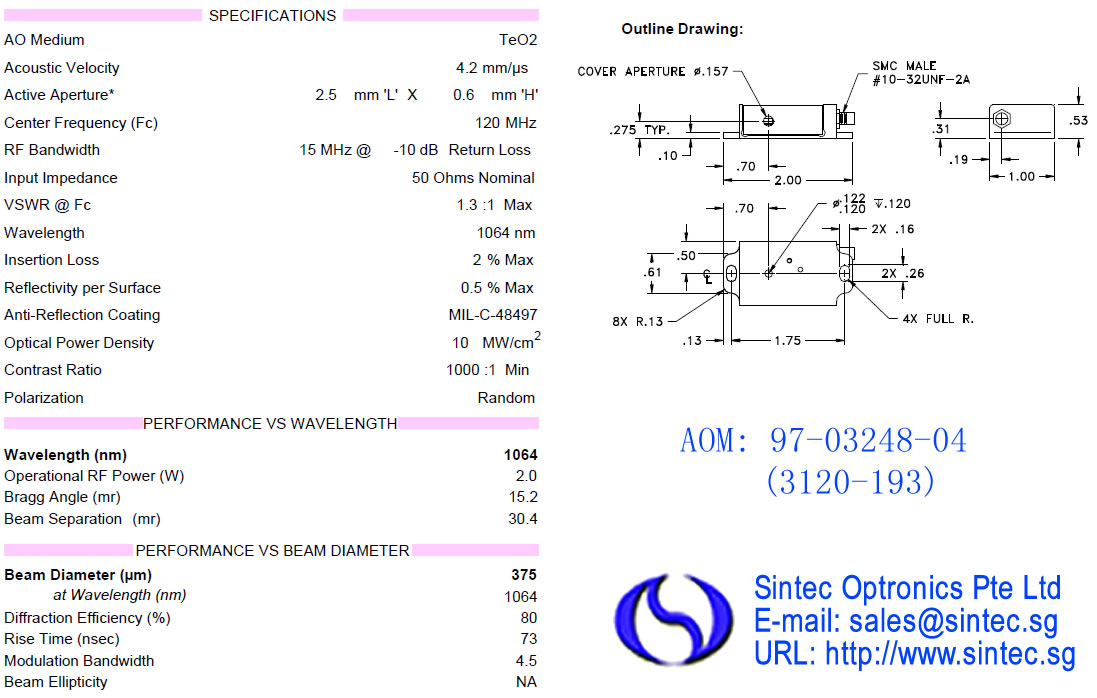

AOMO 3120-193 (97-03248-04)1064nm73 ns/mm2.5x0.6mm120MHzTellurium dioxide
AOMO/AOFS 3165-11300-1550 nm153 ns/mm0.6 mm165 MHzTellurium dioxide
I-M040-2C8J-3-GH841550 nm260 ns/mm2 mm40 MHzAMTIR
I-M041-3C2V5-4-IS82000 nm153 ns/mm3 mm40.68 MHzTellurium dioxide
I-M041-1.4C10V5-4-GH491900-2100 nm113 ns/mm1.4 mm40.68 MHzCrystalline quartz
I-M040-2C8B1-3-GH841900-2100 nm260 ns/mm2 mm40 MHzAMTIR

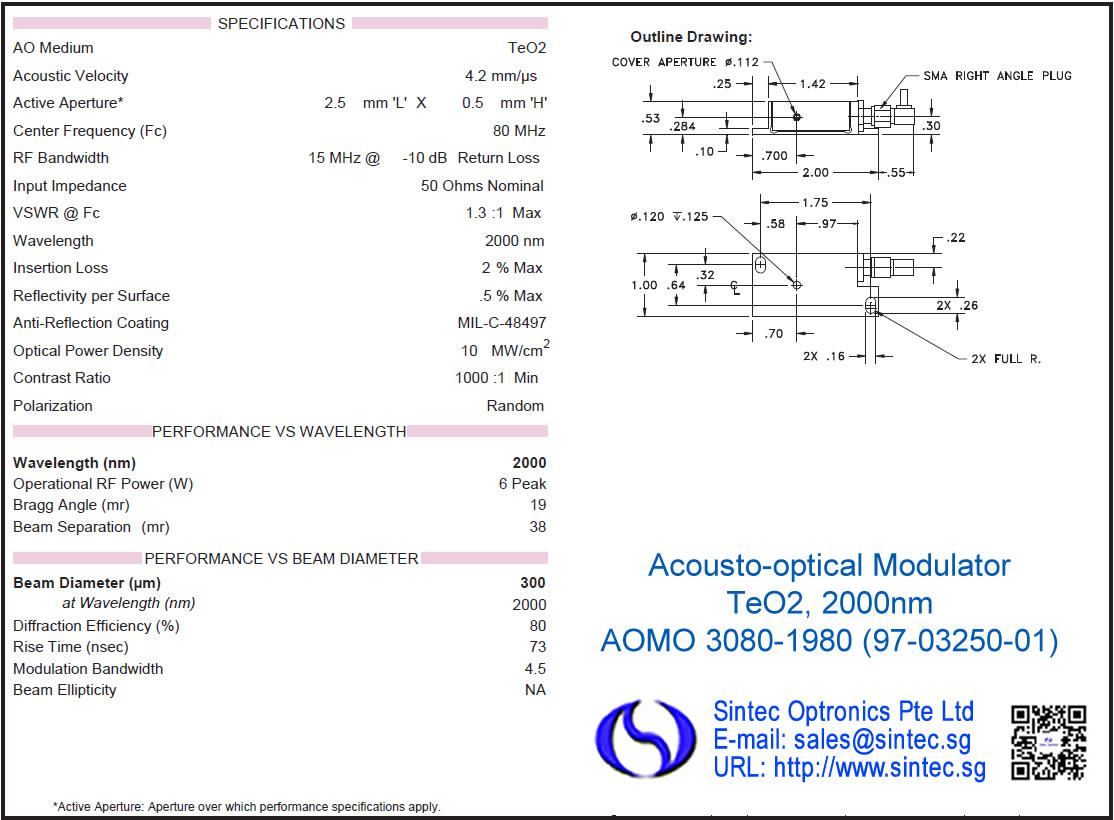

AOMO 3080-1980 (97-03250-01)2000nm73ns2.5x0.5mm80MHzTellurium dioxide
I-M0XX-XC11B76-P5-GH1055.5µm120 ns/mmup to 9.6 mm40.68 - 60 MHzGermanium
I-M050-10C11V49-P5-GH775.5 μm120 ns/mm7.0, 9.6 mm50 MHzGermanium
I-M050-10C11V41-P3-GH759.4 μm120 ns/mm9.6 mm40/60 MHzGermanium
I-M041-xxC11xxx-P5-GH779.4/10.6 μm120 ns/mm7.0, 9.6 mm40.68 MHzGermanium

Our old AOM models are listed in the below table. These old models may or may not be in stock or obsolete and no longer produced. Please check with our sales regarding the availability of the below models.

ModelDescriptionDriver
I-FS040-1.5C2E-1-ME1 (FS040-2E-ME1)630-690nm, 40MHz, 4x2mm apertureIntegrated RF driver
I-FS040-1.5S2E-1-ME1 (FS040-2E-ME1)630-690nm, 40MHz, 4x2mm apertureIntegrated RF driver
I-FS040-2C2E-3-OL3 (FS040-2E-OL3)633-680nm, 40MHz, 2x4mm aperture
I-FS040-2S2E-1-GH38630-67nm,40MHz, 2.0mm aperture, 15VDC powerIntegrated RF driver
FS040-2C-AR1532nm, 40MHz, 1.5mm aperture,Integrated RF driver
FS040-2E-AR1630-690nm, 40MHz, 1.5mm aperture,Integrated RF driver
I-M041-2.5C10G-4-GH501030-1064nm, 40.68MHz, 113ns/mm rise time, 2.5mm aperture, RF<20W
I-M041-7C11Q-P5-GH7710.6um wavelength, 40.68MHz, 120ns/mm rise time, 7mm active aperture, transmission >96.5%, max RF power 100WHP041-125ADG-A10

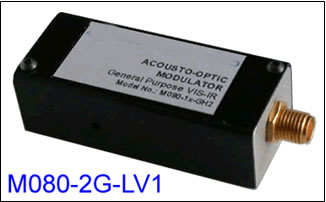

I-FS080-2C2G-3-LV1
       (M080-2G-LV1)
High efficiency AO Modulator for lasers where fast modulation is not critical, RF 0.5WA35080
       N21080-1DM, N21080-1AM
I-FS080-3S2E-1-GH39633nm, 80MHz up-shift, 3mm aperture
I-M080-2.5C10G-4-GH25400-540nm,110MHz, 113ns/mm rise time, 2.5mm aperture, RF<5WA35080
       N31080-5DM, N31080-5AM
I-FS110-2C2B8-3-GH2
       (M110-2B/F-GH2)
480-800nm, 150ns risetime, 110MHz, 2mm aperture, RF<2WA35110,
       N21110-2AM, N21110-2DM
I-M110-2C10B6-3-GH26
       (M110-10UV-OR1)
351 to 364nm, 110MHz, 110ns rise-time, Crystal Quartz for high power handling, RF 3WA35110
       N31110-3DM, N31110-3AM
I-M110-2C10B6-3-GH26400-540nm, 110MHz, 113ns/mm rise time, 2mm aperture, RF <5WA35110
       N31110-5DM, N31110-5AM
I-M110-2.5C10B6-3-GH26400-540nm, 110MHz, 113ns/mm rise time, 2.5mm aperture, high damage threshold, RF<5WA35110
       N31110-5DM, N31110-5AM
I-M110-3C10B6-3-GH27300-400nm, 110MHz, 113ns/mm rise time, 2.5mm aperture, high damage threshold, RF<3W
I-M110-3C10B6-3-GH27
       (M110-10C-TR7)
AO Modulator for wavelength 514 to 532nm, high damage threshold , RF 5WA35110
       N31110-5DM, N31110-5AM
I-M120-0.7C2G-GH421064nm, 120MHz, 153ns/mm rise time, 700um aperture, RF<3W
I-M150-0.4C2G-GH421064nm, 150MHz, 153ns/mm rise time, 400um aperture, RF<2W
I-M200-0.75C2G-3-SO81064nm, 200MHz, 153ns/mm rise time, 0.75mm aperture, RF<3W
12038-3-BR-TESiO2, used for various wavelength, 38MHz, aperture 2mm, deflection 6.75mrad, RF 1W11038-1ML
12038-3-TESiO2, 1064nm wavelength, 38MHz, aperture 3mm, deflection, 6.75mrad, RF 1W11038-1ML
12041-3-BR-TESiO2, used for various wavelength, 41MHz, aperture 2mm, deflection 7.3mrad, RF 1W11041-1ML
12041-3-TESiO2, 1064nm wavelength, 41MHz, aperture 3mm, deflection 7.3mrad, RF 1.2W11041-1ML
12050-3-BR-TESiO2, used for various wavelength, 50MHz, aperture 2mm, deflection 8.9mrad, RF 1W11050-1ML
12050-3-TESiO2, 1064nm wavelength, 50MHz, aperture 3mm, deflection 8.9mrad, RF 1.2W11050-1ML
12080-3-BR-TESiO2, used for various wavelength, 80MHz, aperture 2mm, deflection 14.2mrad, RF 1W11080-1ML
12080-3-TESiO2, 1064nm wavelength, 80MHz, aperture 3mm, deflection 14.2mrad, RF 1.2W11080-1ML
13389-BRSiO2, used for various wavelength, 389MHz, aperture 60um, deflection 41mrad, RF 0.5W64389-SYN-9.5-X
15180-1.06-LTD-GAPGaP, 1.06um wavelength, 180MHz, aperture 0.3mm, deflection 28.7mrad, RF 1.7W
15210TeO2, 440-850nm wavelength, 210MHz, aperture 0.2mm, deflection 31mrad, RF1W21210-1xx
15210-FOA/71002TeO2, 440-850nm wavelength, 210MHz, aperture 0.2mm, deflection 31mrad, RF1W21210-1xx
15210-FOATeO2, 440-850nm wavelength, 210MHz, aperture 0.2mm, deflection 31mrad, RF1W21210-1xx
15260TeO2, 440-850nm wavelength, 260MHz, aperture 0.2mm, deflection 39mrad, RF0.7W21260-.7xx
15260-FOA/71002TeO2, 440-850nm wavelength, 260MHz, aperture 0.2mm, deflection 39mrad, RF1W21260-1xx
15260-FOATeO2, 440-850nm wavelength, 260MHz, aperture 0.2mm, deflection 39mrad, RF1W21260-1xx
17389-1.06-LTD-GaPGaP, 1.06um wavelength, 389MHz, aperture 0.15mm, deflection 62mrad, RF 1W11389-5AM,
       64389.5-SYN-9.5-X
17389-.93TeO2, 700-1064nm wavelength, 389MHz, aperture 70um, deflection 73mrad, RF 0.7W11389-5AM,
       64389.5-SYN-9.5-X
17389-.93-FOATeO2, 700-1064nm wavelength, 389MHz, aperture 70um, deflection 73mrad, RF 0.7W11389-5AM,
       64389.5-SYN-9.5-X
17440TeO2, 440-850nm wavelength, 440MHz, aperture 90um, deflection 65mrad, RF 0.8W11440-.8Ax
17440-FOATeO2, 440-850nm wavelength, 440MHz, aperture 90um, deflection 65mrad, RF 0.8W11440-.8Ax
23080-1-LTDTeO2, 440-850nm wavelength, 80MHz, aperture 1mm, 150 ns / mm rise time, deflection 11.88mrad, RF 1W21080-1xx
23080-1-.85-LTDTeO2, 700-1000nm wavelength, 80MHz, aperture 1mm, 150ns/mm rise time, deflection 16mrad, RF 1W21080-1xx
23080-1-1.06-LTDTeO2, 1064nm wavelength, 80MHz, aperture 1mm, 150ns/mm rise time, deflection 20mrad, RF<1.25W21080-1xx
23080-1-1.06/1.3-LTDTeO2, 1.06-1.3um wavelength, 80MHz, aperture 1mm, 155ns/mm rise time, deflection 24.4mrad @ 1.3um, 20mrad @ 1.06um, RF<2W @ 1.3um, <1.2W @ 1.06um21080-1xx
23080-1-1.3-LTDTeO2, 1300nm wavelength, 80MHz, aperture 1mm, 150ns/mm rise time, deflection 25mrad, RF<1.25W21080-1xx
23080-1-1.55-LTDTeO2, 1550nm wavelength, 80MHz, 1mm aperture, 150ns/mm rise time, deflection 29mrad, RF<2W21080-2xx
23080-2-LTDTeO2, 440-850nm wavelength, 80MHz, aperture 2mm, 150ns/mm rise time, deflection 11.88mrad @ 633nm, RF 1W21080-1xx
23080-2-.85-LTDTeO2, 700-1000nm wavelength, 80MHz, 2mm aperture, 150ns/mm rise time, deflection 15mrad @ 850nm, RF<2W21080-2xx
23080-2-1.06-LTDTeO2, 1064nm wavelength, 80MHz, 2mm aperture, 150ns/mm rise time, deflection 20mrad, RF<2W21080-2xx
23080-2-1.3-LTDTeO2, 1300nm wavelength, 80MHz, 2mm aperture, 150ns/mm rise time, deflection 24.4mrad, RF<3.2W21080-3xx
23080-2-1.55-LTDTeO2, 1550nm wavelength, 80MHz, 2mm aperture, 150ns/mm rise time, deflection 29mrad @ 1550nm, RF<3.2W21080-3xx
23080-3-LTDTeO2, 440-850nm wavelength, 80MHz, aperture 3mm, 150ns/mm risetime, deflection 11.88mrad @ 633nm, RF<1.2W21080-1.2xx
23080-3-.85-LTDTeO2, 700-1000nm wavelength, 80MHz, 3mm aperture, 150ns/mm risetime, deflection 16mard @ 850nm, RF 2W21080-2xx
23080-3-1.06-LTDTeO2, 1064nm wavelength, 80MHz, 3mm aperture, 150ns/mm risetime, deflection 20mard, RF<2W21080-2xx
23080-3-1.3-LTDTeO2, 1300nm wavelength, 80MHz, 3mm aperture, 150ns/mm risetime, deflection 24.4mard, RF<4W21080-4xx
23110-.5TeO2, 440-850nm wavelength, 110MHz, 0.5mm aperture, 150ns/mm risetime, deflection 16.3mard @ 633nm, RF<1W21110-1xx
23110-1-LTDTeO2, 440-850nm wavelength, 110MHz, 1mm aperture, 150ns/mm risetime, deflection 16.34mard @ 633nm, RF<1W21110-1xx
24080-1SF6, 440-850nm wavelength, 80MHz, 1mm aperture, 185ns/mm risetime, deflection 14.4mrad @ 633nm, RF<1W21080-1xx
26035-2-1.55-LTDAMTIR, 1300-1600nm wavelength, 35MHz, 2mm aperture, 260ns/mm risetime, deflection 20.6mard @ 1550nm, RF<0.5W21035-0.5xx
26055-1-1.55-LTDAMTIR, 1300-1600nm wavelength, 55MHz, 1mm aperture, 260ns/mm risetime, deflection 32.4mard @ 1550nm, RF<0.5W21055-0.5xx
35085-.5Fused Silica, 400-540nm wavelength, 85MHz, 0.5mm aperture, 110ns/mm risetime, deflection 5mrad @ 514nm, RF<6W31085-6xx
35085-0.5-350Fused silicon, 300-400nm wavelength, 85MHz, aperture 0.5mm, 110ns/mm risetime, deflection 5mrad@350nm, RF<6W31085-6xx
35085-3Fused silicon, 400-540nm wavelength, 85MHz, aperture 3mm, 110ns/mm risetime, deflection 5mrad @ 488nm, RF 6W31085-6xx
35085-3-350Fused silicon, 300-400nm wavelength, 85MHz, aperture 3mm, 110ns/mm risetime, deflection 5mrad @ 350nm, RF 3W31085-6xx
35110-2-244KrF grade fused silica, 244nm wavelength, 110MHz, aperture 2mm, deflection 4.5mrad, RF 2W21110-2xx
35110-2-244-BRKrF grade fused silica, 244-260nm wavelength, 110MHz, aperture 2mm, deflection 4.5mrad @ 244nm, RF 4W31110-4xx
35110-3-244-BR-KRFKrF grade fused silica, 244-260nm, Brewster window, 110MHz, aperture 2mm, deflection 4.5mrad @ 244nm, RF 4W31110-4xx
35210-BR/71004Fused silica, 300-700nm wavelength, 210MHz, aperture 0.13mm, deflection 17mrad, RF 6W31210-6xx
35210-BRFused silica, 300-700nm wavelength, 210MHz, aperture 0.13mm, deflection 17mrad, RF 6W31210-6xx
35250-.2-.53-XQCrystal quartz, 532nm wavelength, 250MHz, aperture 0.2mm, deflection 23mrad, RF 6W31250-6xx
37027-3Ge, 10.6um wavelength, 27.12MHz, aperture 3mm, deflection 52mard, RF 30W39027-30DSA05
37027-5Ge, 10.6um wavelength, 27.12MHz, aperture 5mm, deflection 52mrad, RF 30W39027-35DSA05
37027-8-10.6Ge, 10.6um wavelength, 27.12MHz, aperture 8mm, deflection 52mard, RF 50W39027???
37040-5Ge, 10.6um wavelength, 40MHz, aperture 5mm, deflection 78mard, RF 35W39040-35DSA05-A
37041-8-4.5Ge, 4-5um wavelength, 40.68MHz, aperture 8mm, deflection 33mard, RF 15W39040-35DSA05-A???
47040-5-.7-RATeO2, 655-850nm wavelength, 40MHz, aperture 5mm, deflection 47mrad, RF<0.6W
48060-8/4-1.0-COLTeO2, 800-1200nm wavelength, 54-84MHz, aperture 8x2mm, deflection 23mrad, RF<100mW
MFS030-3S2C-5-6.5DEGTeO2, 532nm, 30MHz, 3mm aperture, 1us/mm risetime, deflection 24mrad, RF<0.2WMLP030-1DC
       MLP030-1AC-A1
       (Former 21xxx-Yzz)
MFS030-3S2E-5-6.5DEGTeO2, 633nm, 30MHz, 3mm aperture, 1us/mm risetime, deflection 28mrad, RF<0.8WMLP030-1DC
       MLP030-1AC-A1
       (Former 21xxx-Yzz)
MFS040-35/13S2C-3TeO2, 532nm, 40MHz, 35x13mm aperture, 1us/mm risetime, deflection 34.4mrad, RF<1.2W
MFS050-3S2C-5-6.5DEGTeO2, 532nm, 50MHz, 3mm aperture, 1us/mm risetime, deflection 40mrad, RF<0.5W
MFS050-5S2E-5-6.5DEGTeO2, 633nm, 50MHz, 5mm aperture, 1us/mm risetime, deflection 48mrad, RF<1.5WMLP050-1.5DC
       MLP050-1.5AC-A1
       (Former 21xxx-Yzz)
MFS080-35/5S2C-3TeO2, 532nm, 80MHz, 35x5mm aperture, 1us/mm risetime, deflection 68.9mrad, RF<4W
MFS100-2C4BB-5Fused Silica, 300-400nm, 80-120MHz, 2mm aperture, deflection 2.4mrad @ 355nm, 6mrad @ 100MHz @ 355nm, RF<6W
MFS150-.2C17J-3-F2P-A-GH
MLP150-2AC-A1 (Former 21xxx-Yzz)
MFS160-5/13S2C-3TeO2, 532nm, 160MHz, 5x13mm aperture, 1us/mm risetime, deflection 138mrad, RF<2W
MFS400-.2C2V13-5TeO2, 650nm, 350-450MHz, 0.2mm aperture, deflection 15.2mrad, deflection 61mrad @ 400MHz, RF<1W
MFS500-.2C2B26-5TeO2, 490-500nm, 450-550MHz, 0.2mm aperture, deflection 11.6mrad @ 495nm, deflection 58mrad @ 495nm @ 500MHz, RF<0.8W
MM027-3C11B40-S5-30W
31027-6DM
MM040-5C11B38-5
31040-6DM
MM200-.2C17B34-5GaP, 1.06-1.7um, 200MHz, 0.2mm aperture, deflection 31.8mrad @ 1.06um, 51mrad @ 1.7um @ 500MHz, RF<2W
MPP389-.15C17G-C-FOAGaP, 1.06um, 389MHz, 150um aperture, deflection 62mrad, RF<2.5W with duty cycle <20% & RF on duration <200nsec
MTF096-2S2B43-3-1ST/-1STTeO2, 1.5-1.6um, 52.5-56.1MHz, 2mm aperture, deflection 7.4degree, RF<4W
MTF096-2S2B43-3-1ST/-1ST-1.2TeO2, 1.5-1.6um, 92.53-98.89MHz, 2mm aperture, resolution 2.5nm, deflection 7.4degree, RF<4W
MTF096-2S2B43-3-1ST/-1ST-2.5TeO2, 1.5-1.6um, 92.53-98.89MHz, 2mm aperture, resolution 2.5nm, deflection 7.4degree, RF<4W
I-M041-xxC11xxx-P5-GH77Germanium, 9.4um or 10.6um, 40.68MHz, up to 9.6mm aperture, RF power 120WHP041-125ADG-A10
I-M041-10C11Q-P5-SY1Monocrystaline Germanium, 10.6um, 40.68MHz, 6-8mm aperture, RF power 100WA25041-x-5/600-s4k7u
I-M080-2C10G-4-AM3Crystal Quartz, 1030-1064nm, 80MHz, 2mm aperture, Linear polarisation, Compressional, 85% diffraction efficiency, RF power 15WQCXXX-YYDC-ZZZ-AAV
I-M080-2.5C10G-4-AM3Crystal Quartz, 1030-1064nm, 80MHz, 2.5mm aperture, Linear polarisation, Compressional, 80% diffraction efficiency, RF power 15WQCXXX-YYDC-ZZZ-AAV
I-M-060-XXC11B76-P5-GH105

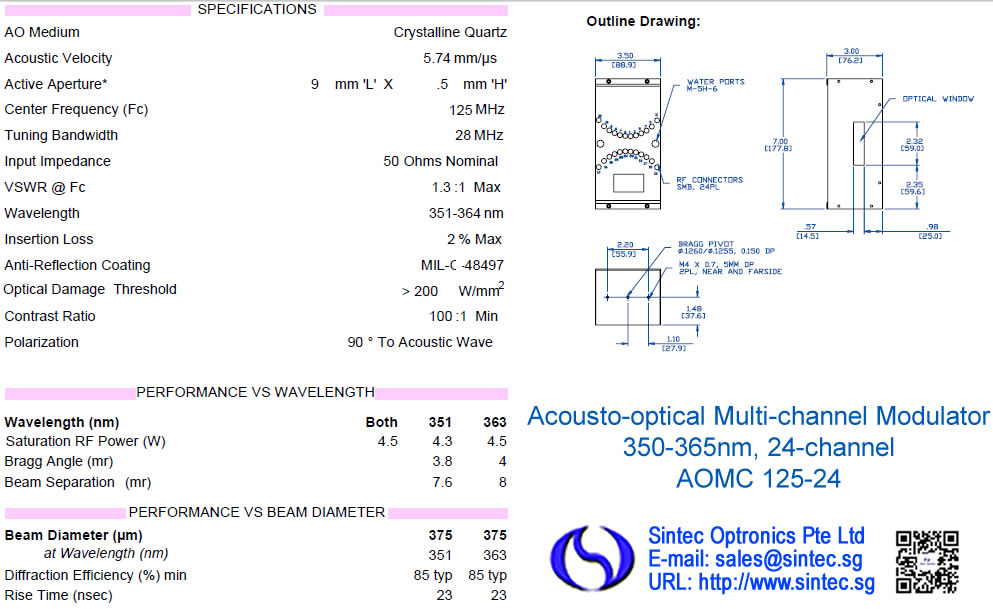

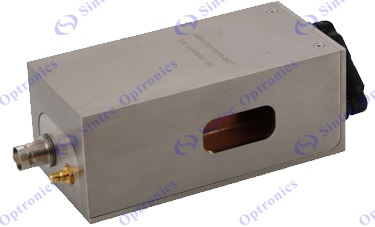

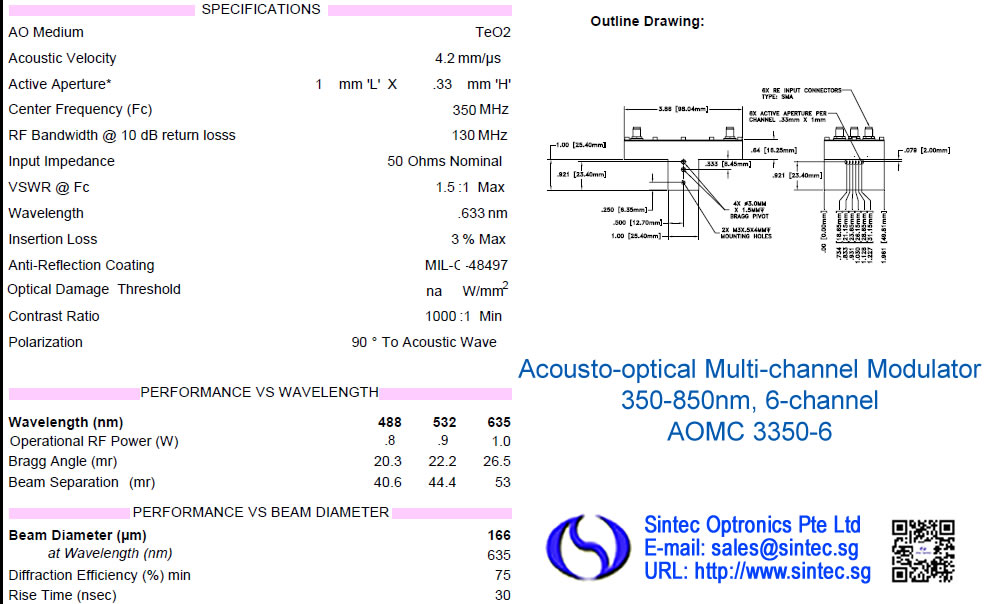

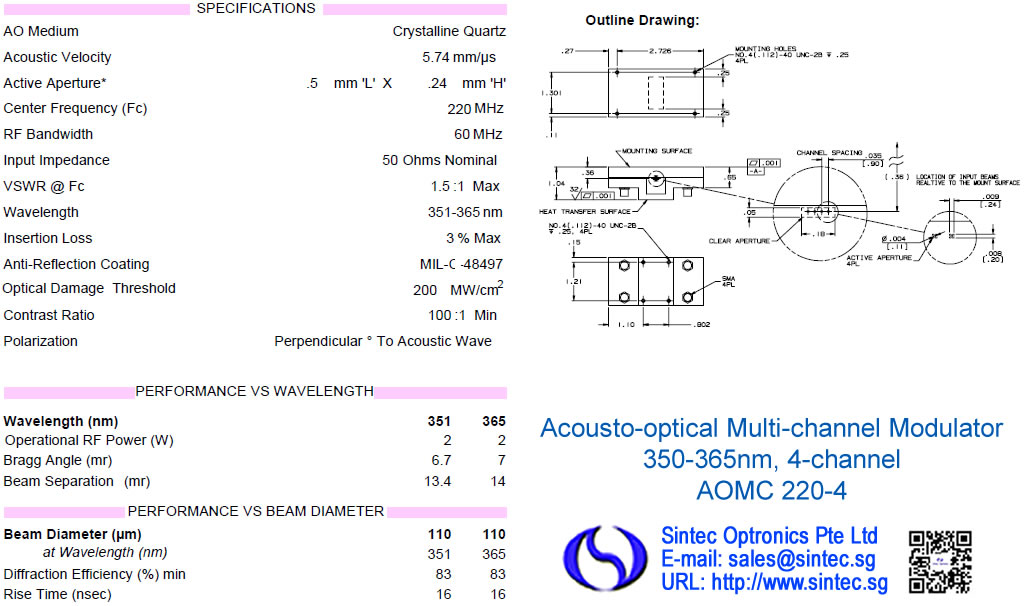

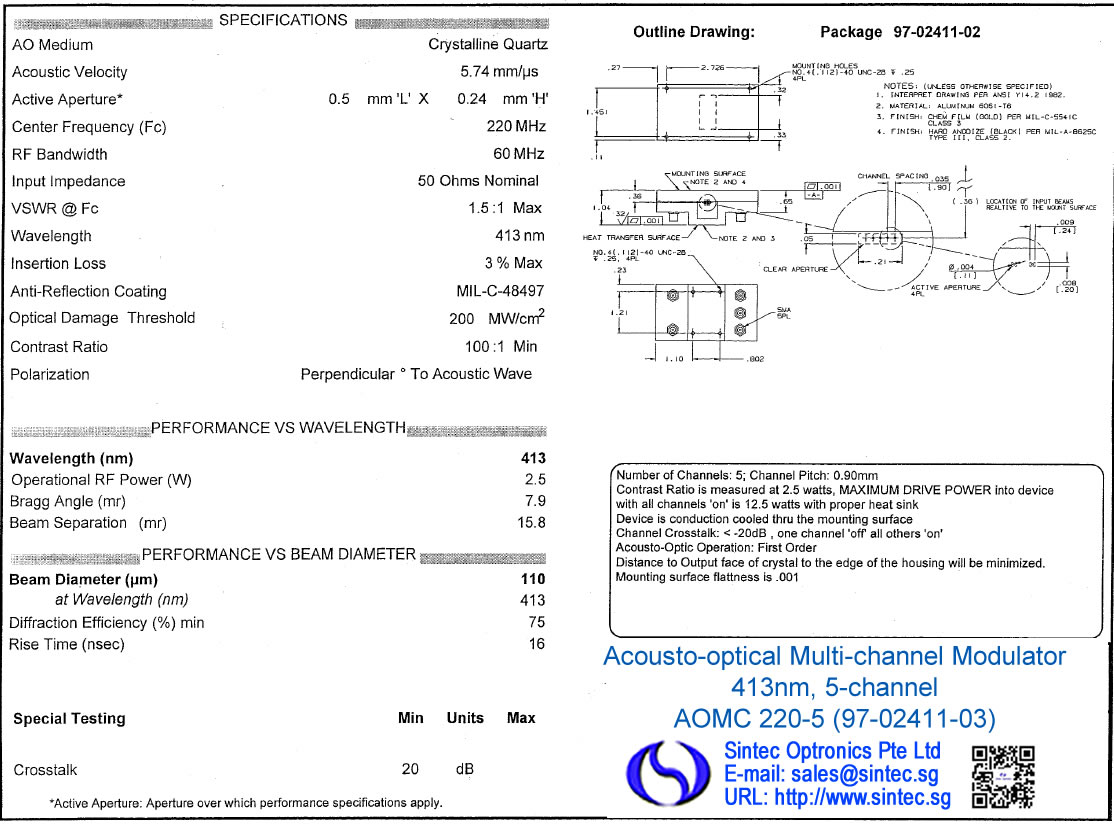

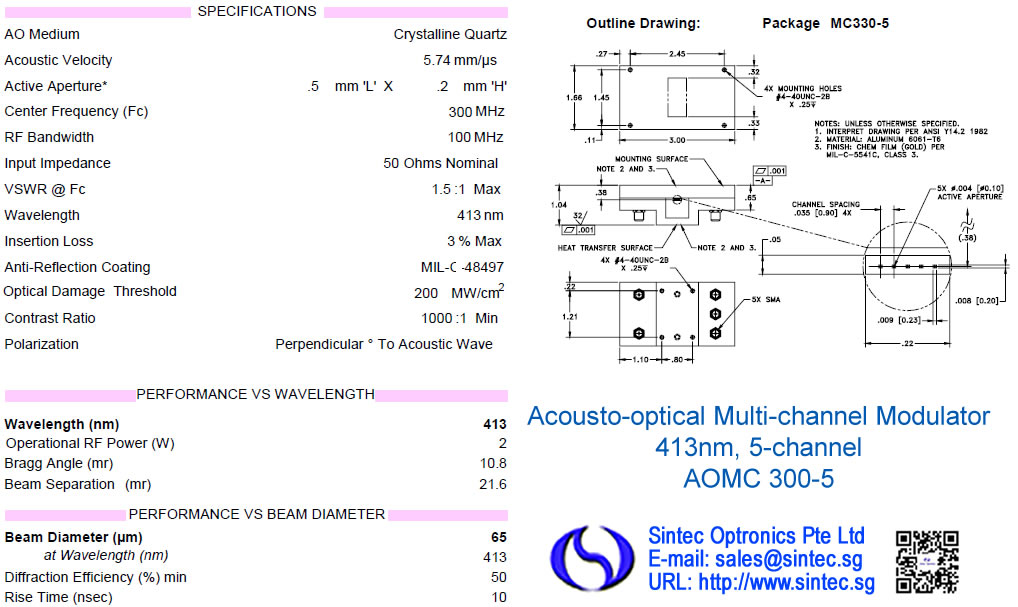

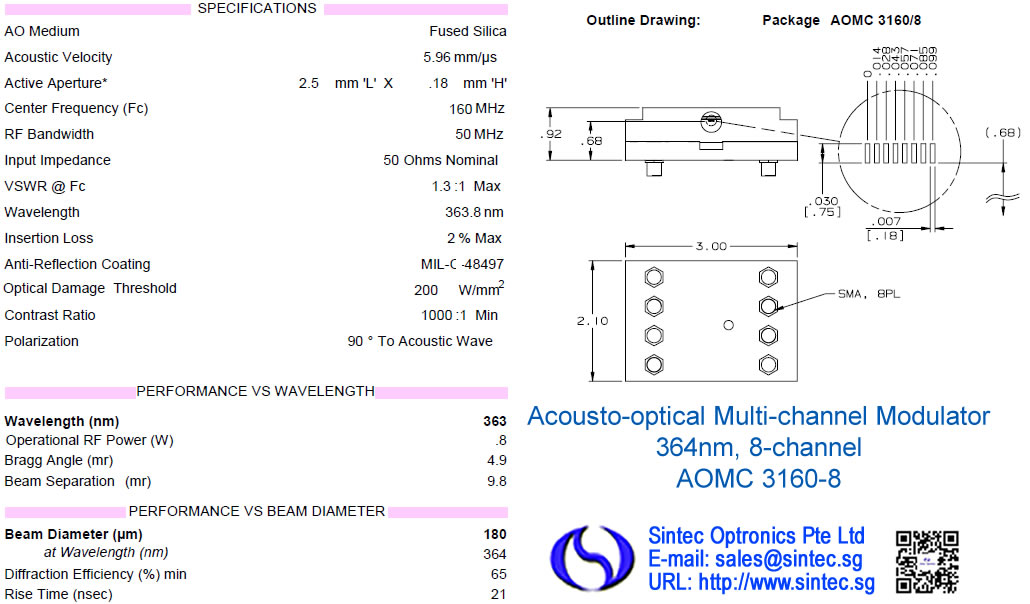

Multi-channel Modulators

Acousto-optic multi-channel modulators (AOMC) allow multiple beams to be modulated or deflected independently by integrating an array of transducers with a single acousto-optic crystal. Our proprietary optical and electrical designs minimize crosstalk, allowing concurrent operation of up to 48 channels for modulation, and up to 8 channels for beam deflection. Our AOMCs are known for their reliable operation and high performance.

Multi-channel modulators have parallel beams as input, each beam independently controlled by a different transducer to modulate its intensity. Multi-channel modulators are most often used for high speed applications like micromachining and direct-write lithography, as each beam can be modulated independently.

These devices can also be used to increase throughput when writing large media by writing multiple beams at the same time. Our multi-channel modulators equal the performance available with our single channel modulators, and can be customized for large aperture applications as well as high speed, small aperture applications.

A multi-channel beam deflector however, generates multiple diffracted beams from a single input beam at specific locations by simultaneously applying multiple frequencies to a single transducer. Each inpidual channel is a deflector that can either scan the beam or produce multiple spots. This makes it possible to create a two-dimensional grid. For example, if a four channel beam deflector were configured so that each channel diffracted three spots, the result would be a 4x3 grid.

High laser damage threshold is achieved using low-scatter materials. These are inspected to rigorous quality standards. We grow our own tellurium dioxide and source high quality fused silica and crystalline quartz to ensure low insertion loss and excellent optical power handling.

Our standard models are below:

ModelWavelengthNumber of ChannelsRise/Fall TimeActive ApertureOperating FrequencyOptical Material
AOMC 220-4350-365 nm416 ns0.24 mm190-250 MHzCrystalline quartz
AOMC 125/24-3350-365 nm2423 ns0.5 mm125 MHzCrystalline quartz
AOMC 3160-8364 nm821 ns0.18 mm160 MHzFused silica
AOMC 300-5413 nm510 ns0.2 mm300 MHzCrystalline quartz
AOMC 220-5413 nm516 ns0.24 mm220 MHzCrystalline quartz
AOMC 3350-6350-850 nm630 ns0.33 mm350 MHzTellurium dioxide

Details of STG Series Free-space Acousto-Optic Modulators (AOMs):

1. AO Modulator  M080-2G-LV1

  • High efficiency (95% typical)

  • Low drive power (0.3W typical)

  • Compact

  • Easy to align

The M080-2G-LV1 is a compact AO Modulator specifically designed for extra-cavity modulation of Nd:YAG/Nd:YVO4 lasers where fast modulation is not critical. Rise times down to 10μs are readily achievable, together with excellent efficiency, typically > 95% for a well-collimated laser beam. The relatively wide field of view means that good efficiency is achieved for more pergent beams.

  • Interaction Material: TeO2

  • Wavelength: 1064nm

  • Anti-Reflection Coating: < 0.3% per surface

  • Polarisation Alignment: ±5°

  • Frequency: 80MHz

  • Input Impedance: 50Ω

  • Acoustic Mode: Slow Shear

  • Active Aperture: 2.0 x 5.0mm

  • Clear Aperture: 4.0 x 5.0mm (min)

  • Recommended Beam Diameter: 1mm

  • Input Polarisation: Linear - vertical to base

  • Diffracted Beam Polarisation: Linear - rotated by 90° wrt input

  • Diffraction Efficiency: > 90%

  • RF Connector: SMA Female

  • RF Power: 0.5W

  • RF Driver Model No.: A36080, N21080-1DM or N21080-1AM

2. AO Modulator M111-10C-TR7

  • 514 to 532 nm

  • High damage threshold

  • 111MHz drive frequency

An acousto-optic modulator ideal for use with frequency doubled DPSS lasers. Manufactured in Crystal Quartz for improved thermal management and efficiency, this modulator combines high quality optical finishing with in house anti-reflection coatings to provide high extinction ratio and optimised throughput. Alternative wavelengths, apertures or package designs are available.

  • Interaction Material: Crystal Quartz

  • Wavelength: 514 to 532nm

  • Anti-Reflection Coating: < 0.3% per surface

  • Transmission: > 99.5%

  • Polarisation: Linear, vertical to base

  • Extinction Ratio (1st order on / off) > 55dB

  • Damage Threshold: > 50KW/cm2 (Average)

  • > 500MW/cm2 (Peak)

  • Frequency: 111MHz

  • VSWR: < 1.2:1 (50Ω input impedance)

  • Active Aperture: 2.0mm

  • Diffraction Efficiency: > 85%

  • Rise-Time / Fall-Time: 110ns / mm

  • Separation Angle: 9.6mrad at 515nm

  • RF Power: < 5.0W

  • RF Driver Model No.: A35111, N31111-5DM, N31111-5AM

3. AO Modulator M080-2B/F-GH2

  • 480 to 800nm

  • 80MHz drive frequency

  • Up to 2mm beam diameter

A general purpose acousto-optic modulator for use is in the visible or near infra-red spectral regions. It’s broadband anti-reflection coatings and large active aperture make it the ideal choice for cost-effective amplitude modulation of a wide range of low-power gas and diode lasers. Available for the visible (B/E) and near infra-red (F), with active apertures of 2mm, laser beams with diameters ranging from 0.5 to 2mm may be modulated at moderate speed with high efficiency. For faster modulation, please refer to our extensive range of other AO modulators.

  • Interaction Material: Tellurium Dioxide

  • Wavelength: 480 to 800nm

  • Anti-Reflection Coating: < 0.5% per surface

  • Transmission: > 95%

  • Polarisation: Any

  • Frequency: 80MHz

  • VSWR: < 1.2:1 (50Ω input impedance)

  • Active Aperture: 2mm

  • Rise-Time / Fall-Time: 155ns/mm

  • Diffracted Beam Ellipticity: < 5% typical

  • Diffraction Efficiency: > 85% typical

  • RF Power: < 2W

  • Driver Selection: A36080,

  • Digital Modulation: N21080-2DM

  • Analogue Modulation: N21080-2AM

4. AO Modulator M250-2x-xx

  • 488, 532 and 633nm

  • 250MHz drive frequency

  • 10ns rise-time

An acousto-optic modulator combining high efficiency and fast switching speed, is suitable for use with visible wavelength lasers. This AOM features excellent extinction ratio, superb diffraction efficiency even at maximum modulation rates and minimal optical beam quality distortion. Options include a choice of mounting and pivot holes, RF connectors and aperture dimensions. Alternative models in lead molybdate or for other wavelengths are available.

  • Interaction Material: Tellurium Dioxide

  • Acoustic Mode: Isotropic, compressional

  • Wavelength M250-2B-P2: 488nm, < 20mW

  • M250-2C-ES1: 532nm, < 20mW

  • M250-2E-O2: 633nm

  • Anti-Reflection Coating: < 0.2% per surface

  • Transmission: > 97%

  • Polarisation: Linear, vertical to base

  • Frequency: 250MHz

  • VSWR: < 1.2:1 (50Ω input impedance)

  • Active Aperture: 0.4mm

  • Separation Angle: 28 to 37mrad, wavelength dependant

  • RF Power: < 1.5W

  • Performance with a 65μm diameter, linearly polarised beam:

  • Rise-Time / Fall-Time: 10ns

  • Modulation Bandwidth: 50MHz

  • Diffracted Beam Ellipticity: < 10%

  • Diffraction Efficiency: > 85%

  • Driver Selection: A36250, N21250-2AM, N21250-2DM

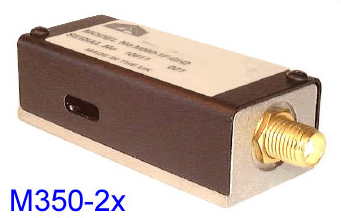

5. AO Modulator M350-2x

  • 488nm, 532nm and 633nm

  • 350MHz drive frequency

  • 5ns rise-time

A high bandwidth acousto-optic modulator is for use in the visible RGB spectral region. Using specially selected top-grade tellurium dioxide and with our renowned quality manufacturing processes, this modulator provides fast switching capability at low RF drive powers. Available in three models, one each for red, green and blue, high efficiency coupled with excellent transmitted beam quality make it particularly suited to electronic pre-press applications.

  • Interaction Material: Tellurium Dioxide

  • Acoustic Mode: Isotropic, compressional

  • Wavelength M350-2B: 488nm, < 20mW

  • M350-2C: 532nm, < 20mW

  • M350-2E: 633nm

  • Anti-Reflection Coating: < 0.2% per surface

  • Transmission: > 97%

  • Polarisation: Linear, vertical to base

  • Frequency: 350MHz

  • VSWR: < 1.2:1 (50Ω input impedance)

  • Active Aperture: 0.15mm

  • Separation Angle: 40 to 52mrad, wavelength dependant

  • RF Power: < 2W

  • Performance with a 30μm diameter, linearly polarised beam:

  • Rise-Time / Fall-Time: 5ns

  • Modulation Bandwidth: 100MHz

  • Diffracted Beam Ellipticity: < 15%

  • Diffraction Efficiency: > 80%

  • Driver Selection: Analogue / Digital Modulation: A35350

6.  AO Modulator M111-2J-AV1

  • 1520 to 1630nm

  • 111MHz drive frequency

  • 60ns rise-time

A free-space acousto-optic modulator appropriate for use either intra-cavity or extacavity, for example to Q-Switch or modulate erbium doped fibre lasers. Broadband anti-reflection coatings, combined with top grade tellurium dioxide, guarantee excellent throughput and beam quality. Special design and high quality manufacturing processes result in superior efficiency with excellent extinction ratio.

  • Interaction Material: Tellurium Dioxide

  • Acoustic Mode: Isotropic, compressional

  • Wavelength: 1520nm to 1630nm

  • Transmission: > 97%

  • Damage Threshold: >10MW/cm2 Pulsed, >50KW/cm2 CW

  • Polarisation: Any

  • Frequency: 111MHz

  • VSWR: < 1·2:1 (50Ω Input Impedance)

  • Active Aperture: 0.65mm

  • Separation Angle: 39 to 43mrad, wavelength dependant

  • RF Power: 3·5W

  • Operating Temperature: +10 to +60ºC

  • Storage Temperature: - 15 to +65ºC

  • Performance with a 400μm diameter, linearly polarised beam:

  • Rise-Time / Fall-Time: 61ns

  • Modulation Bandwidth: 8.2MHz

  • Extinction Ratio: > 40dB

  • Diffracted Beam Ellipticity: < 20%

  • Diffraction Efficiency: > 85%

  • Driver Selection: A35111, N31111-3.5DM or N31111-3.5AM

7. AO Modulator M110-10UV-OR1

  • 351, 355 & 364nm

  • High damage threshold

  • 110MHz drive frequency

An acousto-optic modulator ideal for use with 355nm frequency tripled Nd:YAG and Nd:YVO4 or 351nm / 364nm Argon lasers. Manufactured in Crystal Quartz for improved thermal management & efficiency. This modulator combines high quality optical finishing with in house anti-reflection coatings to provide high extinction ratio and optimised throughput. Alternative wavelengths, apertures or package designs are available. Please don’t hesitate to contact us with your specific requirements.

  • Interaction Material: Crystal Quartz

  • Wavelength: 351 to 364nm

  • Anti-Reflection Coating: < 0.3% per surface at 355nm

  • < 0.5% per surface at 351 to 364nm

  • Transmission: > 99% at 355nm

  • > 98.6% at 351 to 364nm

  • Polarisation: Linear, vertical to base

  • Extinction Ratio (1st order on / off) > 55dB

  • Damage Threshold: > 50KW/cm2 (Average)

  • > 500MW/cm2 (Peak)

  • Frequency: 110MHz

  • VSWR: < 1.2:1 (50Ω input impedance)

  • Active Aperture: 3.0mm

  • Diffraction Efficiency: > 85%

  • Rise-Time / Fall-Time: 110ns / mm

  • Separation Angle: 6.5mrad at 355nm

  • RF Power: < 3.0W

  • Driver Selection: A35111, N31111-3DM or N31111-3AM

8. AO Modulator M200-4A-GH11

  • 380 to 430nm AO modulation

  • 200MHz drive frequency

  • 10ns rise-time

An acousto-optic modulator suitable for use with frequency doubled Ti:Sapphire lasers. Manufactured in fused silica and with our superior high damage threshold anti-reflection coatings this modulator provides extremely fast digital or analogue switching, coupled with an ultra-high extinction ratio and optimised throughput.

  • Interaction Material: Fused Silica

  • Acoustic Mode: Isotropic, compressional

  • Wavelength: 380 to 430nm

  • Polarisation: Linear, vertical to base

  • Anti-Reflection Coating: < 0.5% per surface

  • Transmission: > 98.5%

  • Extinction Ratio (1st order on/off): > 55dB

  • Frequency: 200MHz

  • Active Aperture: 0.20mm

  • Input Impedance: 50Ω

  • Maximum RF Power Requirement: 2.5W

  • Operating Temperature: +10 to +60°C

  • Storage Temperature: -15 to +70°C

  • Performance characteristics at 405nm:

  • Beam Diameter: 90μm

  • Rise-Time (10-90%): 10ns

  • Modulation Bandwidth (3dB): 50MHz

  • Diffracted Beam Ellipticity: < 15%

  • Separation Angle: 13.5mrad

  • Diffraction Efficiency: > 80%

  • RF Power: 2W

  • Driver Selection: A35200, N21200-2AM or N21200-2DM

9. AO Modulator M200-4B/E-LD5

  • High intensity RGB modulation

  • 200MHz drive frequency

  • 10ns rise-time

An acousto-optic modulator for use with high intensity RGB lasers, ideally suited for laser display and reprographic applications. Manufactured in fused silica and with our superior high damage threshold anti-reflection coatings this modulator provides extremely fast digital or analogue switching in the RGB range, coupled with an ultra-high extinction ratio and optimised throughput.

  • Device: AO Modulator

  • Interaction Medium: Fused Silica

  • Acoustic Mode: Isotropic, compressional

  • Operational Wavelength: RGB (446nm, 532nm, 628nm)

  • Polarisation: Linear, vertical to base

  • Laser Power Maximum: > 100W

  • Optical Faces: 1deg wedged

  • AR coating reflectivity: ≤ 0·5% per surface

  • Transmission: > 97%

  • Extinction Ratio (1st order on/off) : > 55dB

  • RF Drive Frequency: 200MHz

  • Active Aperture: 0.2mm

  • Diffraction Efficiency: > 70% (typically 75%) at 75um beam diameter

  • Rise-Time: 10ns at 532nm, 90um beam diameter

  • Input Impedance: 50Ω

  • Maximum RF Drive Power: 6W

  • Operating Temperature: +10 to +60°C

  • Storage Temperature: -15 to +70°C

  • Wavelength:          446nm / 532nm / 628nm

  • Beam Diameter:      90μm / 90μm /120μm

  • Rise-Time (10-90%):   10ns /10ns /13.5ns

  • Modulation Bandwidth (3dB): 50MHz/ 50MHz /37MHz

  • Diffracted Beam Ellipticity:  16%  / 21% /17%

  • Separation Angle:   15mrad /18mrad / 21mrad

  • Diffraction Efficiency:    > 80% /  > 80% / > 80%

  • RF Power:        3W / 4W/5.5W

  • Driver Selection: N31200-6DM, N31200-6AM

10. M080-2B/F-GH2

DeviceAO Modulator
Interaction MaterialTellurium Dioxide
RF Frequency80MHz
Wavelength480 - 800nm
AR Coating Reflectivity≤ 0.5% /surface
Transmission≥ 95%
Input PolarisationAny
Active Aperture2.0mm
Diffraction Efficiency≥ 85%
Risetime155ns / mm
RF Input Impedance50Ω
RF Drive Power< 2W (wavelength dependent)
RF ConnectorSMA Female
DriverN21080-2AM or N21080-2DM or A36080

11. I-M150-0.4C2G-GH42

DeviceAO Modulator
Interaction MaterialTellurium Dioxide
Wavelength1064nm
Damage Threshold> 50MW/cm2 (Pulsed)
RF Frequency150MHz
AR Coating Reflectivity≤ 0.2% /surface
Transmission≥ 99.6%
Input PolarisationRandom
Active Aperture0.4mm
Recommended Beam Diameter0.2mm
Diffraction Efficiency≥ 85%
Separation Angle37.5mrad
Risetime (10% - 90%)153ns / mm
RF Input Impedance50Ω
Max. RF Drive Power2W

12. AOMO 3350-111

DeviceAO Modulator
Interaction MaterialTellurium Dioxide
Acoustic Velocity4.2mm/us
Active Aperture2mm’L’ X 0.15mm’H’
Center Frequency (Fc)350MHz
RF Bandwidth150MHz @ -10dB Return Loss
Input Impedance50 Ohms Nominal
VSWR @ Fc1.3:1 Max
Wavelength440-650nm
Insertion Loss4% Max
Reflectivity per Surface1% Max
Anti-Reflection CoatingMIL-C-48497
Optical Power Density<50W/mm^2
Contrast Ratio1500:1 Min
PolarisationLinear, 90deg to Mounting Plane
Damage Threshold> 50MW/cm2 (Pulsed)
Operational RF power1 W
Bragg Angle (mrad)20.3 mrad (@488nm)

22.2mrad (@532nm)

26.4mrad (@633nm)
Beam Separation (mrad)40.6mrad (@488nm)

44.4mrad (@532nm)

52.8mrad (@633nm)
Beam diameter30um
Diffraction Efficiency %70% (@488nm)

65% (@532nm)

45% (@633nm)
Rise Time (nsec)7nsec
  • **The maximum optical power density should not exceed 1KW/cm^2 CW/ave for wavelengths <550nm.  The optical power density should not exceed 100KW/cm^2 ave/CW for longer wavelengths.

13. AOMO 3350-120

DeviceAO Modulator
Interaction MaterialTellurium Dioxide
Acoustic Velocity4.2mm/us
Active Aperture2mm’L’ X 0.1mm’H’
Center Frequency (Fc)350MHz
RF Bandwidth150MHz @ -10dB Return Loss
Input Impedance50 Ohms Nominal
VSWR @ Fc1.3:1 Max
Wavelength440-532nm
Insertion Loss4% Max
Reflectivity per Surface1% Max
Anti-Reflection CoatingMIL-C-48497
Optical Power Density<50W/mm^2
Contrast Ratio1500:1 Min
PolarisationLinear, 90deg to Mounting Plane
Damage Threshold> 50MW/cm2 (Pulsed)
Operational RF power1 W
Bragg Angle (mrad)20.3 mrad (@488nm)

22.2mrad (@532nm)
Beam Separation (mrad)40.6mrad (@488nm)

44.4mrad (@532nm)
Beam diameter30um
Diffraction Efficiency %75% (@488nm)

70% (@532nm)
Rise Time (nsec)6nsec

14. Free Space AOMs

ModelI-FS040-1.5C2E-1-ME1
       (FS040-2E-ME1)
I-FS040-1.5S2E-1-ME1
       (FS040-2E-ME1)
Interactive MaterialTeO2TeO2
Acoustic ModeAnisotropic, slow shearAnisotropic, slow shear
Operating Wavelength630-690nm630-690nm
AR coating reflectivity<0.2% per surface<0.2% per surface
Transmission>95 %>95 %
Frequency shift40 MHz40 MHz
Frequency drift /°C<±10ppm<±10ppm
Clear aperture4x2 (horizontal x vertical)4x2 (horizontal x vertical)
Active aperture1.5 mm (vertical)1.5 mm (vertical)
Input polarizationLinear, horizontal with respect to housing baseLinear, horizontal with respect to housing base
Output polarization(1st order diffracted)Linear, vertical with respect to housing baseLinear, vertical with respect to housing base
0/1st order polarization extinction>100:1>100:1
0/1st order beam symmetrySymmetry to the left and right of straight through direction ±0.5°Symmetry to the left and right of straight through direction ±0.5°
Angle between 0/1st order2.4° at 655nm2.4° at 655nm
Supply voltage15VDC (±10%)15VDC (±10%)
Power consumption<1.5W<1.5W
VSWR<1.2:1<1.2:1
Max diffraction efficiency>90%>90%
Reference RF output10MHz sine-wave voltage of 0.5 to 1V peak to peak10MHz sine-wave voltage of 0.5 to 1V peak to peak
RF driverIntegratedIntegrated
ModelI-M080-2C10G-4-AM3I-M080-2.5C10G-4-AM3
Interactive MaterialCrystal QuartzCrystal Quartz
Operating Wavelength1030-1064nm1030-1064nm
Damage threshold>1GW/cm2>1GW/cm2
AR coating reflectivity<0.3% per surface<0.3% per surface
Transmission>99.4%>99.4%
Acoustic Frequency80MHz80MHz
VSWR<1.2:1 at 0dBm<1.2:1 at 0dBm
Optical polarizationLinear (vertical to base)Linear (vertical to base)
Active aperture2mm2.5mm
Acoustic modeCompressionalCompressional
Separation angle14.9mrad14.9mrad
Rise-time (10-90%)113ns/mm113ns/mm
Diffraction efficiency>85% at 15W RF>80% at 15W RF
Max RF power15W15W
HousingAluminiumAluminium
CoolingConductionConduction
Model97-03388-03R1 (5080-296)97-03388-02R2 (5041-296)
Interactive MaterialCrystal QuartzCrystal Quartz
Operating Wavelength1064nm1064nm
Damage threshold>500MW/cm2>500MW/cm2
AR coating reflectivity<0.2% per surface<0.2% per surface
Transmission>99.6%>99.6%
Acoustic Frequency80MHz40.48MHz
VSWR<1.2:1<1.2:1, 50Ohm
Optical polarizationRandom or linear (vertical to base)Random or linear (vertical to base)
Active aperture1.5mm1.5mm
Acoustic modeCompressionalCompressional
Separation angle14.8mrad7.6mrad
Rise-time (10-90%)113ns/mm113ns/mm
Diffraction efficiency>85% (vertical/linear polarization))
       >70% (Random/linear polarization)
>85% (vertical/linear polarization))
       >70% (Random/linear polarization)
Max RF power20W20W
Housing97-0338897-03388
ModelI-FS040-2C2E-3-OL3
       (FS040-2E-OL3)
I-FS040-2S2E-1-GH38
Interactive MaterialTeO2TeO2
Acoustic ModeAnisotropic, slow shear
Operating Wavelength630-680nm630-670nm
AR coating reflectivity<0.2% per surface<0.2% per surface
Transmission>99.5 %>95 %
Frequency shift40 MHz40 MHz (up-shift)
Clear aperture2.5x4mm (vertical x horizontal)2x4mm (vertical x horizontal)
Active aperture2x4 mm (vertical x horizontal)2mm (vertical)
Input polarizationLinear, horizontal with respect to housing baseLinear and horizontal with respect housing
Output polarization(1st order diffracted)Linear, vertical with respect to housing baseLinear and orthogonal to input and 0 order beams
0/1st order polarization extinction>100:1>100:1
Angle between 0/1st order>2°<2 mrad with respect to straight through direction
VSWR<1.2:1< 1.2:1
Max diffraction efficiency>90%>90%
RF power100mWIntegrated driver
ModelFS040-2C-AR1FS040-2E-AR1
Interactive MaterialTeO2TeO2
Acoustic ModeAnisotropic, slow shearAnisotropic, slow shear
Operating Wavelength532nm630-690nm
AR coating reflectivity<0.2% per surface<0.3% per surface
Transmission>95%  @ 532nm>95 % @ 633nm
Frequency shift40 MHz40 MHz (up-shift)
Clear aperture2x4mm (vertical x horizontal)2x4mm (vertical x horizontal)
Active aperture1.5mm (vertical)1.5mm (vertical)
Input polarizationLinear and horizontal with respect housingLinear and horizontal with respect housing
Output polarization(1st order diffracted)Linear and orthogonal to inputLinear and orthogonal to input and 0 order beams
0/1st order polarization extinction>100:1>100:1
0/1st order beam symmetrySymmetrical to the left and right of the straight through direction ±0.5°Symmetrical to the left and right of the straight through direction ±0.5°
Vertical angle of deflection<2mard with respect to straight through<2mard with respect to straight through
Angle between input beam and housing90°±1°90°±1°
Max diffraction efficiency>90% @ 532nm>90% @ 635nm
Supply voltage+5VDC (±10%)+5VDC (±10%)
Power supply connectionLead-through filterLead-through filter
RF input connectorSMB bulkhead jackSMB bulkhead jack
RF input40MHz sine-wave voltage of 0.5 to 1Vpp40MHz sine-wave voltage of 0.5 to 1Vpp
ModelI-M041-2.5C10G-4-GH50I-M041-8C10G-B5-PI23
Interactive MaterialCrystal QuartzCrystal Quartz
Operating Wavelength1030-1064nm1064nm
Damage threshold>1GW/cm2> 1GW/cm2
AR coating reflectivity<0.3% per surface< 0.2% per surface
Transmission>99.4%> 99.6%
Frequency shift40.68 MHz40.68MHz
Optical polarizationLinear, vertical to baseLinear, vertical to base
Active aperture2.5mm8.0mm
Acoustic modeCompressionalCompressional
Separation angle7.6mrad
Rise-time (10-90%)113ns/mm113ns/mm
0/1st order beam symmetrySymmetrical to the left and right of the straight through direction ±0.5°CW power handling: > 500KW/cm2
Diffraction efficiency>85%> 75% @ ~45W RF power
Max RF power20W50W
CoolingConductionWater (de-ionised)
ModelI-FS080-2C2G-3-LV1 (M080-2G-LV1)I-FS080-3S2E-1-GH39
Interactive MaterialTeO2TeO2
Wavelength1064nm633nm
AR coating reflectivity<0.2% per surface<0.2%
Transmission>99.5%>95% @ 633nm
Frequency shift80 MHz80MHz (up-shift)
VSWR<1.2:1<1.2:1
Active aperture2mm3.0mm (vertical)
Clear aperture4mm4x3.0mm
Recommended beam diameter1mm-
Input polarizationLinear, vertical with respect to house baseLinear and horizontal with respect housing
Output polarizationLinear, horizontal (rotated by 90º to input)Linear and orthogonal to input and zero beams
Angle between 0/1st order6.45º< 2 mrad with respect to straight through direction
Diffraction efficiency>90% (typically >95%)>90%
RF power0.5W≥90% (based on recommended beam diameter)
ModelI-M080-2.5C10G-4-GH25I-FS110-2C2B8-3-GH2
       (M110-2B/F-GH2)
Interactive MaterialCrystal QuartzTeO2
Wavelength1064nm480-800nm
AR coating reflectivity<0.2% per surface0.2% per surface
Transmission>99.6%>95%
Frequency shift80 MHz110MHz
Optical polarizationLinear, vertical to baseAny
Active aperture2.5mm2mm
Acoustic modeCompressionalCompressional
Rise-time (10-90%)113ns/mm155ns/mm
Diffraction efficiency≥80%>85%
RF power15W (max)<2W (wavelength dependent)
ModelI-M110-2C10B6-3-GH26
       (M110-10UV-GH27)
I-M110-2.5C10B6-3-GH26
Interactive MaterialCrystal QuartzCrystal Quartz
Wavelength400-540nm400-540nm
AR coating reflectivity<0.5% per surface0.5% per surface
Damage threshold>500MW/cm2 (pulsed)>500MW/cm2 (pulsed)
Transmission>99.0%>99.0%
Frequency shift110 MHz110MHz
Optical polarizationLinear, vertical to baseLinear, vertical to base
Active aperture2.0mm2.5mm
Acoustic modeCompressionalCompressional
Rise-time (10-90%)113ns/mm113ns/mm
Diffraction efficiency≥85%>80%
RF power<5W<5W
ModelI-M110-3C10BB-3-GH27
       (M110-10UV-GH27)
I-M110-3C10B6-3-GH26
Interactive MaterialCrystal QuartzCrystal Quartz
Wavelength300-400nm400-540nm
AR coating reflectivity<0.5% per surface0.5% per surface
Damage threshold>500MW/cm2 (pulsed)>500MW/cm2 (pulsed)
Transmission>99.0%>99.0%
Frequency shift110 MHz110MHz
Optical polarizationLinear, vertical to baseLinear, vertical to base
Active aperture3.0mm3.0mm
Acoustic modeCompressionalCompressional
Rise-time (10-90%)113ns/mm113ns/mm
Separation angle6.8mrad at 355nm10.2mrad at 532nm
Diffraction efficiency≥85%>80%
RF power<3W<5W
ModelI-M120-0.7C2G-GH42I-M150-0.4C2G-GH42I-M200-0.75C2G-3-SO8
Interactive MaterialTeO2TeO2TeO2
Wavelength1064nm1064nm1064nm
AR coating reflectivity<0.2% per surface<0.2% per surface<0.3% per surface
Damage threshold>50MW/cm2 (pulsed)>50MW/cm2 (pulsed)>50MW/cm2 (pulsed)
Transmission>99.5%>99.6%>99.4%
Frequency shift120 MHz150 MHz200 MHz
Optical polarizationRandomRandomLinear, vertical with respect to base
Active aperture700um400um750um
Recommended beam dia.400um200um400um
Rise-time (10-90%)153ns/mm153ns/mm153ns/mm
Separation angle30mrad37.5mrad50mrad
Diffraction efficiency≥85%>85%>85%
RF power3W (at <50% duty cycle)2W3W
Model3080-1203080-122
Interactive MaterialTeO2TeO2
Acoustic Velocity4.2mm/us4.2mm/us
Active Aperture2.5mmLx1.0mmH2.5mmLx1.0mmH
Center Frequency80MHz80MHz
RF Bandwidth20MHz @ -10dB Return Loss20MHz @ -10dB Return Loss
Input Impedance50 Ohms Nominal50 Ohms Nominal
VSWR @ Fc1.3:1 Max1.3:1 Max
Wavelength442-633nm780-850nm
Insertion Loss4% Max3% Max
Reflectivity per Surface1% Max0.25% Max
Anti-Reflection CoatingMIL-C-48497MIL-C-48497
Optical Power Density250W/mm2250W/mm2
Contrast Ratio1000:1 Min1000:1 Min
Polarization90° to mounting plate90° to mounting plate
Performance vs wavelength

Wavelength(nm)442488515633830
Saturation RF power (W)0.270.330.360.551
Bragg angle (mrad)4.24.64.967.9
Beam separation (mrad)8.49.29.81215.8
Performance vs beam dia

Beam diameter(um)200300500
200250500
At wavelength (nm)633633633
830830830
Diffraction efficiency (%)808385
708085
Rise time (nsec)344980
344180
Modulation bandwidth15.9
       10
10.6
       5
6.3
       1

15.9
       15
12.65
       10
6.3
       1

Model3080-1253100-125
Interactive MaterialTeO2TeO2
Acoustic Velocity4.2mm/us4.2mm/us
Active Aperture2.5mmLx2.0mmH2.5mmLx1.5mmH
Center Frequency80MHz100MHz
RF Bandwidth25MHz @ -9dB Return Loss25MHz @ -10dB Return Loss
Input Impedance50 Ohms Nominal50 Ohms Nominal
VSWR @ Fc1.3:1 Max1.3:1 Max
Wavelength442-633nm470-690nm
Insertion Loss5% Max4% Max
Reflectivity per Surface1% Max1% Max
Anti-Reflection CoatingMIL-C-48497MIL-C-48497
Optical Power Density250W/mm2250W/mm2
Contrast Ratio1000:1 Min1000:1 Min
Polarization90° to mounting plate90° to mounting plate
Performance vs wavelength

Wavelength(nm)515633

470532633690
Saturation RF power (W)0.651.0

0.40.60.91.1
Bragg angle (mrad)4.96

5.66.37.58.2
Beam separation (mrad)9.812

11.212.61516.4
Performance vs beam dia

Beam diameter(um)125200400
1000100010001000
At wavelength (nm)633633633
470532633690
Diffraction efficiency (%)658090
85858585
Rise time (nsec)233465
159159159159
Modulation bandwidth20126




Model3110-1203110-121
Interactive MaterialTeO2TeO2
Acoustic Velocity4.2mm/us4.2mm/us
Active Aperture2.5mmLx0.6mmH2.5mmLx0.6mmH
Center Frequency110MHz110MHz
RF Bandwidth24MHz @ -10dB Return Loss24MHz @ -10dB Return Loss
Input Impedance50 Ohms Nominal50 Ohms Nominal
VSWR @ Fc1.3:1 Max1.3:1 Max
Wavelength442-633nm442-488nm
Insertion Loss4% Max3% Max
Reflectivity per Surface1% Max1% Max
Anti-Reflection CoatingMIL-C-48497MIL-C-48497
Optical Power Density250W/mm2250W/mm2
Contrast Ratio1000:1 Min1000:1 Min
Polarization90° to mounting plate90° to mounting plate
Performance vs wavelength

Wavelength(nm)442488515633488


Saturation RF power (W)0.290.390.430.650.4


Bragg angle (mrad)5.86.46.78.36.4


Beam separation (mrad)11.612.813.416.612.8


Performance vs beam dia

Beam diameter(um)113130200500100150200
At wavelength (nm)633633633633488488488
Diffraction efficiency (%)70758083707580
Rise time (nsec)25283986182533
Modulation bandwidth28
       20
24
       10
15.8
       5
6.3
       1
28
       20
24
       9
15.8
       5

Model3110-1973120-120
Interactive MaterialTeO2TeO2
Acoustic Velocity4.2mm/us4.2mm/us
Active Aperture2.5mmLx1.25mmH2.5mmLx0.6mmH
Center Frequency110MHz120MHz
RF Bandwidth15MHz @ -10dB Return Loss15MHz @ -10dB Return Loss
Input Impedance50 Ohms Nominal50 Ohms Nominal
VSWR @ Fc1.3:1 Max1.3:1 Max
Wavelength1047-1060nm1064nm
Insertion Loss4% Max2% Max
Reflectivity per Surface0.5% Max0.5% Max
Anti-Reflection CoatingMIL-C-48497MIL-C-48497
Optical Power Density10MW/cm210MW/cm2
Contrast Ratio1000:1 Min1000:1 Min
Polarization90° to mounting plateRandom
Performance vs wavelength

Wavelength(nm)10601060
Saturation RF power (W)2.52.0
Bragg angle (mrad)13.915.2
Beam separation (mrad)27.830.4
Performance vs beam dia

Beam diameter(um)1100375
At wavelength (nm)10601064
Diffraction efficiency (%)9080
Rise time (nsec)20073
Modulation bandwidth34.5
Beam ellipticityNANA
Model3120-1213200-120
Interactive MaterialTeO2TeO2
Acoustic Velocity4.2mm/us4.2mm/us
Active Aperture2.5mmLx0.6mmH2.5mmLx0.45mmH
Center Frequency120MHz200MHz
RF Bandwidth15MHz @ -10dB Return Loss50MHz @ -10dB Return Loss
Input Impedance50 Ohms Nominal50 Ohms Nominal
VSWR @ Fc1.3:1 Max1.3:1 Max
Wavelength1064nm442-488nm
Insertion Loss2% Max5% Max
Reflectivity per Surface0.5% Max1% Max
Anti-Reflection CoatingMIL-C-48497MIL-C-48497
Optical Power Density10MW/cm2250W/mm2
Contrast Ratio1000:1 Min1000:1 Min
PolarizationRandom90° to mounting plate
Performance vs wavelength

Wavelength(nm)1064442488

Saturation RF power (W)2.00.530.65

Bragg angle (mrad)15.210.511.6

Beam separation (mrad)30.42123.2

Performance vs beam dia

Beam diameter(um)3756080100120
At wavelength (nm)1064488488488488
Diffraction efficiency (%)8070758080
Rise time (nsec)7313161923
Modulation bandwidth4.552403126.5
Beam ellipticityNA15842
Model3200-1213200-124
Interactive MaterialTeO2TeO2
Acoustic Velocity4.2mm/us4.2mm/us
Active Aperture2.5mmLx0.32mmH2.5mmLx0.32mmH
Center Frequency200MHz200MHz
RF Bandwidth50MHz @ -9dB Return Loss50MHz @ -10dB Return Loss
Input Impedance50 Ohms Nominal50 Ohms Nominal
VSWR @ Fc1.3:1 Max1.3:1 Max
Wavelength515-633nm780-850nm
Insertion Loss4% Max3% Max
Reflectivity per Surface1% Max1% Max
Anti-Reflection CoatingMIL-C-48497MIL-C-48497
Optical Power Density250W/mm2250W/mm2
Contrast Ratio1000:1 Min1000:1 Min
Polarization90° to mounting plate90° to mounting plate
Performance vs wavelength

Wavelength(nm)515633

830


Saturation RF power (W)0.71.0

2.0


Bragg angle (mrad)12.315.1

19.8


Beam separation (mrad)24.630.2

39.6


Performance vs beam dia

Beam diameter(um)6080100120150


At wavelength (nm)633633633633830


Diffraction efficiency (%)7075808070


Rise time (nsec)1417202329


Modulation bandwidth52
       15
40
       8
31
       4
26.5
       2
21.0


Beam ellipticityNANANANA10


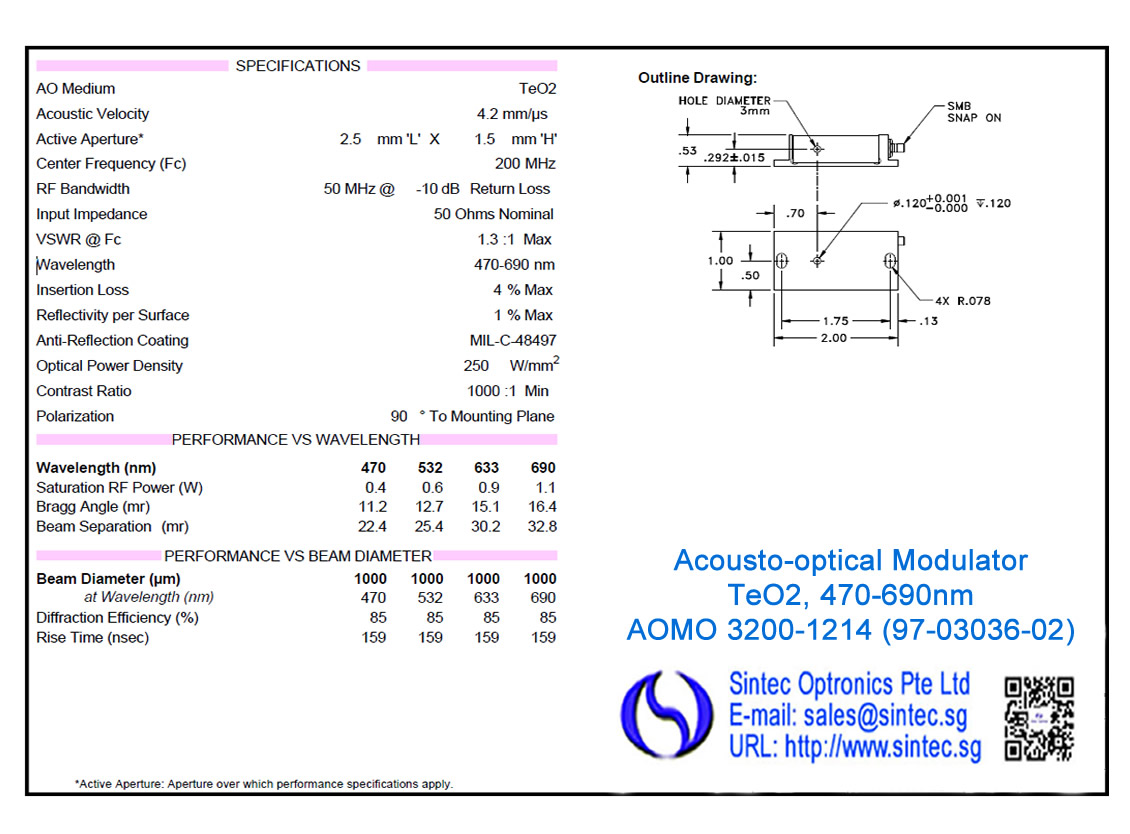

Model3200-1253200-126
Interactive MaterialTeO2TeO2
Acoustic Velocity4.2mm/us4.2mm/us
Active Aperture2.5mmLx1.5mmH2.5mmLx0.32mmH
Center Frequency200MHz200MHz
RF Bandwidth50MHz @ -10dB Return Loss50MHz @ -9dB Return Loss
Input Impedance50 Ohms Nominal50 Ohms Nominal
VSWR @ Fc1.3:1 Max1.3:1 Max
Wavelength470-690nm532nm
Insertion Loss4% Max4% Max
Reflectivity per Surface1% Max1% Max
Anti-Reflection CoatingMIL-C-48497MIL-C-48497
Optical Power Density250W/mm2250W/mm2
Contrast Ratio1000:1 Min1000:1 Min
Polarization90° to mounting plate90° to mounting plate
Performance vs wavelength

Wavelength(nm)470532633690532


Saturation RF power (W)0.40.60.91.10.7


Bragg angle (mrad)11.212.715.116.412.7


Beam separation (mrad)22.425.430.232.825.4


Performance vs beam dia

Beam diameter(um)100010001000100060


At wavelength (nm)470532633690532


Diffraction efficiency (%)8585858575


Rise time (nsec)15915915915913


Model3200-11133200-1220
Interactive MaterialTeO2Crystalline quartz
Acoustic Velocity4.2mm/us5.74mm/us
Active Aperture1mmLx0.1mmH2.5mmLx0.25mmH
Center Frequency200MHz200MHz
RF Bandwidth90MHz @ -10dB Return Loss100MHz @ -5dB Return Loss
Input Impedance50 Ohms Nominal50 Ohms Nominal
VSWR @ Fc1.3:1 Max1.5:1 Max
Wavelength1047-1060nm257nm
Insertion Loss4% Max5% Max
Reflectivity per Surface0.5% Max1% Max
Anti-Reflection CoatingMIL-C-48497MIL-C-48497
Optical Power Density50MW/cm2NA
Contrast Ratio1000:1 Min1000:1 Min
Polarization90° to mounting plate90° to mounting plate
Performance vs wavelength

Wavelength(nm)1060


257


Saturation RF power (W)2.5


1


Bragg angle (mrad)25.2


4.5


Beam separation (mrad)50.4


9


Performance vs beam dia

Beam diameter(um)5065

70


At wavelength (nm)10601060

257


Diffraction efficiency (%)7580

75


Rise time (nsec)1012

10


Loss modulation80%NA
Model12038-3-TE12038-3-BR-TE
Interactive MaterialSiO2SiO2
Acoustic ModeLongitudinalLongitudinal
Operating Wavelength1.06 μmUsed for Various λ (Specifications shown for 1.06 μm
Window ConfigurationAR "V" CoatedBrewster
Static Transmission>99 %>99 %
Operating Frequency38 MHz + 150 KHz38 MHz + 182 KHz
Mode spacing300 KHz Typical364 KHz Typical
Mode Bandwidth -3dB10 KHz approximate10 KHz approximate
Average Loss Modulation15 % minimum with Linear Polarized Light, Perpendicular to Acoustic Propagation10 % minimum with Linear Polarization Light, Perpendicular to Acoustic Propagation
Acoustic Aperture Size (in air)3 mm2 mm
Deflection Angle6.75 mrad6.75 mrad @ 1.06 μm
RF Power Level<1.2 watt<1 watt
Impedance50 ohms @ Resonant Frequency50 ohms @ Resonant Frequency
VSWR<1.5:1 @ Resonant Frequency<1.5:1 @ Resonant Frequency
Package:53A219853A3890
Recommended Driver:11038-1ML11038-1ML
Model12041-3-BR-TE12041-3-TE
Interactive MaterialSiO2SiO2
Acoustic ModeLongitudinalLongitudinal
Operating WavelengthUsed for Various λ Specification shown for 1.06 μm1.06 μm
Window ConfigurationBrewsterAR "V" Coated
Static Transmission>99 %>99%
Operating Frequency41 MHz + 182 KHz41 MHz + 150 KHz
Mode spacing364 KHz Typical300 KHz Typical
Mode Bandwidth -3dB
10 KHz approximate
Average Loss Modulation10 % minimum with Linear Polarized Light, Perpendicular to Acoustic Propagation15 % minimum with Linear Polarized Light, Perpendicular to Acoustic Propagation
Acoustic Aperture Size (in air)2 mm3 mm
Deflection Angle7.3 mrad @ 1.06 μm7.3 mrad
RF Power Level<1 watt<1.2 watt
Impedance50 ohms @ Resonant Frequency50 ohms @ Resonant Frequency
VSWR<1.5:1 @ Resonant Frequency<1.5:1 @ Resonant Frequency
Package:53A389053A2198
Recommended Driver:11041-1ML11041-1ML
Model12050-3-BR-TE12050-3-TE
Interactive MaterialSiO2SiO2
Acoustic ModeLongitudinalLongitudinal
Operating WavelengthUsed for Various λ Specifications shown for 1.06 μm1.06 μm
Window ConfigurationBrewsterAR "V" Coated
Static Transmission>99 %>99%
Operating Frequency50 MHz + 182 KHz50 MHz + 150 KHz
Mode spacing364 KHz Typical300 KHz Typical
Mode Bandwidth -3dB10 KHz approximate10 KHz approximate
Average Loss Modulation6.5 % minimum with Linear Polarized Light, Perpendicular to Acoustic Propagation10 % minimum with Linear Polarized Light, Perpendicular to Acoustic Propagation
Acoustic Aperture Size (in air)2 mm3 mm
Deflection Angle8.9 mrad @ 1.06 μm8.9 mrad
RF Power Level<1 watt<1.2 watt
Impedance50 ohms @ Resonant Frequency50 ohms @ Resonant Frequency
VSWR<1.5:1 @ Resonant Frequency<1.5:1 @ Resonant Frequency
Package:53A389053A2198
Recommended Driver:11050-1ML11050-1ML
Model12080-3-BR-TE12080-3-TE
Interactive MaterialSiO2SiO2
Acoustic ModeLongitudinalLongitudinal
Operating WavelengthUsed for Various λ Specifications shown for 1.06 μm1.06 μm
Window ConfigurationBrewsterAR "V" Coated
Static Transmission>99 %>99 %
Operating Frequency80 MHz + 182 KHz80 MHz + 150 KHz
Mode spacing364 KHz Typical300 KHz Typical
Mode Bandwidth -3dB10 KHz approximate10 KHz approximate
Average Loss Modulation6.5 % minimum with Linear Polarized Light, Perpendicular to Acoustic Propagation10 % minimum with Linear Polarized Light, Perpendicular to Acoustic Propagation
Acoustic Aperture Size (in air)2 mm3 mm
Deflection Angle14.2 mrad @ 1.06 μm14.2 mrad
RF Power Level<1 watt<1.2 watt
Impedance50 ohms @ Resonant Frequency50 ohms @ Resonant Frequency
VSWR<1.5:1 @ Resonant Frequency<1.5:1 @ Resonant Frequency
Package:53A389053A2198
Recommended Driver:11080-1ML11080-1ML
Model13389-BR15180-1.06-LTD-GAP
Interactive MaterialSiO2GaP
Acoustic ModelongitudinalLongitudinal
Operating WavelengthUsed for Various λ Specifications shown for 633 nm1.06 μm
Window ConfigurationBrewster, λ/10 over acoustic apertureAR “V” coated
Static Transmission>99 %>90%
Operating Frequency389 MHz180 MHz
Diffraction Efficiency>5.5 % @ 500 mW>70%
Light PolarizationLinear, Perpendicular to Acoustic PropagationLinear, horizontal
Acoustic Aperture Size60 μm in air300 μm
Rise Time<6 ns10 nsec*
Optical Waist Size to achieve Rise Time44 μm100 microns
Deflection Angle41 mrad @ 633 nm28.7 mrads
RF Power Level Average500 mW1.7 Watts
RF Power Level Peak10 Watts peak, 5 % duty cycle with 10 ns pulse
Impedance50 Ohms50 Ohms nominal
VSWR<1.5:1 @ 389MHz, <6:1 @ 299, 479 MHz<1.5:1 at 180 MHz
Package:53A531453B0624
Recommended Drivers:64389-SYN-9.5-X
Model1521015210-FOA / 7100215210-FOA
Interactive MaterialTeO2TeO2TeO2
Acoustic ModeLongitudinalLongitudinalLongitudinal
Operating Wavelength440 – 850 nm440 – 850 nm440 – 850 nm
Window ConfigurationAR CoatedAR CoatedAR Coated
Static Transmission> 95 %>95 %>95 %
Operating Frequency210 MHz210 MHz210 MHz
Diffraction Efficiency> 70 % @ 633 nm with Linear, Polarization Perpendicular to Acoustic Propagation or with Random Polarization>70 % @ 633 nm with Linear, Polarization Perpendicular to Acoustic Propagation or with Random Polarization>70 % @ 633 nm with Linear, Polarization Perpendicular to Acoustic Propagation or with Random Polarization
Acoustic Aperture Size0.2 mm0.2 mm0.2 mm
Rise Time< 10 nsec<10 nsec< 10 nsec
Optical Waist Size to achieve Rise Time55 μm55 μm55 μm
Deflection Angle31 mrad @ 633 nm31 mrad @ 633 nm31 mrad @ 633 nm
RF Power Level< 1 Watt< 1 Watt< 1 Watt
Impedance50 Ohms nominal50 Ohms nominal50 Ohms nominal
VSWR< 1.5:1 @ 210 MHz< 1.5:1 @ 210 MHz<1.5:1 @ 210 MHz
Package:53B050453D0031453B0957
Recommended Drivers:Analog Driver System: 21210-1AS
       Analog Driver Module: 21210-1AM
       Digital Driver System: 21210-1DS
       Digital Driver Module: 21210-1DM
Model1526015260-FOA/7100215260-FOA
Interactive MaterialTeO2TeO2TeO2
Acoustic ModeLongitudinalLongitudinalLongitudinal
Operating Wavelength440 – 850 nm440 – 850 nm440 – 850 nm
Window ConfigurationAR CoatedAR CoatedAR Coated
Static Transmission>95 %>95 %>95 %
Operating Frequency260 MHz260 MHz260 MHz
Diffraction Efficiency>70 % @ 633nm with Linear, Polarization Perpendicular to Acoustic Propagation or with Random Polarization>70 % @ 633 nm with Linear, Polarization Perpendicular to Acoustic Propagation or with Random Polarization>70 % @ 633 nm with Linear, Polarization Perpendicular to Acoustic Propagation or with Random Polarization
Acoustic Aperture Size0.2 mm0.2 mm0.2 mm
Rise Time<10 ns<10 nsec<10 nsec
Optical Waist Size to achieve Rise Time55 um0.055 mm55 um
Deflection Angle39 mrad @ 633nm39 mrad @ 633 nm39 mrad @ 633 nm
RF Power Level700 mW< 1 Watt< 1 Watt
Impedance50 Ohms nominal50 Ohms nominal50 Ohms nominal
VSWR1.5:1 @ 260MHz1.5:1 @ 260 MHz1.5:1 @ 260 MHz
Package:53B050453D0314
FOA Modulator Package:
53B095753B0957
Recommended Drivers:21260-.7AS
       21260-.7AM
       21260-.7DS
       21260-.7DM
Analog Driver System: 21260-1AS
       Analog Driver Module: 21260-1AM
       Digital Driver System: 21260-1DS
       Digital Driver Module: 21260-1DM
Model17389-1.06-LTD-GaP17389-.9317389-.93-FOA
Interaction MaterialGaPTeO2TeO2
Acoustic ModeLongitudinalLongitudinalLongitudinal
Operating Wavelength1.06 μm700 –1064 nm700 –1064 nm
Window ConfigurationAR “V” coatingAR CoatedAR Coated
Static Transmission>90%>95 %>95%
Operating Frequency389 MHz389 MHz389 MHz
Diffraction Efficiency56% minimum with linear polarized light parallel to acoustic propagation>70 % @ 800 nm with Linear, Polarization Perpendicular to Acoustic Propagation.
       >60 % @ 800 nm with Random Polarization.
>70% @ 800 nm with Linear, Polarization Perpendicular to Acoustic Propagation
       >60% @ 800 nm with Random Polarization
Acoustic Aperture Size (in air)150 μm70 um70 um
Rise Time4 nsec minimum<7 nsec<7 nsec
Extinction Ratio *>20dB for neighboring pulses, >27dB for subsequent pulses @ <80MHz pulse rep rate>20dB for neighboring pulses, >27dB for subsequent pulses @ <80MHz pulse rep rate>20dB for neighboring pulses,
       >27dB for subsequent pulses
       @ <80MHz pulse rep rate
Optical Waist Size To Achieve Rise Time40 μm35 um35um
Deflection Angle62 mrad73 mrad @ 800 nm73mrad @ 800nm
RF Power Level2.5 watts peak, <1 watt aver.< 700 mW Average/ 5 Watts Peak 10 % max duty cycle with 10 nsec pulse.< 700 mW Average/ 5 Watts Peak 10% max duty cycle with 10nsec pulse.
Impedance50 Ohms nominal50 Ohms nominal50 Ohms nominal
VSWR<1.5:1 @ 389 MHz<1.5:1 @ 389 MHz< 1.5:1 @ 389 MHz
Package53B00624TO153B050453B0499
Recommended Drivers:Non - Synchronous Driver: 11389-5AM
       Synchronous Driver: 64389.5-SYN-9.5-X
Model1744017440-FOA
Interaction MaterialTeO2TeO2
Acoustic ModeLongitudinalLongitudinal
Operating Wavelength440-850nm440-850m
Window ConfigurationAR coatedAR coated
Static Transmission>95%>95%
Operating Frequency440 MHz440 MHz
Diffraction Efficiency>60 % @ 633 nm with Linear, Polarization Perpendicular to Acoustic Propagation.
       >50 % @ 633 nm with Random Polarization
>60 % @ 633 nm with Linear, Polarization Perpendicular to Acoustic Propagation.
       >50 % @ 633 nm with random polarization.
Acoustic Aperture Size (in air)90 μm90 μm
Rise Time4 ns4 ns
Optical Waist Size To Achieve Rise Time19 μm19 μm
Deflection Angle65 mrad @ 633nm65 mrad @ 633nm
RF Power Level800mW  nominal800mW
Impedance50 Ohms nominal50 Ohms nominal
VSWR<1.5:1 @ 440 MHz<1.5:1 @ 440 MHz
Model23080-1-LTD23080-1-.85-LTD23080-1-1.06-LTD
Interaction MaterialTeO2TeO2TeO2
Acoustic ModeLongitudinalLongitudinalLongitudinal
Operating Wavelength440-850nm700-1000nm1064nm
Window ConfigurationAR coatedAR coatedAR coated
Static Transmission≥95%>97%>97%
Operating Frequency80 MHz80 MHz80 MHz
Diffraction Efficiency≥85 % @ 633 nm with linear polarization, perpendicular to acoustic propagation or random polarization>60 % @ 633 nm with Linear, Polarization Perpendicular to Acoustic Propagation.
       >50 % @ 633 nm with random polarization.
>75 % With Linear Polarization,
       Perpendicular to Acoustic Propagation
       >70 % With Random Polarization
Acoustic Aperture Size1mm1mm1mm
Rise Time150ns/mm150ns/mm150ns/mm
Deflection Angle11.89 mrad @ 633nm16 mrad @ 850nm20 mrad
RF Power Level≤1W1W1.25W
Impedance50 Ohms nominal50 Ohms nominal50 Ohms
VSWR<1.2:1 @ 80 MHz<1.2:1 @ 80 MHz<1.2:1 @ 80 MHz
Model23080-1-1.06/1.3-LTD23080-1-1.3-LTD23080-1-1.55-LTD
Interaction MaterialTeO2TeO2TeO2
Acoustic ModeLongitudinalLongitudinalLongitudinal
Operating Wavelength1.06-1.3um1300nm1550nm
Window ConfigurationAR coatedAR coatedAR coated
Static Transmission≥97%>97%>97%
Operating Frequency80 MHz80 MHz80 MHz
Diffraction Efficiency>75% with linear polarization perpendicular to acoustic propagation
       >70% with random polarization
>75 % With Linear Polarization,
       Perpendicular to Acoustic Propagation
       >70 % With Random Polarization
>60 % with light Polarized Linear,
       Perpendicular to Acoustic Propagation
       >55 % with light Random Polarization
Acoustic Aperture Size1mm1mm1mm
Rise Time155ns/mm150ns/mm150ns/mm
Deflection Angle24.44 mrad @ 1.3um
       20mrad @ 1.06um
25 mrad29 mrad
RF Power Level<2W @ 1.3um
       <1.2W @ 1.06um
<1.25W<2W
Impedance50 Ohms nominal50 Ohms nominal50 Ohms
VSWR<1.2:1 @ 80 MHz<1.2:1 @ 80 MHz<1.2:1 @ 80 MHz
Model23080-2-LTD23080-2-.85-LTD23080-2-1.06-LTD
Interaction MaterialTeO2TeO2TeO2
Acoustic ModeLongitudinalLongitudinalLongitudinal
Operating Wavelength440-850nm1300nm1064nm
Window ConfigurationAR coatedAR coatedAR coated
Static Transmission≥95%>97%>97%
Operating Frequency80 MHz80 MHz80 MHz
Diffraction Efficiency>85 % @ 633 nm, Linear polarization, perpendicular to acoustic propagation or random>70 % With Linear Polarization,
       Perpendicular to Acoustic Propagation
       >65 % With Random Polarization
>75 % with light Polarized Linear,
       Perpendicular to Acoustic Propagation
       >70 % with light Random Polarization
Acoustic Aperture Size2mm2mm2mm
Rise Time150ns/mm150ns/mm150ns/mm
Deflection Angle11.89mrad @ 633 nm16 mrad @ 850nm20 mrad
RF Power Level<1W<2W<2W
Impedance50 Ohms nominal50 Ohms nominal50 Ohms
VSWR<1.2:1 @ 80 MHz<1.2:1 @ 80 MHz<1.2:1 @ 80 MHz
Model23080-2-1.3-LTD23080-2-1.55-LTD23080-3-LTD
Interaction MaterialTeO2TeO2TeO2
Acoustic ModeLongitudinalLongitudinalLongitudinal
Operating Wavelength1330nm1550nm440-850nm
Window ConfigurationAR coatedAR coatedAR coated
Static Transmission≥97%>97%>97%
Operating Frequency80 MHz80 MHz80 MHz
Diffraction Efficiency>75 % with linear polarization, perpendicular to acoustic propagation
       >70% with random polarization
>50% With light Polarization linear,
       Perpendicular to Acoustic Propagation
       >45 % With Random Polarization
>85 % @ 633 nm,
       Linear Polarization, Perpendicular
       to Acoustic Propagation or Random
Acoustic Aperture Size2mm2mm3mm
Rise Time150ns/mm150ns/mm150ns/mm
Deflection Angle24.4 mrad29 mrad11.89 mrad @ 633nm
RF Power Level<3.2W<4W<1.2W
Impedance50 Ohms nominal50 Ohms nominal50 Ohms
VSWR<1.2:1 @ 80 MHz<1.2:1 @ 80 MHz<1.2:1 @ 80 MHz
Model23080-3-.85-LTD23080-3-1.06-LTD23080-3-1.3-LTD
Interaction MaterialTeO2TeO2TeO2
Acoustic ModeLongitudinalLongitudinalLongitudinal
Operating Wavelength700-1000nm1064nm1330nm
Window ConfigurationAR coatedAR coatedAR coated
Static Transmission≥97%>97%>97%
Operating Frequency80 MHz80 MHz80 MHz
Diffraction Efficiency>70 % with linear polarization, perpendicular to acoustic propagation
       >65% with random polarization
>70% With linear Polarization,
       Perpendicular to Acoustic Propagation
       >65 % With Random Polarization
>75% With linear Polarization,
       Perpendicular to Acoustic Propagation
       >70 % With Random Polarization
Acoustic Aperture Size3mm3mm3mm
Rise Time150ns/mm150ns/mm150ns/mm
Deflection Angle16 mrad @ 850nm20 mrad24.4 mrad
RF Power Level<2W<2W<4W
Impedance50 Ohms nominal50 Ohms nominal50 Ohms
VSWR<1.2:1 @ 80 MHz<1.2:1 @ 80 MHz<1.2:1 @ 80 MHz
Model23110-.523110-1-LTD24080-1
Interaction MaterialTeO2TeO2SF6
Acoustic ModeLongitudinalLongitudinalLongitudinal
Operating Wavelength440-850nm440-850nm440-850nm
Window ConfigurationAR coatedAR coatedAR coated
Static Transmission≥95%>95%>97%
Operating Frequency110 MHz110 MHz80 MHz
Diffraction Efficiency>90% @ 633nm With linear Polarization,
       Per
       ndicular to Acoustic Propagation or with Random Polarization
>85% @ 633nm With linear Polarization,
       Perpendicular to Acoustic Propagation or Random
65% @ 633nm with random polarization
Acoustic Aperture Size0.5mm1mm1mm
Rise Time150ns/mm150ns/mm185ns/mm
Deflection Angle16.3 mrad @ 633nm16.34 mrad @ 633nm14.4 mrad @ 633nm
RF Power Level1W1W1W
Impedance50 Ohms nominal50 Ohms nominal50 Ohms
VSWR<1.2:1 @ 110 MHz<1.2:1 @ 110 MHz<1.2:1 @ 80 MHz
Model26035-2-1.55-LTD26055-1-1.55-LTD
Interaction MaterialAMTIRAMTIR
Acoustic ModeLongitudinalLongitudinal
Operating Wavelength1300-1600nm1300-1600nm
Window ConfigurationAR coatedAR coated
Static Transmission≥97%≥97%
Operating Frequency35 MHz55 MHz
Diffraction Efficiency>85%>85%
Light polarizationRandomRandom
Optical power density<50kW/cm2<50kW/cm2
Acoustic Aperture Size2mm1mm
Rise Time260ns/mm260ns/mm
Deflection Angle20.6 mrad @ 1550nm32.4 mrad @ 1550nm
RF Power Level<0.5W<0.5W
Impedance50 Ohms nominal50 Ohms nominal
VSWR<1.2:1 @ 35 MHz<1.2:1 @ 35 MHz
Recommended driver
       (Analog, Digital
       Module, System)
21035-0.5AS
       21035-0.5AM
       21035-0.5DS
       21035-0.5DM
21055-0.5AS
       21055-0.5AM
       21055-0.5DS
       21055-0.5DM
Model35085-0.5-35035085-3-350
Interactive MaterialFused SilicaFused Silica
Acoustic ModeLongitudinalLongitudinal
Operating Wavelength300 to 400 nm300 to 400 nm
Window ConfigurationAR CoatedAR Coated
Static Transmission>99 %>99 %
Operating Frequency85 MHz85 MHz
Diffraction Efficiency>85 %85 % @ 350 nm
Light PolarizationLinear, Perpendicular to acoustic propagationLinear, Perpendicular to Acoustic Propagation
Acoustic Aperture0.5 mm3 mm
Rise Time110 nsec/mm beam diameter110 ns / mm Beam Diameter
Deflection Angle5 mrad @ 350 nm5 mrad @ 350 nm
RF Power Level< 6 Watts3 Watts
Impedance50 Ohms50 Ohms
VSWR<1.2:1 @ 85 MHz<1.2:1 @ 85 MHz
Package:53B142853B1428
Recommended driver
       (Analog, Digital
       Module, System)
31085-6AS
       31085-6AM
       31085-6DS
       31085-6DM
31085-6AS
       31085-6AM
       31085-6DS
       31085-6DM
Model35085-0.535085-3
Interactive MaterialFused SilicaFused Silica
Acoustic ModeLongitudinalLongitudinal
Operating Wavelength400 to 540 nm400 to 540 nm
Window ConfigurationAR CoatedAR Coated
Static Transmission>99 %>98 % @ 488 nm
Operating Frequency85 MHz85 MHz
Diffraction Efficiency>85 % With Linear Polarized Light, Perpendicular to acoustic propagation>85 % @ 488 nm With Light Polarized Linear, Perpendicular to Acoustic Propagation.
Acoustic Aperture Size0.5 mm3 mm
Rise Time110 nsec/mm beam diameter110 ns / mm Beam Diameter
Deflection Angle5 mrad @ 514 nm6.9 mrad @ 488 nm
RF Power Level< 6 Watts< 6 Watts @ 488 nm
Impedance50 Ohms50 Ohms
VSWR<1.2:1 @ 85 MHz<1.2:1 @ 85 MHz
Package:53B142853B1428
Recommended driver
       (Analog, Digital
       Module, System)
31085-6AS
       31085-6AM
       31085-6DS
       31085-6DM
31085-6AS
       31085-6AM
       31085-6DS
       31085-6DM
Model35110-2-24435110-2-244-BR35110-3-244-BR-KrF
Interactive MaterialKrF Grade Fused SilicaKrF Grade Fused SilicaKrF Grade Fused Silica
Acoustic ModeLongitudinalLongitudinalLongitudinal
Operating Wavelength244 nm244-260 nm244-260 nm
Window ConfigurationAR CoatedBrewsterBrewster
Static Transmission>97 %>99 %>99 %
Operating Frequency110 MHz110 MHz110 MHz
Diffraction Efficiency>70% With Linear Polarized Light, Perpendicular to acoustic propagation>70% With Linear Polarized Light, Perpendicular to acoustic propagation>70% With Linear Polarized Light, Perpendicular to acoustic propagation
Acoustic Aperture Size2 mm2 mm2 mm
Rise Time110 nsec/mm110 nsec/mm110 nsec/mm
Deflection Angle4.5 mrad4.5 mrad @ 244nm4.5 mrad @ 244nm
RF Power Level< 2 Watts< 4 Watts< 4 Watts
Impedance50 Ohms50 Ohms50 Ohms
VSWR<1.2:1 @ 110 MHz<1.2:1 @ 110 MHz<1.5:1 @ 95-125 MHz
Package:53B292153D163453D3926
Recommended driver
       (Analog, Digital
       Module, System)
21110-2AS
       21110-2AM
       21110-2DS
       21110-2DM
31110-4AS
       31110-4AM
       31110-4DS
       31110-4DM
31110-4AS
       31110-4AM
       31110-4DS
       31110-4DM
Model35210-BR / 7100435210-BR
Interactive MaterialFused SilicaFused Silica
Acoustic ModeLongitudinalLongitudinal
Operating Wavelength300 to 700 nm300 to 700 nm
Window ConfigurationBrewsterBrewster
Static Transmission>99 % @ 488 nm98 % @ 488 nm
Operating Frequency210 MHz210 MHz
Diffraction Efficiency>70 % @ 488 nm>70 % @ 488 nm
Light PolarizationLinear, Perpendicular to acoustic propagationLinear, Perpendicular to acoustic propagation
Acoustic Aperture Size (in air)0.13 mm0.13 mm
Rise Time<15 ns<15 ns
Optical Waist Size to achieve Rise Time0.1 mm0.1 mm
Deflection Angle17 mrad @488 nm17 mrad @ 488 nm
RF Power Level6 Watts6 Watts
Impedance50 Ohms50 Ohms
VSWR<1.5:1 @ 210 MHz<1.5:1 @ 210 MHz
Package Assembly: Mount, Optics and Modulator:53D0307
Package:53B340853B3408
Recommended Driver:Analog System Driver: 31210-6AS
       Analog Module Driver: 31210-6AM
       Digital System Driver: 31210-6DS
       Digital Module Driver: 31210-6DM
Model35110-2-24435250-.2-.53-XQ
Interactive MaterialKrF Grade Fused SilicaCrystal Quartz
Acoustic ModeLongitudinalLongitudinal
Operating Wavelength244 nm532 nm
Window ConfigurationAR CoatedAR Coated
Static Transmission>97 %>99 %
Operating Frequency110 MHz250 MHz
Diffraction Efficiency70 % With Linear Polarized Light Perpendicular to Acoustic Propagation>70 %
Light Polarization
Linear, Perpendicular
Acoustic Aperture Size2 mm0.2 mm
Rise Time110 ns / mm beam diameter10 ns
Optical Waist Size to achieve Rise Time
0.09 mm
Deflection Angle4.5 mrad23 mrad
RF Power Level<2 Watts6 Watts
Impedance50 Ohms50 Ohms
VSWR<1.2:1 @ 110 MHz<1.5:1 - 170 to 330 MHz
Package:53B292153B1354
Recommended Driver:21110-2AS
       21110-2AM
       21110-2DS
       21110-2DM
31250-6AS
       31250-6AM
       31250-6DS
       31250-6DM
Model37027-337027-537027-8-10.6
Interactive MaterialGeGeGe
Acoustic ModeLongitudinalLongitudinalLongitudinal
Operating Wavelength10.6um10.6um10.6um
Optical power density5Watt/mm2 max5Watt/mm2 max5Watt/mm2 max
Window ConfigurationAR CoatedAR CoatedAR “V” Coated
Static Transmission85 %85 %85 %
Operating Frequency27.12 MHz27.12 MHz27.12 MHz
Diffraction Efficiency>85%>75%>75%
Light PolarizationLinear, Parallel to acoustic propagationLinear, Parallel to acoustic propagationLinear, Parallel to acoustic propagation
Acoustic Aperture Size3 mm5 mm8 mm
Rise Time120 ns / mm120 ns / mm120 ns / mm
Deflection Angle52 mrad @ 10.6um52 mrad @ 10.6um52 mrad @ 10.6um
RF Power Level30 Watts30 Watts50 Watts
Impedance50 Ohms50 Ohms50 Ohms
VSWR<1.2:1 @ 27.12 MHz<1.2:1 @ 27.12 MHz<1.2:1 @ 27.12 MHz
Package:53B222053B222053B2220
Recommended Driver:39027-30-DSA0539027-35-DSA0539027-50-DSA05
Model37040-537041-8-4.5
Interactive MaterialGeGe
Acoustic ModeLongitudinalLongitudinal
Operating Wavelength10.6um4-5um
Optical power density5Watt/mm2 max
Window ConfigurationAR CoatedAR Coated
Static Transmission85 %85 %
Operating Frequency40 MHz40.68 MHz
Diffraction Efficiency>85%>80% with Linear polarized light, Parallel to acoustic propagation
Light PolarizationLinear, Parallel to acoustic propagation
Acoustic Aperture Size5 mm8 mm
Rise Time120 ns / mm120 ns / mm
Deflection Angle78 mrad @ 10.6um33 mrad @ 4.5um
RF Power Level35 Watts15 Watts
Impedance50 Ohms50 Ohms
VSWR<1.2:1 @ 40 MHz<1.2:1 @ 40.68 MHz
Package:53B222053B2220
Recommended Driver:39027-35-DSA0539027-30-DSA05
Model47040-5-.7-RA 48060-8/4-1.0-COL
Interactive MaterialTeO2TeO2
Acoustic ModeShearShear
Operating Wavelength655-850nm800-1200nm
Window ConfigurationAR CoatedAR Coated
Static Transmission95 %95 %
Operating Frequency40 MHz84MHz @ 800nm, 74MHz @ 900nm
       65.7MHz @ 1000nm,
       60MHz @ 1100nm, 54MHz @ 1200nm
Diffraction Efficiency>50% with Linear polarized light, Parallel to acoustic propagation>85% with Linear polarized light, perpendicular to acoustic propagation
Acoustic Aperture Size5 mm8x2 mm
Rise Time1us / mm
Resolution
<1nm (best offer)
Deflection Angle47 mrad23 mrad (with respect to incident beam)
RF Power Level0.6 Watts100 mWatts
Impedance50 Ohms50 Ohms
VSWR<1.2:1<1.5:1 over bandwidth
Package:53B357053B00337
ModelMFS030-3S2C-5-6.5DEGMFS030-3S2E-5-6.5DEGMFS040-35/13S2C-3
Interactive MaterialTeO2TeO2TeO2
Acoustic ModeShearShearShear
Operating Wavelength532nm633nm532nm
Window ConfigurationAR CoatedAR CoatedAR Coated
Static Transmission95 %95 %95 %
Operating Frequency30 MHz30 MHz40 MHz
Diffraction Efficiency>85% with linear polarization, parallel to acoustic propagation>85% with linear polarization, perpendicular to acoustic propagation for up shift and parallel to acoustic propagation for down shift>85% with linear polarization, random
Acoustic Aperture Size3 mm3 mm35mm(H)x13mm(along acoustic propagation direction)
Rise Time1us / mm1us / mm1us / mm
Deflection Angle24 mrad28 mrad34.4 mrad
RF Power Level<0.2 Watts<0.8 Watts<1.2 Watts
Impedance50 Ohms50 Ohms50 Ohms
VSWR<1.2:1<1.2:1<1.2:1
Package:53B202453B202453A3286T04
ModelMFS050-3S2C-5-6.5DEGMFS050-5S2E-5-6.5DEGMFS080-35/5S2C-3
Interactive MaterialTeO2TeO2TeO2
Acoustic ModeShearShearShear
Operating Wavelength532nm633nm532nm
Window ConfigurationAR CoatedAR CoatedAR Coated
Static Transmission95 %95 %95 %
Operating Frequency50 MHz50 MHz80 MHz
Diffraction Efficiency>85% with linear polarization, parallel to acoustic propagation>85% with linear polarization, perpendicular to acoustic propagation for up shift and parallel to acoustic propagation for down shift>50% with linear polarization, random
Acoustic Aperture Size3 mm5 mm35mm(H)x5mm(along acoustic propagation direction)
Rise Time1us / mm1us / mm1us / mm
Deflection Angle40 mrad48 mrad68.9 mrad
RF Power Level<0.5 Watts<1.5 Watts<4 Watts
Impedance50 Ohms50 Ohms50 Ohms
VSWR<1.2:1<1.2:1<1.2:1
Package:53B202453B202453A3286T04
ModelMFS100-2C4BB-5MFS160-5/13S2C-3MFS400-.2C2V13-5
Interactive MaterialFused SilicaTeO2TeO2
Acoustic ModeLongitudinalShearLongitudinal
Operating Wavelength300-400nm532nm650nm
Window ConfigurationAR CoatedAR CoatedAR Coated
Static Transmission95 %95 %95 %
Operating Frequency80-120 MHz160 MHz350-450 MHz
Intensity Variation<1.5dB

Diffraction Efficiency>85%, midband with linear polarization, perpendicular to acoustic propagation>50% with linear polarization, random>50%, midband with linear polarization, perpendicular to acoustic propagation
Acoustic Aperture Size2 mm5mm(H)x13mm(along acoustic propagation direction)0.2mm
Recommended beam diameter

100um
Deflection Angle2.4mrad @ 355nm1us / mm for rise-time15.2mrad
Deflection Angle6 mrad @ 100MHz @ 355nm138mrad61mrad @ 400MHz
RF Power Level<6 Watts<2 Watts<1 Watts
Impedance50 Ohms50 Ohms50 Ohms
VSWR<1.2:1 across bandwidth<1.2:1<1.2:1 across bandwidth
Package:53B142853A3286T0453B0504
ModelMFS500-.2C2B26-5MM200-.2C17B34-5MPP389-.15C17G-C-FOA
Interactive MaterialTeO2GaPGaP
Acoustic ModeLongitudinalLongitudinalLongitudinal
Operating Wavelength490-500nm1.06-1.7um1060nm
Window ConfigurationAR CoatedAR CoatedAR Coated
Static Transmission95 %>75% @ 1.06um
       >80% @ 1.7um
75 %
Operating Frequency450-550 MHz200 MHz389 MHz
Intensity Variation<1.25dB

Diffraction Efficiency>65%, Midband with linear polarization, perpendicular to acoustic propagation>55%@1.7um,  >80% @ 1.06um with linear polarization, parallel to acoustic propagation>56% @ 2.5W peak,
       >40% @ 1W CW with linear polarization, parallel to acoustic propagation
Acoustic Aperture Size0.2 mm0.2mm0.15mm
Recommended beam diameter100um

Optical waist size to achieve rise time
100um to achieve 10ns rise-time40um to achieve 4ns rise-time
Deflection Angle11.6mrad @ 495nm
15.2mrad
Deflection Angle58mrad @ 500MHz @ 495nm138mrad @ 1.06um
       51mrad @ 1.7um
62mrad @ 400MHz
RF Power Level<0.8 Watts<2 Watts<2.5W with duty cycle limited to <20% with RF on duration <200ns
       <1 Watts average
Impedance50 Ohms50 Ohms50 Ohms
VSWR<2:1 across bandwidth<1.5:1<1.5:1
Package:53B050453B0624T0153B4475
ModelMTF096-2S2B43-3-1ST/-1STMTF096-2S2B43-3-1ST/-1ST-1.2MTF096-2S2B43-3-1ST/-1ST-2.5
Interactive MaterialTeO2TeO2TeO2
Acoustic ModeShear waveShear waveShear wave
Operating Wavelength1.5-1.6um1.5-1.6um1.5-1.6um
Window ConfigurationAR CoatedAR CoatedAR Coated
Static Transmission95 %95 %95 %
Operating Frequency70.7MHz @ 1.5um
       65.0MHz @ 1.51um
       60.2MHz @ 1.52um
       56.1MHz @ 1.53um
       52.5MHz @ 1.54um
       49.3MHz @ 1.55um
       46.5MHz @ 1.56um
       44.0MHz @ 1.57um
       41.8MHz @ 1.58um
       39.7MHz @ 1.59um
       37.9MHz @ 1.6um
98.89MHz @ 1.5um
       98.21 MHz @ 1.51um
       97.54MHz @ 1.52um
       96.89MHz @ 1.53um
       96.24MHz @ 1.54um
       95.60MHz @ 1.55um
       94.97MHz @ 1.56um
       94.34MHz @ 1.57um
       93.73MHz @ 1.58um
       93.12MHz @ 1.59um
       92.53MHz @ 1.6um
98.89MHz @ 1.5um
       98.21 MHz @ 1.51um
       97.54MHz @ 1.52um
       96.89MHz @ 1.53um
       96.24MHz @ 1.54um
       95.60MHz @ 1.55um
       94.97MHz @ 1.56um
       94.34MHz @ 1.57um
       93.73MHz @ 1.58um
       93.12MHz @ 1.59um
       92.53MHz @ 1.6um
Diffraction Efficiency>80%(both order combined) with random polarization>80%(both order combined) with random polarization>40%(both order combined) with random polarization
Input beam pergence<5 deg solid angle<5 deg solid angle<8 deg solid angle
Acoustic Aperture Size2 mm2 mm2 mm
Resolution<1.2nm<1.2nm<2.5nm
Deflection Angle(with respect to input beam)7.4 degree nominal7.4 degree nominal7.4 degree nominal
Angular speed<0.15degree<0.15degree<0.15degree
RF Power Level<4 Watts<4 Watts<3 Watts
Impedance50 Ohms50 Ohms50 Ohms
VSWR<2:1 over bandwidth<1.5:1<1.5:1
Package:53B296553B296553B2965
ModelI-M041-XXC11XX-P5-GH771I-M041-10C11Q-P5-SY1
Interactive MaterialGermaniumMonocrystalline Germanium
Operating Wavelength9.4um or 10.6um10.6um
Damage threshold>15W/mm2<=5W/mm2
AR coating reflectivity<0.2% per surface<=0.5% per surface
Transmission>96.5%>=95%
Acoustic Frequency40.68MHz40.68MHz
Optical polarizationLinear, Horizontal (parallel to base)Linear, horizontal (parallel to base)
Active apertureUp to 9.6mm10mm
Acoustic modeCompressional
Rise-time (10-90%)120ns/mm
Diffraction efficiency>=90%>=90%
Max RF power120W100W

2. STBR Series Free Space AOM


 The STBR series free space Acousto-Optic Modulator (AOM) with RF driver is used to vary and control laser beam intensity. It is electronically programmable using a microprocessor connected to the Brimrose RF driver unit. The RF driver features all the necessary components to drive the modulator with analog or digital input control. Our free space AO products are housed in environmentally stable packages. They offer superior resistance to humidity and temperature, and are suitable for laboratory as well as various OEM applications and instrumentations.

Model #Spectral Range (nm)Rise Time (ns)Active Aperture (mm)Modulation Bandwidth (MHz)DE (%)
TEM-85-2380-16002802.0280
TEM-85-10380-1600551.01080
TEM-110-25380-1600220.52580
TEM-200-50380-1600100.35070
TEM-400-100380-16005.50.07510050
TEM-800-200380-160030.0520035
AMM-27-21000-250030011.8>80
AMM-80-41000-250016014>80
AMM-100-81000-2500680.38>80
FQM-80-2200-13001951.62.870
FQM-80-20200-13003011870
FQM-200-40200-1300140.34070
GEM-40-42000-11,0001251.5570
GPM-200-50600-1600110.350>75
GPM-400-100600-16005.10.1108>65
GPM-800-200600-16002.60.05217>40
GPM-1600-400600-16001.40.025400>25
IPM-200-261000-1600210.32660
IPM-400-1001000-160050.07510050

3. Multi-channel Modulators

Acousto-optic multi-channel modulators (AOMC) allow multiple beams to be modulated or deflected independently by integrating an array of transducers with a single acousto-optic crystal. Our proprietary optical and electrical designs minimize crosstalk, allowing concurrent operation of up to 48 channels for modulation, and up to 8 channels for beam deflection. Our AOMCs are known for their reliable operation and high performance.

Multi-channel modulators have parallel beams as input, each beam independently controlled by a different transducer to modulate its intensity. Multi-channel modulators are most often used for high speed applications like micromachining and direct-write lithography, as each beam can be modulated independently.

These devices can also be used to increase throughput when writing large media by writing multiple beams at the same time. Our multi-channel modulators equal the performance available with our single channel modulators, and can be customized for large aperture applications as well as high speed, small aperture applications.

A multi-channel beam deflector however, generates multiple diffracted beams from a single input beam at specific locations by simultaneously applying multiple frequencies to a single transducer. Each inpidual channel is a deflector that can either scan the beam or produce multiple spots. This makes it possible to create a two dimensional grid. For example, if a four channel beam deflector were configured so that each channel diffracted three spots, the result would be a 4x3 grid.

High laser damage threshold is achieved using low-scatter materials. These are inspected to rigorous quality standards. We grow our own tellurium dioxide and source high quality fused silica and crystalline quartz to ensure low insertion loss and excellent optical power handling.

Our standard model are listed below:

ModelWavelengthNo. of ChannelsRise/Fall TimeActive ApertureOperating FrequencyOptical Material
AOMC 220-4350-365 nm416 ns0.24 mm190-250 MHzCrystalline quart
AOMC 125-24350-365 nm2423 ns0.5 mm125 MHzCrystalline quartz
AOMC 3160-8364 nm821 ns0.18 mm160 MHzFused silica
AOMC 300-5413 nm510 ns0.2 mm300 MHzCrystalline quartz
AOMC 220-5413 nm516 ns0.24 mm220 MHzCrystalline quartz
AOMC 3350-6350-850 nm630 ns0.33 mm350 MHzTellurium dioxide

We have more AOMs and please contact us for more detailed data sheets. Customer-designed and -made AOMs are also available. Please call us for more information.


  • Online submission
  • Send us a message

    CLOSE
