Acousto-optic beam deflectors (AOBD) offer precise angular control of an optical beam using RF drive frequency tuning. Up to two thousand spots can be resolved over an angular range of a few degrees.

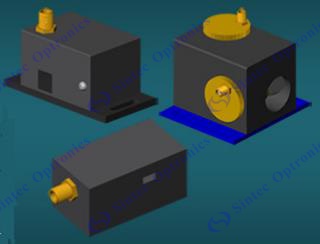

STG Series AO Deflectors

Acousto-optic beam deflectors (AOBD) offer precise angular control of an optical beam using RF drive frequency tuning. Up to two thousand spots can be resolved over an angular range of a few degrees for 1D and 2D scanning as well as beam deflection through a fixed angle. The scan speed can be as fast as a few microseconds.

Beam deflectors offer highly uniform diffraction efficiency across the full scan angle, with consistent power throughput for scanning applications such as material processing and digital imaging. We manufacture devices based on tellurium dioxide crystals grown in-house for visible and near-infrared (NIR) wavelength applications. For optimal transmission in the ultraviolet (UV) we offer fused silica and crystal quartz products. For broad bandwidth applications, we use a longitudinal mode approach with a phased array of piezoelectric elements within the transducer. We achieve high efficiency with slow shear deflection using parallel tangents off-axis interaction.

Typical applications include; photolithography, laser tweezers, optical scanning, optical inspection, digital imaging and PCB via hole drilling.

ao deflector AO deflector

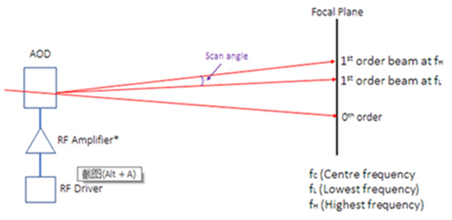

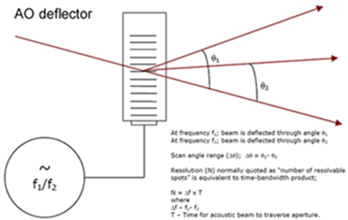

Please refer to the picture showing the deflection principle. At frequency f1; beam is deflected through angle θ1. At frequency f2; beam is deflected through angle θ2. Thus Scan angle range (Δθ), Δθ = θ1- θ2. Resolution (N) normally quoted as “number of resolvable spots” is equivalent to time-bandwidth product, N = Δf x T, where Δf – f1- f2; T – time for acoustic beam to traverse aperture.

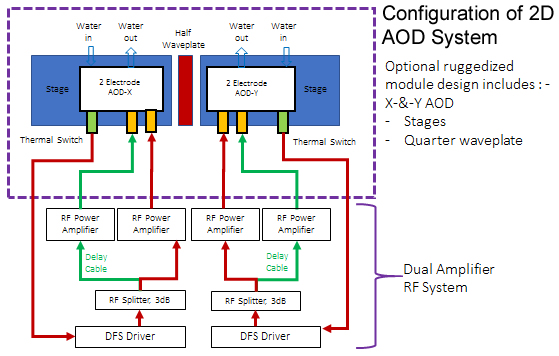

2D scanning system is used for PCB via hole drilling and the configuration is shown as follows. Our recommendation is a package including 2pcs AODF4170 and stages, 1pc dual amplifier RF system.

AO deflector

Our standard AOBD model as below:

ModelWavelengthScan AngleActive ApertureOperating FrequencyDriverOptical Material

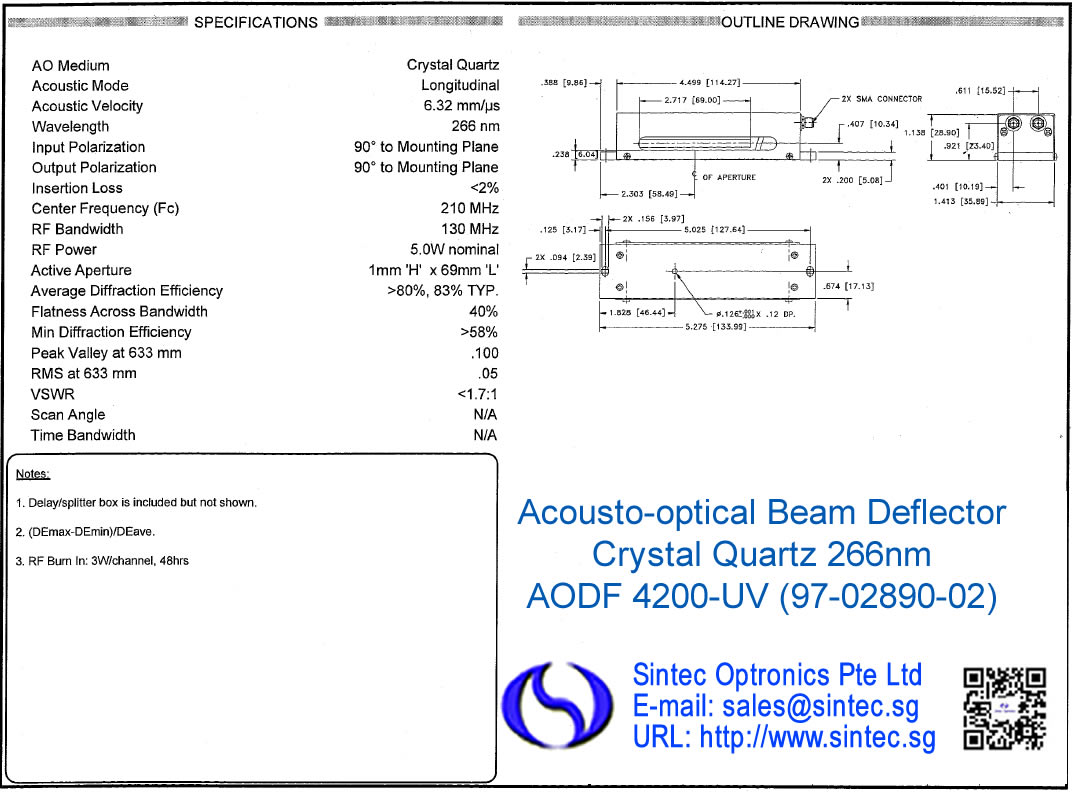

AOBD 4200-UV266 nm10.3 mrad1.0x60.0 mm135-265 MHz6000 series
       64020-250-1ADMDFS-A
Fused silica
AOBD 2690266nmNA0.8x67mm330MHz6000 series
       64020-250-1ADMDFS-A
Sapphire
AOBD  3246355nm4.9mrad7mm dia.170MHz6000 series
       64020-250-1ADMDFS-A
Crystalline quartz
AOBD 3283355nm1.2mrad6mm dia.110MHz6000 series
       64020-250-1ADMDFS-A
Crystalline quartz
AOBD 4130355nm1.85mrad10mm130MHz
Crystalline quartz
AOBD 4170355 nm4.9 mrad7 mm130-210 MHz6000 series
       64020-250-1ADMDFS-A
Crystalline quartz

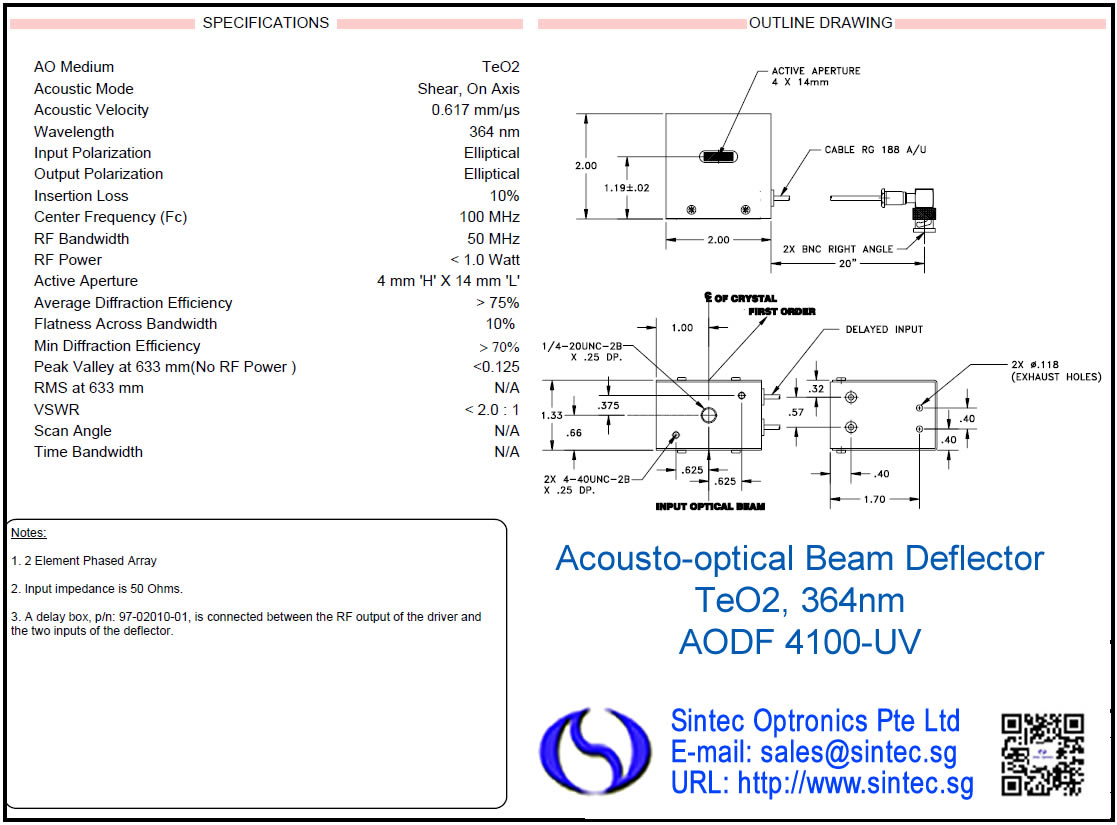

AOBD 4100-UV364 nm29.5 mrad4.0x14.0 mm75-125 MHz6000 series
       64020-250-1ADMDFS-A
Tellurium dioxide

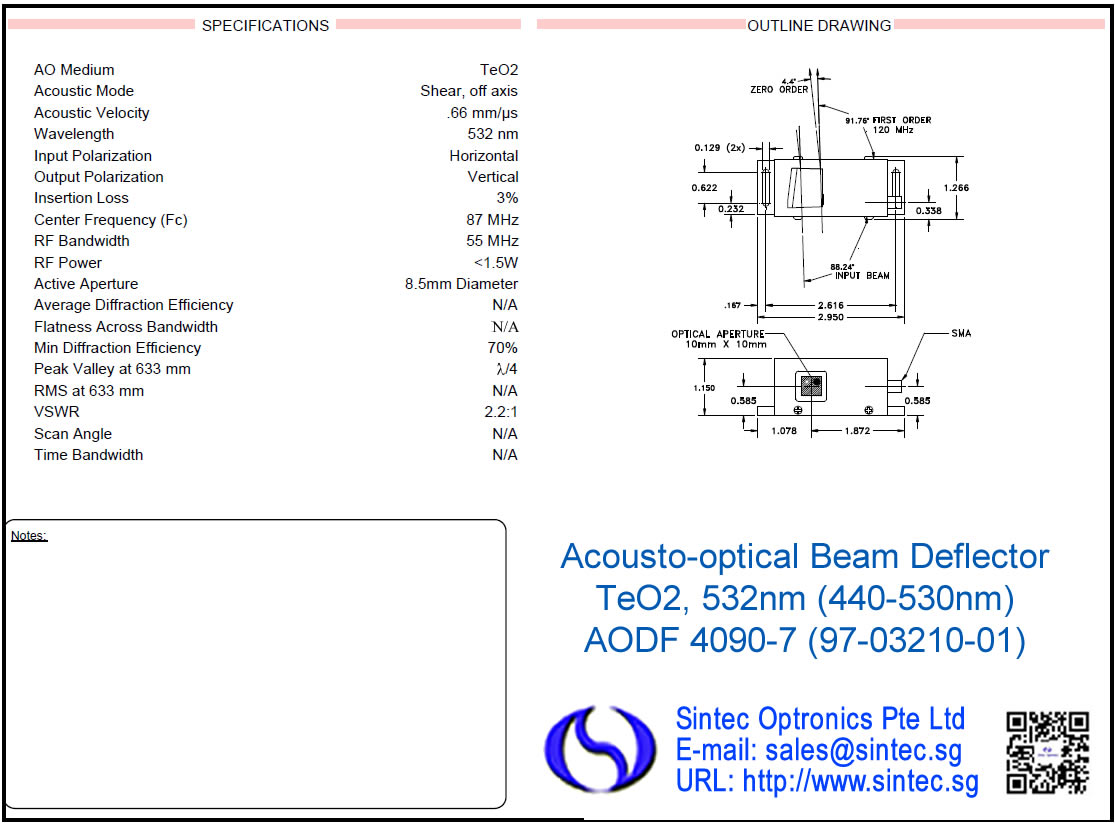

AOBD 4090-7440-530 nm44 mrad8.5 mm60-115 MHz6000 series
       64020-250-1ADMDFS-A
Tellurium dioxide

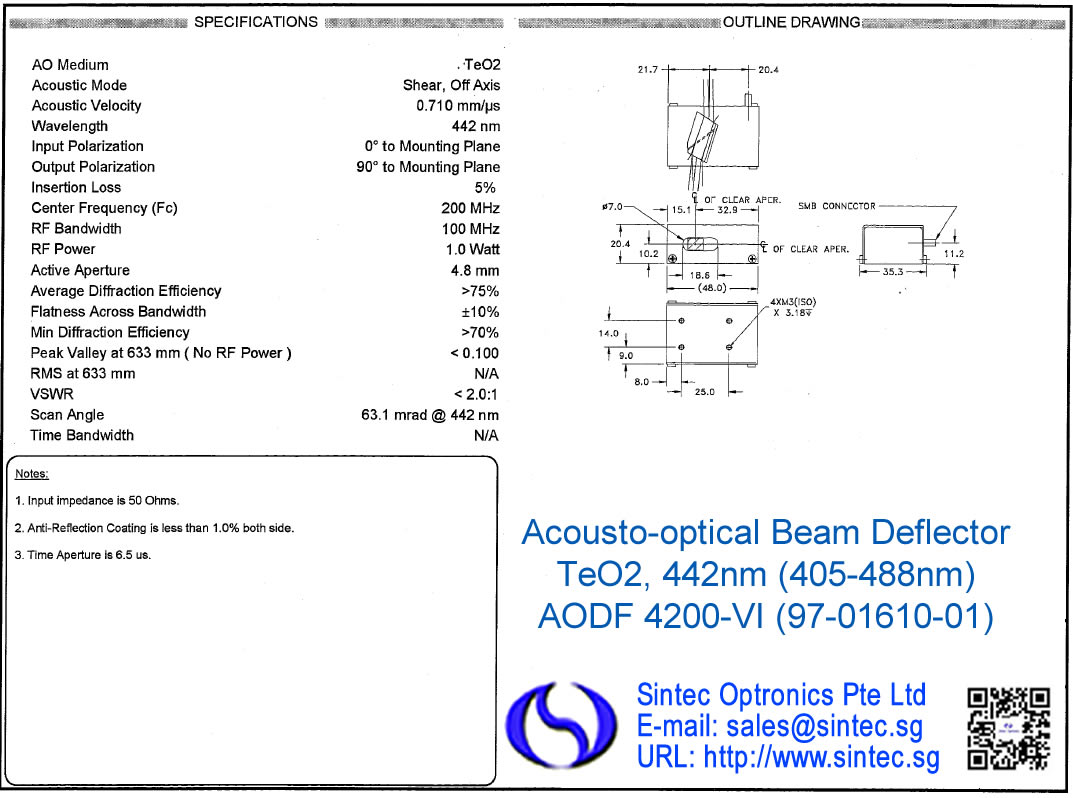

AOBD 4200-VI442-488 nm29.5 mrad4.8 mm150-250 MHz6000 series
       64020-250-1ADMDFS-A
Tellurium dioxide

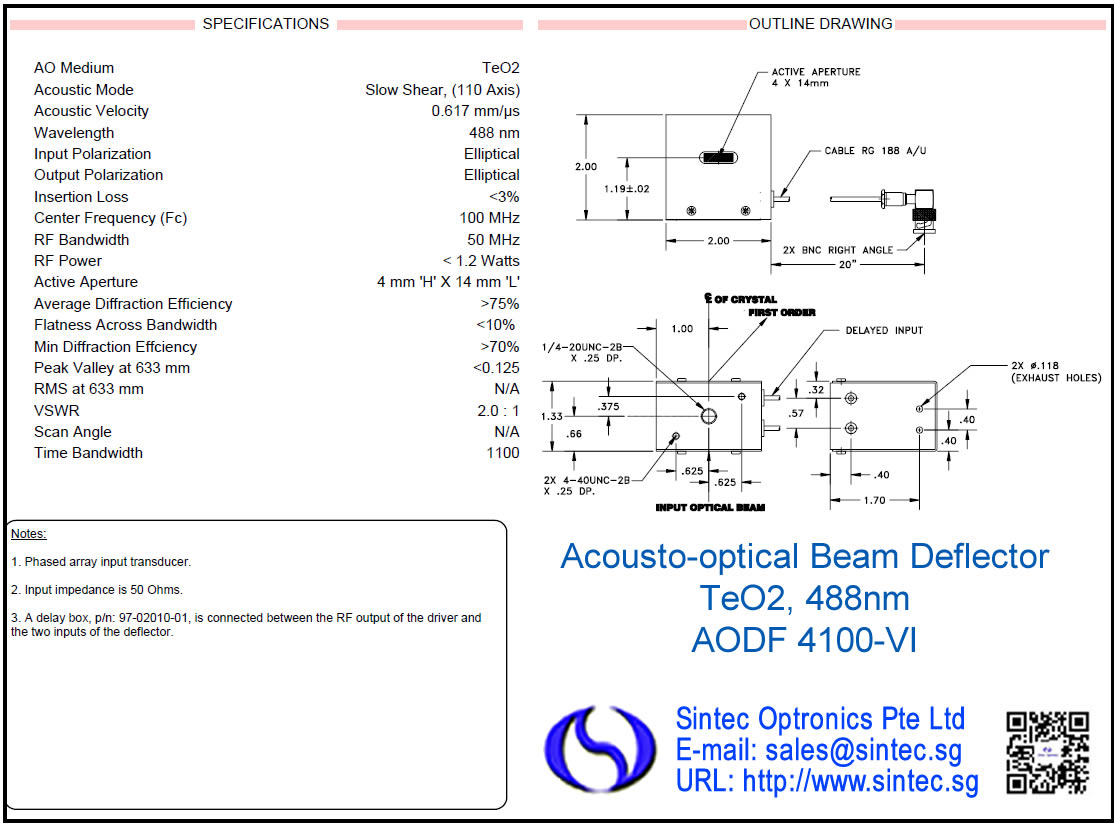

AOBD 4100-VI488 nm39.5 mrad4.0-14 mm75-125 MHz6000 series
       64020-250-1ADMDFS-A
Tellurium dioxide
AOBD 4080-13635 nm8.2 mrad2 mm76-84 MHz6000 series
       64020-250-1ADMDFS-A
Tellurium dioxide

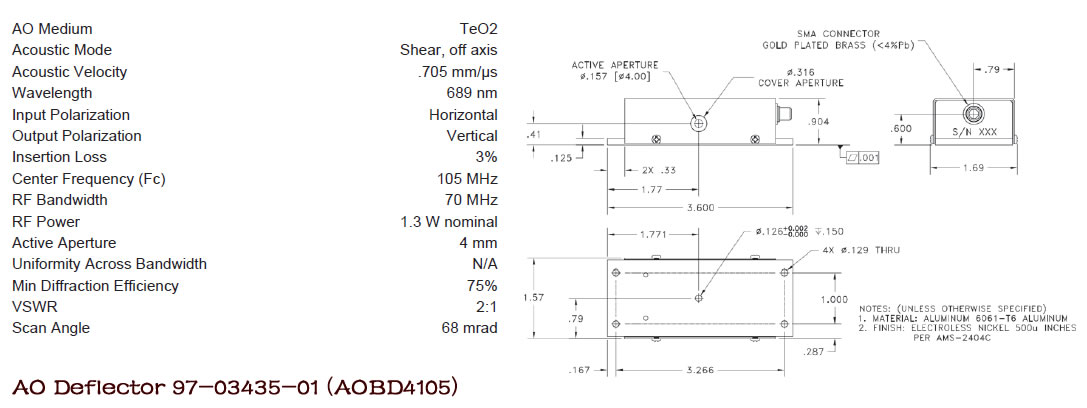

97-03435-01 (AOBD4105)689nm68mrad
4mm105MHz6000 series
       64020-250-1ADMDFS-A
Tellurium dioxide
AOBD 4085750-1064nm42.5mrad15mm55-110MHz6000 series
       64020-250-1ADMDFS-A
Tellurium dioxide

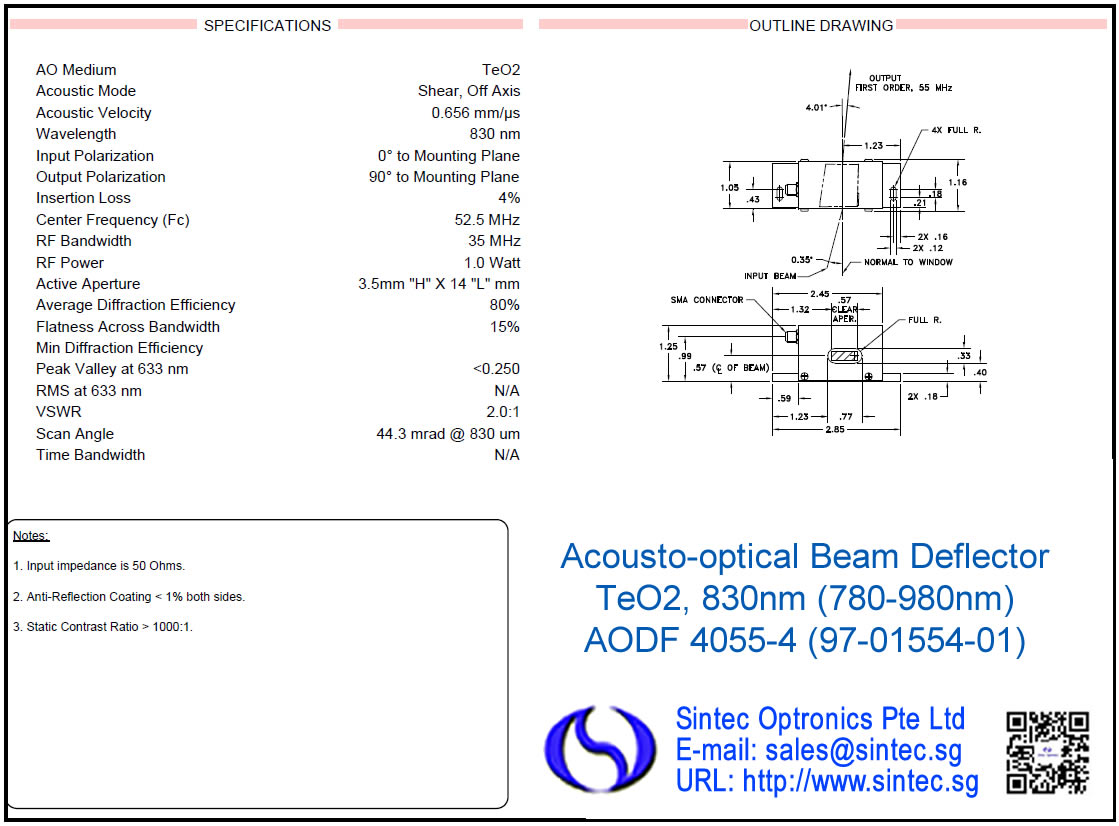

AOBD 4055-4780-980 nm44.3 mrad3.5x14 mm35-70 MHz6000 series
       64020-250-1ADMDFS-A
Tellurium dioxide

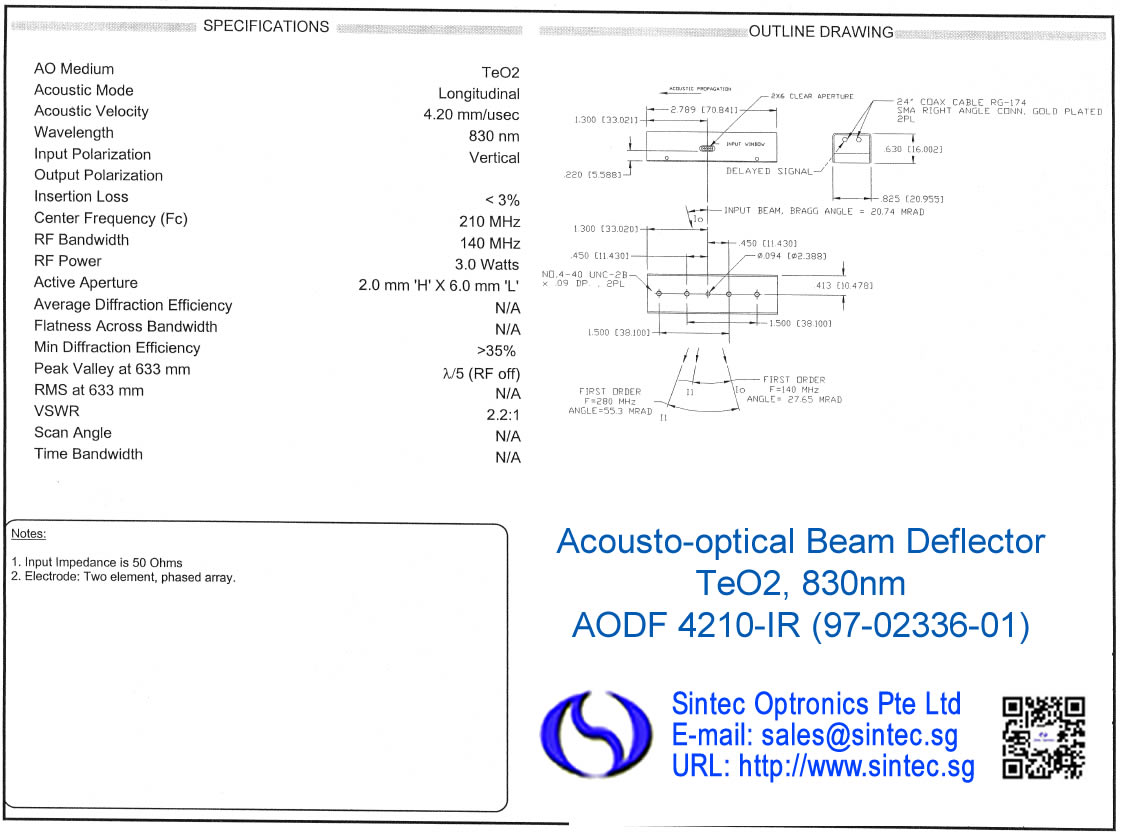

AOBD 4210-IR830 nm27.6 mrad2.0-6.0 mm140-280 MHz6000 series
       64020-250-1ADMDFS-A
Tellurium dioxide

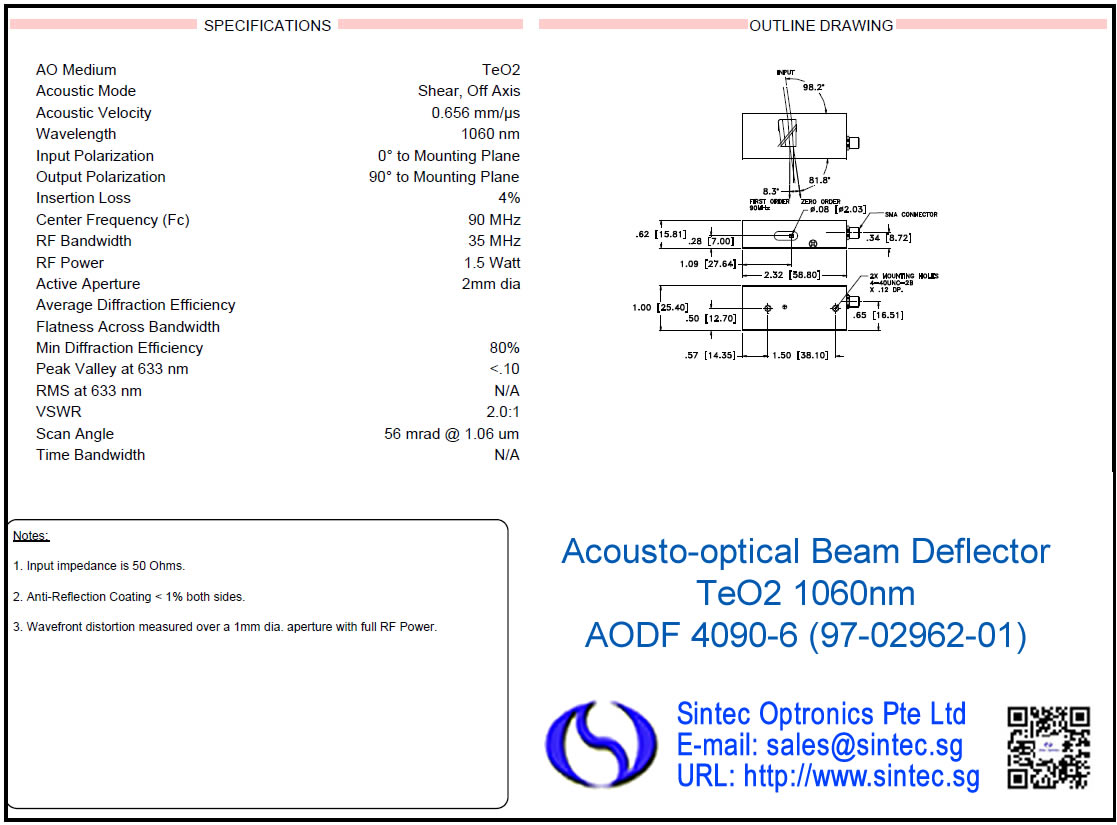

AOBD 4090-61064 nm56 mrad2 mm72.5-107.5 MHz6000 series
       64020-250-1ADMDFS-A
Tellurium dioxide
AOBD 4075-IR1065-1100 nm8.1 mrad2.5 mm59-91 MHz6000 series
       64020-250-1ADMDFS-A
Tellurium dioxide

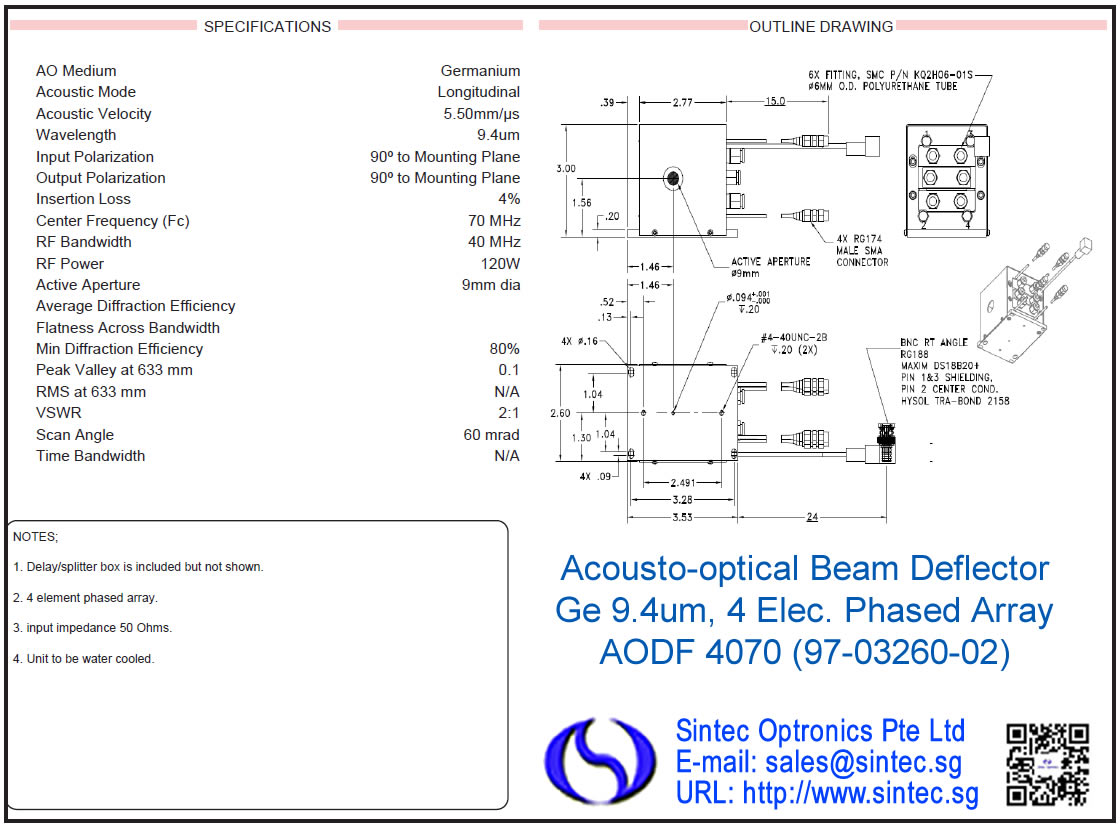

AOBD 40709.4 μm60 mrad9 mm50-90 MHz6000 series
       64020-250-1ADMDFS-A
Germanium

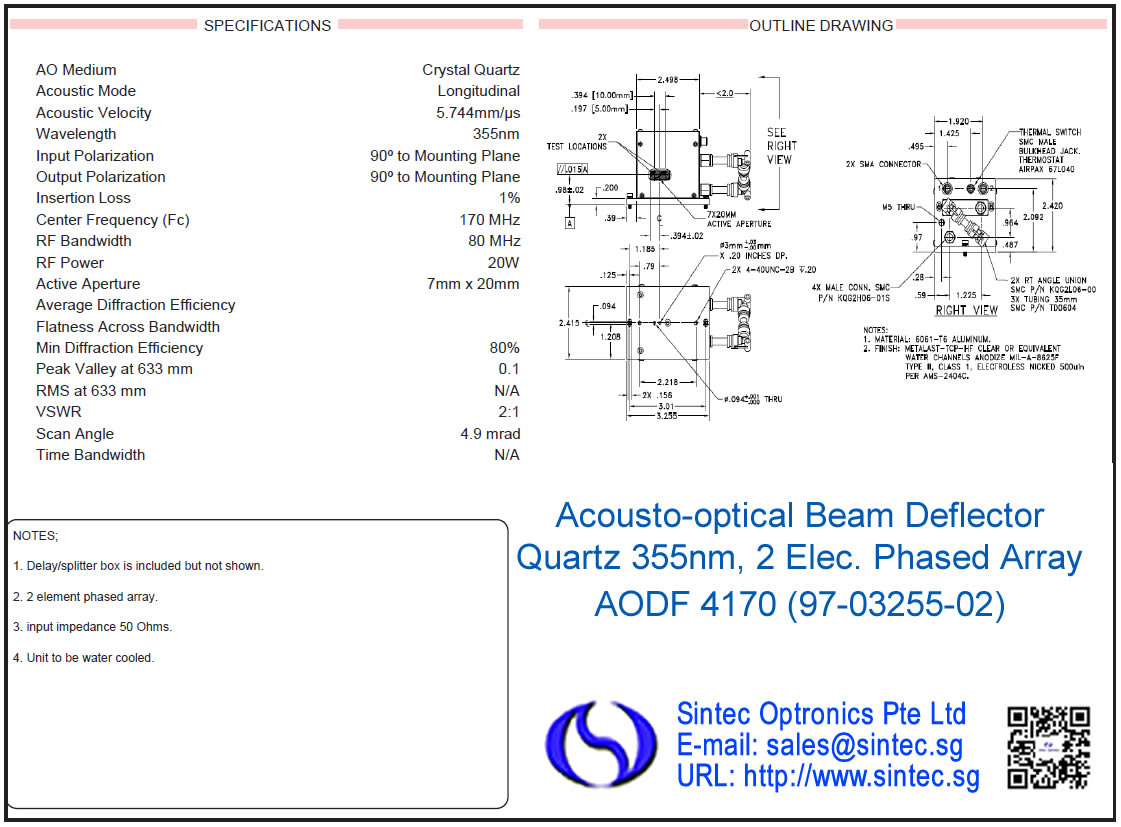

1. Specifications of AOBD 4170 (97-03255-02)

  • AO Medium: Crystal Quartz

  • Acoustic Mode: Longitudinal

  • Acoustic Velocity: 5.744mm/μs

  • Wavelength: 355nm

  • Input Polarization: 90º to Mounting Plane

  • Output Polarization: 90º to Mounting Plane

  • Insertion Loss: 1%

  • Center Frequency (Fc): 170 MHz

  • RF Bandwidth: 80 MHz

  • RF Power: 20W

  • Active Aperture: 7mm x 20mm

  • Min Diffraction Efficiency: 80%

  • Peak Valley at 633 mm: 0.1

  • VSWR: 2:1

  • Scan Angle: 4.9 mrad

  • Driver: dual-channel driver 97-0600X-XX for 2D scanning

NOTES;

  • Delay/splitter box is included but not shown.

  • 2 element phased array.

  • input impedance 50 Ohms.

  • Unit to be water cooled.

Applications: 2pcs AOBD4170 consist of a 2D scanning for PCB via hole drilling with a dual-channel RF driver (6000 series driver). We can provide full solution for the application. Please contact us for more information.

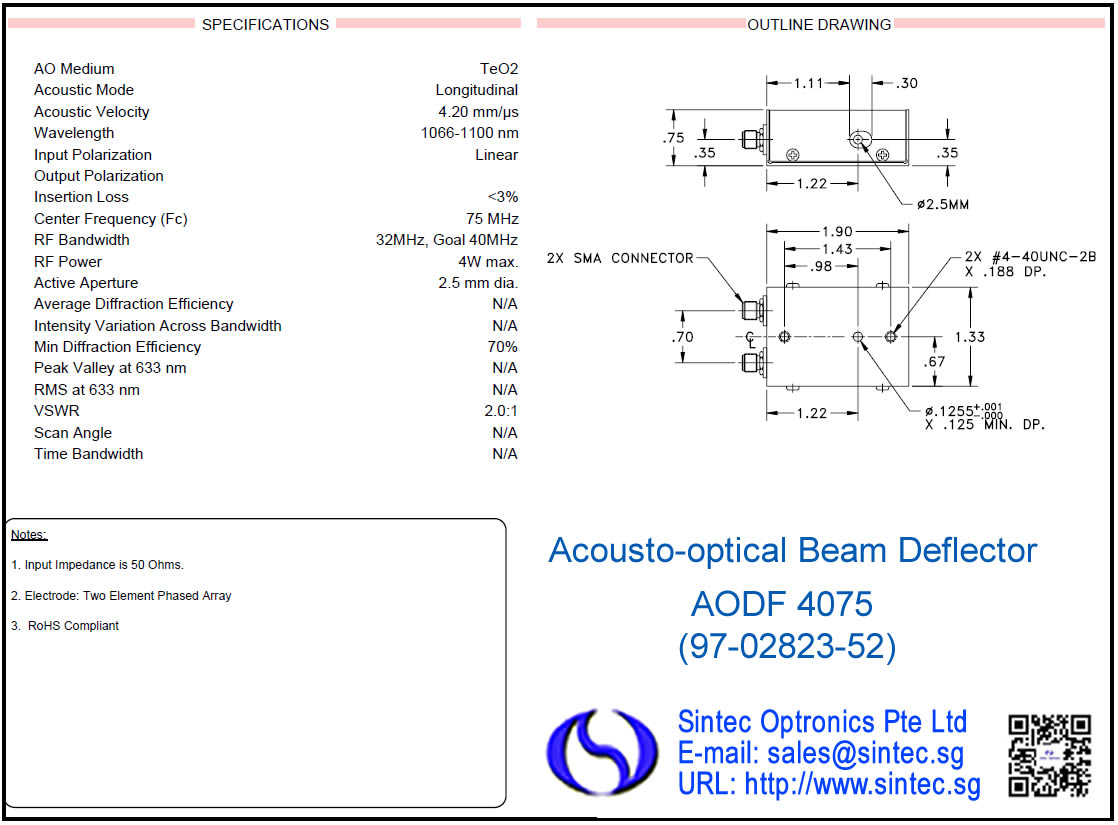

2. Specifications of AODF 4075 (97-02823-52)

  • AO Medium: TeO2

  • Acoustic Mode: Longitudinal

  • Acoustic Velocity: 4.20 mm/μs

  • Wavelength: 1066-1100 nm

  • Input Polarization: Linear

  • Output Polarization:

  • Insertion Loss: <3%

  • Center Frequency (Fc): 75 MHz

  • RF Bandwidth: 32MHz, Goal 40MHz

  • RF Power: 4W max.

  • Active Aperture: 2.5 mm dia.

  • Average Diffraction Efficiency: N/A

  • Intensity Variation Across Bandwidth: N/A

  • Min Diffraction Efficiency: 70%

  • Peak Valley at 633 nm: N/A

  • RMS at 633 nm: N/A

  • VSWR: 2.0:1

  • Scan Angle: N/A

  • Time Bandwidth: N/A

Notes:

  • Input Impedance is 50 Ohms.

  • Electrode: Two Element Phased Array

  • RoHS Compliant

STBR Series Beam Deflectors

STBR series Acousto-Optic Deflectors (AODs) combined with RF drivers are specially designed for high-speed scanning applications such as laser recording, optical scanning, signal processing, etc. The AOD changes the diffraction angle of an input laser beam and its angular position is linearly proportional to the RF frequency, so that the higher the frequency, the larger the diffracted angle.

KEY FEATURES

  • 1-D and 2-D Deflection Systems

  • Compact Integrated Design

  • Wide Spectral Wavelength Range

  • Uniform Scan Intensity

  • Low Power Consumption

  • Linear Polarization

  • Fast Switching Speed

  • High Resolution and Bandwidth

  • High Throughput

  • Custom Configurations Available

REAL-TIME APPLICATIONS

  • Photolithography

  • Continuous Laser Beam Deflection

  • Vector (Random) Scanning

  • Signal Processing

  • Graphic and Laser Printing

  • Optical Inspection

Model #Wavelength RangeActive ApertureTime bandwidthProduct 3dB BandwidthDeflection angle (deg.)DE (%)
STBR-TED-130-60380-1600nm1.0 x 4.2mm6060MHz0.4470
STBR-TED-200-100380-1600nm1.0 x 4.2mm100100MHz0.870
STBR-TED-320-200380-1600nm0.5 x 9.0mm400200MHz1.6960
STBR-TED-400-200380-1600nm0.5 x 5.0mm200200MHz1.6950
STBR-TED10-100-60-.488488nm3.0 x 7.0mm60060MHz2.5>75
STBR-TED20-100-60-.488488nm3.0 x 14.0mm120060MHz2.5>70
STBR-TED10-100-50-.532532nm3.0 x 7.0mm50050MHz3.0>70
STBR-TED20-100-50-.532532nm3.0 x 14.0mm100050MHz3.0>70
STBR-TED10-75-50-.633633nm3.0 x 7.0mm50050MHz3.0>75
STBR-TED20-75-50-.633633nm3.0 x 14.0mm100050MHz3.0>70
STBR-TED10-60-40-.800800nm3.0 x 7.0mm40040MHz2.0>70
STBR-TED20-60-40-.800800nm3.0 x 14.0mm80040MHz2.0>65
STBR-TED10-50-30-1.061060nm3.0 x 7.0mm30030MHz2.7>75
STBR-TED20-50-30-1.061060nm3.0 x 14.0mm60030MHz2.7>70
STBR-GPD-250-100633nm0.75 x 5.0mm70100MHz0.5770
STBR-GPD2-250-100633nm0.75 x 13.0mm200100MHz0.5740
STBR-GPD-350-200633nm0.75 x 5.0mm140200MHz1.1540
STBR-GPD2-350-200633nm0.75 x 13.0mm400200MHz1.1535
STBR-GPD-650-300633nm0.18 x 5.0mm210300MHz2.2540
STBR-GPD-800-400-SC600-1600nm0.18 x 4.2mm400400MHz4.330
STBR-GPD2-800-400-SC600-1600nm0.18 x 8.4mm800400MHz4.325
STBR-GPD-800-500600-1600nm0.076 x 5.0mm350500MHz2.950
STBR-GPD-1500-1000600-1600nm0.075 x 6.3mm2501000MHz5.715-20
STBR-LND-2500-1000630/830nm0.075 x 3.4mm10001000MHz10@630nm10-15
STBR-IPD-200-501000-2100nm0.75 x 6.0mm5050MHz0.6540
STBR-IPD-400-1501000-2100nm0.75 x 6.0mm150150MHz1.9535
STBR-IPD-600-2001000-2100nm0.18 x 6.0mm200200MHz2.630
STBR-2DS-100-45-532532+/-25nm10.0 x 10.0mm675 x 67545MHz2.3>40

Acousto-optic beam deflectors (AOBD) offer precise angular control of an optical beam using RF drive frequency tuning. Up to two thousand spots can be resolved over an angular range of a few degrees for 1D and 2D scanning as well as beam deflection through a fixed angle. The scan speed can be as fast as a few microseconds. For mmore information on the RF drivers, please click here.

Multi-channel Modulators

Acousto-optic multi-channel modulators (AOMC) allow multiple beams to be modulated or deflected independently by integrating an array of transducers with a single acousto-optic crystal. Our proprietary optical and electrical designs minimize crosstalk, allowing concurrent operation of up to 48 channels for modulation, and up to 8 channels for beam deflection. Our AOMCs are known for their reliable operation and high performance.

Multi-channel modulators have parallel beams as input, each beam independently controlled by a different transducer to modulate its intensity. Multi-channel modulators are most often used for high speed applications like micromachining and direct-write lithography, as each beam can be modulated independently.

These devices can also be used to increase throughput when writing large media by writing multiple beams at the same time. Our multi-channel modulators equal the performance available with our single channel modulators, and can be customized for large aperture applications as well as high speed, small aperture applications.

A multi-channel beam deflector however, generates multiple diffracted beams from a single input beam at specific locations by simultaneously applying multiple frequencies to a single transducer. Each inpidual channel is a deflector that can either scan the beam or produce multiple spots. This makes it possible to create a two-dimensional grid. For example, if a four channel beam deflector were configured so that each channel diffracted three spots, the result would be a 4x3 grid.

High laser damage threshold is achieved using low-scatter materials. These are inspected to rigorous quality standards. We grow our own tellurium dioxide and source high quality fused silica and crystalline quartz to ensure low insertion loss and excellent optical power handling.

Our standard models are below:

ModelWavelengthNumber of ChannelsRise/Fall TimeActive ApertureOperating FrequencyOptical Material
AOMC 220-4350-365 nm416 ns0.24 mm190-250 MHzCrystalline quartz
AOMC 125/24-3350-365 nm2423 ns0.5 mm125 MHzCrystalline quartz
AOMC 3160-8364 nm821 ns0.18 mm160 MHzFused silica
AOMC 300-5413 nm510 ns0.2 mm300 MHzCrystalline quartz
AOMC 220-5413 nm516 ns0.24 mm220 MHzCrystalline quartz
AOMC 3350-6350-850 nm630 ns0.33 mm350 MHzTellurium dioxide

Old Models of Acousto-optic Deflectors

An AO Deflector is a device that will scan an optical beam over a range of angles or accurately control the output angle of the beam. By altering the RF drive frequency to the Deflector, the deflection angle, i.e. the angle through which the diffracted beam is deviated, can be varied.

Effective AO Deflector design is complex, and involves choices of acousto-optic materials and the appropriate acoustic-mode depending upon the application. Commonly, resolution is the most important parameter for a deflector. However, high resolution generally comes at the expense of other parameters such as access time and efficiency. Thus it is important to effectively trade off the various performance requirements.

our strong team of scientists and engineers are available to assist you in selecting one of our standard products or providing a custom solution.

Typical applications include; Photolithography, laser tweezers, optical scanning, optical inspection and digital imaging.

ModelBrief DescriptionRecommended Driver
45035-3-6.5DEG-1.06TeO2, 1064nm wavelength, 25-45MHz, 3mm aperture, 32mrad deflection, 90 spots resolution, 2W RF64020-200-2ADSDFS-A
       64020-200-2ADMDFS-A
       64025-45-2ASVCO-1
       64025-45-2AMVCO
45035-3-6.5DEG-1.06-XYTeO2, 1064nm, 25-45MHz, 3mm aperture, 32mrad deflection, 90 spots resolution, 2W RF64020-200-2ADSDFS-A-2
64020-200-2ADMDFS-A (2X)
64025-45-2ASVCO-2
64025-45-2AMVCO (2X)
45035-5-6.5DEG-1.06TeO2, 1064nm, 25-45MHz, 5mm aperture, 56mrad deflection, 150 spots resolution, 4W RF64020-200-4ADSDFS-A
64020-200-4ADMDFS-A
64025-45-4ASVCO-1
64025-45-4AMVCO
45035-5-6.5DEG-1.06-XYTeO2, 1064nm, 25-45MHz, 5mm aperture, 56mrad deflection, 150 spots resolution, 4W RF64020-200-4ADSDFS-A-2
64020-200-4ADMDFS-A (x2)
64025-45-4ASVCO-2
64025-45-4AMVCO (x2)
45050-5-6.5DEG-.8TeO2, 780-850nm, 35-65MHz, 5mm aperture, 65mrad deflection, 225 spots resolution, 2W RF64020-200-2ADSDFS-A
64020-200-2ADMDFS-A
21035-65-2ASVCO-1
21035-65-2AMVCO
45050-5-6.5DEG-.8-XYTeO2, 780-850nm, 35-65MHz, 5mm aperture, 65mrad deflection, 225 spots resolution, 2W RF64020-200-2ADSDFS-A-2
64020-200-2ADMDFS-A (x2)
21035-65-2ASVCO-2
21035-65-2AMVCO (x2)
45050-6-.83TeO2, 780-850nm, 35-65MHz, 6mm aperture, 68mrad deflection, 291 spots resolution, 2W RF64020-200-2ADSDFS-A
64020-200-2ADMDFS-A
64035-65-2ASVCO-1
64035-65-2AMVCO
45070-5-6.5DEG-.63TeO2, 633nm, 50-90MHz, 5mm aperture, 67mrad deflection, 300 spots resolution, 2W RF64020-200-2ADSDFS-A
64020-200-2ADMDFS-A
21050-90-2ASVCO
21050-90-2AMVCO
45070-5-6.5DEG-.63-XYTeO2, 633nm, 50-90MHz, 5mm aperture, 67mrad deflection, 300 spots resolution, 2W RF64020-200-2ADSDFS-A-2
64020-200-2ADMDFS-A (2x)
64050-90-2ASVCO-2
64050-90-2AMVCO (2x)
45070-6TeO2, 633-850nm, 50-90MHz, 6mm aperture, 72mrad deflection, 388 spots resolution, 2W RF64020-200-2ADSDFS-A
64020-200-2ADMDFS-A
64050-90-2ASVCO-1
64040-90-2AMVCO
45100-5-6.5DEG-.51TeO2, 440-530nm, 75-125MHz, 5mm aperture, 78mrad deflection, 375 spots resolution, 2W RF64020-200-2ADSDFS-A
64020-200-2ADMDFS-A
64075-125-2ASVCO-1
64075-125-2AMVCO
45100-5-6.5DEG-.51-XYTeO2, 440-530nm, 75-125MHz, 5mm aperture, 78mrad deflection, 375 spots resolution, 2W RF64020-200-2ADSDFS-A-2
64020-200-2ADMDFS-A (X2)
64075-125-2ASVCO-2
64075-125-2AMVCO (x2)
45100-6TeO2, 440-530nm, 75-125MHz, 6mm aperture, 87mrad deflection, 485 spots resolution, 2W RF64020-200-2ADSDFS-A
64020-200-2ADMDFS-A
64075-125-2ASVCO-1
64075-125-2AMVCO
45125-2/10-.355Crystal Quartz, 355nm, 100-150MHz, 2x10mm aperture, 7.7mrad deflection, 60 spots resolution, 4W RF64090-150-7ASVCO
64090-150-7AMVCO
46080-1/4-LTDTeO2, 450-800nm, 60-100MHz, 1x4mm aperture, 14.6mrad deflection, 2W RF64020-200-1ADSDFS-A
64020-200-1ADMDFS-A
21060-100-1ASVCO
21060-100-1AMVCO
46080-1-1.06-LTDTeO2, 1064nm, 70-90MHz, 1mm aperture, 20mrad deflection, 1.5W RF64020-200-2ADSDFS-A
64020-200-2ADMDFS-A
21065-95-2ASVCO
21065-95-2AMVCO
46080-1-.85-LTDTeO2, 700-1100nm, 70-90MHz, 1mm aperture, 16mrad deflection, 1W RF64020-200-2ADSDFS-A
64020-200-2ADMDFS-A
21065-95-1ASVCO
21065-95-1AMVCO
46080-1-LTDTeO2, 450-800nm, 60-100MHz, 1x4mm aperture, 14.6mrad deflection, 1W RF64020-200-1ADSDFS-A
64020-200-1ADMDFS-A
21060-100-1ASVCO
21060-100-1AMVCO
46080-2-1.06-LTDTeO2, 1064nm, 70-90MHz, 2mm aperture, 20mrad deflection, 2W RF64020-200-2ADSDFS-A
64020-200-2ADMDFS-A
21065-95-2ASVCO
21065-95-2AMVCO
46080-2-.85-LTDTeO2, 700-1100nm, 65-95MHz, 2mm aperture, 16mrad deflection, 2W RF64020-200-2ADSDFS-A
64020-200-2ADMDFS-A
21065-95-1ASVCO
21065-95-1AMVCO
46080-2-LTDTeO2, 450-800nm, 60-100MHz, 2mm aperture, 14.6mrad deflection, 1.25W RF64020-200-2ADSDFS-A
64020-200-2ADMDFS-A
21060-100-2ASVCO
21060-100-2AMVCO
46080-3-1.06-LTDTeO2, 1064nm, 60-90MHz, 3mm aperture, 20mrad deflection, 2W RF64020-200-2ADSDFS-A
64020-200-2ADMDFS-A
21065-95-2ASVCO
21065-95-2AMVCO
46080-3-.85-LTDTeO2, 700-1100nm, 65-95MHz, 3mm aperture, 16mrad deflection, 2W RF64020-200-2ADSDFS-A
64020-200-2ADMDFS-A
21065-95-2ASVCO
21065-95-2AMVCO
46080-3-LTDTeO2, 450-800nm, 60-100MHz, 3x4mm aperture, 14.6mrad deflection, 1.5W RF64020-200-2ADSDFS-A
64020-200-2ADMDFS-A
21060-100-2ASVCO
21060-100-2AMVCO
46110-1-LTDTeO2, 470-850nm, 90-130MHz, 1mm aperture, 16.3mrad deflection, 2W RF
46300-0.2/2-.36Fused silica, 360nm, 225-375MHz, 0.2x2mm aperture, 18mrad deflection, 50 spots resolution, 3W RF64200-380-5ASVCO
64200-380-5AMVCO
451000-GaPGaP, 800-850nm, 750-1250MHz, 0.15x2mm aperture, 124mrad deflection, 0.25W RF
451000LLiNbO3, 820nm, 750-1250MHz, 0.1x2.6mm aperture, 200 spots resolution, 124mrad deflection, 0.5mW RF
451500GGaP, 820nm, 1500MHz, 0.07x1.33mm aperture, 112 spots resolution, 184mrad deflection, 100mW RF
D040-2G-BG2TeO2, 1064nm, 30-50MHz, 2x5mm aperture, 3W RF
D075-2EF-KW1TeO2, 630-780nm, 50-100MHz, 3x10mm aperture, 3W RF
D225-1B-OI1Lead Molybdate, 488nm, 150-300MHz, 0.5mm x 28mm aperture, 1160 spots resolution, 20mrad deflection, 1.5W RF

Drivers for the Standard AO Deflection Systems / 1D and 2 D

Select the driver, which corresponds to the required frequency and RF drive power for the AO Deflector or Bragg Cell selected. Then select the method of control: VCO (Voltage Controlled Oscillator) or DFS (Digital frequency Synthesizer) and the type of package (Rack Mount System Box or OEM Module). The system box typically requires power of 100 to 240 Volts, 47 to 63 Hz AC. The OEM module requires you to supply DC power, + 15 Volts, and -5 Volts typically, at the required current to power the unit.

The new 64040-150-0.8ADSDFS-8X1 is an eight channel, frequency synthesized driver with the signals combined as one output for use with an Acousto-Optic Beam Deflector (AOBD). The Driver allows independent analog and digital (blanking) control of up to eight beams of light. The frequency and power for each channel can be selected from presets stored in internal memory or setup through the top panel keypad, the RS-232, or the USB. Internal memory contains a factory default setup and up to 16 user stored configurations.

45035-3-6.5DEG-1.06

Interactive MaterialTeO2
Acoustic ModeShear Wave
Operating Wavelength1064 nm
Window ConfigurationAR Coated
Static Transmission> 97 %
Operating Frequency25 to 45 MHz
Intensity Variation< 2 dB
Diffraction Efficiency> 65 % Midband with Linear polarization, parallel to acoustic propagation
Acoustic Aperture Size3 mm
Process Time4.5 μs
Resolution (T.BW product)90 spots with no less than 50 μs scan time and full illumination of the aperture
Δ Deflection Angle32 mrad
Deflection Angle56 mrad @ 35 MHz
RF Power Level2 watts
Impedance50 ohms
VSWR< 2:1 across band
Package53B2024
Recommended DriversAnalog System Digital Frequency Synthesizer: 64020-200-2ADSDFS-A
Analog Module Digital Frequency Synthesizer: 64020-200-2ADMDFS-A
Analog System Voltage Controlled Oscillator: 64025-45-2ASVCO-1
Analog Module Voltage Controlled Oscillator: 64025-45-2AMVCO

45035-3-6.5DEG-1.06-XY

Interactive MaterialTeO2
Acoustic ModeShear Wave
Operating Wavelength1064 nm
Window ConfigurationAR Coated
Static Transmission> 97 %
Operating Frequency25 to 45 MHz
Intensity Variation< 2 dB
Diffraction Efficiency> 65 % mid-band per device with linear polarization, parallel to acoustic propagation
Acoustic Aperture Size3 mm
Process Time4.5 μs
Resolution (T.BW product)90 spots with no less than 50 μs scan time and full illumination of the aperture
Δ Deflection Angle32 mrad
Deflection Angle56 mrad @ 35 MHz
RF Power Level< 2 watts
Impedance50 ohms
VSWR< 2:1 across band
Package 7200353D1970
Recommended DriversAnalog System Digital Frequency Synthesizer: 64020-200-2ADSDFS-A-2

Analog Module Digital Frequency Synthesizer: 64020-200-2ADMDFS-A (2X)

Analog System Voltage Controlled Oscillator: 64025-45-2ASVCO-2

Analog Module Voltage Controlled Oscillator: 64025-45-2AMVCO (2X)

45035-5-6.5DEG-1.06

Interactive MaterialTeO2
Acoustic ModeShear wave
Operating Wavelength1064 nm
Window ConfigurationAR Coated
Static Transmission> 97 %
Operating Frequency25-45 MHz
Intensity Variation< 2 dB
Diffraction Efficiency> 60 % Midband with linear polarization, parallel to acoustic propagation
Active Aperture5 mm
Process Time7.5 μs
Resolution (T.BW product)150 spots with no less than 60 μs scan time and full illumination of the aperture
Δ Deflection Angle32 mrad (25 - 45 MHz)
Deflection angle56 mrad @ 35 MHz
RF power level4 watts
Impedance50 ohms nominal
VSWR< 2:1 across band
Package53B2024
Recommended DriversAnalog System Digital Frequency Synthesizer: 64020-200-4ADSDFS-A

Analog Module Digital Frequency Synthesizer: 64020-200-4ADMDFS-A

Analog System Voltage Controlled Oscillator: 64025-45-4ASVCO-1

Analog Module Voltage Controlled Oscillator: 64025-45-4AMVCO

45035-5-6.5DEG-1.06-XY

Interaction MaterialTeO2
Acoustic ModeShear
Operating Wavelength1064 nm
Window ConfigurationAR Coated
Static Transmission> 98%
Operating Frequency25-45 MHz
Intensity Variation2 dB
Diffraction Efficiency≥ 65 % mid-band per device with linear polarization, parallel to acoustic propagation
Acoustic Aperture Size5 mm
Process Time7.5 μs
Resolution (T.BW product)150 spots with no less than 60μs scan time and full illumination of the aperture
Acoustic Velocity66 mm / μs
Δ Deflection Angle32 mrad
Deflection Angle56 mrad @ 35 MHz
RF Power Level4 watt max
Impedance50 ohms
VSWR< 2:1
Package53D1970
Recommended DriversAnalog synthesized driver system: 64020-200-4ADSDFS-A-2

Analog synthesized driver modules: 64020-200-4ADMDFS-A (x2)

Analog System Voltage Controlled Oscillator: 64025-45-4ASVCO-2

Analog Module Voltage Controlled Oscillator: 64025-45-4AMVCO (x2)

45050-5-6.5DEG-.8

Interactive MaterialTeO2
Acoustic ModeShear Wave
Operating Wavelength780 to 850 nm
Window ConfigurationAR Coated
Static Transmission> 95 %
Operating Frequency35 to 65 MHz.
Intensity Variation2 dB
Diffraction Efficiency> 70 % Midband with linear polarization, parallel to acoustic propagation
Acoustic Aperture Size5mm
Process Time7.5 μs
Resolution (T.BW product)225 spots with no less than 60 μs scan time and full illumination of the aperture
Δ Deflection Angle39 mrad @ 850 nm
Deflection Angle65 mrad @ 50MHz, 850 nm
RF Power Level2 watts maximum
Impedance50 ohms
VSWR< 2:1 across band
Package53B2024
Recommended DriverAnalog System Digital Frequency Synthesizer: 64020-200-2ADSDFS-A

Analog Module Digital Frequency Synthesizer: 64020-200-2ADMDFS-A

Analog System Voltage Controlled Oscillator: 21035-65-2ASVCO-1

Analog Module Voltage Controlled Oscillator: 21035-65-2AMVCO

45050-5-6.5DEG-.8-XY

Interactive MaterialTeO2
Acoustic ModeShear
Operating Wavelength780 to 850 nm
Window ConfigurationAR Coated
Static Transmission> 95 %
Operating Frequency35 to 65 MHz.
Intensity Variation2 dB
Diffraction Efficiency> 70 % mid-band per device with linear polarization, parallel to acoustic propagation
Acoustic Aperture Size5 mm
Process Time7.5 μs
Resolution (T.BW product)225 spots with no less than 60 μs scan time and full illumination of the aperture
Acoustic Velocity0.66 mm/μs
Δ Deflection Angle39 mrad @ 850 nm
Deflection Angle5 mrad @ 50 MHz, 850 nm
RF Power Level2 watts max
Impedance50 ohms
VSWR< 2:1
Package53D1970
Recommended DriversAnalog synthesized driver system: 64020-200-2ADSDFS-A-2

Analog synthesized driver modules: 64020-200-2ADMDFS-A (x2)

Analog System Voltage Controlled Oscillator: 21035-65-2ASVCO-2

Analog Module Voltage Controlled Oscillator: 21035-65-2AMVCO (x2)

45050-6-.83

Interactive MaterialTeO2
Acoustic ModeShear Wave
Operating Wavelength780 to 850 nm
Window ConfigurationAR Coated
Static Transmission> 95 %
Operating Frequency35 to 65 MHz.
Diffraction Efficiency> 60 % Midband with polarization circular or linear
Intensity Variation< 2.5 dB
Acoustic Aperture Size6 mm
Processing Time9.7 μs
Resolution (T.BW. product)291 spots with no less than 70 μs scan time and full illumination of the aperture
Δ Deflection Angle41 mrad @ 850 nm
Deflection Angle68 mrad @ 50MHz, 850 nm
RF Power Level2 watts
Impedance50 ohms
VSWR<2.5:1 Across Bandwidth
Package:53B2024
Recommended Drivers:Analog System Digital Frequency Synthesizer: 64020-200-2ADSDFS-A

Analog Module Digital Frequency Synthesizer: 64020-200-2ADMDFS-A

Analog System Voltage Controlled Oscillator: 64035-65-2ASVCO-1

Analog Module Voltage Controlled Oscillator: 64035-65-2AMVCO

45070-5-6.5DEG-.63

Interactive MaterialTeO2
Acoustic ModeShear Wave
Operating Wavelength633 nm
Window ConfigurationAR Coated
Static Transmission> 95 %
Operating Frequency50 to 90 MHz.
Diffraction Efficiency> 70% Midband with polarization, parallel to acoustic propagation
Intensity Variation< 2 dB
Acoustic Aperture Size5mm
Processing Time7.5 μs
Resolution (T.BW. product)300 spots with no less than 60 μs scan time and full illumination of the aperture
Δ Deflection Angle38mrad @ 633 nm
Deflection Angle67mrad @ 633 nm
RF Power Level2 watts
Impedance50 ohms
VSWR<2:1 Across Bandwidth
Package:53B2024
Recommended Drivers:Analog System Digital Frequency Synthesizer: 64020-200-2ADSDFS-A

Analog Module Digital Frequency Synthesizer: 64020-200-2ADMDFS-A

Analog System Voltage Controlled Oscillator: 21050-90-2ASVCO

Analog Module Voltage Controlled Oscillator: 21050-90-2AMVCO

45070-5-6.5DEG-.63-XY

Interactive MaterialTeO2
Acoustic ModeShear Wave
Operating Wavelength633 nm
Window ConfigurationAR Coated
Static Transmission> 98 %
Operating Frequency50 to 90 MHz.
Intensity Variation2 dB
Diffraction Efficiency> 55 % Midband per Device with linear polarization, parallel to acoustic propagation
Acoustic Aperture Size5 mm
Process Time7.5 μs
Resolution (T.BW product)300 spots with no less than 60 μs scan time and full illumination of the aperture
Δ Deflection Angle38 mrad @ 633 nm
Deflection Angle67 mrad @ 633 nm
RF Power Level2 watt maximum per Device
Impedance50 ohms
VSWR< 2:1 across band
Package:53B2024
Recommended Driver:Analog System Digital Frequency Synthesizer: 64020-200-2ADSDFS-A-2

Analog Module Digital Frequency Synthesizer: 64020-200-2ADMDFS-A (2x)

Analog System Voltage Controlled Oscillator: 64050-90-2ASVCO-2

Analog Module Voltage Controlled Oscillator: 64050-90-2AMVCO (2x)

45070-6

Interactive MaterialTeO2
Acoustic ModeShear Wave
Operating Wavelength633 to 850 nm
Window ConfigurationAR Coated
Static Transmission> 95 %
Operating Frequency50 to 90 MHz
Diffraction Efficiency> 60 % Midband with polarization circular or linear
Intensity Variation< 2.5 dB
Acoustic Aperture Size6 mm
Processing Time9.7 μs
Resolution (T.BW. product)388 spots with no less than 70 μs scan time and full illumination of the aperture
Deflection Angle72 mrad @ 633 nm
Δ Deflection Angle41 mrad @ 633 nm
RF Power Level2 watts
Impedance50 ohms
VSWR< 2.5:1 Across Bandwidth
Package:53B2024
Recommended Drivers:Analog System Digital Frequency Synthesizer: 64020-200-2ADSDFS-A

Analog Module Digital Frequency Synthesizer: 64020-200-2ADMDFS-A

Analog System Voltage Controlled Oscillator: 64050-90-2ASVCO-1

Analog Module Voltage Controlled Oscillator: 64040-90-2AMVCO

45100-5-6.5DEG-.51

Interactive MaterialTeO2
Acoustic ModeShear Wave
Operating Wavelength440 to 530 nm
Window ConfigurationAR Coated
Static Transmission> 95 %
Operating Frequency75 to 125 MHz.
Intensity Variation2 dB
Diffraction Efficiency> 70 % Midband with linear polarization, parallel to acoustic propagation
Acoustic Aperture Size5 mm
Process Time7.5 μs
Resolution (T.BW product)375 spots with no less than 60 μs scan time and full illumination of the aperture
Δ Deflection Angle39 mrad @ 514 nm
Deflection Angle78 mrad @ 100 MHz, 514 nm
RF Power Level2 watt maximum
Impedance50 ohms
VSWR< 2:1 across band
Package:53B2024
Recommended Driver:Analog System Digital Frequency Synthesizer: 64020-200-2ADSDFS-A

Analog Module Digital Frequency Synthesizer: 64020-200-2ADMDFS-A

Analog System Voltage Controlled Oscillator: 64075-125-2ASVCO-1

Analog Module Voltage Controlled Oscillator: 64075-125-2AMVCO

45100-5-6.5DEG-.51-XY

Interactive MaterialTeO2
Acoustic ModeShear Wave
Operating Wavelength440 to 530 nm
Window ConfigurationAR Coated
Static Transmission> 95 %
Operating Frequency75 to 125 MHz.
Intensity Variation2 dB
Diffraction Efficiency>70 % Midband per Device
Light PolarizationLinear, parallel to acoustic propagation
Acoustic Aperture Size5 mm
Process Time7.5 μs
Resolution (T.BW product)375 spots with no less than 60 μs scan time and full illumination of the aperture
Δ Deflection Angle39 mrad @ 514 nm
Deflection Angle78 mrad @ 100 MHz, 514 nm
RF Power Level2 watt maximum per Device
Impedance50 ohms
VSWR< 2:1 across band
Package:53D1970
Recommended Driver:Analog System Digital Frequency Synthesizer: 64020-200-2ADSDFS-A-2

Analog Module Digital Frequency Synthesizer: 64020-200-2ADMDFS-A (X2)

Analog System Voltage Controlled Oscillator: 64075-125-2ASVCO-2

Analog Module Voltage Controlled Oscillator: 64075-125-2AMVCO (x2)

45100-6

Interactive MaterialTeO2
Acoustic ModeShear Wave
Operating Wavelength440 to 530 nm
Window ConfigurationAR Coated
Static Transmission> 95 %
Operating Frequency75 to 125 MHz
Intensity Variation3 dB
Diffraction Efficiency> 60 % Midband with polarization circular or linear
Acoustic Aperture Size6 mm
Processing Time9.7 μs
Resolution (T.BW. product)485 spots with no less than 70 μs scan time and full illumination of the aperture
Deflection Angle87 mrad @ 530 nm, @ 100 MHz
Δ Deflection Angle41 mrad @ 530 nm
RF Power Leve2 watts
Impedance50 ohms
VSWR< 2.5:1 Across Bandwidth
Package:53B2024
Recommended Drivers:Analog System Digital Frequency Synthesizer: 64020-200-2ADSDFS-A

Analog Module Digital Frequency Synthesizer: 64020-200-2ADMDFS-A

Analog System Voltage Controlled Oscillator: 64075-125-2ASVCO-1

Analog Module Voltage Controlled Oscillator: 64075-125-2AMVCO

45125-2/10-.355

Interactive MaterialCrystal Quartz
Acoustic ModeLongitudinal
Operating Wavelength355nm
Window ConfigurationAR Coated
Static Transmission> 97 %
Operating Frequency100 to 150 MHz
Intensity Variation<1 dB
Diffraction Efficiency> 75 %, midband
Light PolarizationLinear, perpendicular to acoustic propagation
Acoustic Aperture Size2x10mm
Processing Time1.25us with 7.2mm beam size in acoustic direction
Resolution (T.BW. product)60 spots
Deflection Angle7.7mrad @ 125MHz
Δ Deflection Angle3mrad
RF Power Leve4 watts
Impedance50 ohms
VSWR< 1.5:1 Across Bandwidth
Package:53B1289
Recommended Drivers:Analog System Voltage Controlled Oscillator: 64090-150-7ASVCO

Analog Module Voltage Controlled Oscillator: 64090-150-7AMVCO

46080-1/4-LTD

Interactive MaterialTeO2
Acoustic ModeLongitudinal
Operating Wavelength450-800nm
Window ConfigurationAR Coated
Static Transmission> 95 %
Operating Frequency60 to 100 MHz
Intensity Variation<2 dB across the bandwidth
Diffraction Efficiency>80%, midband with linear polarized light, perpendicular to acoustic propagation or with random polarized light
Acoustic Aperture Size1mm high x 4mm in acoustic direction
Rise Time150ns/mm beam dia
Δ Deflection Angle7.3mrad @ 780nm, 4.5mrad @ 488nm
Deflection Angle14.6 mrad @ 780nm @ 80MHz, 9.1mrad @ 488nm @ 80MHz


RF Power Leve<1 watts @ 780nm
Impedance50 ohms
VSWR< 2:1 Across Bandwidth
Package:53B0624TO1
Recommended Drivers:Analog System Digital Frequency Synthesizer: 64020-200-1ADSDFS-A

Analog Module Digital Frequency Synthesizer: 64020-200-1ADMDFS-A

Analog System Voltage Controlled Oscillator: 21060-100-1ASVCO

Analog Module Voltage Controlled Oscillator: 21060-100-1AMVCO

46080-1-1.06-LTD

Interaction MaterialTeO2
Acoustic ModeLongitudinal
Operating Wavelength1.06 μm
Window ConfigurationAR coated
Static Transmission>97%
Operating Frequency70-90 MHz
Intensity Variation< 2.5 dB across bandwidth
Diffraction Efficiency (midband)> 75 % midband with linear polarization, perpendicular to acoustic propagation, > 70 % midband with random polarization.
Acoustic Aperture Size1.0 mm
Rise Time150 nsec/mm beam diameter
Δ Deflection Angle7.5 mrad
Deflection Angle20 mrad @ 80 MHz
RF Power Level< 1.5 watts
Impedance50 ohms nominal
VSWR< 1.5:1 across bandwidth
Package53B0624 T01
Recommended Drivers:Analog System Digital Frequency Synthesizer: 64020-200-2ADSDFS-A

Analog Module Digital Frequency Synthesizer: 64020-200-2ADMDFS-A

Analog System Voltage Controlled Oscillator: 21065-95-2ASVCO

Analog Module Voltage Controlled Oscillator: 21065-95-2AMVCO

46080-1-.85-LTD

Interactive MaterialTeO2
Acoustic ModeLongitudinal
Operating Wavelength700 to 1100 nm
Window ConfigurationAR Coated
Static Transmission>95 %
Operating Frequency65–95 MHz
Intensity Variation< 1.5 dB @ 780 nm
Diffraction Efficiency (midband)> 70 % midband with linear polarization, perpendicular to acoustic propagation, > 65 % midband with random polarization.
Acoustic Aperture Size1 mm
Rise Time150 nsec/mm beam dia.
Δ Deflection Angle4 mrad @
Deflection Angle16 mrad @ 80 MHz and 850 nm
RF Power Level< 1 watt @ 850 nm
Impedance50 ohms nominal
VSWR< 1.5:1 over bandwidth
Package53B0624
Recommended Drivers:Analog System Digital Frequency Synthesizer: 64020-200-2ADSDFS-A

Analog Module Digital Frequency Synthesizer: 64020-200-2ADMDFS-A

Analog System Voltage Controlled Oscillator: 21065-95-1ASVCO

Analog Module Voltage Controlled Oscillator: 21065-95-1AMVCO

46080-1-LTD

Interaction MaterialTeO2
Acoustic ModeLongitudinal
Operating Wavelength450-800 nm
Window ConfigurationAR coated
Static Transmission>95 %
Operating Frequency60-100 MHz
Intensity Variation< 2 dB
Diffraction Efficiency>80 % midband with linear polarized light perpendicular to acoustic propagation or with random polarized light
Acoustic Aperture Size1 x 4mm
Rise Time150 ns / mm beam dia.
Δ Deflection Angle7.3 mrad @ 780 nm; 4.5 mrad @ 488 nm
Deflection Angle14.6 mrad @ 780 nm @ 80 MHz; 9.1 mrad @ 488 nm @ 80 MHz
RF Power Level< 1 watt @ 780 nm
Impedance50 Ω nominal
VSWR<2:1 across bandwidth
Package53B0624
Recommended Drivers:Analog System Digital Frequency Synthesizer: 64020-200-1ADSDFS-A

Analog Module Digital Frequency Synthesizer: 64020-200-1ADMDFS-A

Analog System Voltage Controlled Oscillator: 21060-100-1ASVCO

Analog Module Voltage Controlled Oscillator: 21060-100-1AMVCO

46080-2-1.06-LTD

Interaction MaterialTeO2
Acoustic ModeLongitudinal
Operating Wavelength1064 nm
Static Transmission> 97 %
Window ConfigurationAR coated
Operating Frequency70-90 MHz
Intensity Variation< 2.5 dB across bandwidth
Diffraction Efficiency (midband)> 75 % midband with linear polarization, perpendicular to acoustic propagation, > 70 % midband with random polarization.
Acoustic Aperture Size2 mm
Rise Time150 ns/mm beam dia.
Δ Deflection Angle7.5 mrad
Deflection Angle20 mrad
RF Power Level< 2 watts
Impedance50 ohms nominal
VSWR<1.5:1 across bandwidth
Package53B0624 TO2
Recommended Drivers:Analog System Digital Frequency Synthesizer: 64020-200-2ADSDFS-A

Analog Module Digital Frequency Synthesizer: 64020-200-2ADMDFS-A

Analog System Voltage Controlled Oscillator: 21065-95-2ASVCO

Analog Module Voltage Controlled Oscillator: 21065-95-2AMVCO

46080-2-.85-LTD

Interactive MaterialTeO2
Acoustic ModeLongitudinal
Operating Wavelength700 to 1100 nm
Window ConfigurationAR Coated
Static Transmission> 95 %
Operating Frequency65–95 MHz
Intensity Variation< 1.5 dB @ 780 nm
Diffraction Efficiency (midband)> 70 % midband with linear polarization, perpendicular to acoustic propagation, > 65 % midband with random polarization.
Acoustic Aperture Size2 mm
Rise Time150 nsec/mm beam dia.
Δ Deflection Angle4 mrad @ 850 nm
Deflection Angle16 mrad @ 80 MHz and 850 nm
RF Power Level< 2 watts @ 850 nm
Impedance50 ohms nominal
VSWR< 1.5:1 over bandwidth
Package53B0624
Recommended Drivers:Analog System Digital Frequency Synthesizer: 64020-200-2ADSDFS-A

Analog Module Digital Frequency Synthesizer: 64020-200-2ADMDFS-A

Analog System Voltage Controlled Oscillator: 21065-95-1ASVCO

Analog Module Voltage Controlled Oscillator: 21065-95-1AMVCO

46080-2-LTD

Interaction MaterialTeO2
Acoustic ModeLongitudinal
Operating Wavelength450-800 nm
Window ConfigurationAR coated
Static Transmission>95 %
Operating Frequency60-100 MHz
Intensity Variation< 2 dB
Diffraction Efficiency>80 % midband with linear polarized light perpendicular to acoustic propagation or with random polarized light
Acoustic Aperture Size2 mm
Rise Time150 ns / mm beam dia.
Δ Deflection Angle7.3 mrad @ 780 nm; 4.5 mrad @ 488 nm
Deflection Angle14.6 mrad @ 780 nm @ 80 MHz; 9.1 mrad @ 488 nm @ 80 MHz
RF Power Level< 1.25 watt @ 780 nm
Impedance50 Ω nominal
VSWR<2:1 across bandwidth
Package53B0624
Recommended Drivers:Analog System Digital Frequency Synthesizer: 64020-200-2ADSDFS-A

Analog Module Digital Frequency Synthesizer: 64020-200-2ADMDFS-A

Analog System Voltage Controlled Oscillator: 21060-100-2ASVCO

Analog Module Voltage Controlled Oscillator: 21060-100-2AMVCO

46080-3-1.06-LTD

Interaction MaterialTeO2
Acoustic ModeLongitudinal
Operating Wavelength1064nm
Window ConfigurationAR coated
Static Transmission>97%
Operating Frequency60-90 MHz
Intensity Variation< 2.5 dB across bandwidth
Diffraction Efficiency>70 % midband with linear polarization, perpendicular to acoustic propagation, >65% midband with random polarization.
Acoustic Aperture Size3 mm
Rise Time150 ns / mm beam dia.
Δ Deflection Angle7.5mrad
Deflection Angle20mrad
RF Power Level<2watts
Impedance50 Ω nominal
VSWR<1.5:1 across bandwidth
Package53B0624 TO2
Recommended Drivers:Analog System Digital Frequency Synthesizer: 64020-200-2ADSDFS-A

Analog Module Digital Frequency Synthesizer: 64020-200-2ADMDFS-A

Analog System Voltage Controlled Oscillator: 21065-95-2ASVCO

Analog Module Voltage Controlled Oscillator: 21065-95-2AMVCO

46080-3-.85-LTD

Interactive MaterialTeO2
Acoustic ModeLongitudinal
Operating Wavelength700 to 1100 nm
Window ConfigurationAR Coated
Static Transmission> 95 %
Operating Frequency65–95 MHz
Intensity Variation< 1.5 dB @ 780 nm
Diffraction Efficiency (midband)> 70 % midband with linear polarization, perpendicular to acoustic propagation, > 65 % midband with random polarization.
Acoustic Aperture Size3 mm
Rise Time150 nsec/mm beam dia.
Δ Deflection Angle4 mrad @ 850 nm
Deflection Angle16 mrad @ 80 MHz and 850 nm
RF Power Level2 watts @ 850 nm
Impedance50 ohms nominal
VSWR< 1.5:1 over bandwidth
Package53B0624
Recommended Drivers:Analog System Digital Frequency Synthesizer: 64020-200-2ADSDFS-A

Analog Module Digital Frequency Synthesizer: 64020-200-2ADMDFS-A

Analog System Voltage Controlled Oscillator: 21065-95-2ASVCO

Analog Module Voltage Controlled Oscillator: 21065-95-2AMVCO

46080-3-LTD

Interaction MaterialTeO2
Acoustic ModeLongitudinal
Operating Wavelength450-800 nm
Window ConfigurationAR coated
Static Transmission>95 %
Operating Frequency60-100 MHz
Intensity Variation< 2 dB
Diffraction Efficiency>80 % midband with linear polarized light perpendicular to acoustic propagation or with random polarized light
Acoustic Aperture Size3 x 4 mm
Rise Time150 ns / mm beam dia.
Δ Deflection Angle7.3 mrad @ 780 nm; 4.5 mrad @ 488 nm
Deflection Angle14.6 mrad @ 780 nm @ 80 MHz; 9.1 mrad @ 488 nm @ 80 MHz
RF Power Level< 1.5 watt @ 780 nm
Impedance50 Ω nominal
VSWR<2:1 across bandwidth
Package53B0624
Recommended Drivers:Analog System Digital Frequency Synthesizer: 64020-200-2ADSDFS-A

Analog Module Digital Frequency Synthesizer: 64020-200-2ADMDFS-A

Analog System Voltage Controlled Oscillator: 21060-100-2ASVCO

Analog Module Voltage Controlled Oscillator: 21060-100-2AMVCO

46110-1-LTD

Interaction MaterialTeO2
Acoustic ModeLongitudinal
Operating Wavelength470-850 nm
Window ConfigurationAR coated
Operating Frequency90-130 MHz
Intensity Variation< 2 dB
Diffraction Efficiency>85% midband with linear polarization perpendicular to acoustic propagation, >80% midband with random polarization
Acoustic Aperture Size1mm
Rise Time150 ns / mm beam dia.
Δ Deflection Angle15.9 mrad @ 633nm
Deflection Angle16.3 mrad @ 633nm
RF Power Level< 1.25 watts
Impedance50 Ω nominal
VSWR<2:1 across bandwidth
Package53B0624
Recommended Drivers:Analog System Digital Frequency Synthesizer: 64020-200-2ADSDFS-A

Analog Module Digital Frequency Synthesizer: 64020-200-2ADMDFS-A

Analog System Voltage Controlled Oscillator: 21090-130-2ASVCO

Analog Module Voltage Controlled Oscillator: 21090-130-2AMVCO

46300-0.2/2-.36

Interactive MaterialFused Silica
Acoustic ModeLongitudinal
Operating Wavelength360 nm
Window ConfigurationAR coated
Static Transmission>97%
Operating Frequency225-375 MHz
Intensity Variation<1 dB
Diffraction Efficiency>70%, midband next to transducer, with linear polarized light perpendicular to acoustic propagation
Acoustic Aperture Size0.2mm (H) x 2mm (near field distance along acoustic propagation direction)
Process Time0.33 μs with 2mm beam size in acoustic direction
Resolution (T.BW product)50 spots
Δ Deflection Angle9 mrad
Deflection Angle18 mrad @ 300 MHz
RF Power Level<3 watts
Impedance50 ohms
VSWR<2:1 across bandwidth
Package53B1354
Recommended Drivers:Analog System Voltage Controlled Oscillator: 64200-380-5ASVCO

Analog Module Voltage Controlled Oscillator: 64200-380-5AMVCO

451000-GaP

Interaction MaterialGaP
Acoustic ModeLongitudinal
Operating Wavelength800-850 nm
Window ConfigurationAR coated
Static Transmission80%
Operating Frequency750-1250 MHz
Intensity Variation3 dB
Diffraction Efficiency5% per watt minimum midband with linear polarized light parallel to acoustic propagation
Acoustic Aperture Size150 μm x 2mm
Aperture Time300 nsec
Optical Waist Height80 μm
Δ Deflection Angle62 mrad @ 830 nm
Deflection Angle124 mrad @ 830 nm
RF Power Level<.25 Watts nominal can withstand 1 watt maximum
Impedance50 Ohms nominal
VSWR<3:1 across bandwidth
Package53B0504

451000L

Interactive MaterialLiNbO3
Acoustic ModeLongitudinal
Operating Wavelength820 nm
Window ConfigurationAR Coated
Static Transmission>95 %
Operating Frequency750 to 1250 MHz
Diffraction Efficiency1% / Watt minimum with light linear polarized, perpendicular to acoustic propagation.
Acoustic Aperture Size100 um x 2.6 mm
Process Time400 ns
Resolution (T.BW product)200 spots
Deflection Angle124 mrad @ 1000 MHz
ΔDeflection Angle62 mrad
RF Power Level< 0.5 mW average, 1 Watt peak with duty cycle of 5 % with pulse width , <1 ms.
Impedance50 Ohms
VSWR3:1 across band maximum
Package:53B0504

451500G

Interactive MaterialGaP
Acoustic ModeLongitudinal
Operating Wavelength820 nm
Window ConfigurationAR Coated
Static Transmission>95 %
Center Frequency1500 MHz
Bandwidth560 MHz
Diffraction Efficiency5 % / Watt minimum with light polarized Linear parallel to acoustic propagation.
Acoustic Aperture Size70 _m X 1.33 mm
Process Time0.2 us
Resolution (T.BW product)112 spots
ΔDeflection Angle69 mrad @ 820 nm
Deflection Angle184 nm @ 820 nm
RF Power Level<100 mW ave,1 Watt peak @10 % duty < 1 ms pulse width.
Impedance50 Ohms
VSWR< 3 :1
Package:53B0504

D040-2G-BG2

Interactive MaterialTeO2
Operating Wavelength1064 nm
Damage Threshold100MW/cm2
AR Coating Reflectivity<0.2% per surface
Center RF Frequency (f0)40MHz
Frequency Range20 MHz
Acoustic Aperture2mm X 5 mm
Length (optical direction)32mm
Diffraction Efficiency>80% @ f0 , >50% for 30MHz
RF Power Level~3W

D075-2EF-KW1

Interactive MaterialTeO2
Acoustic ModeSlow shear
Operating Wavelength630-780 nm
RF Drive Frequency50-100MHz
Optical FacesAR Coated, R<0.5%
Acoustic Aperture3.0m x 10 mm min (hxd)
PolarizationLinear, horizontal with respect to base
Resolution750 resolvable spots (Rayleigh criterion)
Scan Angle range @630nm~3° (2.9°-4.9°)
Access Time16us
Diffraction Efficiency>50%
Diffraction Efficiency Variation<10% @ 633nm
RF Power Level<3.0W

AO DeflectorD225-1B-OI1

A high performance AO Deflector operating at 488nm, manufactured with superior flatness and parallelism of optical faces to yield minimal wavefront distortion. A scan angle of 20mrad with 1160 spots resolution (Rayleigh criteria) and 7.7μs access time make this device ideally suited for high resolution imaging and reprographic applications.

Interaction MaterialLead Molybdate
Acoustic ModeIsotropic
Wavelength488nm
PolarisationAny
Anti-Reflection Coating< 0.2% per surface
Transmission> 93%
Frequency150MHz to 300MHz
Active Aperture0.5mm x 28mm
Scan Angle20mrad
Access Time7.7μs
Acoustic Velocity3630m/s
Resolution (Rayleigh Criteria)1160 spots
Diffraction Efficiency> 50% (at centre of aperture)
RF Power< 1.5W
  • Online submission
  • Send us a message

    CLOSE
