SHC Series Servo Motors and Drivers

We are a leading global provider of industrial automation solutions to OEMs and end users with servo motors & drivers, frequency inverters, PLCs and motion controllers. The company’s flexible production techniques and expert understanding of all industry sectors – from plastics to printing to packaging to iron & steel production – have allowed it to establish globally leading industry-specific business units. Over the years, we have built an engineering team with specialist expertise in industrial automation. Their combined knowledge makes the company one of the world’s foremost industrial automation partners, and enables it to form long-term relationships with customers. This means that we can provide ongoing advice about how to get the most out of their automation solutions today, and how to stay prepared for the market and technology changes that are coming in future.


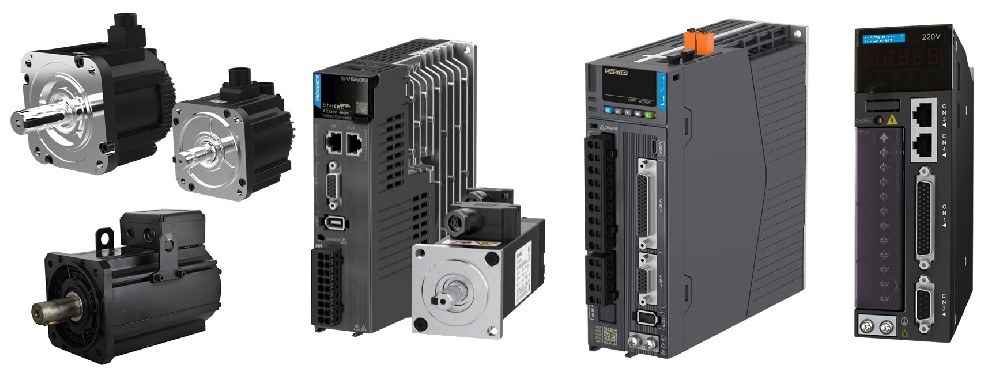

1.  Servo Motors

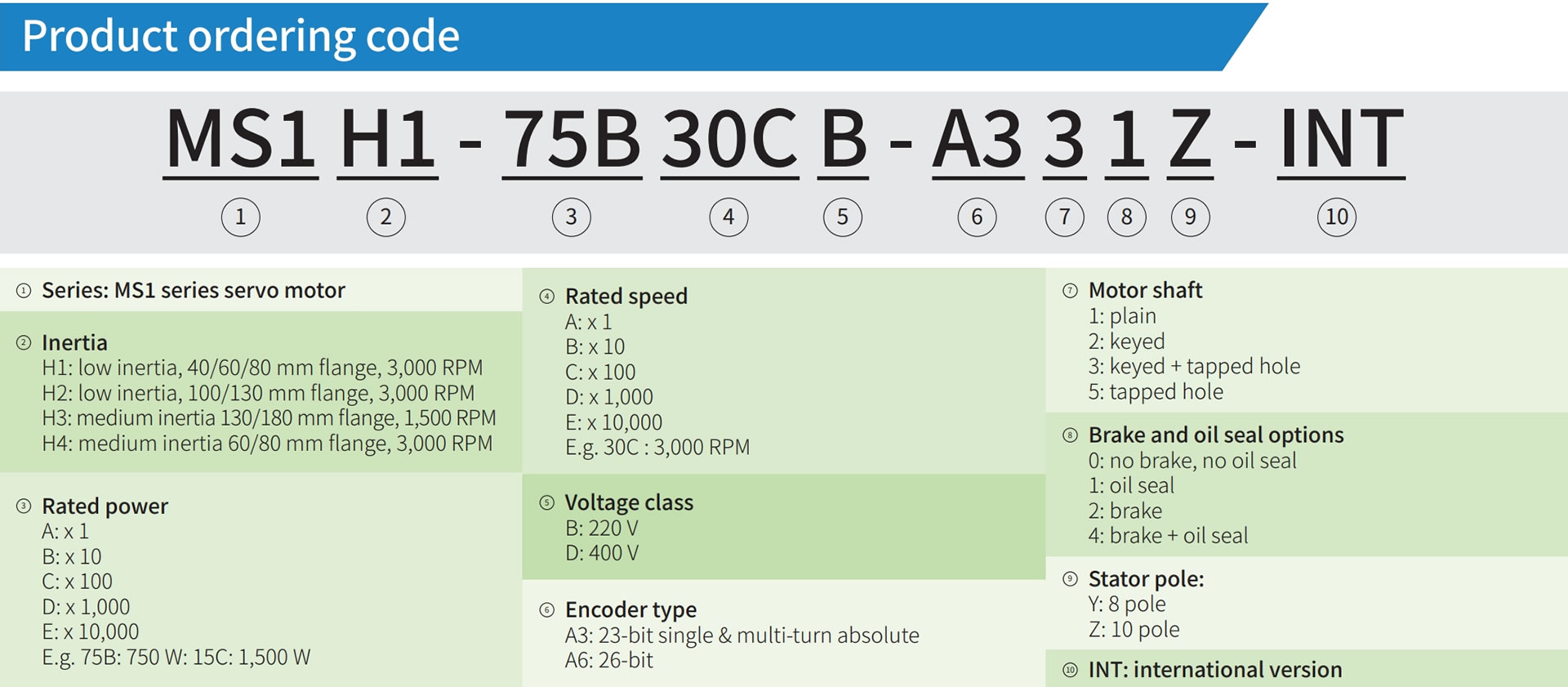

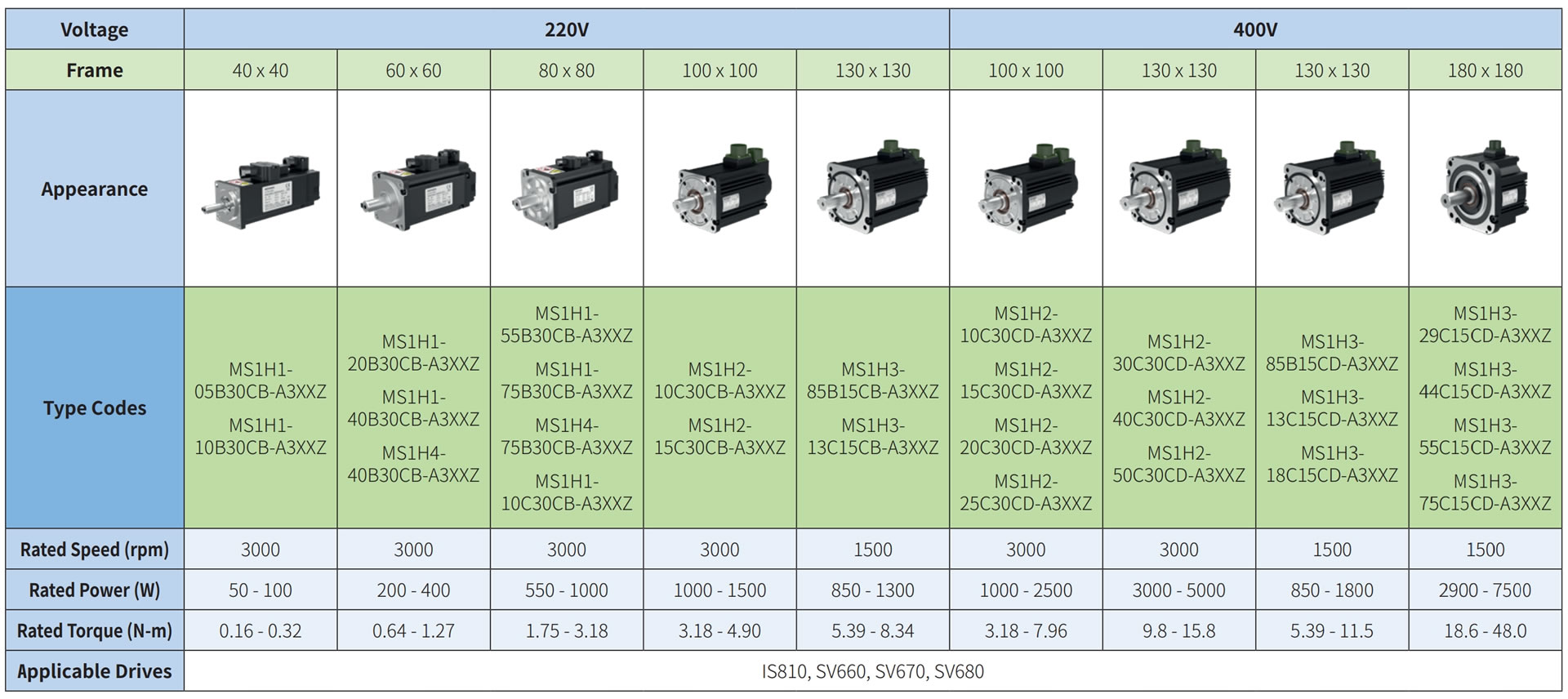

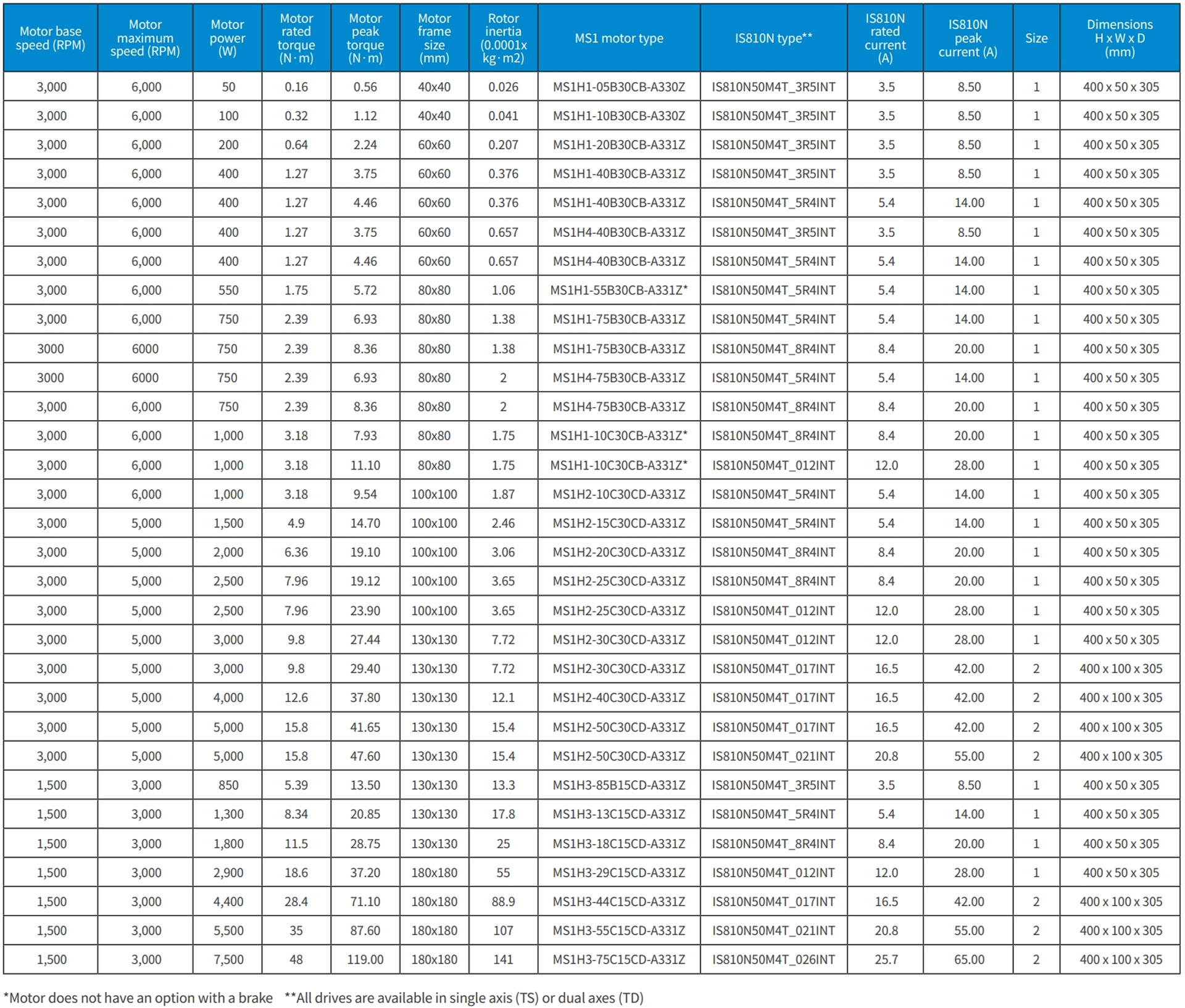

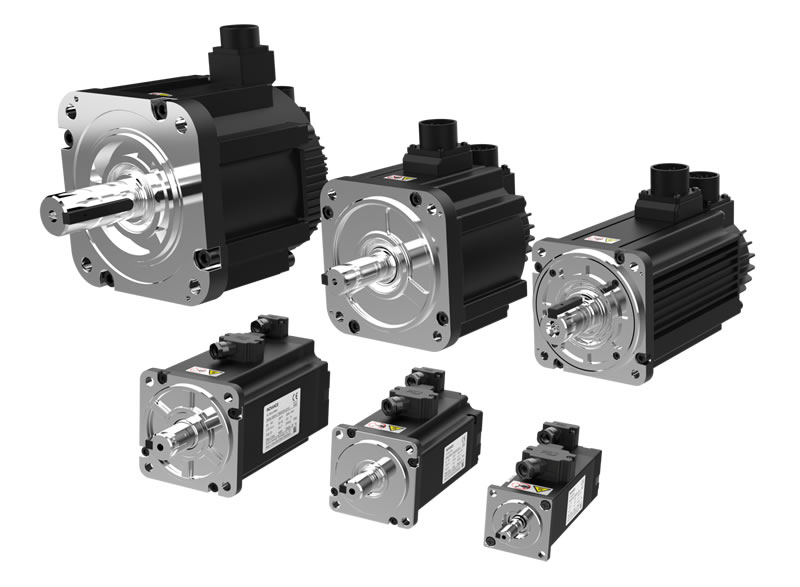

1.1 MS1 series servo motors

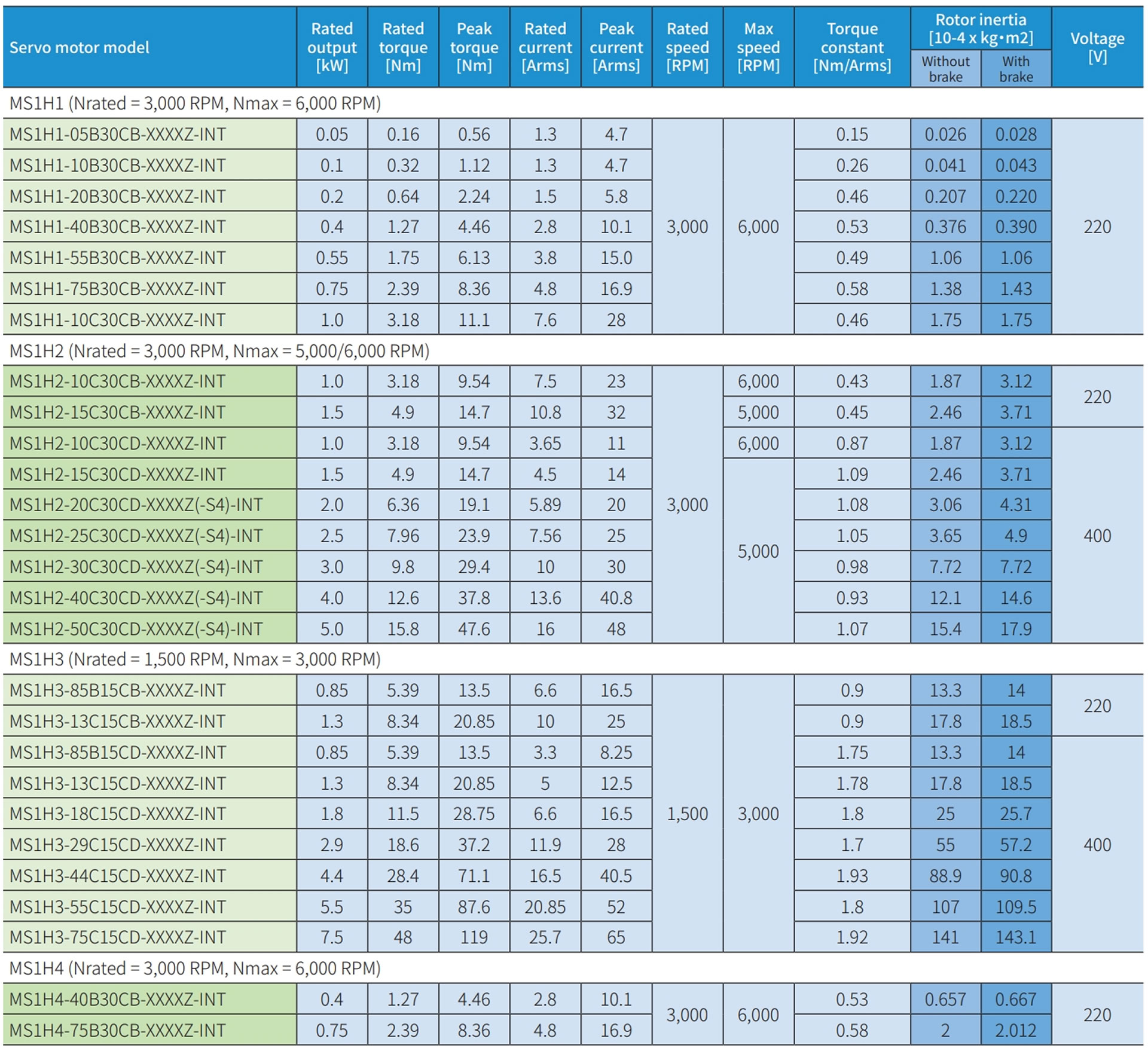

The highly dynamic MS1 servo motor range has a wide variety of power ratings, as well as flange and brake options. The motor family benefits from a small footprint that reduces overall machine size.



MS1H1/H4 series

  • From 0.16 to 3.2 Nm

  • Easy motor and encoder connections

  • 23 bit motor encoder feedback: +/-15 arcseconds

  • Up to 350% maximum peak torque

  • Torque fluctuation <0.5%

  • IP67 rating

  • Complies with CE and UL

MS1H2/H3 series

  • From 3.2 to 47 Nm

  • 23 bit motor encoder feedback: +/-15 arcseconds

  • Up to 300% maximum peak torque

  • Torque fluctuation <1%

  • IP67 rating

  • Complies with CE and UL

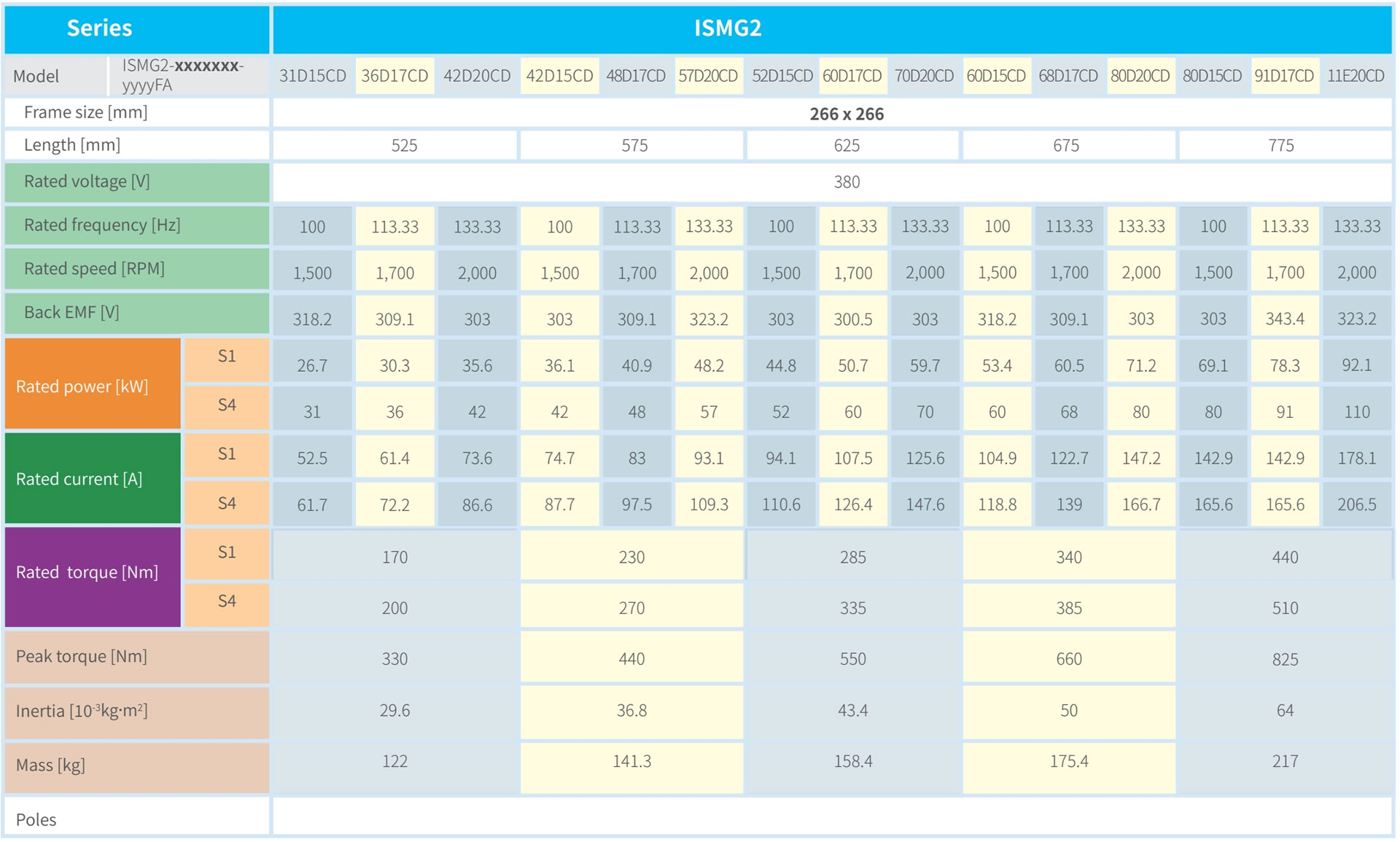

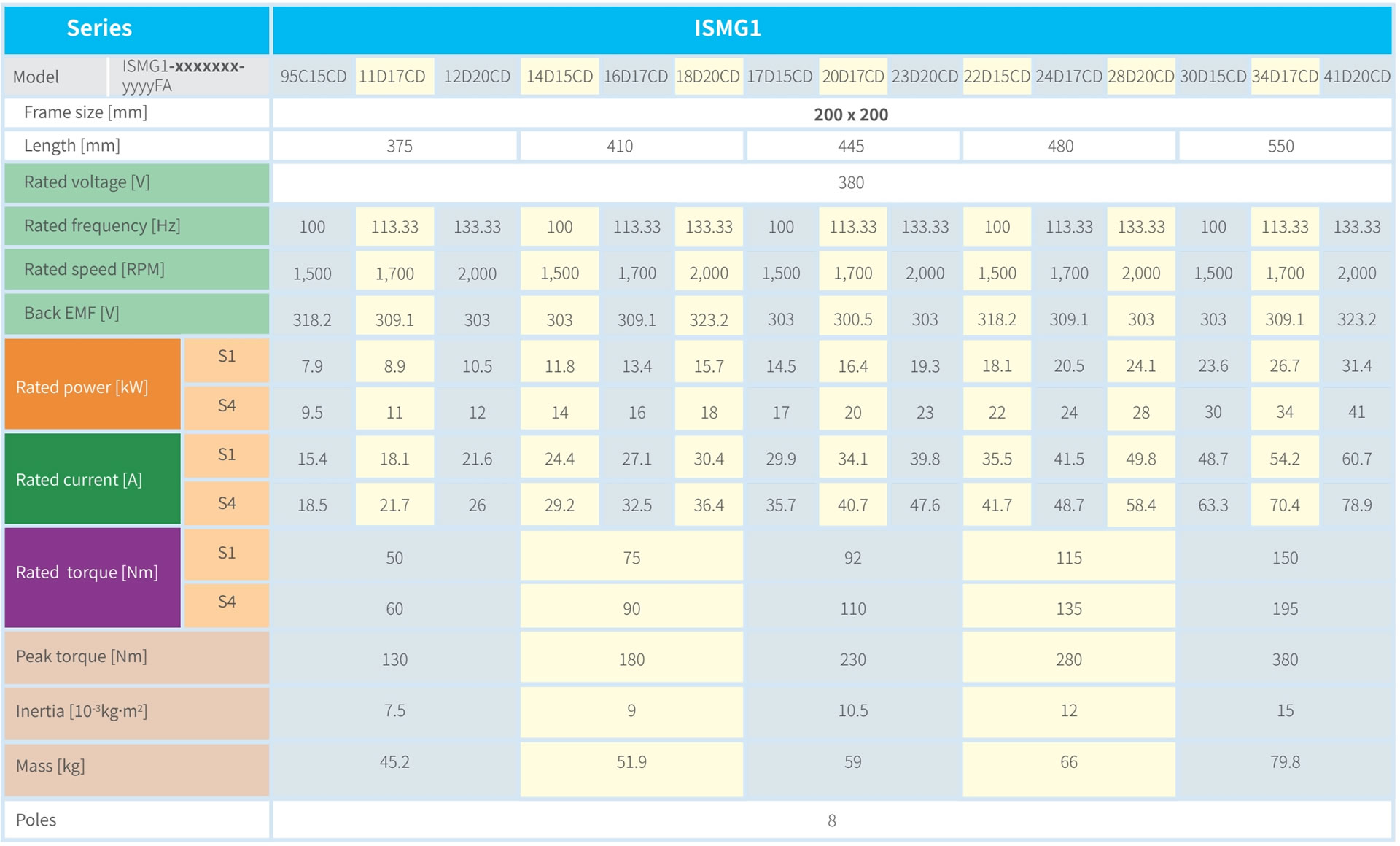

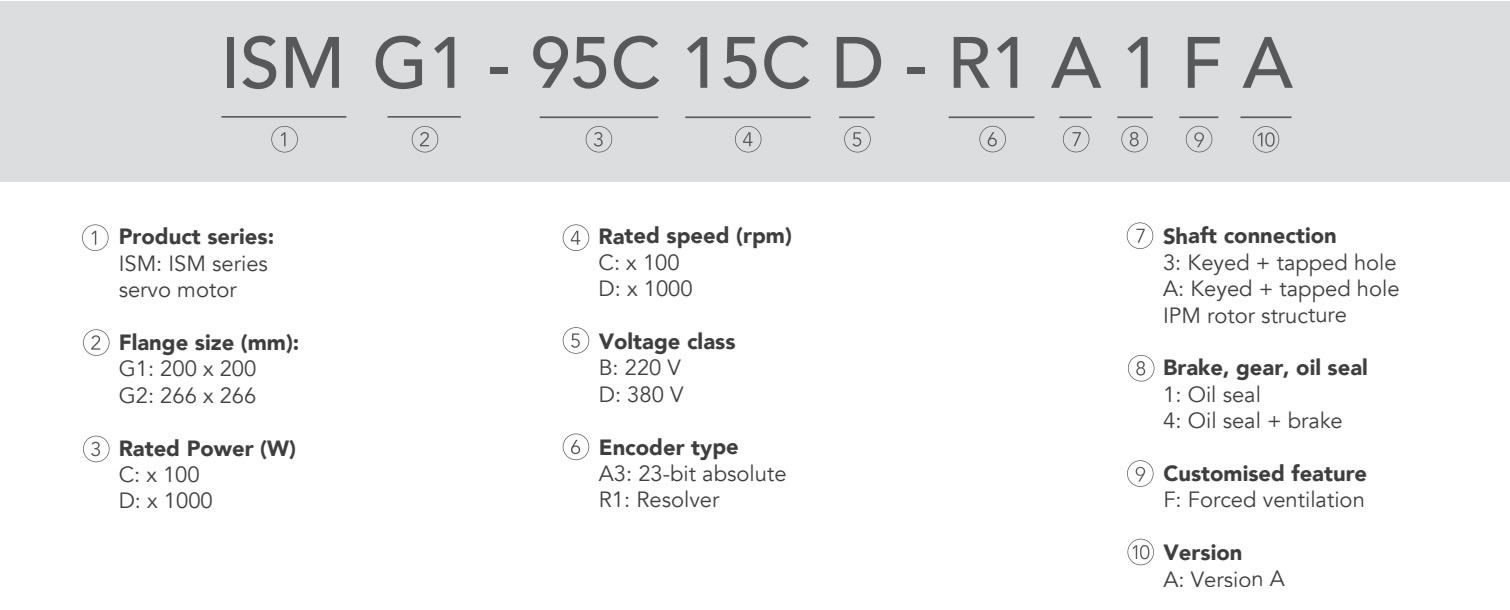

1.2    ISMG series servo motors

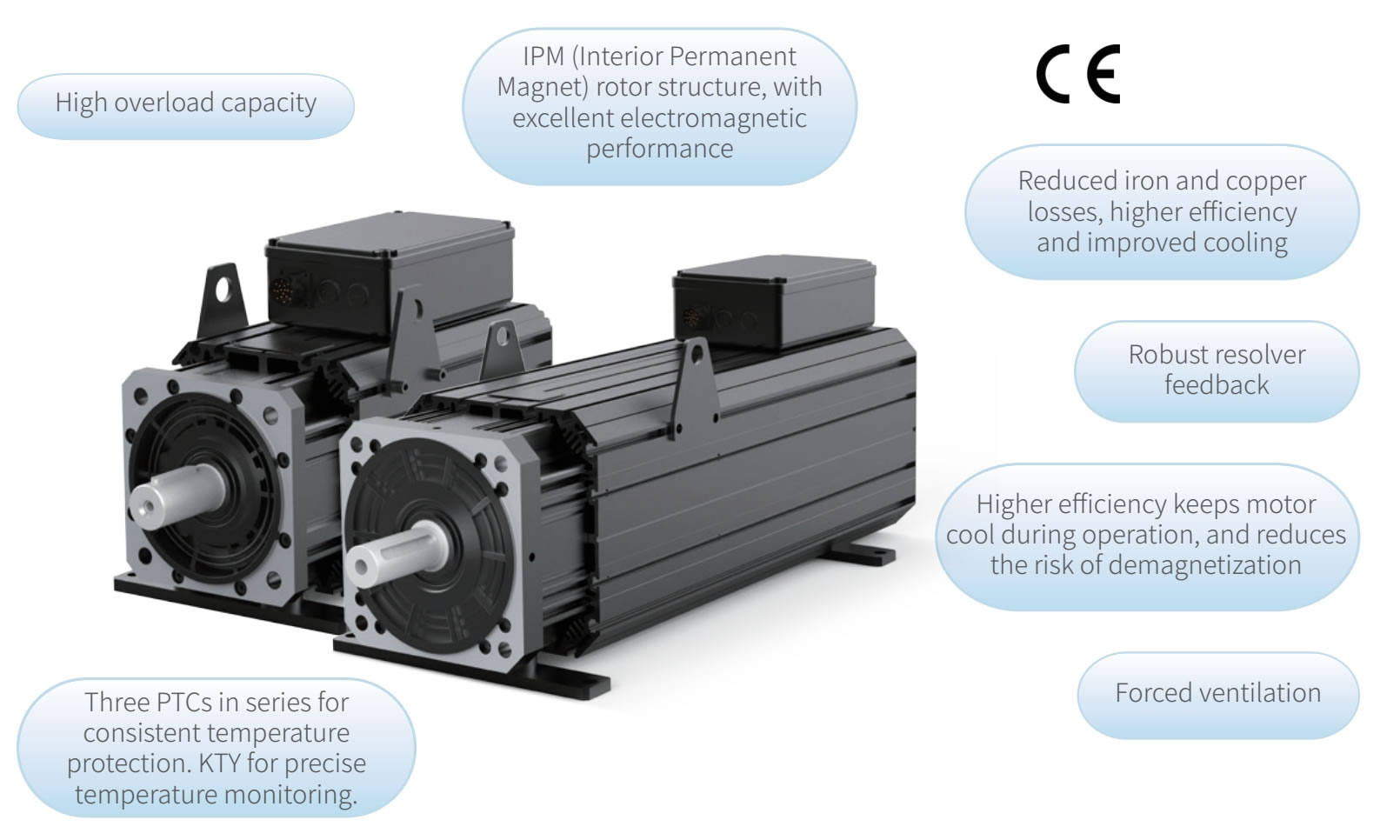

Servo motor designed for energy saving servo pump applications

  • High overload capacity

  • Excellent electromagnetic performance with interior permanent magnet rotor structure

  • Higher efficiency and improved cooling with reduced iron and copper losses

  • Robust resolver feedback

  • Higher efficiency keeps motor cool during operation, and reduces the risk of demagnetization

  • Forced ventilation

  • Consistent temperature protection with three PTCs in series

  • Precise temperature monitoring with KTY

2. Servo Drivers

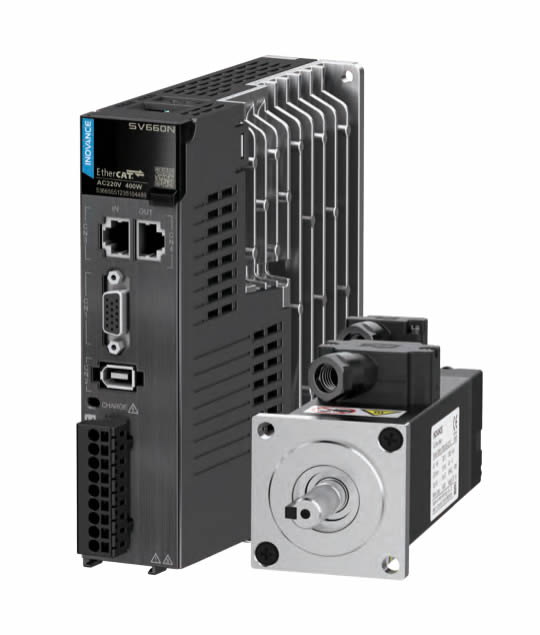

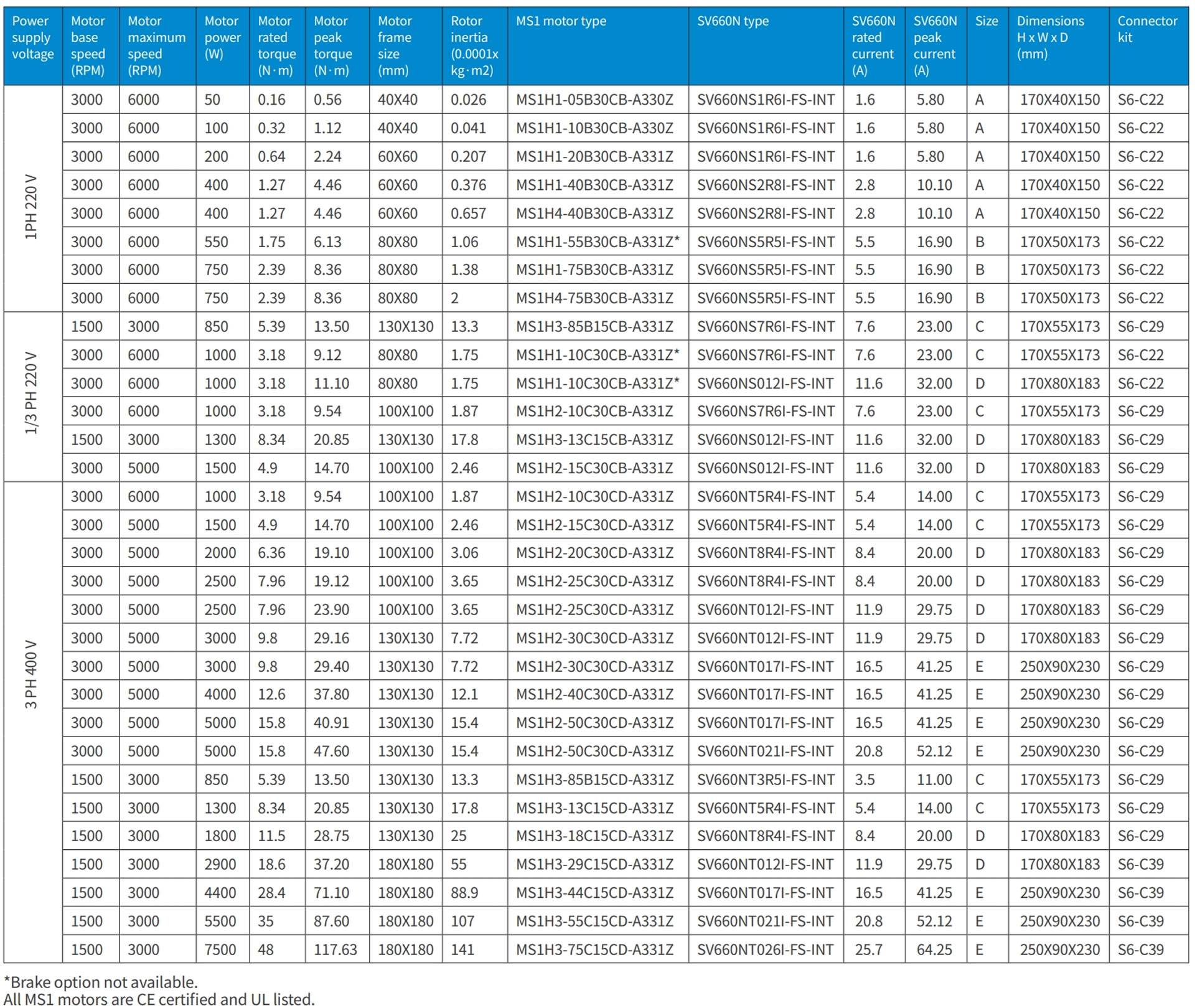

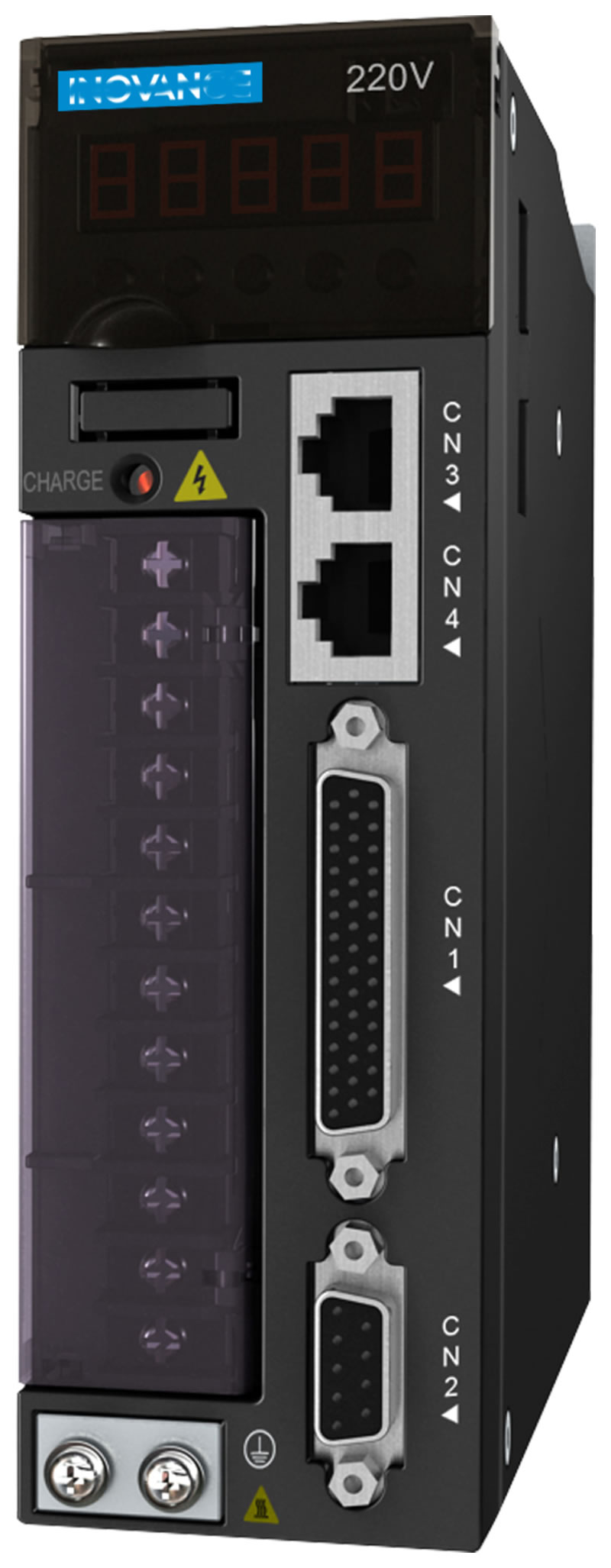

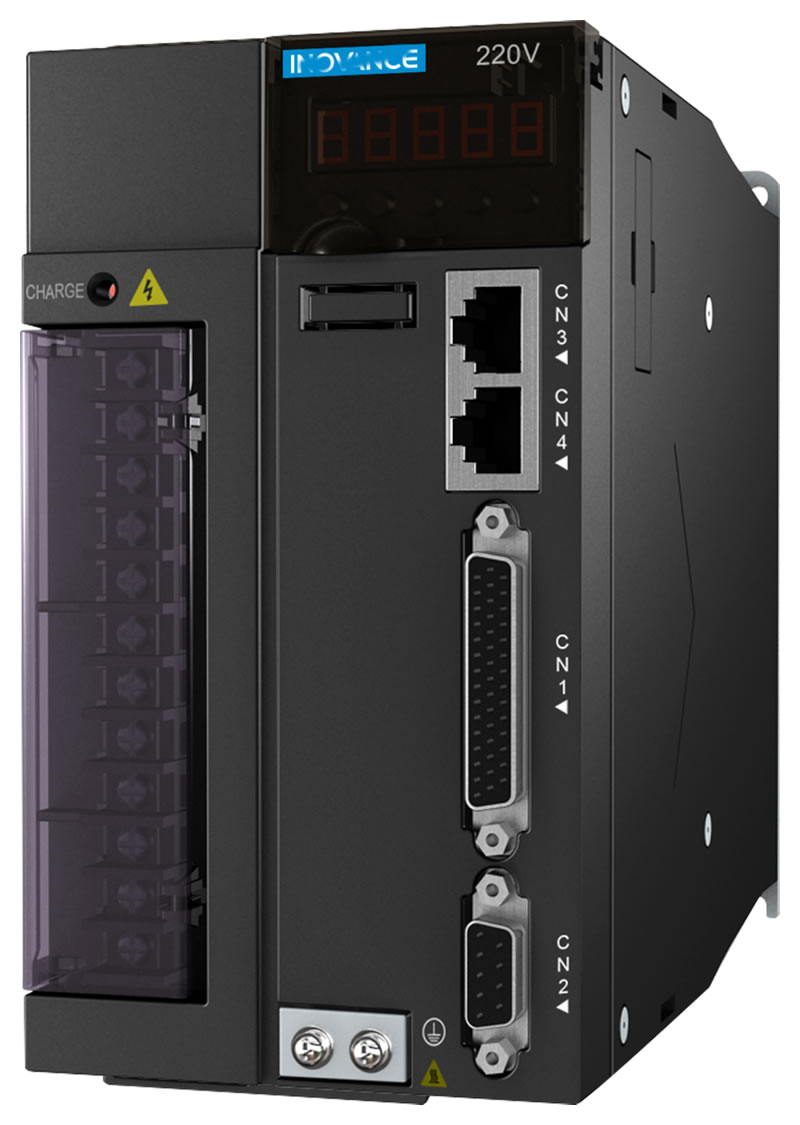

2.1 SV660N servo drivers

High dynamic performance with a compact footprint: the SV660N servo solution for industrial automation applications

  • User friendly installation

  • Easy set-up and tuning

  • Ultra-fast 4.5kHz current loop

  • Speed loop bandwidth up to 3kHz

  • Supply voltage: Single phase 220V; Three phase 220V; Three phase 380V

  • 0.1-7.5kW

  • Safe Torque Off - SIL3

  • Complies with CE and UL

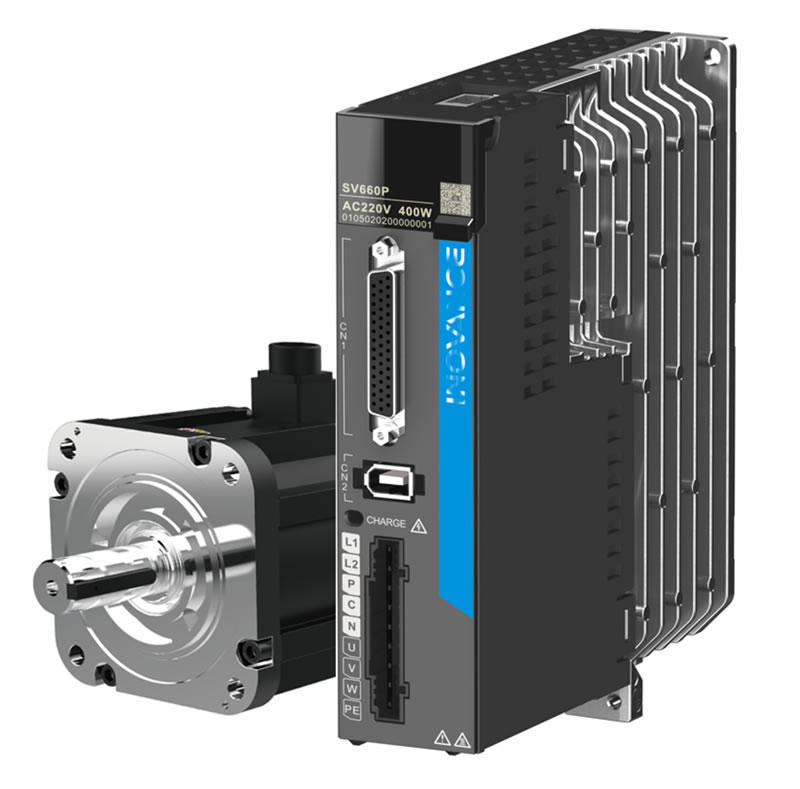

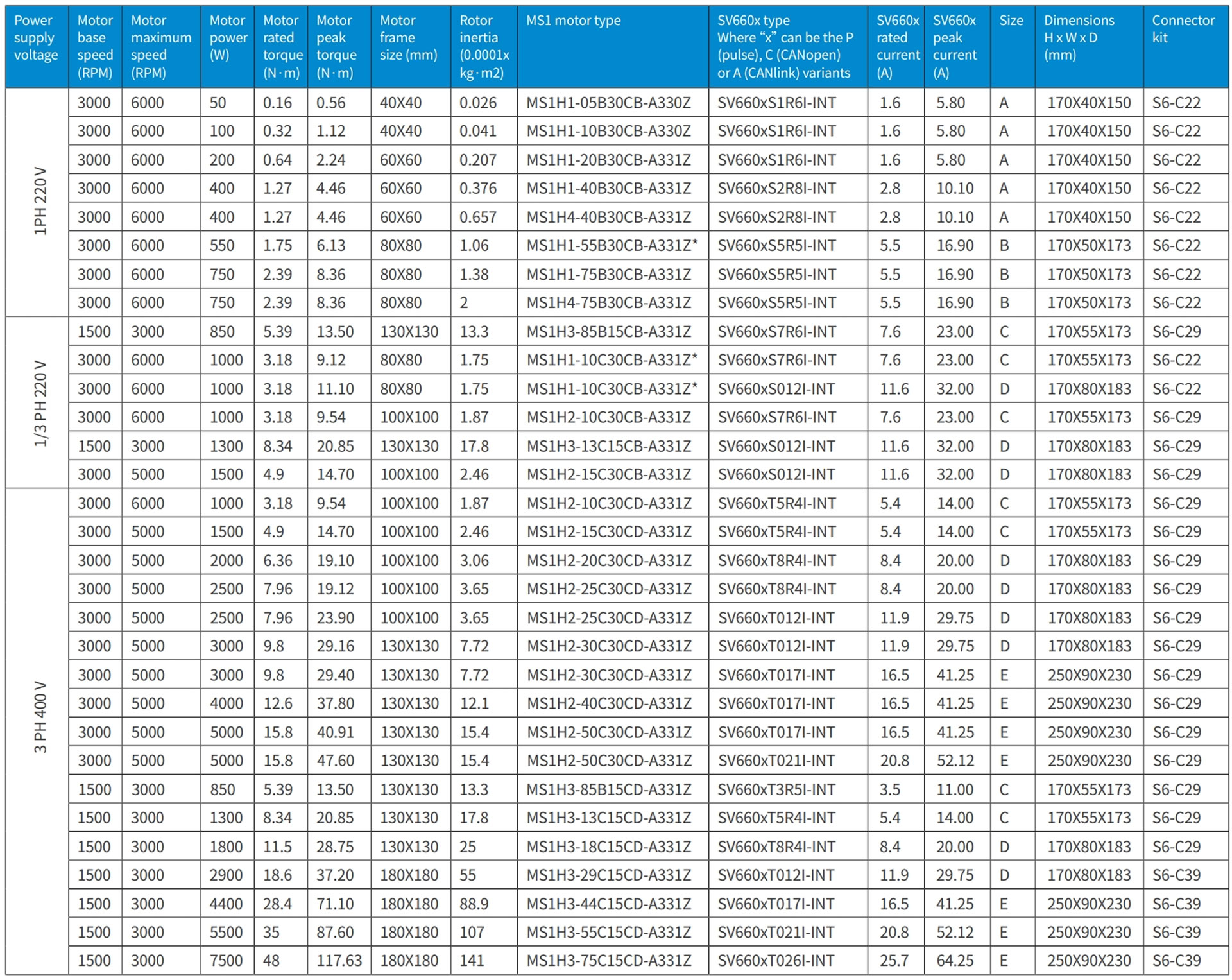

2.2 SV660P - Single-Axis Pulse Servo Driver

Performance and flexibility in a compact footprint.

  • User friendly installation

  • Easy set-up and tuning

  • CANopen (C) and CANlink (A) variants also available

  • Speed loop bandwidth up to 2kHz

  • Supply voltage: Single phase 220V; Three phase 220V; Three phase 380V

  • 0.1-7.5 kW

  • Complies with CE and U

Product variants:

(1) SV660P - pulse control variant

Pulse interface for position control (4MHz maximum input frequency).

(2) SV660C - CANopen variant

Compliant with CiA 402 device profile (IEC 61800-7-201/301), supporting several operation modes.

(3) SV660A - CANlink variant

Uses our proprietary protocol, in combination with our controller products

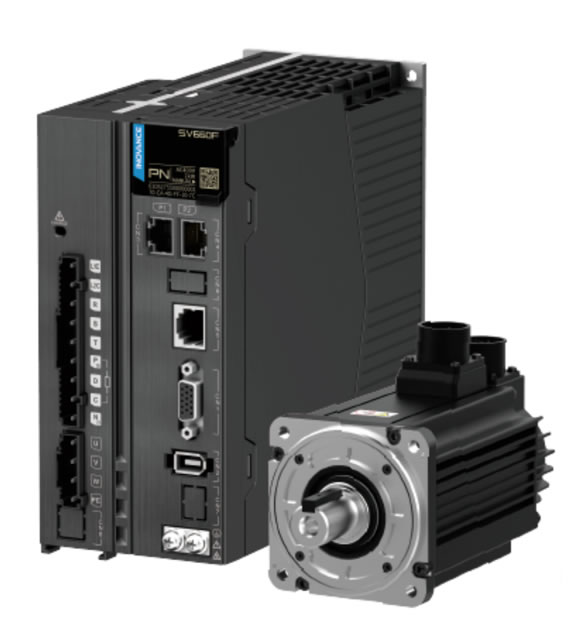

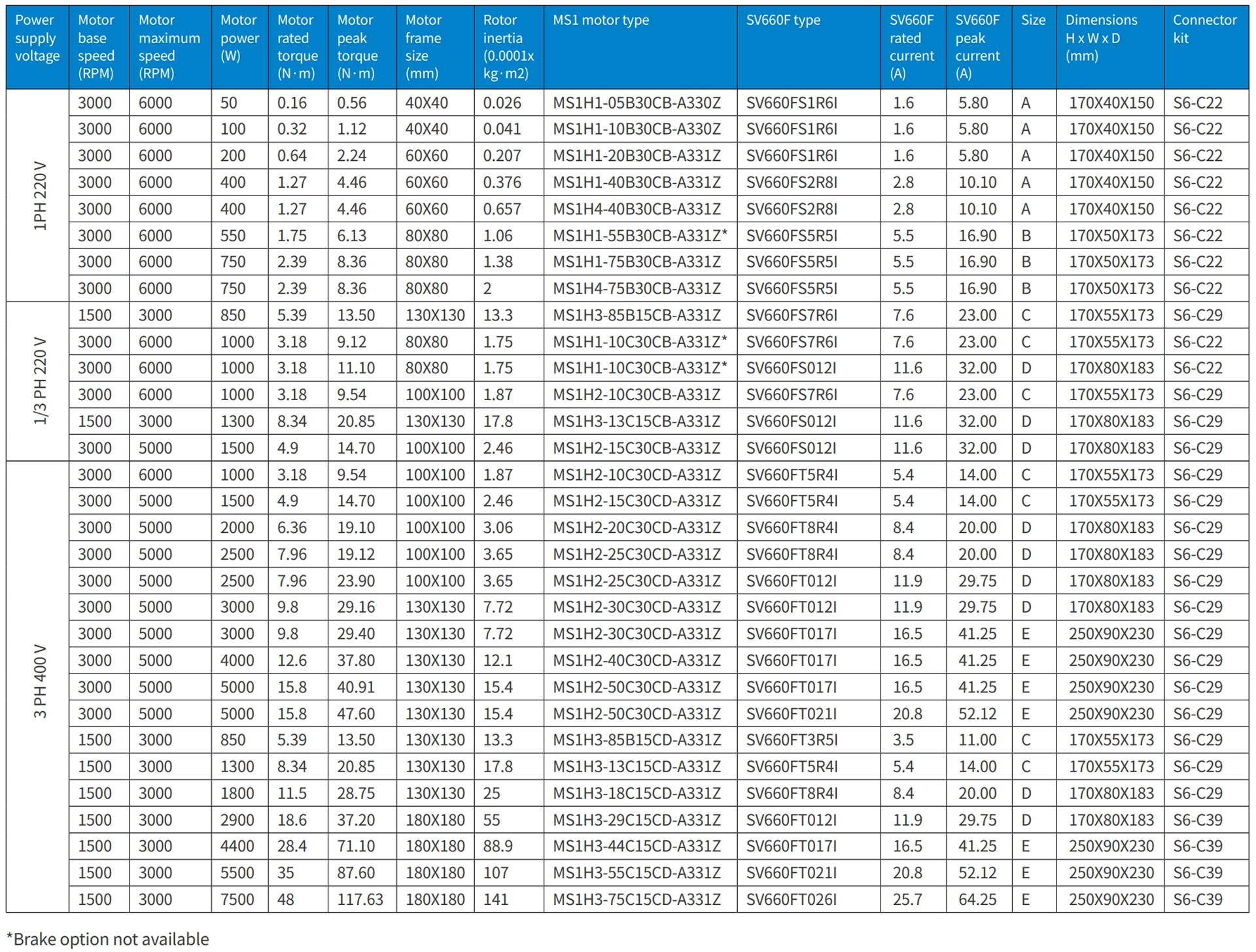

2.3 SV660F – Single-Axis PROFINET Servo Driver

High dynamic performance with a compact footprint:

the SV660F servo solution for industrial automation applications.

  • User friendly installation

  • Easy set-up and tuning

  • Ultra-fast 4.5kHz current loop

  • Safe Torque Off - SIL3

  • PROFINET RT and IRT communication

  • Supports PROFIdrive device profile

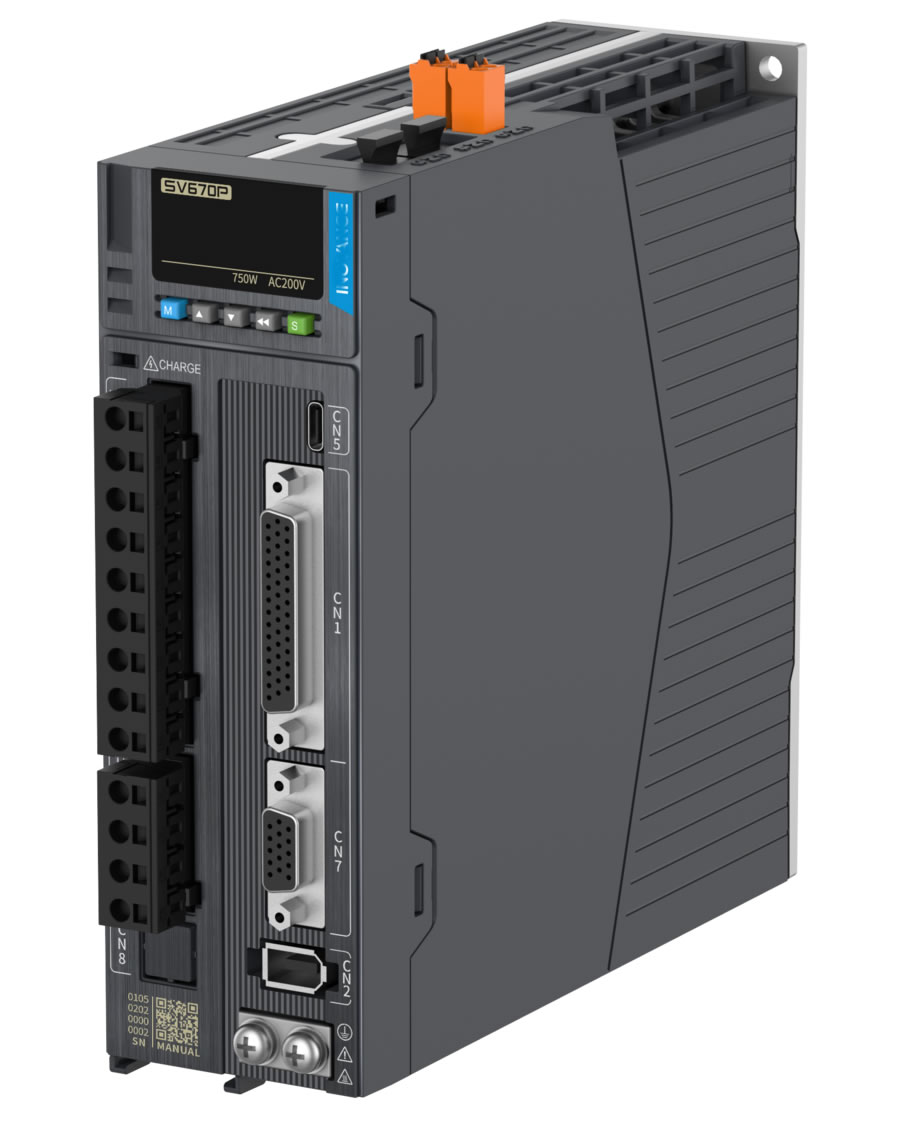

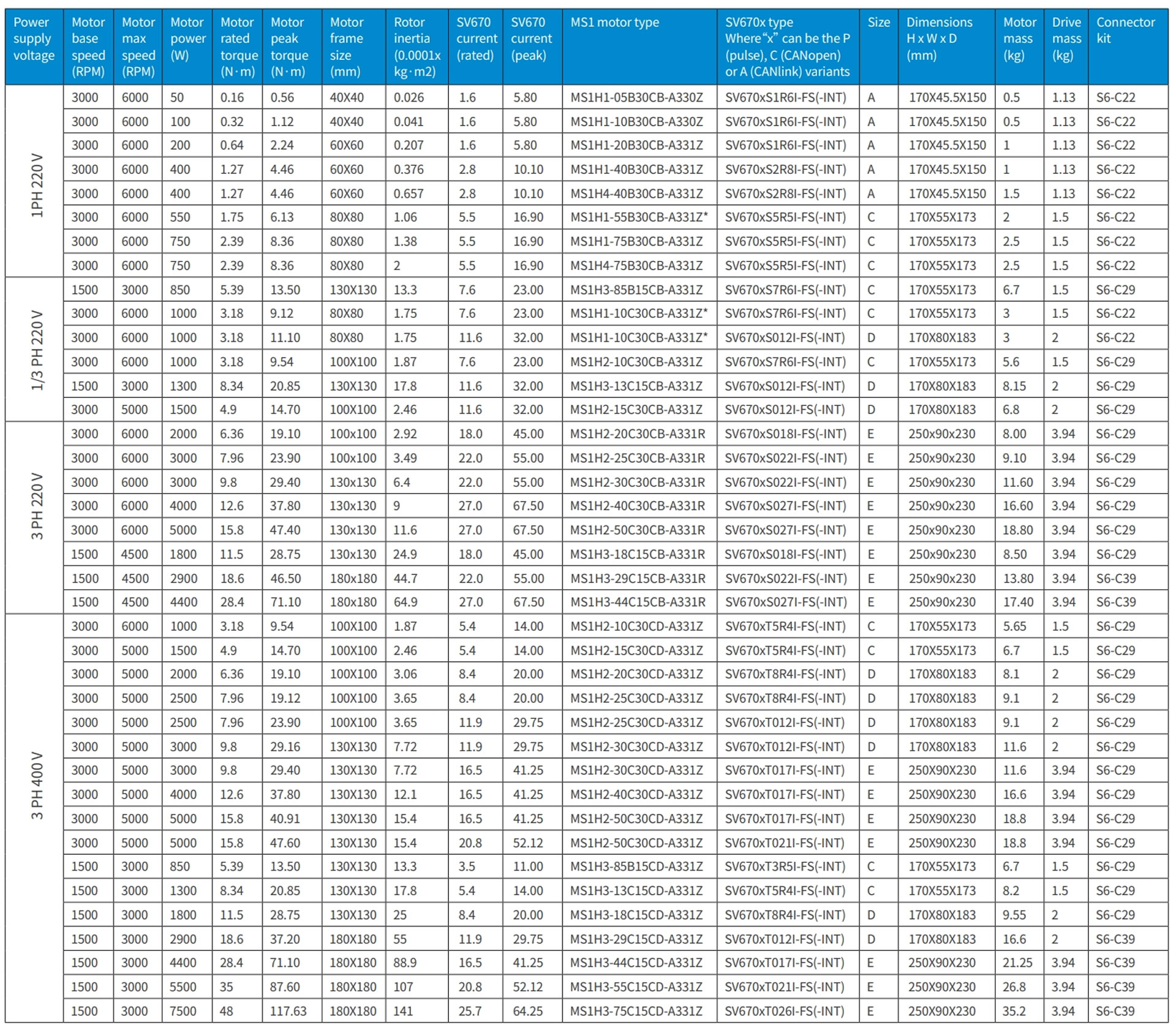

2.4 SV670P – Single-Axis Pulse Servo Driver

  • User friendly installation

  • Easy set-up and tuning

  • CANopen (C) and CANlink (A) variants also available

  • Safe Torque Off - SIL 3

  • 1/3 ph 200V, 3 ph 400V, kW to 7.5kW

  • Ultra-fast 4.5kHz current loop

  • Feedback encoder interface: serial (Weton), Nikon and Tamagawa

  • Second encoder interface: incremental quadrature

  • +24VDC backup control supply variant available

Product variants:

(1) SV670P - pulse control variant

Pulse interface for position control (4MHz maximum input frequency).

(2) SV670C - CANopen variant

Compliant with CiA 402 device profile (IEC 61800-7-201/301), supporting several operation modes.

(3) SV670A - CANlink variant

Uses our proprietary protocol, in combination with our controller products

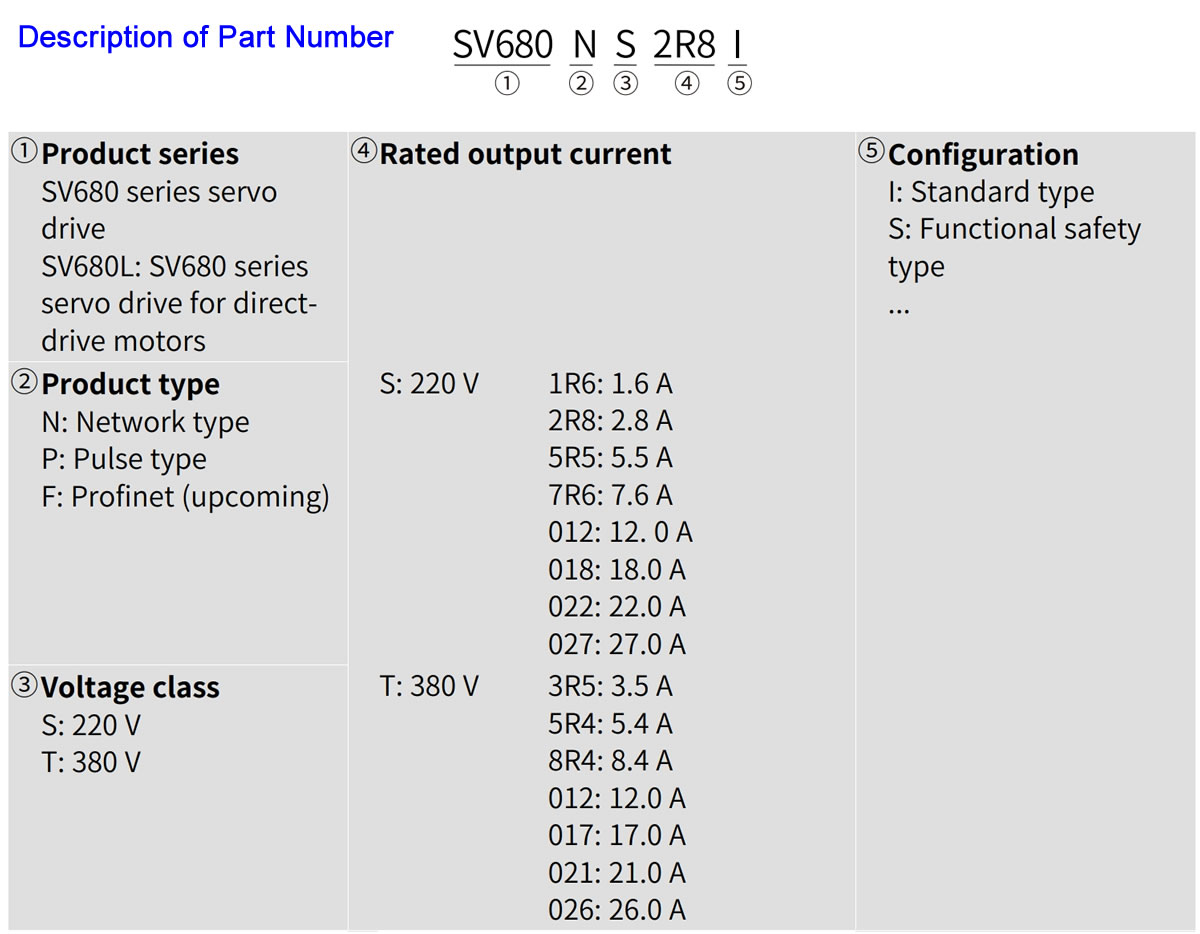

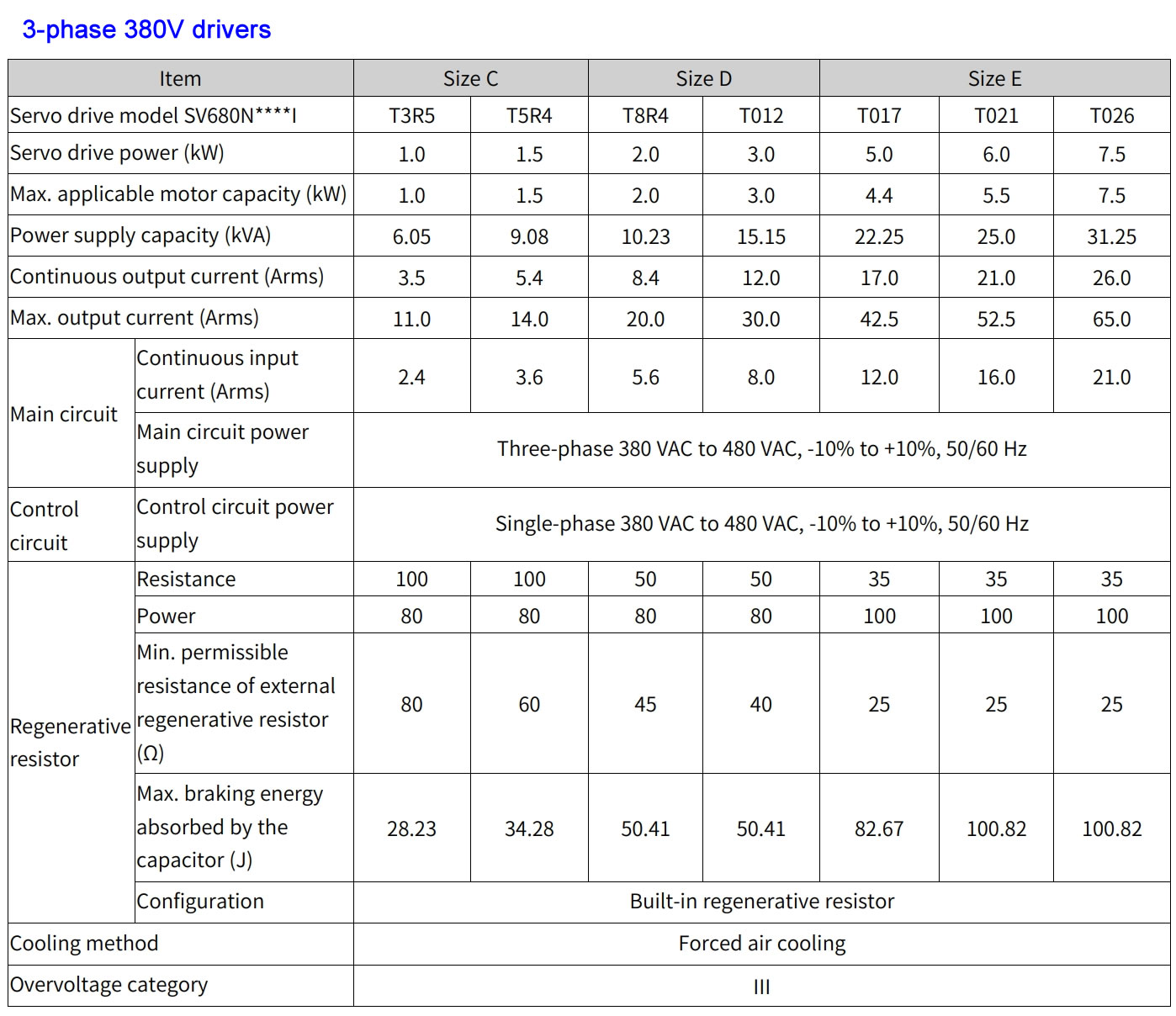

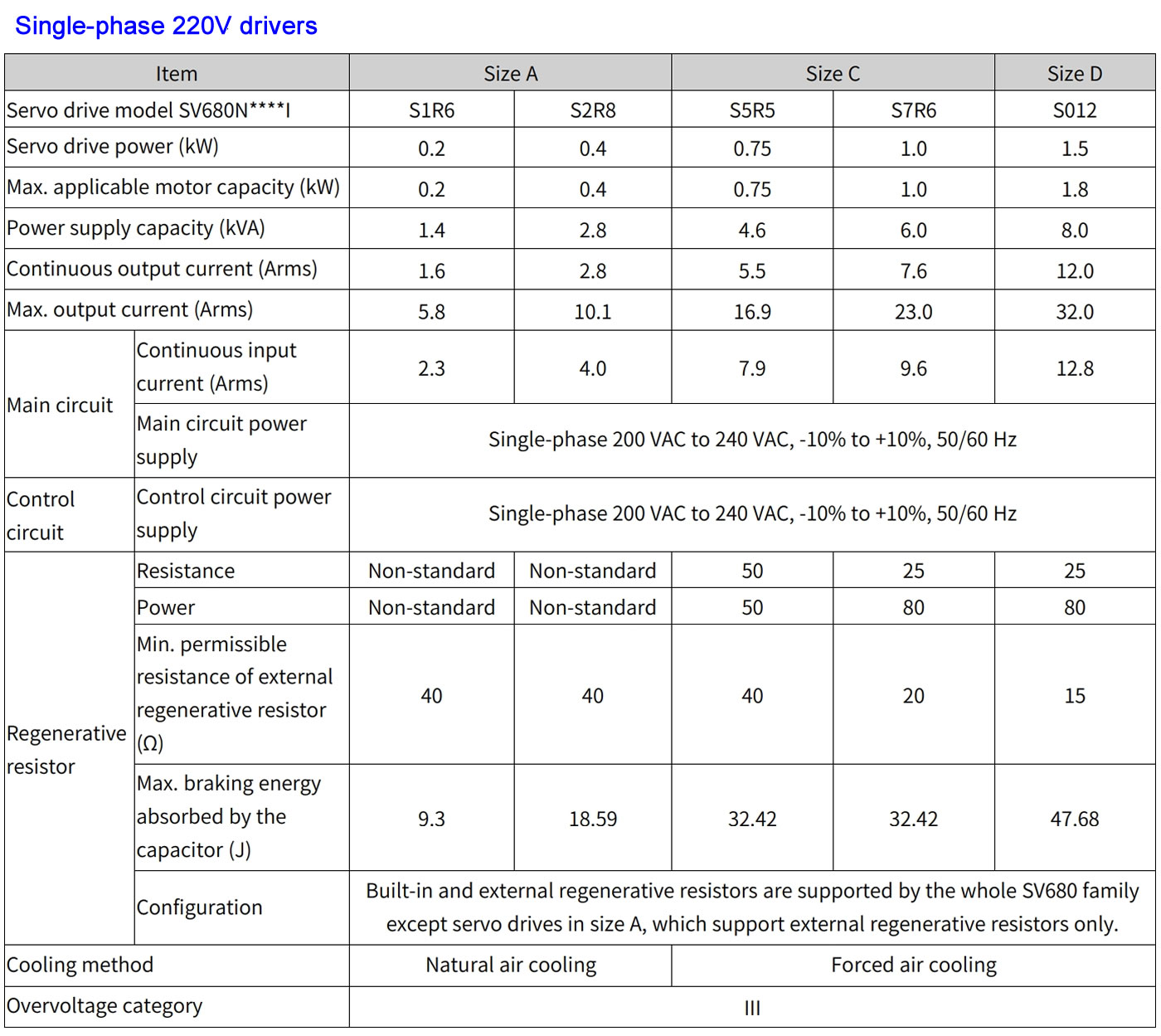

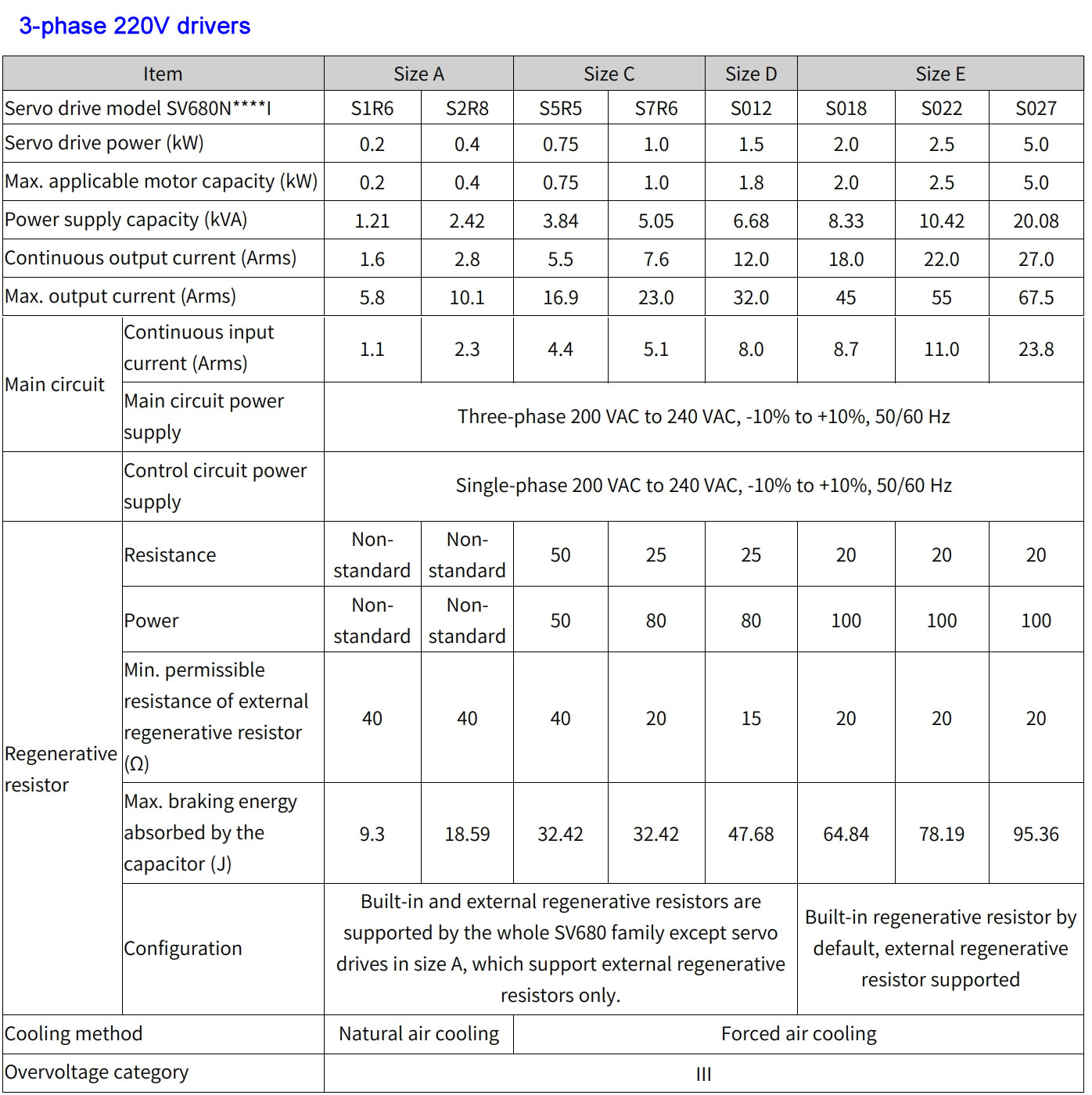

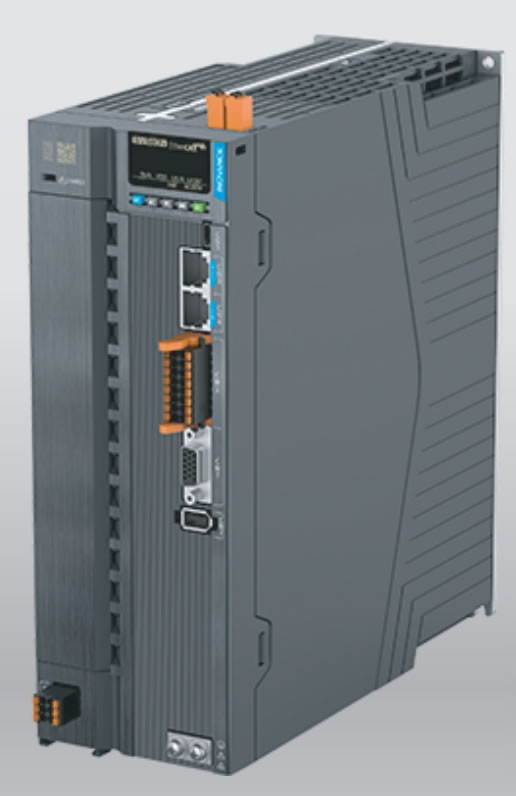

2.5 SV680N servo driver

The SV680N series servo driver is a high-end servo drive designed based on global[1]leading standards and high-end application needs. It is featured with high speed, high precision, high performance, and tuning-free function. Covering a power range from 0.05kW to 7.5kW, the SV680N series servo driver carries EtherCAT communication interfaces to work with the host controller for a networked operation of multiple servo drivers. It is equipped with the latest ITune function that allows adaptive stiffness level setting, inertia auto-tuning, and vibration suppression for easy control. The SV680N series servo driver, together with an MS1 series high[1]response servo motor (with ultra-low, low or medium inertia) equipped with a 26-bit single-turn/multi-turn absolute encoder, aims to deliver a quiet and stable operation and accurate process control through the fully closed-loop function and internal process segment function.


SV680N

Control mode

Cyclic synchronous position mode

Cyclic synchronous velocity mode

Cyclic synchronous torque mode

Profile position mode

Profile velocity mode

Profile torque mode

Homing mode

Fully closed‑loop control

Terminal

STO

CN1 16‑pin I/O terminal

DB44

DB15

Communication protocol

EtherCAT

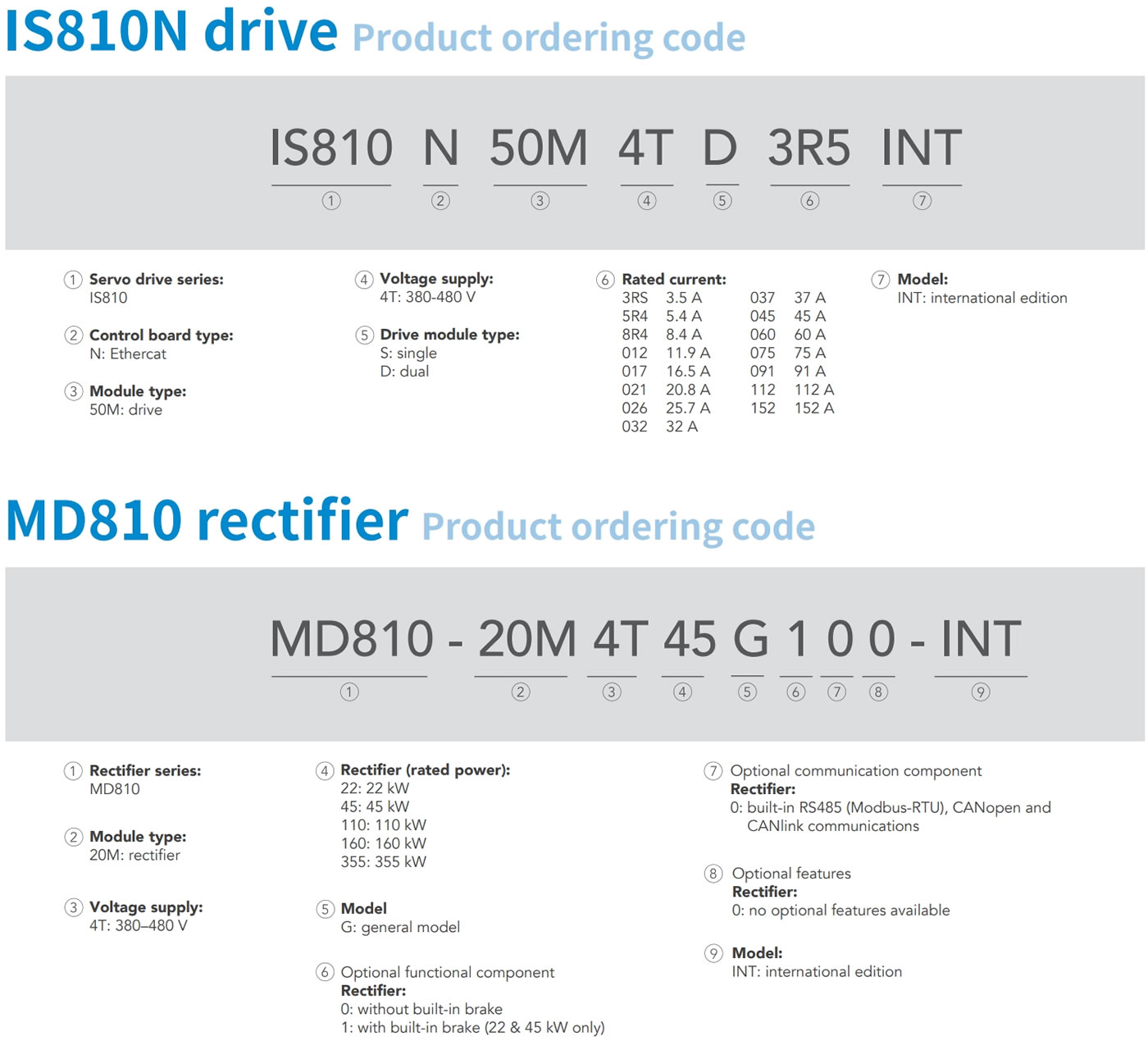

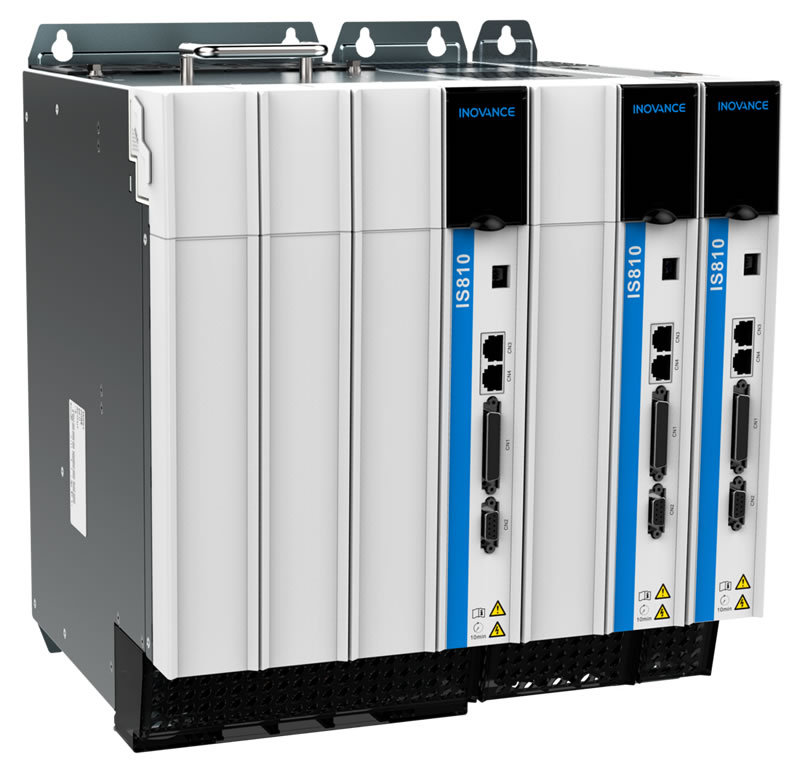

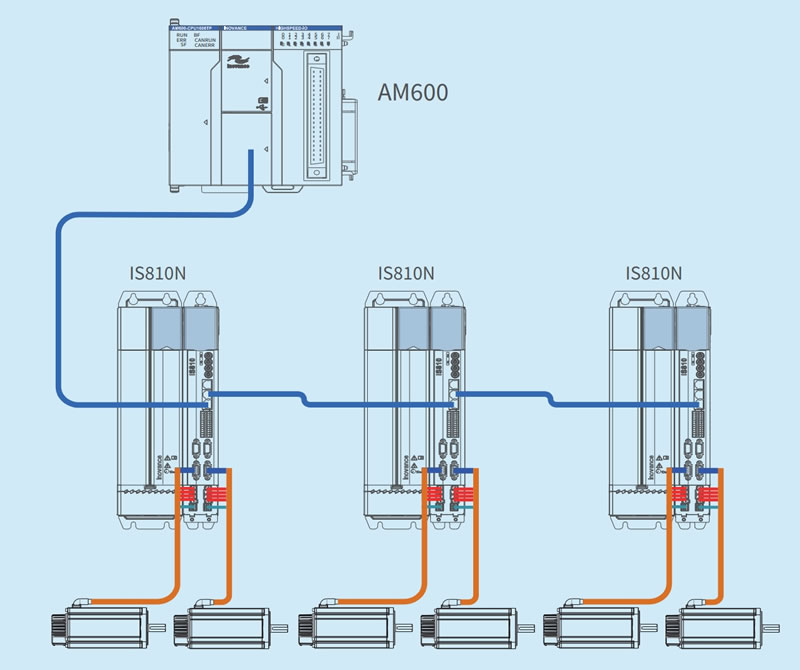

2.6 IS810N servo drivers

Multi-axes servo drive platform – for maximum performance in the most demanding applications

  • Common power supply module: 22-355kW

  • Single and dual axes modules: 850 W -75kW*

  • Three phase 400V supply voltage

  • Ultra-fast 4.5kHz current loop

  • Speed loop bandwidth up to 2kHz

  • Safe Torque Off – SIL 3

  • Complies with CE

* dual axes available up to 18.5kW

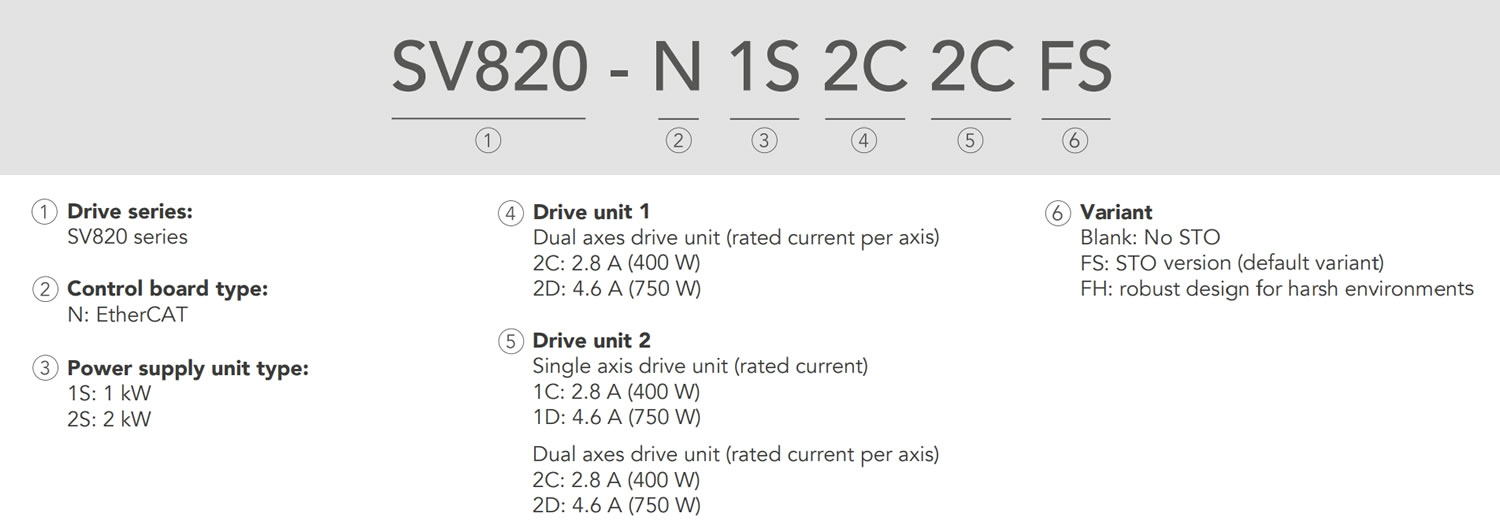

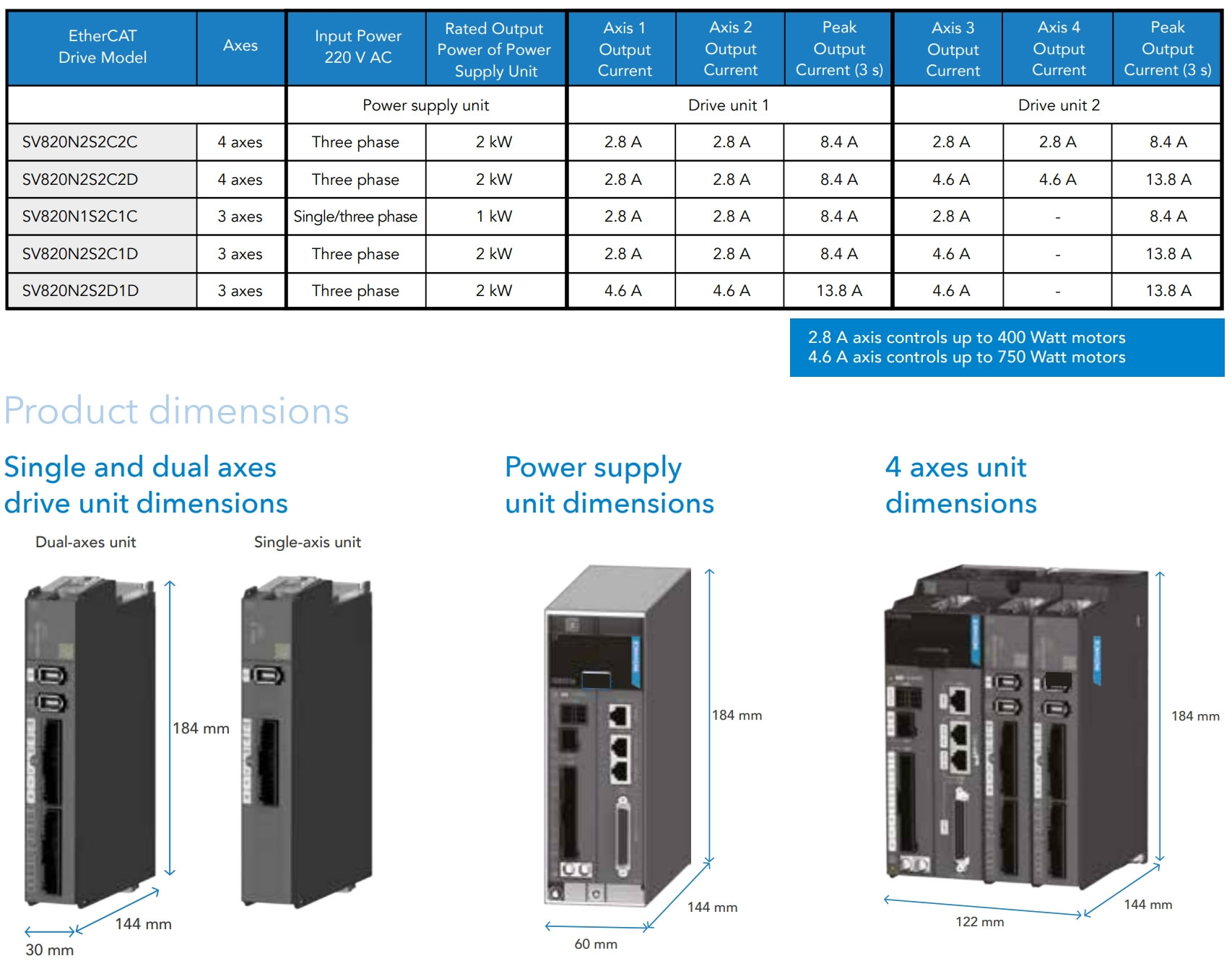

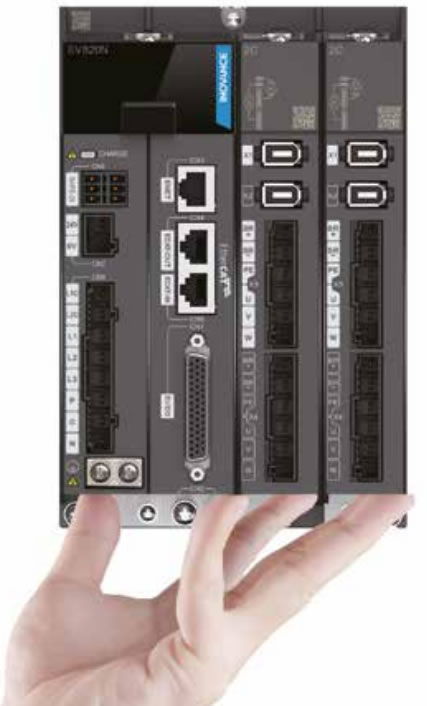

2.7 SV820N multi-axes servo drivers

A multi-axes servo platform, available in 3 or 4 axes versions, with a common power supply module. The drive features an ultra-fast control loop regulator and a high dynamic response rate. It is designed to seamlessly integrate with MS1 motors from 50-750W. Supports CANopen and EtherCAT communications

  • Power supply unit: 1-2kW

  • Single/double unit axis module: 1.1-7.6A

  • Ultra-fast current loop

  • STO SIL 3 – in accordance with EN/IEC 61800-5-2

  • EtherCAT CiA 402 motion profile as standard

  • Easy commissioning and installation

  • Small footprint for robot applications

  • IP67

  • Complies with CE

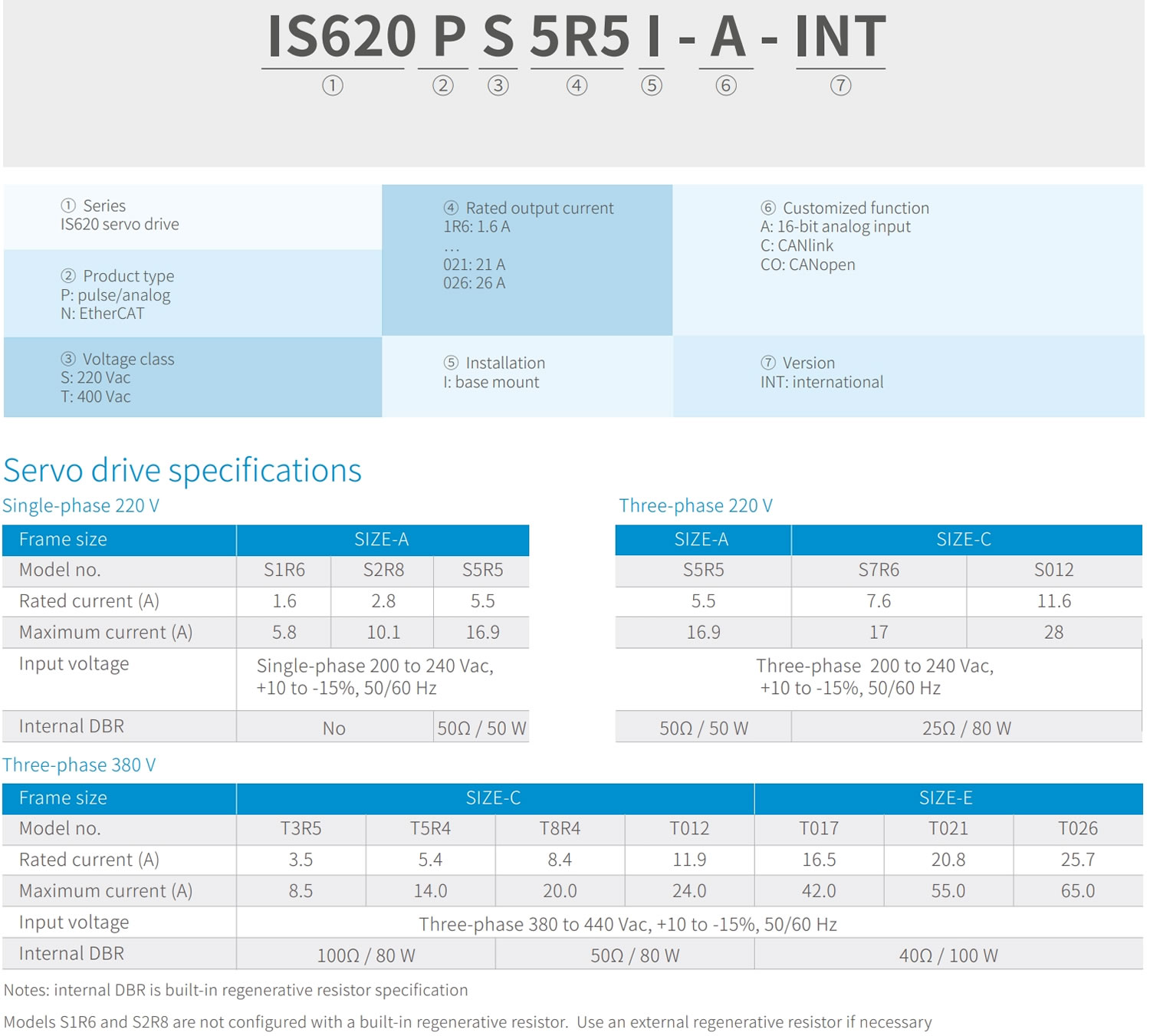

2.8 IS620 servo drivers

2.8.1 IS620N servo driver

Ethercat servo driver for industrial applications

  • Speed loop bandwidth up to 1.2kHz

  • Supply voltage: Single phase 220V; Three phase 220V; Three phase 380V

  • 0.1-7.5kW

  • EtherCAT communications

  • Built-in keypad

  • Fine tuning with PC software (InoServoShop)

  • Inertia auto-tuning (on-line/off-line)

  • Automatic gain tuning

  • Adaptive notch filter

  • Automatic/manual damping filter for low frequency resonance

  • Complies with CE

2.8.2 IS620P servo driver

High performance servo system

  • High speed loop bandwidth: up to 1.2kHz

  • Supply voltage: Single phase 220V; Three phase 220V; Three phase 380V

  • 0.1-7.5 kW

  • Pulse/direction

  • CANopen communications (IS620P-CO variant)

  • Built-in keypad

  • Fine tuning with PC software (InoServoShop)

  • Inertia auto-tuning (on-line/off-line)

  • Automatic gain tuning

  • Adaptive notch filter

  • Automatic/manual damping filter for low frequency resonance

  • Complies with CE

3. AC Drives (Frequency Inverters)

Our MD series of AC general purpose drives offer excellent performance, a wide range of functions and specifications, ease of use, and high reliability. Meanwhile, we also offer leading low voltage multidrive products for applications requiring complex multidrive systems, such as metal processing, printing and packaging, or textile printing and dyeing. Our multidrive products adopt modular designs, and feature high performance, high security, and a high protection rating. Our main products are MD290, MD310, MD520 and MD580.

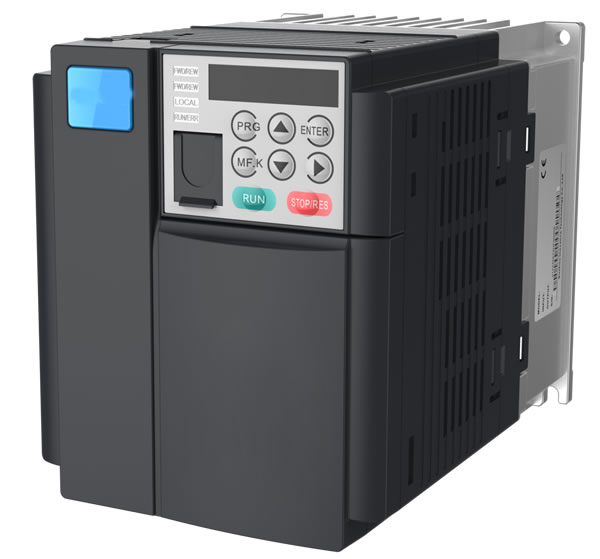

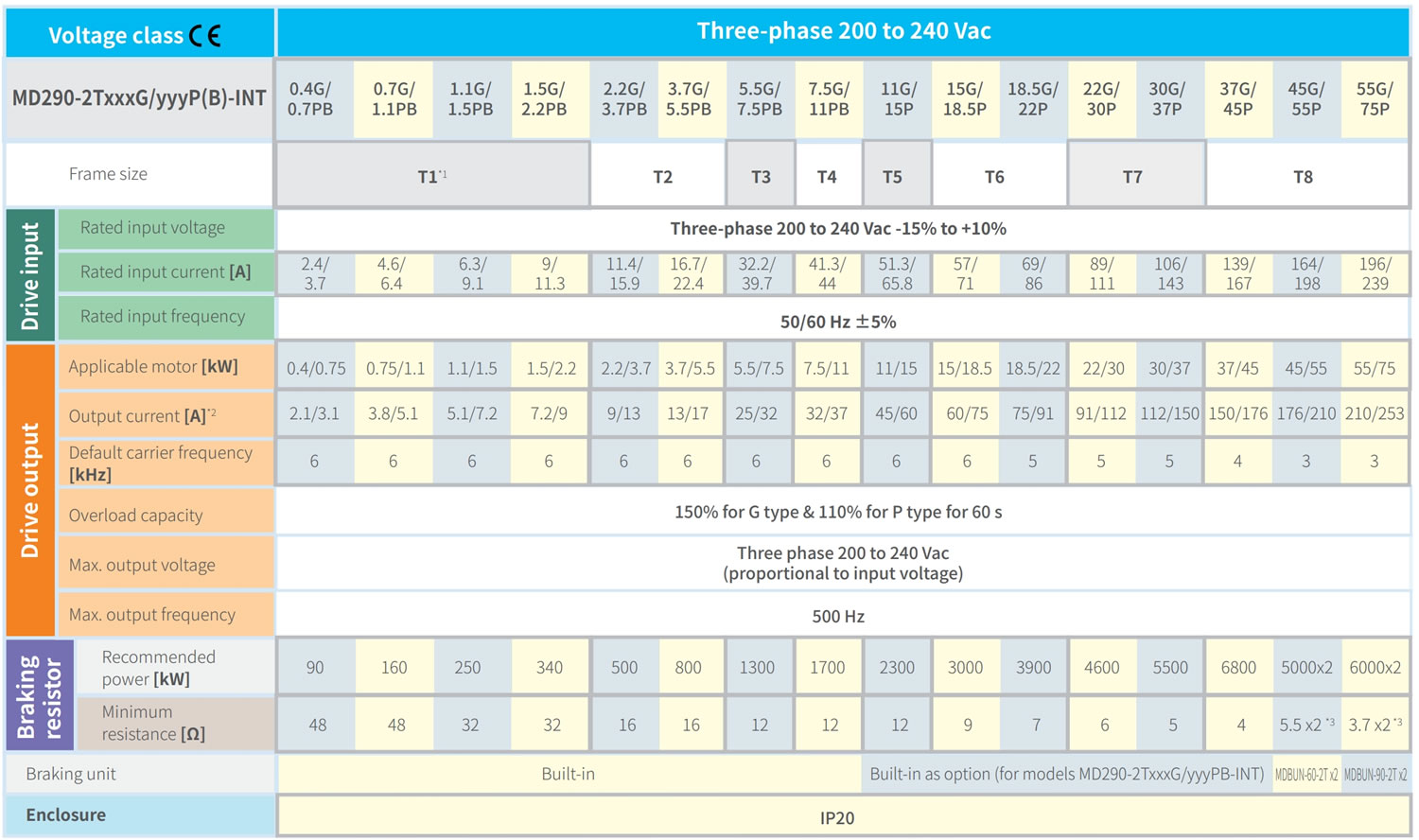

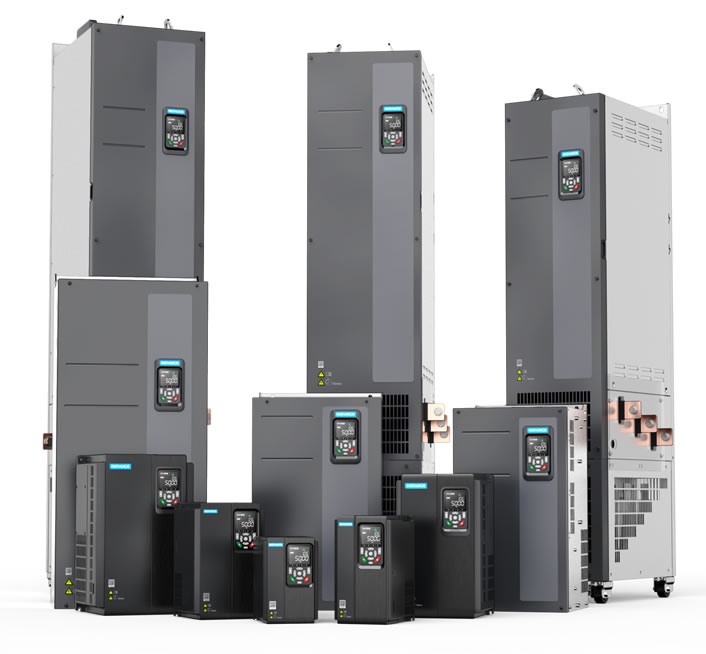

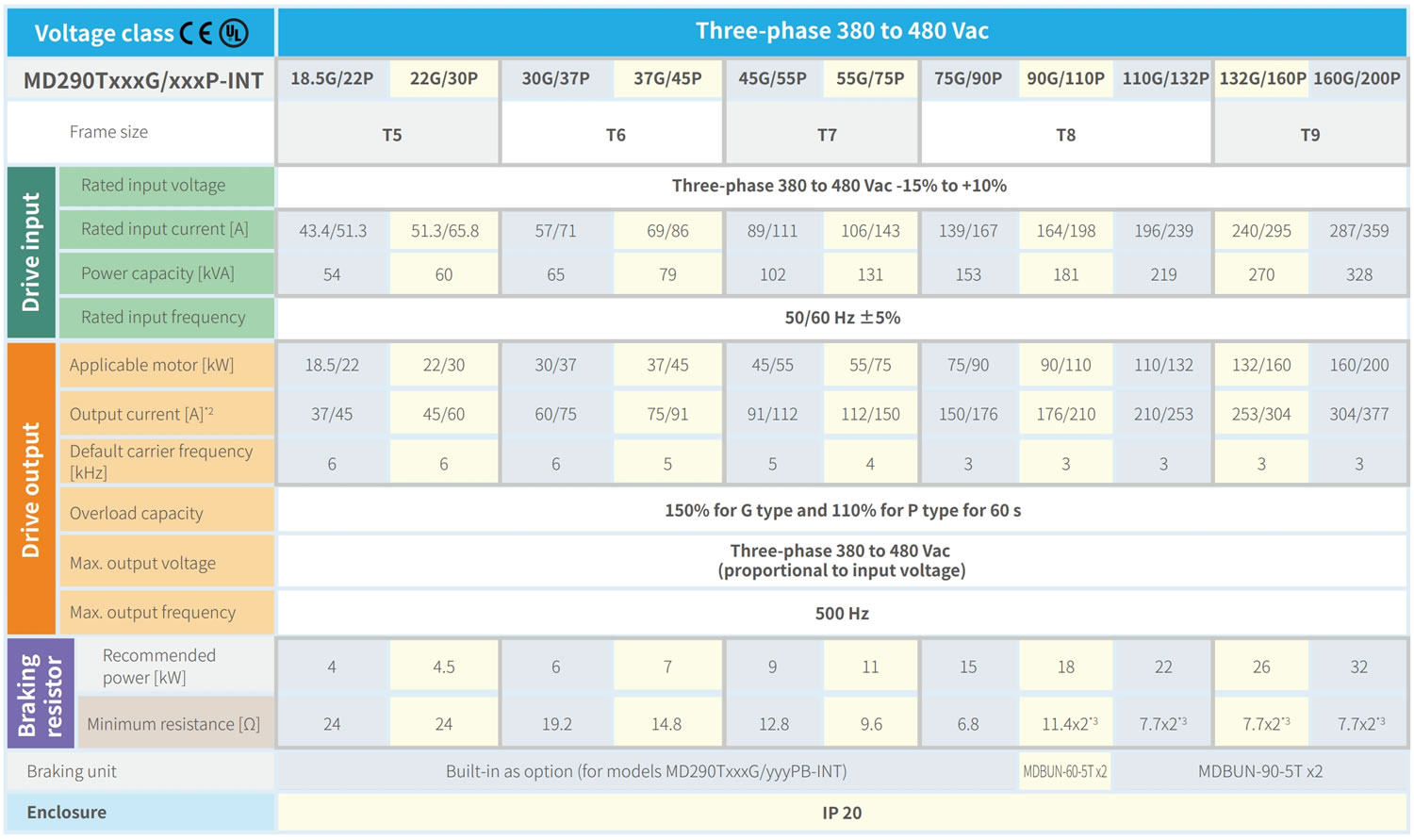

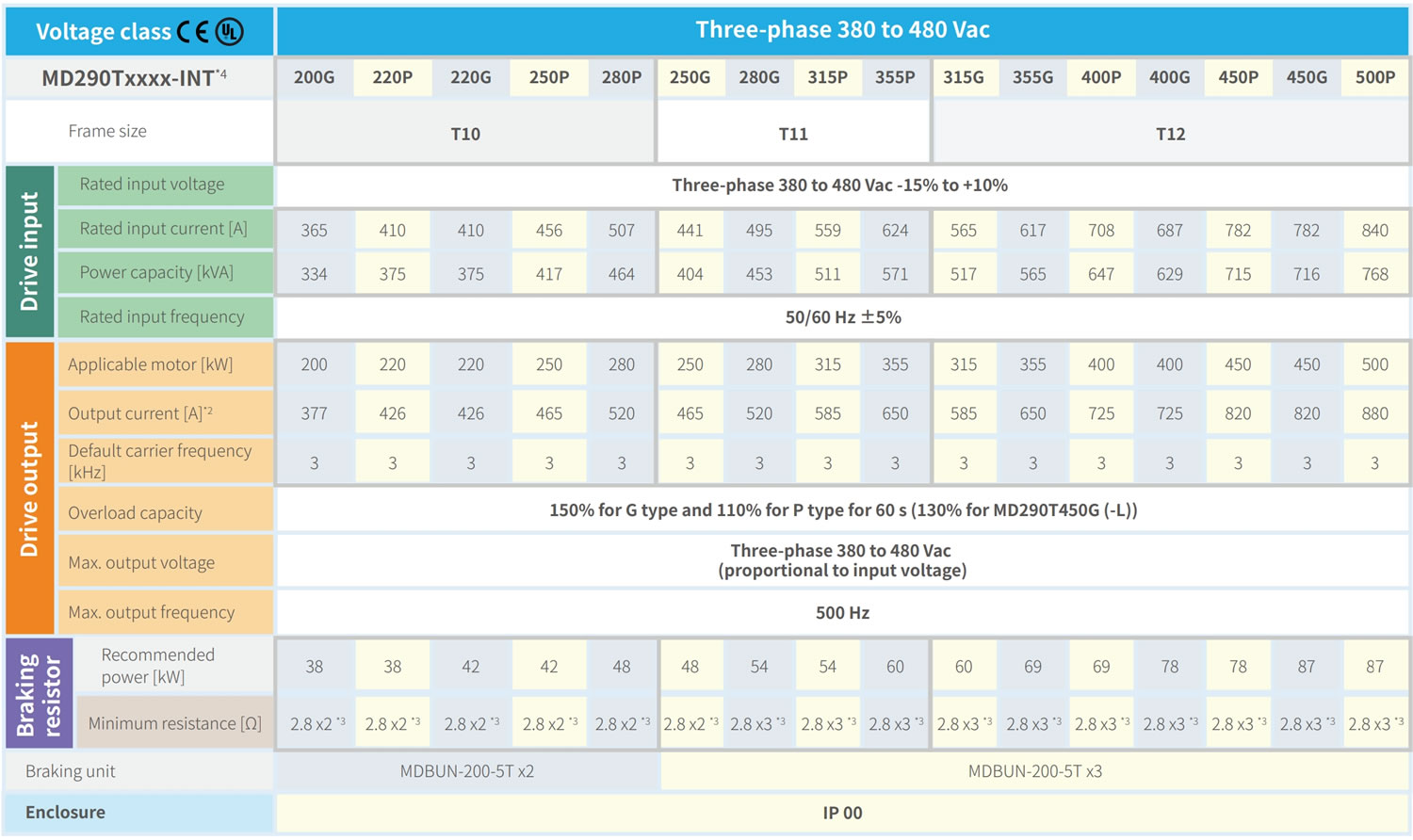

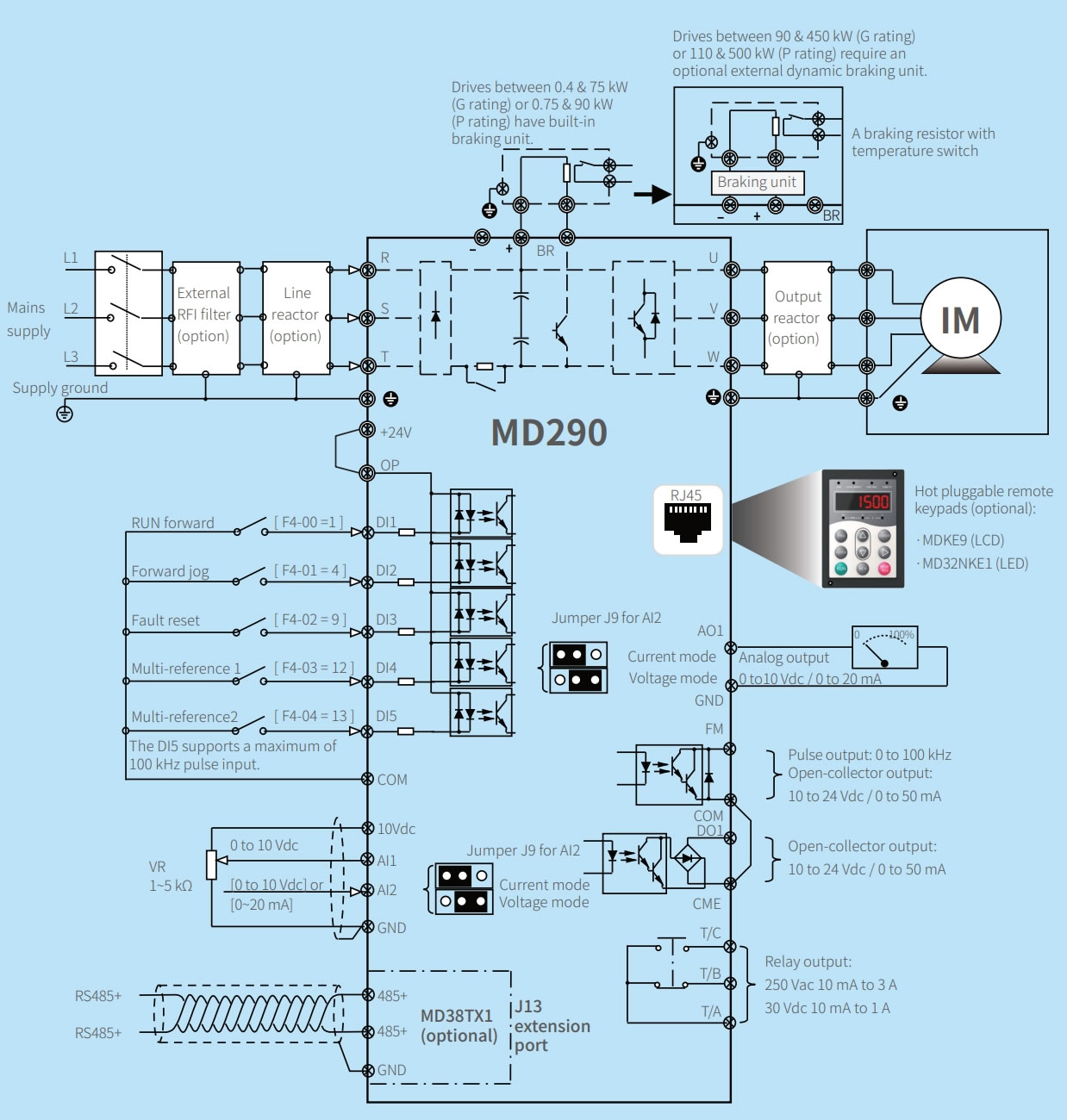

3.1 MD290 General Purpose AC Drives

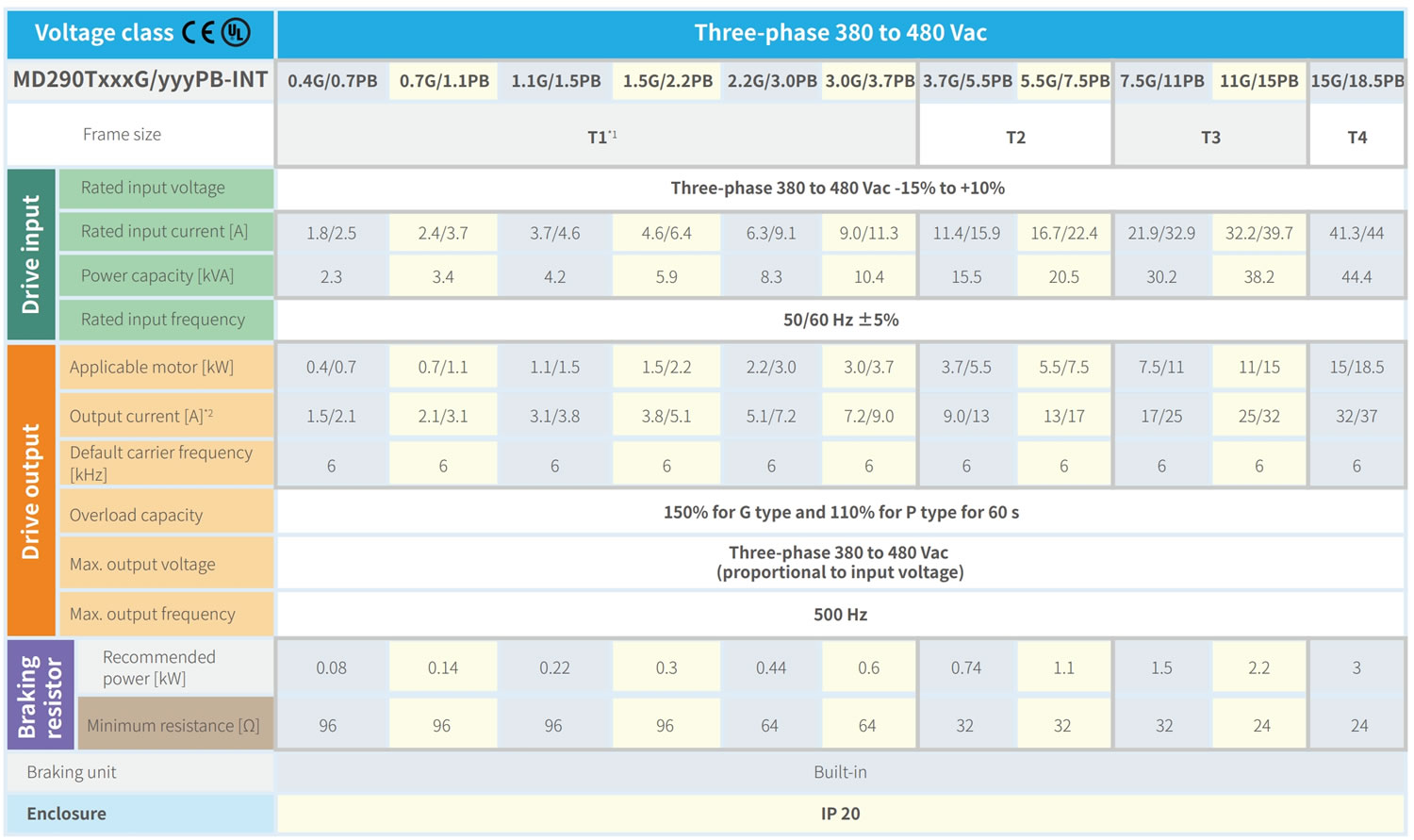

Open loop, three phase, 400V, 0.4-500kW; 200VAC, 0.4-75kW

  • Dual rated (G & P ratings), allowing optimized product selection

  • Open loop V/f (with slip compensation)

  • Automatic torque boost

  • Slip compensation

  • Communications options: Modbus-RTU; CANlink; PROFIBUS-DP; PROFINET; CANopen

  • Simplified parameter for easy start-up

  • 4-independent S-ramps

  • Flexible programmable I/O connection

  • User programmable function

  • Variable DC injection braking

  • Comprehensive trip diagnostics

  • Output frequency 500 Hz

  • Complies with CE and UL



PC software tools: InoDriveShop

InoDriveShop is a PC-based software offering. It is based on a familiar Windows interface. InoDriveShop can upload and download drive parameters, and features a variety of other functions, such as a real-time oscilloscope.

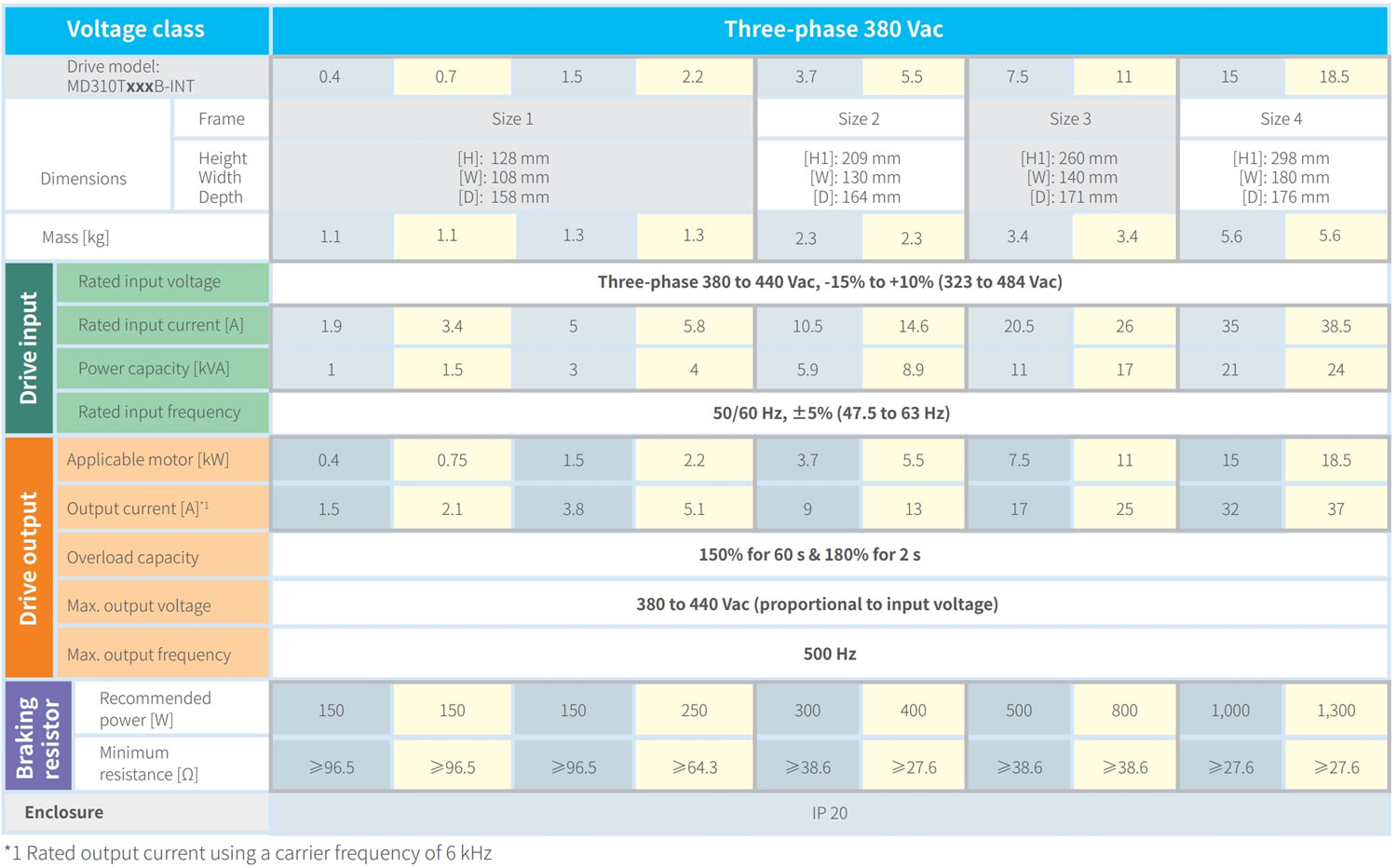

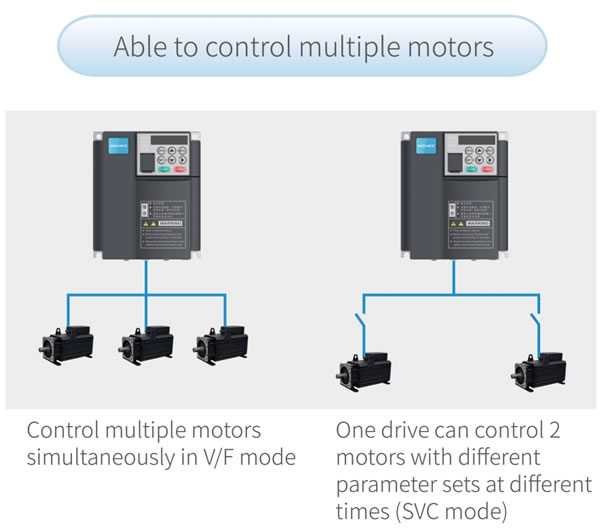

3.2 MD310 Compact Vector, Economic AC Drives

Open loop, three phase, 400VAC, 0.4-18.5kW

  • Open loop V/f & sensorless vector control

  • Starting torque: 150% at 0.25Hz for SVC

  • Automatic torque boost

  • Slip compensation

  • Communications options: Modbus-RTU; CANlink

  • Simplified parameter for easy start-up

  • 4-independent S-ramps

  • Flexible programmable I/O connection

  • Variable DC-injection braking

  • Comprehensive trip diagnostics

  • Output frequency 500 Hz

  • Built-in dynamic braking unit

  • Complies with CE

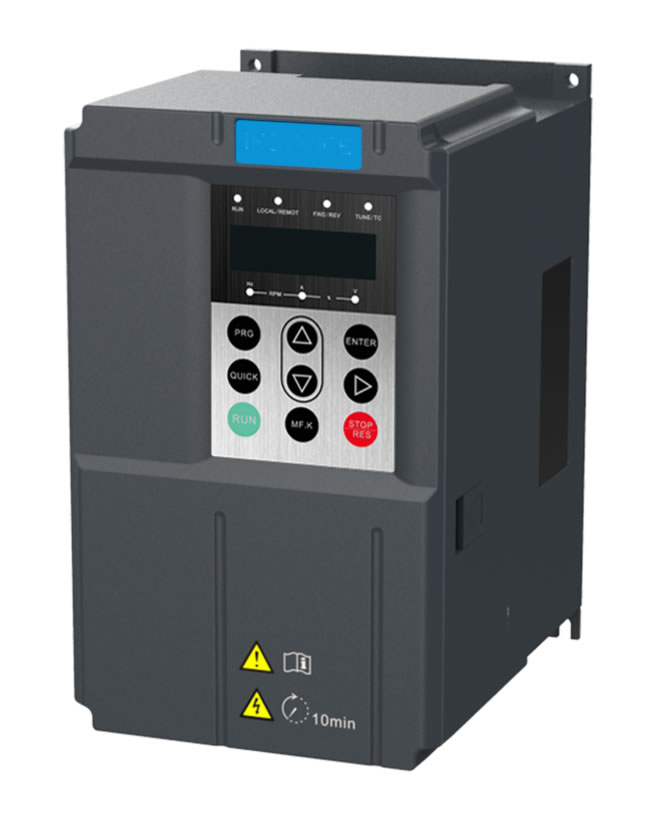

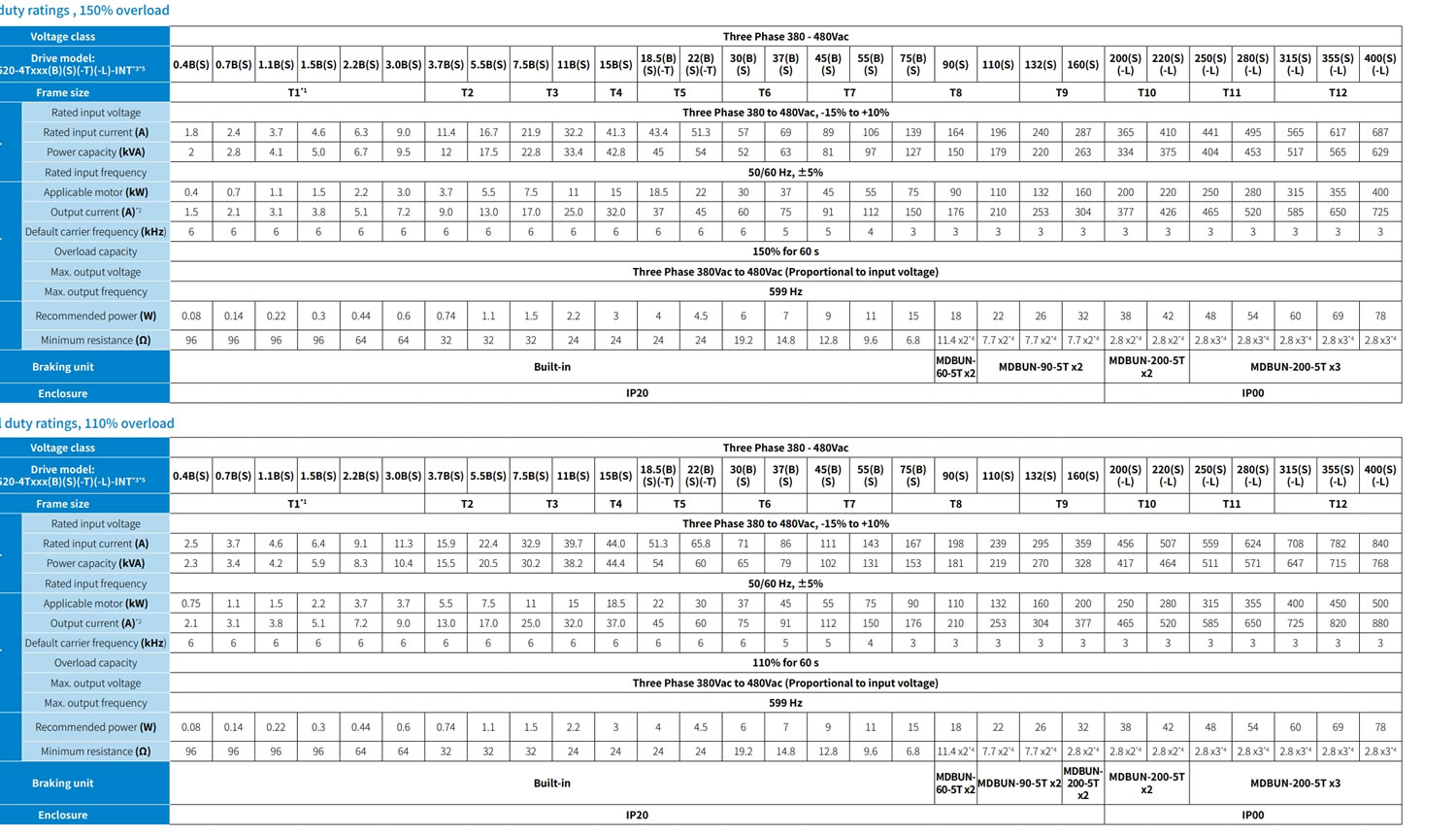

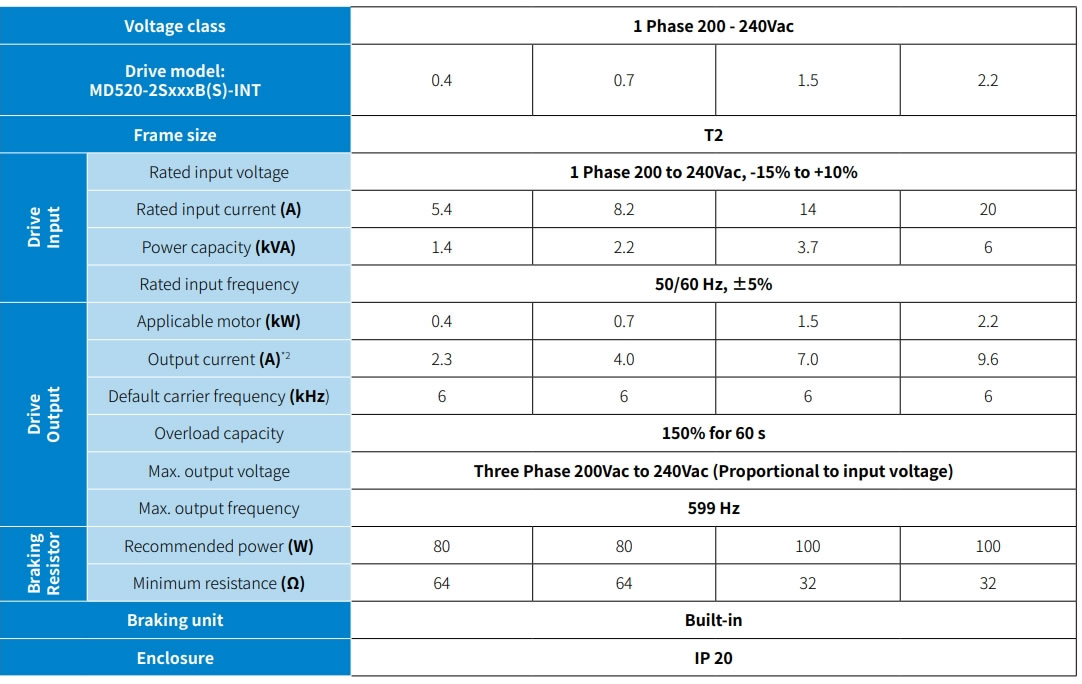

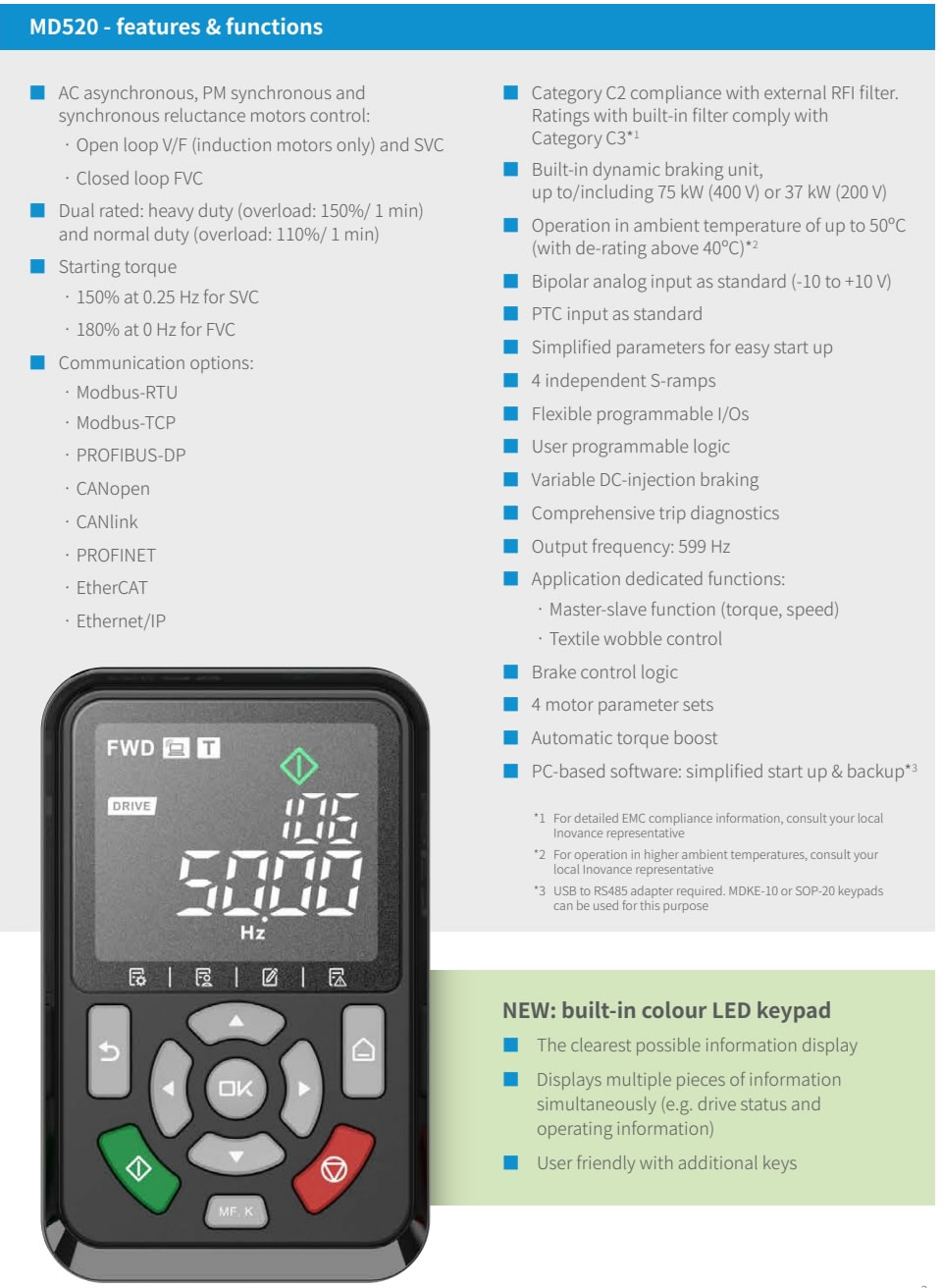

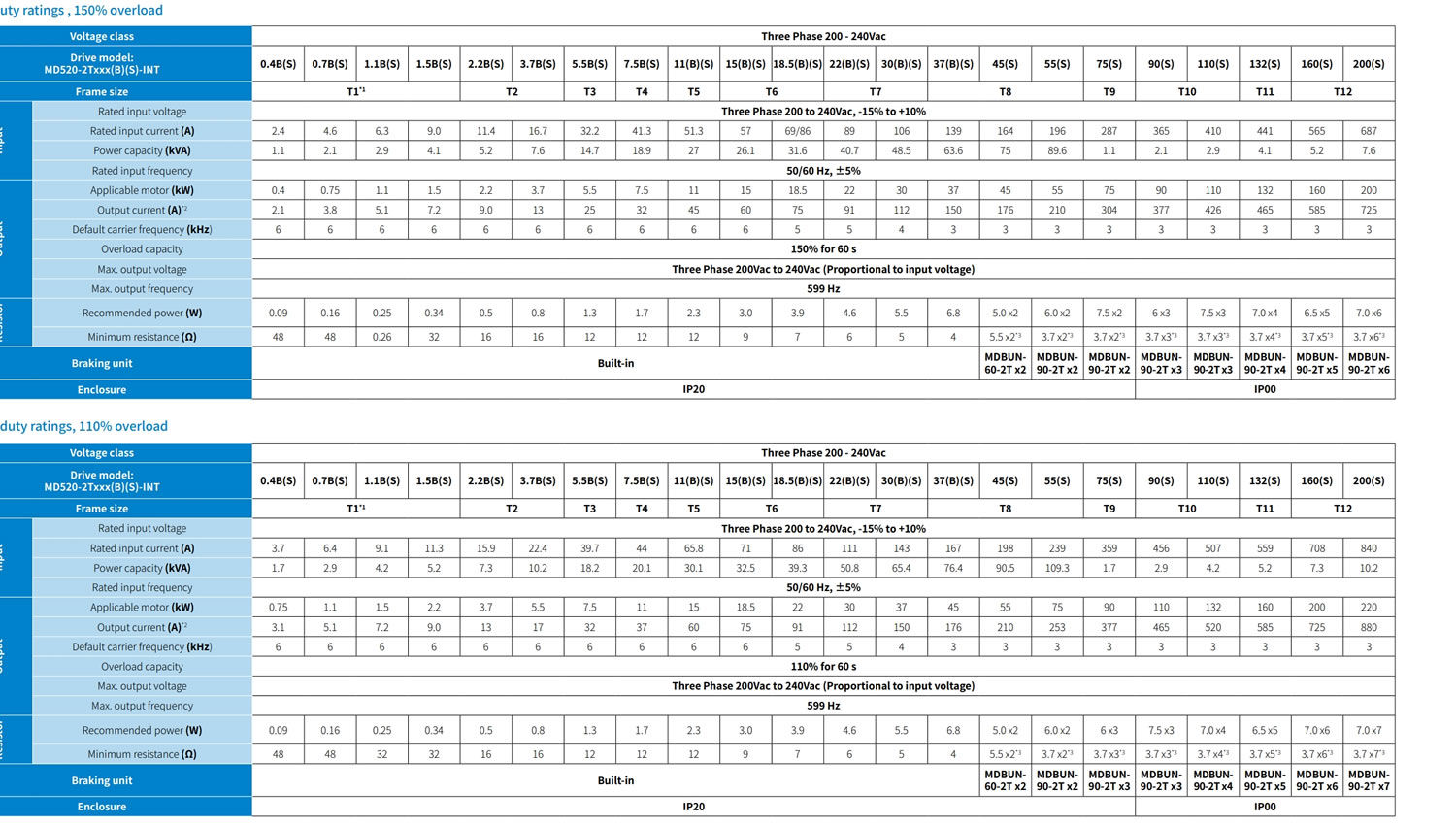

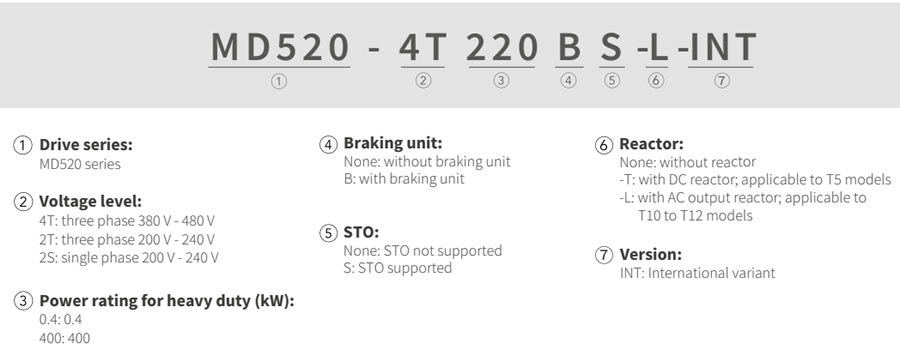

3.3 MD520 High Performance Universal AC Drives



  • Unified AC asynchronous and PM synchronous motor control

  • Wide operating voltage and product range: 3ph 380-480Vac: 0.4 to 500kW; 3ph 200-240Vac: 0.4 to 75kW; 1ph 200-240Vac: 0.4 to 2.2kW

  • STO SIL 3 PL e

  • Built-in DC reactor (400V: 18.5kW and above; 200V: 11kW and above)

  • Enhanced reliability: conformal coated PCBs compliant to 3S2 and 3C3 environments

  • Complies to efficiency level IE2 as defined in IEC 61800-9-2

  • Through-hole mounting options (0.4 to 160kW)



PC software tools: InoDriverShop

InoDriverShop is a free of charge PC-based software offering. It is based on a familiar Windows interface. InoDriverShop can upload and download drive parameters, and features a variety of other functions, such as a real-time oscilloscope. For the connection with the PC a standard USB to RS485 adapter can be used. MDKE-10 or SOP-20 keypads can also be used for this purpose.

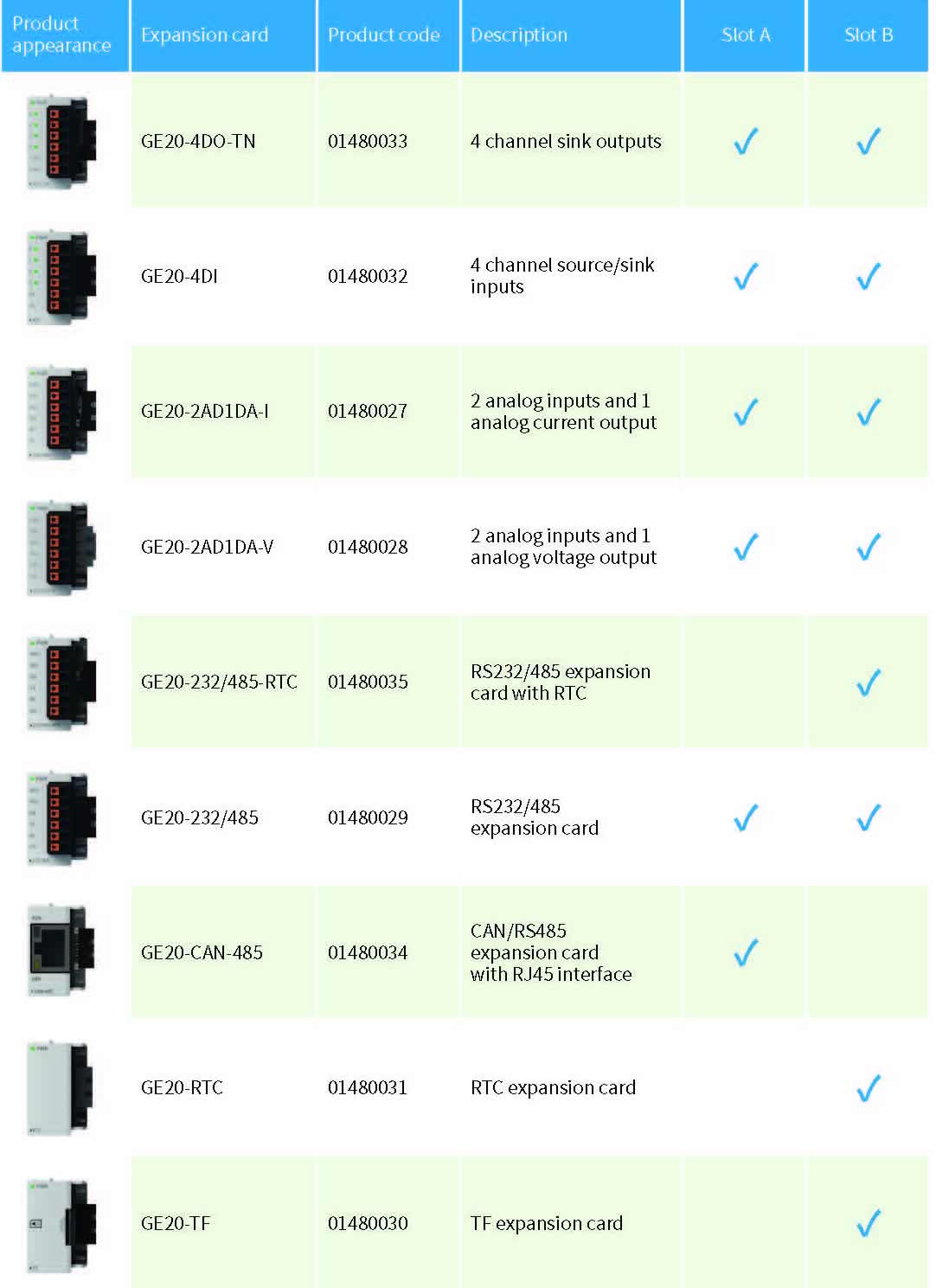

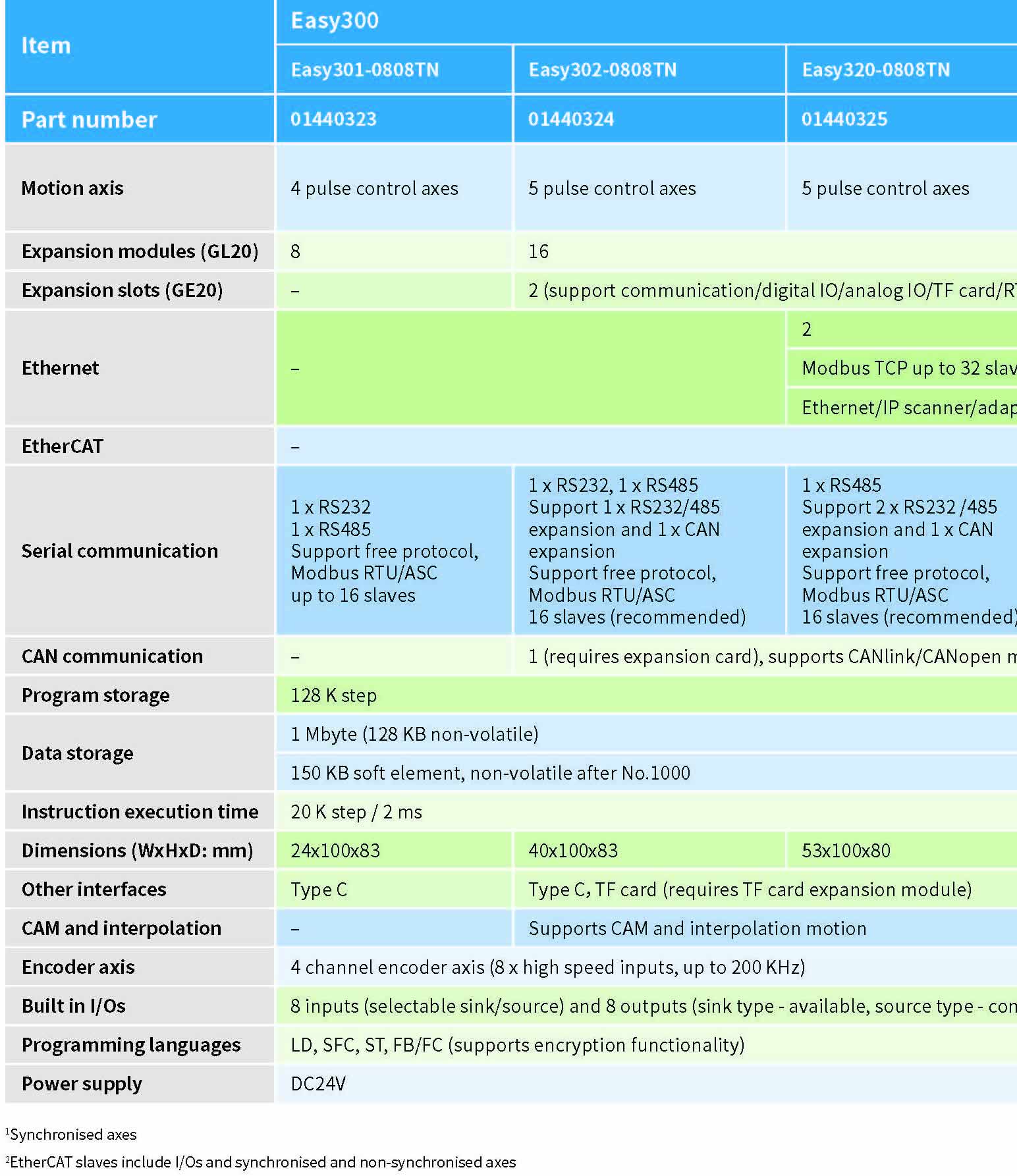

4. Easy Series PLC

A complete product range – from the simplest to the most complex motion control capable PLC. Our PLCs are reliable and durable. They are available in small and medium sizes, support bus applications, and can be flexibly combined. Meanwhile, our HMIs offer clear displays and an easy-to-use format. They can be integrated with any third party equipment, but, for optimal performance, are designed to be used as a package with other products, such as PLCs and variable speed drives.

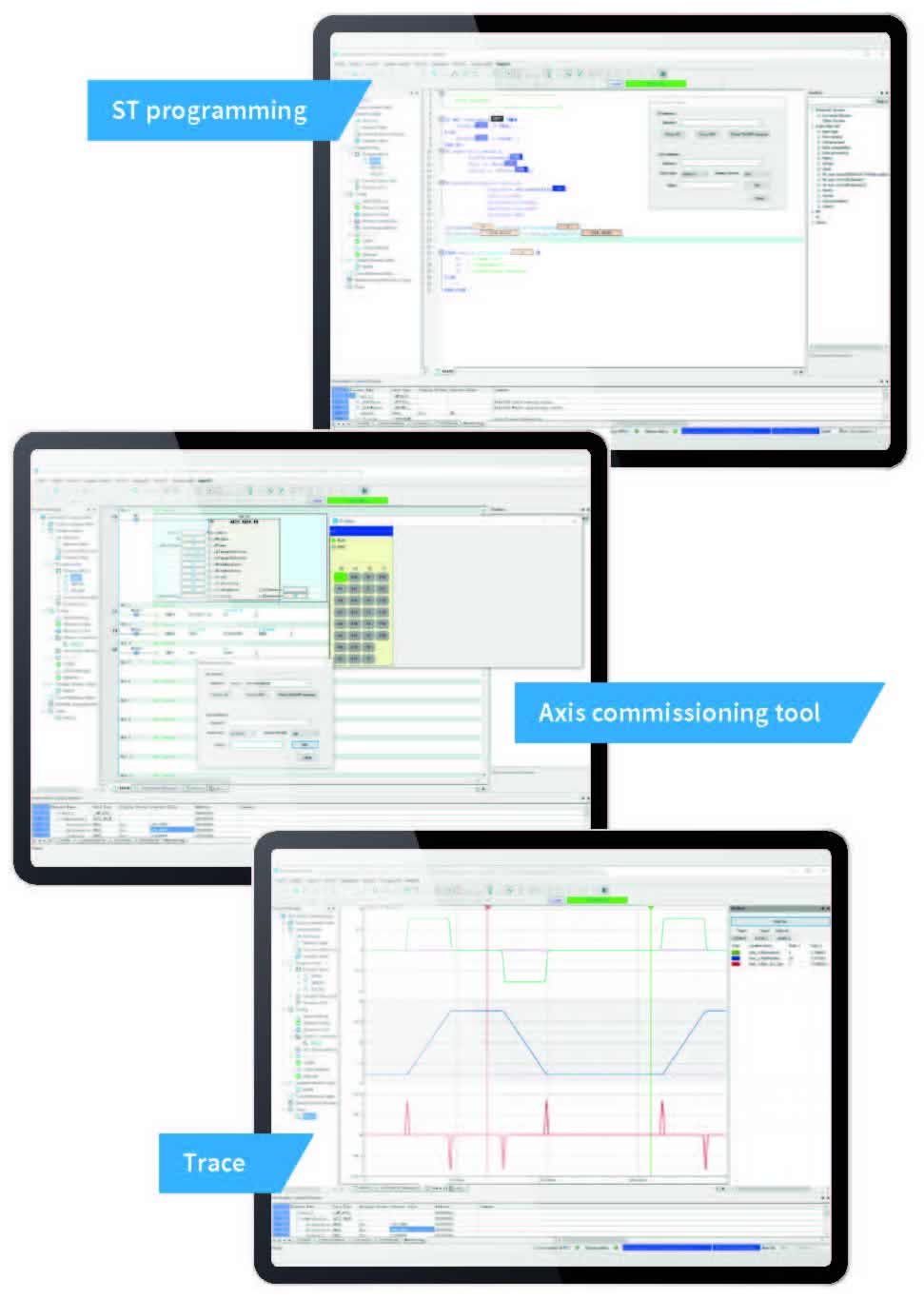

  • PLCopen compliant axis control

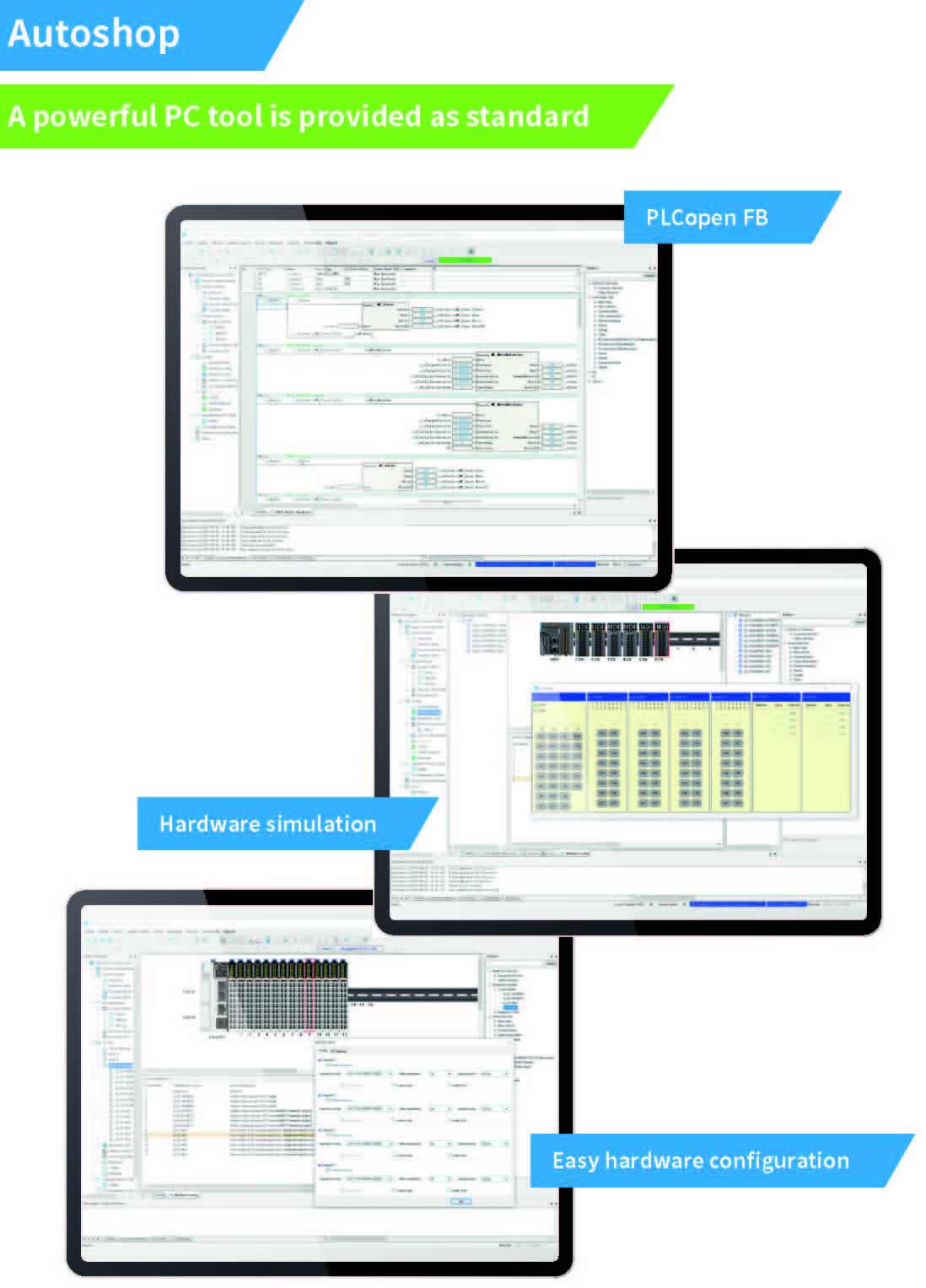

  • Simulation mode for offline debugging

  • Real-time fieldbus

  • Axis group for lineal and circular interpolation, CAM table functionality

  • Supports function block and function for encapsulation, code reusability, and scalability

  • ST, LD, SFC language support

  • Multiple communication protocols: Modbus RTU/TCP; CANopen (optional); Ethernet/IP (scanner)

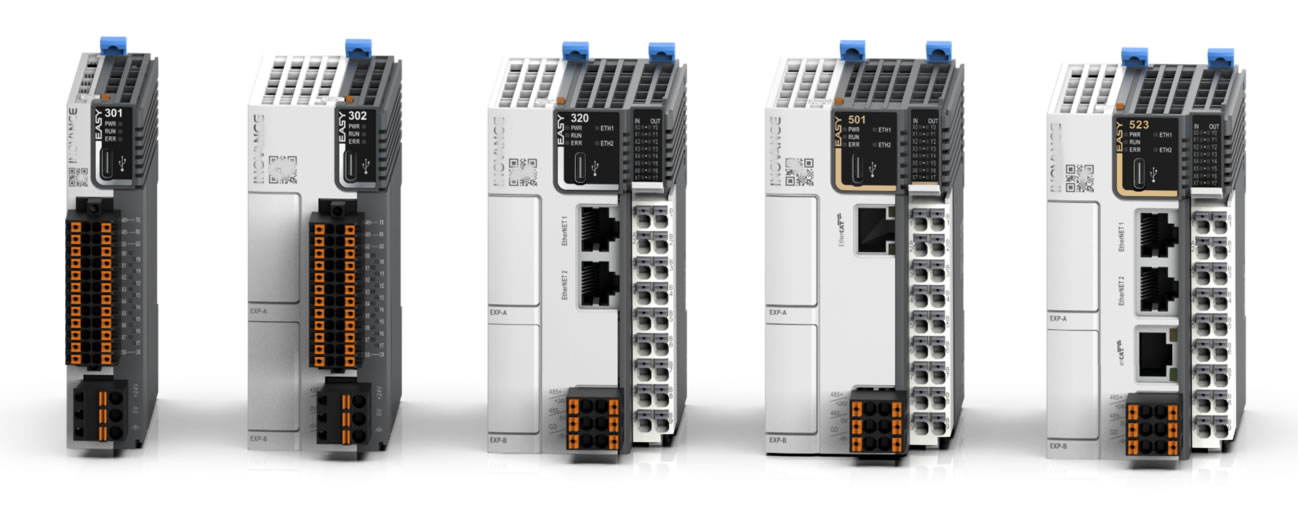

There are series Easy301, 302, 520, 502 & 523.

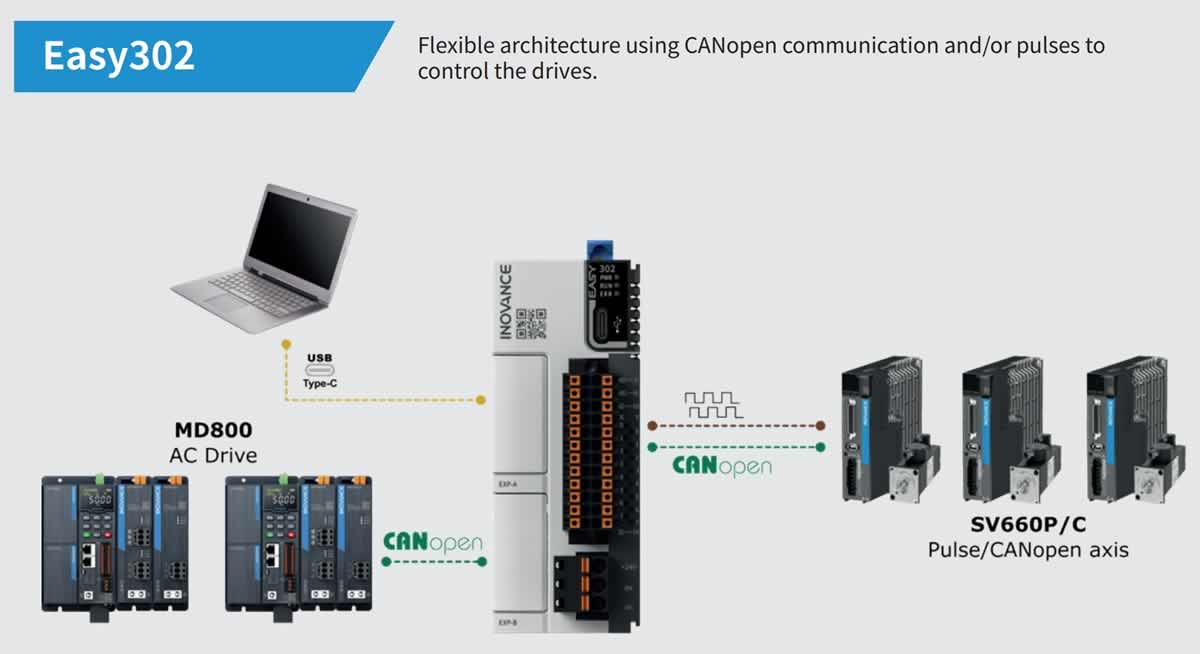

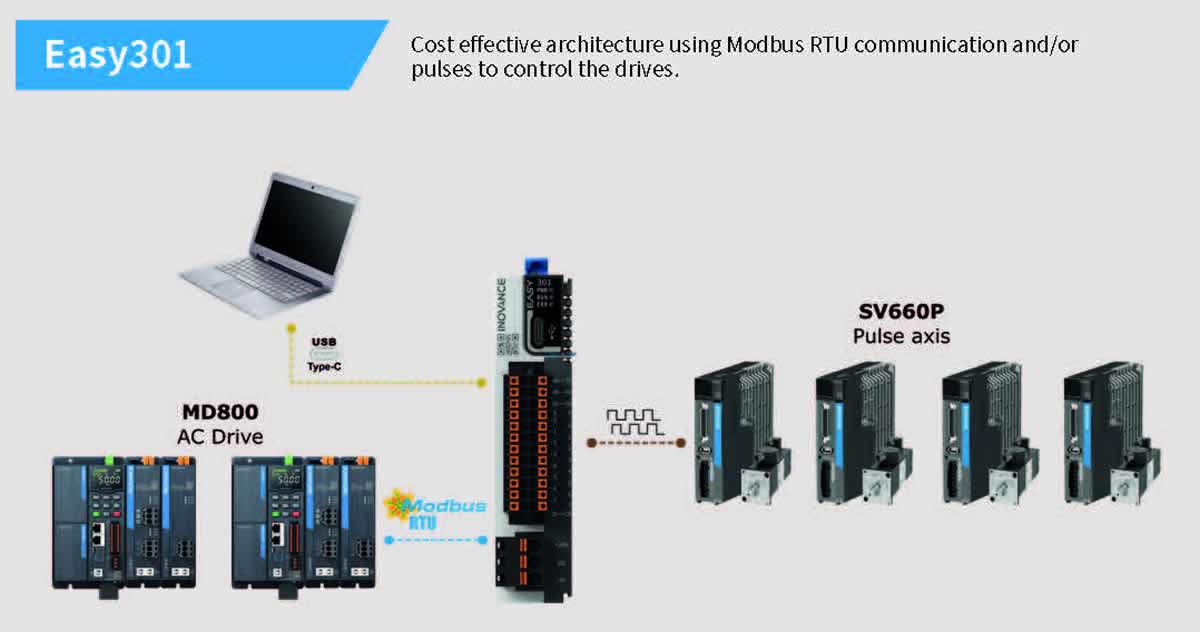

  • Easy301: Ultra compact CPU, RS232 + RS485

  • Easy302: General CPU, RS232 + RS485

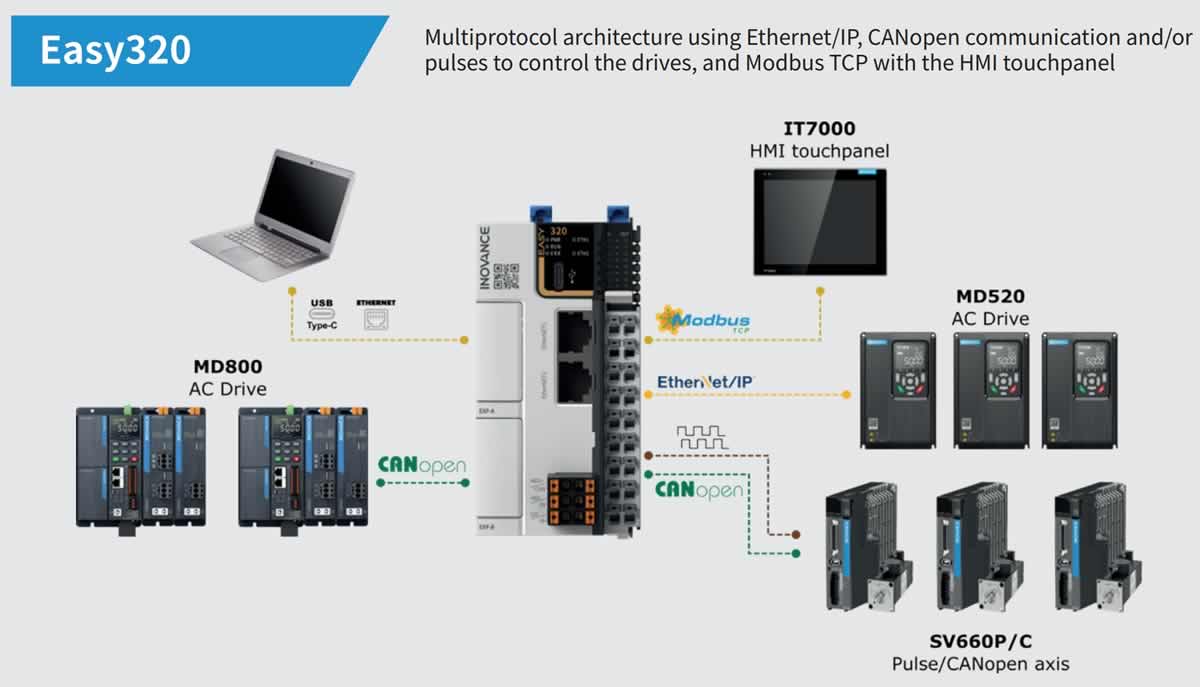

  • Easy320: CPU with Ethernet, Dual Ethernet + RS485

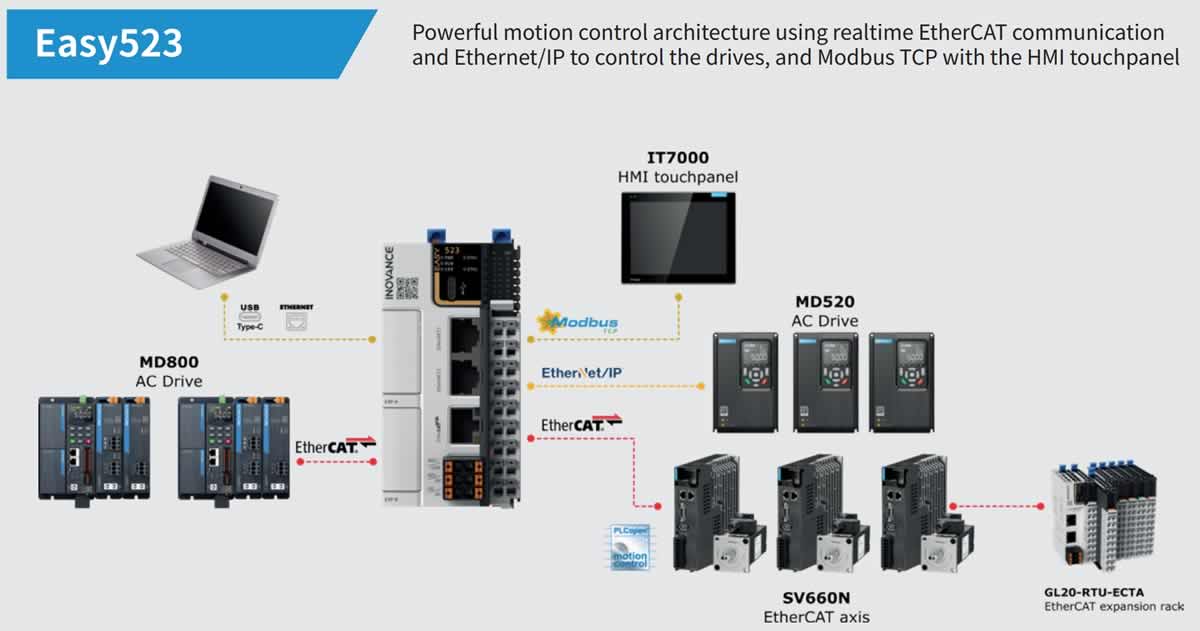

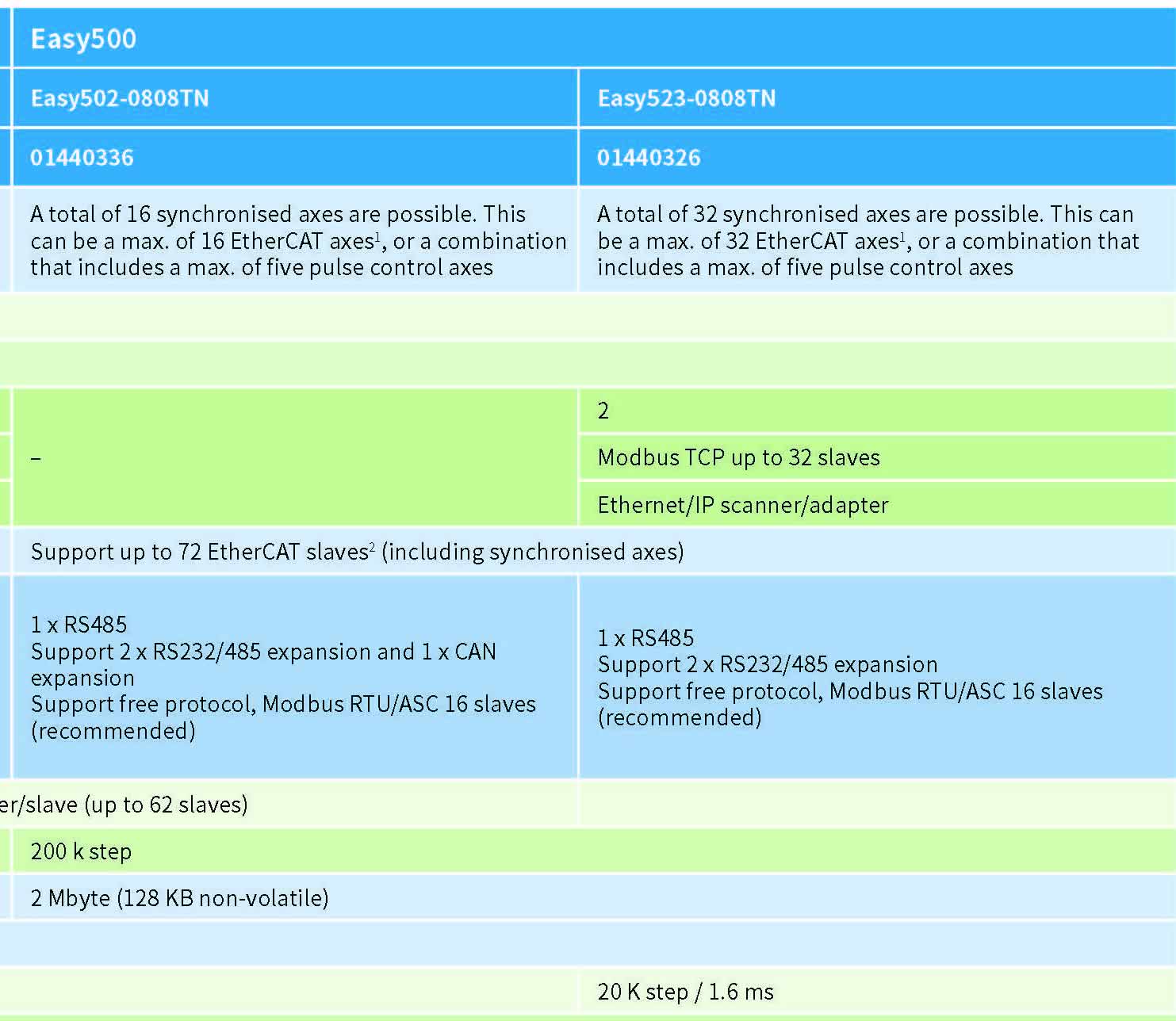

  • Easy502: Motion control CPU, EtherCAT + RS485

  • Easy523: Motion control CPU with Ethernet, Dual Ethernet+ EtherCAT + RS485

 We have following advantages:

  • EASY programming: Customized FB/FC self defined variable programming assistant.

  • EASY assembly & wiring: Easy to add and/or replace modules. Plug in wires directly with spring clamp terminals.

  • EASY commissioning: Auto device scanning, easy configuration, servo debug without programming, offline simulation.

  • The type-C port works as a programming port allowing support programs, uploading/downloading and debugging.

  • Easy wiring with spring clamp terminals.

  • Slim and compact I/O expansion

  • Modules (GL20). Easy to plug in and remove for fast replacement.

  • Scalable system architecture & multiple configurations.


Communications capabilities:

  • RS485 connection - up to 31 slaves

  • CANopen - up to 62 slaves

  • CANlink - up to 62 slaves

  • Modbus TCP - up to 32 slaves (working as client/master)

  • Modbus TCP - up to 16 masters (working as server/slave)

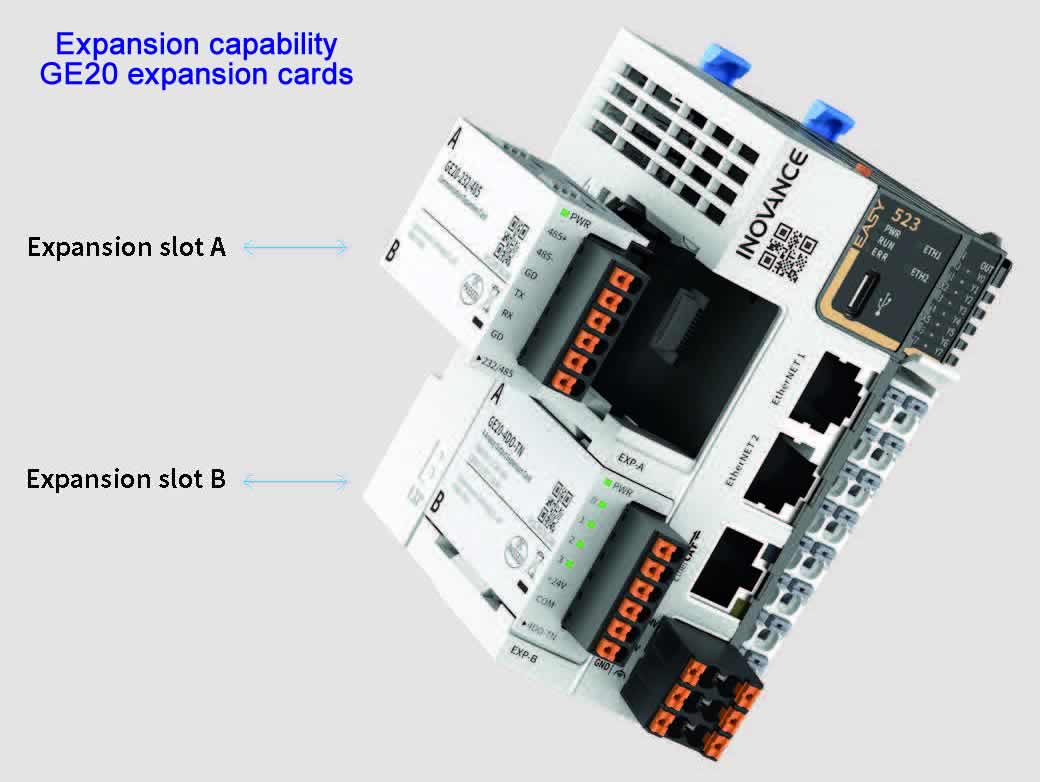

  • Up to 3 serial ports (RS232/485) - 1 onboard and 2 GE20 expansion cards

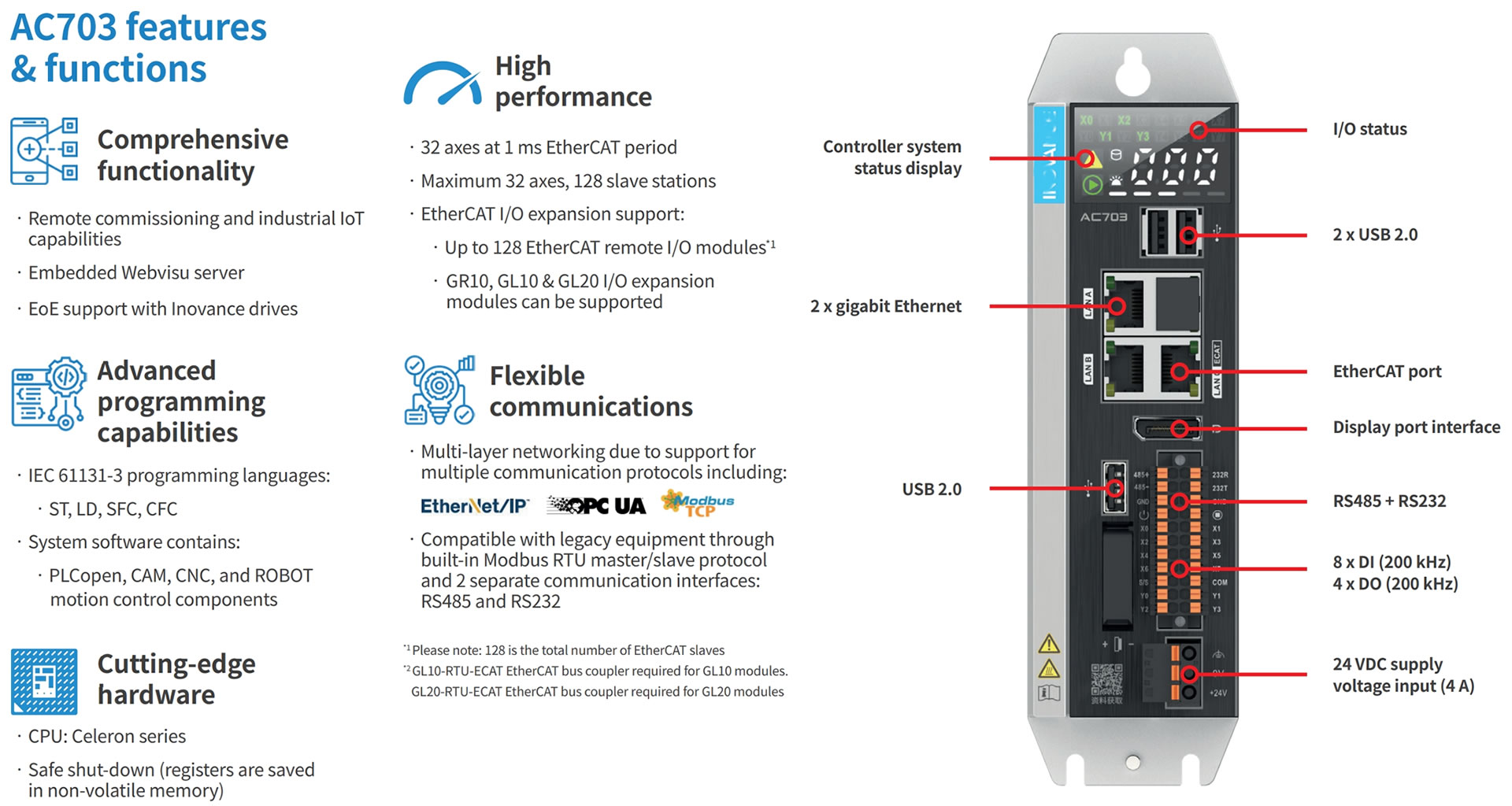

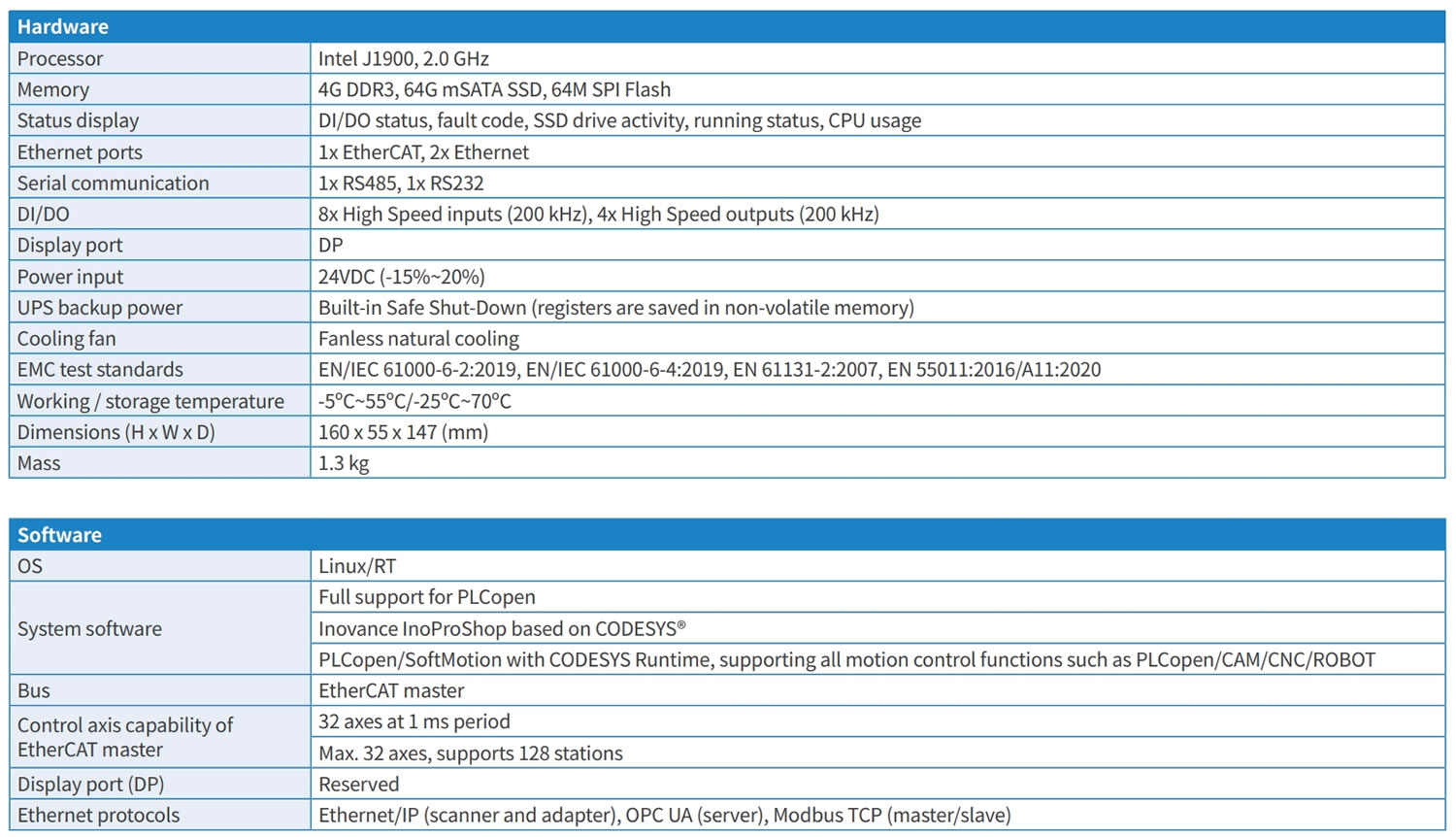

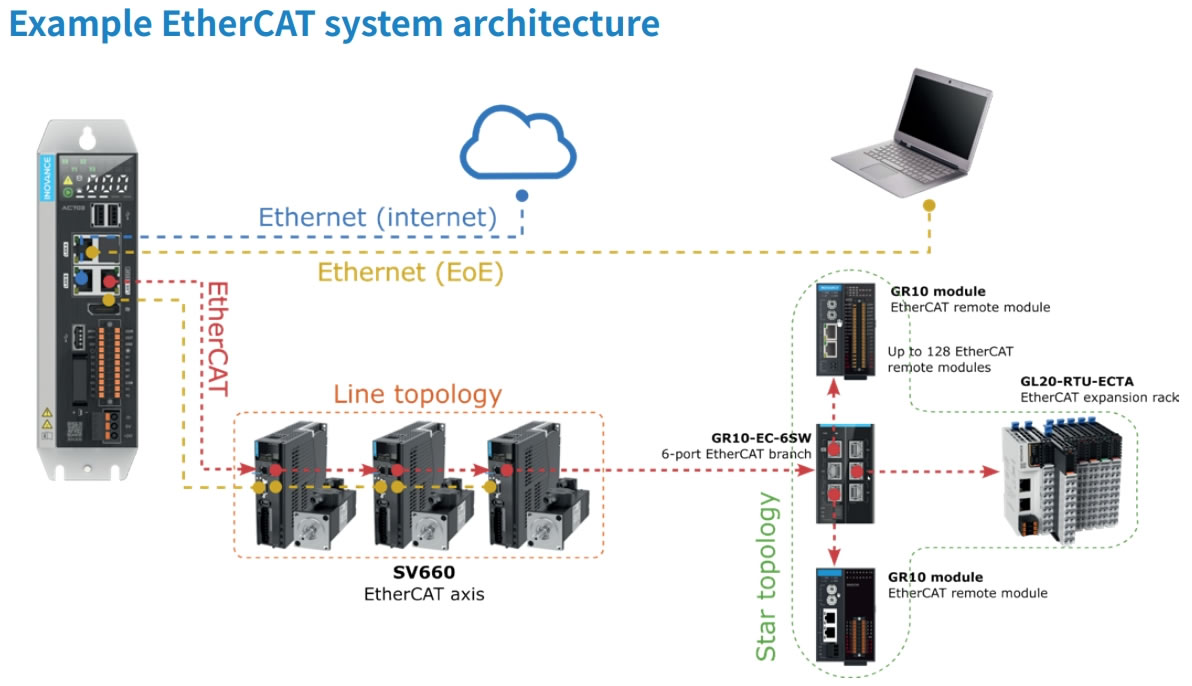

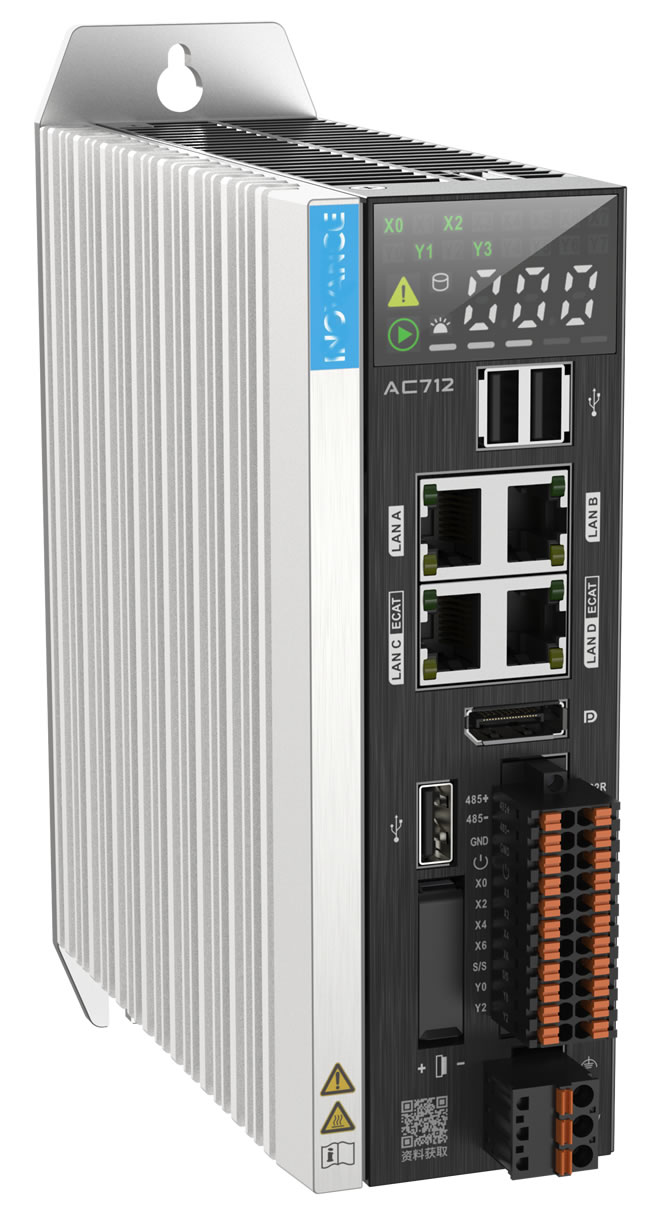

5. AC703 IPC Motion Controller

High Performance Intelligent Controller for demanding industrial applications

  • CPU: Intel Celeron J1900 2.0GHzz

  • 32 axes at 1 ms EtherCAT period: Maximum 32 axes, 128 slave stations; EtherCAT I/O expansion support. Up to 128 EtherCAT remote I/O modules

  • Multi-layer networking due to support for multiple communication protocols including: EtherCAT, Modbus TCP/RTU, Ethernet IP, OPC UA

  • Compatible with legacy equipment through built-in Modbus RTU master/slave protocol and 2 separate communication interfaces: RS485 and RS232

  • IEC 61131-3 programming languages: ST, LD, SFC, CFC

  • System software contains: PLCopen, CAM, CNC, and ROBOT motion control components

  • Remote commissioning and industrial IoT capabilities

  • Embedded Webvisu server

  • EoE support with SV660N drives
