Pulsed Flashlamp Driver

Pulsed Flashlamp Driver

Keywords: pulsed driver, lamp driver, power supply, flashlamp

CM series pulsed laser power supply is our latest developed which is based on a touch screen control of high precision intelligent constant-current power supply.

STFD Series Lamp-pumped Pulsed Laser Power Supply

STFD series laser power supply is designed for lamp-pumped lasers. It’s used for operation in the industrial laser applications (welding, heat treatment, cutting, scribing and firmware holes), laboratory, educational, medical and experimental machines.

flashlamp driver power supply

ModelSTFD-SF134-1STFD-SF134-2STFD-SF138
Number of lampsoneoneOne or two
Pulse rate0.1-30Hz ,single pulse0.1-30Hz ,single pulse0.1-20Hz ,single pulse
Output Voltage1000V1600V750V
Voltage accuracy± 0.3 %± 0.3 %± 0.3 %
Battery capacitanceAccording technical taskAccording technical task
Pulse durationDetermined by storageDetermined by storage0.1-6ms
Duration changing step--0.1ms
Discharging typeFull dischargeFull dischargePartial discharge
Average charge power1.6kw1.6kw5kw
Simmer mode current0.6A0.6A0.6A
Communication interfaceRS232RS232RS232
Data displayLCDLCDLCD
Trigger in5V,10us5V,10us5V,10us
Trigger out5V,10us5V,10us5V,10us
Attenuator control--2*27V
Trigger delayUp 0 to+25usUp 0 to+25us0-6ms
InterlockSwitch contact closureSwitch contact closureSwitch contact closure
Accessories connection220VAC,50Hz220VAC,50HzThree phase
220/380VAC,50Hz
Power inputSingle phase
220VAC,50Hz
Single phase
220VAC,50Hz
Three phase
220/380VAC,50Hz
Dimensions440*179*440;4U440*179*440;4U440*356*440mm;2*4U
Weight25kg27kg40kg

STO Series Flashlamp Drivers

1. STO-FLD-mini Flashlamp Driver

flashlamp driver

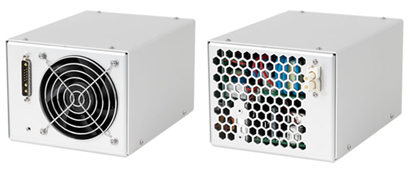

STO-FLD-mini is a miniature all-in-one flashlamp driver especially designed to drive solid-state lasers like flashlamp pumped Nd:YAG. Driver’s major features are:

  • 24VDC input

  • Maximal output power – 300W

  • Maximal output voltage – 450V (base version), 500V (on request)

  • Embedded 2mF capacitor bank

  • Flashlamp triggering and simmering circuits

  • Base interface is RS-232 (RS-485 is available on request).

  • Simple PC software is supplied along with the adapter.

lamp driver

2. STO-FLD-4U Flashlamp Driver

STO-FLD-4U is a family of flashlamp drivers (syn. laser power supplies) for pulsed flashlamp pumped solid-state lasers such as Nd:YAG, Er:YAG, Alexandrite etc. STO-FLD-4U drivers are all-in-one solutions and embed all the neccessary subsystems - capacitor bank, capacitor charging power supply, simmer supply and discharge circuit (discharge circuits).

STO-FLD-4U can be equipped with up to two output channels and up to two flashlamps connected in series can be connected to the every output. In that way each STO-FLD-4U is able to drive up to four flashlamps. Drivers are 19''-rack mounted. Height is 4U, depth is around 400mm.

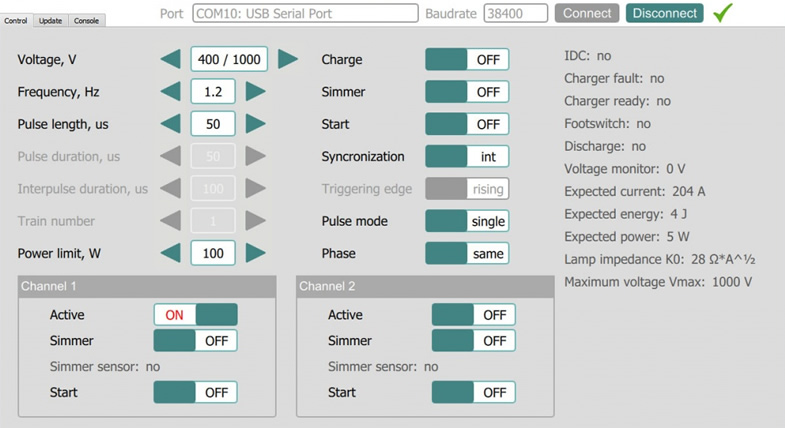

All the important parameters - output voltage, pulse width and pulse repetition rate and others - can be adjusted via front panel user interface (7'' colour display and touch panel) and RS-232 machine interface.

flashlamp driver

Specifications:

Input voltage: 230 VAC (110/230 VAC on request)

Output:

  • Number of driven flashlamps: 1 or 2 (outputs aren't independent and can work with identical parameters only)

  • Output type: pulsed, variable pulse width, partial discharge, quasi-rectangular pulse shape

  • Max. output voltage: 450/700/900 V (other on request)

  • Max. output power: 1.75/2.0/3.5 kW

  • Pulse width: 0.1-20 ms (other on request)

  • Repetition rate: 1-50 Hz (other on request)

Design:

  • Protections: overvoltage, overheating, flashlamp breakdown, interlock etc

  • Cooling: forced air (built-in fans)

  • Simmer supply: SBZ-2008 or SBZ-3008

  • Triggering: serial or parallel

  • Capacitor charger: PCP-17, PCA-20 or two PCP-17 connected in parallel

  • Embedded capacitor bank: 28000 uF / 450 V, or 10000 uF / 700 V, or 7000 uF / 900 V (others on request)

  • External capacitor bank: extension slot

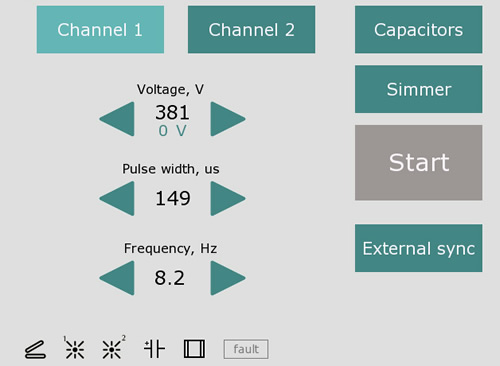

  • Interfaces: - 7'' display, touch panel; - RS-232 (full control); - 1x synchro input; - 2x synchro outputs; - 1x power input; - 1x or 2x flashlamp outputs; - 1x capacitor bank extension slot; - 1x footswitch/fingerswitch connector; - 1x interlock-door connector

  • Operation temperature: 0 … +40 °C

  • Storage temperature: -20 … +60 °C

  • Humidity: 90%, non-condensing

  • Size (WxDxH): 500x380x172 mm

  • Weight: 10-12 kg (in dependence on configuration)

A lot of options is available:

  • number of outputs - one of two channel modifications (although channels aren't independent)

  • different output voltages (up to 1350 V)

  • different output powers (up to 3500 W)

  • different parameters adjustment ranges

  • serial or parallel triggering

  • interfaces - display/touchscreen based user interface is supplied by default

  • Pockels cell driver as an option

  • modifications with complete discharge could be discussed

Besides drivers can be equipped with external capacitor banks units with the possible capacitances up to: - 112000 uF / 450 V; - 80000 uF / 700 V; - 28000 uF / 900 V.

laser power supply

Some Standard Configurations:

1. STO-FLD-4U-TYPE 1

  • 2 output channels,

  • maximal output voltage 450 V,

  • maximal output power 3.5 kW (2 pcs PCP-17-450V-PD),

  • embedded capacitor bank 28000 uF,

  • 7'' display/touch panel user interface

2. STO-FLD-4U-TYPE 2

  • 2 output channels,

  • maximal output voltage 700 V,

  • maximal output power 3.5 kW (2 pcs PCP-17-700V-PD),

  • embedded capacitor bank 10000 uF,

  • 7'' display/touch panel user interface

3. STO-FLD-4U-TYPE 3

  • 2 output channels,

  • maximal output voltage 900 V,

  • maximal output power 3.5 kW (2 pcs PCP-17-900V-PD),

  • embedded capacitor bank 7000 uF,

  • 7'' display/touch panel user interface

CM Series Pulsed Flashlamp Laser Power Supply

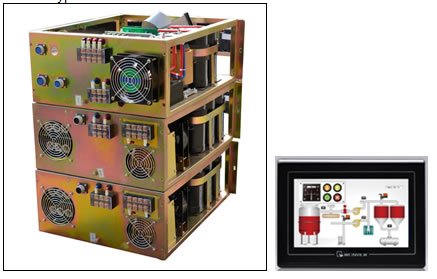

CM series pulsed laser power supply is our latest developed, which is based on a touch screen control of high precision intelligent constant-current power supply. Its internal adopts basing FPGA and ARM embedded system software programming, external with 65536 color LCD display, supported operating via touch and press, provided water temperature, water pressure, lack of phase, over-voltage and other various alarm functions, realized the programming of multiple segmented  laser wave-form and parameters, display in real time like oscilloscope. And also provides communication interface and USB interface, which can be easily connected to host computer via serial interface to control the power supply through the USB interface to read the parameters, storage and hardware upgrades. V2.2 version supports remote upgrading function. The user may send machine codes of the equipment to us and  the activation codes from inputting feedback into the touch control screen can upgrade the device’s current, pulse width, frequency, maximum power and other configure parameters. This series pulsed laser power supply, human-machine interface elegant, function powerful, quality reliable, and various technical parameters are leading level in the industry. It is the standard pulsed Nd:YAG laser power supply.

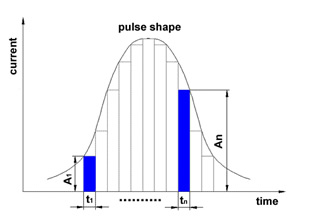

As indicated in above figure, a pulse can be pided into 32 sections and each section may have its own current and pulse width, and pulse repetition rate. According to different current and pulse width setting in each section, the various pulse waveforms can be achieved.

Typical characteristics

  • Based on modular circuit programming design, can be used to drive single lamp, dual lamp, four lamps or eight lamps.

  • Based on industrial site date communicate, ensure good anti-interference ability, communication. The distance can be 100m.

  • 65536-color high resolution 7 inch LCD color screen, support for touch-control;

  • The system alarm operate information complete, provide protection for less current, over current, over-load, phase failure and phase sequence fault, pressure over-load, temperature over run, radiator over-temperature, alarm reminding function can real-time display more than 100 fault handling information.

  • With the corresponding interface circuit to achieve 128 sets of parameters continuous light soft hand-over and 64 sets of parameters hard hand-over(soft handover is software control hand-over, can be set in the touch control interface; hard handover is hardware control hand-over,  can be controlled by external logic circuit given relative level).

  • The pulse waveform can be set in 32 section wave-form arbitrarily at least. Each section provides current slope rise and fall and the system can save 100 programs for user to be used.

  • From the interface, external control can set the valve to start ahead before laser output or delay time after laser stopped.

  • Intelligent optical switch control. Delay time in milliseconds of time can be customized according to user’s needs, ensuring total blackout.

  • Slowly ascending and descending control can be set by user and current amplitude and starting point can be set for ascending or descending.

  • Can realize energy real time feed-back, make the output energy stabilization error within ±2%.

  • Current parameter is split into starting current and end current, can set them discriminability, in order to gain more ideal wave-form. The highest current can be up to 600A.

  • Pulse width can realize 0.1ms stable laser output, highest up to 20ms.

  • Frequency highest up to 1000Hz, can alternated light acting on the xenon flash lamp to alternating the light intensity.

  • Beam control, in the scope of 0.1-0.3mm laser beam control, and have starting up self-motion function, that is when starting up it automatically adjusts to negative limit minimum values. Parameters of step motor adjustable.

  • Support USB testing, convenient for maintenance and debugging.

  • Can edit program in the process of working.

  • Real-time display working current wave-form, can customize process wave-form via dragging the lines.

  • Support power on self test, and report the specific problem of the main chip.

  • Offer remote up-grating model, only need to offer machine code of equipment, parameters can be configured according to user requirements for the upgrade.

Technical Parameters

  • Working mode: pulse

  • Control current: 60A-600A(single lamp)

  • Pulse width: 0.1ms-20ms

  • Laser frequency: 0Hz-500Hz( 0Hz is dot pin, can be customized to high frequency)

  • Spot diameter: 0.1-3.0mm

  • Warm-up time: about 1 minute

  • Power output: ≤20KW

  • Display: 65536 high resolution LCD, support touch screen control.

  • Handover No.: 128 set (soft hand-over); 64 set (hard hand-over)

  • Real-time feedback error: less than 2%.

  • Working environment: input power 3 phase 380V±10%, using at ambient temperature below30℃ drying condition, air dust<0.01g/cubic metres, no condensation.

ModelCM-1-ACM-1-BCM-4-SMCCM-4-C
Xenon lamp No.Single lampSingle lampFour lampsFour lamps
StructureDrawerCartDrawerFrame
Dimension, mm478×586×200900×520×1145478×586×800882×500×1310
Output current50-600A50-600A50-600A50-600A
Output pulse width0.1-20ms0.1-20ms0.1-20ms0.1-20ms
Output pulse frequency0-500Hz0-500Hz0-500Hz0-500Hz
Output power6KW6KW24-32KW24-32KW
Input voltage220V220V380V380V
Section programming32 waveform programming
Air valveLight in advance 0.01-5s;  light delay 0.01-5s
Eye brakeSupport eye switch delay adjustable
Slowly ascending & descendingSupport slow ascending, descending and starting point adjustable
HandoverSupport 64 channel hard handover and 128 channel soft handover
Display65536 color high resolution LCD screen, support touch screen control
Spot diameter0.1-3mm(optional)
Energy feedbackEnergy real-time feedback error: less than 2% (optional)
Industrial controlRS232/485 serial communication (optional)
ModelCM-SMCCM-SDCM-SD(500HZ)CM-SD(500HZ)-F
Xenon lamp No.Dual lampDual  lampDual  lampDual lamp
StructureDrawerCartCartFrame
Dimension, mm540×430×400 (2 layers)
540x430x600 (3 layers)
900×520×1145900×520×1145882×500×655
Output current30-600A50-600A50-600A50-600A
Output pulse width0.1-20ms0.1-20ms0.1-20ms0.1-20ms
Output pulse frequency0-100Hz (2 layers)
0-500Hz (3 layers)
0-500Hz0-500Hz0-500Hz
Output power12-18KW12-14KW16-24KW16-24KW
Input voltage380VAC,3-phase380VAC, 3-phase380VAC, 3-phase380VAC, 3-phase
Section programming32 waveform programming
Air valvelight in advance 0.01-5s;  light delay 0.01-5s
Eye brakeSupport eye switch delay adjustable
Slowly ascending & descendingSupport slow ascending, descending and starting point adjustable
HandoverSupport 64 channel hard handover and 128 channel soft handover
Display65536 color high resolution LCD screen, support touch screen control
Spot diameter0.1-3mm(optional
Energy feedbackEnergy real-time feedback error: less than 2% (optional
Industrial controlRS232/485 serial communication (optional
ModelCM-SD(500HZ)-FSCM-SD(500HZ)-S
Xenon lamp No.Dual  lampDual  lamp
StructureFrameCart
Dimension882×500×655mm900×520×1145mm
Output current50-600A50-600A
Output pulse width0.1-20ms0.1-20ms
Output pulse frequency0-500Hz0-500Hz
Output power16-24KW16-24KW
Input voltage380V380V
Section programming32 waveform programming
Air valveLight in advance 0.01-5s;  light delay 0.01-5s
Eye brakeSupport eye switch delay adjustable
Slowly ascending & descendingSupport slow ascending, descending and starting point adjustable
HandoverSupport 64 channel hard handover and 128 channel soft handover
Display65536 color high resolution LCD screen, support touch screen control
Spot diameter0.1-3mm(optional)
Energy feedbackEnergy real-time feedback error: less than 2% (optional)
Industrial controlRS232/485 serial communication (optional)
