Laser Pump Chamber

Laser Pump Chamber

Keywords: Laser Pump Chamber, gold-coating, ceramic reflector
Jun 29, 2021 View: 4357 Data Sheet

Single or dual lamp high-efficiency laser pump chambers can accommodate laser rods of 3 to10mmin diameter and up to 180mmin length.

Single or dual lamp high-efficiency laser pump chambers can accommodate laser rods of 3 to10mmin diameter and up to180mmin length.

A laser pump chamber consists of

  • Stainless steel or non-metal body

  • Gold-coated ellipticalpump cavity or alumina diffuse reflector (ceramic reflector)

  • Series or parallel cooling path

  • High UV absorbing flow tubes

  • Crystal & lamp waterjackets (option)

  • Lamp (option)

  • Laser rod (option)

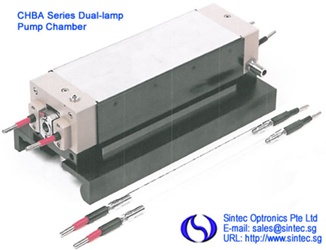

1. High Power Dual-lamp Pump Chambers

Model number: STL-CHBA-xxx-yy-xxx

  • BPQJB: Dual lamp and single rod gold pump chambers.

  • xxx:  Reflector length

  • yy: Cooling method, DC for Dry Cooling or WC for Water Cooling

  • zz: Average power, 500 & 650W are available

Dry cooling, Laser head fitted with YAG rod and two flashlamps with flying leads. This laser head is designed to operate with a dry gold cavity reflector similar to that of the Trumpf laser head.

Laser Head fitted with YAG rod and two flashlamps. These are fully immersed in DI water. This laser head is designed to operate with  clean DI water . The laser head is similar to that of the Rofin Baasel  500W unit. The applications are laser cutting and  laser welding.

Specifications:

ModelYag Rod (mm)LampconfigurationDimension (WxLxH, mm)
STL-CHBA-180-DC-500Dia8x190ST180DCDry cooling, Laser head fitted with YAG rod and two flashlamps with flying leads.80 x 265 x 74
STL-CHBA-180-DC-650Dia8x190ST180DCDry cooling, Laser head fitted with YAG rod and two flashlamps with flying leads.80 x 265 x 74
STL-HBA-180-DCDia8x190ST180DCDry cooling laser head but less YAG rod but includes two flashlamps.80 x 265 x 74
STL-CHBA-180-WC-500Dia8x190ST180Laser Head fitted with YAG rod and two flashlamps. These are fully immersed in DI water.104 x 334 x 74
STL-CHBA-180-WC-650Dia8x190ST180Laser Head fitted with YAG rod and two flashlamps. These are fully immersed in DI water.104 x 334 x 74
STL-HBA-180-WCDia8x190ST180Water cooling laser head but less YAG rod but includes two flashlamps .104 x 334 x 74

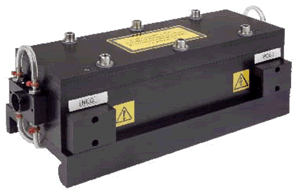

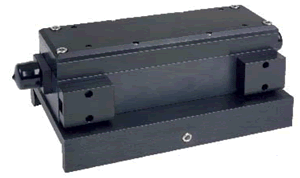

2. Laser Pump Chambers Used in Branded Lasers

If you are using a laser from a laser maker, please find its model/series number and find our chamber model starting with STBA as listed below. Click the chamber model number for more details!

AB LASER

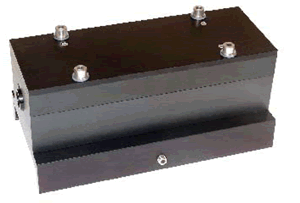

STBA600

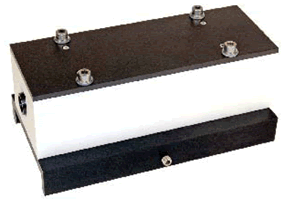

STBA6000

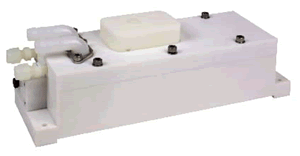

STBASTARMARK65
STBASTARMARK90
STBASTARMARK150
600, 601, 612, 615
2000, 6000, BLS 611, 615, LBI 600 COMP
StarMark SM65
StarMark SM90
StarMark SM150

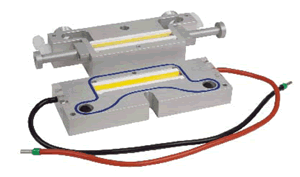

ALLTEC
STBAFOBA100
LN100W

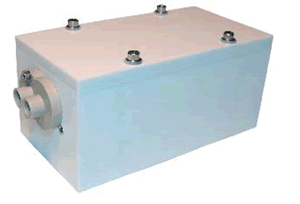

ALPHA LASER
STBAALS35S
STBAALS75
ALS35S, SL50, SL50P
ALS75, AL100, ALV100, ALW100, ALM150

BAASEL LASERTECHNIK
STBA600
STBA6000
STBASTARMARK65
STBASTARMARK90
STBASTARMARK150
600, 601, 612, 615
2000, 6000, BLS 611, 615, LBI 600 COMP
StarMark SM65
StarMark SM90
StarMark SM150
BENTZY LASER

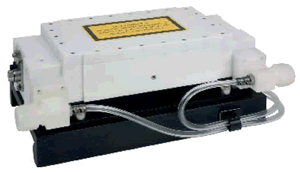

STBA3117E
Diamond Processing Laser
CHICAGO LASER
STBA510
STBA520
STBA512
STBA708
STBA712
STBA812
CLS510
CLS520
CLS37S
CLS37S
CLS37W, CLS39, CLS907, CLS960, CLS977
CLS39, CLS907, CLS947, CLS977
CONTROL LASER
STBA510
STBA512
STBA258
STBA520

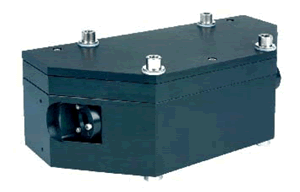

STBA530
STBA612
STBA620
STBA400
STBA612PLUS
510
512
258, H–518
520
530, 532, 534, 536, 630
612, Elite, Signature, Emblem
620
400, 428, 438, 440–8, 440–16
512 Plus, Signature 100, Script 100
CRAFFOD PRECISION PRODUCTS
STBA7000
LaserStar 7000 series
E.S.I
STBA510
STBA512
STBA520
STBA570
STBA571
STBA573
25, 44
44 (512)
44 (520)
44, 80, 4000A, 4200, 3570(old model)
44, 80, 4000A, 4200, 3570 (new model)
3573
EXCALIBUR
STBA3117
XLS572
FLOROD
STBA512
STBA712
40, 41, 40, 70
MEL 40
FOBA
STBAFOBA100
90MK-DT, 94S
FOX
STBA4114
7400
GENERAL SCANNING
STBA718
STBA818
400, 800
400, 800, 6000

GSI LUMONICS
STBA718
STBA818
STBA4116
400, 800
400, 800, 6000
Lightwriter

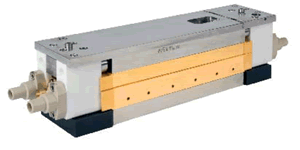

HAAS
STBAHAAS
HL353D, HL506D, DL703D, HL1003D, HL1006D, HL1504D, HL2006D, HL3006D, HL4006D
HOLOBEAM
STBA510
STBA258
STBA530
255, 256
257, 258
2660

JEC
STBA510
STBA512
1020, 1028
1024

LASAG
STBALAK101
STBALAK301
STBALAK322
STBA342
STBALAK400
STBALAK601
LAK101, KLS111, LAK100, KLS016
LPM301–302
LAK332, KLS321–322
LAK342, KLS246–040FC
LAK400–401
LAK600–601
LASER APPLICATIONS/LASERMETRICS
STBA9555
STBA9560
9555
9560

LASER INDENTIFICATION SYSTEMS
STBA4116
WaferMark 345, II
LASER OPTRONICS
STBA747
STBA767
747
767

LASIT
STBA854
STBA9754
EasyMark & Fleximark 80 W & 120 W (up to 2006)
EasyMark & Fleximark 80 W & 120 W (from 2007)

LEE LASER
STBA708
STBA712
STBA718
STBA812
STBA818
STBA8183
708
712
715, 718
808, 812
815, 818
818TQ
LS LASER SYSTEMS

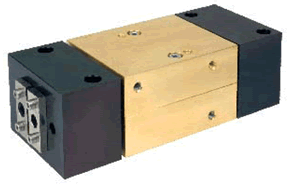

STBAMLS035
MLS035
M.L.S.
STBAMLS035
MLS035
N.E.C.
STBASL114
SL114A, 114F, 144G, SL475H
ORZIV
STBA3117

2001

OTARI

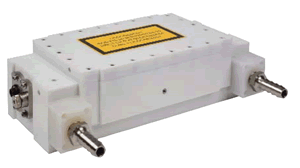

STBA118
STBA118CC
118 (250W)
118CC(350W)
PFAFFEN
STBA600
DS–5000
PHOTON TECHNOLOGY
STBA7184


POSITIVE LIGHT
STBAMERLIN
Merlin
QUANTUM LASER
STBA854
MaxiMark 80 W
QUANTRAD
STBA510
STBA512
STBA9555
1733
1969 6
9555, Blazer 2000, Comet, Galaxy

QUANTRONIX
STBA118
STBA118CC
STBA3116
STBA3117
STBA3114
STBA4114
STBA4116
STBA4116YLF
STBA4117YLF
STBA6117
118
118CC Close Coupled
116, 604, 416
117
114, 602, 603
114, 602, 603
116, 604, 416
4116, 4216
4217
117 (150 W)

RAYTHEON
STBASS500
STBASS550
SS500
SS550

ROFIN BAASEL
STBA600
STBA6000
STBASTARMARK65
STBASTARMARK90
STBASTARMARK150

600, 601, 612, 615
2000, 6000, BLS 611, 615, LBI 600 COMP
StarMark SM65
StarMark SM90
StarMark SM150

ROFIN SINAR
STBA767
EverMark 8070, 815, 860
SAHAJANAND LASER
STBA612PLUS
STBA7183
STBA7184
STBA8183
HallMark
Lee Laser 718TQ
Lee Laser 818TQ

S.E.I.
STBA854
STBA8955
S.E.I. 80 W
S.E.I. 120 W

SIRO LASERTEC
<STBAALS35S
STBAALS75
Thunder, Thunderstorm
Tornado, Hurricane

SPECTRA PHYSICS
STBA570
STBA571
STBA573
STBA712
STBAMERLIN
3000
3000
3000, 3400
3800
Merlin

TERADYNE
STBA510
STBA512
STBA712
STBA4114
STBA4116
311, H–507
411, H–514, WD411
W614, W670
M118
W419, W421, W429, W614, M118

T.L.T.
STBA9560
STBA1200
STBA3117
800
1200,1400
2400

TRUMPF
STBAHAAS
HL353D, HL506D, DL703D, HL1003D, HL1006D, HL1504D, HL2006D, HL3006D, HL4006D
UNIVERSAL LASER SYSTEM
STBA812
Lee Laser 808, 812
ZANABONI
STBA600
Baasel 600 series, 60 W

If you cann't find the pump chamber you want, please download "form to order specific pump chamber" and email us filled form.
