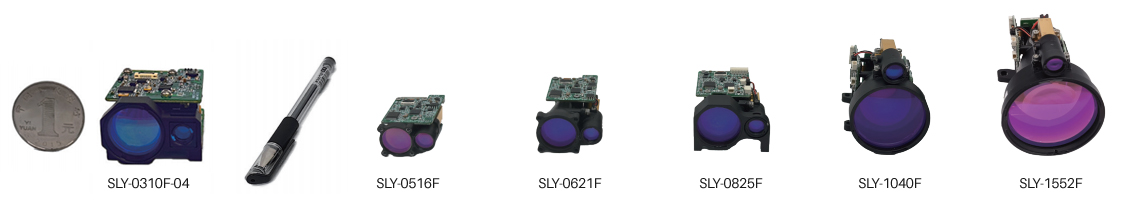

Laser Rangefinder is widely used for patrol reconnaissance engineering exploration surveying and mapping. Features include high accuracy range finding and easy operation.

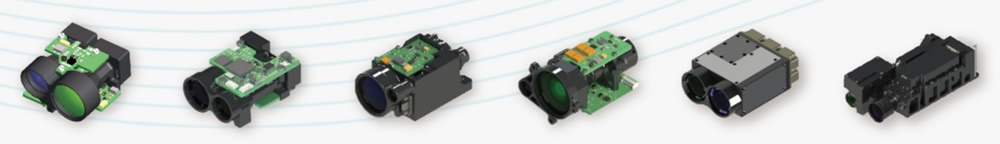

STDY-DA and STDY-YA series laser rangefinder is compact in design and easy to integrate. The working light source is 905nm and 1550nm semiconductor laser diode. The features are long service life and low power consumption. And it is widely used in the airborne pod, vehicle turntable, handheld observation instrument, altimeter, telescope, gun sight, gun sight project and other photoelectric equipment, to meet aviation, ship, vehicle, police, railway, electric power, communication, geology, construction, fire protection, forestry, outdoor applications and other applications.

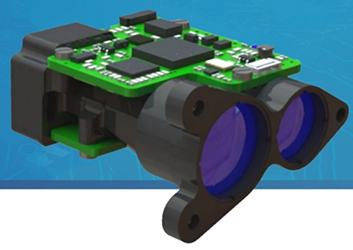

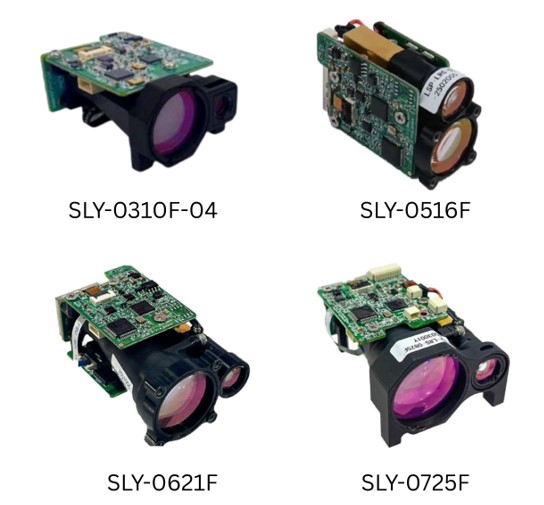

(1) STDY-DA1xxx series
Model | STDY-DA1000 | STDY-DA1500 |
Wavelength | 905nm | |
Range | 20m~1000m | 20m~1500m |
Ranging accuracy | ≤±2m | |
Ranging frequency | 1Hz | |
Accurate rate | ≥98% | |
Acceptance aperture | 17mm | |
Connector | TTL | |
Supply voltage | 5V±0.5V | |
Power consumption | ≤2W | |
Dimension | 45mmx44mmx21mm | |
Weight | ≤35g | |
Operating temperature | -40℃~+55℃ |

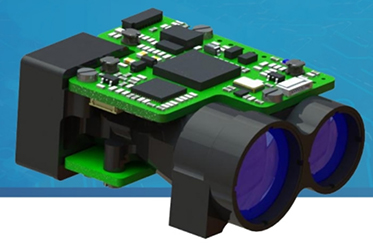

(2) STDY-DA2xxx series
Model | STDY-DA2000 | STDY-DA2500 |
Wavelength | 905nm | |
Range | 20m~2000m | 30m~2500m |
Ranging accuracy | ≤±2m | |
Ranging frequency | 1Hz | |
Accurate rate | ≥98% | |
Acceptance aperture | 17mm | |
Connector | TTL | |
Supply voltage | 5V±0.5V | |
Power consumption | ≤2W | |
Dimension | 50.5mmx37mmx22mm | |
Weight | ≤45g | |
Operating temperature | -40℃~+55℃ |
(3) STDY-DA3xxx series
Model | STDY-DA3000 | STDY-DA3500 |
Wavelength | 905nm | |
Range | 20m~3000m | 30m~3500m |
Ranging accuracy | ≤±2m | |
Ranging frequency | 1Hz | |
Accurate rate | ≥98% | |
Acceptance aperture | 24mm | |
Connector | TTL | |
Supply voltage | 5V±0.5V | |
Power consumption | ≤2W | |
Dimension | 50mmx49.5mmx29mm | |
Weight | ≤65g | |
Operating temperature | -40℃~+55℃ |
(4) STDY-YA2xxx series
Model | STDY-YA2000 | STDY-YA2500 |
Wavelength | 1550nm | |
Range | 30m~2000m | 30m~2500m |
Ranging accuracy | ≤±2m | |
Ranging frequency | 1Hz | |
Accurate rate | ≥98% | |
Acceptance aperture | 17mm | |
Connector | TTL | |
Supply voltage | 5V±0.5V | |
Power consumption | ≤3W | |
Dimension | 51mmx37mmx22mm | |
Weight | ≤45g | |
Operating temperature | -40℃~+55℃ |
(5) STDY-YA2xxxA series
Model | STDY-YA2000A | STDY-YA2500A |
Wavelength | 1550nm | |
Range | 30m~2000m | 30m~2500m |
Ranging accuracy | ≤±2m | |
Ranging frequency | 1Hz | |
Accurate rate | ≥98% | |
Acceptance aperture | 17mm | |
Connector | TTL | |
Supply voltage | 5V±0.5V | |
Power consumption | ≤3W | |
Dimension | 50.5mmx45.5mmx29mm | |
Weight | ≤45g | |
Operating temperature | -40℃~+55℃ |

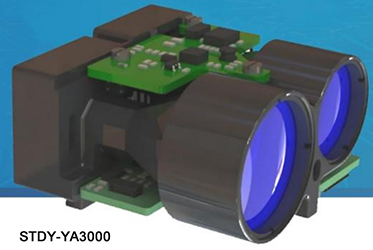

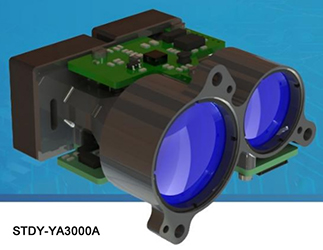

(6) STDY-YA3000 and STDY-YA3000A
Model | STDY-YA3000 | STDY-YA3000A |
Wavelength | 1550nm | |
Range | 30m-3000m | |
Ranging accuracy | ≤±2m | |
Ranging frequency | 1Hz | |
Accurate rate | ≥98% | |
Acceptance aperture | 24mm | |
Connector | TTL | |
Supply voltage | 5V±0.5V | |
Power consumption | ≤3W | |
Dimension | 51mmx50mmx29mm | 51mmx55mmx40mm |
Weight | ≤65g | |
Operating temperature | -40℃~+55℃ |

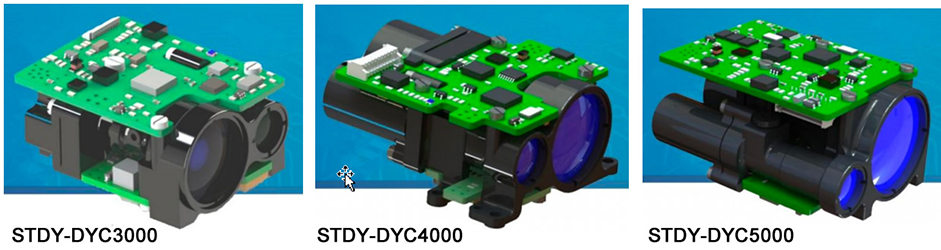

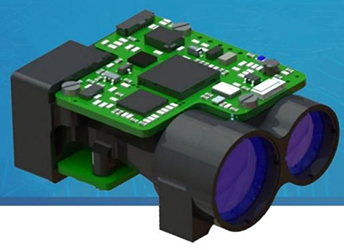

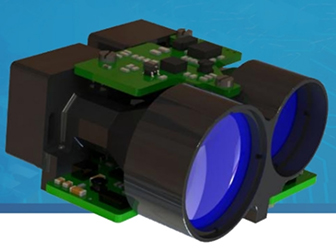

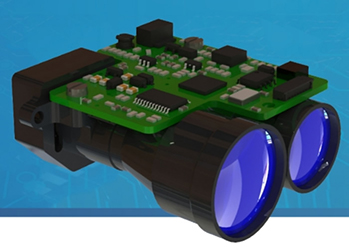

STDY-DYC series of small and medium-sized laser rangefinders are compact, easy to install and operate. The working light source is a human eye safe band solid state laser. The features are long service life and low power consumption. It can provide deep customization according to different needs. And it is widely used in the airborne pod, vehicle turntable, handheld observation instrument, altimeter, telescope, gun sight, gun sight project and other photoelectric equipment, to meet aviation, ship, vehicle, police, railway, electric power, communication, geology, construction, fire protection, forestry, outdoor applications and other applications.

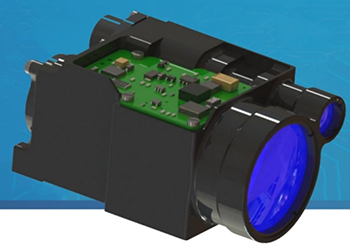

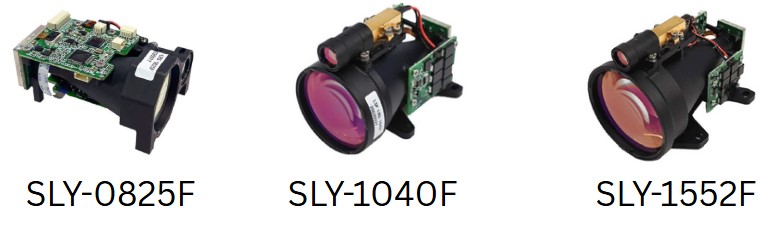

(1) STDY-DYCx000 series

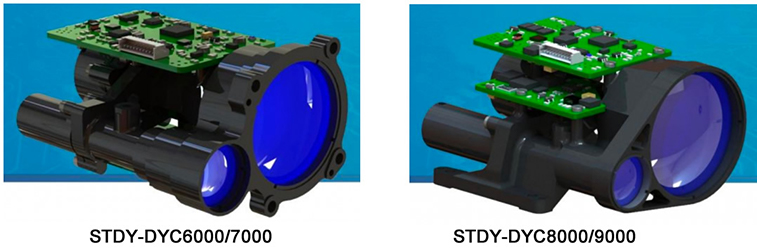

Model | STDY-DYC3000 | STDY-DYC4000 | STDY-DYC5000 |
Wavelength | 1535nm | 1535nm | 1535nm |
Range | 15m~3000m | 50m~4000m | 50m~5000m |
Ranging accuracy | ≤±2m | ≤±2m | ≤±2m |
Ranging frequency | ≥1Hz | ≥1Hz | ≥1Hz |
Accurate rate | ≥98% | ≥98% | ≥98% |
Divergence angle | ≤0.65mrad | ≤0.6mrad | ≤0.7mrad |
Acceptance aperture | 18mm | 21mm | 25mm |
Connector | TTL | RS422 | RS422 |
Supply voltage | 12V±2V | 12V±2V | 12V±2V |
Power consumption | ≤2W | ≤3W | ≤3W |
Dimension | 50mmx36mmx24mm | 57mmx50mmx30mm | 61mmx43mmx32mm |
Weight | ≤56g | ≤75g | ≤85g |
Operating temperature | -40℃~+55℃ | -40℃~+55℃ | -40℃~+55℃ |
Model | STDY-DYC6000 | STDY-DYC7000 | STDY-DYC8000 | STDY-DYC9000 |
Wavelength | 1535nm | 1535nm | 1535nm | 1535nm |
Range | 20m~6000m | 20m~7000m | 80m~8000m | 80m~9000m |
Ranging accuracy | ≤±2m | ≤±2m | ≤±2m | ≤±2m |
Ranging frequency | ≥1Hz | ≥1Hz | ≥1Hz | ≥1Hz |
Accurate rate | ≥98% | ≥98% | ≥98% | ≥98% |
Divergence angle | ≤0.3mrad | ≤0.3mrad | ≤0.5mrad | ≤0.5mrad |
Acceptance aperture | 34mm | 34mm | 42mm | 42mm |
Connector | RS422 | RS422 | RS422 | RS422 |
Supply voltage | 7.5V±1.5V | 7.5V±1.5V | 12V±2V | 12V±2V |
Power consumption | ≤2W | ≤2W | ≤3W | ≤3W |
Dimension | 80x59x45mm | 80x59x45mm | 86x66x45mm | 86x66x45mm |
Weight | ≤120g | ≤120g | ≤145g | ≤145g |
Operating temperature | -40℃~+55℃ | -40℃~+55℃ | -40℃~+55℃ | -40℃~+55℃ |
(2) STDY-DYCx000A series
Model | STDY-DYC6000A | STDY-DYC7000A |
Wavelength | 1535nm | |
Range | 20m~6000m | 20m~7000m |
Ranging accuracy | ≤±2m | |
Ranging frequency | 1Hz | |
Accurate rate | ≥98% | |
Divergence angle | ≤0.3mrad | |
Acceptance aperture | 34mm | |
Connector | TTL | |
Supply voltage | 7.5V±1.5V | |
Power consumption | ≤2W | |
Dimension | 81mmx57.5mmx41.5mm | |
Weight | ≤125g | |
Operating temperature | -40℃~+55℃ |
(3) STDY-DYC6000B
Model | STDY-DYC6000B |
Wavelength | 1535nm |
Range | 50m~6000m |
Ranging accuracy | ≤±2m |
Ranging frequency | 1Hz |
Accurate rate | ≥98% |
Divergence angle | ≤0.7mrad |
Acceptance aperture | 34mm |
Connector | RS422 |
Supply voltage | 28V±6V |
Power consumption | ≤3W |
Dimension | 87mmx52mmx41mm |
Weight | ≤195g |
Operating temperature | -40℃~+55℃ |

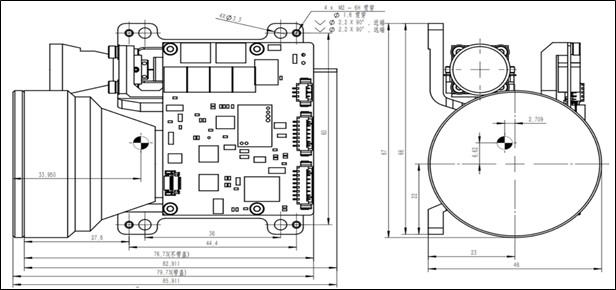

(4) STDY-DYC100X and STDY-DYC100XA
Model | STDY-DYC100X | STDY-DYC100XA |
Wavelength | 1535nm | |
Range | 50m~10000m | 80m~10000m |
Ranging accuracy | ≤±2m | |
Ranging frequency | 1Hz | |
Accurate rate | ≥98% | |
Divergence angle | ≤0.5mrad | |
Acceptance aperture | 48mm | |
Connector | RS422 | |
Supply voltage | 28V±6V | |
Power consumption | ≤4W | |
Dimension | 107mmx84mmx56mm | |
Weight | ≤230g | ≤290g |
Operating temperature | -40℃~+55℃ |

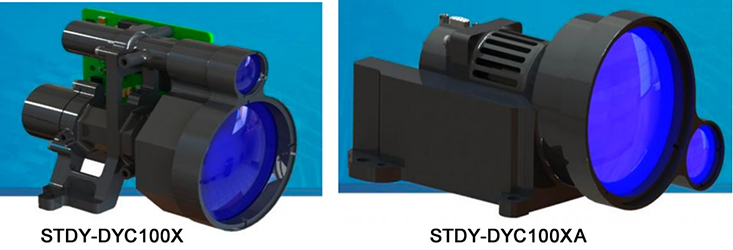

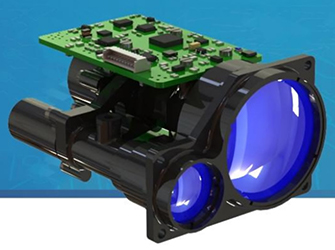

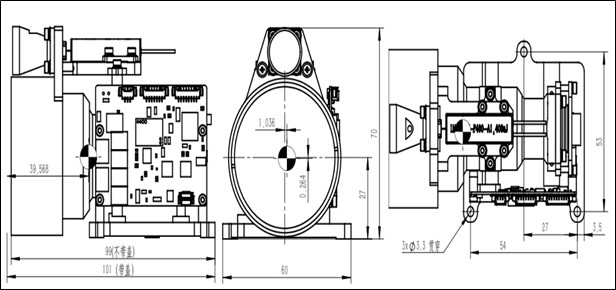

(5) STDY-DYC series medium range finder
STDY-DYC series of medium range finders are compact and easy to install and operate. The working light source is a human eye safe band solid state laser. The features of it are long service life and low power consumption. It can provide deep customization according to different needs. And it is widely used in the airborne pod, vehicle turntable, handheld observation instrument, altimeter, telescope, gun sight, gun sight project and other photoelectric equipment, to meet aviation, ship, vehicle, police, railway, electric power, communication, geology, construction, fire protection, forestry, outdoor applications and other applications.

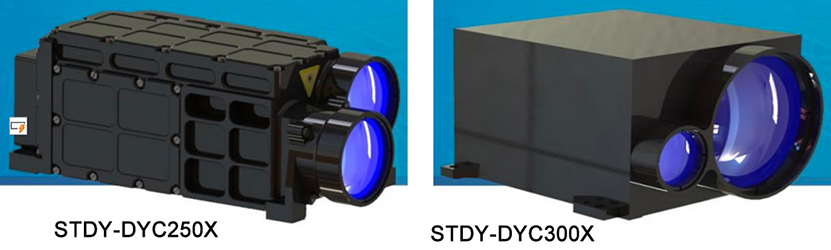

Model | STDY-DYC250X | STDY-DYC300X |
Wavelength | 1535nm | |
Range | 300m~25000m | 300m~30000m |
Ranging accuracy | ≤±5m | |
Ranging frequency | 1Hz | |
Accurate rate | ≥98% | |
Divergence angle | ≤0.4mrad | |
Acceptance aperture | 48mm | 65mm |
Connector | RS422 | |
Supply voltage | 28V±6V | |
Power consumption | ≤10W | |
Dimension | 245mmx113mmx85mm | 133mmx122mmx76mm |
Weight | ≤2100g | ≤1000g |
Operating temperature | -40℃~+55℃ |

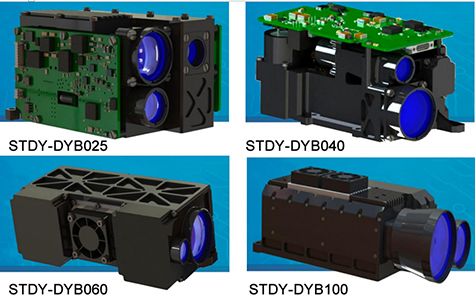

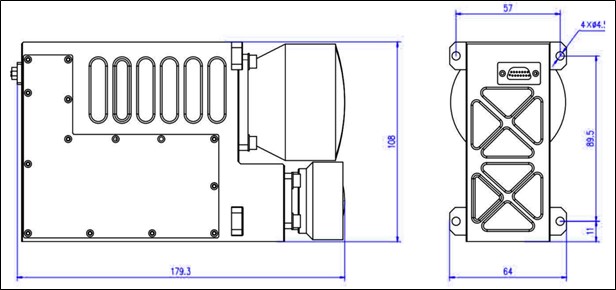

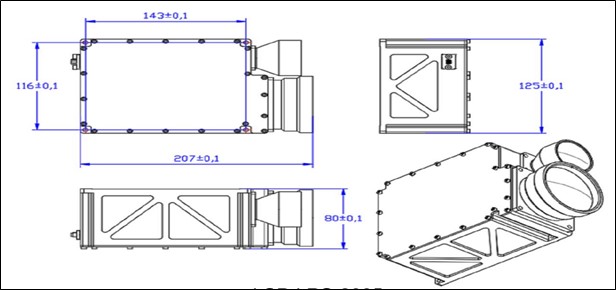

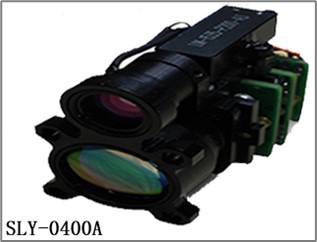

STDY-DYB series of small laser photometer is pumped by semiconductor, which can transmit laser pulse and receive laser echo to obtain the distance information of the measured target. It emits laser pulses in a specified precise coding or external synchronous way to provide semi-active guidance laser spots for laser guided weapons. The product is suitable for ground reconnaissance equipment, vehicle turret, ship turret, helicopter and UAV photoelectric load.
Model | STDY-DYB025 | STDY-DYB040 | STDY-DYB060 | STDY-DYB100 |
Wavelength | 1064nm | 1064nm | 1064nm | 1064nm |
Average energy | ≥25mJ | ≥40mJ | ≥60mJ | ≥100mJ |
Energy instability | ≤10% | ≤10% | ≤10% | ≤10% |
Divergence angle | ≤0.5mrad | ≤0.4mrad | ≤0.4mrad | ≤0.25mrad |
Optical axis stability | ≤0.05mrad | ≤0.05mrad | ≤0.05mrad | ≤0.05mrad |
Range | 100m~5000m | 300m~5000m | 300m~8000m | 300m~20000m |
Irradiation distance | ≥2000m | ≥4000m | ≥5000m | ≥13000m |
Exposure frequency | 20Hz | 20Hz | 20Hz | 20Hz |
Precise frequency code | 45ms~56ms | 45ms~56ms | 45ms~56ms | 45ms~56ms |
Coding accuracy | ±2.5us | ±2.5us | ±2.5us | ±2.5us |
Pulse width | 15ns±5ns | 15ns±5ns | 15ns±5ns | 15ns±5ns |
Supply voltage | 28V±6V | 28V±6V | 28V±6V | 28V |
Weight | ≤450g | ≤1000g | ≤1500g | ≤2800g |
Dimension | 91x6851.5mm | 112x62x57mm | 180x100x78mm | 239x116x81mm |
Operating temperature | -40℃~+55℃ | -40℃~+55℃ | -40℃~+55℃ | -40℃~+55℃ |
Connector | RS422 | RS422 | RS422 | RS422 |
Laser rangefinder has a long lifetime with low power consumption, easy to assemble and use. They are widely used in aircraft, railway, power sector, water conservancy industry, communication, environment, geology, architecture, agriculture, forestry, real estate, outdoor sports, etc. We use solid-state lasers or diode lasers with 905nm/ 1550nm laser wavelength. The ranging distance is 5m-1800m, 180m-8000m, 50m-15000m, etc.

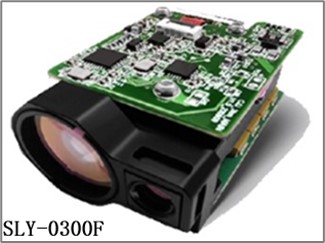

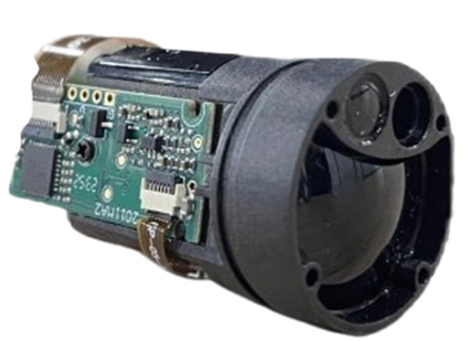

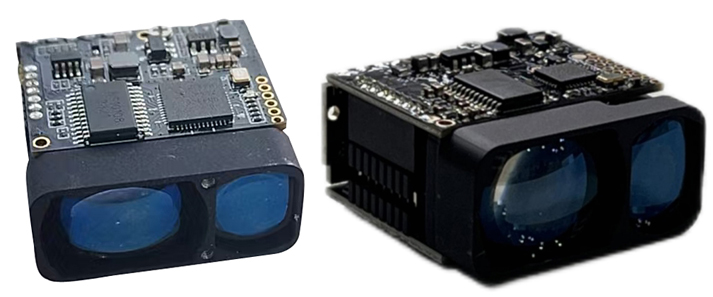

STC-DYA-00 is highly compact, easy to assemble and use. STC-DYA-00A uses the 905nm diode laser and STC-DYA-00B uses the 1550nm diode laser. They have a long lifetime with low power consumption.
Model | STC-DYA-00A | STC-DYA-00B | Descriptions |
Operating wavelength | 905 nm | 1550 nm | / |
Range | 5m~1800 m | 30m~3000 m | See Note |
Precision | ±0.5m | ±2m | Depend on Range |
Frequency | 1~10Hz | 1~5Hz | / |
Accuracy rate | ≥98% | ≥98% | / |
Divergence angle | 1.0 mrad | 1.2 mrad | / |
Aperture diameter | 24mm | 21mm | / |
Communication interface | UART | UART | Optional: RS232/RS422 |
Input voltage | 3.3V DC | 3.3V DC | / |
Power consumption | ≤0.3W | ≤3W | / |
Standby power | ≤0.15W | ≤0.5W | / |
Dimensions | 50mmx50mmx26mm | 60mmx45mmx25mm | |
Weight, all components | ≤50g | ≤65g | |
Heat dissipation method | Natural heat dissipation | / | / |

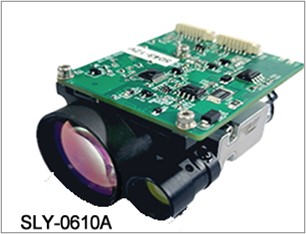

STC-DYA-01(C) is highly compact, eye safe, easy to assemble and use. It uses the 1550nm diode laser and has a long lifetime with low power consumption.
Operating wavelength: 1550nm
Range: 30m~4000m
Precision: ±2m (depending on range)
Frequency: 1~5Hz
Accuracy rate: ≥98%
Divergence angle: 1.2mrad
Aperture diameter: 27mm
Communication interface: RS232 (optional: RS422)
Input voltage: 12V
Power consumption:<3.5W
Standby power:<0.35W
Size: 92mmx50mmx34mm
Weight: ≤120g
Heat dissipation method: natural heat dissipation
STC-DYA-02(C) is highly compact, eye safe, easy to assemble and use. It uses the 1550nm diode laser and has a long lifetime with low power consumption.
Operating wavelength: 1550nm
Range: 30m~5000m
Precision: ±2m (depending on range)
Frequency: 1~5Hz
Accuracy rate: ≥98%
Divergence angle: 1.0mrad
Aperture diameter: 32mm
Communication interface: RS232 (optional: RS422)
Input voltage: 12V
Power consumption:<3.5W
Standby power:<0.35W
Size: 99mm×62mm×45mm
Weigh: ≤170g
Heat dissipation method: natural heat dissipation
STC-DYC-01A is highly compact, eye safe, easy to assemble and use. It uses the solid-state laser and has a long lifetime with low power consumption.
Operating wavelength: 1535nm
Range: 50m~8000m
Precision: ±0.5m (depending on range)
Frequency: 1~5Hz
Accuracy rate: ≥99%
Divergence angle: 0.6mrad
Aperture diameter: 33mm
Communication interface: RS422
Input voltage: 28V (optional: 12V)
Power consumption: ≤4W
Standby power: ≤4W
Size: 86mmx51mmx40mm or customizable
Weight: ≤200g or customizable
Heat dissipation method: natural heat dissipation
STC-DYC-01B is highly compact, eye safe, easy to assemble and use. It uses the solid-state laser and has a long lifetime with low power consumption.
Model | STC-DYC-01B1 | STC-DYC-01B2 | STC-DYC-01B3 | Remark |
Operating wavelength | 1535nm | 1535nm | 1535nm | |
Range | 50m~10000m | 50m~12000m | 50m~14000m | |
Precision | ±1m | ±2m | ±2m | Depend on Range |
Frequency | 1~5Hz | 1~5Hz | 1~5Hz | |
Accuracy rate | ≥99% | ≥99% | ≥99% | |
Divergence angle | 0.8mrad | 0.9mrad | 0.6mrad | |
Aperture diameter | 48mm | 48mm | 48mm | |
Communication interface | RS422 | RS422 | RS422 | |
Input voltage | 28V | 28V | 28V | Optional: 12V |
Power consumption | ≤4W | ≤4.2W | ≤5W | |
Standby power | ≤4W | ≤4.2W | ≤5W | |
Size | 108mmx69mmx56mm | 108mmx69mmx56mm | 108mmx69mmx56mm | Customizable |
Weight, all components | ≤300g | ≤300g | ≤300g | Customizable |
Heat dissipation method | Natural heat dissipation | Natural heat dissipation | Natural heat dissipation |
STC-DYC-01C is highly compact, eye safe, easy to assemble and use. It uses the solid-state laser and has a long lifetime with low power consumption.
Model | STC-DYC-01C1 | STC-DYC-01C2 | STC-DYC-01C3 | |
Operating wavelength | 1535nm | 1535nm | 1535nm | |
Range | 50m~11000m | 50m~13000m | 50m~15000m | |
Precision | ±2m | ±2m | ±3m | Depend on Range |
Frequency | 1~5Hz | 1~5Hz | 1~5Hz | |
Accuracy rate | ≥99% | ≥99% | ≥99% | |
Divergence angle | 0.8mrad | 0.9mrad | 0.6mrad | |
Aperture diameter | 65mm | 65mm | 65mm | |
Communication interface | RS422 | RS422 | RS422 | |
Input voltage | 28V | 28V | 28V | Optional: 12V |
Power consumption | ≤4W | ≤4.2W | ≤5W | |
Standby power | ≤4W | ≤4.2W | ≤5W | |
Size | 120mmx83mmx75mm | 120mmx83mmx75mm | 120mmx83mmx75mm | Customizable |
Weight | ≤450g | ≤450g | ≤450g | Customizable |
Heat dissipation method | Natural heat dissipation | Natural heat dissipation | Natural heat dissipation |

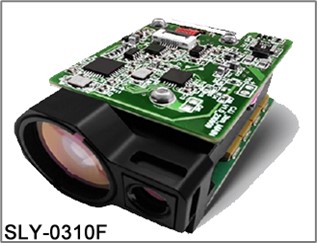

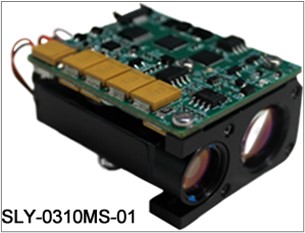

The diode laser rangefinder module has the characteristics of small size, light weight, low power consumption, high performance, and easy integration. It is widely integrated in various equipment and optoelectronic systems.
Semiconductor eye-safe laser.
Accurate measurement and good repeatability.
Small size and light weight.
High reliability.

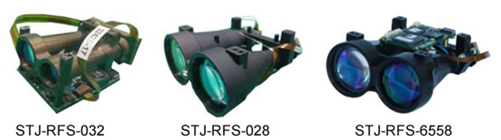

Part number | STJ-RFS-032 | STJ-RFS-028 | STJ-RFS-6558 |
Wavelength | Eye-safe laser | Eye-safe laser | Eye-safe laser |
Maximum range | Vehicle:2km Human:1km | Vehicle:4.5km Big target:8km | Vehicle:4km Human:2km |
Minimum range | 50m | 100m | 100m |
Ranging accuracy | ±5m | ±5m | ±5m |
Repeat frequency | ≥0.3Hz | ≥0.3Hz | ≥0.3Hz |
Accurate rate | ≥95% | ≥95% | ≥95% |
Ranging logic | With the first and last target output function | With the first and last target output function | With the first and last target output function |
Size(L×W×H) | ≤65×45×30mm | ≤120×100×52mm | ≤110×100×50mm |
Weight | ≤60g | ≤350g | ≤350g |
Operating temperature | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ |
Storage temperature | -55℃~+70℃ | -55℃~+70℃ | -55℃~+70℃ |

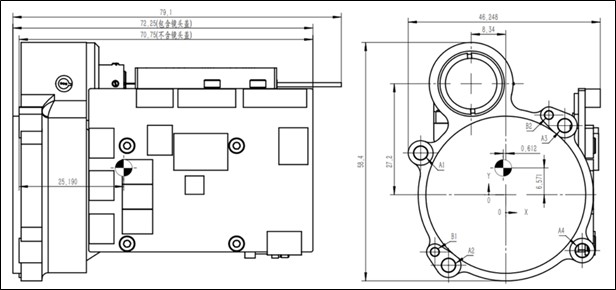

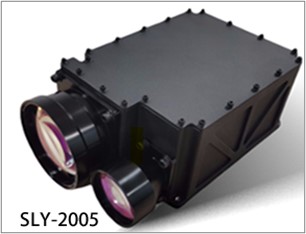

STJ-RFS-376 high-frequency laser ranging module uses diode pumped laser as the light source, which can achieve high repetition frequency laser output, used to accurately and reliably measure the distance.
The main application areas include: shipboard, airborne, vehicle-mounted, shore-based photoelectric fire control system, photoelectric reconnaissance system, photoelectric monitoring system, photoelectric measurement system.
Semiconductor pumped eye-safe laser.
Repetition frequency can reach 20Hz.
Long range and high reliability.
Part number | STJ-RFS-376 |
Wavelength | 1.57μm |
Maximum range | 300m~20km (large targets under good weather conditions) 15km for 3*5m target |
Ranging accuracy | ±5m |
Repeat frequency | 1~20Hz 1Hz working mode: continuous operation. 5Hz working mode: continuous working for 10 minutes, cooling for 1 minute. 20Hz working mode: continuous working for 1 minute and cooling for 1 minute. |
Size | ≤230×150×130mm |
Weight | ≤2.0Kg |
Operating temperature | -40℃~+60℃ |
Highlight | High repetition frequency, long working distance, high measurement accuracy, high reliability and strong anti-interference ability |
Application | Photoelectric reconnaissance system, photoelectric monitoring system, photoelectric measuring system |

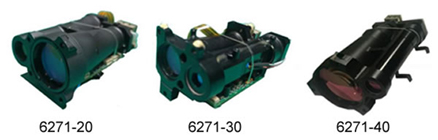

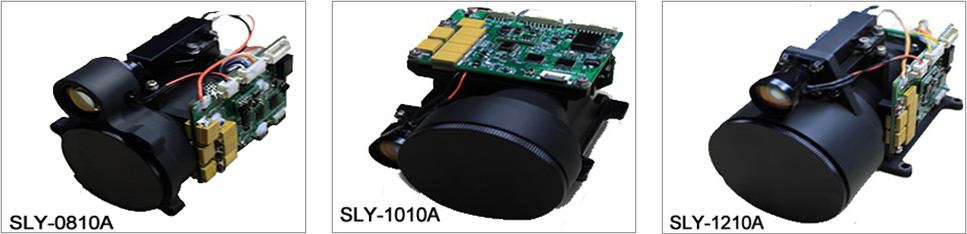

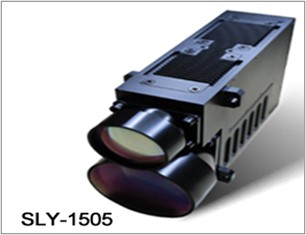

STJ-RFS-6271 series erbium glass laser ranging modules use an erbium-doped glass laser as a light source, which can achieve a low-gain laser output and is used to accurately measure the target. They are mainly used for distance measurement of medium and long-range targets in the applications areas such as photoelectric reconnaissance system, photoelectric surveillance system.
Eye-safe laser.
Small size, light weight, high accuracy, high reliability and strong anti-interference ability
Part number | STJ-RFS-6271-20 | STJ-RFS-6271-30 | STJ-RFS-6271-40 |
Wavelength | 1.54μm | 1.54μm | 1.54μm |
Maximum range | ≥12km | ≥14km | ≥16km |
Ranging accuracy | ±2m | ±2m | ±2m |
Repeat frequency | ≥0.5Hz | ≥0.5Hz | ≥0.5Hz |
Size | ≤100×50×45mm | ≤100×61×48mm | ≤112×72×56mm |
Weight | ≤135g | ≤160g | ≤200g |
Operating temperature | -40℃~+60℃ |

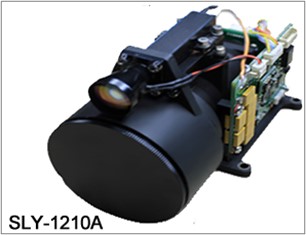

STJ-JIR-603x series fiber laser ranging modules use rare earth-doped glass fiber as the gain medium to output eye-safe laser, which is small in size, light in weight, high in reliability and easy for system integration. Mainly used in photoelectric reconnaissance, photoelectric fire control, photoelectric monitoring, photoelectric measurement and other fields.
Eye-safe laser.
Small size and light weight.
Fast heat dissipation and low loss.
Strong environmental adaptability.
STJ-RFS-6030A | STJ-RFS-6030B | STJ-RFS-6031 | STJ-RFS-6032 | |
Wavelength | 1550±20nm | 1550±20nm | 1550±20nm | 1550±20nm |
Minimum range | 50m | 50m | 50m | 50m |
Maximum range | ≥15km (Ship: 20×70m) | ≥3km (UAV: 0.3×0.3m) | ≥8km (Vehicle: 2.3×2.3m) | ≥6km (Vehicle: 2.3×2.3m) |
Divergence angle | 0.6mrad | 0.3±0.1mrad | 0.3±0.1mrad | 0.3±0.1mrad |
Repeat frequency | 1Hz | 5Hz | 1Hz | 1Hz |
Ranging accuracy | ±5m | ±2m | ±2m | ±2m |
Accurate rate | ≥98% | ≥98% | ≥98% | ≥98% |
False alarm rate | ≤2% | ≤2% | ≤2% | ≤2% |
Ranging logic | With the first and last target output function | With the first and last target output function | With the first and last target output function | With the first and last target output function |
Size(L×W×H) | 95×51×64mm | 95×51×64mm | 91×49×45mm | 91×53×42mm |
Weight | ≤200g | ≤200g | ≤160g | ≤150g |
Operating temperature | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ |
Storage temperature | -50℃~+70℃ | -50℃~+70℃ | -50℃~+70℃ | -50℃~+70℃ |

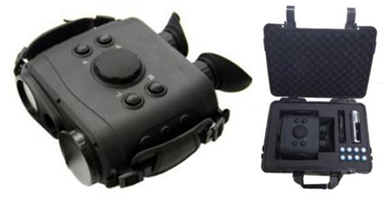

STJ-JIR-6244B Multi-function Laser Rangefinder is mainly used for long distance observation and laser range finding, with the function of azimuth and pitch angle measurement, northing and GPS/Beidou positioning.
Binocular observation
Laser ranging
Electronic compass
GPS/Beidou positioning
Data output
Device List
No. | Name | Qty | Remarks |
1 | Multi-functional laser range finder | 1 | 1 |
2 | Standby Battery | 4 | 18650 rechargeable battery |
3 | Charger | 1 | |
4 | Communication cable | 1 | 1 |
Technical Specifications:
(1) Laser Rangefinder
Wavelength:1570±20 nm
Range capability:100m~10km
Ranging accuracy:±5m
Magnification: 6×
Field of view:6°
(2) Electronic compass
Azimuth accuracy: 1°
Elevation accuracy: 1°
(3) GPS: Locating accuracy:<10m
(4) Data output interface: RS422
(5) Power: Built-in four 18650 batteries or external DC 14.8V~16.8V power
(6) Working temperature: -40℃~60℃
(7) Size and Weight: ≤ 226mm(L)×206mm(W)×95mm(H), ≤ 1.8kg
As a portable multi-functional laser target indication system, it can complete the target reconnaissance through TV, infrared, positioning, angle measurement, distance measurement and other multi-sensor, report the reconnaissance information through the information system, accept various control methods to start laser irradiation, send coded laser pulses to the target, and cooperate with semi-autonomous laser guidance weapons to complete the accurate target strike.
Ranging and coding the target
Visual observation of the target by uncooled infrared components or visible light (optional)
It has external control function of upper computer.
Technical Specifications
(1) Laser ranging
Working wavelength: 1.064 μm.
Distance measurement capability: under the condition of 10km visibility, the distance of 4.6×2.3m tank is ≥ 5km. The distance to large target (5×5m) is ≥ 8km.
(2) Laser irradiation
Working wavelength: 1.064 μm.
Repetition frequency: 1Hz-25Hz optional.
Short period irradiation: one irradiation duration ≥ 17s, interval ≤ 10s, continuous 8 cycles.
Long period irradiation: one irradiation duration ≥ 47s, interval ≤ 40s, two consecutive cycles.
(3) Uncooled infrared range
The maximum detection distance of 4.6×2.3m target is ≥ 4500m, and the maximum recognition distance is ≥ 2500m.
(4) Weight: laser irradiator ≤ 6.0kg, thermal imager ≤ 2.0kg.
(5) Boundary dimension
Laser irradiator: ≤ 330mm×300mm×130mm.
Thermal imager: ≤ 340mm×160mm×160mm.
STLRF-6243F/6244F Laser Rangefinder is widely used for Patrol & reconnaissance; Engineering exploration; Surveying and mapping.
Features:
High accuracy range finding
Easy operation
Simultaneous multiple targets measurement
Small size and low light
Technical Specifications:
Model | STJIR-6243F | STJIR-6244F |
Wavelength | 1.55 μm (eye safe) | 1.55μm (eye safe) |
Aiming channel | CCD | CCD |
Detector | APD | APD |
Ranging capability (km) | Against big target: 21km Against 2.3*2.3 : 12km | Against big target: 12km Against 2.3*2.3 : 8km |
Distance accuracy | ±3m | ±3m |
Repetition rate | 1Hz | 1Hz |
Divergence angle | ≤0.3mrad | ≤0.3mrad |
Eyepiece adjust range | ±3Diopter | ±3Diopter |
Impact | 30g | 30g |
Photo/Video | Yes | Yes |
Operation temperature | -30℃~60℃ | -30℃~60℃ |
Power supply | 12V battery | 12V battery |
Interface | RS422 | RS422 |
Size | ≤215×150×75 (mm) | ≤200×150×65 (mm) |
Weight | ≤1.5Kg | ≤1.0Kg |
Positioning (Optional) | 10m | 10m |
Angle measurement / height measurement (Optional) | 0.3°/10m | 0.3°/10m |
Tripod (Optional) | High range:0.5~1.5m Bearing:5Kg | High range:0.5~1.5m Bearing:5Kg |

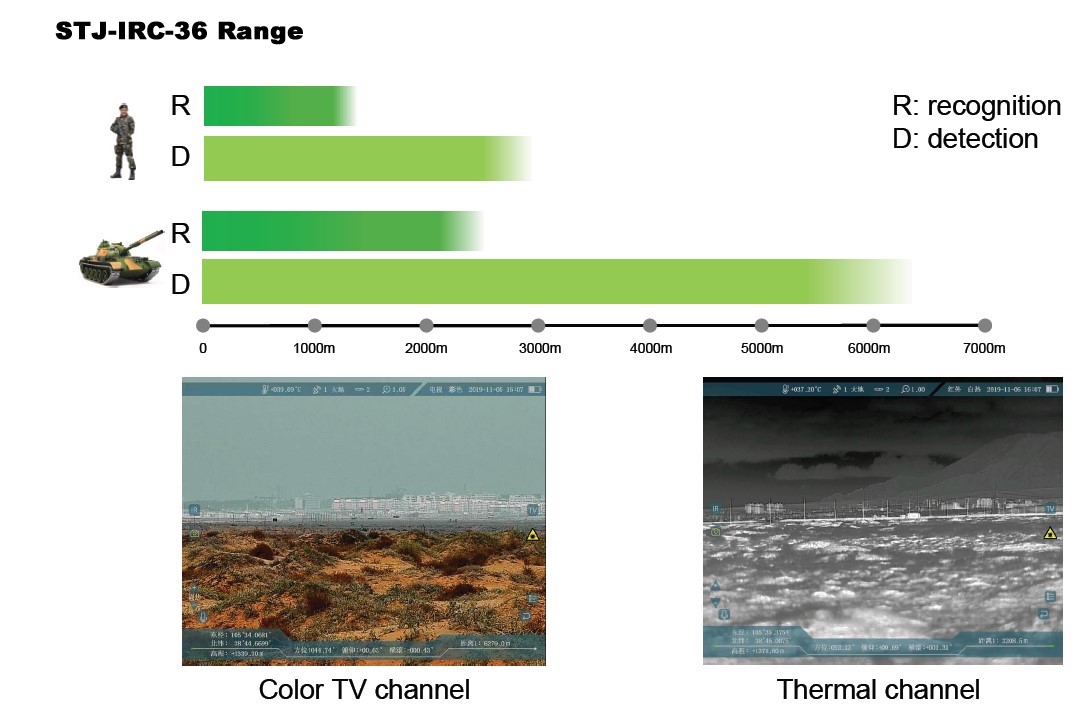

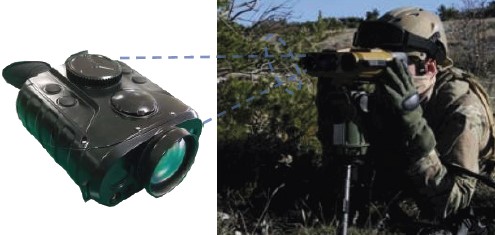

Based on years of actual combat application experience and continuous improvement, we have successfully developed the STJ-IRC-36, a portable, multifunctional, long-range binocular system that help operators observe the battlefield, and investigate target information under all weather conditions, observe shooting effects, etc., provides powerful information support for combat units.
24/7 Observation & Target Location:
2 observation channels:
- Thermal - Color TV
Multifunction:
GPS positioning
Take photo / Video recording
Electronic compass
Target ranging and location computation
Easy Operation:
Ergonomic design
Easy Operation
Multimedia & Connectivity:
Image/ Video Storage
Fast data Hand Over
Standard & legacy interfaces
High Precision & HD:
Ranging accuracy: ± 2m
Positioning accuracy: ≤10m
Orientation accuracy: ≤0.5°
HD OLED Display
Technical Specifications:
Uncooled Thermal Channel | |
Field of View | WFoV: 6°x4.5° |
Sensor resolution | 640x512 |
Color Day Channel | |
WFoV | 3°x2.2° |
Resolution | 1920 x 1080 |
Power | |
Battery | Rechargeable |
Autonomy | ≥ 6h |
Interfaces | |
Video Output | PAL analog |
Remote control | RS232 |
Weight | <1.8kg (including battery) |
Other Features | GPS, Electronic Compass |
Laser rangefinder | ≥8km |
Advanced Image Processing | Image Stabilization, Continuous eZoom x1-x4 |
A leading supplier and manufacturer of a wide range of photonics products such as lasers,laser parts & machines.
Office: 10 Bukit Batok Crescent #07-02 The Spire Singapore 658079
Tel: +65 63167112
Fax: +65 63167113
whatsapp: +6591904616
We always use our company's email boxes for business communication and never use any free-emails such as yahoo, hotmail, gmail etc. If you receive any email without our domain, please confirm with us via phone or wechat.
