STRP-TeraSys- AiO TheSTRP-TeraSys- AiOprovides a flexible solution for laboratory THz spectroscopy and imaging. It offers maximum flexibility with measurement capabilities in transmission and reflection without realignment of the optics.

Ultra–Wide THz Bandwidth for Spectroscopy and Imaging

The STRP-TeraSys-ULTRA is the ultimate solution for real-time THz imaging and spectroscopy. It is a compact terahertz instrument addressing: sensing, detection, analysis, and processing methods at terahertz frequencies in real-time. It is based on organic crystals to allow access to terahertz frequencies up to 20 THz not available with conventional photoconductive antennas.

THz instrument

  • Frequency range 0.3 – 20 THz
  • Real time acquisition, 4 spectra per second
  • Purge chamber with humidity sensor
  • Dedicated software and computer control
  • Maintenance free
  • Compact design

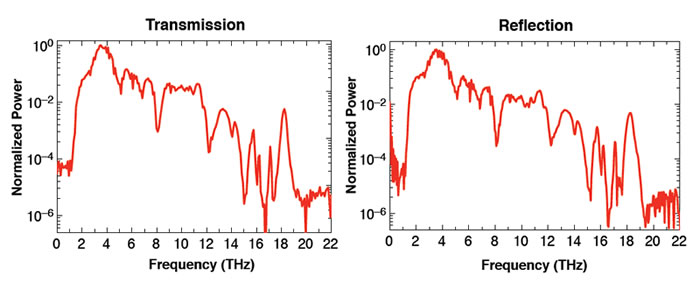

Frequency domain spectrum measured with the STRP-TeraSys-ULTRA using DSTMS organic crystals as terahertz generator and detector in transmission and reflection.

THz bandwidth

Specifications

  • Spectral range: 0.3 – 20 THz
  • Acquisition speed: 4 spectra per second
  • Scan range: >300 ps
  • Dynamic range: >70 dB (@ 4 THz)
  • Frequency resolution: < 10 GHz
  • Dimensions: 55 cm x 60 cm x 30 cm

Pump Source (high power ultrafast fiber laser)

  • Pulse length: < 20 fs
  • Total average power : > 200 mW
  • Peak power: > 240 kW
  • Central wavelength: 1565 nm
  • Repetition rate: 40 MHz

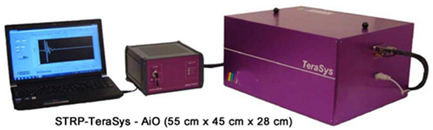

STRP-TeraSys-AiO

The STRP-TeraSys- AiO provides a flexible solution for laboratory THz spectroscopy and imaging. It offers maximum flexibility with measurement capabilities in transmission and reflection without realignment of the optics. It is based on organic crystals, to allow access to terahertz frequencies not available with conventional antennas. The STRP-TeraSys- AiO includes all optical, mechanical and electronic components for the generation and detection of THz waves such as delay line, terahertz generator, terahertz detector, pump source optics, electronics, humidity sensor, purge chamber, dedicated software, and laptop.

STRP-TeraSys-AiO Transmission Reflection
Spectral range 0.3 - 14 THz 0.3 - 8 THz
Dynamic range > 70 dB > 40 dB
Signal to Noise (@4 THz) > 60 dB > 35 dB
Scan range up to 60 ps up to 60 ps
Frequency resolution < 100 GHz < 100 GHz
Dimensions (including the pump source) 55 cm x 45 cm x 28 cm
Pump Source (high power ultrafast Erbium fiber laser)
Pulse length < 20 fs
Total average power > 200 mW
Peak power >120 kW
Central wavelength 1565 nm
Repetition rate 80 MHz

Options

  • THz imaging with a scanning range of 50 x 50 mm2 for transmission for reflection operation.

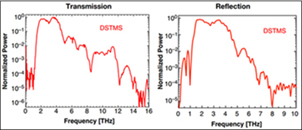

  • Frequency domain spectrum measured with the STRP-TeraSys - AiO using DSTMS as terahertz generator/detector in transmission and reflection.

Applications

Spectroscopy and analysis of materials in the THz range up to 20 THz.

STRP-TeraIMAGE

The flexible solution for THz spectroscopy and imaging

The STRP-TeraIMAGE offers a flexible solution for laboratory THz spectroscopy and imaging. It is based on organic crystals, to allow access to THz frequencies not yet available with conventional antennas. The STRP-TeraIMAGE includes all optical, mechanical and electronic components for the generation and detection of THz waves such as delay line, THz generator, detector, optics, electronics, dedicated software and laptop. It also features a scanning mechanism for the measurement of phase and full-spectrum images. As the STRP-TeraKit, it can also be used with various telecom wavelength lasers.

Specifications

THz generator / detector Organic crystal
Spectral range 1-14 THz
Best phase matchable wavelength 1300-1600 nm

Options: Scanning range of 100x100 mm 2

Applications: Spectroscopy and imaging of various materials. Ideal for identification and detection of dangerous substances and biomedical materials, as well as for materials testing of plastic, special polymers and semiconductors. The scan area is 5 x 5 cm 2 . We also offer systems that allow imaging of larger areas.

STRP-TeraTune

The STRP-TeraTune provides a tunable narrowband terahertz source with a tuning range from 1.5 to 20 THz and a bandwidth of less than 100 GHz. The basic STRP-TeraTune is based on a flash lamp pumped laser (repetition rate 50 Hz to 200 Hz) with a special optical parametric oscillator (OPO) where one wavelength is tuned electronically with a special design to keep the bandwidth below 100 GHz. Other diode pumped laser systems can be offered. The variable wavelength is calibrated and the THz difference frequency is computer controlled (tuning range 1 to 20 THz). Terahertz radiation is generated via frequency mixing in the novel organic nonlinear optical crystal STRP-DSTMS, ideally suited to achieve highest terahertz conversion efficiency.

The STRP-TeraTune includes all optical, mechanical, electronic components for the generation of THz waves and software control.

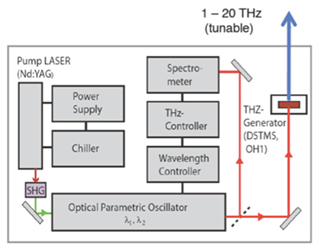

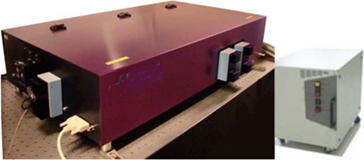

STRP-TeraTune (pump laser, OPO: optical parametric oscillator and THz difference frequency generator,

dimensions: 900 x 500 x 180 mm), laser power supply (300 x 450 x 450 mm)

Specifications

  • THz frequency tunable 1−20 THz
  • Output THz pulse bandwidth < 100 GHz
  • Average THz power 1−10 μW
  • THz pulse energy 10−100 nJ
  • Linear polarization

Phase matched THz difference frequency generation in DSTMS

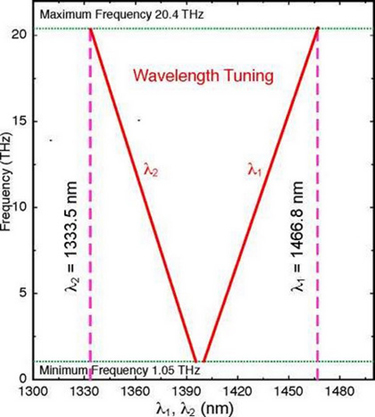

Tunable frequency
Output frequency 1 - 20 THz
Pulse bandwidth < 100 GHz
Repetition rate 100 Hz
Average power 1-10 pW
Pulse energy 10-100 nJ
Polarization linear

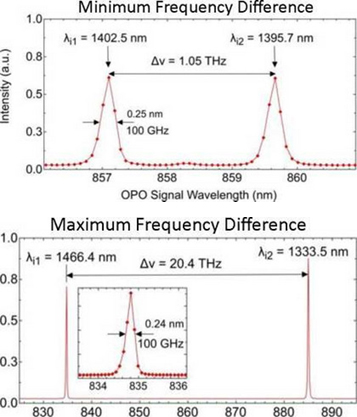

OPO: Optical Parametric Oscillator
Tuning range 1330-1480 nm
Linewidth < 100 GHz
Repetition rate 100 Hz
Pulse duration 7- 10 ns
Energy per pulse > 10 mJ
Peak Power > 1.4 MW
Nd:YAG Pump laser 100-Hz
Pulse width 10 ns
Pulse energy > 125 mJ @ 532nm
Divergence 0.5 mrad
Beam quality M 2 < 2
Energy stability < 1%
Beam diameter 5 mm
Linewidth 90 MHz
Power consumption < 2.5 kW

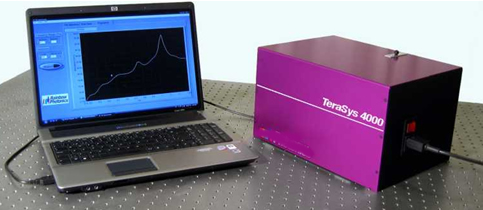

STRP-TeraSys 4000
