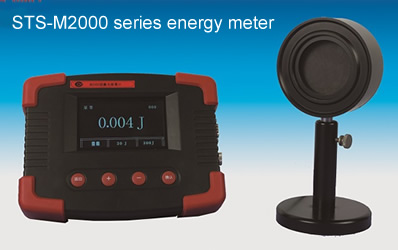

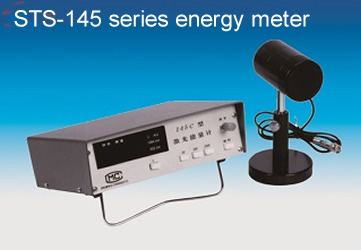

1. Laser Energy Meters Model STS-M2000B STS-M2000 STS-145A STS-145B STS-145C Range 2J-200J 2J-200J 200mJ-20J 2J-200J 20mJ-2J Resolution 1mJ 1mJ 0.1mJ 1mJ 0.01mJ Sensor diameter 11.3mm 50mm 50mm 20mm 20mm 20mm Wavelength 190nm-25um 190nm-25um 400
Model | STS-M2000B | STS-M2000 | STS-145A | STS-145B | STS-145C |
Range | 2J-200J | 2J-200J | 200mJ-20J | 2J-200J | 20mJ-2J |
Resolution | 1mJ | 1mJ | 0.1mJ | 1mJ | 0.01mJ |
Sensor diameter | 11.3mm 50mm | 50mm | 20mm | 20mm | 20mm |
Wavelength | 190nm-25um | 190nm-25um | 400nm-3um | 400nm-3um | 400nm-3um |
Calibration @ wavelength | 10.6um | 10.6um | 1064nm, 532nm, 694nm | ||
Max power density | 10GW/cm2 | 10GW/cm2 | 10GW/cm2 | 10GW/cm2 | 10GW/cm2 |
Max energy density | 70J/ cm2 | 70J/ cm2 | 70J/ cm2 | 70J/ cm2 | 70J/ cm2 |
Display | 3.5-digit LED | ||||
Un-stability | 5% | ||||
Cooling | air | ||||
Application | CO2laser energy measure | Long pulse width energy measure | Pulse repetition rate 0-30Hz measure |

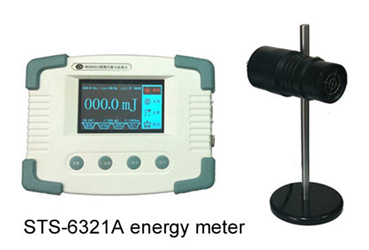

The advanced circuit design enables the instrument to test and store every laser pulse energy from a single shot to 1000Hz, and has the functions of 1000 data storage, playback and statistical calculation. The unique attenuation technology enables the instrument to have a strong ability to have high laser damage threshold, and can be applied to the field requiring long-time direct measurement and monitor. The intelligent function design makes the instrument suitable for more different customers. The excellent environmental adaptability design and anti-electromagnetic interference design make the instrument not only be used in the laboratory environment, but also work normally in the production site and outdoor harsh environmental conditions. The portable structure design is convenient for users to carry.
Model STS6321A- | 200u-10 | 2m-10 | 20m-30 | 200m-30 | 2-30 | 20-30 | 200-30 | IR-20m-10 | IR-200m-30 | IR-2-30 | ||
Function | Energy measurement, pulse frequency measurement, pulse numbers | |||||||||||
Wavelength | 400nm~1100nm | 800nm~1600nm | ||||||||||
Sensor dia. | Φ10mm | Φ30mm | Φ10mm | Φ30mm | ||||||||
Calibration wavelength | 532nm, 1064nm or customer’s specific | 1.06μm,1.57μm or specific | ||||||||||
Measurement range | 2μJ~200μJ | 20μJ~2mJ | 200μJ~20mJ | 2mJ~200mJ | 20mJ~2J | 200mJ~20J | 2J~200J | 20μJ~2mJ | 200μJ~20mJ | 2mJ~200mJ | ||
Min. resolution | 0.001μJ | 0.01μJ | 0.1μJ | 0.001mJ | 0.01mJ | 0.1mJ | 0.001J | 0.01μJ | 0.1μJ | 0.001mJ | ||
Measurement tolerance | ±5% | |||||||||||
Frequency measurement tolerance | ±1% | |||||||||||
Max. power density | 1000MW/cm2 | |||||||||||
Max. energy density | 20J/cm2 | 100J/cm2 | 20J/cm2 | 100Jcm2 | ||||||||
Laser pulse frequency | Single shot~1000Hz | Single shot ~200Hz | Single shot ~1000Hz | |||||||||
Laser pulse width | 10ps~50ms | |||||||||||
Display | TFT LCD | |||||||||||
Statistical | Laser energy max, min. average and square root | |||||||||||
Connection port | RS232 (optional) |
