IR Laser Beam Viewer

Keywords: IR Laser Beam Viewer, beam detector

Dec 25, 2020 View: 2142 Data Sheet

A frequency-doubling material is coated on the glass surface. When an IR laser beam is illuminated on the coating material the frequency of the IR laser beam will be doubled from IR to green wavelength.

Online submission +65 63167112 sales@sintec.sg

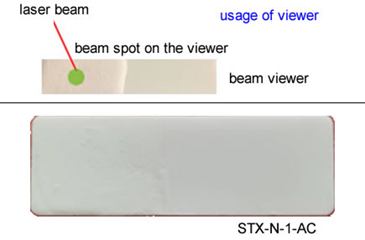

A frequency-doubling material is coated on the glass or ceramic base. When an IR laser beam is illuminated on the coating material, the frequency of the IR laser beam will be doubled from IR to green wavelength. For 1064nm laser beam, the wavelength will be 532nm which is green.

The detectable laser wavelength is 800-1600nm, typical wavelengths 808nm, 915nm, 980nm and 1064nm. The detectable laser power is as low as 100mW.

Specifications:

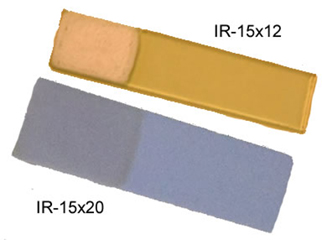

Part number	IR-15x12	IR-15x20	STX-N-1-AC
Outline dimension	50x12x13mm	50x15x1mm	60x20x3mm
Base material	Glass	Ceramic	Ceramic
Coating area	15x12	15x20	20x25mm
Coating material color	White	White	White
