VCSEL Diode Lasers

Keywords: VCSEL, lidar, laser diode

Jun 16, 2021 View: 3703 Data Sheet

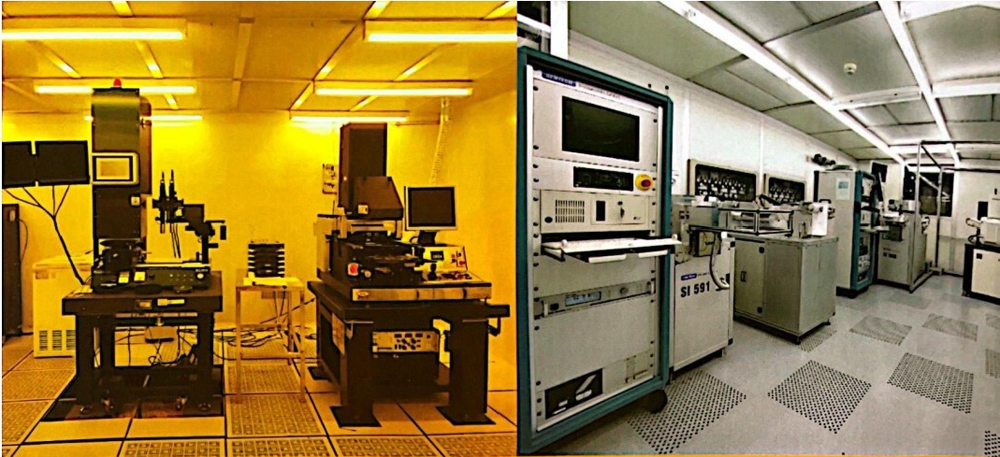

Providing the VSCELs & PDs and VSCEL based solutions for artificial intelligence (AI) and internet of things (IoT). mplemented one-stop service from design, components, sensors, to total solutions. over 300 standard VCSEL-based products are provided. Customized products are also welcome.

Online submission +65 63167112 sales@sintec.sg

SXL Series VCSEL Laser Diodes

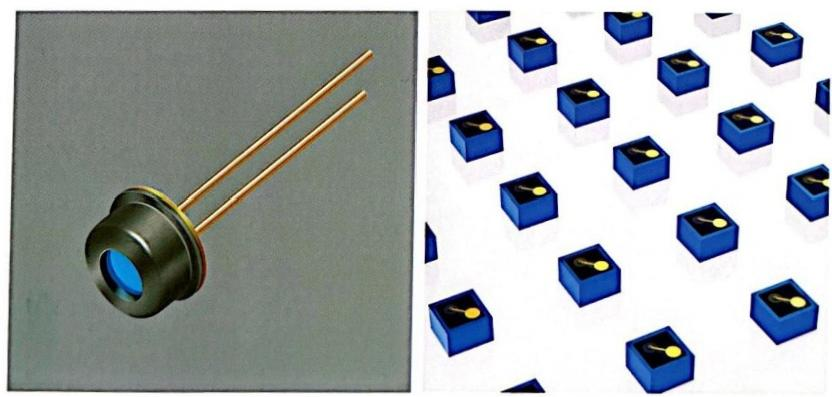

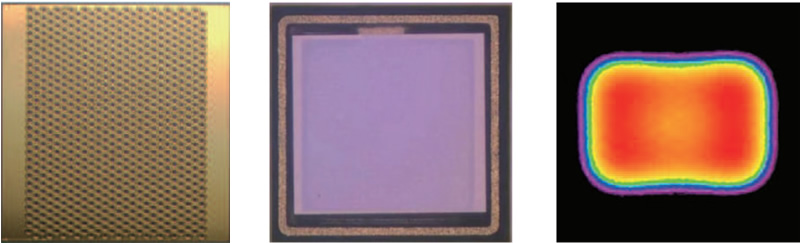

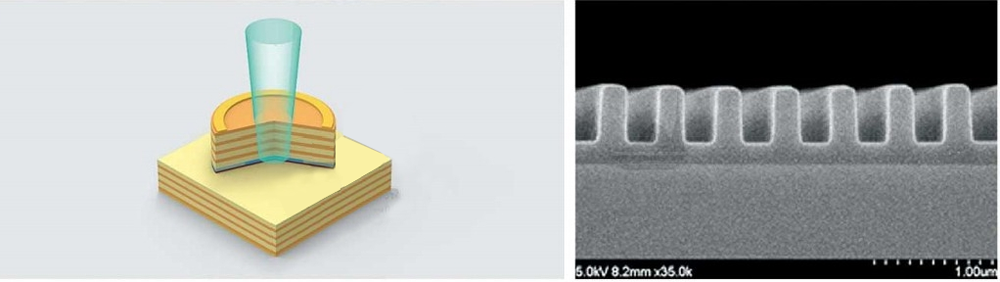

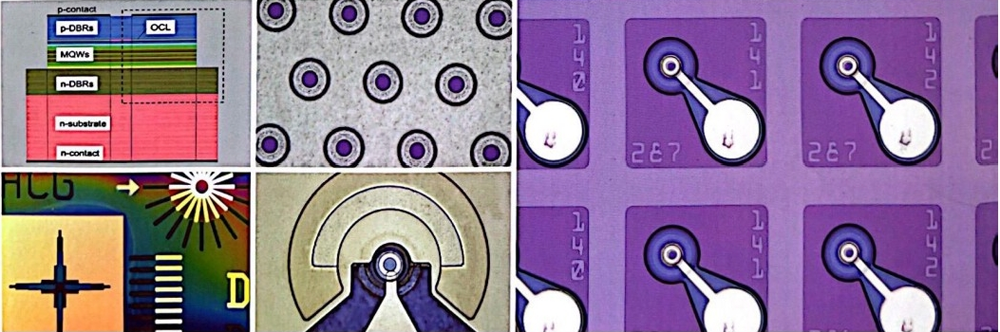

1.VCSEL Chips

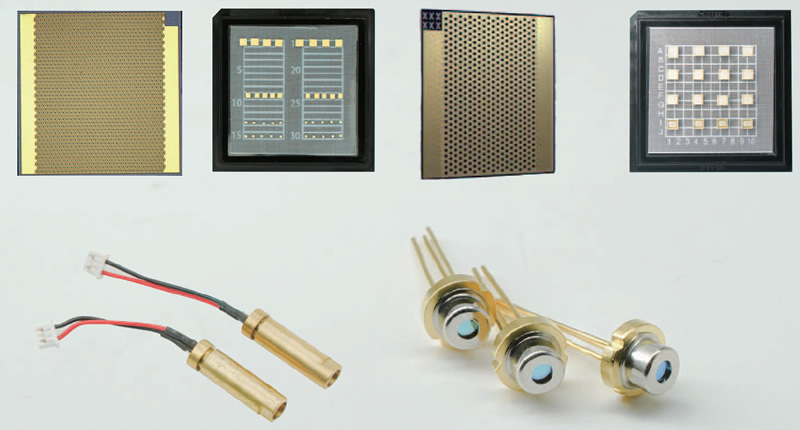

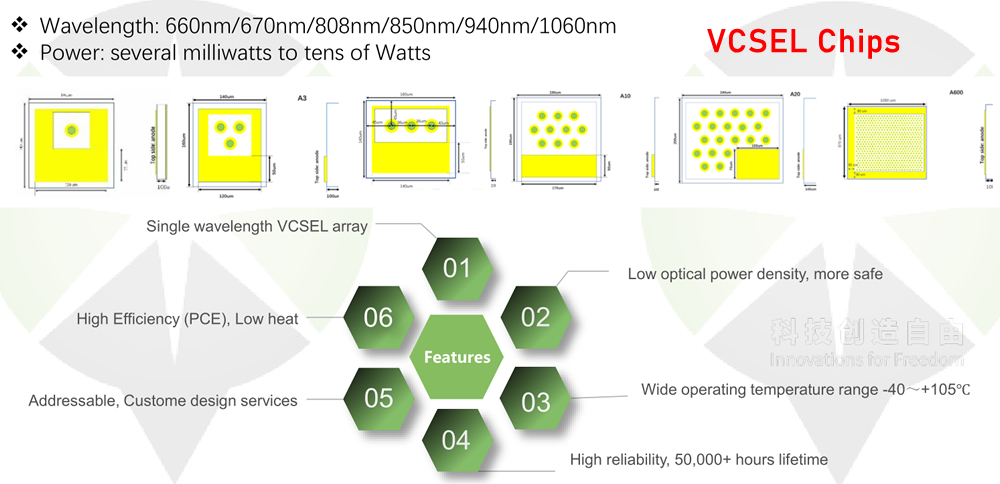

Features:

Wide operating temperature range
High reliability, 50,000h lifetime
Low wavelength drift 0.07nm/°C
High efficiency PCE 50%
Low optical power density, safer
Low heat, environment friendly
Top hat beam profile

Part number	Wavelength	Optical power	Beam angle	Remark
SXL-LC-0808-B050-0025CC	808nm	50mW	24°
SXL-LC-0808-B060-0025CC	808nm	60mW	25°
SXL-LC-0808-B350-0025CA	808nm	350mW	25°
SXL-LC-0808-B350-0030CA	808nm	350mW	30°
SXL-LC-0808-C003-0025CA	808nm	3W	25°
SXL-LC-0808-C006-0025CA	808nm	6W	25°
SXL-LC-0808-C010-0025CA	808nm	10W	25°
SXL-LC-0850-B008-0025CA	850nm	8mW	25°
SXL-LC-0850-B010-0023CC-A	850nm	10mW	23°
SXL-LC-0850-B010-0023CC-B	850nm	10mW	23°
SXL-LC-0850-B010-0023CC	850nm	10mW	23°
SXL-LC-0850-B015-0023CC	850nm	15mW	23°
SXL-LC-0850-B060-0023CC	850nm	60mW	23°
SXL-LC-0850-B130-0023CC	850nm	130mW	23°
SXL-LC-0850-B200-0025CC	850nm	200mW	25°
SXL-LC-0850-B400-0025CC	850nm	400mW	25°
SXL-LC-0850-C001-0025CA	850nm	1W	25°
SXL-LC-0850-C003-0025CA	850nm	3W	25°
SXL-LC-0850-C004-0025CC	850nm	4W	25°
SXL-LC-0850-B008-0025CA	850nm	8mW	25°
SXL-LC-0940-B008-0020CC	940nm	8mW	20°
SXL-LC-0940-B010-0020CC	940nm	10mW	20°
SXL-LC-0940-B020-0025CC	940nm	18mW	25°
SXL-LC-0940-B020-0025CP	940nm	20mW	25°	Dual-junction
SXL-LC-0940-B060-0020CC	940nm	60mW	20°
SXL-LC-0940-B060-0120CC	940nm	60mW	20°
SXL-LC-0940-B060-0025CP	940nm	60mW	25°	Dual-junction
SXL-LC-0940-B060-0025CP-1x3	940nm	60mW	25°	Dual-junction
SXL-LC-0940-B160-0025CP	940nm	160mW	25°	Dual-junction
SXL-LC-0940-B160-0120CC	940nm	160mW	20°
SXL-LC-0940-B200-0016CP	940nm	200mW	16°
SXL-LC-0940-B200-0020CC	940nm	200mW	20°
SXL-LC-0940-B200-0020CP	940nm	200mW	20°
SXL-LC-0940-B300-0025CP	940nm	300mW	25°
SXL-LC-0940-B400-0025CP	940nm	400mW	25°
SXL-LC-0940-C001-0023CA	940nm	1W	23°
SXL-LC-0940-C002-0020CA	940nm	2W	20°
SXL-LC-0940-C004-0020CA	940nm	4W	20°
SXL-LC-0940-C004-0025CP	940nm	4W	25°

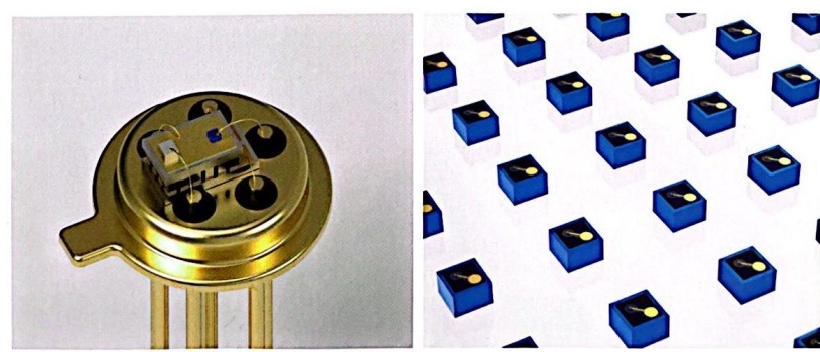

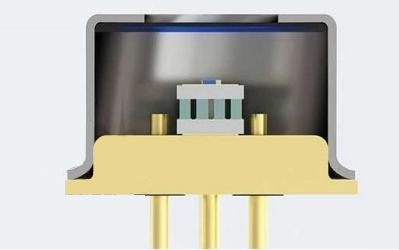

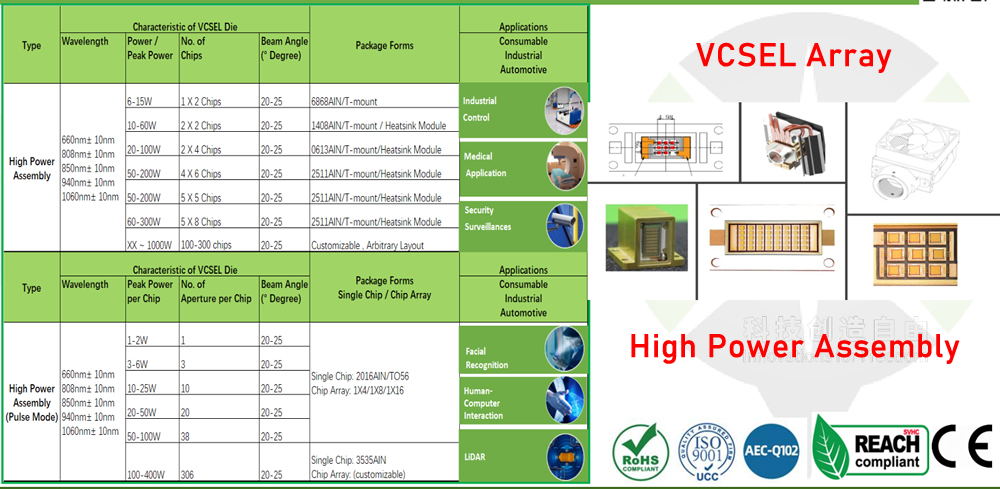

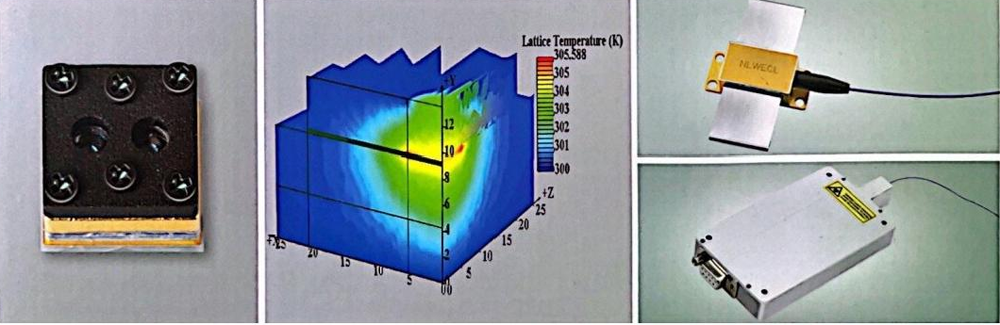

2.High-power VCSEL Diodes

Part number	Wavelength	Optical power	Beam angle	Remark
SXL-LD-0808-B015-0020CC-XXXX	808nm	15mW	20°
SXL-LD-0808-B050-0025CC-XXXX	808nm	50mW	25°
SXL-LD-0808-B060-0025CC-XXXX	808nm	60mW	25°
SXL-LD-0808-B300-0025CA-XXXX	808nm	300mW	25°	Array
SXL-LD-0808-B600-0025CA-XXXX	808nm	600mW	25°
SXL-LD-0808-C1D5-0025CA-XXXX	808nm	1.5W	25°
SXL-LD-0808-C002-0025CA-0103-A0	808nm	2W	30°
SXL-LD-0808-C003-0025CA-0103	808nm	3W	25°
SXL-LD-0808-C004-0025CC-XXXX	808nm	4W	25°
SXL-LD-0808-C005-0025CA-XXXX	808nm	5W	25°
SXL-LD-0808-C007-0025CA-XXXX	808nm	6.8W	25°
SXL-LD-0808-C008-0025CA-0614	808nm	4x2W	30°
SXL-LD-0808-C010-0025CA-XXXX	808nm	10W	25°
SXL-LD-0808-C020-0025CA-0611	808nm	20W	25°
SXL-LD-0808-C020-0025CA-0611	808nm	20W	25°
SXL-LD-0808-C030-0025CA-0611	808nm	30W	25°
SXL-LD-0808-C035-0025CA-0132	808nm	35W	25°
SXL-LD-0808-C040-0025CC-XXXX	808nm	40W	25°
SXL-LD-0808-C060-0025CA-0611	808nm	60W	25°
SXL-LD-0808-C060-0025CA-06XX	808nm	60W	25°	Array
SXL-LD-0808-C070-0025CC-0611	808nm	60W	25°	Array
SXL-LD-0808-C070-0025CC-XXXX	808nm	60W	25°	Array
SXL-LD-0808-C065-0025CA-0132	808nm	65W	25°
SXL-LD-0808-C100-0025CC-XXXX	808nm	80W	25°	Array
SXL-LD-0808-C100-0025CA-0611	808nm	100W	25°	Array
SXL-LD-0808-C200-0025CA-XXXX	808nm	140W	25°	Array
SXL-LD-0808-C200-0025CA-0611	808nm	170W	25°	Array
SXL-LD-0808-C200-0025CA-0611	808nm	200W	25°
SXL-LD-0808-C220-0025CA-0124	808nm	220W	25°	Array
SXL-LD-0808-C300-0025CA-XXXX	808nm	300W	25°	Array
SXL-LD-0850-B004-0023CA-2231	850nm	4mW	25°
SXL-LD-0850-B005-0025CA-XXXX	850nm	5mW	25°
SXL-LD-0850-B010-0023CC-XXXX	850nm	10mW	23°
SXL-LD-0850-B015-0023CC-XXXX	850nm	15mW	23°
SXL-LD-0850-B015-0025CCP-0317	850nm	15mW	25°
SXL-LD-0850-B060-0023CC-XXXX	850nm	60mW	23°
SXL-LD-0850-B100-0020CC-XXXX	850nm	100mW	24°
SXL-LD-0850-B130-0024CA-XXXX	850nm	130mW	24°
SXL-LD-0850-B200-0020CC-XXXX	850nm	200mW	20°
SXL-LD-0850-B400-0024CC-XXXX	850nm	400mW	24°
SXL-LD-0850-B700-0020CA-XXXX	850nm	700mW	20°
SXL-LD-0850-C001-0020CA-XXXX	850nm	1W	20°
SXL-LD-0850-C1D5-0020CA-0305	850nm	1.5W	20°
SXL-LD-0850-C002-0020CA-XXXX	850nm	2W	24°
SXL-LD-0850-C002-0020CA-XXXX	850nm	2.2W	24°
SXL-LD-0850-C002-0025CA-0104	850nm	2.2W	24°
SXL-LD-0850-C004-0020CA-XXXX	850nm	4W	24°
SXL-LD-0850-C006-0025CA-XXXX	850nm	6W	25°
SXL-LD-0850-C020-0025CA-XXXX	850nm	20W	25°
SXL-LD-0850-C030-0025CA-XXXX	850nm	30W	25°
SXL-LD-0850-C200-0025CA-XXXX	850nm	200W	25°
SXL-LD-0940-B010-0020CC-XXXX	940nm	10mW	20°
SXL-LD-0940-B015-00XXCCP-033X	940nm	15mW	15°
SXL-LD-0940-B020-0020CC-XXXX	940nm	18mW	20°
SXL-LD-0940-B020-0020CA-XXXX	940nm	20mW	20°
SXL-LD-0940-B020-0025CP-XXXX	940nm	20mW	20°
SXL-LD-0940-B060-0014CC-0235	940nm	60mW	14°
SXL-LD-0940-B060-0014CC-1035	940nm	60mW	14°
SXL-LD-0940-B060-0020CC-XXXX	940nm	60mW	20°
SXL-LD-0940-B060-0025CP-XXXX	940nm	60mW	25°
SXL-LD-0940-B070-00XXCCP-033X	940nm	70mW	15°
SXL-LD-0940-B140-0010CCP-0331	940nm	140mW	10°
SXL-LD-0940-B200-0020CC-XXXX	940nm	200mW	20°
SXL-LD-0940-B200-0025CP-XXXX	940nm	200mW	20°
SXL-LD-0940-B500-0020CC-XXXX	940nm	500mW	20°
SXL-LD-0940-C001-0020CA-XXXX	940nm	1W	20°
SXL-LD-0940-C002-0020CA-0103	940nm	2W	20°
SXL-LD-0940-C002-0020CA-XXXX	940nm	2W	20°
SXL-LD-0940-C004-0020CA-XXXX	940nm	4W	20°
SXL-LD-0940-C015-0025CA-XXXX	940nm	15W	25°
SXL-LD-0940-C100-0025CA-XXXX	940nm	100W	25°

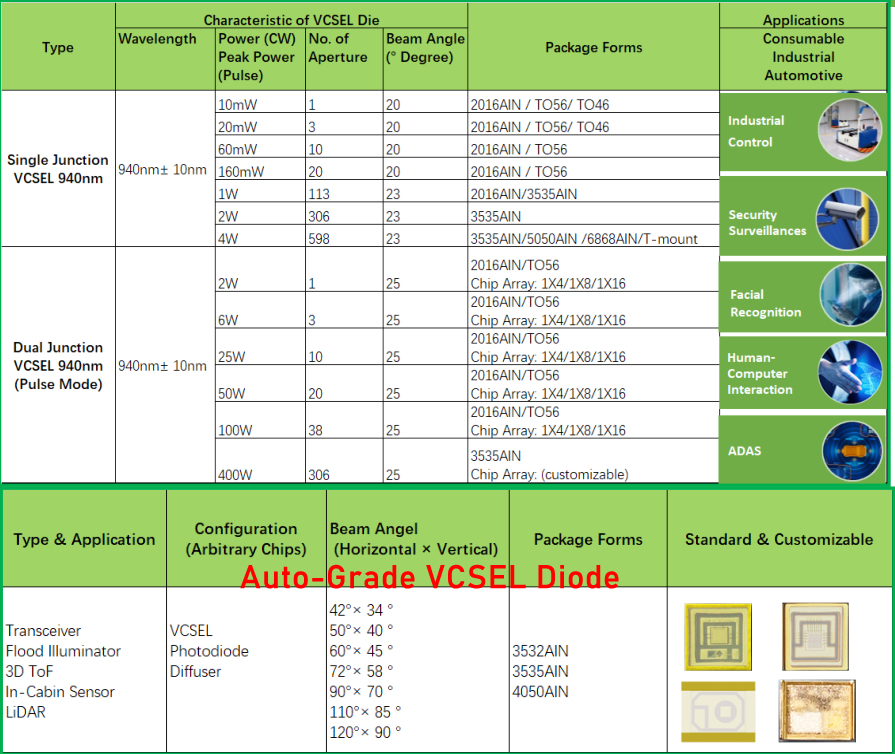

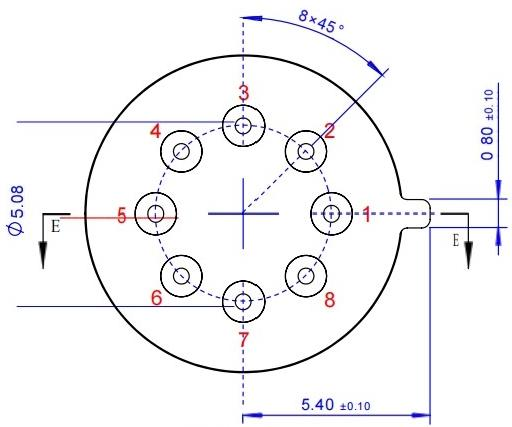

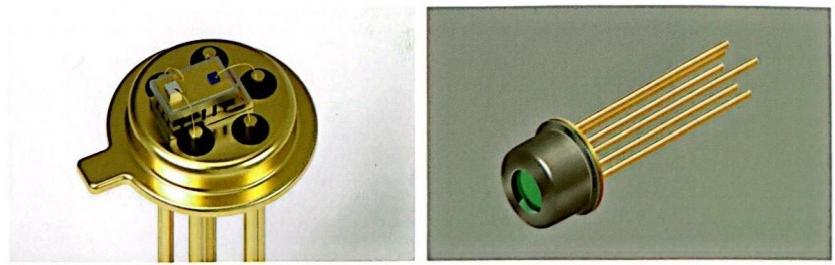

3.VCSELs for Lidar Applications

Features

Low wavelength drift
Oxide isolation technology
Low threshold current
High reliability
Easy to collimate

Applications

3D sensors
Lidars
IR illuminations
Medical applications
Proximity sensors

Part number	Wavelength	Optical power	Beam angle	Remark
SXL-LD-0808-C200-0025CAP-XXXX	808nm	150W	25°	Pulsed
SXL-LD-0808-C300-0025CAP-XXXX	808nm	192W	25°	Pulsed
SXL-LD-0850-B200-XXXXRC-0103	850nm	200mW	20°	D ToF with diffuser
SXL-LD-0850-B200-XXXXRC-0103	850nm	200mW	60° x 45° / 72° x 58° / 90° x 70° / 110° x 85° / 120° x 90°	3D TOF with diffuser
SXL-LD-0850-B700-XXXXRC-0103	850nm	700mW	60° x 45° / 72° x 58° / 90° x 70° / 110° x 85° / 120° x 90°	3D TOF with diffuser
SXL-LD-0850-B700-XXXXRA-0103	850nm	700mW	20°	D ToF with diffuser
SXL-LD-0940-C004-XXXXRA-0103	850nm	4W		With diffuser
SXL-LD-0850-C004-XXXXRA-0103	850nm	4W	60° x 45° / 72° x 58° / 90° x 70° / 110° x 85° / 120° x 90°	3D TOF with diffuser
SXL-LD-0850-C020-0020CAP-XXXX	850nm	20W	20°	Pulsed
SXL-LD-0850-C050-0020CAP-XXXX	850nm	50W	20°	Pulsed
SXL-LD-0940-C050-0025CPP-XXXX	850nm	50W	25°	Pulsed
SXL-LD-0940-B200-XXXXRC-0103	940nm	200mW	20°	3D ToF
SXL-LD-0940-B200-XXXXRC-0103	940nm	200mW	60° x 45° / 72° x 58° / 90° x 70° / 110° x 85° / 120° x 90°	3D TOF with diffuser
SXL-LD-0940-B500-XXXXRC-0103	940nm	500mW	60° x 45° / 72° x 58° / 90° x 70° / 110° x 85° / 120° x 90°	3D TOF with diffuser
SXL-LD-0940-B600-XXXXRC-0103	940nm	600mW	20°	3D ToF
SXL-LP-000E-C002-XXXXSA-0103	940nm	2W	20°	with diffuser & PD
SXL-LD-0940-C002-XXXXRA-0103	940nm	2W	20°	with diffuser
SXL-LD-0940-C002-XXXXRA-0103	940nm	2W	60° x 45° / 72° x 58° / 90° x 70° / 110° x 85° / 120° x 90°	3D TOF with diffuser
SXL-LP-000E-C004-XXXXSA-0103	940nm	4W	20°	with diffuser & PD
SXL-LD-0940-C004-XXXXRA-0103	940nm	4W	20°	with diffuser
SXL-LD-0940-C004-XXXXRA-0103	940nm	4W	60° x 45° / 72° x 58° / 90° x 70° / 110° x 85° / 120° x 90°	3D TOF with diffuser
SXL-LD-0940-C006-0025CPP-XXXX	940nm	6.5W	25°	Pulsed
SXL-LD-0940-C010-0020CBP-XXXX	940nm	10W	20°	Pulsed
SXL-LD-0940-C025-0025CPP-XXXX	940nm	22W	25°	Pulsed
SXL-LD-0940-C025-0025CPP-XXXX	940nm	25W	25°	Pulsed
SXL-LD-0940-C050-0025CPP-XXXX	940nm	50W	25°	Pulsed
SXL-LD-0940-C100-0025CPP-XXXX	940nm	100W	25°	Pulsed
SXL-LD-0940-C400-XXXXRA-0103	940nm	400W	25°	Pulsed with diffuser
SXL-LD-0940-C400-0025CPP-XXXX	940nm	400W	25°	Pulsed

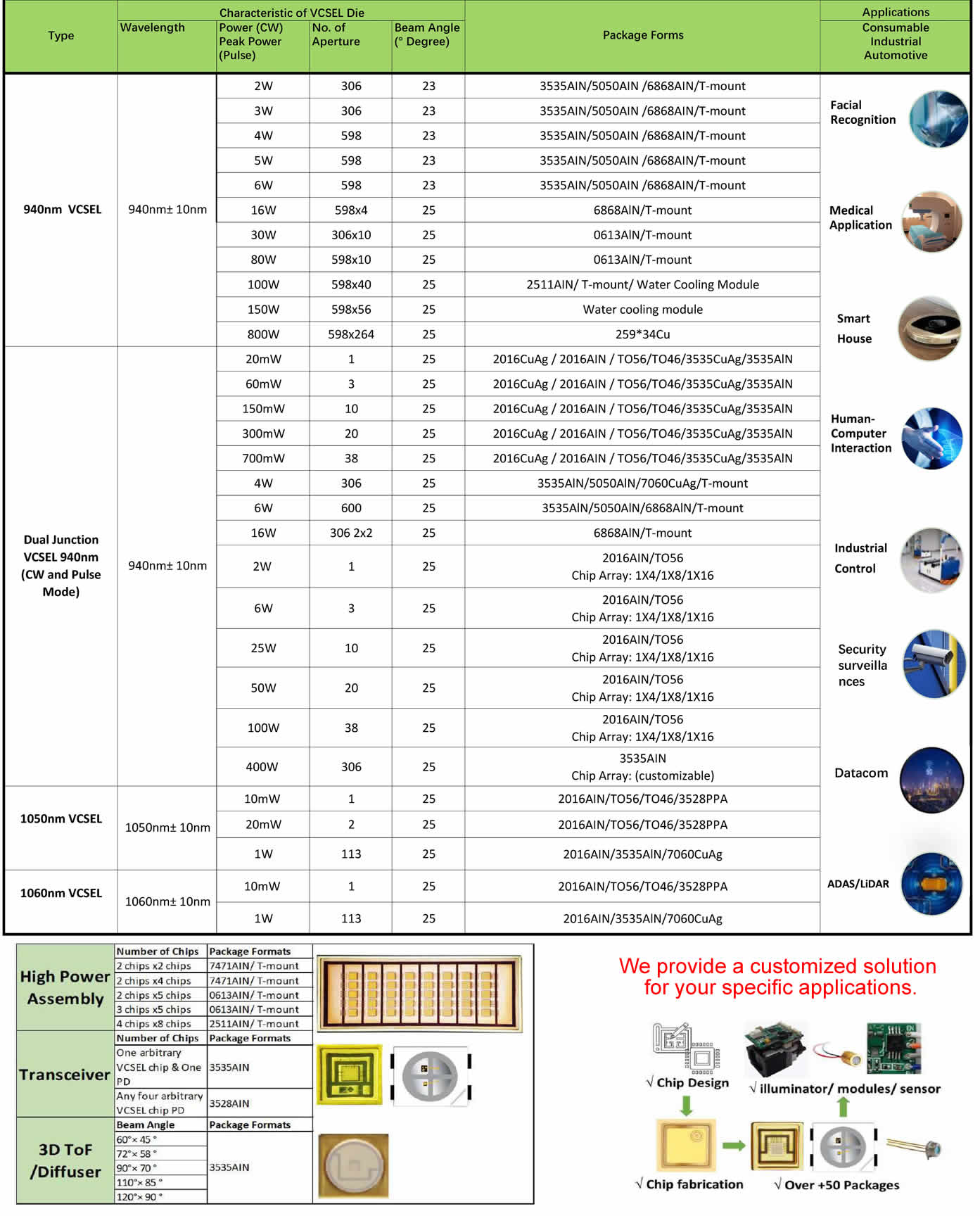

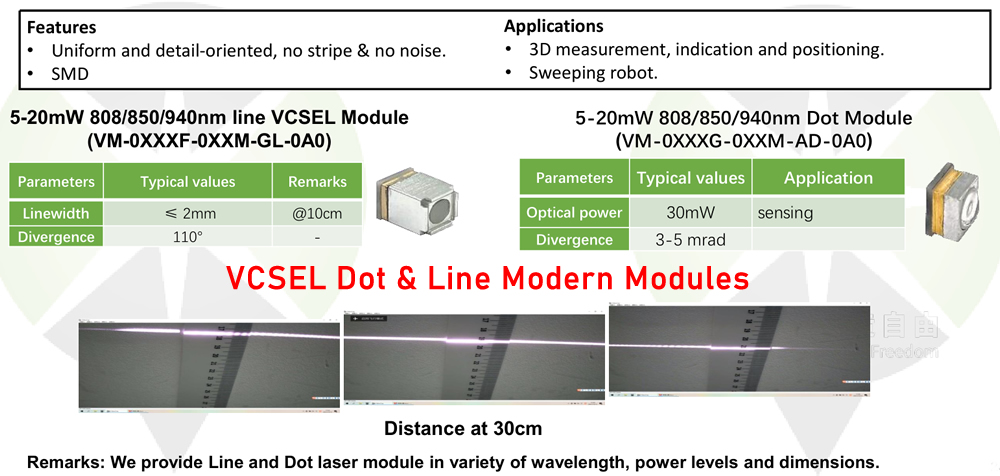

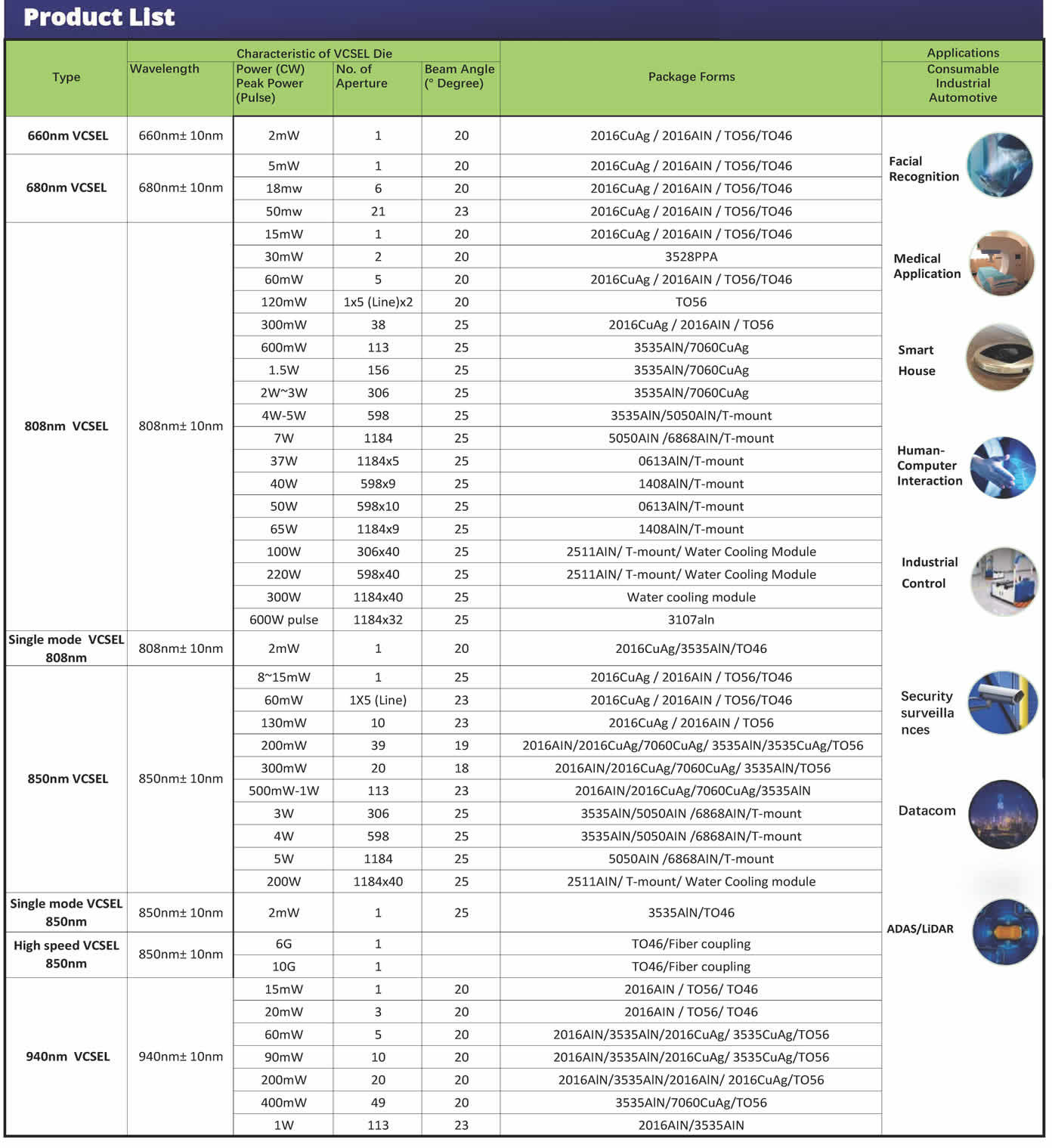

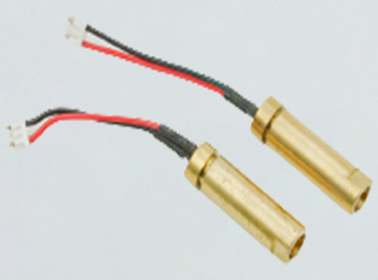

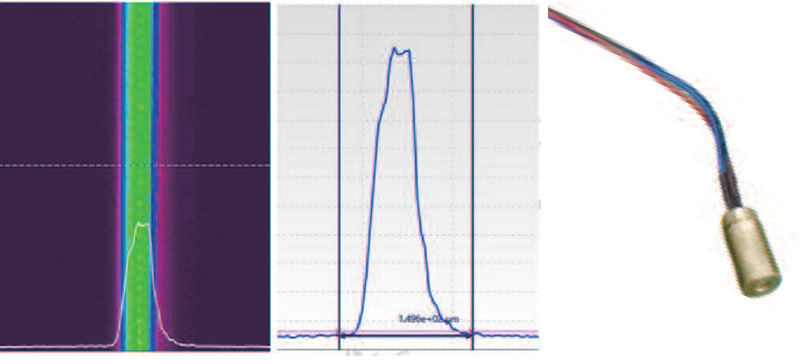

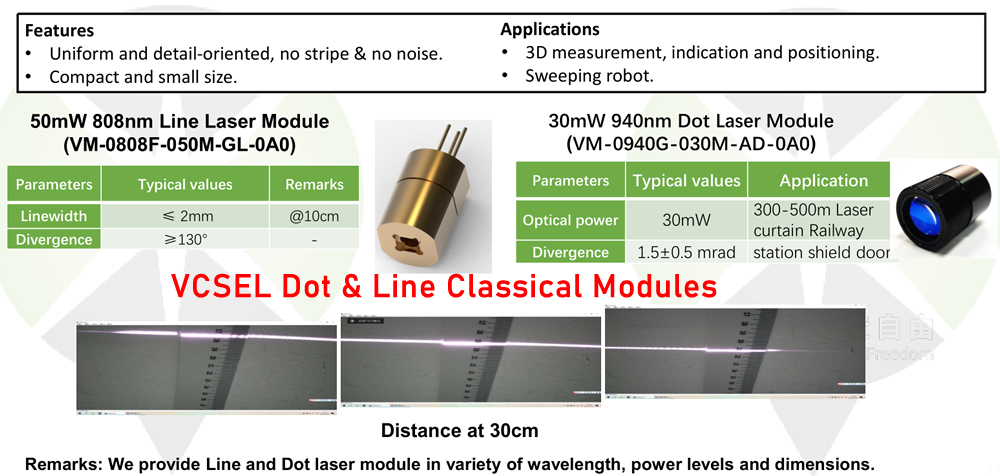

4.VCSEL Dot and Line Modules

Part number	Wavelength (nm)	Optical power (mW)	Spot shape	Illumination distance (m)	Dimension (mm)
SXL-LM-0850-B006-0913LA	850	6	Line		φ9 × L13.0
SXL-LM-0650-B001-0917LA	650	0.7	Line		φ9 × L17.0
SXL-LM-0940-B080-1059LA	940	80	Line		φ9 × L10.5
SXL-LM-0940-B060-0911LA	940	60	Line		φ9 × L11
SXL-LM-0405-B005-0614LA	405	5	Line		Φ6 ×L13.7
SXL-LM-0405-B005-0714LA	405	5	Line		Φ7 ×L13.7
SXL-LM-0808-B050-0607LA	808	50	Line		L6.5×φ6
SXL-LM-0850-B025-0911LA	850	25	Line		φ9×L11
SXL-LM-0940-B015-0913LA	940	15	Line		φ9×L13.0
SXL-LM-0940-B030-0913LA	940	30	Line		φ9 ×L13.0
SXL-LM-0808-B050-0811LA-0120	808	50	Line		Φ8×L11
SXL-LM-0635-B001-1322LC	635	0.95	Line		L22×φ13

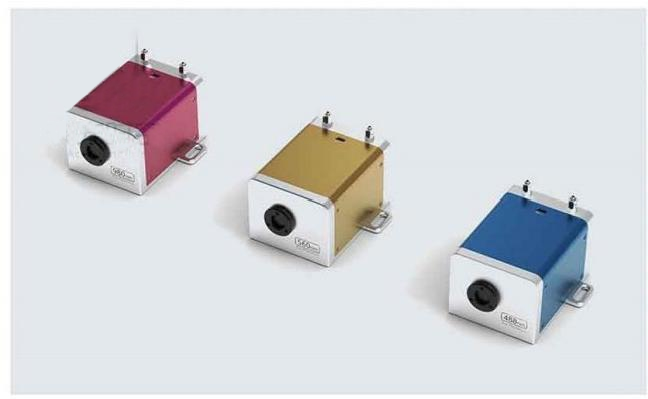

SXL-LM-0450-B002-5057LA	450	2mW	Line	10	L50×W50×H57
SXL-LM-0650-B001-0917LA	650	1mW	Line	＞0.156	L17.0 × φ 9
SXL-LM-0850-B006-0913LA	850	6mW	Line	0.5-1	L13.0 × Φ 9
SXL-LM-0940-B018-2046LP	940	18mW	Line	/	Φ20x45.5
SXL-LM-0940-B020-0913LA	940	15mW	Line	＞0.3	L13.0 ×Φ9
SXL-LM-0940-B060-0913LA	940	30mW	Line	＞0.3	L13.0 ×Φ9
SXL-LM-0940-B080-0911LA	940	80mW	Line	＞0.3	L10.5 × Φ 9
SXL-LM-0940-B100-0911LA	940	100mW	Line	＞0.3	L10.5 × Φ9
SXL-LM-0656-B030-1512DA	656	30	Dot		L15.0 ×φ12.0
SXL-LM-0940-B004-0711DC	940	4	Dot		Φ6.5x10.5
SXL-LM-0650-B003-1120DA	650	3	Dot		M11.5(φ10.5)×L19.3
SXL-LM-0650-B003-1120DC	650	3	Dot		M11.5(φ10.5)×L19.3
SXL-LM-0650-B004-1120DA	650	4	Dot		M11.5(φ10.5)×L19.3
SXL-LM-0940-B030-2432DA	940	30	Dot		Φ24x32
SXL-LM-0520-B004-1120DC	520	4	Dot		M11.5(φ10.5)×L19.3
SXL-LM-0520-B004-1120DA	520	4	Dot		M11.5(φ10.5)×L19.3
SXL-LM-0650-B003-0711DC	650	3	Dot		L10.5×φ6.5
SXL-LM-0850-B006-0722DA	850	3	Dot		φ6.5*L22
SXL-LM-0850-B004-0711DC	850	4	Dot		Φ6.5x10.5
SXL-LM-0450-B026-1120DA	450	26mW	Dot	500	M11.5(φ10.5)×L19.3
SXL-LM-0520-B004-1120DA	520	4mW	Dot	500	M11.5(φ10.5)×L19.3
SXL-LM-0650-B001-0818DB	650	1mW	Dot	/	L18.0 ×φ8
SXL-LM-0650-B003-1120DA	650	3mW	Dot	500	M11.5(φ10.5)×L19.3
SXL-LM-0850-B006-0722DA	850	3mW	Dot	6	L22 × Φ6.5
SXL-LM-0850-B006-0919DA	850	2mW	Dot	20	L19 × Φ 9
SXL-LM-0850-B200-0913DA	850	200mW	Dot	0.5-1	L12.5 × Φ 9
SXL-LM-0940-B060-0919DA	940	30mW	Dot	20	L19 × Φ9
SXL-LM-0940-B004-0711DC	940	4	Dot	0.25	Φ6.5x10.5
SXL-LM-0850-A200-1010DA	850	0.2	Dot	＞0.2	Φ10×L10
