780/1555/1560nm FS Fiber Laser

780/1555/1560nm FS Fiber Laser

Keywords: femto-second, picosecond, ultrafast fiber laser
Feb 15, 2021 View: 2918 Data Sheet

Our femtosecond laser sources are based on robust and well-engineered designs, offering an excellent reliability with the low-noise performance from soliton mode-locking. Robust 24/7 operation, user-friendly and self-starting, our lasers have been mad

SMR Series Femtosecond Pulse Fiber Lasers

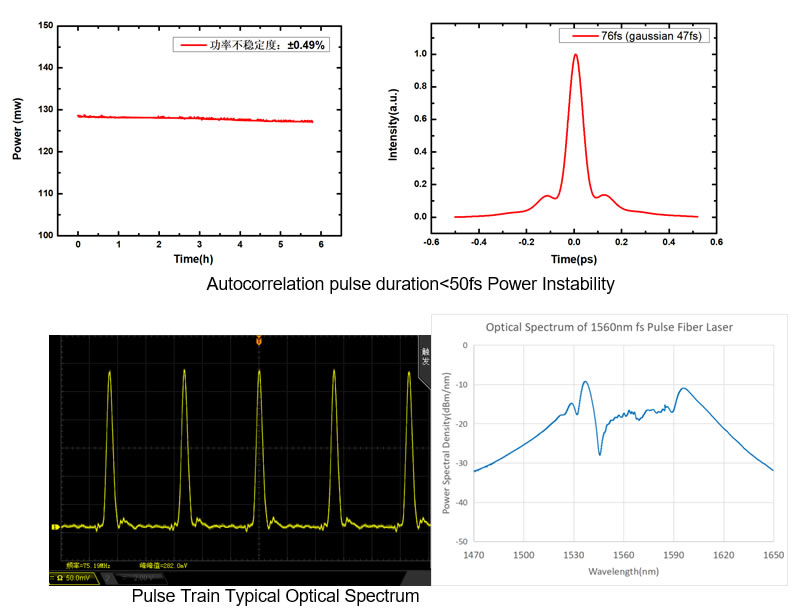

1.1560nm Femtosecond Pulse Fiber Laser

E-fiber series ultrafast lasers integrate the latest femtosecond laser technology. The stable output of 1560 nm femtosecond pulse laser is realized by using high-performance erbium-doped fiber as working medium and high-precision dispersion compensation technology. The output laser pulse has the characteristics of extremely narrow duration and high pulse peak power. The laser is a turnkey product with long-term stable operation and maintenance free. It can be widely used in the research fields of optical frequency comb, supercontinuum, terahertz and so on. Specific combination of pulse duration, repetition rate and average power is customizable.

Features

  • Pulse duration<50fs

  • 1560 nm wavelength

  • Turn-Key Product

  • All PM fiber Laser cavity

Applications

  • Optical Frequency Comb

  • Supercontinuum

  • THz

  • Ultra Fast Laser Research

ParametersUnitTypical ValueRemarks
Center Wavelengthnm1560±10
Spectrum Widthnm2060
Pulse Durationfs100/200/500Customizable
Average PowermW1~120Customizable
Power Instability-< ±1%
Repetition RateMHz80
Repetition Rate InstabilityHz< 100
Pulse EnergynJ>1
Polarization-LinearAligned to Slow Axis
Fiber Type-PM Fiber 0.5mPM Fiber 2m
Fiber connector-FC/APC
Worm Up timemin< 1
General ParametersBenchtopModule
Control functionPush Button in Front PanelRS232 Serial Port
Synchronous electrical signal portSMASMA
Power SupplyAC100~240V, <30WDC5V, <20W
Dimensions(mm)260(W)×280(D)×120(H)200(W)×121(D)×65(H)
Operation Temperature5 ~ 35°C
Operation Humidity0~70%

Ordering Information/Product Code
SMR-FSPLWL(nm)Pulse Duration(fs)Power(mW)Freq (MHz)FiberPackaging

1560100/200/50010/50/10080/100SM
PM
B=Benchtop
M=Module

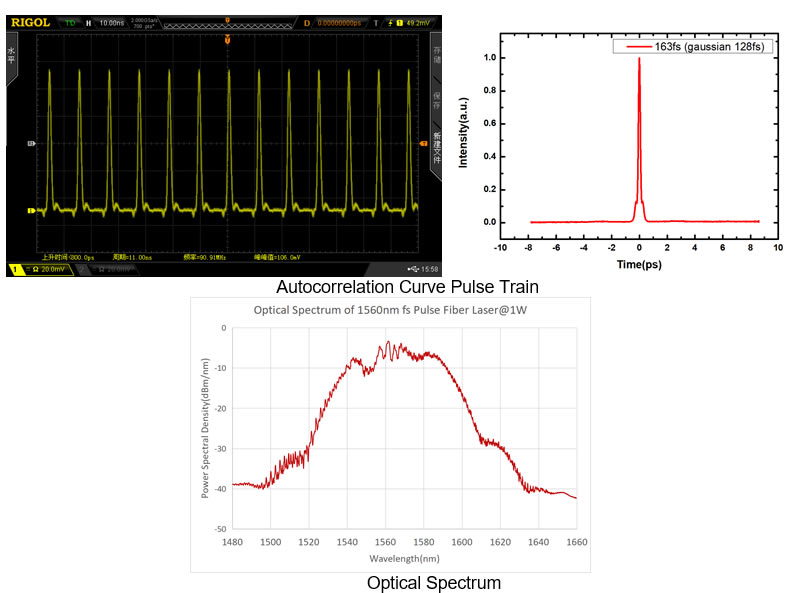

2.1560nm High-Power Femtosecond Pulse Fiber Laser

E-fiber series ultrafast lasers integrate the latest femtosecond laser technology. The stable output of 1560 nm femtosecond pulse laser is realized by using high-performance erbium-doped fiber as working medium and high-precision dispersion compensation technology. The average power can be 1 Watt. The laser is a turnkey product with long-term stable operation and maintenance free. It can be widely used in the research fields of optical frequency comb, supercontinuum, terahertz and so on. Specific combination of pulse duration, repetition rate and average power is customizable.

Features

  • Pulse duration < 120fs

  • Average Power 1W

  • Turn-Key Product

  • ALL PM fiber Laser cavity

Applications

  • Optical Frequency Comb

  • Supercontinuum Light

  • THz Generation

  • Ultra Fast Laser Research

ParametersUnitTypical ValueRemarks
Center Wavelengthnm1560±10
Pulse Durationfs≤120Customizable
Average PowerW1Customizable
Power Instability-< ±1%24h@25°C
Repetition RateMHz80~100Customizable
Pulse EnergynJ>10
Polarization-LineVertical
DOPdB>20dB
Output-Free  Space
M2-<1.2TEM00
Beam Diametermm≤1.6* 1/e2 Waist Diameter
Divergence Anglemrad<1.5
Worm Up timemin< 1
General ParametersUnitValueRemarks
Synchronous signal Port-SMA
Operation temperature°C5 ~ 45
Power Supply-AC 110~240VACPower <40W
Dimensionmm330(W)×398(D)×112(H)Benchtop
Weightkg≤5

Ordering Information/Product Code
SMR-FSPLWL(nm)Pulse Duration(fs)Power(mW)Freq (MHz)FiberPackaging

1560120100080/100FS=Free SpaceB=Benchtop

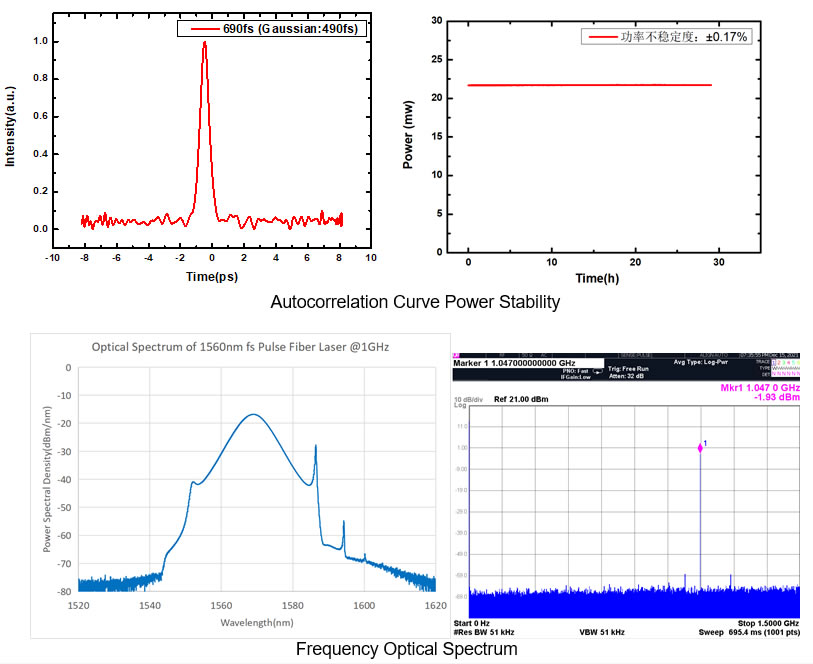

3.1560nm High Frequency Femtosecond Pulse Fiber Laser

E-fiber series ultrafast lasers integrate the latest femtosecond laser technology. The stable output of 1560 nm femtosecond pulse laser is realized by using high-performance erbium-doped fiber as working medium and high-precision dispersion compensation technology. The laser has high repetition rate. The laser is a turnkey product with long-term stable operation and maintenance free. It can be widely used in the research fields of optical frequency comb, supercontinuum, terahertz and so on. Specific combination of pulse duration, repetition rate and average power is customizable.

Features

  • Pulse duration 50~500 fs

  • Repetition Rate 200MHz~1GHz Customizable

  • Turn-Key Product

  • ALL PM fiber Laser cavity

Applications

  • Optical Frequency Comb

  • Supercontinuum Light

  • THz Generation

  • Ultra fast Laser Research

ParametersUnitTypical ValueRemarks
Center Wavelengthnm1560±10
Spectrum Widthnm20
Pulse Durationfs50 ~ 500Customizable
Average PowermW1 ~ 200Customizable
Power Instability-< ±1%
Repetition RateMHz≥ 200200MHz~1GHz
Repetition Rate InstabilityHz< 200
Pulse EnergynJ> 1
Polarization-LinearAligned to Slow Axis
Fiber Type-PM fiber, 1m
Fiber connector-FC/APC
Worm Up timemin< 1
General ParametersBenchtopModule
Control functionPush Button in Front PanelRS232 Serial Port
Synchronous electrical signal portSMASMA
Power SupplyAC100~240V, <30WDC5V, <20W
Dimensions(mm)260(W)×280(D)×120(H)200(W)×121(D)×65(H)
Operation Temperature5 ~ 35°C
Operation Humidity0~70%

Ordering Information/Product  Code
SMR-FSPLWL(nm)Pulse Duration(fs)Power(mW)Freq (MHz)FiberPackaging

156050/100/200/50010/50/100200/600/1000SM
PM
B=Benchtop
M=Module

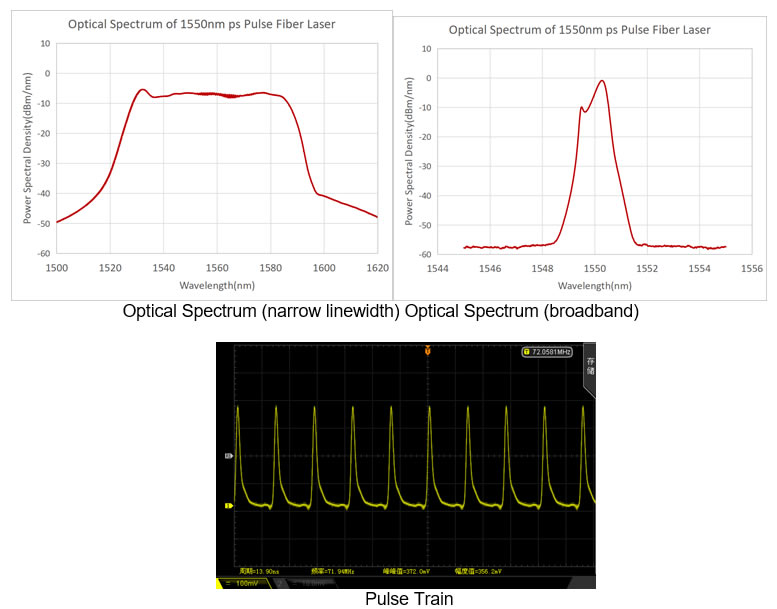

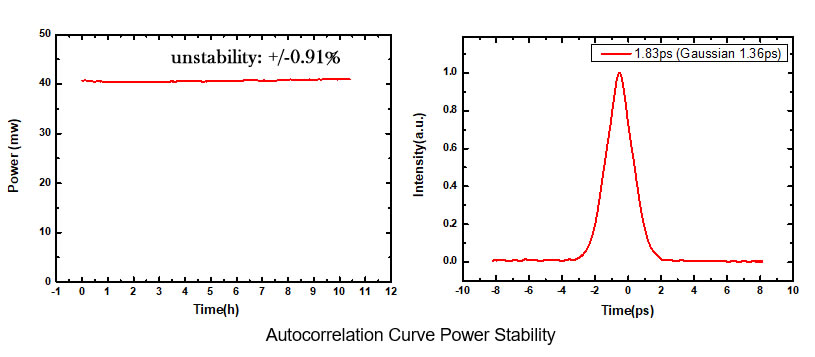

4.1560nm Picosecond Pulse Fiber Laser

Specific combination of pulse duration, repetition rate and average power is customizable.

Features

  • Pulse Duration 1~100ps

  • Center Wavelength 1530~1560 nm

  • Turn-Key Product

  • ALL PM fiber Laser cavity

Applications

  • Optical Frequency Comb

  • Supercontinuum Light

  • THz Generation

  • Ultra fast Laser Research

ParametersUnitTypical ValueRemarks
Center Wavelengthnm1530~1560Customizable
Spectrum Widthnm0.5~50
Pulse Durationps1/10/50/100Customizable
Average PowermW1~120Customizable
Power Instability-< ±1%
Repetition RateMHz80Customizable
Repetition Rate InstabilityHz< 100
Pulse EnergynJ>1
Polarization-LinearAligned to Slow Axis
Fiber Type-PM Fiber
Fiber connector-FC/APC
Worm Up timemin< 1
General ParametersBenchtopModule
Control functionPush Button in Front PanelPush Button in Front Panel
Synchronous electrical signal portSMASMA
Power SupplyAC100~240V, <30WDC5V, <20W
Dimensions(mm)260(W)×280(D)×120(H)200(W)×121(D)×65(H)mm
Operation Temperature5 ~ 35°C
Operation Humidity0~70%

Ordering Information/Product  Code
SMR-PSPLWL(nm)Pulse Duration(fs)Power(mW)Freq (MHz)FiberPackaging

156050/100/200/

500

10/50/10080/100SM

PM

B= benchtop

M=Module

5.780nm Femtosecond Pulse Fiber Laser

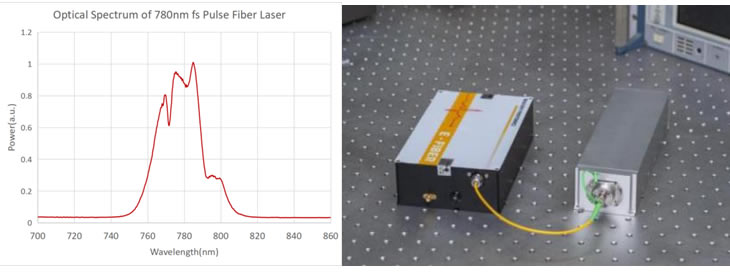

The 780nm is generated by second-harmonic of 1560nm. The laser is a turnkey product with long-term stable operation and maintenance free. It can be widely used in the research fields of optical frequency comb, supercontinuum, terahertz and so on. Specific combination of pulse duration, repetition rate and average power is customizable.

Features

  • 100fs

  • Turn-Key Product

  • All PM fiber Laser cavity

Applications

  • multiphoton

  • two-photonabsorption

  • UltrafastOptics

ParametersUnitTypical ValueRemarks
Center Wavelengthnm780±10
Spectrum Widthnm20
Pulse Durationfs<100Customizable
Average PowermW>30Customizable
Power Instability-< ±1%
Repetition RateMHz80Customizable
Repetition Rate InstabilityHz< 100
Pulse EnergynJ> 0.4
Polarization-Linear
Fiber Type-Free Space
Fiber connectormin< 1
General ParametersBenchtopModule
Control functionPush Button in Front PanelPush Button in Front Panel
Synchronous electrical signal portSMASMA
Power SupplyAC100~240V, <30WDC5V, <20W
Dimensions(mm)260(W)×280(D)×120(H)mm200(W)×121(D)×65(H)mm
Operation Temperature5 ~ 35°C
Operation Humidity0~70%
Ordering Information/Product  Code
SMR-FSPLWL (nm)Pulse Duration(fs)Power (mW)Freq (MHz)FiberPackaging

78050/100/200/5001/10/50/
100
80/100FS=Free SpaceB= benchtop
M=Module

STMH Series GHz 1550nm Femtosecond Fiber Lasers

Our femtosecond laser sources are based on robust and well-engineered designs, offering an excellent reliability with the low-noise performance from soliton mode-locking. Robust 24/7 operation, user-friendly and self-starting, our lasers have been made to facilitate OEM integration and enable customers’ applications.

Key Features:

  • Ultra low-noise

  • Transform-limited pulses

  • Hermetically sealed laser

  • Compact industrial design

  • User-friendly

  • 24/7 operation

  • All-in-one system

Main Applications:

  • Optical communication

  • Precision microwave

  • THz generation

  • Amplifier seeder

  • Timing distribution

  • Frequency comb

  • A/O converter

Key Specifications:

  • Wavelength: 1550nm

  • Repetition rate: up to 2.5GHz

  • Clean soliton pulses:<200fs

  • Options:

  • Repetition rate stabilization

  • Customised repetition rate

  • OEM version


STMH-1550STMH-1550+
ConstructionOscillator, no amplifierWith amplifier
Average power>50mWUp to 2W
Peak power>0.1kWUp to 4kW
Pulse energy>0.05nJUp to 1nJ
Repetition rateStandard – 250, 500MHz, 1, 1.25, 2 or 2.5GHz.

Custom design – 200MHz to 2.5GHz

Standard – 250, 500MHz, 1, 1.25, 2 or 2.5GHz.

Custom design – 200MHz to 2.5GHz

Center wavelength1555nm +/- 10nm1555nm +/- 10nm
Spectral bandwidth>10nm at 3dB>10nm at 3dB
Pulse width<250fs, transform-limited<250fs, transform-limited
Optical output portFiber output (PM FC/APC), free-spaceFiber output (PM FC/APC), free-space
Beam qualityTEM00, M2<1.05TEM00, M2<1.05
PolarisationLinear (PER>23dB, >200:1)Linear (PER>23dB, >200:1)
Amplitude noise<0.1% RMS (24h)<0.1% RMS (24h)
Timing jitter<30fs (1kHz – 10MHz)<30fs (1kHz – 10MHz)
Power supply5VDC/2A24VDC/2A
Power consumption<10W<50W
CoolingPassively air-cooledPassively air-cooled
Warm-up time<10s (cold start)<10s (cold start)
Laser head size/weight240x160x89mm/5kg240x160x89mm/5kg
Control unitNo control unit requiredNo control unit required
Operation temperature+5oC to +45oC+5oC to +45oC
Storage temperature-10oC to +60oC-10oC to +60oC
Relative humidity<80% (non-condensing)<80% (non-condensing)
Analog interfaceEg. Power mod, alarm, interlock, trigger, statusEg. Power mod, alarm, interlock, trigger, status
Digital interfaceUSA, RS232, ETHERNET, CANUSA, RS232, ETHERNET, CAN

Specifications

And find more about the full characterization of two versions of our lasers: STMH-1550 at 1 GHz laser and STMH-1550 at 250 MHz.

1. STMH-1550 SERIES at 1 GHz

It is the first industrial-grade laser of its kind that operates at telecom wavelengths and achieves the lowest phase noise and timing jitter on the market. In this document, we report the full characterization of the product operating at a repetition rate of 1 GHz.

Key product specifications

1550nm femto-second fiber laser

  • Frep: 1 GHz

  • Power: > 50 mW

  • λ0 : 1545 – 1565 nm

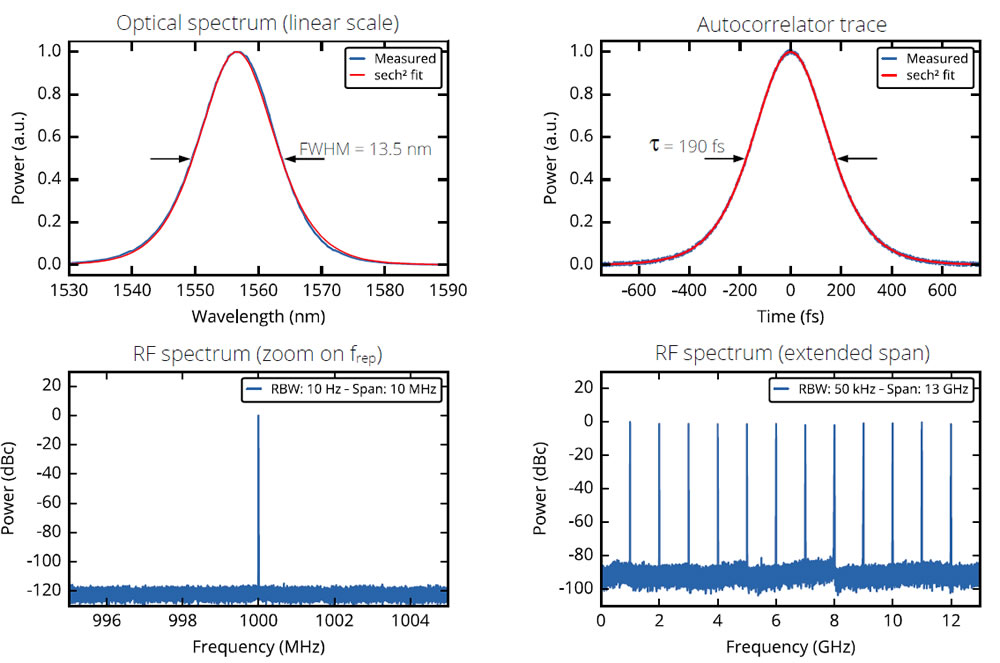

  • Clean soliton pulse

  • Bandwidth: > 10 nm

  • Pulse width: < 250 fs (Transform limited)

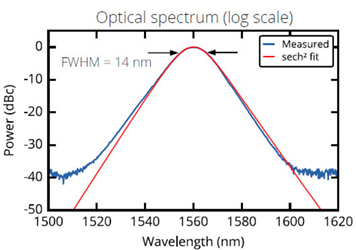

  • Sech2-shaped spectrum

  • Beam characteristics: TEM00, M2 < 1.05

1550nm femto-second fiber laser

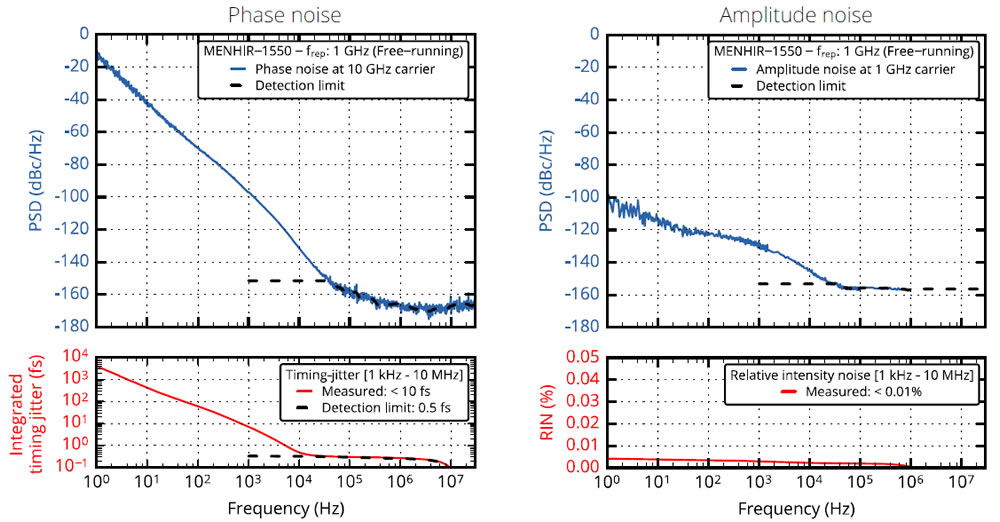

Noise characterization (Free-running)

The free-running phase and amplitude noise of a STMH-1550 at 1 GHz is reported here. The phase noise was measured on the 10th harmonic, i.e., at 10 GHz.

1550nm femto-second fiber lasers

Offset frequency (fc)Phase noise (dBc/Hz) 1 GHz carrier 10 GHz carrierTiming-jitter (fs) [fc – 10 MHz]Amplitude noise (RMS) [fc – 10 MHz]
10 kHz< -150< -130< 1< 0.01%
1 kHz< -115< -95< 10< 0.01%
100 Hz< -90< -70< 100< 0.01%
1 Hz< -30< -10< 5000< 0.02%

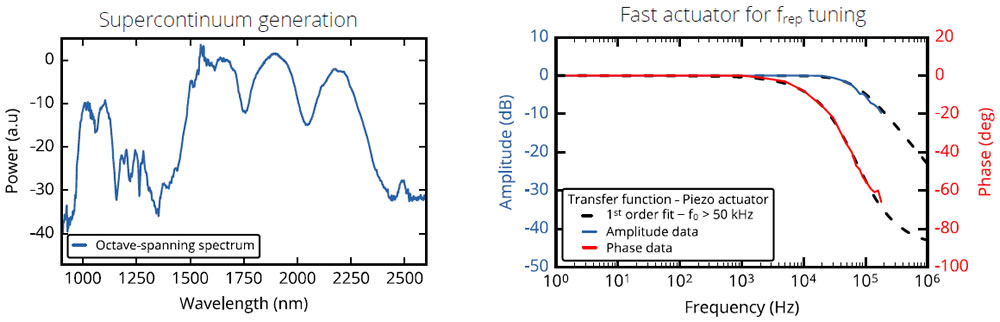

Possibilities and options:

1550nm fs fiber lasers

2. STMH-1550 SERIES — 250 MHz

The STMH-1550 SERIES is the first industrial-grade laser of its kind that operates at telecom wavelengths and achieves the lowest phase noise and timing jitter on the market. In this document, we report the full characterization of the product operating at a repetition rate of 250 MHz.

1550nm fs fiber lasers

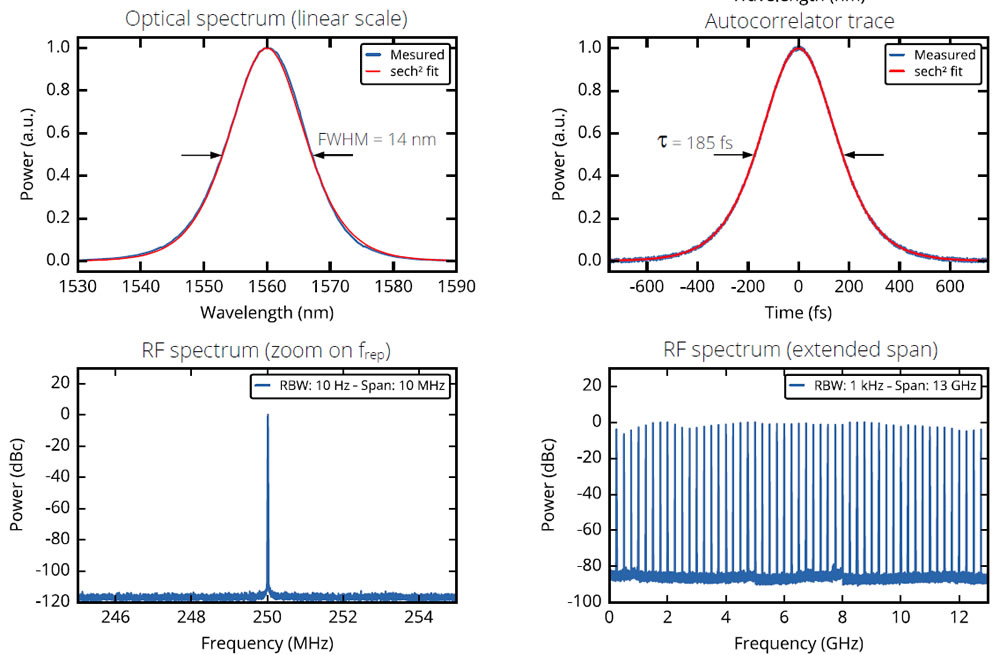

Key product specifications

  • Frep: 250 MHz

  • Power: > 100 mW

  • λ0 : 1545 – 1565 nm

  • Clean soliton pulse

  • Bandwidth: > 10 nm

  • Pulse width: < 250 fs (Transform limited)

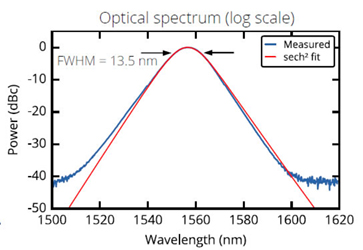

  • Sech2-shaped spectrum

  • Beam characteristics: TEM00, M2 < 1.05

1550nm femto-second fiber laser

Noise characterization (Free-running)

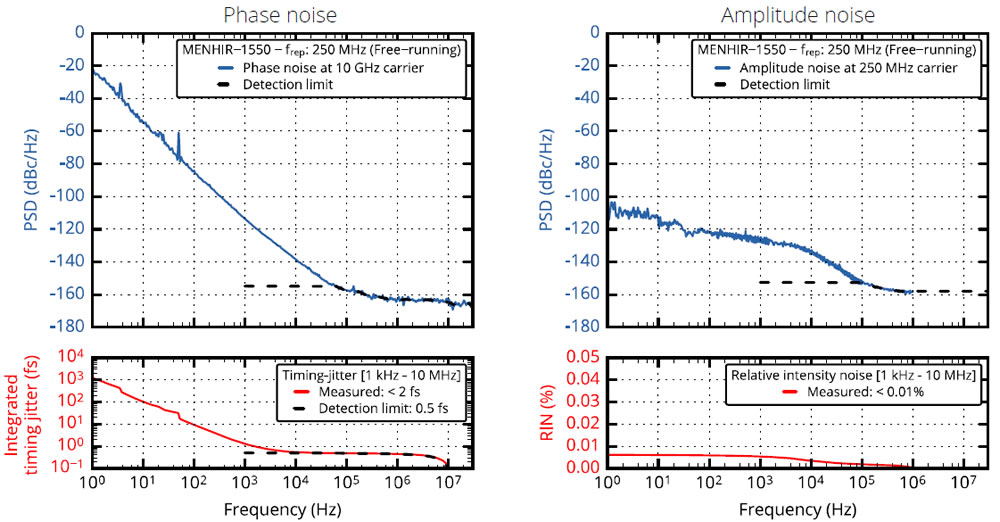

The free-running phase and amplitude noise of a MENHIR-1550 at 250 MHz is reported here. The phase noise was measured on the 40th harmonic, i.e., at 10 GHz.

1550nm femto-second fiber laser

Offset frequency (fc)Phase noise (dBc/Hz) 1 GHz carrier 10 GHz carrierTiming-jitter (fs) [fc – 10 MHz]Amplitude noise (RMS) [fc – 10 MHz]
10 kHz< -155< -135< 1< 0.01%
1 kHz< -140< -110< 2< 0.01%
100 Hz< -110< -80< 10< 0.01%
1 Hz< -50< -20< 1500< 0.02%

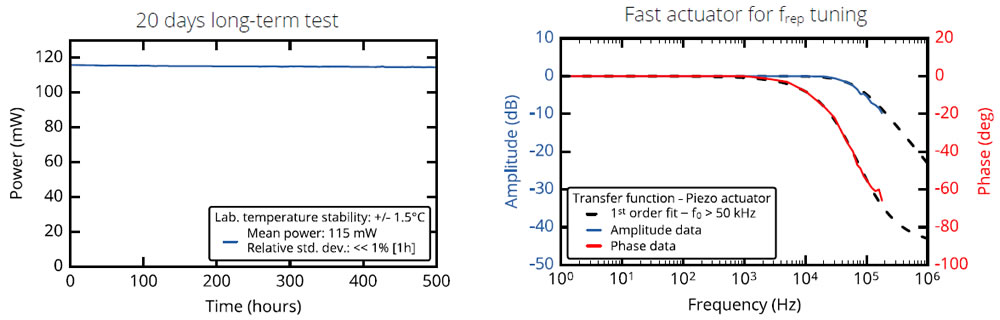

Possibilities and options:

1550nm fs fiber lasers
