We offer multi-line laser/ multi-wavelength laser combiner systems in free space and fiber output, it can combine multiple wavelengths into one box, with optional USB or RS232 control. The wavelengths are avail

STW Series Multi-wavelength Laser Diodes

1. Dual-Wavelength Fiber Coupled Laser Diode Module

multi-wavelength diodes

405nm~1550nm dual-wavelength high power fiber coupled diode laser module with aiming beam.

Part number Wavelength1 Wavelength2 Fiber core Package
STW-LB-445/001-635/700m-H 445nm/1W 635nm/700mW <300um P2
STW-LX-780-001-H-A 780nm/1W 650nm/2mW 200um 4-Pin/9-Pin
STW-LB-780/1500m-650/750m-H 780nm/1.5W 650nm/750mW <300um P2
STW-LX-808-800m-H-A 808nm/800mW 650nm/2mW 200um 4-Pin/9-Pin
STW-LX-808-001-H-A 808nm/1.5W 650nm/2mW 200um 4-Pin/9-Pin
STW-LX-808-002-H-A 808nm/2W 650nm/2mW 200um 4-Pin/9-Pin
STW-LX-808-004-H-A 808nm/4W 650nm/2mW 200um 4-Pin/9-Pin
STW-LX-808-005-H-A 808nm/5W 650nm/2mW 200um 4-Pin/9-Pin
STW-LX-808-008-H-A 808nm/8W 650nm/2mW 200um 4-Pin/9-Pin
STW-LB-808/005-650/350m-H 808nm/5W 650nm/350mW <400um P2
STW-LB-808/008-650/350m-H 808nm/8W 650nm/350mW <400um P2
STW-LB-808/012-650/350m-H 808nm/12W 650nm/350mW <400um P2
STW-LB-808/015-650/350m-H 808nm/15W 650nm/350mW <400um P2
STW-LB-808-012-H-A 808nm/12W 650nm/2mW <400um P2
STW-LB-808-015-H-A 808nm/15W 650nm/2mW <400um P2
STW-LB-808-020-H-A 808nm/20W 650nm/2mW <400um P2
STW-LX-830-001-H-A 830nm/1W 650nm/2mW 200um 4-Pin/9-Pin/14-Pin
STW-LX-830-002-H-A 830nm/2W 650nm/2mW 200um 4-Pin/9-Pin
STW-LB-830-012-H-A 830nm/12W 650nm/2mW <400um P2
STW-LB-880-002-H-A 880nm/2W 650nm/2mW 250um 9-Pin
STW-LB-880-012-H-A 880nm/12W 650nm/2mW <400um P2
STW-LX-915-004-H-A 915nm/4W 650nm/2mW 200um 4-Pin/9-Pin
STW-LX-940-002-H-A 940nm/2W 650nm/2mW 200um 4-Pin/9-Pin
STW-LX-940-004-H-A 940nm/4W 650nm/2mW 200um 4-Pin/9-Pin
STW-LB-940/004-650/350m-H 940nm/4W 650nm/350mW <300um P2
STW-LB-940-012-H-A 940nm/12W 650nm/2mW <400um P2
STW-LB-940/012-650/350m-H 940nm/12W 650nm/350mW <400um P2
STW-LB-940-015-H-A 940nm/15W 650nm/2mW <400um P2
STW-LB-940/015-650/350m-H 940nm/15W 650nm/350mW <400um P2
STW-LB-940-020-H-A 940nm/20W 650nm/2mW <400um P2
STW-LX-980-002-H-A 980nm/2W 650nm/2mW 200um 4-Pin/9-Pin
STW-LX-980-004-H-A 980nm/4W 650nm/2mW 200um 4-Pin/9-Pin
STW-LB-980/004-650/350m-H 980nm/4W 650nm/350mW <300um P2
STW-LB-980/008-650/350m-H 980nm/8W 650nm/350mW <300um P2
STW-LB-980-012-H-A 980nm/12W 650nm/2mW <400um P2
STW-LB-980/012-650/350m-H 980nm/12W 650nm/350mW <400um P2
STW-LB-980-015-H-A 980nm/15W 650nm/2mW <400um P2
STW-LB-980/015-650/350m-H 980nm/15W 650nm/350mW <400um P2
STW-LB-980-020-H-A 980nm/20W 650nm/2mW <400um P2
STW-LX-1064-002-H-A 1064nm/2W 650nm/2mW 200um 4-Pin/9-Pin
STW-LB-1064-004-H-A 1064nm/4W 650nm/2mW <300um P2
STW-LB-1064-006-H-A 1064nm/6W 650nm/2mW 400um P2
STW-LB-1064-012-H-A 1064nm/12W 650nm/2mW <400um P2
STW-LX-1064-004-H-A 1064nm/4W 650nm/2mW 200um 4-Pin/9-Pin
STW-LB-1470-003-H-A 1470nm/3W 650nm/2mW <300um P2
STW-LB-1470-006-H-A 1470nm/6W 650nm/2mW <400um P2
STW-LB-1470-012-H-A 1470nm/12W 650nm/2mW <400um P2
STW-LB-1470-015-H-A 1470nm/15W 650nm/2mW <400um P2

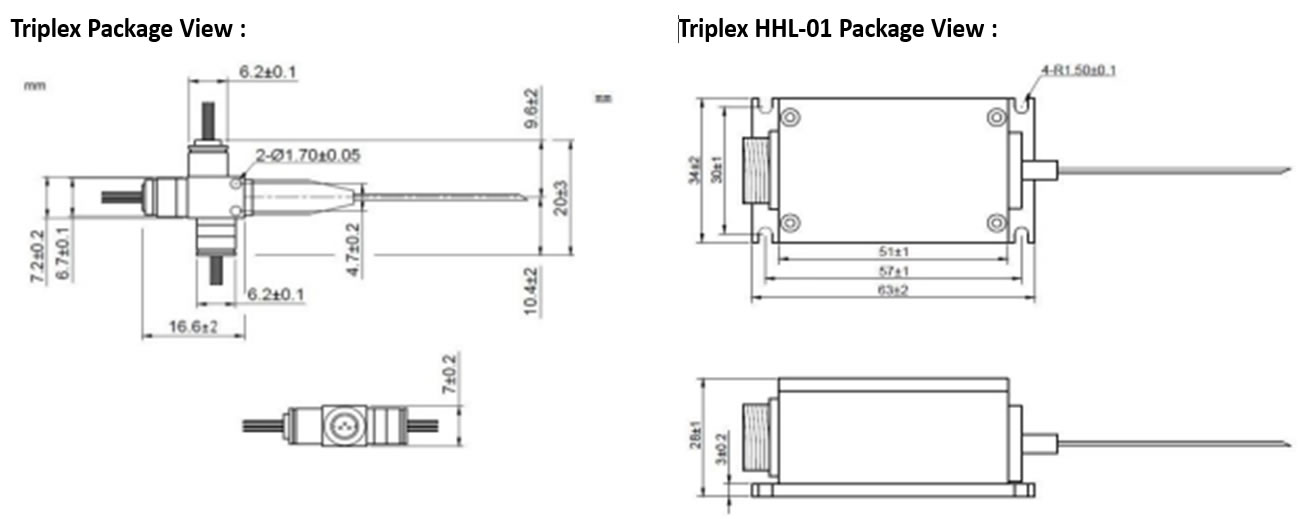

2. Triplex (RGB) Fiber Coupled White Light Laser Module

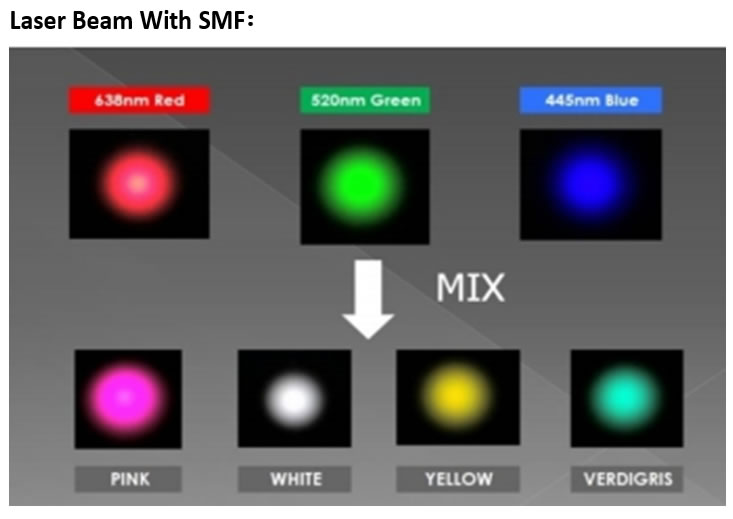

We couple the red (635nm), green (520nm) and blue (445nm) lasers into one piece of fiber to get the white color laser. The Fiber Type can be single mode fiber (SMF), multimode fiber (MMF) and polarization maintaining fiber (PMF) . The fiber core can be 4um, 9um, 105um, etc. The output power can be up to 200mW. By controlling the ratio of RGB lasers, we can get a perfect white laser. Meanwhile, by adjusting the ratio, various colors of laser also can be obtained. We also offer the customized solution for triplex laser modules, such as customized wavelength, customized power and customized fiber core to meet the special needs of customers. We use laser welding technology to guarantee the long-term reliability of the laser structure. To ensure the long-term reliability, each laser diode will undergo rigorous testing and aging in the factory. Meanwhile the high-low storage temperature circulation is also necessary for each laser diode. We set the storage temperature range from -40°C to +85°C, and it lasts 10 cycles, which will ensure the long-term reliability of the coupling structure.

Features:

  • RGB (635nm+520nm+445nm) Solution
  • SMF/MMF/PMF Optional
  • White Color Laser Output
  • Built-in TE Cooler Optional
  • Long Lifetime
  • High Stability
FiberType PartNumber Port-1 Port-2 Port-3 Package Fiber Core TEC Connectro
SMF STW-LX-RGB-010m-4-H-T
STW-LP-RGB-010m-4
STW-LX-RGB-015m-4-H-T
STW-LP-RGB-015m-4
STW-LX-RGB-020m-4-H-T
STW-LP-RGB-020m-4
638nm/10mW
638nm/10mW
638nm/15mW
638nm/15mW
638nm/20mW
638nm/20mW
520nm/10mW
520nm/10mW
520nm/15mW
520nm/15mW
520nm/20mW
520nm/20mW
445nm/10mW
445nm/10mW
445nm/15mW
445nm/15mW
445nm/20mW
445nm/20mW
HHL-01
Coaxial
HHL-01
Coaxial
HHL-01
Coaxial
3um
3um
3um
3um
3um
3um

×

×

×
FC/SMA905
FC/SMA905
FC/SMA905
FC/SMA905
FC/SMA905
FC/SMA905
SMF-28 STW-LX-RGB-030m-9-H-T
STW-LP-RGB-030m-9
STW-LX-RGB-050m-9-H-T
STW-LP-RGB-050m-9
638nm/30mW
638nm/30mW
638nm/50mW
638nm/50mW
520nm/30mW
520nm/30mW
520nm/50mW
520nm/50mW
445nm/30mW
445nm/30mW
445nm/50mW
445nm/50mW
HHL-01
Coaxial
HHL-01
Coaxial
9um
9um
9um
9um

×

×
FC/SMA905
FC/SMA905
FC/SMA905
FC/SMA905
MMF STW-LX-RGB-030m-M-H-T
STW-LP-RGB-030m-M
STW-LX-RGB-050m-M-H-T
STW-LP-RGB-050m-M
STW-LX-RGB-080m-M-H-T
STW-LP-RGB-080m-M
STW-LX-RGB-100m-M-H-T
STW-LP-RGB-100m-M
STW-LX-RGB-001-M-H-T
638nm/30mW
638nm/30mW
638nm/50mW
638nm/50mW
638nm/80mW
638nm/80mW
638nm/100mW
638nm/100mW
638nm/1W
520nm/30mW
520nm/30mW
520nm/50mW
520nm/50mW
520nm/80mW
520nm/80mW
520nm/100mW
520nm/100mW
520nm/1W
445nm/30mW
445nm/30mW
445nm/50mW
445nm/50mW
445nm/80mW
445nm/80mW
445nm/100mW
445nm/100mW
445nm/1W
HHL-01
Coaxial
HHL-01
Coaxial
HHL-01
Coaxial
HHL-01
Coaxial
HHL-03
105um
105um
105um
105um
105um
105um
105um
105um
105um

×

×

×

×
FC/SMA905
FC/SMA905
FC/SMA905
FC/SMA905
FC/SMA905
FC/SMA905
FC/SMA905
FC/SMA905
FC/SMA905

Various Wavelength Optional:

  • Port-1 405nm | 445nm
  • Port-2 488nm | 505nm | 520nm | 525nm
  • Port-3 638nm | 658nm | 670nm | 685nm | 785nm

Various Fiber Type Optional:

  • SMF 3um
  • PMF 3um
  • MMF 9um | 50um | 105um | 200um

3. Triplex (RGB) Fiber Coupled White Light Laser Source

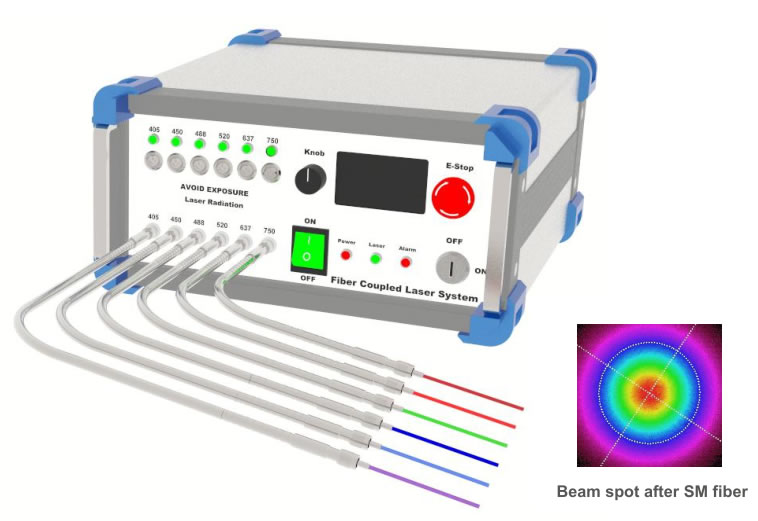

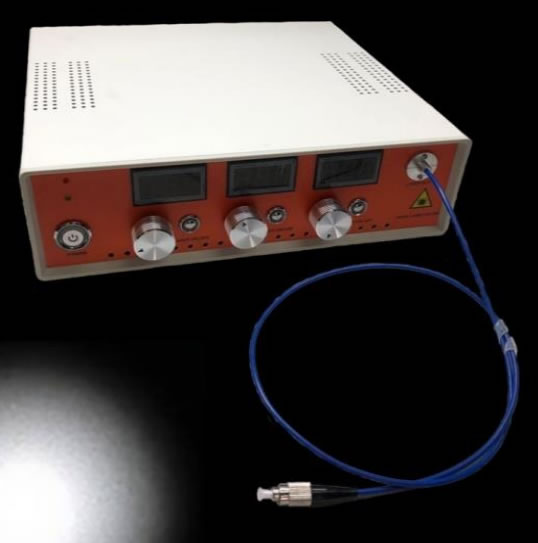

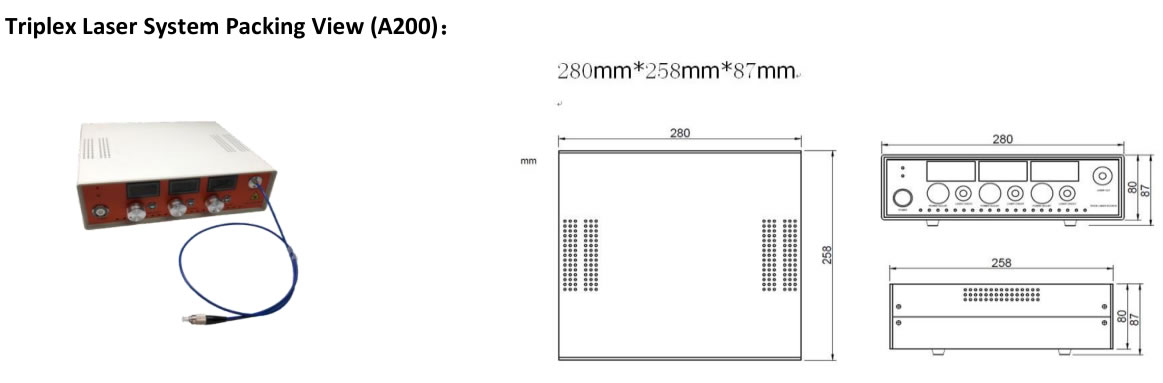

The triplex laser source contains the fiber coupled laser module, LD driver and temperature control system. With an Input of 90V~240VAC input, the laser source can easily get to work. Meanwhile, the 635nm, 520nm and 445nm lasers are controlled Independently. We couple the red (635nm), green (520nm) and blue (445nm) lasers into one piece of fiber to get the white color laser. The fiber type can be single mode fiber (SMF), multimode fiber (MMF) and polarization maintaining fiber (PMF). The fiber core can be 4um, 9um, 105um, etc. By controlling the ratio of RGB laser, we can get the perfect white color laser. Meanwhile, by adjusting the ratio, various colors of laser also can be obtained. We also offer the customized solution for triplex laser source, such as customized wavelength, customized power and customized fiber core to meet the special needs of customers.

Features:

  • RGB (635nm+520nm+445nm) Turnkey Laser System
  • White Color Laser Output
  • SMF/PMF/MMF Optional
  • Each Wavelength Independent Control
  • Built-in Driver and TE Cooling
  • 90V~240V AC Input
  • TTL/Analog Modulation
  • Customized Wavelength/Power/Fiber Type
Fiber Type PartNumber Wavelength-1 Wavelength-2 Wavelength-3 Fiber Core Connector PowerSupply TE Cooling Package
SMF STW-LS-RGB-010m-4
STW-LS-RGB-015m-4
STW-LS-RGB-020m-4
638nm/10mW
638nm/15mW
638nm/20mW
520nm/10mW
520nm/15mW
520nm/20mW
445nm/10mW
445nm/15mW
445nm/20mW
3um
3um
3um
FC/SMA905
FC/SMA905
FC/SMA905
90V~240VAC
90V~240VAC
90V~240VAC


A-200
A-200
A-200
SMF-28 STW-LS-RGB-030m-9
STW-LS-RGB-050m-9
638nm/30mW
638nm/50mW
520nm/30mW
520nm/50mW
445nm/30mW
445nm/50mW
9um
9um
FC/SMA905
FC/SMA905
90V~240VAC
90V~240VAC

A-200
A-200
MMF STW-LS-RGB-030m-M
STW-LS-RGB-050m-M
STW-LS-RGB-080m-M
STW-LS-RGB-100m-M
STW-LS-RGB-001-M
638nm/30mW
638nm/50mW
638nm/80mW
638nm/100mW
638nm/1W
520nm/30mW
520nm/50mW
520nm/80mW
520nm/100mW
520nm/1W
445nm/30mW
445nm/50mW
445nm/80mW
445nm/100mW
445nm/1W
105um
105um
105um
105um
105um
FC/SMA905
FC/SMA905
FC/SMA905
FC/SMA905
FC/SMA905
90V~240VAC
90V~240VAC
90V~240VAC
90V~240VAC
90V~240VAC




A-200
A-200
A-200
A-200
A-300
AnalogModulationOptional|TTLModulationOptional|CaseModel:A-200/A-300

Various Wavelength Optional:

  • Port-1 405nm | 445nm
  • Port-2 488nm | 505nm | 520nm | 525nm
  • Port-3 638nm | 658nm | 670nm | 685nm | 785nm

Various Fiber Type Optional:

  • SMF 3um
  • PMF 3um
  • MMF 9um | 50um | 105um | 200um

STC Series Multi-wavelength Laser Diodes

We offer multi-line laser/ multi-wavelength laser combiner systems in free space and fiber output, it can combine multiple wavelengths into one box, with optional USB or RS232 control. The wavelengths are available for UV-Visible-IR range. This multi-line lasers can be widely used for medical, biomedical, and industrial application, etc.

diode laser1. Free Space Output

  • Separate laser head and driver for easy integration
  • 320-1064nm wide range of wavelengths available
  • 2-4 wavelengths can be combined into one system (more wavelengths on request)
  • Customized wavelength and output power combinations
  • Free space or MM fiber output optional

Specifications:

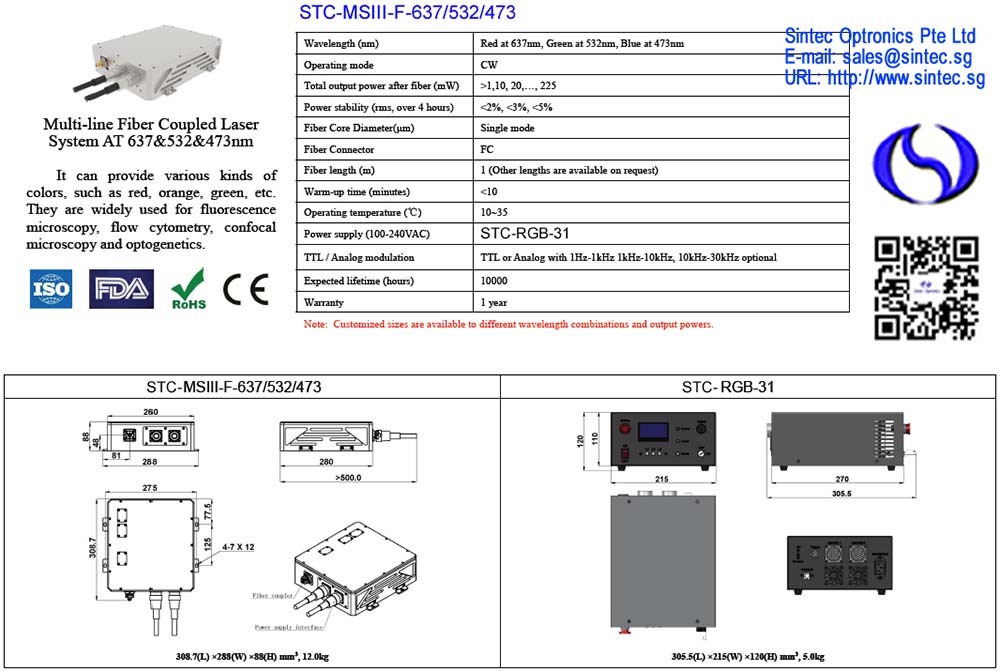

STC-RGB-31/ RGB-41

Model STC-MSII-M
STC-MSIII-M
STC-MSIV-M
STC-MSII-S
STC-MSIII-S
STC-MSIV-S
STC-MSII-N
STC-MSIII-N
STC-MSIV-N
STC-MSII-W
STC-MSIII-W
STC-MSIV-W
STC-MSII-Z
STC-MSIII-Z
STC-MSIV-Z
Power supply STC-PSU-M-LED
Number of combined wavelengths 2~4 (Or more on request)
Output mode Free coaxially output (fiber output optional)
Available Wavelength (nm) 320~1064
Output power (mW) Available for customized on request
Power stability (rms, over 4 hours) <1%, <2%, <3%, <5%
Operating mode CW, TTL or analog on request
Operating temperature (℃) 10~35℃
Power input 100~240VAC
Cooling method Air cooled
Expected lifetime (hours) 10000
Options:
  • TTL or analog modulation up to 30kHz
  • AOM (modulation up to 1MHz)
  • MM fiber coupling (100um, ..., 600um), SMA905/ FC connector optional
  • USB or RS232 control

Standard model:

405nm/ 561nm ◆473nm/ 593.5nm ◆ 405nm/ 473nm/ 532nm ◆640nm/ 532nm/ 405nm ◆405nm/ 589nm ◆635nm/ 532nm ◆635nm/ 532nm/ 473nm ◆655nm/ 532nm/ 473nm ◆405nm/ 593.5nm ◆655nm/ 532nm ◆637nm/ 532nm/ 447nm ◆671nm/ 532nm/ 473nm ◆473nm/ 589nm

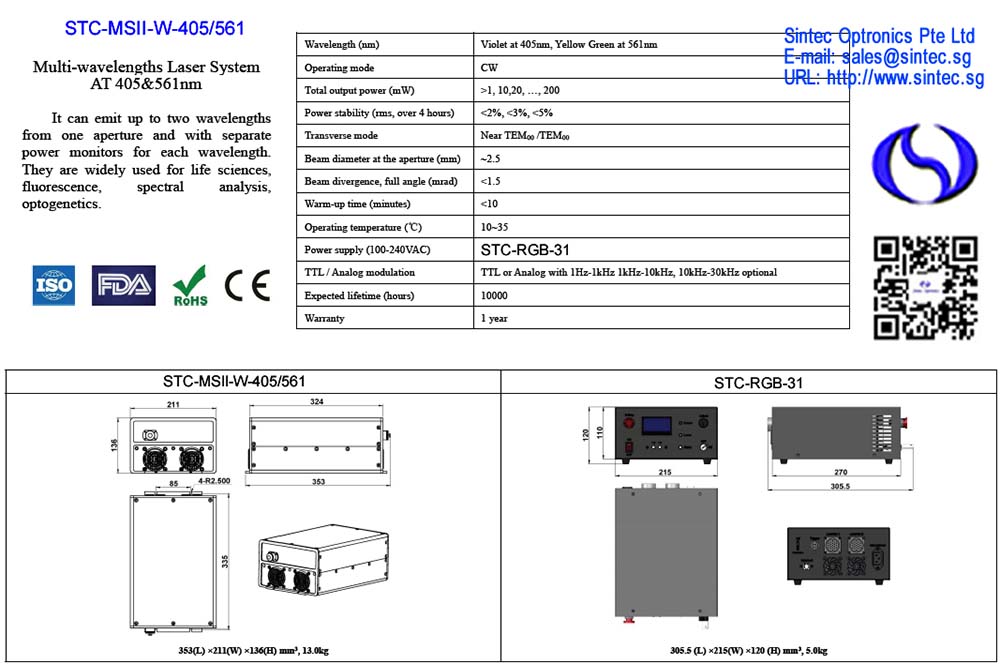

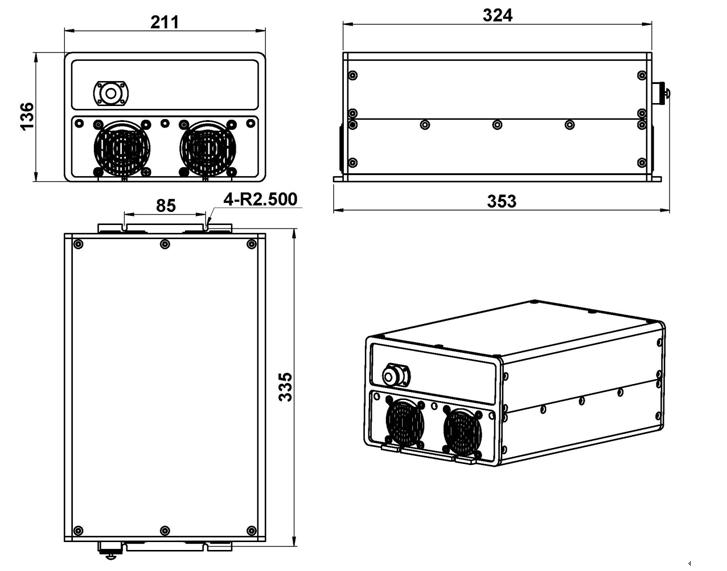

1.1 Dual-wavelength Laser Systems

It can emit up to two wavelengths from one aperture and with separate power monitors for each wavelength. They are widely used for life sciences, fluorescence, spectral analysis, optogenetics.

Model STC-MSII-W-405/561 STC-MSII-W-405/589 STC-MSII-W-405/593.5
Wavelength (nm) 405/561 405/589 405/593.5
Operating mode CW CW CW
Total output power (mW) >1, 10,20, …, 200 >1, 10,20, …, 100 >1, 10,20, …, 100
Power stability (rms, over 4 hours) <2%, <3%, <5% <2%, <3%, <5% <2%, <3%, <5%
Transverse mode near TEM00 /TEM00 near TEM00 /TEM00 near TEM00 /TEM00
Beam diameter at aperture (mm) ~2.5 ~2.5 ~2.5
Beam divergence, full angle (mrad) <1.5 <1.5 <1.5
Warm-up time (minutes) <10 <10 <10
Operating temperature (℃) 10~35 10~35 10~35
Power supply (100-240VAC) STC-RGB-31 STC-RGB-31 STC-RGB-31
TTL/analog modulation TTL or analog with 1Hz-1kHz, 1-10kHz or 10-30kHz TTL or analog with 1Hz-1kHz, 1-10kHz or 10-30kHz TTL or analog with 1Hz-1kHz, 1-10kHz or 10-30kHz
Expected lifetime (hours) 10000 10000 10000
Warranty 1 year 1 year 1 year
Dimension (laser head, mm) 353×211×136 353×211×136 353×211×136
Weight (laser head, kg) 13.0 13.0 13.0

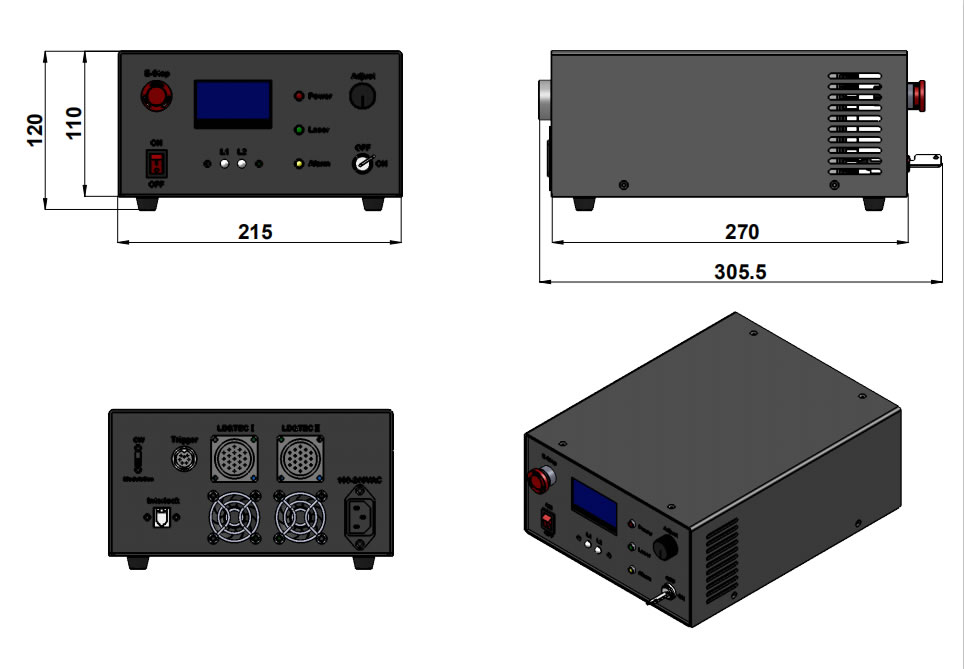

Dimension (power supply, mm) 305.5×215×120 305.5×215×120 305.5×215×120
Weight (power supply, kg) 5 5 5
Model STC-MSII-W-473/589 STC-MSII-W-473/593.5
Wavelength (nm) 473/589 473/593.5
Operating mode CW CW
Total output power (mW) >1, 10,20, …, 200 >1, 10,20, …, 100
Power stability (rms, over 4 hours) <2%, <3%, <5% <2%, <3%, <5%
Transverse mode near TEM00 /TEM00 near TEM00 /TEM00
Beam diameter at aperture (mm) ~3 ~2.0
Beam divergence, full angle (mrad) <1.5 <1.5
Warm-up time (minutes) <10 <10
Operating temperature (℃) 10~35 10~35
Power supply (100-240VAC) STC-RGB-31 STC-RGB-31
TTL/analog modulation TTL or analog with 1Hz-1kHz, 1-10kHz or 10-30kHz TTL or analog with 1Hz-1kHz, 1-10kHz or 10-30kHz
Expected lifetime (hours) 10000 10000
Warranty 1 year 1 year
Dimension (laser head, mm) 353×211×136 353×211×136
Weight (laser head, kg) 13.0 13.0
Dimension (power supply, mm) 305.5×215×120 305.5×215×120
Weight (power supply, kg) 5 5

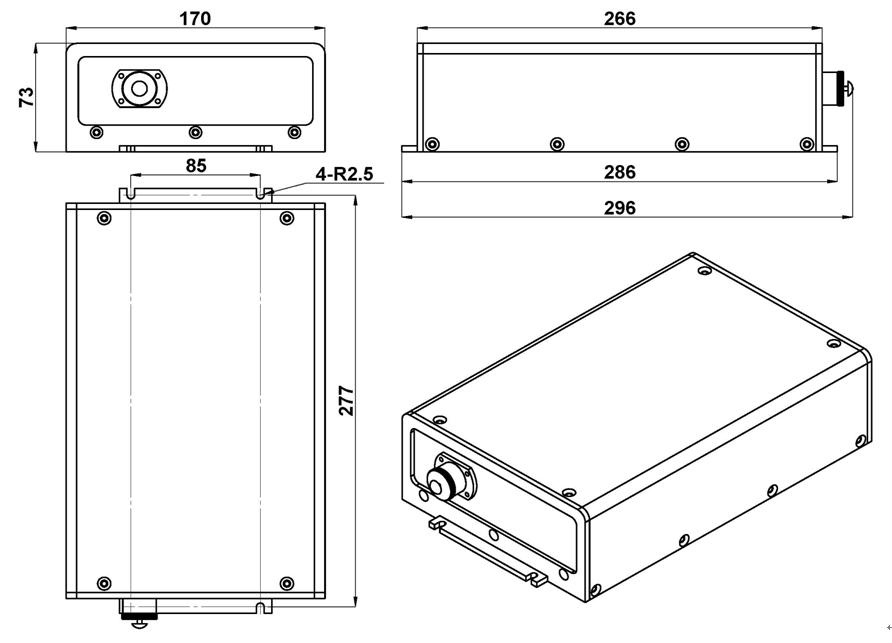

Model STC-MSII-N-635/532 STC-MSII-N-655/532
Wavelength (nm) 635/532 655/532
Operating mode CW CW
Total output power (mW) >1, 10,20, …, 200 >1, 10,20, …, 500
Power stability (rms, over 4 hours) <2%, <3%, <5% <2%, <3%, <5%
Transverse mode near TEM00 /TEM00 Multimode /TEM00
Beam diameter at aperture (mm) ~3 ~5x8
Beam divergence, full angle (mrad) <1.5 <3
Warm-up time (minutes) <10 <10
Operating temperature (℃) 10~35 10~35
Power supply (100-240VAC) STC-RGB-31 STC-RGB-31
TTL/analog modulation TTL or analog with 1Hz-1kHz, 1-10kHz or 10-30kHz TTL or analog with 1Hz-1kHz, 1-10kHz or 10-30kHz
Expected lifetime (hours) 10000 10000
Warranty 1 year 1 year
Dimension (laser head, mm) 296×170×73 296×170×73
Weight (laser head, kg) 4.2 4.2
Dimension (power supply, mm) 305.5×215×120 305.5×215×120
Weight (power supply, kg) 5 5

1.2 Triple-wavelength Laser Systems

It can provide various kinds of colors, such as red, orange, yellow, green, indigo, blue, purple. It is widely used for laser scientific research, medical treatment, OEM field and multimedia entertainment.

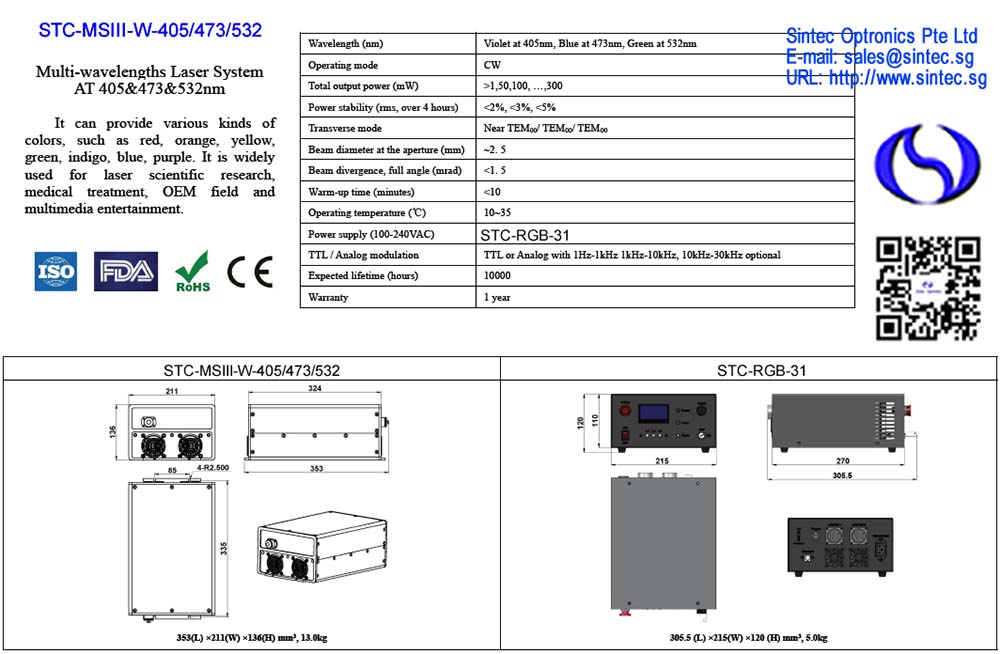

Model STC-MSIII-W-405/473/532 STC-W-635/532/473* STC-MSIII-M-637/532/447*
Wavelength (nm) 405/473/532 635/532/473 637/532/447
Operating mode CW CW CW
Total output power (mW) >1, 50, 100, …, 300 >1, 100, 200, …, 500 >1, 10,20, …, 300
Power stability (rms, over 4 hours) <2%, <3%, <5% <2%, <3%, <5% <2%, <3%, <5%
Transverse mode near TEM00 /TEM00 /TEM00 near TEM00/TEM00/TEM00 Near TEM00/TEM00/Near TEM00
Beam diameter at aperture (mm) ~2.5 ~3.0 ~3.0
Beam divergence, full angle (mrad) <1.5 <1.5 <1.5
Warm-up time (minutes) <10 <10 <10
Operating temperature (℃) 10~35 10~35 10~35
Power supply (100-240VAC) STC-RGB-31 STC-RGB-31 STC-RGB-31
TTL/analog modulation TTL or analog with 1Hz-1kHz, 1-10kHz or 10-30kHz TTL or analog with 1Hz-1kHz, 1-10kHz or 10-30kHz TTL or analog with 1Hz-1kHz, 1-10kHz or 10-30kHz
Expected lifetime (hours) 10000 10000 10000
Warranty 1 year 1 year 1 year
Dimension (laser head, mm) 353×211×136 353×211×136 115×75×45
Weight (laser head, kg) 13.0 13.0 1.2
Dimension (power supply, mm) 305.5×215×120 305.5×215×120 305.5×215×120
Weight (power supply, kg) 5 5 1.2

* The combination of red, green & blue laser can generate multi-colors, such as red, orange, yellow, green, indigo, blue, purple and so much. The higher power red, green and blue laser modules are available upon request.

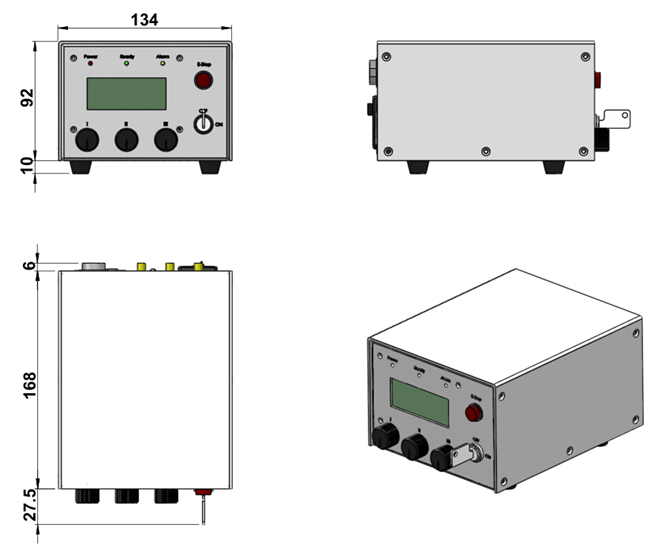

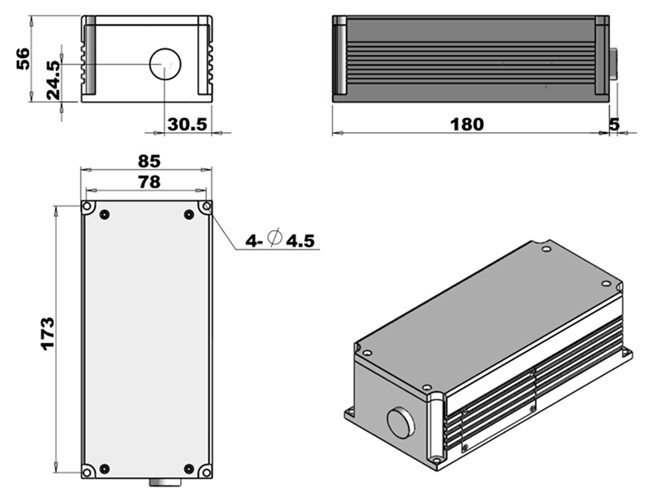

Model STC-MSIII-S-640/532/405 STC-MSIII-W-655/532/473* STC-MSIII-W-671/532/473*
Wavelength (nm) 640/532/405 655/532/473 671/532/473
Operating mode CW CW CW
Total output power (mW) >1, 50, 100, …, 300 >1, 100, 200, …, 1000 >1, 50, 100, …, 300
Power stability (rms, over 4 hours) <2%, <3%, <5% <2%, <3%, <5% <2%, <3%, <5%
Transverse mode near TEM00/TEM00/near TEM00 Multimode/TEM00/TEM00 TEM00 /TEM00 /TEM00
Beam diameter at aperture (mm) ~3.0 ~5x8 ~3.0
Beam divergence, full angle (mrad) <1.5 <3.0 <1.5
Warm-up time (minutes) <10 <10 <10
Operating temperature (℃) 10~35 10~35 10~35
Power supply (100-240VAC) STC-PSU-M-LED STC-RGB-31 STC-RGB-31
TTL/analog modulation TTL or analog with 1Hz-1kHz, 1-10kHz or 10-30kHz TTL or analog with 1Hz-1kHz, 1-10kHz or 10-30kHz TTL or analog with 1Hz-1kHz, 1-10kHz or 10-30kHz
Expected lifetime (hours) 10000 10000 10000
Warranty 1 year 1 year 1 year
Dimension (laser head, mm) 180×85×56 353×211×136 353×211×136
Weight (laser head, kg) 1.5 13.0 13.0
Dimension (power supply, mm) 201.5×134×102 305.5×215×120 305.5×215×120
Weight (power supply, kg) 1.2 5 5

* The combination of red, green & blue laser can generate multi-colors, such as red, orange, yellow, green, indigo, blue, purple and so much. The higher power red, green and blue laser modules are available upon request.

2. Multi-wavelength Fiber-coupled Diode Lasers

fiber-coupled diode

  • Single mode fiber coupling with stable output
  • Separate laser head and driver for easy integration
  • 320-1064nm wide range of wavelengths available
  • 2-4 wavelengths can be combined into one system (more wavelengths on request)
  • Customized wavelength and output power combinations
  • Customized size available

Standard models:

◆637nm/ 532nm ◆ 637nm/ 532nm/ 473nm ◆640nm/ 561nm/ 488nm/ 405nm ◆671nm/ 532nm/ 457nm ◆640nm/ 593.5nm/ 532nm/ 488nm ◆642nm/589nm/532nm/473nm

These multi-wavelength lasers can provide various kinds of colors, such as red, orange, green, etc. They are widely used for fluorescence microscopy, flow cytometry, confocal microscopy and optogenetics.

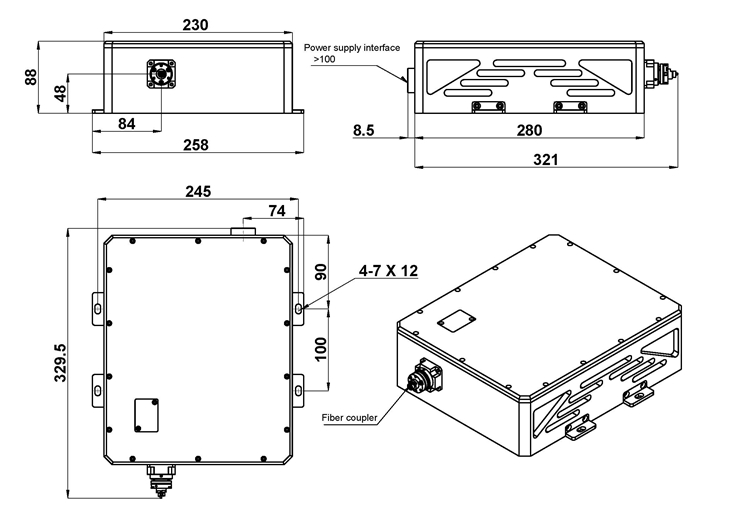

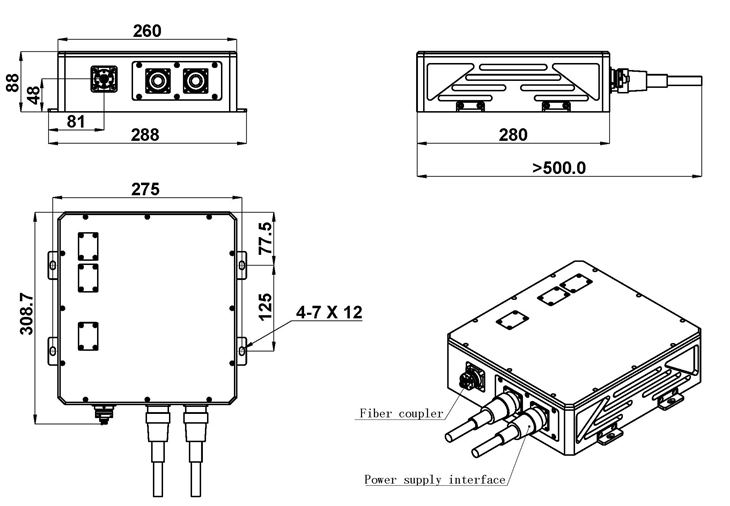

Model STC-MSII-F-637/532 STC-MSIII-F-637/532/473 STC-MSIII-F-671/532/457
Wavelength (nm) 637/532 637/532/473 671/532/457
Operating mode CW CW CW
Total output power (mW) >1, 10, 20, …, 100 >1, 10, 20, …, 225 >1, 10, 20, …, 75
Power stability (rms, over 4 hours) <2%, <3%, <5% <2%, <3%, <5% <2%, <3%, <5%
Fiber core diameter (um) Single mode Single mode Single mode
Fiber connector FC FC FC
Fiber length (m)* 1 1 1
Warm-up time (min) <10 <10 <10
Operating temperature (℃) 10~35 10~35 10~35
Power supply (100-240VAC) STC-RGB-31 STC-RGB-31 STC-RGB-31
TTL/analog modulation TTL or analog with 1Hz-1kHz, 1-10kHz or 10-30kHz TTL or analog with 1Hz-1kHz, 1-10kHz or 10-30kHz TTL or analog with 1Hz-1kHz, 1-10kHz or 10-30kHz
Expected lifetime (hours) 10000 10000 10000
Warranty 1 year 1 year 1 year
Dimension (laser head, mm) 329.5×258×88 308.7×288×88 373.7×288×88
Weight (laser head, kg) 10.0 12.0 12.0
Dimension (power supply, mm) 305.5×215×120 305.5×215×120 305.5×215×120
Weight (power supply, kg) 5 5 5

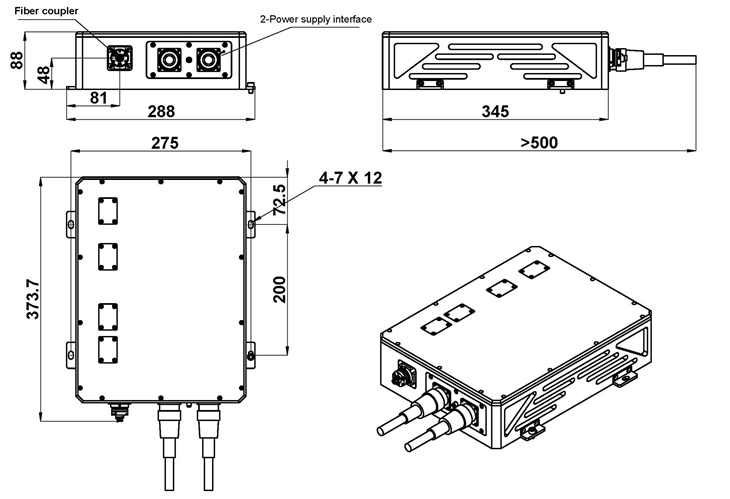

Model STC-MSIV-F-640/561/488/405 STC-MSIV-F-640/593.5/532/488 STC-MSIV-F-642/589/532/473
Wavelength (nm) 640/561/488/405 640/593.5/532/488 642/589/532/473
Operating mode CW CW CW
Total output power (mW) >1, 10, 20, …, 160 >1, 10, 20, …, 80 >1, 10, 20, …, 60
Power stability (rms, over 4 hours) <2%, <3%, <5% <2%, <3%, <5% <2%, <3%, <5%
Fiber core diameter (um) Single mode Single mode Single mode
Fiber connector FC FC FC
Fiber length (m)* 1 1 1
Warm-up time (min) <10 <10 <10
Operating temperature (℃) 10~35 10~35 10~35
Power supply (100-240VAC) STC-RGB-41 STC-RGB-41 STC-RGB-41
TTL/analog modulation TTL or analog with 1Hz-1kHz, 1-10kHz or 10-30kHz TTL or analog with 1Hz-1kHz, 1-10kHz or 10-30kHz TTL or analog with 1Hz-1kHz, 1-10kHz or 10-30kHz
Expected lifetime (hours) 10000 10000 10000
Warranty 1 year 1 year 1 year
Dimension (laser head, mm) 373.7×288×88 373.7×288×88 373.7×288×88
Weight (laser head, kg) 14.0 14.0 14.0
Dimension (power supply, mm) 305.5×215×120 305.5×215×120 305.5×215×120
Weight (power supply, kg) 5 5 5

* Other fiber lengths available upon request.

3. Integrated Electronics (All-in-one, Mulyi-wavelength, multi-channel)

all-in-one diode laser

  • Built-in driver for easy operation
  • 375-1550nm wide range of wavelengths available
  • 2-20 wavelengths can be combined into one system
  • Customized wavelength and output power combinations
  • Customized size available
Channel type Single Channel Multi-Channel
Model STC-FC-MS STC-FC-ML Customized model STC-FC-MS-CH
Available wavelength (nm) 375~1064 375~1550
Number of combined wavelengths 2~3 4~6 7~20 2~4
Fiber type SM, MM SM
Fiber core diameter (μm) Customized on request 4~9
Fiber connector SMA905/ FC FC/PC
Output power Customized on request
Power stability (rms, over 4 hours) <3%, <5%
Operating mode CW, TTL or analog on request
Operating temperature(℃) 10~35
Power input 100~240VAC
Cooling method Air cooled
Expected lifetime (hours) 10000
Warranty 1 year

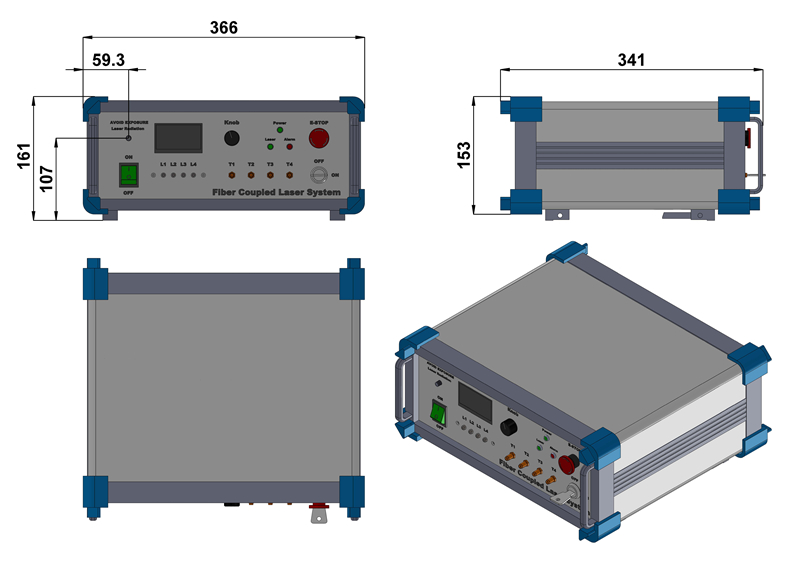

3.1 Multi-wavelength Single-channel Fiber Coupled Diode Lasers

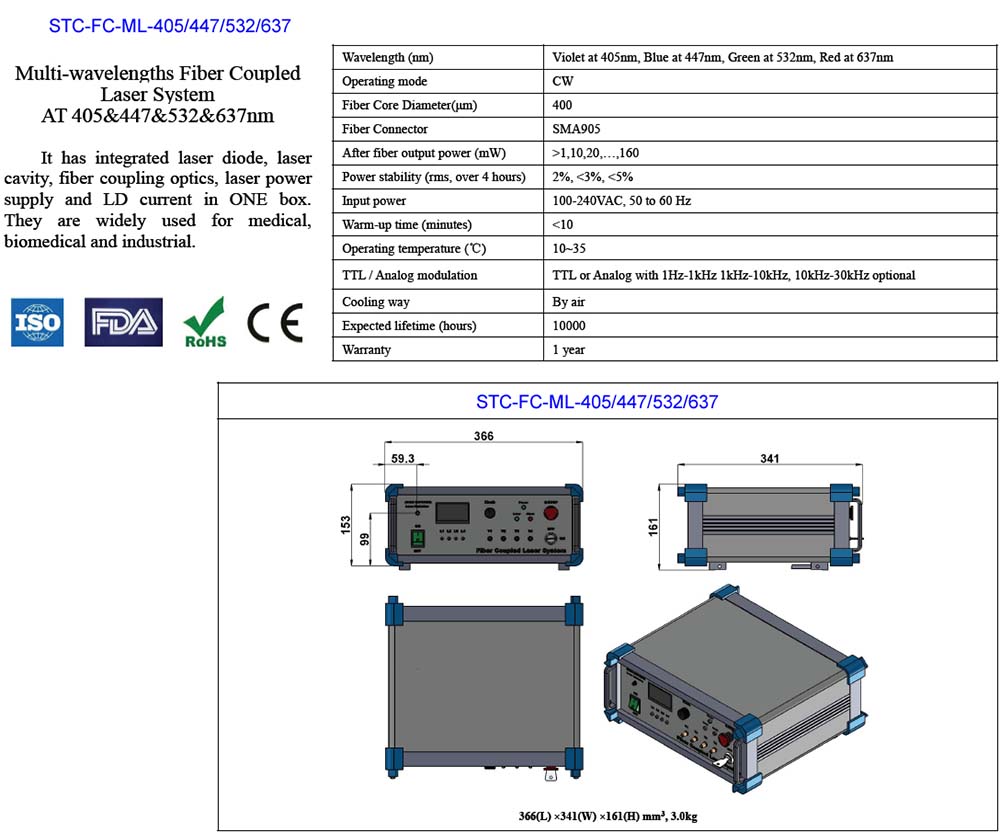

405nm/ 447nm/ 532nm/ 637nm ◆405nm/ 488nm/ 532nm/ 637nm

Model STC-FC-ML-405/447/532/637 STC-FC-ML-405/488/532/637
Wavelength (nm) 405/447/532/637 405/488/532/637
Operating mode CW CW
Fiber core diameter (um) 400 400
Fiber connector SMA905 SMA905
Total output power (mW) >1, 10, 20, …, 160 >1, 10, 20, …, 160
Power stability (rms, over 4 hours) <2%, <3%, <5% <2%, <3%, <5%
Input power 100-240VAC, 50 to 60 Hz 100-240VAC, 50 to 60 Hz
Warm-up time (min) <10 <10
Operating temperature (℃) 10~35 10~35
TTL/analog modulation TTL or analog with 1Hz-1kHz, 1-10kHz or 10-30kHz TTL or analog with 1Hz-1kHz, 1-10kHz or 10-30kHz
Cooling Air Air
Warranty 1 year 1 year
Dimension (mm) 366×341×161 366×341×161
Weight (kg) 3.0 3.0

3.2 Multi-wavelength Multi-channel Fiber Coupled Diode Lasers

This series of lasers can combine 2-6 wavelengths into a system and output from the optical fiber of each channel. The laser can individually control the laser output of each channel, or open multiple channels at the same time, but can only adjust the power output of one channel at a time.

Features:

  • Up to 6 wavelength combination
  • Wavelengths from 375 to 1550nm
  • Customized wavelengths and output power combinations
  • Standard fiber connectors or collimated beam output

Applications:

  • Confocal microscopy
  • Fluorescence microscopy
  • Optogenetics
  • Flow cytometry
  • Live-cell imaging
  • Light sheet microscopy

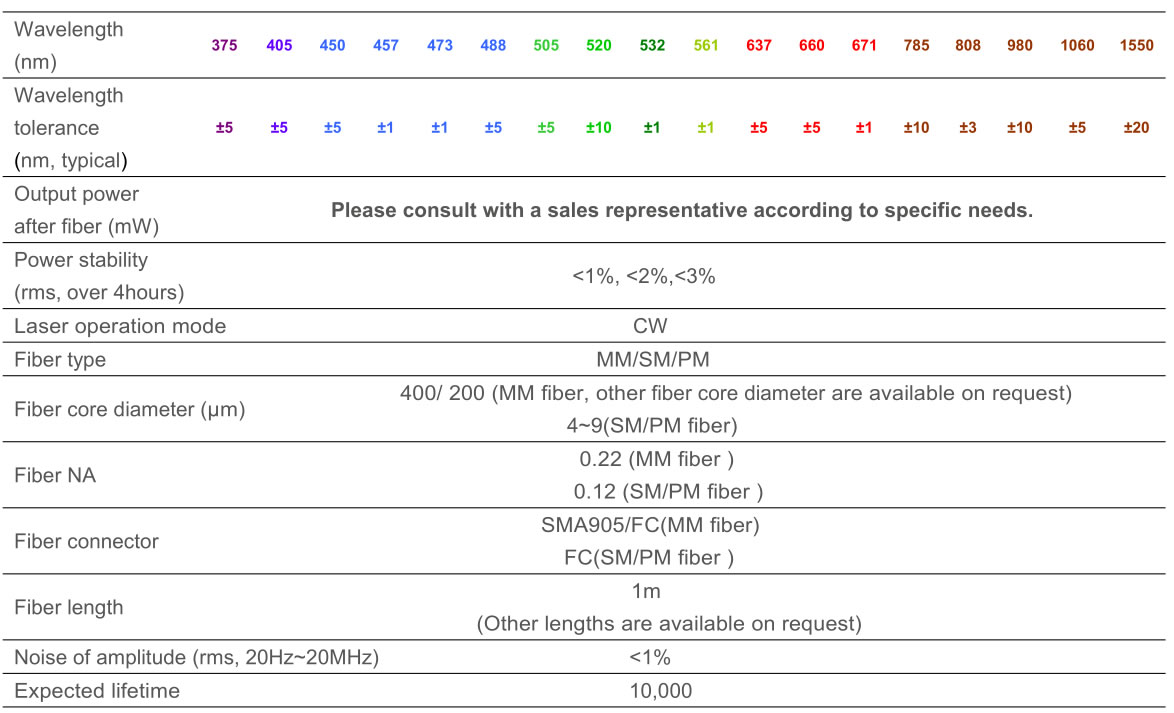

Electrical Specifications:

  • Input voltage: VAC 100-240
  • Modulation: TTL modulation; Analog modulation
  • Modulation frequency: TTL with 1Hz-30kHz, 30kHz-100kHz optional; Analog with 1Hz-30kHz, 30kHz-100kHz optional
  • Environmental Specifications:
  • Operating temperature: 10°C to 35°C
  • Warm-up time: < 10min
  • Storage temperature: -20 °C to 60 °C
  • Humidity: < 90 %, non-condensing

*All testing data under the conditions of temperature 25°C.

Dimensions of laser system: 330 x 291 x 156 mm (6-channel) (2-5 channels are available on request )

  • Online submission
  • Send us a message

    CLOSE
