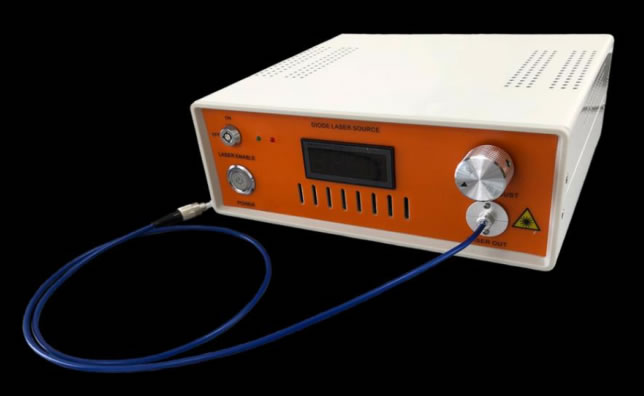

STW Series Turn-key Fiber Coupled Diode Laser Systems

We offer 375nm~1920nm turnkey fiber coupled laser source with single mode fiber (SMF), multimode fiber (MMF) and polarization maintaining fiber (PMF) . The output power is from 1mW to 50W. The turnkey fiber coupled diode laser system contains the fiber coupled laser module, LD driver and temperature control system. With an input of 90V~240VAC, the laser source can be easily to get to work. To ensure the long-time reliability and power stability, each laser system will undergo rigorous testing and aging in factory.

Features:

375nm~1920nm
Turnkey Laser System
SMF/PMF/MMF Optional
1mW~50W Output Power
Built-in TE Cooling & Driver
90V~240V AC Input
TTL/Analog Modulation
Long Lifetime
High Stability
Customized Wavelength/Power/Fiber Type

Wavelength	Part Number	Output Power	Fiber Type	Fiber Core	Supply Voltage	Connector	Package	TEC	Analog	TTL
375nm	STW-LS-375-100m-M	0～100mW	MMF	105um	90V～240VAC	FC/SMA	A-100	√	○	○
395nm	STW-LS-395-200m-M STW-LS-395-1200m-M STW-LS-395-003-M STW-LS-395-005-M	0～200mW 0～1.2W 0～3W 0～5W	MMF MMF MMF MMF	105um <400um <650um <1000um	90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA FC/SMA	A-100 A-300 A-300 A-300	√ √ √ √	○ ○ ○ ○	○ ○ ○ ○
400nm	STW-LS-400-015m-4 STW-LS-400-030m-4	0～15mW 0～30mW	SMF SMF	3um 3um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-100	√ √	○ ○	○ ○
	STW-LS-400-015m-PM STW-LS-400-030m-PM	0～15mW 0～30mW	PMF PMF	3um 3um	90V～240VAC 90V～240VAC	FC/APC FC/APC	A-100 A-100	√ √	○ ○	○ ○
	STW-LS-400-400m-M STW-LS-400-002-M	0～400mW 0～2W	MMF MMF	105um <400um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-300	√ √	○ ○	○ ○
405nm	STW-LS-405-015m-4 STW-LS-405-030m-4 STW-LS-405-050m-4	0～15mW 0～30mW 0～50mW	SMF SMF SMF	3um 3um 3um	90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA	A-100 A-100 A-100	√ √ √	○ ○ ○	○ ○ ○
	STW-LS-405-015m-PM STW-LS-405-030m-PM STW-LS-405-050m-PM	0～15mW 0～30mW 0～50mW	PMF PMF PMF	3um 3um 3um	90V～240VAC 90V～240VAC 90V～240VAC	FC/APC FC/APC FC/APC	A-100 A-100 A-100	√ √ √	○ ○ ○	○ ○ ○
	STW-LS-405-300m-M STW-LS-405-400m-M STW-LS-405-1200m-M STW-LS-405-002-M STW-LS-405-003-M STW-LS-405-005-M STW-LS-405-007-M	0～300mW 0～400mW 0～1.2W 0～2W 0～3W 0～5W 0～7W	MMF MMF MMF MMF MMF MMF MMF	105um 105um <400um <400um <650um ＜650um ＜650um	90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA FC/SMA FC/SMA FC/SMA FC/SMA	A-100 A-100 A-200 A-300 A-300 A-300 A-300	√ √ √ √ √ √ √	○ ○ ○ ○ ○ ○ ○	○ ○ ○ ○ ○ ○ ○
410nm	STW-LS-410-300m-M STW-LS-410-002-M	0～300mW 0～2W	MMF MMF	105um <400um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-300	√ √	○ ○	○ ○
413nm	STW-LS-413-300m-M STW-LS-413-002-M	0～300mW 0～2W	MMF MMF	105um <400um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-300	√ √	○ ○	○ ○
445nm	STW-LS-445-030m-4 STW-LS-445-040m-4 STW-LS-445-050m-4	0～30mW 0～40mW 0～50mW	SMF SMF SMF	3um 3um 3um	90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA	A-100 A-100 A-100	√ √ √	○ ○ ○	○ ○ ○
	STW-LS-445-030m-PM STW-LS-445-040m-PM STW-LS-445-050m-PM	0～30mW 0～40mW 0～50mW	PMF PMF PMF	3um 3um 3um	90V～240VAC 90V～240VAC 90V～240VAC	FC/APC FC/APC FC/APC	A-100 A-100 A-100	√ √ √	○ ○ ○	○ ○ ○
	STW-LS-445-050m-M STW-LS-445-001-M STW-LS-445-3500m-200M STW-LS-445-010-200M	0～50mW 0～1W 0～3.5W 0～10W	MMF MMF MMF MMF	105um 105um 200um 200um	90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA FC/SMA	A-100 A-100 A-300 A-300	√ √ √ √	○ ○ ○ ○	○ ○ ○ ○
445nm	STW-LS-445-020-400M	0～20W	MMF	400um	90V～240VAC	FC/SMA	A-300	√	○	○
465nm	STW-LS-465-002-M STW-LS-465-007-200M STW-LS-465-015-400M	0～2W 0～7W 0～15W	MMF MMF MMF	105um 200um 400um	90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA	A-300 A-300 A-300	√ √ √	○ ○ ○	○ ○ ○
473nm	STW-LS-473-010m-4 STW-LS-473-020m-4	0～10mW 0～20mW	SMF SMF	3um 3um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-100	√ √	○ ○	○ ○
473nm	STW-LS-473-010m-PM STW-LS-473-020m-PM	0～10mW 0～20mW	PMF PMF	3um 3um	90V～240VAC 90V～240VAC	FC/APC FC/APC	A-100 A-100	√ √	○ ○	○ ○
480nm	STW-LS-480-010m-4 STW-LS-480-020m-4	0～10mW 0～20mW	SMF SMF	3um 3um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-100	√ √	○ ○	○ ○
	STW-LS-480-010m-PM STW-LS-480-020m-PM	0～10mW 0～20mW	PMF PMF	3um 3um	90V～240VAC 90V～240VAC	FC/APC FC/APC	A-100 A-100	√ √	○ ○	○ ○
	STW-LS-480-050m-M	0～50mW	MMF	105um	90V～240VAC	FC/SMA	A-100	√	○	○
488nm	STW-LS-488-010m-4 STW-LS-488-020m-4 STW-LS-488-030m-4	0～10mW 0～20mW 0～30mW	SMF SMF SMF	3um 3um 3um	90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA	A-100 A-100 A-100	√ √ √	○ ○ ○	○ ○ ○
	STW-LS-488-010m-PM STW-LS-488-020m-PM STW-LS-488-030m-PM	0～10mW 0～20mW 0～30mW	PMF PMF PMF	3um 3um 3um	90V～240VAC 90V～240VAC 90V～240VAC	FC/APC FC/APC FC/APC	A-100 A-100 A-100	√ √ √	○ ○ ○	○ ○ ○
	STW-LS-488-050m-M STW-LS-488-350m-M STW-LS-488-001-M	0～50mW 0～350mW 0～1W	MMF MMF MMF	105um <400um <650um	90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA	A-100 A-300 A-300	√ √ √	○ ○ ○	○ ○ ○
495nm	STW-LS-495-010m-4 STW-LS-495-020m-4	0～10mW 0～20mW	SMF SMF	3um 3um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-100	√ √	○ ○	○ ○
	STW-LS-495-010m-PM STW-LS-495-020m-PM	0～10mW 0～20mW	PMF PMF	3um 3um	90V～240VAC 90V～240VAC	FC/APC FC/APC	A-100 A-100	√ √	○ ○	○ ○
	STW-LS-495-050m-M	0～50mW	MMF	105um	90V～240VAC	FC/SMA	A-100	√	○	○
505nm	STW-LS-505-010m-4 STW-LS-505-020m-4	0～10mW 0～20mW	SMF SMF	3um 3um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-100	√ √	○ ○	○ ○
	STW-LS-505-010m-PM STW-LS-505-020m-PM	0～10mW 0～20mW	PMF PMF	3um 3um	90V～240VAC 90V～240VAC	FC/APC FC/APC	A-100 A-100	√ √	○ ○	○ ○
	STW-LS-505-030m-M STW-LS-505-050m-M	0～30mW 0～50mW	MMF MMF	105um 105um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-100	√ √	○ ○	○ ○
520nm	STW-LS-520-010m-4 STW-LS-520-030m-4 STW-LS-520-050m-4	0～10mW 0～30mW 0～50mW	SMF SMF SMF	3um 3um 3um	90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA	A-100 A-100 A-100	√ √ √	○ ○ ○	○ ○ ○
520nm	STW-LS-520-010m-PM STW-LS-520-030m-PM	0～10mW 0～30mW	PMF PMF	3um 3um	90V～240VAC 90V～240VAC	FC/APC FC/APC	A-100 A-100	√ √	○ ○	○ ○
520nm	STW-LS-520-050m-PM	0～50mW	PMF	3um	90V～240VAC	FC/APC	A-100	√	○	○
520nm	STW-LS-520-050m-M STW-LS-520-300m-M STW-LS-520-800m-M STW-LS-520-001-M STW-LS-520-002-M STW-LS-520-005-200M	0～50mW 0～300mW 0～800mW 0～1W 0～2W 0～5W	MMF MMF MMF MMF MMF MMF	105um 105um 105um 105um 105um 200um	90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA FC/SMA FC/SMA FC/SMA	A-100 A-100 A-200 A-200 A-300 A-300	√ √ √ √ √ √	○ ○ ○ ○ ○ ○	○ ○ ○ ○ ○ ○
525nm	STW-LS-525-800m-M STW-LS-525-001-M STW-LS-525-002-M STW-LS-525-005-200M	0～800mW 0～1W 0～2W 0～5W	MMF MMF MMF MMF	105um 105um 105um 200um	90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA FC/SMA	A-200 A-200 A-300 A-300	√ √ √ √	○ ○ ○ ○	○ ○ ○ ○
532nm	STW-LS-532-800m-M STW-LS-532-001-M STW-LS-532-003-M STW-LS-532-005-M	0～800mW 0～1W 0～3W 0～5W	MMF MMF MMF MMF	105um 105um ＜300um ＜400um	90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA FC/SMA	A-200 A-200 A-300 A-300	√ √ √ √	○ ○ ○ ○	○ ○ ○ ○
630nm	STW-LS-630-300m-M STW-LS-630-002-M	0～300mW 0～2W	MMF MMF	105um <400um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-200 A-300	√ √	○ ○	○ ○
633nm	STW-LS-633-030m-4 STW-LS-633-050m-4	0～30mW 0～50mW	SMF SMF	4um 4um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-100	√ √	○ ○	○ ○
	STW-LS-633-030m-PM STW-LS-633-050m-PM	0～30mW 0～50mW	PMF PMF	4um 4um	90V～240VAC 90V～240VAC	FC/APC FC/APC	A-100 A-100	√ √	○ ○	○ ○
	STW-LS-633-700m-M STW-LS-633-002-M STW-LS-633-005-M	0～700mW 0～2W 0～5W	MMF MMF MMF	105um <300um <400um	90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA	A-200 A-300 A-300	√ √ √	○ ○ ○	○ ○ ○
635nm	STW-LS-635-030m-4 STW-LS-635-050m-4 STW-LS-635-080m-4 STW-LS-635-100m-4	0～30mW 0～50mW 0～80mW 0～100mW	SMF SMF SMF SMF	4um 4um 4um 4um	90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA FC/SMA	A-100 A-100 A-100 A-100	√ √ √ √	○ ○ ○ ○	○ ○ ○ ○
	STW-LS-635-030m-PM STW-LS-635-050m-PM STW-LS-635-080m-PM STW-LS-635-100m-PM	0～30mW 0～50mW 0～80mW 0～100mW	PMF PMF PMF PMF	4um 4um 4um 4um	90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC	FC/APC FC/APC FC/APC FC/APC	A-100 A-100 A-100 A-100	√ √ √ √	○ ○ ○ ○	○ ○ ○ ○
	STW-LS-635-100m-M STW-LS-635-300m-M STW-LS-635-001-M STW-LS-635-1800m-M STW-LS-635-003-M STW-LS-635-005-M	0～100mW 0～300mW 0～1W 0～1.8W 0～3W 0～5W	MMF MMF MMF MMF MMF MMF	105um 105um 105um 200um <300um <400um	90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA FC/SMA FC/SMA FC/SMA	A-100 A-100 A-100 A-100 A-300 A-300	√ √ √ √ √ √	○ ○ ○ ○ ○ ○	○ ○ ○ ○ ○ ○
635nm	STW-LS-635-007-M	0～7W	MMF	<400um	90V～240VAC	FC/SMA	A-300	√	○	○
653nm	STW-LS-653-700m-M STW-LS-653-002-M STW-LS-653-005-M	0～700mW 0～2W 0～5W	MMF MMF MMF	105um <300um <400um	90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA	A-200 A-300 A-300	√ √ √	○ ○ ○	○ ○ ○
660nm	STW-LS-660-030m-4 STW-LS-660-050m-4 STW-LS-660-080m-4 STW-LS-660-100m-4	0～30mW 0～50mW 0～80mW 0～100mW	SMF SMF SMF SMF	4um 4um 4um 4um	90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA FC/SMA	A-100 A-100 A-100 A-100	√ √ √ √	○ ○ ○ ○	○ ○ ○ ○
	STW-LS-660-030m-PM STW-LS-660-050m-PM STW-LS-660-080m-PM STW-LS-660-100m-PM	0～30mW 0～50mW 0～80mW 0～100mW	PMF PMF PMF PMF	4um 4um 4um 4um	90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC	FC/APC FC/APC FC/APC FC/APC	A-100 A-100 A-100 A-100	√ √ √ √	○ ○ ○ ○	○ ○ ○ ○
	STW-LS-660-100m-M STW-LS-660-001-M STW-LS-660-003-M STW-LS-660-005-M STW-LS-660-007-M	0～100mW 0～1W 0～3W 0～5W 0～7W	MMF MMF MMF MMF MMF	105um 105um <300um <400um <400um	90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA FC/SMA FC/SMA	A-100 A-100 A-300 A-300 A-300	√ √ √ √ √	○ ○ ○ ○ ○	○ ○ ○ ○ ○
670nm	STW-LS-670-005m-4 STW-LS-670-050m-4 STW-LS-670-080m-4	0～5mW 0～50mW 0～80mW	SMF SMF SMF	3um 3um 3um	90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA	A-100 A-100 A-100	√ √ √	○ ○ ○	○ ○ ○
	STW-LS-670-005m-PM STW-LS-670-050m-PM STW-LS-670-080m-PM	0～5mW 0～50mW 0～80mW	PMF PMF PMF	3um 3um 3um	90V～240VAC 90V～240VAC 90V～240VAC	FC/APC FC/APC FC/APC	A-100 A-100 A-100	√ √ √	○ ○ ○	○ ○ ○
	STW-LS-670-100m-M STW-LS-670-300m-M STW-LS-670-500m-M STW-LS-670-001-M	0～100mW 0～300mW 0～500mW 0～1W	MMF MMF MMF MMF	105um <300um <300um <400um	90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA FC/SMA	A-100 A-200 A-300 A-300	√ √ √ √	○ ○ ○ ○	○ ○ ○ ○
685nm	STW-LS-685-010m-4 STW-LS-685-015m-4	0～10mW 0～15mW	SMF SMF	4um 4um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-100	√ √	○ ○	○ ○
	STW-LS-685-010m-PM STW-LS-685-015m-PM	0～10mW 0～15mW	PMF PMF	4um 4um	90V～240VAC 90V～240VAC	FC/APC FC/APC	A-100 A-100	√ √	○ ○	○ ○
	STW-LS-685-030m-M	0～30mW	MMF	105um	90V～240VAC	FC/SMA	A-100	√	○	○
690nm	STW-LS-690-700m-M STW-LS-690-002-M STW-LS-690-005-M	0～700mW 0～2W 0～5W	MMF MMF MMF	105um <300um <400um	90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA	A-100 A-300 A-300	√ √ √	○ ○ ○	○ ○ ○
705nm	STW-LS-705-010m-4 STW-LS-705-015m-4	0～10mW 0～15mW	SMF SMF	4um 4um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-100	√ √	○ ○	○ ○
705nm	STW-LS-705-010m-PM	0～10mW	PMF	4um	90V～240VAC	FC/APC	A-100	√	○	○
705nm	STW-LS-705-015m-PM	0～15mW	PMF	4um	90V～240VAC	FC/APC	A-100	√	○	○
730nm	STW-LS-730-010m-4 STW-LS-730-015m-4	0～10mW 0～15mW	SMF SMF	4um 4um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-100	√ √	○ ○	○ ○
730nm	STW-LS-730-010m-PM STW-LS-730-015m-PM	0～10mW 0～15mW	PMF PMF	4um 4um	90V～240VAC 90V～240VAC	FC/APC FC/APC	A-100 A-100	√ √	○ ○	○ ○
760nm	STW-LS-760-1500m-M STW-LS-760-004-M STW-LS-760-010-M	0～1.5W 0～4W 0～10W	MMF MMF MMF	105um <300um <400um	90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA	A-100 A-300 A-300	√ √ √	○ ○ ○	○ ○ ○
770nm	STW-LS-770-003-M STW-LS-770-010-M STW-LS-770-015-M STW-LS-770-020-M	0～3W 0～10W 0～15W 0～20W	MMF MMF MMF MMF	105um <300um <400um <400um	90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA FC/SMA	A-200 A-300 A-300 A-300	√ √ √ √	○ ○ ○ ○	○ ○ ○ ○
785nm	STW-LS-785-030m-4 STW-LS-785-040m-4	0～30mW 0～40mW	SMF SMF	5um 5um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-100	√ √	○ ○	○ ○
	STW-LS-785-030m-PM STW-LS-785-040m-PM	0～30mW 0～40mW	PMF PMF	5um 5um	90V～240VAC 90V～240VAC	FC/APC FC/APC	A-100 A-100	√ √	○ ○	○ ○
	STW-LS-785-050m-M STW-LS-785-003-M STW-LS-785-010-M STW-LS-785-015-M STW-LS-785-020-M	0～50mW 0～3W 0～10W 0～15W 0～20W	MMF MMF MMF MMF MMF	105um 105um <300um <400um <400um	90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA FC/SMA FC/SMA	A-100 A-200 A-300 A-300 A-300	√ √ √ √ √	○ ○ ○ ○ ○	○ ○ ○ ○ ○
808nm	STW-LS-808-030m-4 STW-LS-808-050m-4	0～30mW 0～50mW	SMF SMF	5um 5um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-100	√ √	○ ○	○ ○
	STW-LS-808-020m-PM STW-LS-808-040m-PM	0～20mW 0～40mW	PMF PMF	5um 5um	90V～240VAC 90V～240VAC	FC/APC FC/APC	A-100 A-100	√ √	○ ○	○ ○
	STW-LS-808-150m-M STW-LS-808-002-M STW-LS-808-004-M STW-LS-808-007-M	0～150mW 0～2W 0～4W 0～7W	MMF MMF MMF MMF	105um 105um 105um 105um	90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA FC/SMA	A-100 A-100 A-200 A-200	√ √ √ √	○ ○ ○ ○	○ ○ ○ ○
830nm	STW-LS-830-030m-4 STW-LS-830-050m-4 STW-LS-830-080m-4 STW-LS-830-100m-4	0～30mW 0～50mW 0～80mW 0～100mW	SMF SMF SMF SMF	5um 5um 5um 5um	90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA FC/SMA	A-100 A-100 A-100 A-100	√ √ √ √	○ ○ ○ ○	○ ○ ○ ○
	STW-LS-830-030m-PM STW-LS-830-050m-PM STW-LS-830-080m-PM STW-LS-830-100m-PM	0～30mW 0～50mW 0～80mW 0～100mW	PMF PMF PMF PMF	5um 5um 5um 5um	90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC	FC/APC FC/APC FC/APC FC/APC	A-100 A-100 A-100 A-100	√ √ √ √	○ ○ ○ ○	○ ○ ○ ○
	STW-LS-830-150m-M	0～150mW	MMF	105um	90V～240VAC	FC/SMA	A-100	√	○	○
Wavelength	Part Number	Output Power Range	Fiber Type	Fiber Core	Supply Voltage	Connector	Case Model	TEC	Analog	TTL
830nm	STW-LS-830-001-M STW-LS-830-002-M STW-LS-830-003-M STW-LS-830-008-M STW-LS-830-010-M STW-LS-830-020-M	0～1W 0～2W 0～3W 0～8W 0～10W 0～20W	MMF MMF MMF MMF MMF MMF	50um 105um 105um <300um <400um <400um	90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA FC/SMA FC/SMA FC/SMA	A-100 A-100 A-100 A-300 A-300 A-300	√ √ √ √ √ √	○ ○ ○ ○ ○ ○	○ ○ ○ ○ ○ ○
850nm	STW-LS-850-030m-4 STW-LS-850-050m-4 STW-LS-850-070m-4	0～30mW 0～50mW 0～70mW	SMF SMF SMF	5um 5um 5um	90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA	A-100 A-100 A-100	√ √ √	○ ○ ○	○ ○ ○
	STW-LS-850-030m-PM STW-LS-850-050m-PM STW-LS-850-070m-PM	0～30mW 0～50mW 0～70mW	PMF PMF PMF	5um 5um 5um	90V～240VAC 90V～240VAC 90V～240VAC	FC/APC FC/APC FC/APC	A-100 A-100 A-100	√ √ √	○ ○ ○	○ ○ ○
	STW-LS-850-120m-M	0～120mW	MMF	105um	90V～240VAC	FC/SMA	A-100	√	○	○
880nm	STW-LS-880-001m-4	0～1mW	SMF	5um	90V～240VAC	FC/SMA	A-100	√	○	○
	STW-LS-880-001m-PM	0～1mW	PMF	5um	90V～240VAC	FC/APC	A-100	√	○	○
	STW-LS-880-002-M STW-LS-880-003-M STW-LS-880-008-M STW-LS-880-010-M STW-LS-880-020-M	0～2W 0～3W 0～8W 0～10W 0～20W	MMF MMF MMF MMF MMF	105um 105um <300um <400um <400um	90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA FC/SMA FC/SMA	A-100 A-100 A-300 A-300 A-300	√ √ √ √ √	○ ○ ○ ○ ○	○ ○ ○ ○ ○
905nm	STW-LS-905-030m-4 STW-LS-905-050m-4 STW-LS-905-070m-4	0～30mW 0～50mW 0～70mW	SMF SMF SMF	5um 5um 5um	90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA	A-100 A-100 A-100	√ √ √	○ ○ ○	○ ○ ○
	STW-LS-905-030m-PM STW-LS-905-050m-PM STW-LS-905-070m-PM	0～30mW 0～50mW 0～70mW	PMF PMF PMF	5um 5um 5um	90V～240VAC 90V～240VAC 90V～240VAC	FC/APC FC/APC FC/APC	A-100 A-100 A-100	√ √ √	○ ○ ○	○ ○ ○
	STW-LS-905-120m-M	0～120mW	MMF	105um	90V～240VAC	FC/SMA	A-100	√	○	○
915nm	STW-LS-915-002-M STW-LS-915-010-M STW-LS-915-020-M STW-LS-915-030-M	0～2W 0～10W 0～20W 0～30W	MMF MMF MMF MMF	105um 105um 105um 105um	90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA FC/SMA	A-100 A-200 A-300 A-300	√ √ √ √	○ ○ ○ ○	○ ○ ○ ○
940nm	STW-LS-940-030m-4 STW-LS-940-050m-4 STW-LS-940-080m-4 STW-LS-940-100m-4	0～30mW 0～50mW 0～80mW 0～100mW	SMF SMF SMF SMF	5um 5um 5um 5um	90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA FC/SMA	A-100 A-100 A-100 A-100	√ √ √ √	○ ○ ○ ○	○ ○ ○ ○
940nm	STW-LS-940-030m-PM STW-LS-940-050m-PM STW-LS-940-080m-PM	0～30mW 0～50mW 0～80mW	PMF PMF PMF	5um 5um 5um	90V～240VAC 90V～240VAC 90V～240VAC	FC/APC FC/APC FC/APC	A-100 A-100 A-100	√ √ √	○ ○ ○	○ ○ ○
940nm	STW-LS-940-100m-PM	0～100mW	PMF	5um	90V～240VAC	FC/APC	A-100	√	○	○
940nm	STW-LS-940-200m-M STW-LS-940-002-M STW-LS-940-010-M STW-LS-940-020-M STW-LS-940-030-M	0～200mW 0～2W 0～10W 0～20W 0～30W	MMF MMF MMF MMF MMF	105um 105um 105um 105um 105um	90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA FC/SMA FC/SMA	A-100 A-100 A-200 A-300 A-300	√ √ √ √ √	○ ○ ○ ○ ○	○ ○ ○ ○ ○
980nm	STW-LS-980-010m-4	0～10mW	SMF	6um	90V～240VAC	FC/SMA	A-100	√	○	○
980nm	STW-LS-980-100m-M STW-LS-980-002-M STW-LS-980-010-M STW-LS-980-020-M STW-LS-980-030-M	0～100mW 0～2W 0～10W 0～20W 0～30W	MMF MMF MMF MMF MMF	105um 105um 105um 105um 105um	90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA FC/SMA FC/SMA	A-100 A-100 A-200 A-300 A-300	√ √ √ √ √	○ ○ ○ ○ ○	○ ○ ○ ○ ○
1064nm	STW-LS-1064-010m-4 STW-LS-1064-030m-4 STW-LS-1064-050m-4	0～10mW 0～30mW 0～50mW	SMF SMF SMF	6um 6um 6um	90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA	A-100 A-100 A-100	√ √ √	○ ○ ○	○ ○ ○
	STW-LS-1064-010m-PM STW-LS-1064-030m-PM STW-LS-1064-050m-PM	0～10mW 0～30mW 0～50mW	PMF PMF PMF	5um 5um 5um	90V～240VAC 90V～240VAC 90V～240VAC	FC/APC FC/APC FC/APC	A-100 A-100 A-100	√ √ √	○ ○ ○	○ ○ ○
	STW-LS-1064-001-M STW-LS-1064-008-M STW-LS-1064-020-M	0～1W 0～8W 0～20W	MMF MMF MMF	105um 105um <300um	90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA	A-100 A-300 A-300	√ √ √	○ ○ ○	○ ○ ○
1270nm	STW-LS-1270-005m-9 STW-LS-1270-010m-9	0～5mW 0～10mW	SMF SMF	9um 9um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-100	√ √	○ ○	○ ○
1270nm	STW-LS-1270-005m-PM STW-LS-1270-010m-PM	0～5mW 0～10mW	PMF PMF	9um 9um	90V～240VAC 90V～240VAC	FC/APC FC/APC	A-100 A-100	√ √	○ ○	○ ○
1290nm	STW-LS-1290-005m-9 STW-LS-1290-010m-9	0～5mW 0～10mW	SMF SMF	9um 9um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-100	√ √	○ ○	○ ○
1290nm	STW-LS-1290-005m-PM STW-LS-1290-010m-PM	0～5mW 0～10mW	PMF PMF	9um 9um	90V～240VAC 90V～240VAC	FC/APC FC/APC	A-100 A-100	√ √	○ ○	○ ○
1310nm	STW-LS-1310-005m-9 STW-LS-1310-010m-9 STW-LS-1310-015m-9	0～5mW 0～10mW 0～15mW	SMF SMF SMF	9um 9um 9um	90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA	A-100 A-100 A-100	√ √ √	○ ○ ○	○ ○ ○
	STW-LS-1310-005m-PM STW-LS-1310-010m-PM STW-LS-1310-015m-PM	0～5mW 0～10mW 0～15mW	PMF PMF PMF	9um 9um 9um	90V～240VAC 90V～240VAC 90V～240VAC	FC/APC FC/APC FC/APC	A-100 A-100 A-100	√ √ √	○ ○ ○	○ ○ ○
	STW-LS-1310-001-M STW-LS-1310-003-M	0～1W 0～3W	MMF MMF	105um ＜300um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-300	√ √	○ ○	○ ○
1330nm	STW-LS-1330-005m-9	0～5mW	SMF	9um	90V～240VAC	FC/SMA	A-100	√	○	○
1330nm	STW-LS-1330-010m-9	0～10mW	SMF	9um	90V～240VAC	FC/SMA	A-100	√	○	○
	STW-LS-1330-005m-9-PM STW-LS-1330-010m-9-PM	0～5mW 0～10mW	PMF PMF	9um 9um	90V～240VAC 90V～240VAC	FC/APC FC/APC	A-100 A-100	√ √	○ ○	○ ○
	STW-LS-1330-001-M STW-LS-1330-003-M	0～1W 0～3W	MMF MMF	105um ＜300um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-300	√ √	○ ○	○ ○
1350nm	STW-LS-1350-005m-9 STW-LS-1350-010m-9	0～5mW 0～10mW	SMF SMF	9um 9um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-100	√ √	○ ○	○ ○
1350nm	STW-LS-1350-005m-PM STW-LS-1350-010m-PM	0～5mW 0～10mW	PMF PMF	9um 9um	90V～240VAC 90V～240VAC	FC/APC FC/APC	A-100 A-100	√ √	○ ○	○ ○
1370nm	STW-LS-1370-005m-9 STW-LS-1370-010m-9	0～5mW 0～10mW	SMF SMF	9um 9um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-100	√ √	○ ○	○ ○
1370nm	STW-LS-1370-005m-PM STW-LS-1370-010m-PM	0～5mW 0～10mW	PMF PMF	9um 9um	90V～240VAC 90V～240VAC	FC/APC FC/APC	A-100 A-100	√ √	○ ○	○ ○
1390nm	STW-LS-1390-005m-9 STW-LS-1390-010m-9	0～5mW 0～10mW	SMF SMF	9um 9um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-100	√ √	○ ○	○ ○
1390nm	STW-LS-1390-005m-PM STW-LS-1390-010m-PM	0～5mW 0～10mW	PMF PMF	9um 9um	90V～240VAC 90V～240VAC	FC/APC FC/APC	A-100 A-100	√ √	○ ○	○ ○
1410nm	STW-LS-1410-005m-9 STW-LS-1410-010m-9	0～5mW 0～10mW	SMF SMF	9um 9um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-100	√ √	○ ○	○ ○
1410nm	STW-LS-1410-005m-PM STW-LS-1410-010m-PM	0～5mW 0～10mW	PMF PMF	9um 9um	90V～240VAC 90V～240VAC	FC/APC FC/APC	A-100 A-100	√ √	○ ○	○ ○
1430nm	STW-LS-1430-005m-9 STW-LS-1430-010m-9	0～5mW 0～10mW	SMF SMF	9um 9um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-100	√ √	○ ○	○ ○
1430nm	STW-LS-1430-005m-PM STW-LS-1430-010m-PM	0～5mW 0～10mW	PMF PMF	9um 9um	90V～240VAC 90V～240VAC	FC/APC FC/APC	A-100 A-100	√ √	○ ○	○ ○
1450nm	STW-LS-1450-005m-9 STW-LS-1450-010m-9	0～5mW 0～10mW	SMF SMF	9um 9um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-100	√ √	○ ○	○ ○
	STW-LS-1450-005m-9-PM STW-LS-1450-010m-9-PM	0～5mW 0～10mW	PMF PMF	9um 9um	90V～240VAC 90V～240VAC	FC/APC FC/APC	A-100 A-100	√ √	○ ○	○ ○
	STW-LS-1450-002-M STW-LS-1450-007-M STW-LS-1450-010-M STW-LS-1450-015-M	0～2W 0～7W 0～10W 0～15W	MMF MMF MMF MMF	105um <300um <400um <400um	90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA FC/SMA	A-300 A-300 A-300 A-300	√ √ √ √	○ ○ ○ ○	○ ○ ○ ○
1470nm	STW-LS-1470-005m-9 STW-LS-1470-010m-9	0～5mW 0～10mW	SMF SMF	9um 9um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-100	√ √	○ ○	○ ○
	STW-LS-1470-005m-PM STW-LS-1470-010m-PM	0～5mW 0～10mW	PMF PMF	9um 9um	90V～240VAC 90V～240VAC	FC/APC FC/APC	A-100 A-100	√ √	○ ○	○ ○
	STW-LS-1470-002-M	0～2W	MMF	105um	90V～240VAC	FC/SMA	A-300	√	○	○
1470nm	STW-LS-1470-007-M STW-LS-1470-010-M STW-LS-1470-015-M	0～7W 0～10W 0～15W	MMF MMF MMF	<300um <400um <400um	90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA	A-300 A-300 A-300	√ √ √	○ ○ ○	○ ○ ○
1490nm	STW-LS-1490-005m-9 STW-LS-1490-010m-9	0～5mW 0～10mW	SMF SMF	9um 9um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-100	√ √	○ ○	○ ○
	STW-LS-1490-005m-PM STW-LS-1490-010m-PM	0～5mW 0～10mW	PMF PMF	9um 9um	90V～240VAC 90V～240VAC	FC/APC FC/APC	A-100 A-100	√ √	○ ○	○ ○
	STW-LS-1490-002-M STW-LS-1490-007-M STW-LS-1490-010-M STW-LS-1490-015-M	0～2W 0～7W 0～10W 0～15W	MMF MMF MMF MMF	105um <300um <400um <400um	90V～240VAC 90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA FC/SMA	A-300 A-300 A-300 A-300	√ √ √ √	○ ○ ○ ○	○ ○ ○ ○
1510nm	STW-LS-1510-005m-9 STW-LS-1510-010m-9	0～5mW 0～10mW	SMF SMF	9um 9um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-100	√ √	○ ○	○ ○
1510nm	STW-LS-1510-005m-PM STW-LS-1510-010m-PM	0～5mW 0～10mW	PMF PMF	9um 9um	90V～240VAC 90V～240VAC	FC/APC FC/APC	A-100 A-100	√ √	○ ○	○ ○
1530nm	STW-LS-1530-005m-9 STW-LS-1530-010m-9	0～5mW 0～10mW	SMF SMF	9um 9um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-100	√ √	○ ○	○ ○
	STW-LS-1530-005m-PM STW-LS-1530-010m-PM	0～5mW 0～10mW	PMF PMF	9um 9um	90V～240VAC 90V～240VAC	FC/APC FC/APC	A-100 A-100	√ √	○ ○	○ ○
	STW-LS-1530-1500m-M STW-LS-1530-005-M STW-LS-1530-010-M	0～1.5W 0～5W 0～10W	MMF MMF MMF	105um <300um <400um	90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA	A-300 A-300 A-300	√ √ √	○ ○ ○	○ ○ ○
1550nm	STW-LS-1550-005m-9 STW-LS-1550-010m-9	0～5mW 0～10mW	SMF SMF	9um 9um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-100	√ √	○ ○	○ ○
1550nm	STW-LS-1550-005m-PM STW-LS-1550-010m-PM	0～5mW 0～10mW	PMF PMF	9um 9um	90V～240VAC 90V～240VAC	FC/APC FC/APC	A-100 A-100	√ √	○ ○	○ ○
1550nm	STW-LS-1550-1500m-M STW-LS-1550-005-M STW-LS-1550-010-M	0～1.5W 0～5W 0～10W	MMF MMF MMF	105um <300um <400um	90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA	A-300 A-300 A-300	√ √ √	○ ○ ○	○ ○ ○
1570nm	STW-LS-1570-005m-9 STW-LS-1570-010m-9	0～5mW 0～10mW	SMF SMF	9um 9um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-100	√ √	○ ○	○ ○
	STW-LS-1570-005m-PM STW-LS-1570-010m-PM	0～5mW 0～10mW	PMF PMF	9um 9um	90V～240VAC 90V～240VAC	FC/APC FC/APC	A-100 A-100	√ √	○ ○	○ ○
	STW-LS-1570-1500m-M STW-LS-1570-005-M STW-LS-1570-010-M	0～1.5W 0～5W 0～10W	MMF MMF MMF	105um <300um <400um	90V～240VAC 90V～240VAC 90V～240VAC	FC/SMA FC/SMA FC/SMA	A-300 A-300 A-300	√ √ √	○ ○ ○	○ ○ ○
1590nm	STW-LS-1590-005m-9 STW-LS-1590-008m-9	0～5mW 0～8mW	SMF SMF	9um 9um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-100	√ √	○ ○	○ ○
1590nm	STW-LS-1590-005m-PM STW-LS-1590-008m-PM	0～5mW 0～8mW	PMF PMF	9um 9um	90V～240VAC 90V～240VAC	FC/APC FC/APC	A-100 A-100	√ √	○ ○	○ ○
1610nm	STW-LS-1610-005m-9 STW-LS-1610-008m-9	0～5mW 0～8mW	SMF SMF	9um 9um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-100	√ √	○ ○	○ ○
1610nm	STW-LS-1610-005m-PM STW-LS-1610-008m-PM	0～5mW 0～8mW	PMF PMF	9um 9um	90V～240VAC 90V～240VAC	FC/APC FC/APC	A-100 A-100	√ √	○ ○	○ ○
1625nm	STW-LS-1625-005m-9 STW-LS-1625-008m-9	0～5mW 0～8mW	SMF SMF	9um 9um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-100	√ √	○ ○	○ ○
1625nm	STW-LS-1625-005m-PM STW-LS-1625-008m-PM	0～5mW 0～8mW	PMF PMF	9um 9um	90V～240VAC 90V～240VAC	FC/APC FC/APC	A-100 A-100	√ √	○ ○	○ ○
1650nm	STW-LS-1650-005m-9 STW-LS-1650-008m-9	0～5mW 0～8mW	SMF SMF	9um 9um	90V～240VAC 90V～240VAC	FC/SMA FC/SMA	A-100 A-100	√ √	○ ○	○ ○
1650nm	STW-LS-1650-005m-PM STW-LS-1650-008m-PM	0～5mW 0～8mW	PMF PMF	9um 9um	90V～240VAC 90V～240VAC	FC/APC FC/APC	A-100 A-100	√ √	○ ○	○ ○
1920nm	STW-LS-1920-400m-M	0～400mW	MMF	105um	90V～240VAC	FC/SMA	A-200	√	○	○

Note: √:Yes, ○:Optional, ×:No.

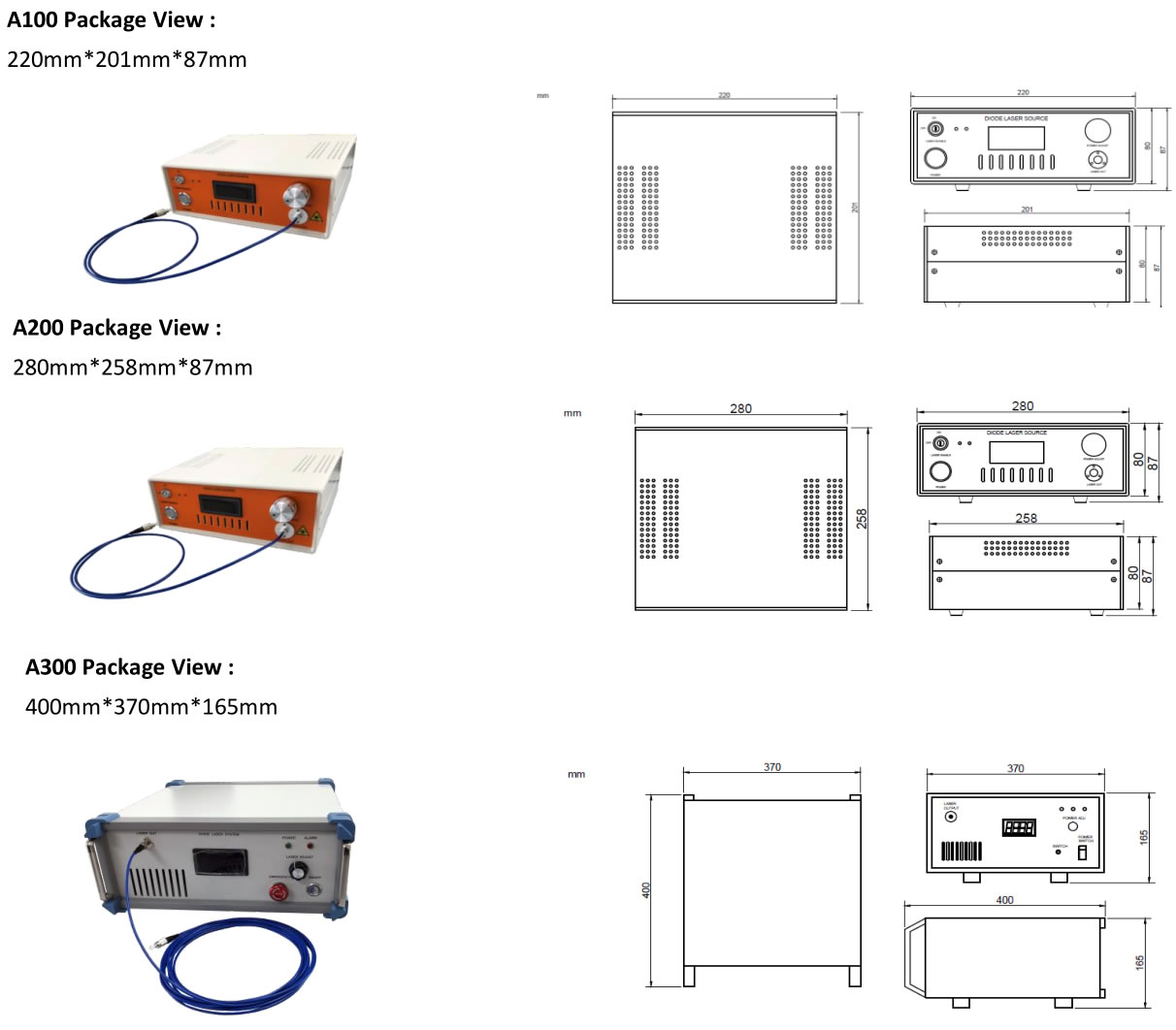

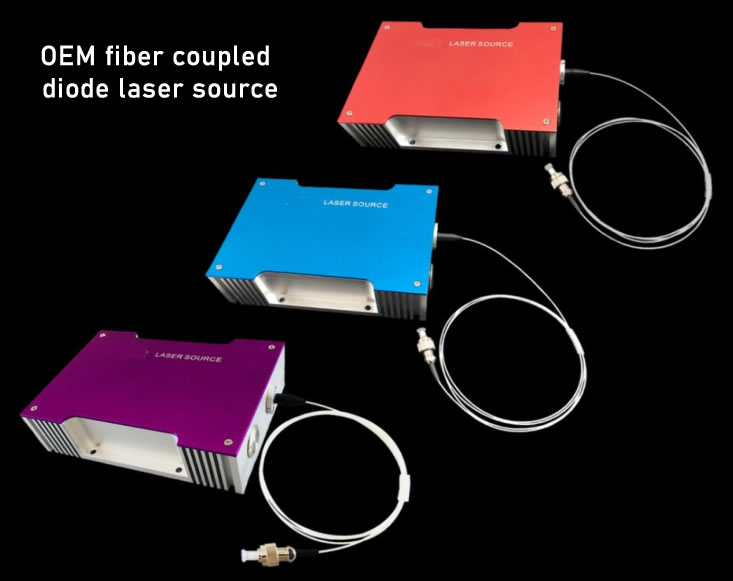

We also offer 375nm~1920nm OEM fiber coupled laser source with single mode fiber (SMF), multi-mode fiber (MMF) and polarization maintaining fiber (PMF). The output power is from 1mW to 12W. The OEM fiber coupled diode laser system contains the fiber coupled laser module, LD driver and temperature control system. It is with integrated package design and small size. With an Input of 5V/12V/24VDC input, the laser source can easily get to work. To ensure the long-time reliability and power stability, each laser system will undergo rigorous testing and aging in factory. Please contact us for more information.

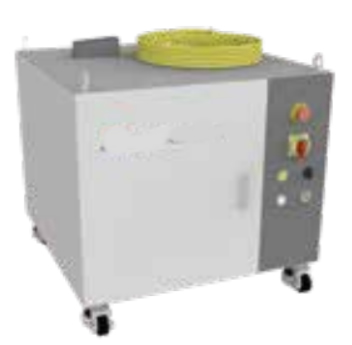

STCX Series Turn-key Diode Laser Systems

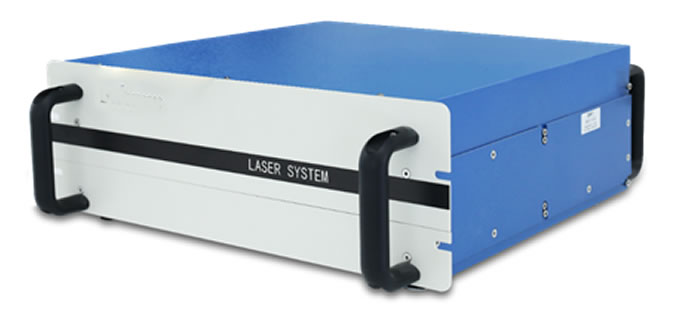

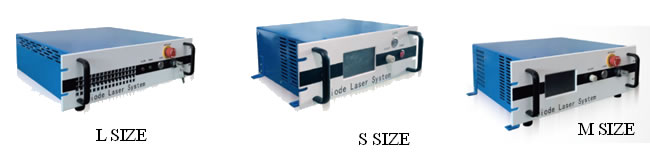

(1) STCX-DDLM Series 100-1000W Turn-key Diode Laser Systems

Optical
Center Wavelength	nm	915/976	915/976	915/976
Wavelength Tolerance	nm	±20	±20	±20
Output Power	W	100/150	30-150 (optional)	300
Output Power Unstability	%	1	3	3
Power Tunability	%	10-100	10-100	10-100
Fiber Core	μm	200	105/135/200/400	200
Numerical Aperture	-	0.22	0.22	0.22
Fiber Connector	-	SMA905	SMA905	QCS/QPSMA905
Fiber Length	m	5	5	5
Aiming Beam
Indicator Wavelength	nm	650	650	650
Output Power	mW	≤2	≥2	≥2
Electrical
Modulate Frequency	-	CW/Modulate	CW/Modulate	CW/Modulate
Operation Mode	Hz	1~10k	1~1k	1~1k
Input Voltage	-	220VAC±10% 50/60Hz	220VAC±10% 50/60Hz	220VAC±10% 50/60Hz
Input Current	A	＜10	＜10	＜10
Thermal
Operating Temperature	°C	5-40	5-40	5-40
Storage Temperature	°C	-25-55	-25-55	-25-55
Environmental Humidity	-	Max70%@25°C	Max70%@25°C	Max70%@25°C
Cooling System	-	Air Cooling(TEC）	Water Cooling (TEC)	Water Cooling (TEC)
Others
Dimension	mm	490 X 484 X 133	556 X 460 X 133	696.5 X 448 X 140

Optical
Center Wavelength	nm	976	976
Wavelength Tolerance	nm	±20	±20
Output Power	W	200/300/400/500	1000
Output Power Unstability	%	1	3
Power Tunability	%	10-100	100-1000
Fiber Core	μm	200	200
Numerical Aperture	-	0.22	0.22
Fiber Connector	-	QBH	QBH
Fiber Length	m	5	5
Aiming Beam
Indicator Wavelength	nm	650	650
Output Power	mW	≥2	≥2
Electrical
Modulate Frequency	-	CW/Modulate	Modulate
Operation Mode	Hz	1~10k	1~200
Input Voltage	-	220VAC±10% 50/60Hz	220VAC±10% 50/60Hz
Input Current	A	＜10	＜10
Thermal
Operating Temperature	°C	5-40	5-40
Storage Temperature	°C	-25-55	-25-55
Environmental Humidity	-	Max70%@25°C	Max70%@25°C
Cooling System	-	Water Cooling	Water Cooling
Others
Dimension	mm	550 X 484 X 133	550 X 484 X 133

(2) STCX-DDLF Series 2000-4000W Turn-key Diode Laser Systems

Optical
Center Wavelength	nm	976±20 (915 optional)	976±20 (915 optional)	976±20 (915 optional)
Output Power	W	2000	3000	4000
Output Power Unstability	%	≤3	≤3	≤3
Power Tunability	%	10-100	10-100	10-100
Fiber Core	μm	400/600/800	400/600/800	600
Numerical Aperture	-	0.22	0.22	0.22
Fiber Connector	-	QBH	QBH	QBH
Fiber Length	m	10/20 (optional)	10/20 (optional)	10/20 (optional)
Aiming Beam
Indicator Wavelength	nm	650	650	650
Output Power	mW	2	2	2
Electrical
Operation Mode	-	CW	CW	CW
Modulation Frequency		100	100	100
Input Voltage	-	380VAC±10% 50/60Hz	380VAC±10% 50/60Hz	380VAC±10% 50/60Hz
Input Power	kW	4.6	6.9	9.2
Thermal
Operating Temperature	°C	5-40	5-40	5-40
Storage Temperature	°C	-25-55	-25-55	-25-55
Environmental Humidity	-	70%@25°C	70%@25°C	70%@25°C
Cooling System	-	Water Cooling	Water Cooling	Water Cooling
Others
Dimension	mm	945 x 470 x138	945 x 470 x138	945 x 470 x138

(3) STCX-DDLF Series 4000-6000W Turn-key Diode Laser Systems

Optical
Center Wavelength	nm	976	976
Output Power	W	4000	6000
Output Power Unstability	%	≤3	≤3
Power Tunability	%	10-100	10-100
Fiber Core	μm	600/1000	600/1000
Numerical Aperture	-	0.22	0.22
Fiber Connector	-	QBH	QBH
Fiber Length	m	10/20( Optional)	10/20( Optional)
Aiming Beam
Indicator Wavelength	nm	650	650
Output Power	mW	≥1	≥1
Electrical
Operation Mode	-	CW	CW
Input Voltage	-	380VAC±10% 50/60Hz	380VAC±10% 50/60Hz
Input Power	W	10000	14000
Thermal
Operating Temperature	°C	5-40	5-40
Storage Temperature	°C	-25-55	-25-55
Environmental Humidity	-	70%@25°C	70%@25°C
Cooling System	-	Water Cooling	Water Cooling
Others
Dimension	mm	889 x 803 x 789	889 x 803 x 789

STK Series Fiber-coupled Diode Laser Systems

We are providing diode laser, fiber laser, ultra-fast laser products and solutions to global customers. The company pursues continuous innovation and insists on autonomous and controllable advanced process and technology. Up to now, we have sold more than 10 million lasers worldwide and covered more than 70 countries and regions. The applications involved industry, medical, commercial, scientific research, information and many other fields.

1. STK-DS3 Fiber-coupled Diode Laser Systems

Features:

9XXnm wavelength or Customized (other wavelengths available from STK series fiber-coupled diode lasers)
1W~400W output power
105/135/200/400μm core diameter
0.22NA
All-in-one and turn-key product
Multiple optional cabinet size

Applications:

Plastic welding
3D Printing
Soldering

Specifications (25℃)		Unit	STK-DS3-X(1)-LD
Optical Data(2)	CW Output Power	W	1~400
	Central wavelength	nm	9XX or Customized
	Spectral width(FWHM)	nm	±10 / Customized
	Wavelength shift with temperature	nm	≤6
	Output power instability（25℃）	%	±3（5 hours）
	Power Range	%	10~100
Fiber Data(2)	Core diameter	µm	105/135/200/400
	Numeric aperture	-	0.22
	Fiber length	m	2 / Customized
	Fiber termination	-	SMA905 / Customized
Electrical Data	Power supply	V	100~240（50-60Hz）
	Power consumption	W	<1200
	Drive mode	-	Constant current
	Emission mode	-	CW or Modulated 1 Hz to 20kHz,
	Control mode	-	Touch screen, RS232, I/O
	Modulation frequency	Hz	1~20K (DC>0.01%)
	Modulation Pulse Width	-	20µs -950ms (Pulse)/20µs-999ms (Single Pulse)
	Modulation Rise/Fall Time (Min. Value)	µs	≤10
	Current	A	<12
Aiming Beam Data(3)	Central wavelength	nm	635±10nm
Aiming Beam Data(3)	CW Output Power	mW	2
Mechanical	Dimensions (L×W×H)(4)	mm	S size: 260x360x125 M size: 340x438x145 L size: 430x482x130
Mechanical	Weight	kg	<15
Others	Cooling method	-	Air cooling/Water-cooling
	Storage temperature(5)	℃	5~50
	Temperature Ambient in Operation(5)	℃	15~30
	Cooling requirement	-	Air cooling: Internal fan, At least 10 cm space outside fan Water cooling: temperature 20 ℃ - 25 ℃ Quick coupling: 2* Φ 12 water inlet and outlet interface Circulating water pressure 0.25MPa, Circulating water flow 7L / min
	Relative Humidity	%	5~80
	Safety class	-	4（EN 60825-01）

(1) x=2 means air cooling, x=4 means water cooling; Lasers of 300W and above are all water-cooled. In the part number STK-DS3-X-LD, LD is the part number of STK series fiber-coupled diode lasers used in the laser system.
(2) Consult us for other available options. In fact, the optical, fiber and electrical parameters more depend on the diode laser matched. All STK series diode lasers can be used in the laser systems.
(3) The aiming beam can be customized according to customer requirements.
(4) The mechanical dimensions depend on the laser power and cooling mode and please consult us for more information. At the moment, there are 3 cabinets for your selection. Custom-design and -made available.
(5) A non-condensing environment is required for operation and storage

Example: STK-DS3-2-K940EB2RN-10.00W is 940nm, air-cooled 10W fiber coupled diode laser system with fiber core diameter 105μm and NA 0.22.

Remarks:

Avoid eye and skin exposure to direct radiation during operation.
Make sure the fiber output end is properly cleaned before operation of laser. Follow safety protocols to avoid injury when handling and cutting the fiber.
Laser diode must be used according to the specifications.
Temperature Ambient in Operation ranges from 15℃ to 30℃.
Storage temperature ranges from 5℃ to 50℃.

2. 1000W Fiber-coupled Diode Laser System

FEATURES

Low cost
Maintenance free operation
Modulation frequency up to 5kHz
High wall-plug efficiency
Excellent power stability
Outstanding reliability
Convenient control interface

APPLICATION

Welding
Surface treatment
Cladding
Li battery manufacture

Our Laser 1000W DDL (Direct Diode Laser) is designed for precision materials processing. With two optional modes, continuous mode and pulse mode, HAZ (heat affected zone) can be minimized. The system is designed for outstanding reliability and can be operated in harsh industrial application environment. Our Laser 1000W DDL are suitable for many applications, such as welding, cladding，Li battery soldering, etc.

Technical Specification

Part number	STK-BDL-CW1000
Power	1000W
Wavelength	915 / 976nm
Output Fiber Core Diameter	330μm
Cable Length	10m or Customized
Beam Delivery	QBH
Guide Beam	Red
Operation Mode	Continuous or Modulated
Polarization	Random
Power Stability (25︒C)	＜3% (2h)
Power Adjustment Scope	10%-100%
Max Modulation Frequency	5kHz
Weights	＜35Kg
Outline Feature	153 mmx482mmx378mm
Voltage	Single Phase, 220±20V, AC, PE, 50/60Hz
Power Consumption	2.4 kW
Control Interface	RS232
Minimum Water Cooling Capacity	1.5 kW
Temperature Settings	25︒C (Laser Module), 30︒C (QBH)
Cooling Tubes Size (External)	Φ12mm
Cooling Water Flux	>10L/min
QBH Cooling Water Flux	1.5~2.0L/min

Note: The back reflection will affect the performance and life of the direct diode laser. It is necessary to use the output laser when it is 8 ° - 10 ° away from the vertical direction of the surface.

3. 2000W Fiber-coupled Diode Laser System

FEATURES

Low cost
Maintenance free operation
Modulation frequency up to 5kHz
High wall-plug efficiency
Excellent power stability
Outstanding reliability
Convenient control interface

APPLICATION

Welding
Surface treatment
Cladding
Li battery manufacture

Our Laser 2000W DDL （Direct Diode Laser）is designed for precision materials processing. With two optional modes, continuous mode and pulse mode, HAZ (heat affected zone) can be minimized. The system is designed for outstanding reliability and can be operated in harsh industrial application environment. Our Laser 2000W DDL are suitable for many applications, such as welding, cladding，Li battery soldering, etc.

Part number	STK-BDL-CW2000
Power	2000W
Wavelength	915 / 976nm
Output Fiber Core Diameter	600μm
Cable Length	10m or Customized
Beam Delivery	QBH
Guide Beam	Red
Operation Mode	Continuous or Modulated
Polarization	Random
Power Stability (25︒C)	＜3% (2h)
Power Adjustment Scope	10%-100%
Max Modulation Frequency	5kHz
Weights	＜35Kg
Outline Feature	153 mm482mm378mm
Voltage	Single Phase, 220±20V, AC, PE, 50/60Hz
Power Consumption	2.4 kW
Control Interface	RS232
Minimum Water Cooling Capacity	1.5 kW
Temperature Settings	25℃ (Laser Module), 30℃ (QBH)
Cooling Tubes Size (External)	Φ12mm
Cooling Water Flux	>20L/min
QBH Cooling Water Flux	1.5~2.0L/min

4. STK Series Benchtop Fiber Coupled Diode Laser Systems

We offer diode laser rack mounted subsystems ranging from wavelength 450nm to 1550nm and the output can be up to 300 watt. The system can integrate several functions upon customizable request. Compact and operate-friendly designs make it very easy to use. To meet customer’s specific demanding and provide high quality products and laser solutions are our eternal pursuit.

Wavelength	Power	Fiber
635nm	400mW	105µm,200µm,400µm / 0.22
808nm	2mW-300W Customizable	105µm,200µm,400µm / 0.22
915nm	2mW-300W Customizable	105,200µm,400µm / 0.22
980nm	2mW-300W Customizable	105µm,200µm,400µm / 0.22

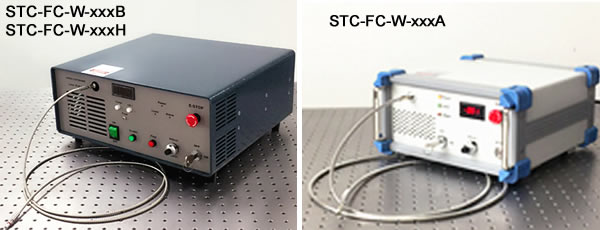

STC Series Fiber Coupled Diode Laser System with Integrated Electronics

The STC-FC series (Fiber Coupled Laser System) integrates laser diode, laser cavity, fiber coupled optics, laser power supply, LD current and crystal temperature control into ONE box. The power is available for 1mW-100W with different dimensions. The characteristics of compact design and convenient functions make it very suitable for pumping, scientific research, industrial and medical applications.

(1) <50W High Power Fiber Coupled Diode Laser System at 444-980nm (STC-FC-W-xxxA)

The STC-FC-W-xxxA series (Fiber Coupling Laser System) have integrated laser diode, fiber coupling optics, laser power supply, LD current and temperature control in ONE box. Its compact dimension and convenient functions, such as power adjustment, temperature control, LED display etc, make it very suitable for pumping, scientific research, industrial and medical applications.

Model

STC-FC-W-xxxA

Available Wavelengths (nm)

444

793

808

810

878.6

880/885

915

938

940

976

980

Wavelengths Tolerance (nm)

±3

±10

±0.5

±3

±5

±3

±10

±3

±3/±10

Available Power (W)

10, 25

10, 20

30, 40

10, 20, 30, 40

20, 40

25, 30

Red Pilot Light

Available on request

Fiber Core Diameter (µm)

100, 200, 400

Fiber NA

0.15/ 0.22

Fiber Connector

SMA905

Fiber Length (m)

Output Power

0-100%, adjustable by knob

Operating Mode

CW, TTL or Analog on request

LED Display

Diode current

Expected Lifetime (hours)

10000

Input Power

90-264VAC, 50 to 60 Hz

Operating Temperature ( ℃)

10~40

Cooling Way

By air

TTL/ Analog Modulation

Up to 30KHz optional

Dimension (mm)

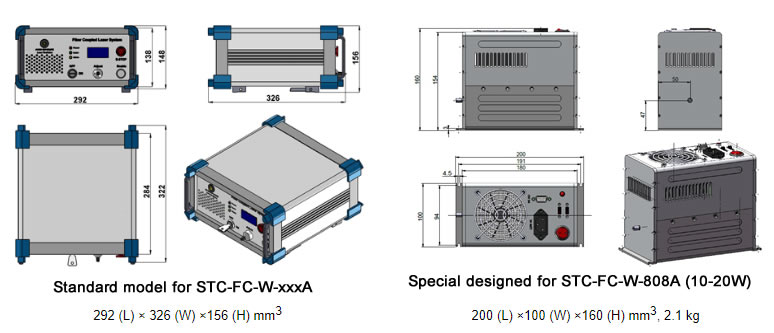

292x326x156 (200x100x160 small size)

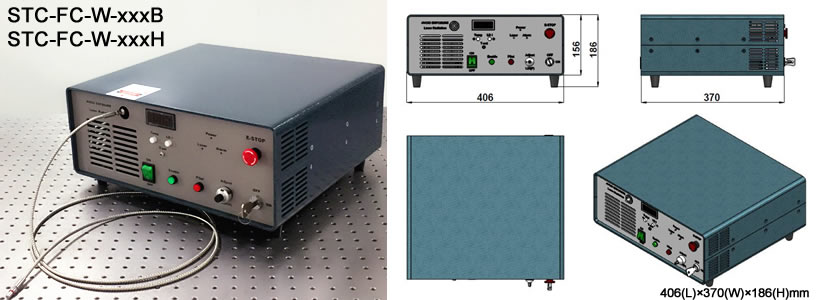

(2) <50W High Power Fiber Coupled Diode Laser System at 1064-1908nm (STC-FC-W-xxxB)

The STC-FC-W-xxxB series (Fiber Coupling Laser System) have integrated laser diode, fiber coupling optics, laser power supply, LD current and temperature control in ONE box. Its compact dimension and convenient functions, such as power adjustment, temperature control, LED display etc, make it very suitable for pumping, scientific research, industrial and medical applications.

Model

STC-FC-W-xxxB

Available Wavelengths (nm)

1060

1208

1275

1320

1380

1470

1532

1550

1600

1710

1870

1908

Central Wavelengths Tolerance (nm)

±20

±3/±20

±20

±3/±10

Available Power (W)

10, 15

Red Pilot Light (P)

Available on request

Fiber Core Diameter (µm)

400

Fiber NA

0.22

Fiber Connector

SMA905

Fiber Length (m)

Output Power

0-100%, adjustable by knob

Operating Mode

TTL/ Analog Modulation

Up to 30KHz optional

Up to 1KHz for both CW & modulated mode
Up to 30KHz for modulated mode only

LED Display

Diode current

LD Temperature Control Range ( ℃)

15~30, adjustable by knob

Expected Lifetime (hours)

10000

Input Power

90-264VAC, 50 to 60 Hz

Power Consumption (KVA)

<0.5

Operating Temperature
( ℃)

10~40

Dimension (mm)

406x370x186

Weight (kg)

<15

Cooling Way

by air

(3) 50-300W Super High Power Fiber Coupled Diode Laser System (STC-FC-W-xxxH)　

The STC-FC-W-H series (Fiber Coupling Laser System) have integrated laser diode, fiber coupling optics, laser power supply, LD current and temperature control in ONE box. Its compact dimension and convenient functions, such as power adjustment, temperature control, LED display etc, make it very suitable for pumping, scientific research, industrial and medical applications. Diode current display, temperature display, adjustable knob, temperature controllable, temperature and current protection.

Parameter	STC-FC-W-792H	STC-FC-W-808H	STC-FC-W-880H	STC-FC-W-915H	STC-FC-W-940H	STC-FC-W-980H
Available Wavelengths (nm)	792	808	880	915	940	980/976
Central Wavelengths Tolerance (nm)	±3	±3/±10	±3	±5	±3	±3/±10
Available Power (W)	50-100	50-100 110-300	50-100	50-100 110-300	50-100	50-100 110-300
Red Pilot Light	Available on request
Fiber Core Diameter (µm)	400			400/200
Fiber NA	0.22
Fiber Connector (undetachable)	SMA905
Fiber Length (m)	2
Output Power	0-100%, adjustable by knob
Operating Mode	CW/ Pulse
LED Display	Diode current
Temperature Stability ( ℃)	±0.1
Expected Lifetime (hours)	10000
Input Power	200-240VAC
Power Consumption (KVA)	<0.5
Operating Temperature ( ℃)	10~40
Dimension (mm)	406×370×186
Weight (kg)	<15
Cooling Way	By air
TTL/ Analog Modulation	Up to 30KHz optional
Warranty time	1 year

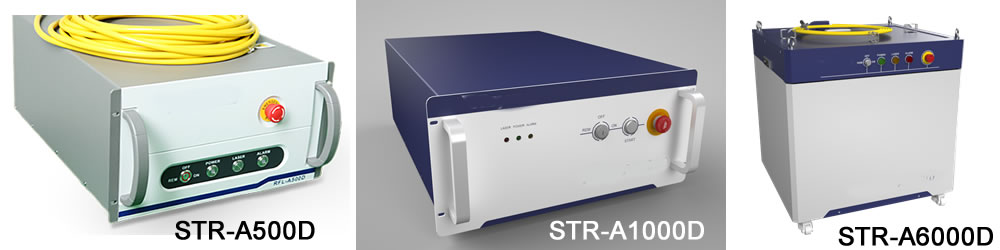

STR Series High-power Fiber-coupled Diode Laser Systems (50-6000W)

STR series fiber-coupled diode lasers range from 50W to 6,000W, with higher electro-optical conversion efficiency and stable output power.

High electro-optical conversion efficiency
Customized output fiber length
Optional SMA905, QBH connector
Optional air cooling or water cooling
Maintenance-free operation
Wide modulation frequency range

Part no.	STR-A50D	STR-A-100D
Output power (W)	50	100
Operation mode	CW/modulation	CW/modulation
Power adj. range (%)	10-100	10-100
Central wavelength (nm)	915	915
Power stability (%)	<1	<1
Modulation frequency (Hz)	50-20000	50-20000
Red pilot power (mW)	0.5-1@650nm	0.5-1@650nm
Terminal connector	SMA905/D80	SMA905/D80
Fiber core (um)	200	200
Numerical number NA	0.22	0.22
Control	Touch panel/external control
Cooling	Air-cooled
Power input	24VDC
Operating temp.	0-40degree	2.5

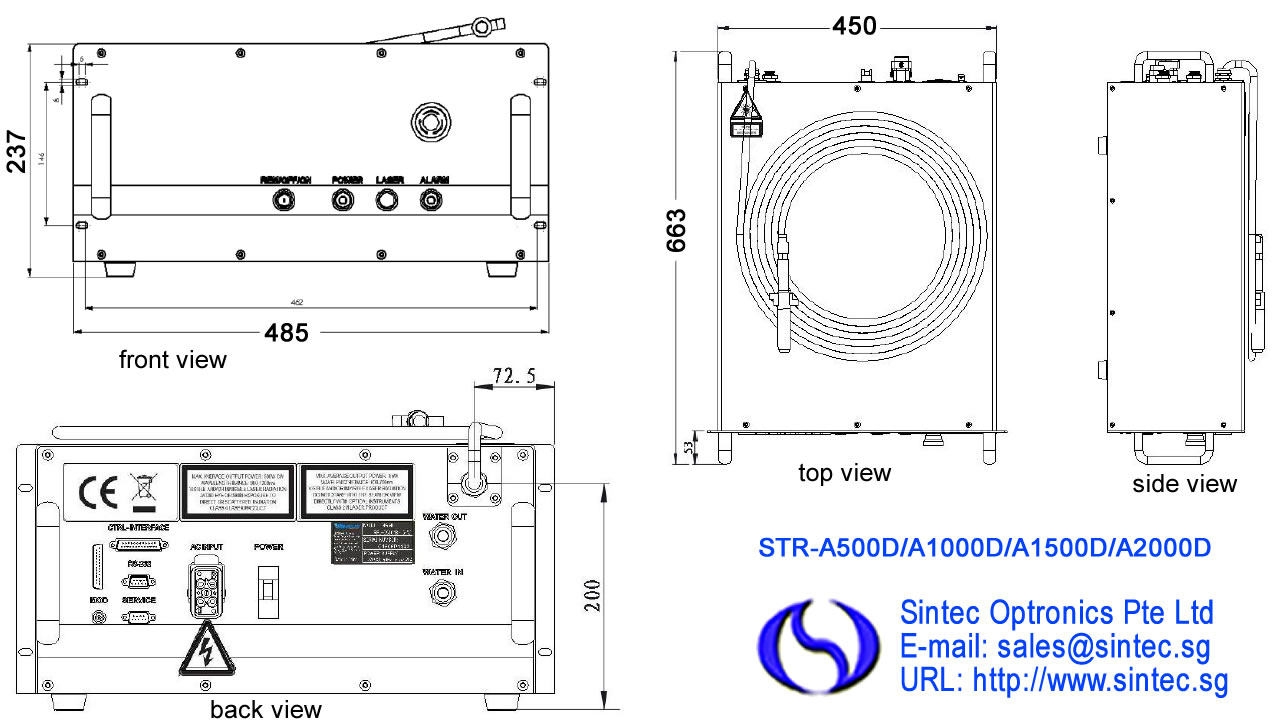

Part no.	STR-A500D	STR-A-1000D	STR-A1500D	STR-A2000D
Output power (W)	500	1000	1500	2000
Operation mode	CW/modulation	CW/modulation	CW/modulation	CW/modulation
Power adj. range (%)	10-100	10-100	10-100	10-100
Central wavelength (nm)	915	915	915	915
Power stability (%)	<3	<3	<3	<3
Modulation frequency (Hz)	50-20000	50-20000	50-20000	50-20000
Red pilot power (mW)	0.5-1	0.5-1	0.5-1	0.5-1
Terminal connector	QBH	QBH	QBH	QBH
Fiber core (um)	300	300	600	600
Numerical number NA	0.22	0.22	0.22	0.22
Fiber cable length (m)	10	10	10	10
Power input	220VAC, 50/60Hz	220VAC, 50/60Hz	380VAC, 3phase, 50/60Hz	380VAC, 3phase, 50/60Hz
Power consumption (kW)	1.25	2.5	4	5.5
Dimension (mm)	485x237x663	485x237x663	485x237x663	485x237x663
Cooling	Water cooling	Water cooling	Water cooling	Water cooling

Part no.	STR-A2000D	STR-A3000D	STR-A4000D	STR-A6000D
Output power (W)	2000	3000	4000	6000
Operation mode	CW/modulation	CW/modulation	CW/modulation	CW/modulation
Power adj. range (%)	10-100	10-100	10-100	10-100
Central wavelength (nm)	915	915	915	915
Power stability (%)	<3	<3	<3	<3
Modulation frequency (Hz)	50-20000	50-20000	50-20000	50-20000
Red pilot power (mW)	0.5-1	0.5-1	0.5-1	0.5-1
Terminal connector	QBH	QBH	QBH	QBH
Fiber core (um)	600	600	800	800
Numerical number NA	0.22	0.22	0.22	0.22
Fiber cable length (m)	20	20	20	20
Power input	380VAC, 3phase, 50/60Hz	380VAC, 3phase, 50/60Hz	380VAC, 3phase, 50/60Hz	380VAC, 3phase, 50/60Hz
Power consumption (kW)	5	8	10	15
Control	Hand-hold/RS232/AD	Hand-hold/RS232/AD	Hand-hold/RS232/AD	Hand-hold/RS232/AD
Dimension (mm)	650x900x980	650x900x980	650x900x980	650x900x980
Cooling	Water cooling	Water cooling	Water cooling	Water cooling
