Fiber-coupled LEDs

Fiber-coupled LEDs

Keywords: Fiber-coupled Leds, Leds,
Apr 19, 2020 View: 473 Data Sheet

Our fiber-coupled LEDs consist of a high power LED with an SMA/FC fiber connector. When the patch cable is connected to the SMA bulkhead on the LED housing, the LED will be butt-coupled to the SMA fiber connector. Window based GUI is available to monitor the brightness intensity of the LED and serial commands are provided to control a unit.

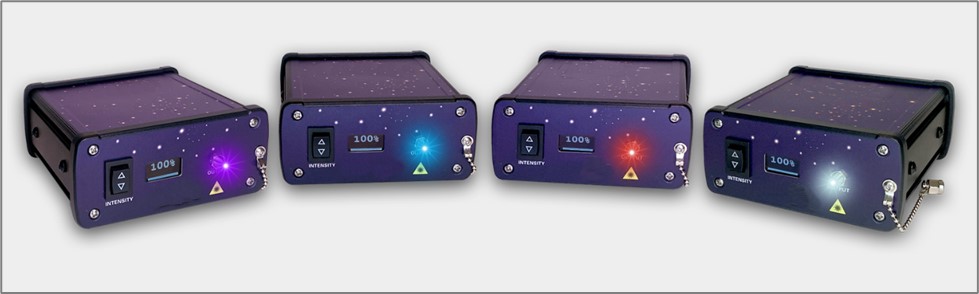

STLD Series Fiber-coupled LEDs

Our fiber-coupled LEDs consist of a high power LED with an SMA/FC fiber connector.  When the patch cable is connected to the SMA bulkhead on the LED housing, the LED will be butt-coupled to the SMA fiber connector.  Window based GUI is available to monitor the brightness intensity of the LED and serial commands are provided to control a unit.

Features:

  • Multi-mode optical fibers with core diameters up to 1000µm.

  • LED output controlled by 0-5V TTL

  • Power supply: Universal AC/DC Wall adapter, 90 to 264VAC at 47 to 63Hz input 12V 12W output, 1.5m cord length

  • Dimensions 119.1x115.1x51.6 mm and weight 0.5kg

Applications:

  • Purification and disinfection research

  • Concentration of guanosine, proteins,

  • Intrinsic fluorescence of tyrosine and tryptophan

  • Detection of carbonyl bonds

  • Beer bitterness units derived from light absorbance

  • Fluorescence imaging of aromatic amino acids for investigating neurotransmission

  • Fixed wavelength HPLC detectors

Specifications:

Model

Central wavelength (nm)

FWHM (nm)

Optical power (mW)

Connector

NA

Fiber patch cable

STLD-275-3-22U

275

10

3.0

SMA905/FC

0.22

FP22U

STLD-280-5-22U

280

10

5.0

SMA905/FC

0.22

FP22U

STLD-365-200-63P

365

15

200

SMA905/FC

0.63

FP63P

STLD-395-245-63P

395

15

245

SMA905/FC

0.63

FP63P

STLD-405-240-63P

405

15

240

SMA905/FC

0.63

FP63P

STLD-425-250-63P

425

20

250

SMA905/FC

0.63

FP63P

STLD-475-155-63P

475

25

155

SMA905/FC

0.63

FP63P

STLD-490-100-63P

490

20

100

SMA905/FC

0.63

FP63P

STLD-530-100-63P

530

35

100

SMA905/FC

0.63

FP63P

STLD-550-170-63P

550

80

170

SMA905/FC

0.63

FP63P

STLD-595-120-63P

595

80

120

SMA905/FC

0.63

FP63P

STLD-630-160-63P

630

20

160

SMA905/FC

0.63

FP63P

STLD-680-130-63P

680

20

130

SMA905/FC

0.63

FP63P

STLD-750-90-50H

750

28

90

SMA905/FC

0.50

FP50H

STLD-810-140-50H

810

37

140

SMA905/FC

0.50

FP50H

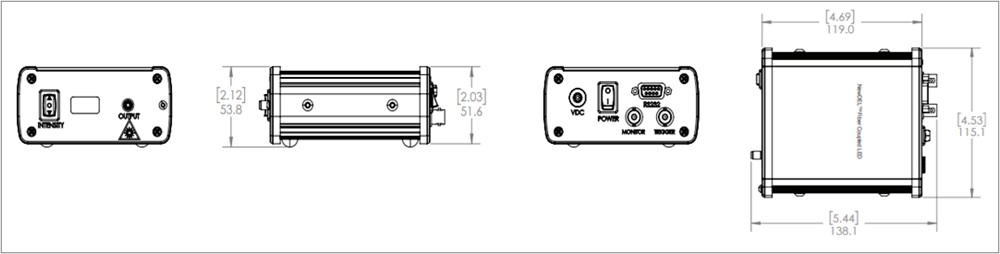

 Dimension:

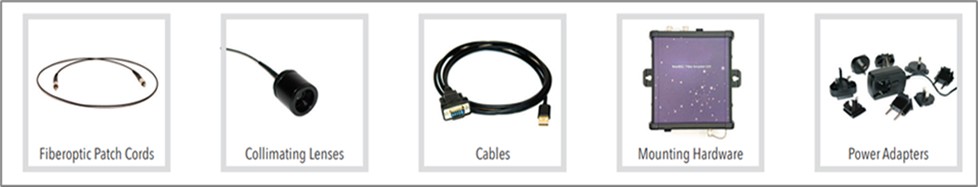

Peripherals and Accessories:

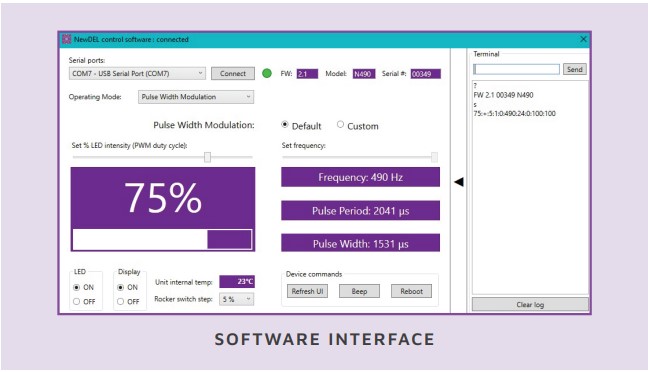

Software Interface:
