IR-UV Lasers Sorted by Wavelengths

IR-UV Lasers Sorted by Wavelengths

Keywords: fiber laser, DPSS, Q-switched, UV, 355nm, 532nm, 266nm, 1064n

CW DPSS series: CW DPSS lasers cover from 261nm to 1645nm, including the single longitudinal mode lasers, low noise lasers and multimode lasers with stabilized output power and good beam profile. Direct diode series: The most reliable technology,

  • CW DPSS series: CW DPSS lasers cover from 261nm to 1645nm, including the single longitudinal mode lasers, low noise lasers and multimode lasers with stabilized output power and good beam profile.

  • Direct diode series: The most reliable technology, cover the wavelength from 375nm to 2200nm. The new OEM version integrates the control electronics in the laser head with ultra-compact size.

  • Q-switched series: Stable single pulse energy, and narrow pulse width in passive and active operating mode. Maximum Single pulse energy is up to 20 J and output power is up to 500 W available.

  • Tunable series: The output wavelengths can be changed continuously within a certain range. Tunable lasers come with good beam quality, high stability and long life time, they are widely used in spectroscopy, photochemistry, medicine, biology, integrated optics, laser processing

  • Fiber laser series: Widely used in communication, radar, medical cosmetology, optical instrument, interference, holography, spectrum analysis, pump source, measurement, physics experiment, etc.

  • Mode-locked  Picosecond Laser Series: Superior beam quality, best reliability, pulsed duration could be less than 20ps.

  • High power fiber coupled laser system: Fiber Coupling Laser System have integrated laser diode, fiber coupling optics, laser power supply, LD current and temperature control in ONE box. Its compact dimension and convenient functions, such as power adjustment, temperature control, LED display etc, make it very suitable for pumping, scientific research, industrial and medical applications.

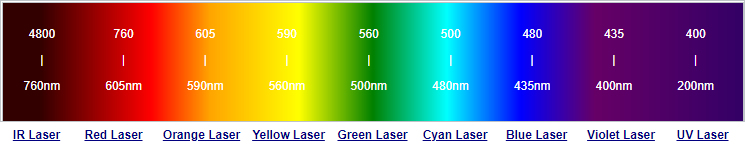

Sorted by Wavelength

sorted lasers by wavelengths

Available laser wavelengths are 213nm, 223nm, 244nm, 257nm, 261nm, 266nm, 303nm, 320nm, 349nm, 351nm, 355nm, 360nm, 375nm, 395nm, 397nm, 400nm, 405nm, 410nm, 415nm, 420nm, 425nm, 430nm, 440nm, 442nm, 445nm, 447nm, 450nm, 454nm, 457nm, 460nm, 462nm, 465nm, 470nm, 473nm, 480nm, 488nm, 491nm, 501nm, 505nm, 510nm, 514nm, 515nm, 520nm, 522nm, 523nm, 526nm, 530nm, 532nm, 540nm, 543nm, 550nm, 552nm, 555nm, 556nm, 561nm, 577nm, 588nm, 589nm, 594nm, 604nm, 607nm, 612nm, 622nm, 627nm, 633nm, 635nm, 637nm, 639nm, 640nm, 642nm, 650nm, 655nm, 656nm, 660nm, 665nm, 666nm, 671nm, 680nm, 685nm, 689nm, 690nm, 698nm, 705nm, 721nm, 730nm, 750nm, 760nm, 785nm, 786nm, 793nm, 800nm, 808nm, 825nm, 830nm, 845nm, 852nm, 860nm, 879nm, 880nm, 885nm, 905nm, 914nm, 915nm, 940nm, 946nm, 965nm, 975nm, 980nm, 1030nm, 1040nm, 1047nm, 1053nm, 1060nm, 1064nm, 1080nm, 1085nm, 1105nm, 1112nm, 1120nm, 1122nm, 1177nm, 1208nm, 1268nm, 1275nm, 1310nm, 1313nm, 1319nm, 1320nm, 1342nm, 1380nm, 1392nm, 1413nm, 1444nm, 1450nm, 1470nm, 1490nm, 1532nm, 1540nm, 1550nm, 1560nm, 1573nm, 1590nm, 1600nm, 1610nm, 1645nm, 1710nm, 1850nm, 1870nm, 1900nm, 1910nm, 1940nm, 1990nm, 2096nm, 2200nm, 2796nm, 2940nm, 3000nm, 3200nm, 3400nm, 3600nm, 3800nm, 4000nm, 4200nm, 4400nm, 4500nm, 4600nm, 4800nm, 4900nm.

Customized lasers

We specialize in designing and manufacturing custom-made and OEM lasers to suit our clients' particular needs. If you don't find a specific product or accessory from above listed products, please contact us for custom-design and fabrication.We can re-design the optical, mechanical, and/or electrical components of the lasers to provide the perfect solution for you.We have the RD, engineering, and production expertise to manufacture the lasers that are able to maintain integrity in various extreme settings and conditions.

1. 266nm UV Solid State Lasers

(1) CW UV Laser at 266nmon request.
(2) Passively Q-switched UV Laser at 266nm
  1. STC-MPL-F-266/0.1~3uJ/ 1~10mW

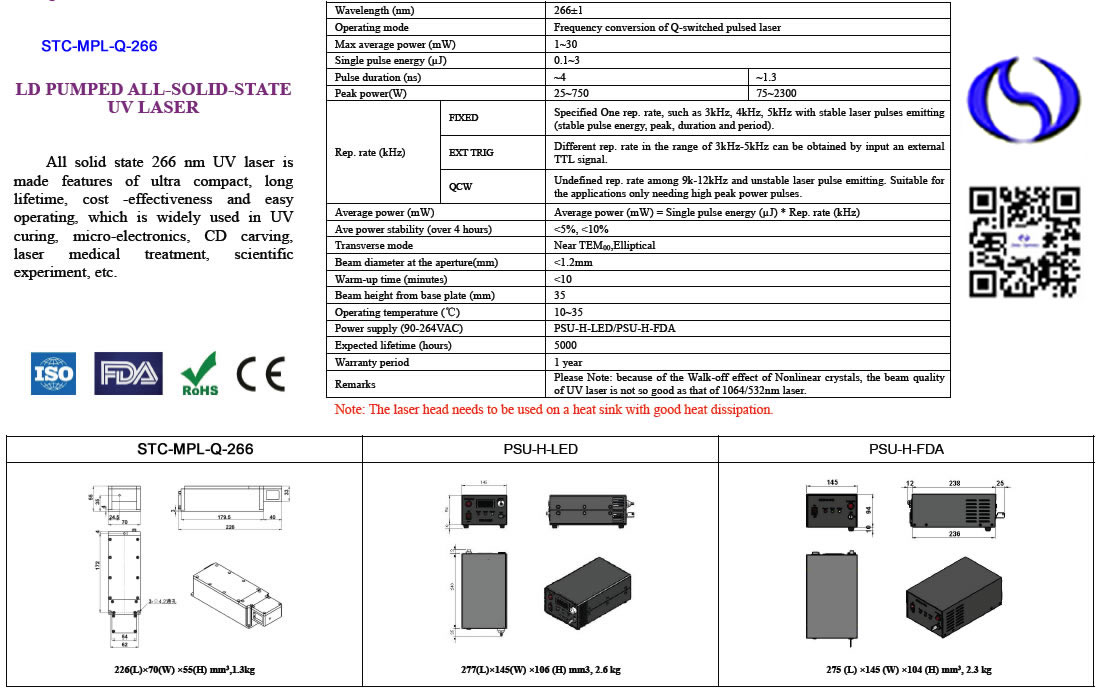

  2. STC-MPL-Q-266/0.1~3uJ/ 1~30mW

  3. STC-MPL-Q1-266/10uJ/ 10mW, Fixed rep. rate 1kHz

  4. STC-MPL-C-266/0.1~10uJ/ 1~30mW, Pulse width 1ns @1kHz

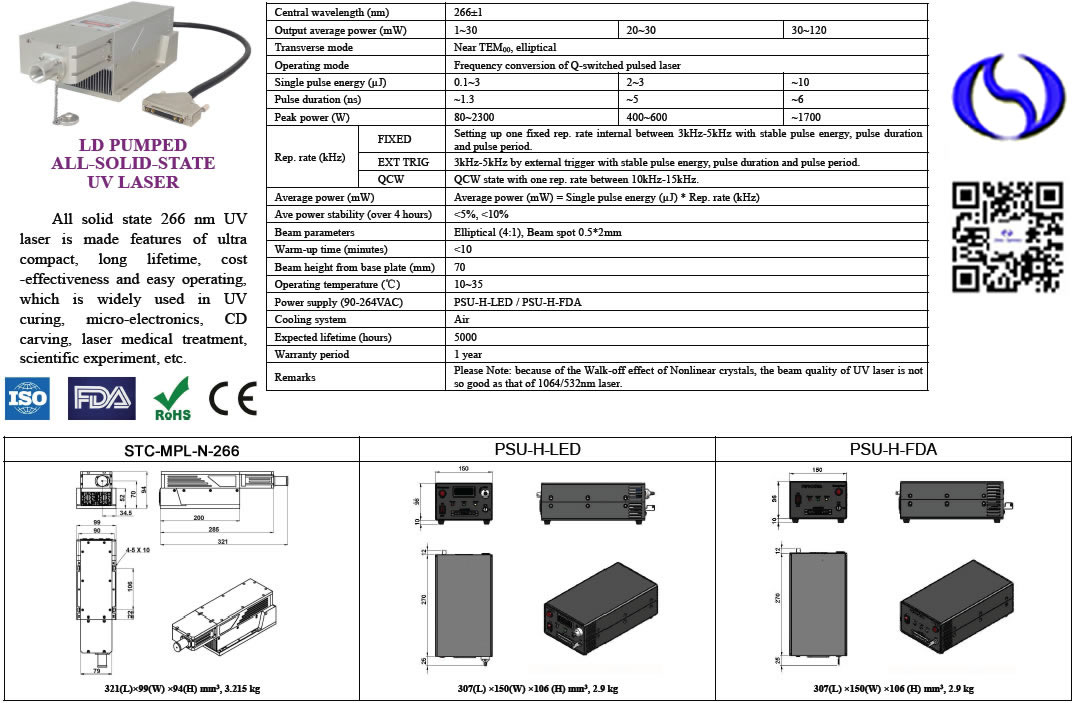

  5. STC-MPL-N-266/0.1~10uJ/ 1~120mW, Pulse width 1.3ns

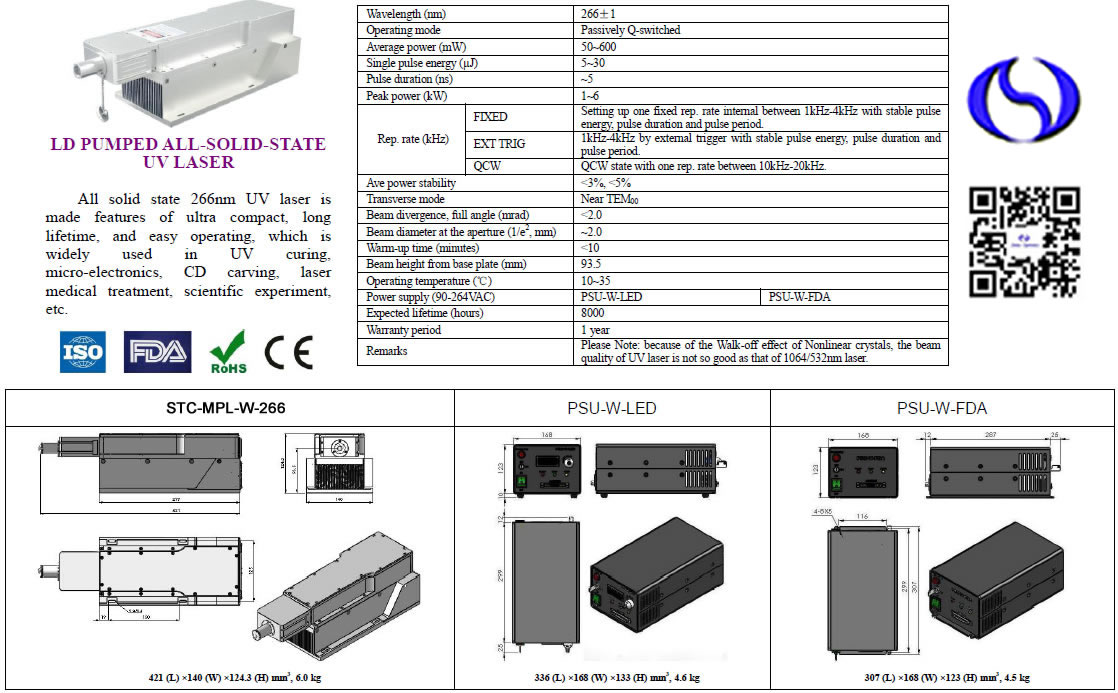

  6. STC-MPL-W-266/5~30uJ/ 50~600mW

(3) Actively Q-switched UV Laser at 266nm
  1. STC-AO-S-266/1~5uJ/ 1~10mW

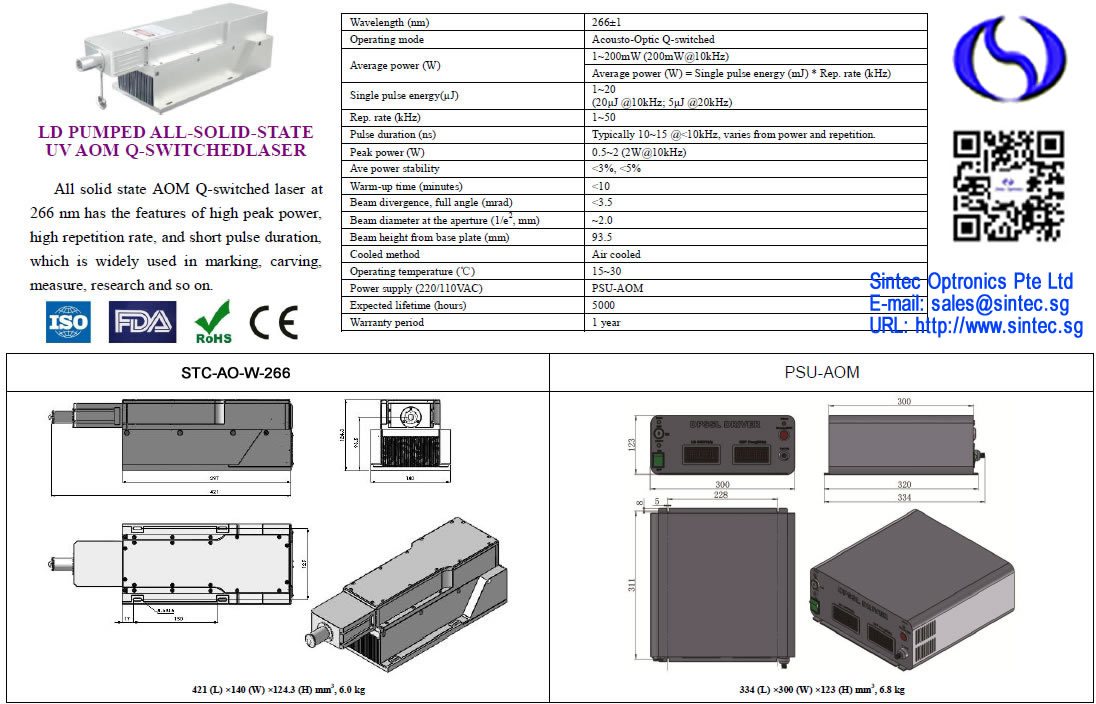

  2. STC-AO-W-266/1~20uJ/ 1~200mW

  3. STC-EO-266-G/4~100uJ,High beam quality

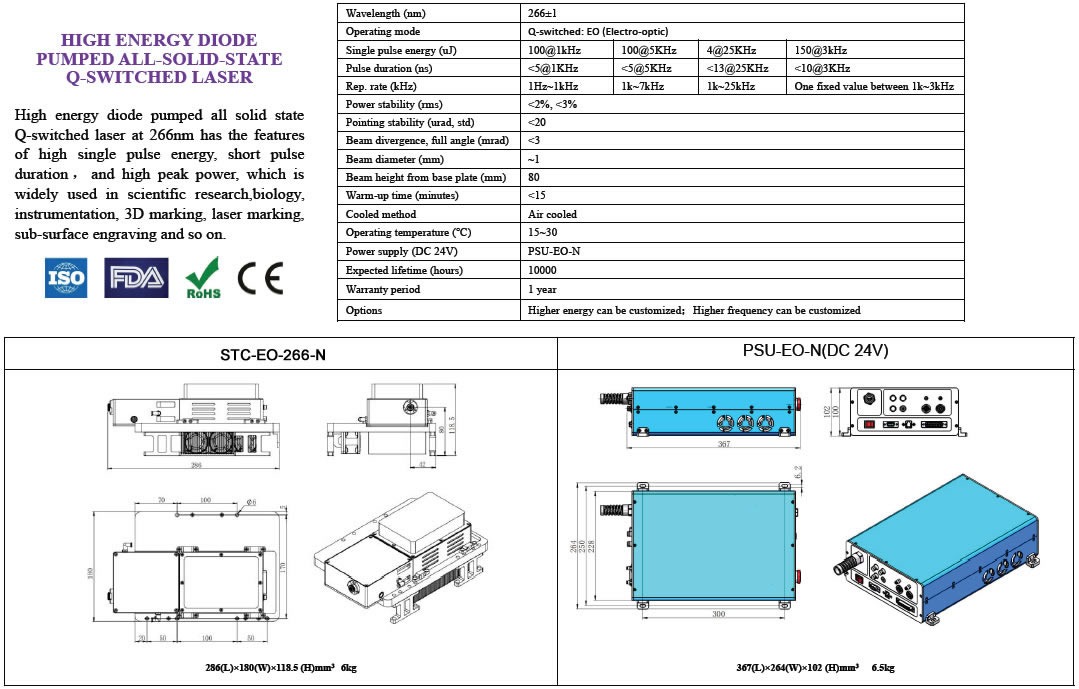

  4. STC-EO-266-N/4~150uJ

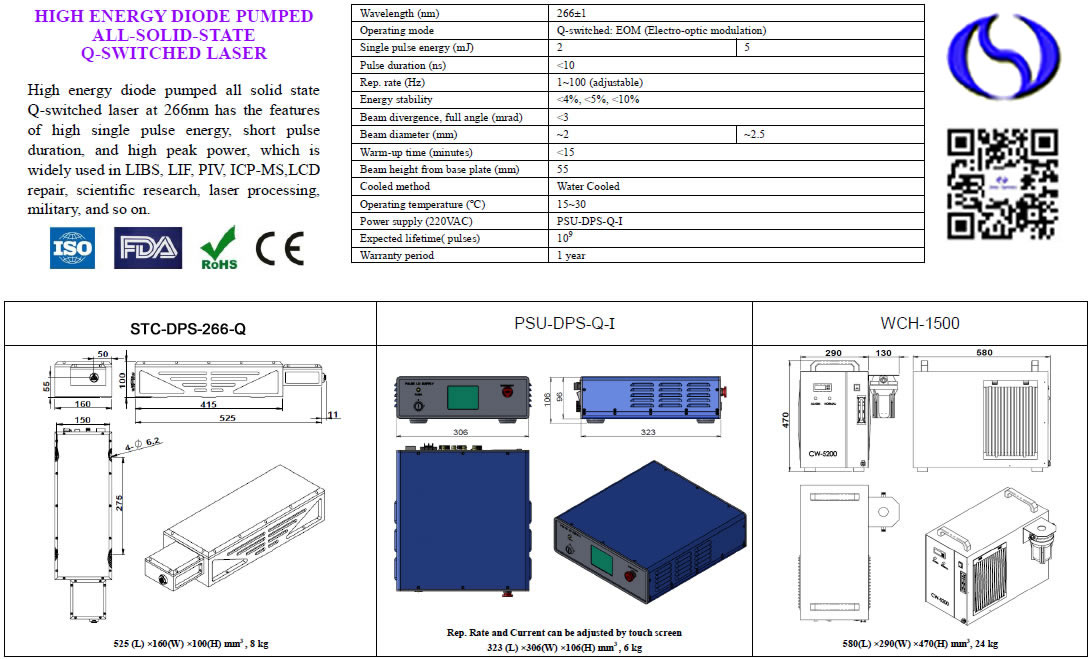

  5. STC-DPS-266-Q/2~5mJ

(4) Picosecond Pulsed UV Laser at 266nm
  1. STC-PS-R-266/1~50mW, Pulse duration<20ps (Mode-locked)

  2. STC-DPS-266-Pico/100~500mW, Repetition frequency 5MHz

(5) Fiber Laser at 266nm
  1. STC-FL-266-PS/1~10mW, Pulse duration <10ps

  2. STC-FL-266-Pico/1~50mW, Pulse duration <900ps

  3. STC-FL-266-Nano/1~50mW

2. 355 nm UV Solid State Lasers

(1) High Stability UV Laser at 355nm
  1. STC-UV-F-355/ 1~10mW

  2. STC-UV-FN-360/ 1~200mW

(2) Passively Q-switched UV Laser at 355nm
  1. STC-MPL-F-355/ 0.1~15uJ/1~100mW

  2. STC-MPL-Q-355/ 0.1~15uJ/1~150mW Pulse width 1.3ns

  3. STC-MPL-N-355/ 0.1~90uJ/ 1~800mW

  4. STC-MPL-W-355/ 25~80uJ/ 400~2000mW

(3) Actively Q-switched UV Laser at 355nm
  1. STC-AO-S-355/ 1~40uJ/ 1~100mW

  2. STC-AO-L-355/ 40~100uJ/ 1~300mW

  3. STC-AO-V-355/ 1~100uJ/ 1~2W

  4. STC-AO-V-355-Water/ 1~250uJ/ 1~5W

  5. STC-EO-XS-355/ 1~50uJ/ 1~2W

  6. STC-EO-355-G/ 4~150uJGood beam quality

  7. STC-EO-355-N/ 4~250uJ

  8. STC-DPS-355-E/ 1~2mJ

  9. STC-DPS-355-Q/ 2~10mJWater cooled

(4) Picosecond Pulsed UV Laser at 355nm
  1. STC-DPS-355-Pico/ 100~700mW

  2. STC-PS-R-355/ 1~2000mW

  3. STC-DPS-355-PS/ 1~6000mW Water cooled

(5) Lamp Pumped Q-switched Laser at 355nm
  1. STC-LPS-355-S/ 20~80mJ

  2. STC-LPS-355-L/ 80~200mJ

(6) Fiber Laser at 355nm
  1. STC-FL-355-PS/ 1~50mWPulse duration <10ps

  2. STC-FL-355-Pico/ 1~50mWPulse duration <900ps

  3. STC-FL-355-Nano/ 1~300mW

(7) Fiber Coupled Laser System at 355nmSTC-MPL-355 (FC)/ 1~1500mW. All STC series lasers can be fiber coupled with different core diameter MM fiber or SM fiber. Please refer to the detailed specs of each laser (such as power, stability, noise, size, etc) to decide which one is suitable for your application. The fiber connectors are FC/SMA905. We will do the coupling job according to your specific requirements.

3. 532 nm Green Solid State Lasers

We offer the diverse of 532nm laser sources for a broad range of industrial, medical and scientific applications. For CW operating mode lasers, the output power is up to 20W available. For Q-switched operating mode lasers, the high power laser series is up to 200W available, and high energy laser series is up to 450mJ available.

(1) High Stability LaserPerfect beam quality; Long-term stability <1%
(2) Low Noise LaserRMS noise <1.0% (<0.5% optional); Linewidth <0.003nm optional
(3) Single Frequency Lasers (Single Longitudinal Mode)Ultra low noise <0.5%; Line width <0.00001nm
(4) Q-switched Laserns laser (pulse width 1-100ns)
(5) Mode-locked  ps LaserMode-locked laser (pulse width down to 10ps)
(6) Fiber LaserModulation up to 80MHz; Pulse width down to 10ps
(7) Line Generated LaserLine uniformity <20%; Line straightness ±0.1%
(8) OEM Laser ModuleUltra compact; Industrial integration

3.1 532nm High Stability Laser SeriesDPSS lasers

High stability 532 nm laser, housed in compact packages, are the perfect choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.

Applications:

  • Confocal microscopy

  • Laser medical treatment

  • Scientific experiment

  • Laser lighting show

  • Optical instrument

ModelOperatingmodeOutput powerPower stabilityM² factor
STC-MGL-DS-532CW1~150mW<1%<1.2 (<1.1 optional)
STC-MXL-SM-532CW1~200mW<1%/
STC-MGL-III-532CW1~300mW<1%<1.2 (<1.1 optional)
STC-MGL-S-532CW1~300mW<1%<1.2 (<1.1 optional)
STC-STC-MGL-FN-532CW400~1500mW<1%<1.2 (<1.1 optional)
STC-STC-MGL-F-532CW1500~2500mW<1%<1.1
STC-MGL-N-532CW3~5W<1%<1.3
STC-MGL-R-532CW1~5W<1%<1.3
STC-OEM-N-532-WaterCW1~5W<1%<1.3
STC-MGL-W-532-HQCW1~10W<1%<1.2
STC-MGL-V-532CW5~15W<1%<1.2
STC-MGL-W-532CW5~20W<1%<1.5
STC-MGL-D-532CW20~30W<1%/
STC-HPL-532-CWCW1~80W<3%/
STC-HPL-532-QQCW20~40W<3%/
STC-HPL-532-QMQCW40~100W<3%/
STC-HPL-532-QLQCW100-200W<3%/
STC-MGL-III-532-AOMHigh modulation up to 1 MHz1~150mW<1%1.5
STC-MGL-FN-532-AOMHigh modulation up to 1 MHz150~400mW<1%<1.5

3.2 532 nm Low Noise Laser SeriesDPSS laser

High performance CW, ultra low noise 532 nm lasers, narrow spectrum linewidth <0.003 nm. Housed in compact packages, are the perfect choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.

Applications:

  • Fluorescence microscopy

  • DNA sequency, flow cytometry

  • Particle measurements

  • Spectrum analysis

  • Chip inspection

ModelOutput power (mW)Noise of amplitude
         (rms, 20Hz-20MHz)
M² factorSpectral line width (nm)

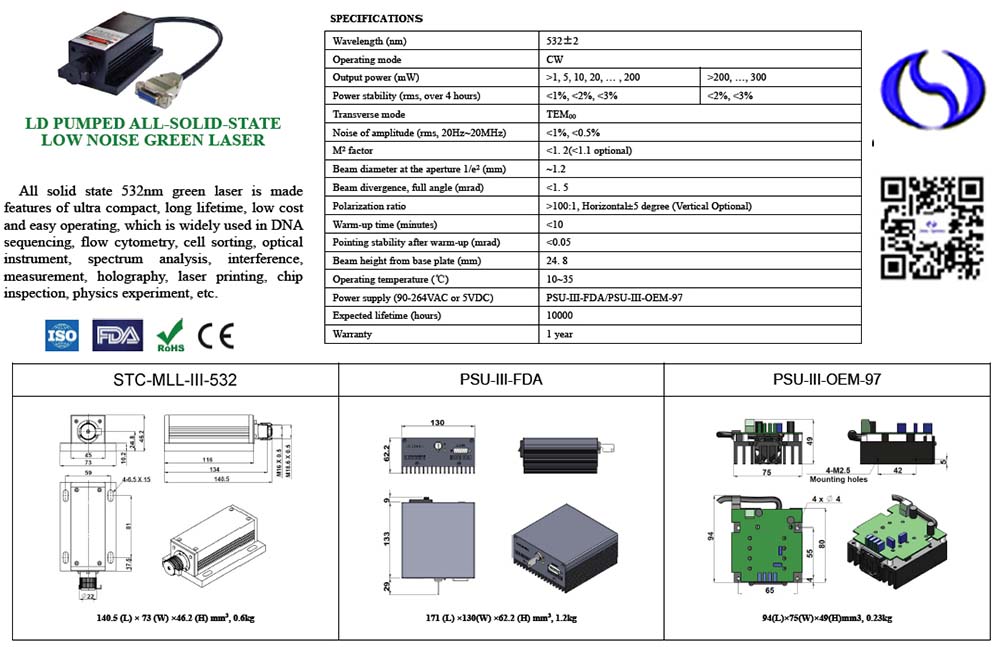

STC-MLL-III-5321~300<0.5%<1.2 (<1.1 optional)<0.1
STC-MLL-S-5321~300<0.5%<1.2 (<1.1 optional)<0.1
STC-MLL-U-5321~400<0.5%<1.2<0.003
STC-MLL-FN-5321~1000<0.5%<1.2 (<1.1 optional)<0.2 (<0.003 optional)
STC-MLL-F-5321500~2500<1%<1.1<0.1 (<0.003@1.5W)
STC-MGL-R-5321~5 W<1%<1.3<0.003
STC-MLL-N-5323~5 W<1%<1.3<0.1 (<0.01@3W)
STC-MLL-W-5325~20 W<1%<3.0<0.1 (<0.01@5W)
STC-OEM-V-532-LN5~30 W<1%<1.2<0.1

3.3 532nm Single Longitudinal Mode Laser SeriesDPSS lasers

High performance CW, single longitudinal mode, ultra low noise 532 nm lasers, narrow spectrum linewidth <0.00001nm. Housed in compact packages, are the perfect choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.

Applications:

  • Confocal microscopy

  • RAMAN spectroscopy

  • Particle measurements

  • DNA sequency, Flow cytometry

  • Digital imaging, Analytical chemistry

ModelOperatingmodeOutput power (mW)Fiber coupling optionsAOM option
STC-MSL-III-532CW1~100SM/ PM/ MMyes
STC-MSL-S-532CW1~100SM/ PM/ MMyes
STC-MSL-DS-532CW1~100SM/ PM/ MMyes
STC-MSL-U-532CW1~200SM/ PM/ MMyes
STC-MSL-FN-532CW200~400SM/ PM/ MMyes
STC-MSL-FN-532-SCW200~400SM/ PM/ MMyes
STC-MSL-F-532CW400~700SM/ PM/ MMyes
STC-MSL-RA-532CW700~2000MM/
STC-MSL-R-532CW2000~10000MM/
STC-MSL-III-532-AOMHigh modulation up to 1MHz1~30SM/ PM/ MM/
STC-MSL-FN-532-AOMHigh modulation up to 1MHz30~200SM/ PM/ MM/
STC-MSL-AO-532Q- switched1~100uJ@1Hz~1kHz, 20nsMM/

3.4 532nm Q-switched Laser Series

DPSS lasers

We offer diverse of Q-switched 532 nm lasers in passively and actively modes. With pulse width in short nanosecond, and single pulse energy up to 450mJ. Are the perfect choice for the end user applications in research, medical and industry. Nanosecond lasers perform precision processing with excellent material removal rates for microelectronics, materials processing, and medical device manufacturing.

Applications:

  • Scientific Research

  • Life Science  Medical

  • Materials Processing

  • Microelectronics

  • OEM Integration

ModelSingle pulse energyRepetition ratePulse width (ns)Operating mode (Q-switched)
STC-MPL-III-5321-5 μJ1-20 kHz~5 (1.3 optional)Passively
STC-MPL-T-5321-10 μJ0.1-15 kHz~0.5Passively
STC-MPL-SU-5325-40 μJ1-15 kHz~1.3/ ~4Passively
STC-MPL-H-5325-50 μJ1-30 kHz~5 (1.3 optional)Passively
STC-MPL-U-53220-60 μJ4-12 kHz~4 (1.3 optional)Passively
STC-MPL-N-53250-125 μJ1 k-15 kHz~5Passively
STC-AO-N-5321-60 μJ1-50 kHz~10<10 kHzAcousto-optic
STC-AO-S-5321-100 μJ0.1-50 kHz5-10 @<10 kHzAcousto-optic
STC-AO-W-5321-300 μJ1-50kHz~10 @<10 kHzAcousto-optic
STC-AO-V-5321-300 μJ1-200 kHz<15 @25 kHzAcousto-optic
STC-AO-L-5321-600 μJ0.001-200kHz~6 @5 kHzAcousto-optic
STC-AO-X-5321-670μJ30-100kHz~15 @30 kHzAcousto-optic
STC-AO-U-532500μJ-1 mJ1-3 KHz<15 @3 kHzAcousto-optic
STC-EO-XS-5321-125 μJ1-100 kHz~3.5 @40 kHzElectro-optic
STC-EO-S-5321-70 μJ1-1000Hz~6Electro-optic
STC-EO-532-G0.2-0.5 mJ1 Hz-25 kHz<8 @5 kHzElectro-optic
STC-EO-532-H0.5-1mJ1-10 kHz(fixed)<6 @5 kHzElectro-optic
STC-EO-532-N0.5-2 mJ1 Hz-25 kHz<6 @<7 kHzElectro-optic
STC-DPS-532-Pico2-10 W0.1-10 MHz<50 psElectro-optic
STC-DPS-532-H1-10 mJ1-1000 Hz<4Electro-optic
STC-DPS-532-E1.5-4 mJ1-50 Hz<4Electro-optic
STC-DPS-532-A1-5 mJ1-10 Hz<10Electro-optic / Passively
STC-DPS-532-B5-15 mJ1-10 Hz<10Electro-optic
STC-DPS-532-BS-D15-50 mJ1-20 Hz<10Electro-optic
STC-DPS-532-Q2-20 mJ @1-1000 Hz1-1000 Hz~10Electro-optic
STC-DPS-532-J1-20 mJ1-20 Hz~10Electro-optic
STC-HPL-532-QT1-13W5-10kHz~150 @10 kHzAcousto-optic
STC-HPL-532-Q2-4mJ @10kHz10-20kHz~100 @10 kHzAcousto-optic
STC-HPL-532-QM1-6mJ @15kHz15kHz~100 @15 kHzAcousto-optic
STC-HPL-532-QL7-13mJ@15kHz15kHz~100 @15 kHzAcousto-optic
STC-HPL-532-QS1-4.5mJ@10kHz10kHz~5Acousto-optic
STC-LPS-532-A30-100 mJ1-10 Hz~10Electro-optic
STC-LPS-532-S30-150 mJ1-20 Hz~10Electro-optic
STC-LPS-532-L200-450 mJ1-10 Hz~10Electro-optic

3.5 532nm Mode-locked  Picosecond Laser Series

DPSS lasers

Superior beam quality, best reliability, mode-locked  picosecond pulsed laser, pulsed duration could be less than 20ps. Housed in compact packages, are the perfect choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.

Applications:

Raman spectroscopy; Marking, Carving; Material processing; Astronomy; Scientific research; Optical instrument

Mode-locked Type:


Wavelength
         (nm)
Output power
         (mW)
Pulse duration
         (ps)
Rep. rate
         (MHz)
Operating modeTransverse mode
STC-PS-R-5325321-3000<2048±1Mode-lockedTEM00
STC-PS-HR-5325321-2 W~15@500kHz2 W100-1000kHzMode-lockedTEM00

Fiber Laser Type:


Wavelength
         (nm)
Output power
         (mW)
Pulse duration
         (ps)
Rep. rate
         (MHz)
Operating modeTransverse mode
STC-FL-532-PS5321-150<1020-80 (Fixed)Mode-lockedTEM00
STC-FL-532-Pico5321-1000100-9000.1-80 (variable)PulsedTEM00

Diode Pumped Laser Type:


Wavelength
         (nm)
Output power
         (mW)
Pulse duration
         (ps)
Rep. rate
         (MHz)
Operating modeTransverse mode
STC-DPS-532-Pico5322-10 W<50 ps0.1-10 MHzPulsedTEM00

3.6 532nm Fiber Lasers

DPSS lasers

We offer fiber lasers with compact OEM modular design which is ideal for systems integration. They are widely used in communication, lidar, medical cosmetology, optical instrument, interference, holography, spectrum analysis, pump source, measurement, physics experiment, etc. The pulsed mode up to 1MHz modulation and pulse duration variation are also available.

ModelWavelength (nm)Output power(mW)Pulse widthModulation rateLongitudinal modePolarization
STC-FL-532-PS5321-150<10 ps20-60 MHzMulti->15dB
STC-FL-532-Pico5321-1000100-900 ps0.1-20 MHzMulti->15dB
STC-FL-532-Nano5321-10000.5-50 ns0.1-1 MHzMulti->15dB
STC-FL-532-AO53210-100 nJ0.5-50 ns1-1000 HzMulti-Random/ >15dB

3.7 532nm OEM Laser Modules

Green laser module at 532 nm are made features of ultra compact, low cost and easy operating, which are the perfect choice for design in and integration into OEM instrumentation and systems, and also for end user applications in scientific research, medical treatment and industrial development.

High Power OEM LaserDPSS lasers
  1. STC-OEM-S-532/ 1~300mW

  2. STC-OEM-U-532/ 300~1500mW

  3. STC-OEM-N-532/ 2000~5000mW

  4. STC-OEM-N-532-Water/ 1~5W Water cooled

  5. STC-OEM-W-532/ 5~18W

  6. STC-OEM-W-532-Water/ 5~10W Water cooled

  7. STC-OEM-I-532/ 5W Ultra compact

  8. STC-OEM-SW-532/ 10W Low heat

  9. STC-OEM-V-532/ 5~15W Water cooled

  10. STC-OEM-D-532/ 20-30W

  11. STC-OEM-D-532-Water/ 20-30W Water cooled

Compact Laser Moduledpss lasers
  1. STC-PGL-I-R-532/ 1~50mW

  2. STC-S-GDL-532/ 1~80mW

  3. STC-PGL-VI-532/ 1~80mW

  4. STC-PGL-H-532/ 1~500mW

  5. STC-PGL-H1-532/1~800mW Beam divergence < 1.5 mrad

dpss lasers
  1. STC-PGL-XII-E-532/ 1~50mW

  2. STC-PGL-FS-532/ 1~50mW

  3. STC-PGL-V-H-532/ 1~300mW

Fiber Coupled Laser Moduledpss lasersSTC-PGL-FC-532/ 1~50mW

4. 1064 nm Infrared Solid State Laser

We offer the diverse of laser sources for a broad range of industrial, medical and scientific applications. For CW operating mode lasers, the output power is up to 500W available. Q-switched high power laser series is 300W maximum. The high energy laser series is up to 20J available.

(1) High Stability LaserPerfect beam quality; Long-term stability <1%
(2) Low Noise LaserRMS noise <1.0% (<0.5% optional); Line width <0.2nm
(3) Single Frequency Lasers (Single Longitudinal Mode)Ultra low noise <0.5%; Linewidth <0.00001nm
(4) Q-switched LaserNs laser (pulse width 1-100ns)
(5) Mode-locked  ps LaserMode-locked laser (pulse width down to 10ps)
(6) Fiber LaserModulation up to 80MHz; Pulse width down to 10ps
(7) OEM Laser ModuleUltra compact; Industrial integration
(8) Fiber Pigtailed LaserMM, SM, PM fiber optional; SMA, FC connector optional

4.1 1064 nm Infrared Laser Series

High stability 1064 nm laser, housed in compact packages, are the perfect choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.

dpss lasers

Applications:

  • Confocal microscopy

  • Laser printing

  • Chip inspection

  • Particle measurements

  • Spectrum analysis

  • DNA sequencing

ModelOperatingmodeOutput powerMin. power stabilityM²factor
STC-MXL-SM-1064CW1~500 mW<2%/
STC-MIL-III-1064CW1~1500 mW<1%<1.5 (<1.2 optional)
STC-MIL-S-1064CW1~1500 mW<1%<1.2
STC-MIL-H-1064CW2~3 W<1%<2.0
STC-MIL-N-1064CW4~5 W<1%<3.0
STC-MIL-W-1064CW6~20 W<1%<2.0
STC-MIL-V-1064CW6~20 W<1%<2.0
STC-HPL-1064-QQCW50~100 W<3%/
STC-HPL-1064-QMQCW100~300 W<3%/
STC-HPL-1064-CWCW50~100 W<3%/
STC-HPL-1064-CWCW100~500 W<3%/

4.2 1064nm Low Noise Laser Series

High performance CW, ultra low noise 1064 nm lasers, noise less than 1% and power up to 20W. Housed in compact packages, are the perfect choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.

dpss laser

Applications:

  • Fluorescence microscopy

  • DNA sequency, flow cytometry

  • Optical instrument

  • Chip inspection

  • Physics experiment

ModelOutput power (mW)Noise of amplitude
         (rms,20Hz-20MHz)
M² factorSpectral line width (nm)
STC-MLL-III-10641~1500<1%<1.5 (<1.2 optional)<0.2
STC-MLL-S-10641~1500<1%<1.2<0.2
STC-MLL-H-10642000~3000<1%<2.0<0.2
STC-MLL-N-10644000~5000<1%<2.0<0.2
STC-MLL-V-10646000~20000<1%<2.0<0.2
STC-MLL-W-10646000~20000<1%<3.0 ( typically)<0.2

4.3 1064nm Single Longitudinal Mode Laser Series

High performance CW, single longitudinal mode, ultra low noise 1064 nm Lasers, narrow spectrum linewidth <0.00001 nm. Housed in compact packages, are the perfect choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.

dpss lasers

Applications:

  • Confocal microscopy

  • RAMAN spectroscopy

  • Holography

  • Particle measurements

  • DNA sequency, flow cytometry

  • Digital imaging, Analytical chemistry

ModelOperatingmodeOutput power (mW)Fiber coupling optionsAOM options
STC-MSL-S-1064CW1~200SM/ PM/ MMyes
STC-MSL-S-1064-SCW1~200SM/ PM/ MMyes
STC-MSL-III-1064CW1~1000SM/ PM/ MMyes
STC-MSL-III-1064-SCW1~1000SM/ PM/ MMyes
STC-MSL-R-1064CW1000 ~10000MM/
STC-MSL-AO-1064Q- switched1~200uJ@1Hz~1kHz, 25nsMM/

4.4 1064nm Q-switched Laser Series

We offer diverse of Q switched 1064 nm lasers in passively and actively modes. With pulse width from 1.3ns to 150ns, and single pulse energy from 1uJ to 20J. These lasers are the perfect choice for the end user applications in research, medical and industry. Nanosecond lasers perform precision processing with excellent material removal rates for microelectronics, materials processing, solar and medical device manufacturing.

dpss laser

Applications:

  • Life Science  Medical

  • Materials Processing

  • Microelectronics

  • OEM Integration

ModelSingle pulse energy/ PowerRepetition ratePulse width (ns)Operating mode (Q-switched)
STC-MPL-III-106410-20 μJ1-20 kHz~3-25 (1.3 optional)Passively
STC-OEM-P-10641-20 μJ1-20 kHz~1-5Passively
STC-MPL-T-10641-35 μJ0.1-20 kHz~0.5Passively
STC-MPL-H-106420-100 μJ1-30kHz~10 (1.5 optional)Passively
STC-MPL-SU-106420-200 μJ1-15kHz~1.5/ ~1.8/ ~5Passively
STC-MPL-FL-1064-A15-130μJ1-70kHz~5 (1.3 optional)Passively
STC-MPL-N-1064150-200 μJ1-15 kHz~3-5 (<2 optional)Passively
STC-MPL-FL-1064-B150-300 μJ1 kHz~2 (1.0 optional)Passively
STC-AO-S-10641-350μJ0.1-100kHz7-11 @<10 kHzAcousto-optic
STC-AO-I-1064500μJ1-100 kHz~10 @20 kHzAcousto-optic
STC-AO-N-10641-600 μJ1-100 kHz~7 @10 kHzAcousto-optic
STC-AO-W-10641-600μJ1-100kHz~10 @<10 kHzAcousto-optic
STC-AO-V-10641-600 μJ1-200 kHz~25 @30 kHzAcousto-optic
STC-AO-L-10641-1500 μJ0.001-200 kHz~10 @10 kHzAcousto-optic
STC-AO-M-10641-1000 μJ1-20 kHz~13 @20 kHzAcousto-optic
STC-AO-H-10641-1000 μJ10-100kHz~20 @30 kHzAcousto-optic
STC-AO-X-10641-670 μJ10-100 kHz~20 @30 kHzAcousto-optic
STC-EO-XS-10641~180μJ1-100 kHz~4 @50 kHzElectro-optic
STC-EO-HS-10641-320 μJ1-100 kHz~4 @50 kHzElectro-optic
STC-EO-S-10641-300 μJ1-1000 Hz~8Electro-optic
STC-EO-1064-G0.5-1 mJ1Hz-25 kHz~8 @5 kHzElectro-optic
STC-EO-1064-H1-2 mJ1-10 kHz~7 @5 kHzElectro-optic
STC-EO-1064-N1-3.5 mJ1Hz-25 kHz~7 @<7 kHzElectro-optic
STC-DPS-1064-Pico5-30 W0.1-10MHz<50ps, 50-1000 (adjustable)Elecro-optic
STC-DPS-1064-H1~30 mJ1~1000 Hz<5Elecro-optic
STC-DPS-1064-D0.5-2 mJ1-100 Hz<10Electro-optic
STC-DPS-1064-E3-8 mJ1-50 Hz<4Electro-optic
STC-DPS-1064-P-Min6 mJ10/ 20
         EXT(adjustable)
3±1Passively
STC-DPS-1064-A1-10 mJ1-10 Hz~10Electro-optic / Passively
STC-DPS-1064-B10-30 mJ1-10 Hz<10Electro-optic
STC-DPS-1064-BS-D30-100 mJ1-20 Hz<10Electro-optic
STC-DPS-1064-Q5-40mJ@1-1000Hz1-1000 Hz~10Electro-optic
STC-DPS-1064-J1-40mJ1-20 Hz~10Electro-optic
STC-HPL-1064-Q5-10 mJ@10kHz10-20kHz~100 @10 kHzAcousto-optic
STC-HPL-1064-QM10-30mJ@10kHz10-20kHz~150 @10 kHzAcousto-optic
STC-HPL-1064-QS1-15 mJ @10kHz10kHz~7Acousto-optic
STC-HPL-1064-QT1-20 W5-10 kHz~70 @5 kHzAcousto-optic
STC-LPS-1064-A50-200 mJ1-10 Hz~10Electro-optic
STC-LPS-1064-S50-300 mJ1-10 Hz~10Electro-optic
STC-LPS-1064-L350-1000 mJ1-10 Hz~10Electro-optic
STC-LPS-1064-M1-10 J1-20 Hz~0.1-20 msPulsed

4.5 1064nm Mode-locked  Picosecond Laser Series

dpss laser

Superior beam quality, best reliability, mode-locked  picosecond pulsed laser, pulsed duration could be less than 20ps. Housed in compact packages, are the perfect choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.

Applications:

Raman spectroscopy; Marking, Carving; Material processing; Astronomy; Scientific research; Optical instrument

Mode-locked Type:


Wavelength
         (nm)
Output power
         (mW)
Pulse duration
         (ps)
Rep. rate
         (MHz)
Operating modeTransverse mode
STC-PS-RL-106410641-1000~15 @10 kHz1 W1-10kHzMode-lockedTEM00
STC-PS-HR-106410641-10 W~15@500kHz10W100-1000kHzMode-lockedTEM00
STC-PS-R-106410641-10 W<2048±1Mode-lockedTEM00
STC-PS-Seed-106410641-300<2080±1Mode-lockedTEM00
STC-Macro/ Micro-1064-P106410 WMacro 160 μsMicro~100MHzMode-lockedTEM00

Fiber Laser Type:


Wavelength
         (nm)
Output power
         (mW)
Pulse duration
         (ps)
Rep. rate
         (MHz)
Operating modeTransverse mode
STC-FL-1064-PS10641-2000<1020-80 (Fixed)Mode-lockedTEM00
STC-FL-1064-Pico106410-5000100-9000.1-20 (variable)PulsedTEM00

Diode Pumped Laser Type:


Wavelength
         (nm)
Output power
         (mW)
Pulse duration
         (ps)
Rep. rate
         (MHz)
Operating modeTransverse mode
STC-DPS-1064-Pico10645-30 W<50 ps0.1-10 MHzPulsedTEM00

4.6 1064nm OEM Laser Module

Infrared laser modules at 1064 nm are made features of ultra compact, low cost and easy operating, which are the perfect choice for design in and integration into OEM instrumentation and systems, and also for end user applications in scientific research, medical treatment and industrial development.

High Power OEM Laserdpss laser
  • STC-OEM-S-1064/ 1~1500mW

  • STC-OEM-N-1064/ 1500~5000mW

  • STC-OEM-W-1064/ 6000~20000mW

Compact Laser Module

dpss laser

  • STC-PGL-I-R-1064/ 1~300mW

  • STC-PGL-VI-1064/ 1~300mW

  • STC-PGL-D12-1064/ 1~300mW

  • STC-PGL-FS-1064/ 1~500mW

  • STC-PGL-H1-1064/ 1~1000mW Beam divergence < 1.5 mrad

dpss laser
  • STC-PGL-V-H-1064/ 1~1000mW

5. Lasers at Various Laser Wavelengths

5.1 CW DPSS SERIES:

Wavelength (nm)  Output power (mW)

Wavelength261303320335349355360425430457473480484
SLM(single frequency)





50

2W100

Low noise





50

10W500

Basic version55202030102001010010W5W3020
Wavelength (nm)491501515522523.5526.5532540543550552555
SLM(single frequency)

20
10010010W
100


Low noise

10010040040030W

100

Basic version4002005001008001W200W5001500200200100
Wavelength (nm)556561577588589593.5604607612639656.5660666
SLM(single frequency)10080300200200

100
3005020
Low noise20020030020050030


1W
400
Basic version2.5W2W3.5W4.5W4.5W8001004001001W1.2W2W200
Wavelength (nm)671689698721914946103010401047105310641105
SLM(single frequency)2.5W
2001001005020
80020010W
Low noise5W
1W1008008006001001W1.5W20W
Basic version5W2001W5008005W6001008W8W500W500
Wavelength (nm)112211771313131913421400-1800141314441645191019401990
SLM(single frequency)80
500505W






Low noise300
1W1.5W6W

400



Basic version1W4001W150W6W2W3004001W13W11W11W
Wavelength (nm)209621242600-44502796260028003000320034003600400042004400
Basic version20W2.5W1W3001W1W1W1W1W1W800800800
  • Notes: power can be any value between 0- maximum powers.

  • SLM: single longitudinal mode laser, spectral line width<0.00001 nm.

  • Low noise: Noise of amplitude (rms, 20Hz~20MHz) <1%. Multi-mode: multiple longitudinal mode.

CW DPSS UV Laser

Wavelength(nm)261, 303, 320, 335, 349, 355, 360
Laser versionSLMLow noiseBasic version
261,303nm output power(mW)//5
320nm output power(mW)//20
335nm output power(mW)//10
349nm output power(mW)//30
355nm output power(mW)//10
360nm output power(mW)5050200
Power stability, rms (8 h)<3%, <5%<1%, <2%, <3%<1%, <2%, <3%, 10%
Output noise, rms (8 h)<0.5%, <1%,<0.5%, <1%>10%
Transverse mode (Optional)TEM00, M2<1.5TEM00, M2<2TEM00, M2<2
Linewidth<10-5nm<0.2nm<0.2nm
Coherent length>50m~10cm~10cm
Polarization>50:1, >100:1, optional Horizontal±5 degree (Vertical Optional)>50:1, >100:1, optional Horizontal ±5 degree (Vertical Optional)>50:1 Horizontal±5 degree (Vertical Optional)
Pointing stability<0.05mrad<0.05mrad<0.1mrd
Beam diameter(1/e2)<1.5mm~1.5mm~1.0mm
Beam divergence<1.2mrad<1.0mrad<1.0mrad

CW DPSS BLUE Laser

Wavelength(nm)457, 473
Laser versionSLMLow noiseBasic version
457nm output power (mW)5,10,50,100,…,20005, 10, 50, 100, … ,100005,10,50,100,…,10000
473nm output power (mW)5, 10, 20, … , 1005, 10, 50, … , 5005, 10, 50, … , 5000
Transverse mode(Optional)TEM00 or Near TEM00, M2 <1.2
Power stability, rms (8 h)Up to 1%
Output noise, rms (8 h)<0.5% (1Hz-20 MHz)<1% (20Hz-20MHz)<3% (1Hz-20MHz)
Longitudinal modeSingleMultiMulti
Linewidth<10-5nm<0.2nm (<0.003nm for less than 400mW)<0.3nm
Coherent length>50 m~10cm~10cm
PolarizationLinear; Ratio >100:1; Horizontal optional for SLM laser
Pointing stability<0.05mrad for 473nm less than 500mW, and 457nm less than 1000mW
Beam diameter(1/e2, mm)0.7, 2.0, 3.0, 4.0 optional
Beam divergence (mrad)1.2, 1.5, 2.0 depends on beam diameter

CW DPSS BLUE Laser

Wavelength(nm)425430480484491
Output power (mW)1010030202400
Transverse modeNear TEM00
Beam diameter(1/e2)mm~4~5~3~4~3~4
Beam divergence (mrad)< 3< 2< 1.5< 3< 1.5< 3
Power stability, rms (8 h)< 10%, <5%, (<3% available for individual wavelengths)
PolarizationLinear; Ratio >100:1

CW DPSS GREEN Laser

Wavelength(nm)532
Laser versionSLMLow noiseBasic version
Output power(mW)30,200,400,700,2W,10W300,400,1W,2.5W,5W, 20W, 30W300, 1.5W, 2.5W, 5W, 1W, 20W, 30W, 80W
Transverse mode (Optional)TEM00 or Near TEM00, M2 <1.1
Power stability, rms (8 h)<1%
Output noise, rms (8 h)<0.5%(20Hz-20MHz) for low noise version
Longitudinal modeSingleMultiMulti
Linewidth<10-5nm0.2nm
Coherent length>50m~10cm
PolarizationLinear; Ratio>50:1, >100:1Horizontal±5 degree (Vertical Optional)
Pointing stability<0.05mrad for less than 400mW
Beam diameter(1/e2)mm0.7, 1.2, 1.5, 2 optional
Beam divergence(mrad)1.2, 1.5, 2 depends on beam diameter

CW DPSS GREEN Laser

Wavelength (nm)501515522523.5526.5540543550552555
SLM version (mW)


100100
100


Low noise Version (mW)
100100400400

100

Basic version (mW)2005001008001W5001.5W200200100
Transverse mode (Optional)TEM00 or Near TEM00, M2 <1.2
Power stability, rms (8 h)Up to 1%
Output noise, rms (8 h)<0.5%(1Hz-20MHz) for low noise version
Linewidth<10-5nm for SLM version, <0.2nm for basic version
Coherent length>50m for SLM version, >10cm for low noise version
PolarizationLinear; Ratio>100:1Horizontal±5 degree (Vertical Optional)
Pointing stability<0.05mrad for less than 400mW
Beam diameter(1/e2) (mm)0.7, 1.2, 1.5, 3 optional
Beam divergence (mrad)1, 1.5, 2 depends on beam diameter

CW DPSS Yellow Orange Laser

Wavelength556nm561nm577nm588nm589nm593.5nm
SLM version(mW)10080300200200
Low Noise version (mW)20020030020050030
Basic version(mW)2.5W2W3.5W4.5W4.5W800
Transverse mode (Optional)TEM00 or Near TEM00, M2 <1.2
Power stability, rms (8 h)Up to 1%
Output noise, rms (8 h)<0.5%(1Hz-20MHz) for low noise version
Linewidth<10-5nm for SLM version, <0.2nm for basic version
Coherent length>50m for SLM version, >10cm for low noise version
PolarizationLinear; >100:1, Vertical±5 degree (Horizontal Optional)
Pointing stability<0.05mrad for less than 400mW
Beam diameter(1/e2)mm0.7; 1.0; 1.5; 2.5 optional
Beam divergence(mrad)1.2; 1.5; 2 depends on beam diameter

CW DPSS RED Laser

Wavelength(nm)604, 607, 612, 639, 656.5, 660, 666, 671, 689, 698, 721
Laser versionSLMLow noiseBasic version
604nm output power(mW)

100
607nm output power(mW)100/400
612nm output power(mW)

100
639nm output power(mW)3001W1W
656.5nm output power(mW)50/1.2W
660nm output power(mW)204002W
666nm output power(mW)//200
671nm output power(mW)2.5W5W5W
689nm output power(mW)//200
698nm output power(mW)2001W1W
721nm output power(mW)100100500
Power stability, rms(8h)<3%, <5%,<10%(721nm)<3%, <5%, <10%(721nm)<3%,<5%, <10%
Output noise, rms(8h)<1%, <0.5%<1%< 1%
Longitudinal modeSingleMultiMulti
Linewidth<0.00001nm,

<0.0003nm(639nm)

<0.004nm<0.2nm
Coherent length>50m for SLM version, >10cm for low noise version
Polarization>50:1,>100:1,optional Horizontal±5degree(Vertical Optional )>50:1,>100:1,optionalHorizontal±5degree(Vertical Optional )> 50:1, > 100:1 optional Horizontal±5 degree (Vertical optional )
Pointing stability<0.05mrad<0.05mrad<0.1mrad
Beam diameter(1/e2)(mm)1.0; 1.5; 2.0 optional
Beam divergence(mrad)1.0, 1.2; 1.5; 2 depends on beam diameter

CW DPSS IR Laser

Wavelength(nm)9149461030104010471053106410851105111211221177
SLM Version(mW)1005020
80020010W

2080
Low noise Version(mW)8008006001001W150020W1W
100300
Basic Version (mW)8005W6001008W8W500W1W5005001W400
Transverse mode (Optional)TEM00 or Near TEM00, M2 <1.2
Power stability, rms (8 h)Up to 1%
Output noise, rms (8 h)<0.5%(20Hz-20MHz) for low noise version
Linewidth<10-5nm for SLM version, <0.2nm for basic version
Coherence length>50m for SLM version, ~10cm or >1m for low noise version
PolarizationLinear; 100:1
Pointing stability<0.05mrad for less than 100mW
Beam diameter(1/e2, mm)0.7, 1.2, 1.5, 2 optional
Beam divergence(mrad)1.2, 1.5, 2 depends on beam diameter

CW DPSS IR Laser

Wavelength(nm)131313191342141314441645191019401990209621242796
SLM Version(mW)500505W








Low noise Version(mW)1W1.5W6W
400






Basic Version (mW)1W150W6W3004001W13W11W11W20W2.5W300
Transverse mode (Optional)TEM00 or Near TEM00, M2 <1.2
Power stability, rms (8 h)Up to 1%
Output noise, rms (8 h)<0.5%(20Hz-20MHz) for low noise version
Linewidth<10-5nm for SLM version, <0.2nm for basic version
Coherence length>50m for SLM version, ~10cm or >1m for low noise version
PolarizationLinear; 100:1
Pointing stability<0.05mrad for less than 100mW
Beam diameter(1/e2, mm)0.7,1.2,1.5,2 optional
Beam divergence(mrad)1.2, 1.5, 2 depends on beam diameter

CW DPSS OPO IR Laser

Wavelength (nm)1400-18002600-44001400-18002600-4450
Laser versionSingle wavelength output in this rangeWavelength tunable, range up to 350 nm
Output power (mW)Up to 2WUp to 1WUp to 2WUp to 1W
Transverse modeNear TEM00
Power stability, rms (8 h)< 5%
Linewidth< 2nm
Beam diameter (1/e2, mm)<10
Beam divergence (mrad)<8 or <10

5.2 Direct Diode Series

5.2.1 Wavelength  Output power (mW)

Wavelength375395397400405410415420442445447
Narrow Linewidth20

501505050
2003030
Max power80010010030010W3003503508W20W20W
Wavelength (nm)450454460462465470488505510514.5520
Narrow Linewidth3030100


70

4010
Max power150W16W16W16W16W16W20080305010W
Wavelength (nm)622627633635637640642650655660665
Narrow Linewidth

80308030303030120
Max power501005008W4W4W4W4.5W4.5W4.5W2W
Wavelength (nm)685689690698705730750760785793800808
Narrow Linewidth


10450


450

450
Max power800201300251.5W5W5W5W2.5W4W2.5W10W
Wavelength (nm)825830845852860880885905915940975980
Narrow Linewidth
100
450



3030450450
Max power2.5W2W301.5W4W1.8W1.5W4008W4.5W10W10W
Wavelength (nm)10601120131014501470153215501850187019002200
Narrow Linewidth40




15



Max power2.5w5W8001W3.5W3.5W3.5W1W800600400

5.2.2. CW Diode UV and Violet-Blue Lasers

Wavelengths(nm)375395397400405410415420442445447450454
Long Coherent Length (mw)


50505050
30303030
Narrow Line width (mw)20

501505050
30200303030
Low noise(mw)4001001003001W3503503503.5W3.5W3.5W3.5W800
Single mode(mw)50


30


8080808080
Max. power (w)0.810010010010W3503503508W20W20W150W16W
Beam divergence, full angle0.5 to 2.3mrad depending on output power and wavelength
Transverse modeTEM00, Near TEM00 or Multi-mode depending on output power and wavelength
Power stability, rms( 4 h)<1%, <2%, <3%,
Noise of amplitude1%, 0.5% (rms, 20Hz~20MHz)
Spectral linewidth (nm)<0.06nm,/0.03nm optional (for Narrow Line width laser)
Coherent length (m)>1m(for Long Coherent Length laser)
Polarization ratio>50:1, >100:1 and Horizontal+Vertical depending on output power and wavelength

5.2.3 CW Diode Blue and Green Lasers

Wavelengths(nm)460462465470488505510514.5520
Long Coherent Length (mw)



70

4010
Narrow Line width (mw)100


70

4010
Low noise (mw)2000200020002000150803050800
Single mode(mw)



15080305050
Max. power (w)16W16W16W16W0.2


10W
Beam divergence, full angle(mrad)0.5 to 2.3mrad depending on output power and wavelength
Transverse modeTEM00, Near TEM00 or Multi-mode depending on output power and wavelength
Power stability, rms( 4 h)<1%, <2%, <3%,
Noise of amplitude(rms, 20Hz~20MHz)<0.5%, <1%(for Low Noise laser); <3%
Spectral linewidth (nm)<0.06nm,/0.03nm optional (for Narrow Line width laser)
Coherent length (m)>1m(for Long Coherent Length laser)
Polarization ratio>50:1, >100:1 and Horizontal+Vertical depending on output power and wavelength

5.2.4 CW Diode Red Lasers

Wavelengths(nm)622627633635637640642650655
Long Coherent Length (mw)


30803030

Narrow Line width (mw)

80308030303030
Low noise (mw)

5005002002002001W1w
Single mode (mw)

80200200200200180180
Round beam (mw)


150


200200
Max. power (w)501005008W4W4W4W4.5W4.5W
Beam divergence, full angle (mrad)1 to 3mrad depending on output power and wavelength
Transverse modeTEM00, Near TEM00 or Multi-mode depending on output power and wavelength
Power stability, rms( 4 h)<1%, <2%, <3%,
Noise of amplitude (rms, 20Hz~20MHz)<0.5%, <1%(for Low Noise laser); <3%(basic version)
Spectral linewidth (nm)<0.06nm,/0.03nm optional (for Narrow Line width laser)
Coherent length (m)>1m(for Long Coherent Length laser)
Polarization ratio>50:1, >100:1 and Horizontal+Vertical depending on output power and wavelength
Wavelengths(nm)660665680685690705730750760
Narrow Line width (mw)120


45010450

Low noise (mw)1000
8002013002515002W5W
Single mode (mw)180

20
2530

Round beam (mw)200
200
200



Max. power (w)4.5W2W800
1300
15005W5W
Beam divergence, full angle (mrad)1 to 3mrad depending on output power and wavelength
Transverse modeTEM00, Near TEM00 or Multi-mode depending on output power and wavelength
Power stability, rms( 4 h)<1%, <2%, <3%,
Noise of amplitude (rms, 20Hz~20MHz)<0.5%; <1%(for Low Noise laser); <3%(basic version)
Spectral linewidth (nm)<0.06nm,/0.03nm optional (for Narrow Line width laser)
Coherent length (m)>1m(for Long Coherent Length laser)
Polarization ratio>50:1, >100:1 and Horizontal+Vertical depending on output power and wavelength

5.2.5 CW Diode Infrared Laser

Wavelengths(nm)785793800808825830845852860
Narrow Linewidth (mw)450

450
100
450
Low noise (mw)2.5w2.5w
2.5w
2w301.5w1w
Single mode (mw)100

100
12030150
Round Beam(mw)300
500500
500
500
Max power (mw)2.5w4w2.5w10w2.5w2w
1.5w4w
Beam divergence, full angle1 to 3mrad depending on output power and wavelength
Transverse modeTEM00, Near TEM00, Round or Multi-mode depending on output power and wavelength
Power stability, rms( 4h)<1%, <2%, <3%,
Noise of amplitude<0.5%; <1%(for Low Noise laser); <3%(basic version)
Spectral linewidth (nm)<0.06nm,/0.03nm optional (for Narrow Line width laser)
Polarization ratio>50:1, >100:1 and Horizontal+Vertical depending on output power and wavelength
Wavelengths(nm)88088590591594097598010601120
Narrow Line width(mw)


303045045040
Low noise (mw)1.8w1.5w4001.5w2502w2w1.5w1w
Single mode (mw)

70270250
200200
Round Beam(mw)
400
400350500500

Max power (mw)1.8w1.5w4008w4.5w10w10w2.5w5w
Beam divergence, full angle1 to 3mrad depending on output power and wavelength
Transverse modeTEM00, Near TEM00 or Multi-mode depending on output power and wavelength
Power stability, rms( 4 h)<1%, <2%, <3%,
Noise of amplitude<0.5%; <1%(for Low Noise laser); <3%(basic version)
Spectral linewidth (nm)<0.06nm,/0.03nm optional (for Narrow Line width laser)
Polarization ratio>50:1, >100:1 and Horizontal+Vertical depending on output power and wavelength
Wavelengths(nm)131014501470153215501850187019002200
Narrow Linewidth (mw)



15



Low noise (mw)8001w500
1w



Single mode (mw)1020202030



Round Beam(mw)
200200
200



Max power (mw)8001w3.5w3.5w3.5w1w800600400
Beam divergence, full angle1 to 3mrad depending on output power and wavelength
Transverse modeTEM00, Near TEM00 or Multi-mode depending on output power and wavelength
Power stability, rms( 4 h)<1%, <2%, <3%,
Noise of amplitude<0.5%; <1%(for Low Noise laser); <3%(basic version)
Spectral linewidth (nm)<0.06nm,/0.03nm optional (for Narrow Line width laser)
Polarization ratio>50:1, >100:1 and Horizontal+Vertical depending on output power and wavelength

5.2.6 Fiber Coupled Diode Laser Systems with Integrated Electronics

Please go to Fiber-coupled Laser Diodes.

5.3 Q-switched  Pulsed DPSS SERIES

5.3.1 Wavelength  Max. Single Pulse Energy (uJ)

Wavelength (nm)244257261266289295335349351355440457473
Passively Q-switched
4430


10480


Acousto-optics Q-switched3.75

2054

152502005050
Electro-optics Q-switched


5mJ

10

200mJ


Wavelength (nm)488523.5526.5532556589656.5660671786914946
Passively Q-switched
6060125

25
20

Acousto-optics Q-switched704332013mJ5mJ12.5mJ
10mJ350
100150
Electro-optics Q-switched


450mJ



50


Wavelength (nm)10301047105310641313131913421535157320962600
Passively Q-switched150150503002015

50
20
Acousto-optics Q-switched1302mJ25030mJ
10mJ500
30150016.7
Electro-optics Q-switched


1J

2001008mJ

Pulsed


10J






Wavelength (nm)2800294030003200340036003800400042004400450046004800
Passively Q-switched20200mJ2020202020202020


Acousto-optics Q-switched16.7
16.71316.716.716.716.716.716.7900200200

5.3.2 Q-switched UV lasers

Passively Q-switched

Wavelength(nm)257261266349351355
Max average power(mW)151060030102000
Single pulse energy(µJ)443010480
Pulse width(ns)1045445
Repetition Rate10kHz-15kHz0.1Hz-1kHz1kHz-4kHz0.1Hz-1kHz0.1Hz-1kHz1kHz-4kHz
Transverse modeNear TEM00Near TEM00Near TEM00Near TEM00Near TEM00Near TEM00
Power stability, rms (8h)<10%<5%, <10%<5%, <10%<5%, <10%<5%, <10%<5%, <10%
Polarization>100:1>50:1>100:1>50:1>50:1>100:1
Pointing stability< 1mrad< 1mrad< 1mrad< 0.05mrad< 0.05mrad< 0.05mrad
Beam diameter(mm)0.5*224224
Beam divergence(mrad)< 2.0< 2.5< 2.0< 1.5<1.5<2

Acousto-optics Q-switched

Wavelength(nm)244266289295351355
Max average power(mW)15@4kHz200@10kHz501-80@20kHz15@1kHz3W@20kHz
Single pulse energy(µJ)0.1-3.7520@10kHz50.1-415@1kHz150@20kHz
Pulse width(ns)<30@4kHz15mW10-15@<10kHz10+/-2~30@20KHz80mW6-10@<10kHz15@20kHz
Repetition Rate4kHz1-50kHz10kHz20kHz0.1-15kHz10-100kHz
Transverse modeNear TEM00




Power stability, rms (4h)< 5%, < 10%< 5%, < 10%< 3%, < 5%< 5%, < 10%< 3%, < 5%, < 10%< 3%, < 5%, < 10%
Polarization>100:1




Beam diameter(mm)~2.0~2.01.5*3~2.0~0.3~1.5
Beam divergence(mrad)<3<3.5<1.0<3<5.0<1.0

Electro-optics Q-switched

Wavelength(nm)266335355
Single pulse energy(mJ)51010
Pulse width(ns)<10~4<10
Repetition Rate1~100Hz (adjustable)10kHz1~100Hz (adjustable)
Energy stability<4%<3%<4%
Beam diameter(mm)~2.5~2.5~3
Beam divergence(mrad)<3<3<3

5.3.3 Q-switched Blue lasers

Wavelength(nm)440457473488
Operating ModeAcousto-Optics Q-switched
Max average power at typical rep rate(mW)2W@10kHz500@20kHz500@10kHz300@4kHz
Single pulse energy(µJ)200@10kHz50@1kHz50@1kHz75@4kHz
Pulse width(ns)100@10kHz300@10kHz200@10kHz30@4kHz
Repetition Rate10kHz1-50kHz1-200kHz4kHz
Transverse beam modeTEM00, M2< 1.5
Power stability, rms (8h)< 3%, < 5%
PolarizationLinear, 100:1
Beam diameter(1/e2)mm6115
Beam divergence(mrad)3.52.52.55
Cooling MethodWater cooledAir cooledAir cooledWater cooled

5.3.4 Q-switched Green Lasers

Wavelength(nm)523.5526.5523.5526.5556
Operating modePassively Q-switchedAcousto-optics Q-switched
Max average power(mW)1501300@3kHz505 @10kHz50W
Max. single pulse energy(µJ)60433@3kHz20uJ@1kHz5 @10kHz50W
Peak power2.5W-15W43kW@3kHz5W50kW @10kHz50W
Pulse width~4ns~10ns5~10ns@<10kHz200ns @10khz
Repetition Rate0.1-3 kHz3-10kHz0.1-50kHz10-20kHz
Transverse modeTEM00, M2< 1.5
Power stability, rms (8h)< 3%, < 5%
Beam diameter(1/e2) mm~1.2, 3.0 depends on single pulse energy2<1.2,< 0.3 depends on single pulse energy≥ 12, ≥ 15 depends on single pulse energy
Beam divergence (mrad)< 1.5, < 2.0 depends on beam diameter at the aperture<2< 1.5, < 5 depends on beam diameter at the aperture< 3.5
Wavelength(nm)532
Operating modePassively Q-switchedAcousto-optics Q-switched
Max average power1500mW50mW8W@25kHz @300uJ200W
Max. single pulse energy125µJ5mJ600µJ13mJ
Peak power(kW)10-25/20 @25kHz @300uJ130 @15kHz @13mJ
Pulse width1.3, 5, 10ns optional< 10ns5-15ns100ns (5ns optional)
Repetition Rate1-30kHz1-10Hz1Hz–200kHz10-20kHz
Transverse modeNear TEM00, M2< 1.5/M2< 1.5for less than 100µJ/
Power stability, rms (8h)< 3%, < 5%< 5%< 1%, < 3%, < 5%< 3%, < 5%
Beam diameter(1/e2) mm0.8, 1.0, 1.2 depends on single pulse energy~30.3,1.2 for less than 100µJ; 1.0, 2.0, 2.5 optional≥ 6, ≥ 9, ≥ 12, ≥ 15 depends on single pulse energy
Beam divergence (mrad)1.5,2.0,3.0 depends on beam diameter at the aperture<1.5, 2.0, 2.5 optional<3.5
Wavelength(nm)532
Operating modeElectro-optics Q-switched
Pumped sourceDiode pumpedLamp pumped
Max. single pulse energy20mJ450mJ
Pulse width10, 12ns8, 10, 12ns depends on single pulse energy
Repetition Rate1-10/ 20/ 100Hz (1000Hz optional)1-10Hz
Energy stability, rms (8h)< 3%< 4%
Beam diameter(1/e2) mm1.5, 2, 3, 4 depends on single pulse energy< 6 ,7, 8, 9 depends on single pulse energy
Beam divergence (mrad)1.0, 2.0, 3.0 depends on beam diameter at the aperture1.0,1.5,3.0 depends on beam diameter at the aperture

5.3.5 Q-switched Yellow Lasers

Wavelength(nm)589
Operating modeAcousto-optics Q-switched
Average power1-5W (Nonadjustable)1-50W (Nonadjustable)
Single pulse energy1mJ @5W12.5mJ@4kHz
Peak power8kW80kW@4kHz
Pulse width100-150@5W100-150
Spectral linewidth3GHz/
Repetition Rate5kHz4 or 14kHz optional
Power stability, rms (8h)< 3%, < 5%
Beam diameter(1/e2) mm~18
Beam divergence (mrad)< 3.0
Cooling methodWater cooled

5.3.6 Q-switched Red Lasers

Wavelength(nm)656.5660786
Operate ModePassively Q-switched
Max average power4mW10mW/
Single pulse energy2uJ5uJ20uJ
Pulse width15ns15ns7ns
Repetition Rate1Hz-2kHz1Hz-2kHz10Hz
Transverse modeTEM00TEM00Near TEM00
Power stability, rms (8h)< 1%, < 3%, < 5%< 1%, < 3%, < 5%< 3%, < 5%
Beam diameter(1/e2)mm1.21.22.5
Beam divergence(mrad)1.51.52.5
Wavelength(nm)660671
Operate ModeAcousto-optics Q-switchedAcousto-optics Q-switchedElectro-optic Q-switched
Max average power100W @10kHz4W @20kHz500mW (500mW@10kHz)
Single pulse energy10mJ @10kHz 100W350μJ@10kHz50(50μJ @10kHz)
Pulse width~150ns @10kHz 100W25 @10kHz~4 @10kHz
Repetition Rate10-20kHz1-100kHz10kHz
Transverse modeTEM00Near TEM00Near TEM00
Power stability, rms (8h)< 3%, < 5%< 5%< 3%, < 5%
Beam diameter(1/e2)mm≥ 15~1.0~1.5
Beam divergence(mrad)< 3.5< 2.5mrad<3

5.3.7 Q-switched IR Lasers

Acousto-optics Q-switched

Wavelength(nm)914946103010471053131913421573
Max average power(W)1.5@30kHz1.5@10kHz1.3@10kHz3@3kHz21004@10kHz1@30kHz
Single pulse energy(µJ)100@1kHz150@10kHz130@10kHz1000@3kHz250@1kHz10mJ@10kHz500@1kHz30@30kHz
Pulse width(ns)80@1kHz90@10kGHz50@10kHz10@3kHz11@10kHz250@10kHz40@10kHz10@30kHz
Repetition Rate(kHz)1-501-501-101-100.1-8010-201-501-50
Power stability, rms (8h)< 1%< 1%<3%<3%<3%<3%< 1%<3%
Beam diameter(1/e2)mm2.52.5420.41524
Beam divergence(mrad)222253.522

Passively Q-Switched

Wavelength(nm)104710531064131313193800
Max average power(mW)30004503000100150300mW
Single pulse energy2000uJ50uJ200uJ20uJ15uJ30uJ
Pulse width~10ns~10ns<2ns/3-5ns~18ns~15ns5-10ns
External trigger repetition Rate1-10kHz1-5kHz1-10kHz1Hz-5kHz1-4kHz5kHz-15kHz
Transverse ModeTEM00TEM00
Power stability, rms (8h)< 3%<3%<1%<1%<3%< 5%
Beam diameter(mm)232323
Beam divergence(mrad)< 2< 2< 1.52< 1. 51.5

Acousto-optics Q-switched

Wavelength (nm)209638002600 /2800 /3000/

3200 /3400 /3600

3900-45004000 /4200 /4400 /4600/

4800

Max average power5W9W1-500mW1-9W1-2W
Peak power

750@30kHz500mW45kW @10kHz 9W10kW @10kHz 2W
Pulse width20-40ns~20ns@10kHz9W~22ns@30kHz500mW20ns@10kHz9W20ns
Repetition Rate< 10 kHz10kHz30kHz10kHz10kHz
Power stability, rms (8h)< 3%<5%<5%< 5%< 5%
Beam diameter(1/e2) mm~3<6~11< 6< 6
Beam divergence (mrad)< 3<12<5< 12< 12

Acousto-optics Q-switched and Electro-optics Q-switched

Wavelength(nm)10641573
Operate Mode (Q-switched)Acousto-opticsElectro-opticsAcousto-opticsElectro-optics
Max average power(W)20@20kHz150@10kHz/1@30kHz
Max. single pulse energy1000uJ@20kHz15mJ@10kHz100mJ1000mJ30uJ8mJ
Peak power1-76kW2MW/30kW
Pulse width(ns)13~7~10<8~10<10
Repetition Rate1-20kHz10kHz20Hz1-10Hz1-200kHz1-20Hz
Transverse modeNear TEM00, M2<2///
Cooling MethodWaterWaterAirWaterAirWater
Power/Energy stability, rms(8h)<1%<3%<3%<5%<5%
Beam diameter(1/e2) mm0.4, 1, 1.5, 2 depends on different power level6, 12, 19 depends on different power level3, 4, 5 depends on different energy levels6, 7, 8, 9 depends on different energy levels~43,4 depends on different energy level
Beam divergence(mrad)2,3,5 depends on beam diameter at the aperture<31, 2, 3 depends on different energy<2<8

6. List of UV Lasers from Wavelengths 213nm to 405nm

Remarks: WL means wavelength, operation modes means EOQ (electro-optic Q-switched), AOQ (acousto-optic Q-switched), PQ (passively Q-switched), P (pulsed), CW (continuous wave); Noise means noise of amplitude; cooling means A (air-cooled) and W (water cooled).

WLmodeloperation modeaverage powerpower stabilitypulse energypulse rep ratepulse widthpeak powerM2Polorizationdivbeam diaFiber coreNoiseCoolingNotes
nm

mW%mJHz
kW

mradmmum%

213STC-DPS-213-PicoP10, 301,3
5MHz50ps


32

ADPSS
223STC-EO-XS-223EOQ30
3uJ10kHz4ns0.75

<31*4

ADPSS
244STC-AO-DF-244AOQ1-155, 103.75uJ4kHz30ns3-125W





WDPSS
257STC-MPL-N-257PQ1-15mW100.1-4uJQCW10ns400W





ADPSS
261STC-UV-F-261CW1-5mW10



<2.0>50:1
2.0

ADPSS
261STC-MPL-F-261QW1-10mW5, 100.1-4uJ1kHz4ns25-1000W<1.5>50:1
2.0

ADPSS
273STC-UV-FN-273CW1-5mW10



<2.0>50:11.01.5

ADPSS
289STC-AO-K-289AOQ1-50mW3, 51-5uJ10kHz10ns500W

15*3

ADPSS
295STC-AO-K-295AOQ1-50mW3, 51-5uJ10kHz10ns500W

15*3

ADPSS
295STC-AO-DF-295AOQ1-80mW5, 100.1-4uJ
30ns3-134W





WDPSS
303STC-UV-F-303CW1-5mW10



<2.0>50:1<23

ADPSS
320STC-UV-C-320CW1-20mW10



<2.0>50:1<2.51.5

ADPSS
320STC-UV-F-320CW1-20mW10



<2.0>50:1<2.51.5

ADPSS
320STC-AO-XF-320AOQ1-30mW3, 51-3uJ10-20kHz<30ns2kW

<21.5

WDPSS
335STC-UV-F-325CW1-60mW10



<2>50:1<2.51.5

ADPSS
335STC-EO-XS-335EOQ1-500mW3, 51-50uJ10kHz4ns1-12.5kW

<31.5

ADPSS
349STC-UV-F-349CW1-100mW10



<2>50:1<11.5

ADPSS
349STC-MPL-F-349PQ1-30mW5, 100.1-10uJ2-3kHz425-2500W
>50:1<1.52

ADPSS
349STC-AO-S-349AOQ1-15mW3, 5, 101-8uJ0.1-10kHz6-10ns
<1.5>100:1<1.5, <51.2, 0.3

ADPSS
349STC-AO-V-349AOQ1-800mW3, 51-267uJ3-10kHz10ns1-26.7kW

<22

ADPSS
351STC-MPL-F-351PQ1-10mW5, 100.1-4uJ<3kHz4ns25-1000W
>50:1<1.52

ADPSS
351STC-AO-S-351AOQ1-30mW3, 5, 101-15uJ0.1-15kHz6-10ns
<1.5>100:1<5, <1.50.3, 1.2

ADPSS
351STC-AO-V-351AOQ1-500mW3, 51-167uJ3-10kHz10ns1-16.7kW

<22

ADPSS
360STC-MSL-F-360CW1-50mW3, 5



<2.0>50:1<11.5

ADPSS, single longitudinal
360STC-MSL-FN-360CW1-50mW3, 5



<1.5>100:1<1.21.5

ADPSS, single longitudinal
360STC-MSL-FN-360-SCW1-50mW3, 5



<1.5>100:1<1.21.5

ADPSS, single longitudinal
360STC-MLL-FN-360CW1-50mW10



<2>100:1<11.5

ADPSS, low noise
360STC-MLL-F-360CW1-50mW1,2,3,5



<2>100:1<11.5

ADPSS, low noise
360STC-UV-FN-360CW1-50mW10



<2>50:1<11.5

ADPSS, high stability
360STC-UV-F-360CW1-100mW1,2,3,5



<2>50:1<11.2

ADPSS, high stability
360STC-UV-FN-360-PLCW100-200mW5, 10



<2
<11.5100<1ASpectrum stabilized
375STC-FC-D-375CW1-10mW1,2,3









A
375STC-MDL-E-375CW1-20mmW1,2,3



<1.5>50:1<0.53

ANarrow linewidth
375STC-MLL-III-375LCW1-50mW0.5,1,2,3



<1.5>100:1<0.53

ALow noise
375STC-MLL-III-375LCW50-400mW0.5,1,2,3
<100kHz


>100:12.3x0.21.5x3.5

ALow noise
375STC-MDL-XS-375CW1-50mW1,2,3
<100kHz

<1.5>50:1<11.2
<1ALD
375STC-MDL-III-375LCW1-50mW0.5,1,2,3
<100kHz

<1.5>100:1<0.53

ALD
375STC-MDL-III-375CW50-4000mW0.5,1,2,3
<100kHz


>100:12.3x0.21.5x3.5

ALD
375STC-MDL-SD-375CW400-800mW1,2,3
<30kHz


H+V1.54x4.5

ALD
395STC-MLL-III-395CW1-100mW0.5,1,2,3
<100kHz

<1.2>100:1<11.2
<1ALD, Low noise
395STC-MDL-III-395CW1-100mW0.5,1,2,3
<100kHz

<1.2>100:1<11.2

ALD
395STC-TUN-TiA-393-408AOQ1-1000mW5, 1020uJ10-50kHz25ns0.8kW

<42

ADPSS
397STC-MLL-III-397CW1-100mW0.5,1,2,3
<100kHz



<2x0.53.5x1
<1ALD, Low noise
397STC-MDL-III-397CW1-100mW0.5,1,2,3
<100kHz



<2x0.53.5x1

ALD
397STC-TUN-TiA-393-408AOQ1-1000mW5, 1020uJ10-50kHz25ns0.8kW

<42

ADPSS
400STC-MDL-C-400CW1-50mW1,2,3




>100:1<1.53

ALD, long coherent length
400STC-MDL-E-400CW1-50mW1,2,3




>100:1<1.53

ALD, narrow linewidth
400STC-MLL-III-400CW1-300mW0.5,1,2,3



<1.2>100:10.51.2
<1ALD, low noise
400STC-MDL-III-400CW1-300mW0.5,1,2,3



<1.2>100:10.51.2

ALD
400STC-TUN-TiA-393-408AOQ1-1000mW5, 1020uJ10-50kHz25ns0.8kW

<42

ADPSS
405STC-FC-D-405CW1-100mW1,2,3







100<1ALD
405STC-MSL-III-405CW1-10mW1,2,3



<1.2>100:1<1.2<2

ALD, single longitudial
405STC-MDL-C-405CW1-50mW1,2,3




>100:1<1.31.3

ALD, long coherent length
405STC-MDL-E-405CW1-150mW1,2,3




>100:1<1.51.3

ALD, narrow linewidth
405STC-TUN-403-407CW1-30mW1,2,3




>100:1<13

ALD, wavelength tunable narrow linewidth
405STC-TEM-F-405CW1-30mW1,2,3
<30kHz

<1.1
<1.51

A
405STC-MDL-PS-405Pulsed10um-0.5mW1,2,3
<80MHz100-1000ps


11.2

ALD, ps
405STC-MDL-NS-405
1-500mW

<80MHz10ns010ms
<1.2>100:1<11.2

ALD
405STC-MLL-III-405CW1-1000mW0.5,1,2,3
<100kHz

<1.5>100:1<0.51.2
<1ALD, Low noise
405STC-MDL-XS-405CW1-200mW1,2,3
<100kHz

<1.2>100:1<11.2
<0.5ALD
405STC-MDL-III-405CW1-1000mW0.5,1,2,3
<100kHz

<1.2>100:1<0.51.2

ALD
405STC-MDL-D-405CW1-2W1,2,3
<30kHz


H+V<0.5X0.34X3

ALD
405STC-MDL-HD-405CW2-5W1,2,3
<30kHz


H+V<1X0.66X7

ALD
405STC-MDL-XD-405CW5-10W1,2,3
<30kHz


H+V<2X1.212X7

ALD
405STC-TUN-TiA-393-408AOQ1-1000mW5,1020uJ10-50kHz
0.8kW

<42

ADPSS
405STC-OEM-I-405
1-7W











FC LD
405STC-OEM-D-405CW1W1,2,3




H+V<0.5x0.34x3

ALD
405STC-OEM-D-405CW2W1,2,3




H+V<0.5x0.34x8

ALD
405STC-OEM-HD-405CW2-5W1,2,3




H+V<1X0.66X7

ALD
405STC-OEM-XD-405CW5-10W1,2,3




H+V<2x1.212X7

ALD

Please contact us for more dettailed product information.

  • Online submission
  • Send us a message

    CLOSE
