Visible Fiber Lasers

Visible Fiber Lasers

Keywords: Visible Fiber Laser, 488nm, 514nm, 532nm, 542nm, 546nm, 560nm
Sep 15, 2020 View: 2323 Data Sheet

Laser wavelgnths range from 488nm, 514nm, 532nm, 542nm, 546nm, 560nm, 570nm, 580nm, 589nm, 592nm, 620nm, 628nm, 642nm, 647nm to 670nm and the laser powers range from 200mW to 2000mW.

Features

  • Narrow Linewidth
  • Active Power Stabilization to ensure long term power stability of < 2%
  • Excellent wavelength stability to ensure spectral purity (± 0.02 nm)
  • Graphical User Interface for easy command and control
  • Compact laser head
  • Tunable output power (from 20% to 100% of nominal) to adapt to application-specific requirements
  • High reliability
  • Maintenance-free

Applications:

  • Flow Cytometry
  • Fluorescence Microscopy
  • Structured Illumination Microscopy
  • Super Resolution Microscopy
  • 3rd Generation DNA Sequencing
  • Entertainment
  • Military, and Scientific Research

Specifications

  • Beam: Collimated
  • Transverse Mode: TEM00
  • Polarization: Linear
  • Orientation of Polarization: Vertical to the base

Customized wavelengths available upon request.

Available wavelengths: 488 nm, 514 nm, 532 nm, 542 nm, 546 nm, 560 nm, 570 nm, 580 nm, 583 nm, 589 nm, 592 nm, 595 nm, 606 nm, 620 nm, 628 nm, 642 nm, 647 nm, 658 nm, 670 nm, 750 nm, 775 nm.

Output power range from 100 mW to 5W CW, and are available in a compact OEM modules for system integration or 2RU-Rack mount modules for laboratory use. All units have the same compact size laser head, making the VFLs easy to integrate for system applications.

Minimum Typical Maximum
Ellipticity, % 7 20
Beam Quality M2 1.08 1.15
Static Beam Angle (relative to front plate), mrad < 5
Power Tunability Range, % 20 100
Emission Linewidth (FWHM), nm 0.1
Long Term Wavelength Stability, nm Nominal - 0.02 Nominal + 0.02
Degree of Polarization, % 99
RMS noise at nominal power integrated over 5 Hz to 100 kHz, % <2
Long Term Outpower Drift (8 hours) peak to peak, % 2

visible fiber laser

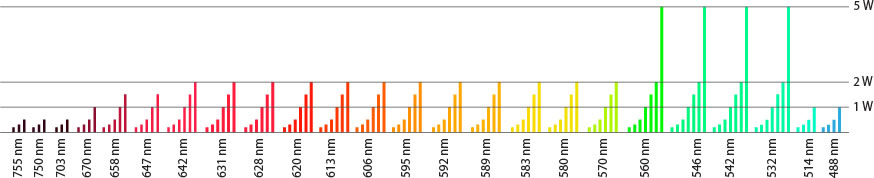

Wavelength Laser Power
488nm 200mW, 300mW, 500mW, 1000mW

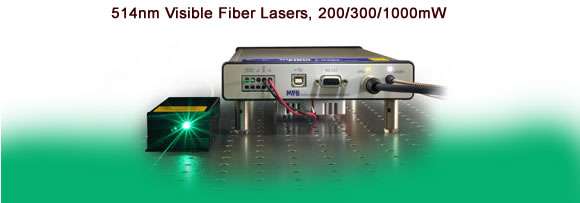

514nm 200mW, 300mW, 1000mW
532nm 200mW, 300mW, 500mW, 1000mW, 1500mW, 2000mW
542nm 200mW, 300mW, 500mW, 1000mW
546nm 200mW, 300mW, 500mW, 1000mW, 1500mW

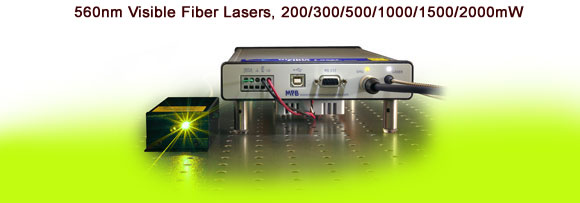

560nm 200mW, 300mW, 500mW, 1000mW, 1500mW, 2000mW

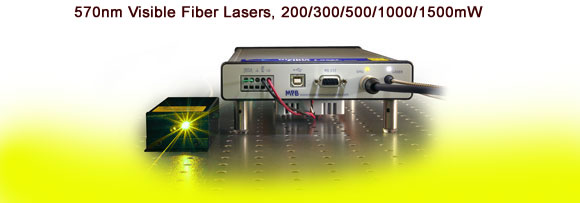

570nm 200mW, 300mW, 500mW, 1000mW, 1500mW
580nm 200mW, 300mW, 500mW, 1000mW

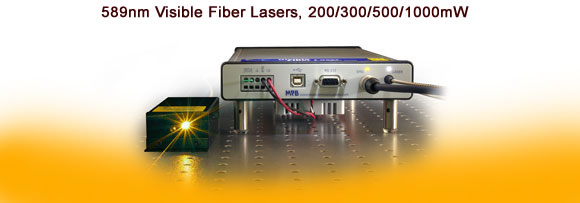

589nm 200mW, 300mW, 500mW, 1000mW

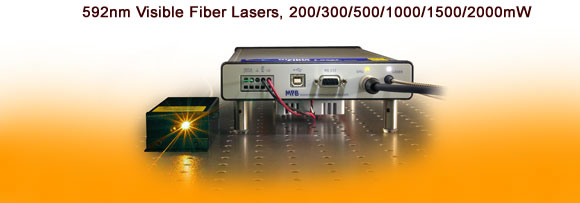

592nm 200mW, 300mW, 500mW, 1000mW, 1500mW, 2000mW

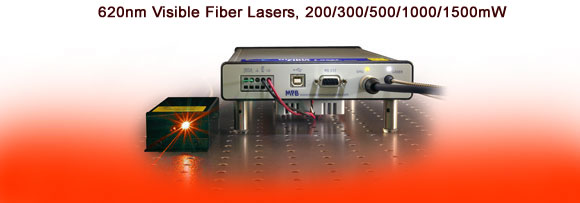

620nm 200mW, 300mW, 500mW, 1000mW, 1500mW

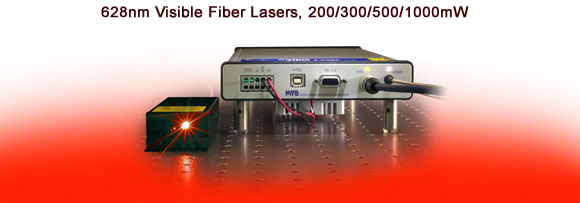

628nm 200mW, 300mW, 500mW, 1000mW
642nm 200mW, 300mW, 500mW, 1000mW, 1500mW, 2000mW

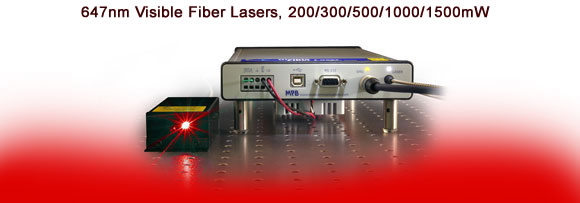

647nm 200mW, 300mW, 500mW, 1000mW, 1500mW
670nm 200mW, 300mW, 500mW, 1000mW

All models are also available in 2RU format, compatible to 19", 23" and ETSI racks

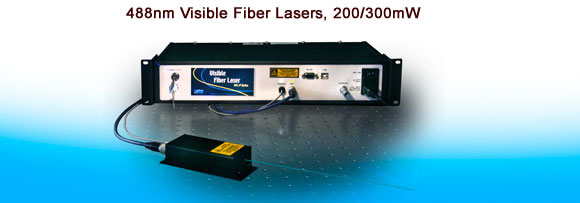

488nm

488nm, 500mW 2RU-VFL-P-500-488-B1R

Min Nominal Max Units
Optical:
Output Power 500 mW
Power Tunability Range 20 - 100 %
Emission Wavelength Nom -0.5 488.5 Nom +0.5 nm
Emission Linewidth (FWHM) 0.1 nm
Long Term Wavelength Stability Nom -0.02 Nom +0.02 nm
Degree of Polarization 98 %
Ellipticity 7 20 %
M2 <1.1 1.15 -
Beam Waist Diameter 0.8 1 1.2 mm
Beam Waist Location (from output plate) 0 1000 mm
RMS noise at nominal power (integrated over 5Hz - 100kHz) 2 %
Long term Outpower Drift (8hrs) 2 % pk-pk
Electrical:
Voltage (50-60Hz) - 100-240 - VAC
Current 2 A
Environmental:
Operational Ambiant Temperature 10 30 oC
Storage Temperature -40 60 oC

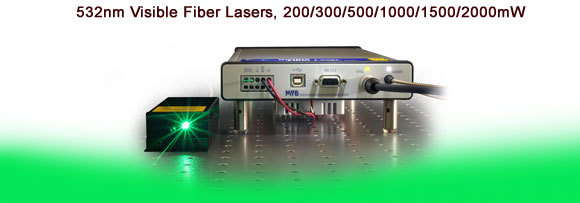

532nm, 1000mW 2RU-VFL-P-1000-532-B1R

Min Nominal Max Units
Optical:
Output Power 1000 mW
Power Tunability Range 20 - 100 %
Emission Wavelength Nom -0.5 532 Nom +0.5 nm
Emission Linewidth (FWHM) 0.1 nm
Long Term Wavelength Stability Nom -0.02 Nom +0.02 nm
Degree of Polarization 98 %
Ellipticity 7 20 %
M2 <1.1 1.15 -
Beam Waist Diameter 0.8 1 1.2 mm
Beam Waist Location (from output plate) 0 1000 mm
RMS noise at nominal power (integrated over 5Hz -100kHz) 2 %
Long term Outpower Drift (8hrs) 2 % pk-pk
Electrical:
Voltage (50-60Hz) - 100-240 - VAC
Current 2 A
Environmental:
Operational Ambiant Temperature 10 30 oC
Storage Temperature -40 60 oC

546nm

580nm

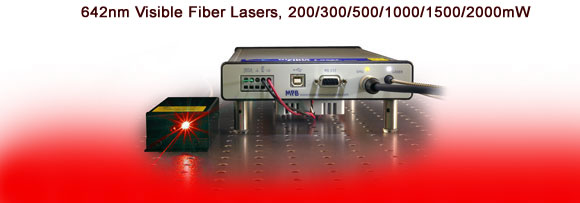

642nm, 1000mW 2RU-VFL-P-1000-642-B1R

Min Nominal Max Units
Optical:
Output Power 1000 mW
Power Tunability Range 20 - 100 %
Emission Wavelength Nom -0.5 642 Nom +0.5 nm
Emission Linewidth (FWHM) 0.1 nm
Long Term Wavelength Stability Nom -0.02 Nom +0.02 nm
Degree of Polarization 98 %
Ellipticity 7 20 %
M2 <1.1 1.15 -
Beam Waist Diameter 0.8 1 1.2 mm
Beam Waist Location (from output plate) 0 1000 mm
RMS noise at nominal power (integrated over 5Hz - 100kHz) 2 %
Long term Outpower Drift (8hrs) 2 % pk-pk
Electrical:
Voltage (50-60Hz) - 100-240 - VAC
Current 2 A
Environmental:
Operational Ambiant Temperature 10 30 oC
Storage Temperature -40 60 oC

670nm

750nm, 500mW 2RU-VFL-P-500-750-B1R

Min Nominal Max Units
Optical:
Output Power 500 mW
Power Tunability Range 20 - 100 %
Emission Wavelength Nom -0.5 750 Nom +0.5 nm
Emission Linewidth (FWHM) 0.1 nm
Long Term Wavelength Stability Nom -0.02 Nom +0.02
Degree of Polarization 99 %
Ellipticity 7 20 %
M2 <1.1 1.15 -
Beam Waist Diameter 0.8 1 1.2 mm
Beam Waist Location (from output plate) 0 1000 mm
RMS noise at nominal power (integrated over 5Hz - 100kHz) 2 %
Long term Outpower Drift (8hrs) 2 % pk-pk
Electrical:
Voltage (50-60Hz) - 100-240 - VAC
Current 2 A
Environmental:
Operational Ambiant Temperature 10 30 oC
Storage Temperature -40 60 oC
