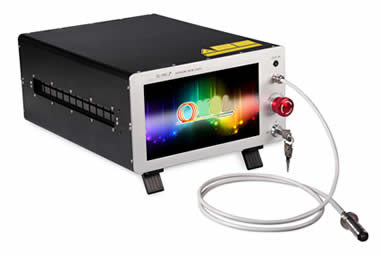

STNP-SC1K Mid-IR Supercontinuum Laser We has developed a unique, patented mid-IR fiber supercontinuum technology providing wavelength coverage from 1000nm to 5000nm with high average power 1W picosecond pulses at variable repetition rates. The single

SMR Series Broadband Light Sources

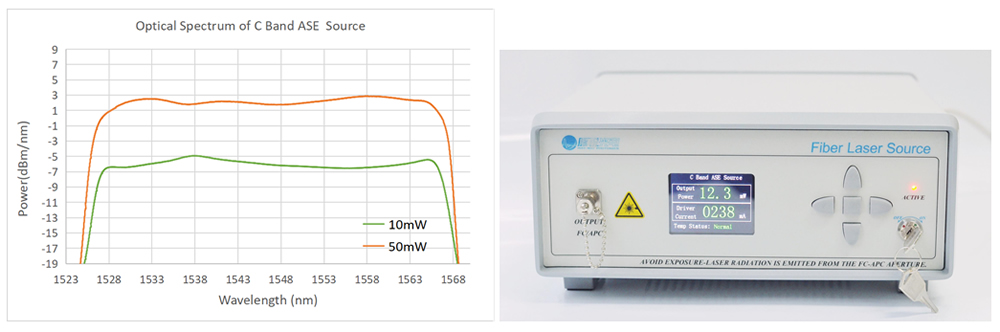

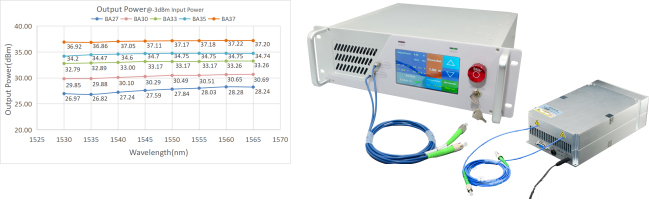

1.C-band ASE Broadband Light Source

The wavelength of light source covers c-band, and the flatness of spectrum is better than 2dB.

Optical Parameters Unit Typical Value Remarks
Wavelength Range nm 1528~1563@2dB
Total Output Power mW 10/20/50/100/200/400
Power Turning Range - 10%~100% Optional
Spectral Flatness dB 1.5 (Type), 2(Max) 3dB@400mW PN
Output Isolation dB >35
Power Instability(15min.) dB ≤ ±0.02 ≤±0.5%
Power Instability(8 hr) dB ≤ ±0.05 ≤±1.2%
Degree of Polarization dB ≤ 0.2
Optical Fiber - SMF-28/PM1550
Fiber connector - FC/APC
General Parameters Bench-top Module
Control Function Key lock switch, Push button RS232 serial Communication
Remote control Port Optional DB9 Female
Power Supply AC100~240V, <30W DC5V, <15W
Dimensions 260(W)×280(D)×120(H)mm 125(W)×150(D)×20(H)mm
Operation Temperature -5~+35°C
Operation Humidity 0~70%
Ordering Information/ Product Code
SMR-ASE Wavelength Output Power(mW) Power Tunable Fiber Packaging
C=C band 10/20/50/100/200/400 T (optional) SM=SMF-28
PM=PM1550
M=Module
B=Benchtop

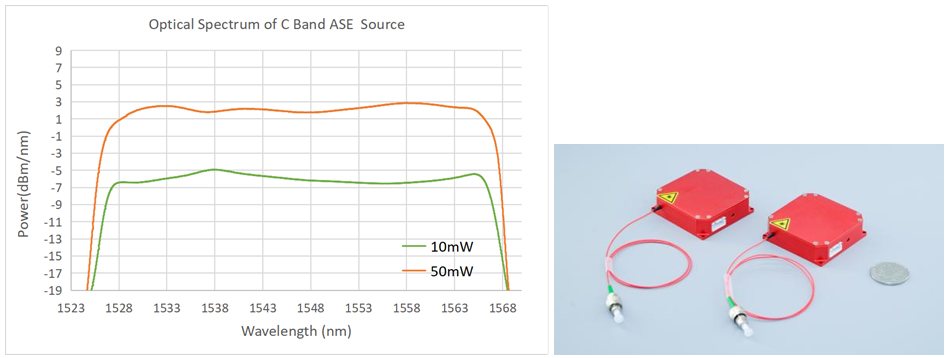

2.C-band ASE Broadband Light Source in Micro Format

Optical Parameters Unit Typical Value Remarks
Wavelength Range nm 1528~1563 C band
Total Output Power mW 10/20/50 Not Tunable
Spectral Flatness dB ≤ 2
Output Isolation dB > 35
Power Instability(15min.) dB ≤ ±0.02 ≤±0.5%
Power Instability(8hr) dB ≤ ±0.05 ≤±1.2%
Degree of Polarization dB ≤ 0.2
Optical Fiber - SMF-28
Fiber connector - FC/APC
General Parameters Module
Control Function TTL
Remote control Port XH2.54-4PIN
Power Supply DC5V, <10W
Dimensions 50(W)×50(D)×15(H)mm
Operation Temperature -5~+35°C
Operation Humidity 0~70%
Ordering Information/ Product Code
SMR-ASE Wavelength Output Power(mW) Packaging
C=C band 10/20/50 Mic=Micro Module

3. L-band ASE Broadband Light Source

Features Applications
n Flattened Optical Spectrum n Fiber Sensing
n Easy Operation n Medical Imaging
n Excellent Stability of Power n Test and Measurement
Optical Parameters Unit Typical Value Remarks
Wavelength Range nm 1567~1603@2dB 1565~1610nm@10dB
Total Output Power mW 10/20/50/100
Power Turning Range - 10%~100% *Optional
Spectral Flatness dB 2 (Type), 3(Max)
Output Isolation dB >35
Power Instability(15min.) dB ≤ ±0.02 ≤±0.5%
Power Instability(8hr) dB ≤ ±0.05 ≤±1.2%
Degree of Polarization dB ≤ 0.2
Optical Fiber - SMF-28/PM1550
Fiber connector - FC/APC
General Parameters Bench-top Module
Control Function Key lock switch, Push button RS232 serial Communication
Remote control Port Optional DB9 Female
Power Supply AC100~240V, <30W DC5V, <15W
Dimensions 260(W)×280(D)×120(H)mm 125(W)×150(D)×20(H)mm
Operation Temperature -5~+35°C
Operation Humidity 0~70%
Ordering Information/ Product Code
SMR-ASE Wavelength Output Power(mW) *Power Tunable Fiber Packaging
L=L band 10/20/50/100 *T (optional) SM=SMF-28

PM=PM1550

M=Module

B=Benchtop

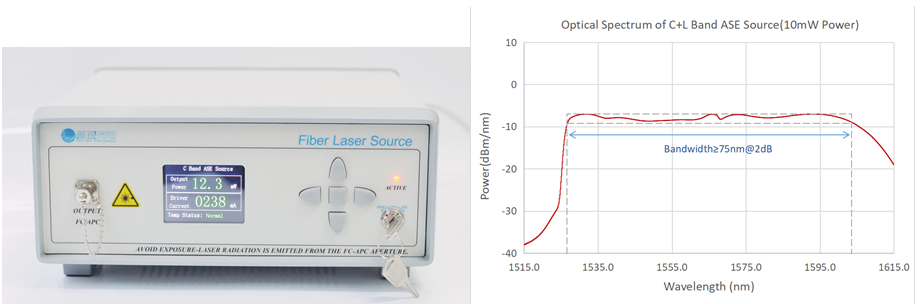

4. C+L band ASE Broadband Light Source

Features Applications
n Flattened Optical Spectrum n Fiber Sensing
n Easy Operation n Medical Imaging
n Excellent Stability of Power n Test and Measurement
Optical Parameters Unit Typical Value Remarks
Wavelength Range nm 1528~1603 ≥75nm@3dB, C+L band
Total Output Power mW 10/20/50/100
Power Turning Range - 10%~100% *Optional
Spectral Flatness dB ≤3 *
Output Isolation dB >35
Power Instability(15min.) dB ≤ ±0.02 ≤±0.5%
Power Instability(8hr) dB ≤ ±0.05 ≤±1.2%
Degree of Polarization dB ≤ 0.2
Optical Fiber - SMF-28/PM1550
Fiber connector - FC/APC

*Flatness≤2dB@10/20mW and Flatness≤6dB@200mW is also available upon request.

General Parameters Bench-top Module
Control Function Key lock switch, Push button RS232 serial Communication
Remote control Port Optional DB9 Female
Power Supply AC100~240V, <30W DC5V, <15W
Dimensions 260(W)×280(D)×120(H)mm 125(W)×150(D)×20(H)mm
Operation Temperature -5~+35°C
Operation Humidity 0~70%
Ordering Information/ Product Code
SMR-ASE Wavelength Output Power(mW) Power Tunable Fiber Packaging
CL=C+L band 10/20/50/100/200 T (optional) SM=SMF-28
PM=PM1550
M=Module
B=Benchtop

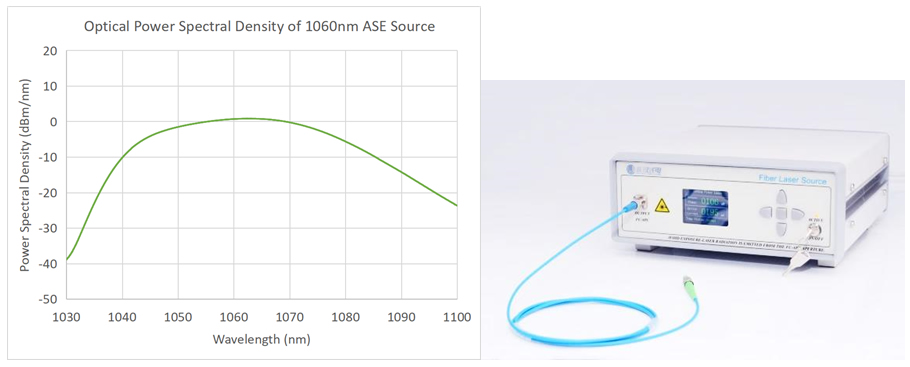

5. 1060nm ASE Broadband Light Source

Features Applications
n Wide Spectral Range n Fiber Sensing
n Easy Operation n Medical Imaging
n Excellent Stability of Power n Test and Measurement
Optical Parameters Unit Typical Value Remarks
Wavelength Range nm 1010、1030~1080、1015 50nm@10dB
Total Output Power mW 10/20/30
Power Turning Range - 10%~100% *Optional
Spectral Flatness dB 10(Type)
Output Isolation dB >35
Power Instability(15min.) dB ≤ ±0.02 ≤±0.5%
Power Instability(8hr) dB ≤ ±0.05 ≤±1.2%
Degree of Polarization dB ≤ 0.2
Optical Fiber - Hi 1060 /PM980
Fiber connector - FC/APC
General Parameters Bench-top Module
Control Function Key lock switch, Push button RS232 serial Communication
Remote control Port Optional DB9 Female
Power Supply AC100~240V, <30W DC5V, <15W
Dimensions 260(W)×280(D)×120(H)mm 125(W)×150(D)×20(H)mm
Operation Temperature -5~+35°C
Operation Humidity 0~70%
Ordering Information/ Product Code
SMR-ASE Wavelength Output Power (mW) Power Tunable Fiber Packaging
1010/1060
/1150
10/20/30/50 T (optional) SM=Hi060
PM=PM1550
M=Module
B=Benchtop

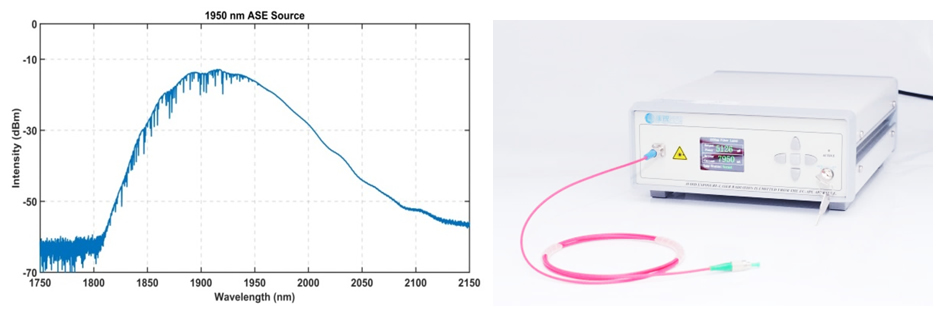

6. 2000nm-band ASE Broadband Light Source

Features Applications
n Wide Spectral Range n Fiber Sensing
n Easy Operation n Medical Imaging
n Excellent Stability of Power n Test and Measurement
Optical Parameters Unit Typical Value Remarks
Wavelength Range nm 1850~2000
Total Output Power mW 10/20 Non-tunable
Output Isolation dB >35
Power Instability(15min.) dB ≤ ±0.02 ≤±0.5%
Power Instability(8hr) dB ≤ ±0.05 ≤±1.2%
Degree of Polarization dB ≤ 0.2
Optical Fiber - SMF-28/SM1950
Fiber connector - FC/APC
General Parameters Bench-top
Control Function Key lock switch, Push button
Remote control Port Optional
Power Supply AC100~240V, <30W
Dimensions 260(W)×320(D)×120(H)mm
Operation Temperature -5~+35°C
Operation Humidity 0~70%
Ordering Information/ Product Code
SMR-ASE Wavelength Output Power(mW) Fiber Packaging
2000 10 SM B=Benchtop

STYS Series Supercontinuum Laser Sources

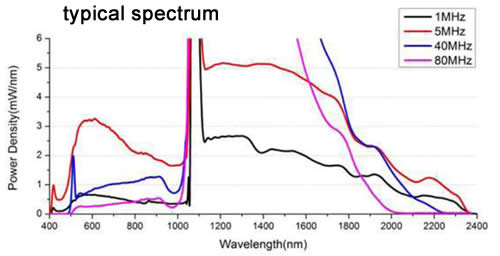

1. Supercontinuum Laser STYS-SC-5

Supercontinuum source STYS-SC-5 is a cost effective supercontinuum laser. With a total output power of more than 500mW covering a broad spectral range of 450nm to 2400nm, the system is an ideal light source for fiber component characterization, fiber sensing, OCT and other areas. The system is based on self-designed highly reliable seed laser offering unique reliability and performance. STYS-SC-5 can replace the traditional ASE, SLD and lamp systems in many applications.

Features:

  • FC/APC fiber connector output
  • Up to 500mW
  • Single-mode output
  • 450nm-2400nm
  • Spectrum Stability<0.1dB
  • With anti-reflection isolator

Applications:

  • Fiber component characterization
  • Fiber sensing
  • OCT
  • Industry inspection
  • Broadband spectroscopy
  • Fluorescence spectroscopy

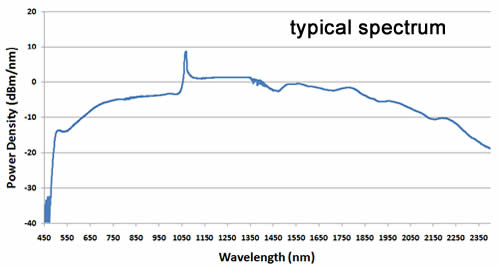

supercontinuum source supercontinuum laser

Model STYS-SC-5-FC
Total Power (Full specrum) 500mW
Wavelength 450nm-2400nm
Spectrum Stability (800-1700nm) <0.1dB
Power Stability <1%
Repetition Rate 5MHz
Output Single mode fiber with FC connector
M2 <1.1
Fundamental Pulse Width ~150ps
Length of Output Fiber 1.5m
State of Polarisation Unpolarised
Computer Interface USB
Sync(trigger) Output SMA
Connector FC/APC. FC/PC or CFS
Power Requirements 100-240V, 50/60Hz
Dimensions (W*L*H) 300mm*245mm*70mm
Weight <10kg

Option: fiber collimated output >1W total powerw at 450-2400nm.

2. Supercontinuum Laser STYS-SC-PRO

STYS-SC-Pro is the latest high-power supercontinuum source with variable repetition rate from 10kHz to 80MHz. It delivers a wide spectral output ranging from 430nm to 2400nm with 8W total power (10-20W optional). It has the unique feature of 1MHz-80MHz external triggerable range which could be very useful for locking to the mode-locked laser for pump-probe application. STYS-SC-Pro offers >1μJ pulse energy (@1MHz), making it the ideal source for super resolution microscopy. The 10kHz to 80MHz repetition rate capability makes it an ideal source for the applications such as low noise OCT, fluorescence microscopy, nanophotonics and etc.

Features:

  • Wavelength: 430nm-2400nm
  • Total power: 8W (10-20W Optional)
  • Internal Repetition Rate: 0.01-80MHz
  • External Triggerable (Optional): 1MHz-80MHz
  • Pulse Energy: >1μJ

Applications:

  • OCT
  • Fluorescence Spectroscopy and Microscopy
  • Nanophotonics
  • Super-Resolution Imaging
  • Photocurrent microscopy

supercontinuum lasers supercontinuum laser

Model STYS-SC Pro
Total Power >8W
Wavelength Range 430-2400nm
Pulse Energy >1μJ
Visible Power >1000mW
Power Stability <1%
Fundamental Pulse Width 100ps
Internal Repetition Rate 10kHz-200MHz adjustable
External Trigger (Optional)(SMA) 100kHz-2MHz or 1MHz-80MHz, External trigger range 0-5V
Beam Diameter and Quality ~2mm@633nm; M2<1.1
Beam Divergence (Half Angle) <1mrad
State of Polarization Unpolarized
Length of Output Fiber 1.5m
Computer Interface USB
Sync(trigger) Output(SMA) NIM -1V
Power Requirements 100-240V 50/60Hz
Dimensions (L*W*H) and Weight 360mm*260mm*125mm,<20kg

Optional:

  • Total Power: 10-20W
  • Fundamental Pulse Width: 50ps

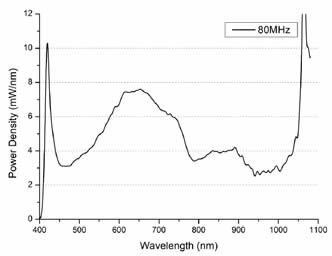

3. Mode-locked Supercontinuum Source STYS-SC-Pro-M

STYS-SC-Pro-M is the latest supercontinuum source with a seed source pulse duration of 6ps. It delivers a wide spectral output ranging from 410nm to 2400nm with over 7W total power. The optional 10kHz to 40MHz repetition rate capability also makes it an ideal source for the applications such as low noise OCT,fluorescence microscopy, nanophotonics and etc.

Applications:

  • OCT
  • Fluorescence Spectroscopy and Microscopy
  • Nanophotonics
  • Super-Resolution Imaging
  • Photocurrent microscopy

Features:

  • Wavelength: 410nm-2400nm
  • Total power: 7W
  • Repetition Rate: 80MHz
  • Seed source pulse duration: ~6ps
  • Single-Mode Output

supercontiuum laser supercontinuum lasers

Model STYS-SC-Pro-M-80 STYS-SC-Pro-M--40 STYS-SC-Pro-M-20 STYS-SC-Pro-M-PP
Total Power >7W >3.5W >1.5W >3.5W
Repetition Rate 80MHz 40MHz 20MHz 10kHz-40MHz
Visible Power >2W >1W >0.5W >1W@40MHz
Wavelength Range 410-2400nm
Power Stability <1%
Fundamental Pulse Width 6ps
Beam Diameter and Quality ~2mm@633nm; M2<1.1
Beam Divergence (Half Angle) <1mrad
State of Polarization Unpolarized
Length of Output Fiber 1.5m
Computer Interface USB
Sync(trigger) Output(SMA) TTL +2.8V
Power Requirements 100-240V 50/60Hz
Dimensions (L*W*H) and Weight 360mm*260mm*125mm,<20kg

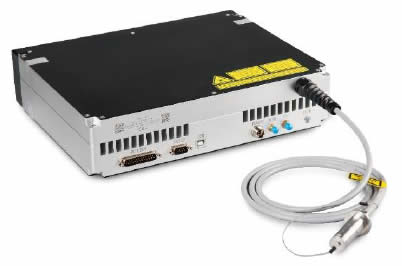

4. Supercontinuum Source STYS-SC-OEM

STYS-SC-OEM is the latest high power supercontinuum source with the compact footprint for the demanding medical and industry application. The STYS-SC-OEM, with 10kHz to 200MHz repetition rate range, delivers a wide spectral output ranging from 430nm to 2400nm with >8W total power. The STYS-SC-OEM not only maintains the traditional supercontinuum light source excellent performance, but also sets aside DB25, RS232, NIM trigger, Pulse on Demand (POD) and many other control interface. The wide spectrum combined with laser beam quality makes it an ideal source for replacing traditional broadband source like lamp, LED, SLED or any number of laser lines in the system.

supercontinuum laserApplications:

  • Semiconductor Inspection & Metrology
  • Industrial Sorting/ Machine Vision
  • Medical Instrumentation
  • Flow Cytometry
  • Optical Coherence Tomography

Features:

  • Wavelength: 400nm-2400nm
  • Total Power: >8W
  • Visible Power: >1200mW
  • Repetition Rate: 10kHz-200MHz
  • Optional External Triggerable: 1-80MHz
Model STYS-SC-OEM
Visible Power >900mW
Power Stability <1%
Repetition Rate 0.01kHz-200MHz adjustable (Optional external triggerable 1-80MHz)
Maximun Pulse Energy >1.2uJ
Wavelength Range 430-2400nm
Fundamental Pulse Width ~100ps
Beam Diameter & Quality ~2mm@633nm; M2<1.1
Beam Divergence (half angle) <2mrad
State of Polarisation Unpolarised
Length of Output Fiber 1.5m
Computer Interface USB
Sync(trigger) Output SMA NIM pulse
Power Requirements 100-240V, 50/60Hz
Dimensions (W*L*H) 300mm*245mm*70mm
Weight <10kg

The above supercontinuum lasers can be used with our STY series acousto-optical tunable filters (AOTF) for wavelength selection. For more information on the tunable filters, please click here.

supercontinuum laser

STN-SpectraChrome1000 Mid-IR Supercontinuum Laser

We has developed a unique, patented mid-IR fiber supercontinuum technology providing wavelength coverage from 1000nm to 5000nm with high average power >1W picosecond pulses at variable repetition rates. The single mode output is delivered from armored fiber. This turn-key broadband Mid IR source has applications in spectroscopy applications, particularly for hydrocarbon and gas sensing

Features

  • Wavelength coverage 1000nm to 5000nm
  • High average power >1W
  • Picosecond pulses
  • Variable Repetition Rate
  • Single mode output
  • Armored delivery fiber

Specifications:

Model STN-SpectraChrome1000
Operating Wavelengths (-30dB) 1000 – 5000nm
Average power (W)1 >1
Average power in 1000nm to 1900nm band >500mW
Average power in 2000nm to 5000nm band >500mW
Spatial Beam Quality Single Mode (all wavelengths >2000nm)
Pulse Repetition Rate (MHz) 1.25 – 20
Pulse Duration (picoseconds) 20
Power Stability ±2%
Polarization Random
Output Beam Collimated2
Length of Delivery Fiber (cm) >50
Operation Voltage 100-240VAC 50/60Hz
System Cooling Air Cooled
Operation Temperature (°C) 18-30
Dimension 482x434x273mm

STM Series Erbium Broadband Sources

Our Erbium Broadband Sources with single or dual band coverage provide excellent stability and flatness over the entire bandwidth. As an invaluable addition to Test and Measurement workstations requiring a noise source or spectrally spliced output to provide ITU locked channels, these units can be easily integrated into new or existing system. 1RU models have the option to control the unit using RS232, or the GUI. A complete line of flattened Broadband and Comb Sources designed for optical-component measurement, EDFA-subsystem evaluation and optical link characterization.

broadband source

Features

  • Provides broadband light several thousand times brighter than a typical EELED
  • Unique and extra-ordinary source for different applications
  • Output light is unpolarized
  • Wide spectral range with excellent flatness
  • Excellent stability of 5 mdB/hour
  • Packaged in instrument or modular format

Applications

  • Wide dynamic-range optical component testing
  • Accurate EDFA gain spectrum measurement
  • Telecom systems compliance tests
  • Optical link characterization
  • Optical-code division multiple access and local networking by spectral slicing
  • Biomedical imaging
  • Sensors & gyroscopes

1. DWDM Comb Sources

A series of high-power spectrally-sliced Erbium Broadband Sources providing up to 100 channels (50 GHz) locked to the ITU grid at 22 dBm output power. This source can dramatically reduce equipment cost and setup time in DWDM system test, replacing costly banks of DFB lasers.

  • Features the same power-spectral density as a full set of DFB lasers
  • Extremely stable
  • 50 GHz and 100 GHz spacing available
  • Channels locked to ITU grid
  • High peak-to-valley extinction ratio

broadband source

Add / Drop Option

Combining the Add/Drop box with our ASE Comb Source allows for an even broader range of applications. The Add/Drop box filters out one or more fixed channels depending on the customer’s request.

  • Allows the replacement of these missing channels with real data carrying channels
  • Modulated channels can be used for Bit-Error Rate testing
  • Easy monitoring of Four-Wave Mixing

Applications

  • Simultaneously measure optical amplifier gain flatness and noise figure under conditions of full channel loading (high peak-to-valley extinction ratio extends NF measurement capability to high-power booster amplifiers)
  • Measure the full band OSNR and channel power evolution over links consisting of multiple spans and optical amplifiers without the need for costly banks of DFB lasers
  • Measure magnitude of inter-channel Raman pumping along a span for fully-loaded band case
  • Test DWDM demux components

Specifications

Our Comb Sources can be designed to meet customer-specific requests. Contact us to discuss your requirements.

Part number STM-4522 STM-9022 STM-9622 STM-9822
Output Power, Typical 22 22 22 22 dBm
Spacing Between Channels 100 50 50 50
Number of Channels 45 91 96 99
Wavelength Range 1529.55 - 1565.09 1529.55 - 1565.5 1529.16 - 1567.13 1570.01- 1611.35 nm
Extinction Ratio, Minimum 47 45 44 44 dB
Optical Connector FC/APC FC/APC FC/APC FC/APC

2. Brodband Sources

High power flat and stable Broadband Sources for Automated Test and Measurement work stations or stand-alone lab test equipment.

broadband source

Part number STM-4022 STM-4026 STM-4226 STM-7514 C+L Band
Output Power 22 26 26 14 dBm
Minimum Wavelength Range 1529-1565 1529-1565 1526-1568 1526-1600 nm
Ripple ≤1.5(0.8 typ) ≤1.5(0.8 typ) ≤1.5(0.8 typ) ≤ 2.5 dB
Spectral Width at 3 dB ≥ 40 ≥ 40 ≥ 44 ≥ 75 nm
Stability after 60 min ≤ 20 ≤ 20 ≤ 20 ≤ 20 mdB/hr
Also available in L Band

3. Gain Module Broadband Sources

Compact and lightweight in half- (STM-EBS-µ) and full-MSA (STM-EBS-xs) packages, these Broadband Sources can provide up to 21 dBm output power over 35 nm bandwidth with a maximum power consumption of < 5 watts. A graphical user interface provides access to the unit. Communication is via RS232/485.

broadband source

STM-EBS-µ Series STM-EBS-xs Series
Maximum Output Power 19 21 dBm
Minimum Spectral Width 1529-1564 1529 - 1564 nm
Ripple ≤± 2.5 ≤± 1.5 dB
Stability after 60 min warm up ≤± 50 ≤± 50 mdB/hr
Optical output isolation ≥ 40 ≥ 40 dB
Power Consumption < 2.9 < 4.9 W
Dimensions 45 x 70 x 12 90 x 70 x 15 mm
  • Online submission
  • Send us a message

    CLOSE
