Laser Rangefinder is widely used for patrol reconnaissance engineering exploration surveying and mapping. Features include high accuracy range finding and easy operation.
Laser rangefinder is a kind of equipment to measure the distance of the target. It can measure the distance information of the target by detecting the return signal of the emitting laser. This series of products has mature technology and stable performance, which can be tested on a variety of static and dynamic targets, and can be equipped and used on a variety of platforms. Laser rangefinder is used to measure the range of the target. Its military application can be summarized into two categories: reconnaissance and fire control. Reconnaissance includes individual reconnaissance, sea base, road base, air base target detection and terrain detection. Fire control is mainly used in land air defense, sea combat, short-range fire control equipment precision attack, as well as ship and airborne fire control system in long-range ranging and target attack. According to different combat platforms, the laser range finder can be applied to the optoelectronic reconnaissance system of different platforms such as ground vehicle, light portable, air artillery, missile defense, airborne, shipborne and space detection as a supporting ranging system. The rangefinder products are characterized by independent control of core devices, small size and light weight, mass production, stable performance and easy operation.
This series rangefinder is based on 1535 nm erbium-doped glass lasers, which are completely independently developed and protected by patents and intellectual property rights, and have now reached Class I human eye safety standards. The product is a single-pulse rangefinder that features small size, light weight, high-cost performance and adaptability to multiple platforms. The main functions are: single pulse range and continuous range, distance selection, front and rear target display and self-test function, and continuous range frequency adjustable from 1-10Hz. The series offers different products to meet different range requirements (3km to 12km).
Features:
Small size and light weight
Class I human eye safety standards
Stable performance and easy to use
Provide customization service
Distance measurement for vehicle (2.3*2.3m) over 3km
Developed based on 1535nm Er: Glass Laser
Applications:
Laser ranging
Targeting
Photoelectric reconnaissance

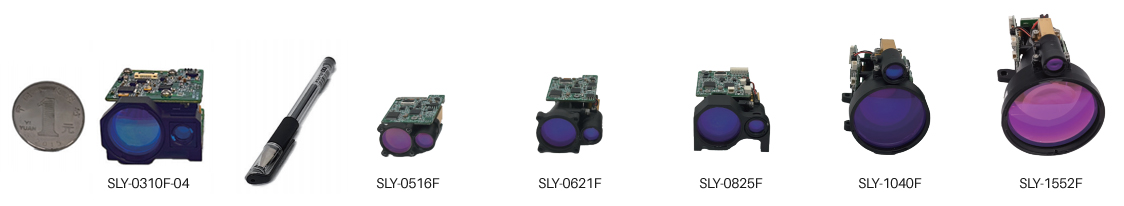

Part number | SLY-0310F-04 | SLY-0516F | SLY-0621F | SLY-0825F | SLY-1040F | SLY-1552F |
Wavelength | 1535nm±5nm | |||||
Ranging Capability (Vehicle, 2.3m x 2.3m) | ≥3km | ≥5km | ≥6km | ≥8km | ≥10km | ≥15km |
Minimum range | ≤15m | ≤15m | ≤20m | ≤30m | ≤50m | |
Receiving Aperture | / | Φ16mm | Φ21mm | Φ25mm | Φ40mm | Φ52mm |
Laser divergence angle | ≤0.6mrad | ≤0.3mrad | ||||
Continuous ranging frequency | 1-10Hz | 1Hz-10Hz (adjustable) | ||||
Ranging accuracy (RMS) | ≤1m | ≤1.5m | ||||
Accurate ranging ratio | ≥98% | |||||
Range resolution | ≤30m | |||||
Voltage supply | DC 5-28V | |||||
>Weight | 3 g ±1 g | ≤40g | ≤55g | ≤72g | ≤130g | ≤190g |
Average Power Consumption (at 1Hz Operation) | ≤ 0.8W | ≤1W@5V | ≤1W@5V | ≤1.3W@5V | ≤1.5W@5V | ≤2W@5V |
Peak Power Consumption | ≤3W | ≤3W@5V | ≤3W@5V | ≤4W@5V | ≤4.5W@5V | ≤5W@5V |
Dimension (mm) | ≤48×21×31 | ≤50×23×33.5 | ≤65×40×28 | ≤65×46×32 | ≤83×61×48 | ≤104×61×74 |
Working temperature | -40°C~70°C | -40°C~60°C | ||||
Storage temperature | -45°C~70°C | -55°C~70°C | ||||
>Communication interface | RS422 Serial Port (Customizable TTL Serial Port) | TTL,115200bp | RS422 Serial Port (Customizable TTL Serial Port) | |||
Shock | 75g@6ms (Customizable 1000g/1ms) | >75g@6ms |
This series rangefinder is based on the 1570nm OPO laser developed completely in-house, protected by patents and intellectual property rights, and has now met the Class I human eye safety standard. The product is a single pulse rangefinder with, cost-effective and adaptable to a variety of platforms. The main functions are: single pulse rangefinder and continuous rangefinder, distance selection, front and rear target display and self-test function, continuous rangefinder frequency adjustable from 1-5Hz. The average power consumption of the product is less than 50W and the peak power consumption is less than 100W.
Features:
High reliability
Class I human eye safety standards
Stable performance and easy to use
Provide customization service
Distance measurement for vehicle (2.3*2.3m) over 15km
Developed based on 1570nm OPO laser
Applications:
Laser ranging
Targeting
Photoelectric reconnaissance

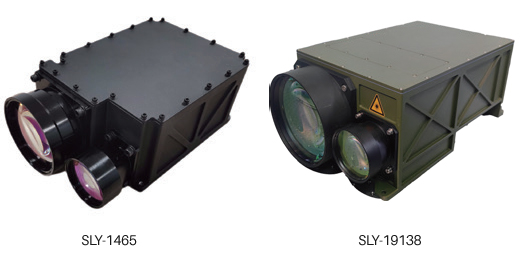

Part number | SLY-1465 | SLY-2005 |
Wavelength | 1570nm±10nm | |
Maximum Measuring Big Target (Building) | 300m~27km | 300m~37km |
Maximum Measuring Target Size:2.3mx2.3m | 300m~14km | 300m~19km |
Maximum Measuring Target Size:0.1㎡ | 300m~7km | 300m~10km |
Laser divergence angle | 1±0.2mrad | 1.2±0.2mrad |
Visibility | >25km | |
Continuous ranging frequency | 1-10Hz | |
Ranging accuracy | ±5m | |
Voltage supply | DC 18V~32V | |
Weight (kg) | 2.3 | 12 |
Dimension (mm) | 214.3×116×81.15 | 405×234×163 |
Working temperature | -40°C~60°C | |
Storage temperature | -50°C~70°C | |
Communication interface | RS422, | |
Working Life | ≥1 Million Times |
Infrared | |
Model | SLY-880 |
Detector type | Amorphous silicon uncooled infrared focal plane |
Resolution | 384x288 |
Field angle | 17um |
Field angle | 7.5°x 5.6° |
Working band | 8-14um |
NETD | <50mk@25C, @f/1.0 |
Focal length | 50mm |
Frame rate | ≤50Hz |
Focus mode | Electric focus |
Detection distance | |
Characters (1.7mx0.5mx0.3m) | 3333m |
Vehicles (4.5mx2.0mx1.5m) | 8823m |
Identification distance | |
Characters (1.7mx0.5mx0.3m) | 883m |
Vehicles (4.5mx2.0mx1.5m) | 2205m |
Shimmer | |
Detector type | Ultra-low illumination CMOS |
Resolution | 1920x1080 |
Pixel size | 4.0um |
Focal length | 35mm |
Frame rate | ≤30Hz |
Focus mode | Focus free |
Display | |
Display screen type | OLED |
Resolution | 1024x768 |
Display screen size | 0.39 inches |
Display screen mode | Infrared/shimmer/dual light fusion/ picture in pictures |
Electron doubling | 1x /2x /4x |
Visual control | ±4SD |
Color palette | Rainbow, iron red, cold color, white hot, and black hot |
Other functions | |
WIFI | 2.4G image transmission |
Electronic compass | Square angle display |
Positioning | GPS/BD |
Ranging | |
Ranging range | 9m-2500m |
Ranging accuracy | <400m, ±1m; >400m, 0.4% |
Storage | |
Capacity | Built-in 16G eMMC (Note: the usable storage capacity is less than this value, because the system software occupies a certain space) |
Shooting | Supported |
Video recording | Supported |
Picture/Video format | JPG/MP4 |
Interface | |
CVBS output | PAL system video output |
USB interface | Export pictures and videos |
External power supply | DC12/1A |
Power supply | |
Detachable rechargeable lithium battery | 3200mAhx2 (battery model 18650) |
Battery charging mode | Standalone charging stand |
Overall power consumption | ≤6W |
Endurance duration | ≥4 hours |
Operating/storage environment | |
Operating temperature | -20C to 50C |
Storage temperature | -30C to 70C |
Shock | ≤30g |
Protection level | 1P54 |
Overall dimension/Weight | |
Overall dimension | 193.1mmx176.8mmx99mm |
Weight | 1.58kg (including batteries) |
STDY-DA and STDY-YA series laser rangefinder is compact in design and easy to integrate. The working light source is 905nm and 1550nm semiconductor laser diode. The features are long service life and low power consumption. And it is widely used in the airborne pod, vehicle turntable, handheld observation instrument, altimeter, telescope, gun sight, gun sight project and other photoelectric equipment, to meet aviation, ship, vehicle, police, railway, electric power, communication, geology, construction, fire protection, forestry, outdoor applications and other applications.
(1) STDY-DA1xxx series
Model | STDY-DA1000 | STDY-DA1500 |
Wavelength | 905nm | |
Range | 20m~1000m | 20m~1500m |
Ranging accuracy | ≤±2m | |
Ranging frequency | 1Hz | |
Accurate rate | ≥98% | |
Acceptance aperture | 17mm | |
Connector | TTL | |
Supply voltage | 5V±0.5V | |
Power consumption | ≤2W | |
Dimension | 45mmx44mmx21mm | |
Weight | ≤35g | |
Operating temperature | -40℃~+55℃ |
(2) STDY-DA2xxx series
Model | STDY-DA2000 | STDY-DA2500 |
Wavelength | 905nm | |
Range | 20m~2000m | 30m~2500m |
Ranging accuracy | ≤±2m | |
Ranging frequency | 1Hz | |
Accurate rate | ≥98% | |
Acceptance aperture | 17mm | |
Connector | TTL | |
Supply voltage | 5V±0.5V | |
Power consumption | ≤2W | |
Dimension | 50.5mmx37mmx22mm | |
Weight | ≤45g | |
Operating temperature | -40℃~+55℃ |
(3) STDY-DA3xxx series
Model | STDY-DA3000 | STDY-DA3500 |
Wavelength | 905nm | |
Range | 20m~3000m | 30m~3500m |
Ranging accuracy | ≤±2m | |
Ranging frequency | 1Hz | |
Accurate rate | ≥98% | |
Acceptance aperture | 24mm | |
Connector | TTL | |
Supply voltage | 5V±0.5V | |
Power consumption | ≤2W | |
Dimension | 50mmx49.5mmx29mm | |
Weight | ≤65g | |
Operating temperature | -40℃~+55℃ |
STDY-DYC series of small and medium-sized laser rangefinders are compact, easy to install and operate. The working light source is a human eye safe band solid state laser. The features are long service life and low power consumption. It can provide deep customization according to different needs. And it is widely used in the airborne pod, vehicle turntable, handheld observation instrument, altimeter, telescope, gun sight, gun sight project and other photoelectric equipment, to meet aviation, ship, vehicle, police, railway, electric power, communication, geology, construction, fire protection, forestry, outdoor applications and other applications.
(1) STDY-DYCx000 series
Model | STDY-DYC3000 | STDY-DYC4000 | STDY-DYC5000 |
Wavelength | 1535nm | 1535nm | 1535nm |
Range | 15m~3000m | 50m~4000m | 50m~5000m |
Ranging accuracy | ≤±2m | ≤±2m | ≤±2m |
Ranging frequency | ≥1Hz | ≥1Hz | ≥1Hz |
Accurate rate | ≥98% | ≥98% | ≥98% |
Divergence angle | ≤0.65mrad | ≤0.6mrad | ≤0.7mrad |
Acceptance aperture | 18mm | 21mm | 25mm |
Connector | TTL | RS422 | RS422 |
Supply voltage | 12V±2V | 12V±2V | 12V±2V |
Power consumption | ≤2W | ≤3W | ≤3W |
Dimension | 50mmx36mmx24mm | 57mmx50mmx30mm | 61mmx43mmx32mm |
Weight | ≤56g | ≤75g | ≤85g |
Operating temperature | -40℃~+55℃ | -40℃~+55℃ | -40℃~+55℃ |
Model | STDY-DYC6000 | STDY-DYC7000 | STDY-DYC8000 | STDY-DYC9000 |
Wavelength | 1535nm | 1535nm | 1535nm | 1535nm |
Range | 20m~6000m | 20m~7000m | 80m~8000m | 80m~9000m |
Ranging accuracy | ≤±2m | ≤±2m | ≤±2m | ≤±2m |
Ranging frequency | ≥1Hz | ≥1Hz | ≥1Hz | ≥1Hz |
Accurate rate | ≥98% | ≥98% | ≥98% | ≥98% |
Divergence angle | ≤0.3mrad | ≤0.3mrad | ≤0.5mrad | ≤0.5mrad |
Acceptance aperture | 34mm | 34mm | 42mm | 42mm |
Connector | RS422 | RS422 | RS422 | RS422 |
Supply voltage | 7.5V±1.5V | 7.5V±1.5V | 12V±2V | 12V±2V |
Power consumption | ≤2W | ≤2W | ≤3W | ≤3W |
Dimension | 80x59x45mm | 80x59x45mm | 86x66x45mm | 86x66x45mm |
Weight | ≤120g | ≤120g | ≤145g | ≤145g |
Operating temperature | -40℃~+55℃ | -40℃~+55℃ | -40℃~+55℃ | -40℃~+55℃ |
(2) STDY-DYCx000A series
Model | STDY-DYC6000A | STDY-DYC7000A |
Wavelength | 1535nm | |
Range | 20m~6000m | 20m~7000m |
Ranging accuracy | ≤±2m | |
Ranging frequency | 1Hz | |
Accurate rate | ≥98% | |
Divergence angle | ≤0.3mrad | |
Acceptance aperture | 34mm | |
Connector | TTL | |
Supply voltage | 7.5V±1.5V | |
Power consumption | ≤2W | |
Dimension | 81mmx57.5mmx41.5mm | |
Weight | ≤125g | |
Operating temperature | -40℃~+55℃ |
(3) STDY-DYC6000B
Model | STDY-DYC6000B |
Wavelength | 1535nm |
Range | 50m~6000m |
Ranging accuracy | ≤±2m |
Ranging frequency | 1Hz |
Accurate rate | ≥98% |
Divergence angle | ≤0.7mrad |
Acceptance aperture | 34mm |
Connector | RS422 |
Supply voltage | 28V±6V |
Power consumption | ≤3W |
Dimension | 87mmx52mmx41mm |
Weight | ≤195g |
Operating temperature | -40℃~+55℃ |
(4) STDY-DYC100X and STDY-DYC100XA
Model | STDY-DYC100X | STDY-DYC100XA |
Wavelength | 1535nm | |
Range | 50m~10000m | 80m~10000m |
Ranging accuracy | ≤±2m | |
Ranging frequency | 1Hz | |
Accurate rate | ≥98% | |
Divergence angle | ≤0.5mrad | |
Acceptance aperture | 48mm | |
Connector | RS422 | |
Supply voltage | 28V±6V | |
Power consumption | ≤4W | |
Dimension | 107mmx84mmx56mm | |
Weight | ≤230g | ≤290g |
Operating temperature | -40℃~+55℃ |
(5) STDY-DYC series medium range finder
STDY-DYC series of medium range finders are compact and easy to install and operate. The working light source is a human eye safe band solid state laser. The features of it are long service life and low power consumption. It can provide deep customization according to different needs. And it is widely used in the airborne pod, vehicle turntable, handheld observation instrument, altimeter, telescope, gun sight, gun sight project and other photoelectric equipment, to meet aviation, ship, vehicle, police, railway, electric power, communication, geology, construction, fire protection, forestry, outdoor applications and other applications.
Model | STDY-DYC250X | STDY-DYC300X |
Wavelength | 1535nm | |
Range | 300m~25000m | 300m~30000m |
Ranging accuracy | ≤±5m | |
Ranging frequency | 1Hz | |
Accurate rate | ≥98% | |
Divergence angle | ≤0.4mrad | |
Acceptance aperture | 48mm | 65mm |
Connector | RS422 | |
Supply voltage | 28V±6V | |
Power consumption | ≤10W | |
Dimension | 245mmx113mmx85mm | 133mmx122mmx76mm |
Weight | ≤2100g | ≤1000g |
Operating temperature | -40℃~+55℃ |
STDY-DYB series of small laser photometer is pumped by semiconductor, which can transmit laser pulse and receive laser echo to obtain the distance information of the measured target. It emits laser pulses in a specified precise coding or external synchronous way to provide semi-active guidance laser spots for laser guided weapons. The product is suitable for ground reconnaissance equipment, vehicle turret, ship turret, helicopter and UAV photoelectric load.
Model | STDY-DYB025 | STDY-DYB040 | STDY-DYB060 | STDY-DYB100 |
Wavelength | 1064nm | 1064nm | 1064nm | 1064nm |
Average energy | ≥25mJ | ≥40mJ | ≥60mJ | ≥100mJ |
Energy instability | ≤10% | ≤10% | ≤10% | ≤10% |
Divergence angle | ≤0.5mrad | ≤0.4mrad | ≤0.4mrad | ≤0.25mrad |
Optical axis stability | ≤0.05mrad | ≤0.05mrad | ≤0.05mrad | ≤0.05mrad |
Range | 100m~5000m | 300m~5000m | 300m~8000m | 300m~20000m |
Irradiation distance | ≥2000m | ≥4000m | ≥5000m | ≥13000m |
Exposure frequency | 20Hz | 20Hz | 20Hz | 20Hz |
Precise frequency code | 45ms~56ms | 45ms~56ms | 45ms~56ms | 45ms~56ms |
Coding accuracy | ±2.5us | ±2.5us | ±2.5us | ±2.5us |
Pulse width | 15ns±5ns | 15ns±5ns | 15ns±5ns | 15ns±5ns |
Supply voltage | 28V±6V | 28V±6V | 28V±6V | 28V |
Weight | ≤450g | ≤1000g | ≤1500g | ≤2800g |
Dimension | 91x6851.5mm | 112x62x57mm | 180x100x78mm | 239x116x81mm |
Operating temperature | -40℃~+55℃ | -40℃~+55℃ | -40℃~+55℃ | -40℃~+55℃ |
Connector | RS422 | RS422 | RS422 | RS422 |
STTM-905-L2 and STTM-905-L3 are the latest generation of outdoor long-distance laser ranging modules, which have the characteristics of small size, light weight, strong measurement ability, high measurement accuracy, and simple installation and operation.
Specifications
Model | STTM-905-L3 |
Laser Wavelength | 905nm |
Detection Distance | 5~1300m@70% |
Maximum Measurement Time | ~0.6s |
Accuracy | ±1m |
Blind Area | 5m |
Resolution Ratio | 0.1m |
Voltage | Typical (DC, +3.3V) Voltage Range (+3.3V~+5V) |
Current | 210mA |
Power Consumption | 690mW@3.3V |
Working Temperature | -20~50℃ |
UART | 115200bps |
Serial Port Level | TTL3.3V |
Size | 25.72x24.6x13.4mm |
Weight | ~10g |
Specifications
Model | STTM-905-L2 |
Laser Wavelength | 905nm |
Detection Distance | 3~700m@70% |
Maximum Measurement Time | ~1s |
Accuracy | ±1m |
Blind Area | 3m |
Resolution Ratio | 0.1m |
Voltage | Typical (DC,+3.3V) Voltage Range (+3.3V~+5V) |
Current | 100mA |
Power Consumption | 330mW@3.3V |
Working Temperature | -20~50℃ |
UART | 115200bps |
Serial Port Level | TTL3.3V |
Size | φ25x43mm |
Weight | ~30g |
A leading supplier and manufacturer of a wide range of photonics products such as lasers,laser parts & machines.
Office: 10 Bukit Batok Crescent #07-02 The Spire Singapore 658079
Tel: +65 63167112
Fax: +65 63167113
Whatsapp: +65 91904616
