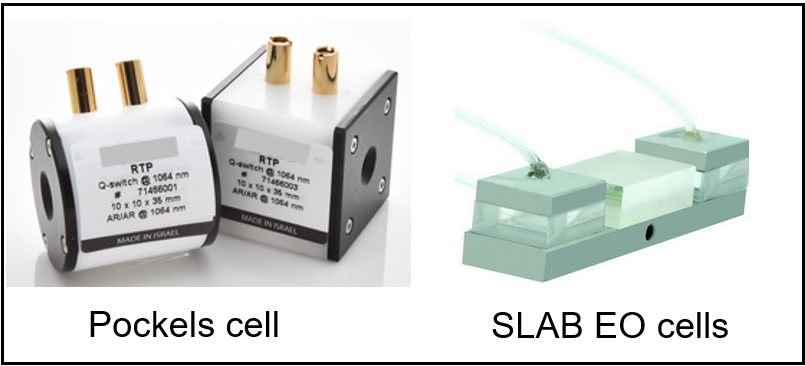

RTP crystal EO Cells

Time: Nov 21, 2023 Author: Sintec Optronics View: 3966

Our RTP (Rubidium Titanyl Phosphate) electro‐optic crystals can be used for a wide variety of applications in industrial, medical, and range-finding. The crystals are transparent from the visible to near infrared laser wavelengths. They can be used under low half-wave voltage for electro-optic cells, and can sustain large laser induced damage and low absorption losses. The performance is guaranteed and consistent over a wide temperature range (from ‐50ºC to +70ºC) and high repetition rates.

Advantage:

  • Low half-wave voltage

  • Short rise time, fall time and pulse width

  • High laser induced damage threshold

  • Non-hygroscopic, easy handling, no cover needed.

  • Low absorption losses at 1064nm

  • High homogeneity


Application of RTP  Q-Switch in Laser range-finders:



Technical Specifications:

Category

Specification of   RTP EO Cells

Operational range

500-3000nm

Half-wave voltage

3.6kV

Laser induced damaged threshold

1GW/cm2 @ 1064nm

Clear aperture

1.5x1.5 mm2 to 15x15mm2

Crystal length

Up to 50mm

Transmission @1064nm

> 99%

Acceptance angle

< 4 degree

Note: Other type of non-linear crystals are available. Contact us for any inquiries.

Other Applications of RTP EO cells:

  • Pulse pickers

  • Phase modulators

  • Amplitude     modulators

  • Cavity dumpers

  • Shutters

  • Attenuators

  • Deflectors
