Empowering Laser Applications with Precision: An In-depth Analysis of the STXF Series Laser Power M

In an era where laser technology is fully integrated into industrial manufacturing, scientific research, medical devices, and other fields, the accurate measurement of laser power and energy has become a core link to ensure stable equipment operation and enhance process precision. As a benchmark product line dedicated to laser parameter detection, the STXF series stands out as a highly competitive laser measurement solution in the industry with its diversified model configurations, ultra-high-precision measurement performance, and flexible application adaptability, providing solid and reliable data support for various complex laser application scenarios.

Core Positioning and Product Classification of the Series

The STXF series laser measurement products cover two core categories: laser power meters and laser energy meters. Some models feature dual measurement functions for both power and energy, making them ideal all-in-one laser power and energy measurement tools. Developed around the three core demands of precision, convenience, and durability, the products adopt a modular architecture of "sensor + processing unit" and are divided into two categories based on application scenarios:

Display-Type Laser Power Meters

Tailor-made for standalone operation scenarios, these meters are equipped with high-performance built-in batteries and LCD displays, enabling real-time data reading without relying on a computer. They are the preferred solution for on-site testing and mobile measurement. Their core advantage lies in strong operational autonomy. Combined with an all-metal body design, they boast excellent anti-interference and shielding performance, capable of coping with complex working environments with ease. Representative products include the Stellar V2 series display units and supporting multi-specification sensors, which can be flexibly combined according to different measurement needs to adapt to diverse application scenarios.

OEM-Type Laser Power Meters

Focused on system integration scenarios, these meters feature a battery-free design and are powered by the laser equipment itself. They efficiently transmit data to computers or device hosts via communication interfaces such as USB and RS232. Adopting a simple and user-friendly ASCII protocol, the products facilitate host programming and development, and can be seamlessly integrated into industrial equipment such as laser welding, cutting, and marking machines to realize real-time online monitoring of laser power. Their compact structural design and stable signal transmission capability make them indispensable core detection components in industrial automated production lines.

Core Product Highlights and Technical Advantages

High-Precision Measurement Performance with Accurate and Reliable Data

The STXF series products excel in measurement accuracy, with electrical accuracy up to ±0.25% and power measurement accuracy as low as ±3%, while energy measurement accuracy remains stable and controllable. The sensors adopt a wide-spectrum design: most models cover a spectral response range of 0.19~11μm, and some homogenized light models (suffixed with J) cover 0.28~1.1μm, perfectly adapting to the measurement needs of multi-band lasers such as infrared and ultraviolet. Linearity is strictly controlled within ±1%, ensuring numerical accuracy across the entire measurement range and providing a solid guarantee for scenarios with high data precision requirements such as precision machining and scientific research experiments.

Full Power Range Coverage with Diversified Model Adaptability

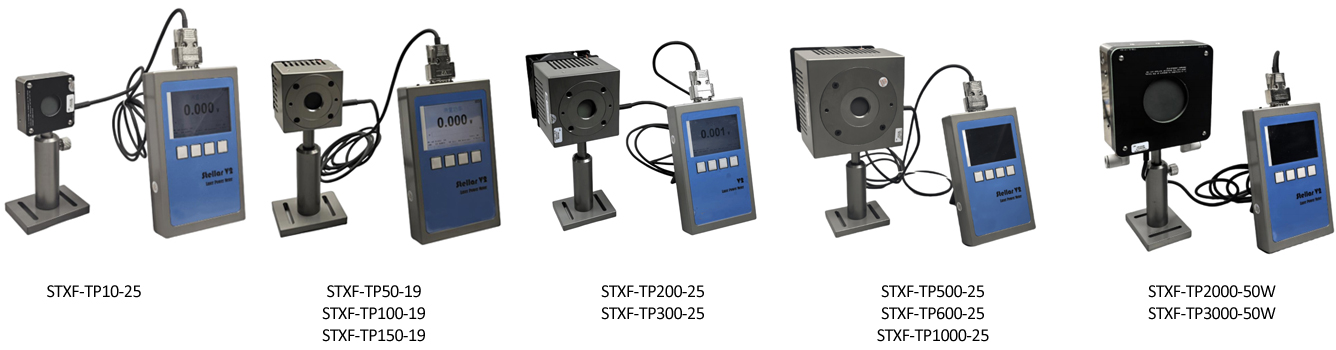

To meet laser applications of different power levels, the STXF series has built a complete product matrix ranging from milliwatt to kilowatt class, covering multi-specification power segment sensors:

• Low-power segment (2mW-12W): Includes the STXF-TP10 series and STXF-USB/RS232-2~12 series, suitable for the accurate measurement of small laser equipment and low-power laser sources in laboratories.

• Medium-power segment (10mW-600W): The STXF-TP50~TP600 series sensors adopt natural cooling or conduction cooling methods, adapting to mainstream application scenarios such as industrial laser processing and medical laser equipment.

• High-power segment (0.5W-3500W): Covers the STXF-TP1000~TP3000 series and water-cooled models (suffixed with W). Among them, the water-cooled sensors can withstand continuous laser power up to 3500W, ensuring stable operation under high-power working conditions with the help of an efficient water cooling system, and are suitable for industrial heavy-duty scenarios such as large laser cutting and welding equipment.

User-Centered Design Concept with Convenient and Efficient Operation

Display-type products are equipped with a 3.5-inch true-color LCD screen, supporting three display modes: numerical, bar chart, and line graph. With a 480*320 high-definition resolution and multi-level backlight adjustment, they ensure clear data reading under different lighting conditions. The Stellar V2 display unit has a built-in 3600mAh high-capacity lithium battery, supporting 24 hours of continuous operation after 12 hours of charging, fully meeting the needs of long-term on-site measurement. It also supports connection to PC-side monitoring software via a USB-B interface to realize data storage, analysis, and export, with a maximum capacity of 10,000 data points or 1667 hours of continuous measurement records.

All products in the series support user self-calibration, greatly simplifying the calibration process and reducing long-term maintenance costs. Some models are equipped with a self-stabilizing zero circuit design, eliminating the need for manual zero calibration, further improving operational efficiency, and effectively reducing the interference of environmental factors on measurement results.

Robust and Durable Structure with Optimized Heat Dissipation Design

As core detection components, the sensors adopt an optimized and upgraded heat dissipation design: low and medium-power models combine natural cooling and conduction cooling methods, featuring high heat dissipation efficiency and easy maintenance; high-power models are equipped with a professional water cooling system, and some water-cooled models have a minimum water flow requirement of only 1.0L/min, significantly reducing supporting costs while ensuring heat dissipation efficiency. The sensor housing is made of wear-resistant and corrosion-resistant materials, with probe apertures available in multiple specifications such as 19mm, 25mm, and 50mm, which can match the laser measurement needs of different spot sizes. The cable length is uniformly 2m, balancing installation flexibility and signal transmission stability.

Model Naming Rules and Selection Guide

The STXF series products adopt a standardized model naming system, facilitating users to quickly identify core parameters:

• Display-type model format: STXF-TPX-YY-Z, where "X" represents the power range (e.g., 10=10W, 500=500W), "YY" represents the probe aperture (e.g., 19=19mm, 25=25mm), and "Z" represents special configurations (J=Homogenized Light, W=Water-Cooled).

• OEM-type model format: STXF-USB/RS232-X-YY-Z, with core parameter identifiers consistent with display-type models, and the prefix clearly indicating the communication interface type.

Three core factors should be focused on during selection: first, the laser power range and measurement mode (continuous/pulsed); second, the laser wavelength and spot size (which need to match the sensor's spectral range and probe aperture); third, the specific application scenario (display-type is preferred for standalone use, and OEM-type is suitable for system integration scenarios). For example, the STXF-USB-200-25 model can be selected for online monitoring of industrial laser cutting machines, and the Stellar V2 display unit can be paired with the STXF-TP50-19J sensor for pulsed laser experiments in laboratories to achieve accurate measurement.

Application Scenarios and Industry Value

With flexible configuration schemes and stable performance, the STXF series products have been widely used in multiple core fields: in industrial manufacturing scenarios, they provide real-time power monitoring for laser welding and cutting equipment to ensure consistent processing precision; in scientific research laboratories, they support high-precision measurement of pulsed laser energy and continuous laser power, providing strong support for laser technology research and development; in the laser equipment production field, they serve as core tools for factory inspection to strictly control product quality compliance.

Its core value lies not only in providing accurate measurement data, but also in helping users optimize laser equipment operating parameters, extend equipment service life, and reduce defect rates through data-driven management, providing solid guarantee for the efficient and intelligent upgrading of laser applications.

From precision measurement in laboratories to continuous monitoring in industrial production lines, the STXF series laser power/energy meters continue to provide professional and reliable laser measurement solutions for global users with their diversified product forms, strict precision control, and user-centered design philosophy. Whether for conventional application scenarios or customized needs, the STXF series can rely on its strong technical strength and flexible adaptability to become a reliable partner in laser technology innovation and industrial upgrading.
