Beam Expander 1064/532/355/266nm

Beam Expander 1064/532/355/266nm

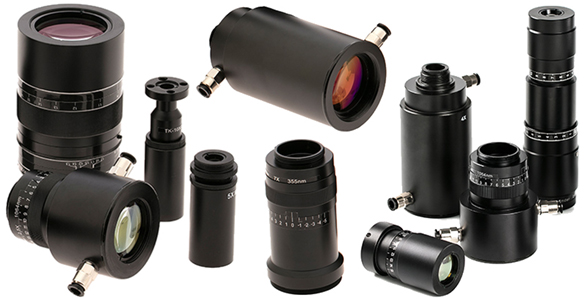

The beam expanders are designed and coated at the laser wavelengths of 1064nm 532nm 355nm and 632.8nm respectively.These Beam expanders are widely used in laser scanning and marking systems.

We offer 3 types of beam expanders: fixed beam expanders, zoom beam expanders and motorised beam expanders at various wavelengths of 266nm, 343-355nm, 405nm, 633nm, 515-545nm, 808-980nm, 1030-1090nm, 155nm, 1850-1980nm, 10.6um. Other wavelengths and custom-designed beam expanders are available upon request. For more information, please feel free to contact us.

The specifications of the lenses used in the beam expanders are:

  • Material: BK7 fine annealed, fused silica and ZnSe depending on laser wavelength.
  • Diameter: -0.1mm
  • Thickness: ±0.1mm
  • Flatness: lamda/4
  • Surface Quality: 60-40 scratch-dig
  • Coating: HR dielectric coatings R > 99%

Part number description: BEST-xxx-yy-T-AA

  • BEST --- BEST series beam expanders, zoom beam expanders.
  • xxxx------- laser wavelength: 10.6 means 10.6um, 532 means 532nm, 633 means 633nm.
  • yy -------- expansion ratio (magnification) in times
  • T ---------- type: T means adjustable beam expander; none,means fixed beam expander. Here adjustable means that the distance between the inside 2 lenses is a little adjustable. The"adjustable" may change the beam divergence anlge a little.
  • AA -------- special purpose.

Example: BEST-10.6-3: 10.6um fixed beam expander, 3x; BEST-10.6-3.5T: 10.6um zoom beam expander, max. 3.5x.

We may use the following abbreviations in the tables: WL=wavelength, MAG=magnification, CA=clear aperture, CA1=input clear aperture, CA2=output clear aperture, D1=input diameter, D2=output diameter, L1=total length of beam expander, M1=connection or mounting thread, D=diameter.

1. 1064nm Beam Expanders

BEH Series 1064nm Beam Expanders

beam expander beam expander

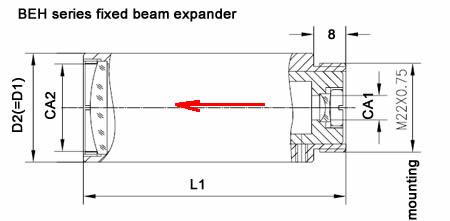

BEH Series 1064nm Fixed Beam Expanders

Part number MAG CA1 (mm) CA2 (mm) Connction (mm) D2xL1 (mm)
BEH-1064-1.5 1.5 10.4 21.6 M22x0.75 Φ27x58.4
BEH-1064-2 2 10.4 21.6 M22x0.75 Φ27x38.2
BEH-1064-3 3 10.4 21.6 M22x0.75 Φ27x67
BEH-1064-4 4 10.4 21.6 M22x0.75 Φ27x74
BEH-1064-5 5 10.4 21.6 M22x0.75 Φ27x72
BEH-1064-6 6 10.4 21.6 M22x0.75 Φ27x71.8
BEH-1064-8 8 6 21.6 M22x0.75 Φ27x66
BEH-1064-10 10 6 21.6 M22x0.75 Φ27x68
BEH-1064-12 12 6 21.6 M22x0.75 Φ27x77.7
BEH-1064-15 15 6 21.6 M22x0.75 Φ27x72
BEH-1064-20 20 6 21.6 M22x0.75 Φ27x81

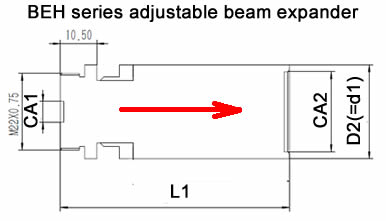

BEH Series 1064nm Adjustable Beam Expanders

Part number MAG CA1 (mm) CA2 (mm) Connction (mm) D2xL1 (mm)
BEH-1064-1.5T 1.5 10.4 21.6 M22x0.75 Φ27x58.4
BEH-1064-2T 2 10.4 21.6 M22x0.75 Φ27x38.2
BEH-1064-3T 3 10.4 21.6 M22x0.75 Φ27x67
BEH-1064-4T 4 10.4 21.6 M22x0.75 Φ27x74
BEH-1064-5T 5 10.4 21.6 M22x0.75 Φ27x72
BEH-1064-6T 6 10.4 21.6 M22x0.75 Φ27x71.8
BEH-1064-8T 8 6 21.6 M22x0.75 Φ27x66
BEH-1064-10T 10 6 21.6 M22x0.75 Φ27x68
BEH-1064-12T 12 6 21.6 M22x0.75 Φ27x77.7
BEH-1064-15T 15 6 21.6 M22x0.75 Φ27x72
BEH-1064-20T 20 6 21.6 M22x0.75 Φ27x81

Remark: The input lens is quartz and output lens is optical glass. Optical glass output lens is availableupon request.

BEG Series Beam Expanders

beam expander

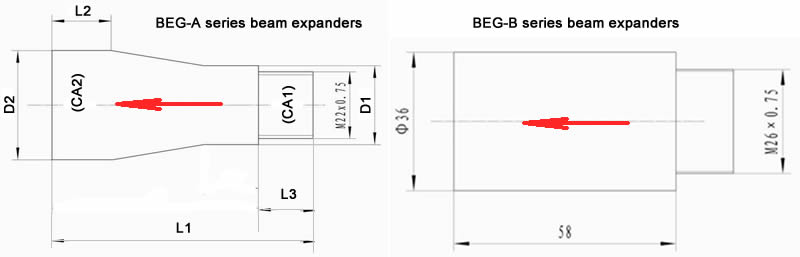

There are 2 types outlines: trumpet (A series) and cylinder (B series). For all trumpets, the outside diameters of input and output ends are 26mm and 36mm respectively. The mount screw on the input is M22x0.75mm but the mount screw of the cylinders is M26x0.75.

Part number MAG CA1
mm
CA2
mm
D1
mm
D2
mm
L1
mm
L2
mm
L3
mm
MT
mm
BEG-1064-1.5A 1.5 10 28 26 36 47 15 2 M22x0.75
BEG-1064-2A 2 10 28 26 36 48 15 3 M22x0.75
BEG-1064-2.5A 2.5 10 28 26 36 57 15 12 M22x0.75
BEG-1064-2.5AQ 2.5 10 28 26 36 57 15 12 M22x0.75
BEG-1064-3A 3 10 28 26 36 74 17 6 M22x0.75
BEG-1064-3AQ 3 10 28 26 36 77 17 9 M22x0.75
BEG-1064-4A 4 10 28 26 36 72 17 4 M22x0.75
BEG-1064-6A 6 10 28 26 36 79 17 11 M22x0.75
BEG-1064-7A 7 10 28 26 36 79 17 11 M22x0.75
BEG-1064-8A 8 10 28 26 36 91 32 11 M22x0.75
BEG-1064-9A 9 10 28 26 36 92 32 12 M22x0.75
BEG-1064-10A 10 10 28 26 36 100 32 20 M22x0.75
BEG-1064-15A 15 10 28 26 36 85 32 5 M22x0.75

Remark: The input lens in BEG-1064-2.5AQ and BEG-1064-3AQ is quartz and others are optical glass.

Part number MAG CA1, mm CA2, mm Size, mm MT, mm
BEG-1064-1.5B 1.5 10 28 Φ36x58 M26x0.75
BEG-1064-2B 2 10 28 Φ36x58 M26x0.75
BEG-1064-2.5B 2.5 10 28 Φ36x58 M26x0.75
BEG-1064-2.5BQ 2.5 10 28 Φ36x58 M26x0.75
BEG-1064-3B 3 10 28 Φ36x58 M26x0.75
BEG-1064-3BQ 3 10 28 Φ36x58 M26x0.75
BEG-1064-4B 4 10 28 Φ36x58 M26x0.75
BEG-1064-6B 6 10 28 Φ36x58 M26x0.75
BEG-1064-7B 7 10 28 Φ36x58 M26x0.75
BEG-1064-8B 8 10 28 Φ36x58 M26x0.75
BEG-1064-9B 9 10 28 Φ36x58 M26x0.75
BEG-1064-10B 10 10 28 Φ36x58 M26x0.75
BEG-1064-15B 15 10 28 Φ36x58 M26x0.75

Remark: The input lens in BEG-1064-2.5BQ and BEG-1064-3BQ is quartz and others are optical glass.

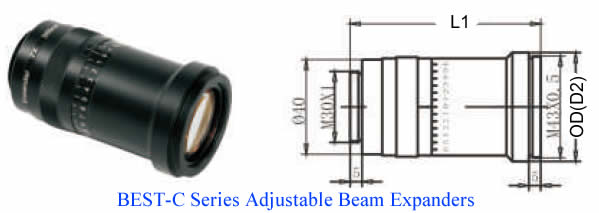

BEST-C Series 1064nm Adjustable Beam Expanders

New part number Old art number MAG,x CA1,mm CA2,mm OD(D2),mm L1,mm Connection, mm
STY-1.5X-1064-C BEST-1064-1.5C 1.5 10 33 46 80.5 M30x1+M43x0.5
STY-2X-1064-C BEST-1064-2C 2 16 33 46 80.5 M30x1+M43x0.5
STY-2.5X-1064-C BEST-1064-2.5C 2.5 16 33 46 80.5 M30x1+M43x0.5
STY-3X-1064-C BEST-1064-3C 3 10 33 46 80.5 M30x1+M43x0.5
STY-4X-1064-C BEST-1064-4C 4 10 33 46 85 M30x1+M43x0.5
STY-5X-1064-C BEST-1064-5C 5 10 33 46 80.5 M30x1+M43x0.5
STY-6X-1064-C BEST-1064-6C 6 10 33 46 85 M30x1+M43x0.5
STY-7X-1064-C BEST-1064-7C 7 10 33 46 85 M30x1+M43x0.5
STY-8X-1064-C BEST-1064-8C 8 10 33 46 85 M30x1+M43x0.5
STY-10X-1064-C BEST-1064-10C 10 10 33 46 85 M30x1+M43x0.5
STY-12X-1064-C BEST-1064-12C 12 10 33 46 85 M30x1+M43x0.5
STY-14X-1064-C 14 10 33 46 85 M30x1+M43x0.5
STY-15X-1064-C BEST-1064-15C 15 10 33 46 85 M30x1+M43x0.5
STY-20X-1064-C BEST-1064-20C 20 8 41 46 92 M30x1/M43x0.5

BEAL Series Beam Expanders (1064/532/355nm)

Our beam expanders are assembled using one perging and one converging lenses. As there is no focal point inside the beam expander, it can be used for high powers. Special treatment of lenses and mechanics is performed for UV application to improve lifetime and LIDT of the expander. Standard magnifications are from 1.1x to 10x. Beam expanders for any wavelengths between 266 - 2000 nm are available upon request.

Features

  • Custom magnification and design on request
  • Extended lifetime and LIDT for UV applications
  • Inpidual reports of beam ellipticity, M2 and pointing stability parameters
  • Custom wavelengths are available in the range of 250-3000nm

Standard specifications:

Lens material UVFS
Transmitted wavefront distortion λ/4 p-v @ 632 nm
Overall transmission 99%
Laser induced damage threshold >10 J/cm² @ 1064 nm, 10 ns, 10 Hz
Housing material Black anodized aluminium
Diameter 30 mm
Mounting thread SM1

Typical items:

WL, nm MAG CA1, mm CA2, mm Housing Dim, mm Product Number
343-355 1.2X 10 12 Ø30 x 56.6 BEAL-1.2X-0355
1.5X 8.5 12.75 Ø30 x 55.7 BEAL-1.5X-0355
2X 5 10 Ø30 x 58.1 BEAL-2X-0355
2.5X 5 12.5 Ø30 x 79.4 BEAL-2.5X-0355
3X 5 15 Ø30 x 56.6 BEAL-3X-0355
4X 4 16 Ø30 x 80.1 BEAL-4X-0355
5X 3 15 Ø30 x 85.1 BEAL-5X-0355
515-532 1.2X 10 12 Ø30 x 58.2 BEAL-1.2X-0532
1.5X 9 13.5 Ø30 x 57.3 BEAL-1.5X-0532
2X 6 12 Ø30 x 59.6 BEAL-2X-0532
2.5X 6 15 Ø30 x 78.8 BEAL-2.5X-0532
3X 4.5 15 Ø30 x 58.2 BEAL-3X-0532
4X 4 16 Ø30 x 81.7 BEAL-4X-0532
5X 3 15 Ø30 x 87.6 BEAL-5X-0532
1020-1070 1.2X 10 12 Ø30 x 59.4 BEAL-1.2X-1064
1.5X 10 15 Ø30 x 58.4 BEAL-1.5X-1064
2X 6 12 Ø30 x 60.8 BEAL-2X-1064
2.5X 6 15 Ø30 x 80.6 BEAL-2.5X-1064
3X 5 15 Ø30 x 59.4 BEAL-3X-1064
4X 4.5 18 Ø30 x 82.9 BEAL-4X-1064
5X 3.5 17.5 Ø30 x 87.5 BEAL-5X-1064

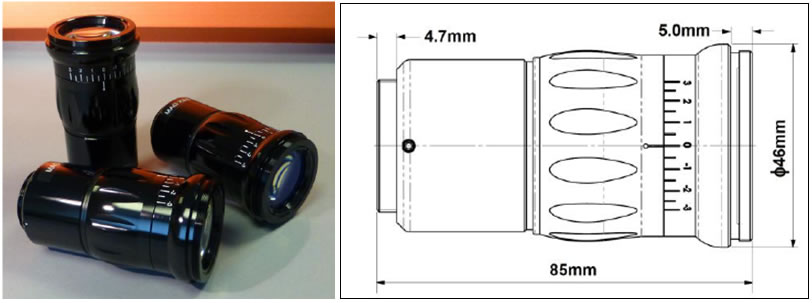

YBE Series Beam Expanders for 1um Lasers

YBE series beam expanders are intended for low power (500W) lasers such as Nd:YAG and Yb doped fiber lasers operating near the 1um wavelength. The beam expanders are of Galilean design and use multi-spectral Zinc Sulphide for the optics which has an absorption at 1um of 0.0005cm-1 (similar to ZnSe at 10.6um). ZnS also has 20 times the thermal conductivity of Fused Silica and a higher refractive index. The refractive index allows a two element design to be used rather than three elements.

Dimensions 85mm long, 46mm maximum diameter
Focusing +/-3mm lens spacing from infinity position corresponding to approximately +/-1.5m focusing distance respectively.

Turning the focusing ring translates the lens without rotating it.

Cooling Air-cooled.
Output aperture 30mm diameter (all magnifications).
Fittings M30x1.0 thread on input for 4.7mm length, M43x0.5 thread on output for 5mm length.
Materials Lenses of Multi-Spectral ZnS, body from black anodised aluminium, brass, Delrin and stainless steel.
Part no. MAG. Physical input aperture CA1
BEST-1-YBE1.5 1.5 18mm 12mm
BEST-1-YBE2.0 2.0 15mm 10mm
BEST-1-YBE2.5 2.5 12mm 8mm
BEST-1-YBE3.0 3.0 10mm 7mm
BEST-1-YBE3.5 3.5 8.3mm 5.5mm
BEST-1-YBE4.0 4.0 7.5mm 5.0mm
BEST-1-YBE5.0 5.0 6.0mm 4.0mm
BEST-1-YBE6.0 6.0 5.0mm 3.5mm
BEST-1-YBE7.0 7.0 4.25mm 2.8mm

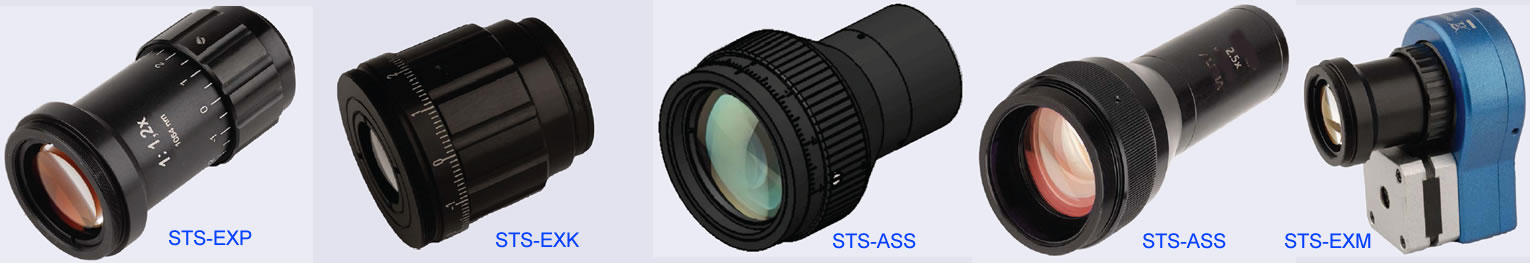

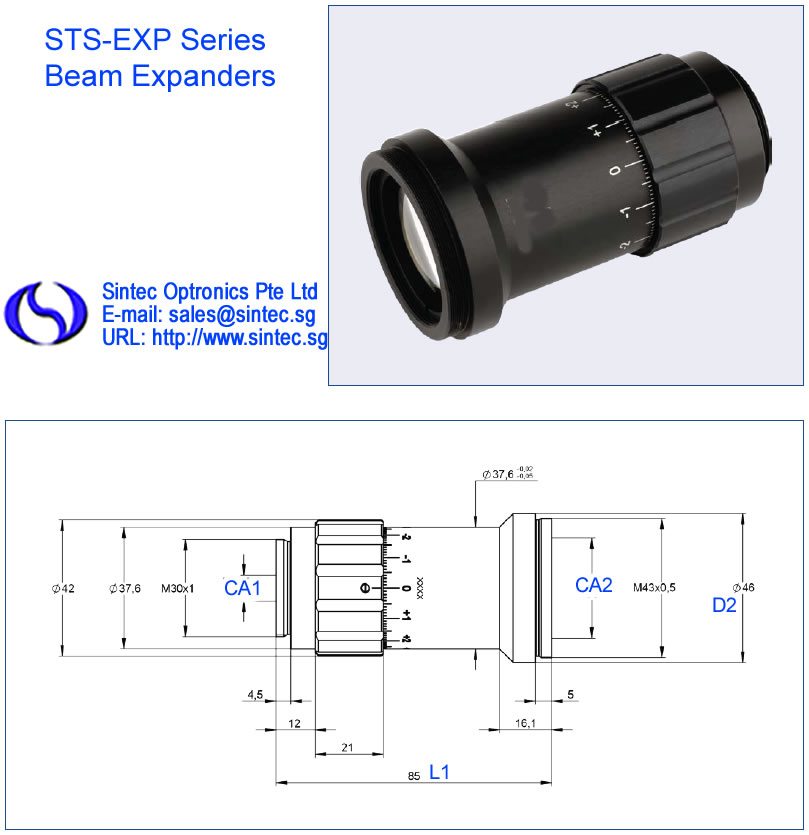

STS Series Beam Expanders

Part umber WL[nm] MAG CA1 [mm] CA2 [mm] D2 [mm] L1
[mm]
thread motor

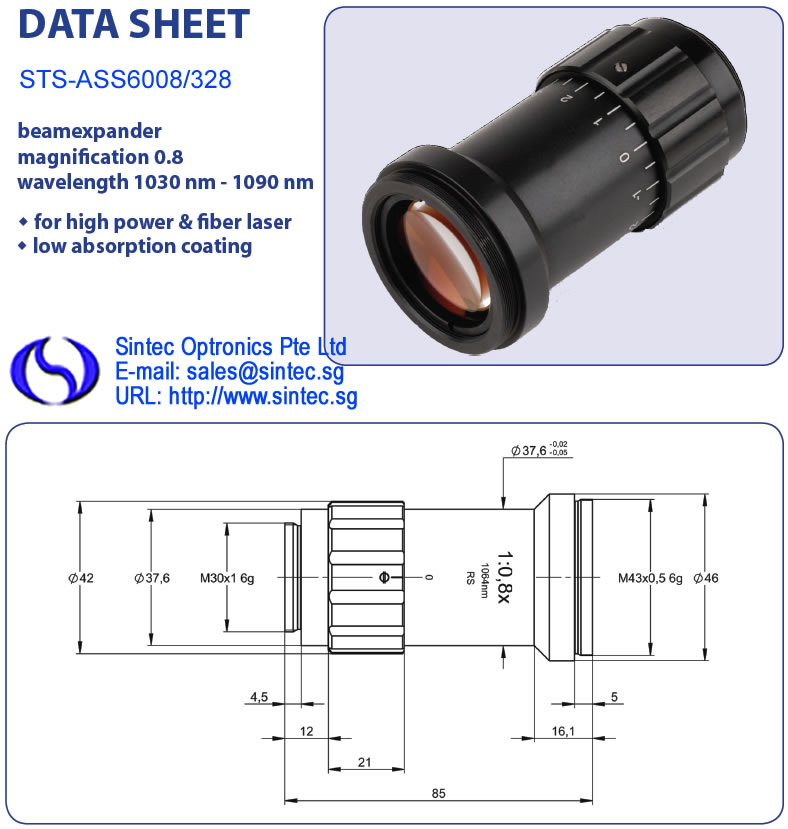

STS-ASS6008/328 1030 - 1090 0.8 12 20 46 85 M30x1 not motorised

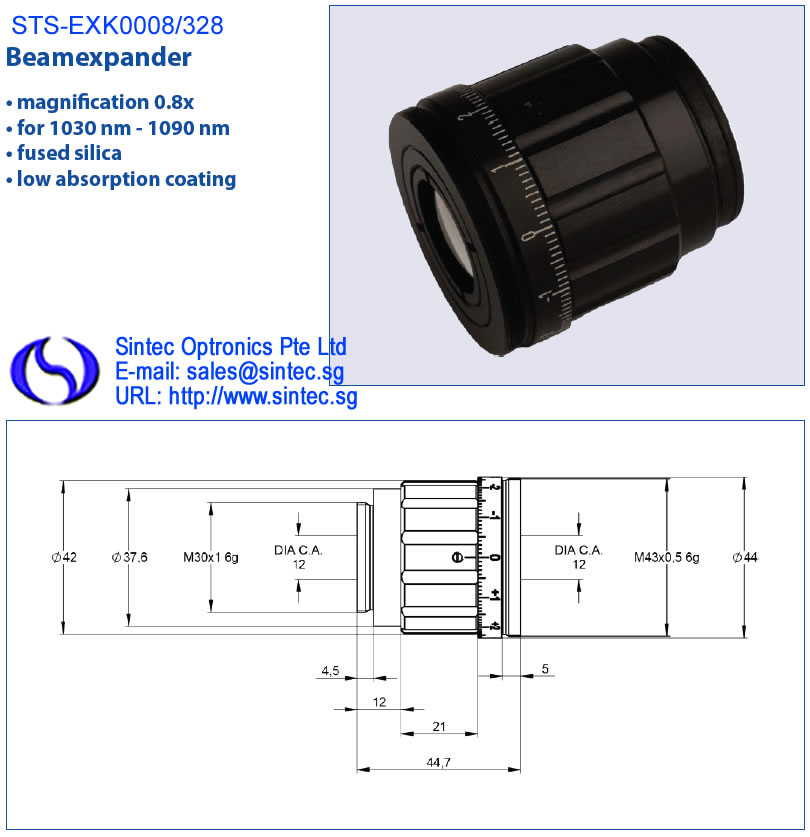

STS-EXK0008/328 1030 - 1090 0.8 12 12 46 44.7 M30x1 not motorised
STS-EXK0010/328 1030 - 1090 1 12 14 46 44.7 M30x1 not motorised

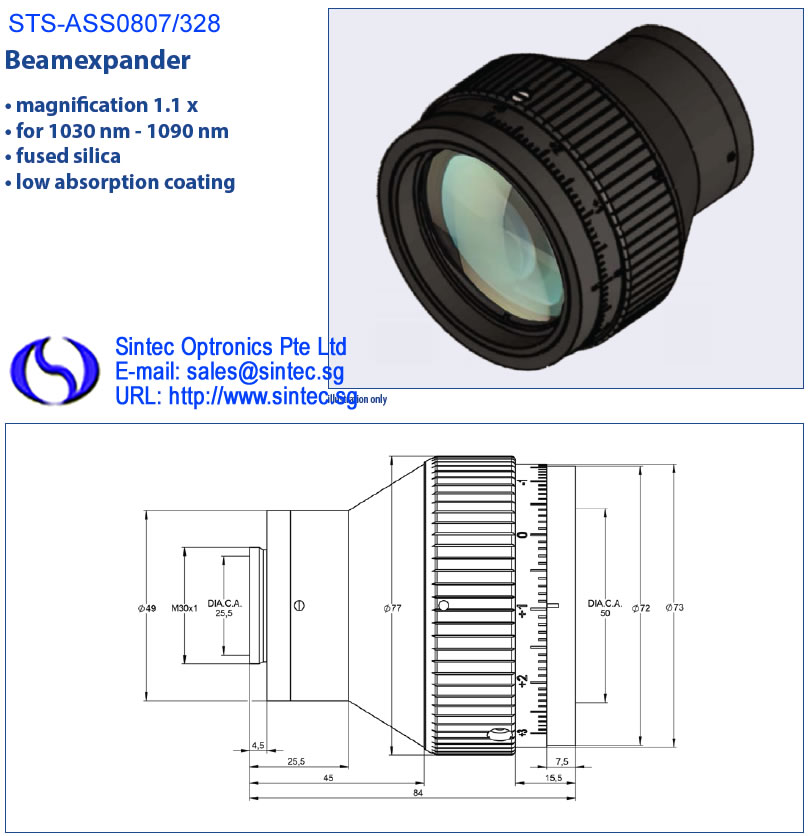

STS-ASS0807/328 1030 - 1090 1.1 24 50 77 84 M30x1 not motorised

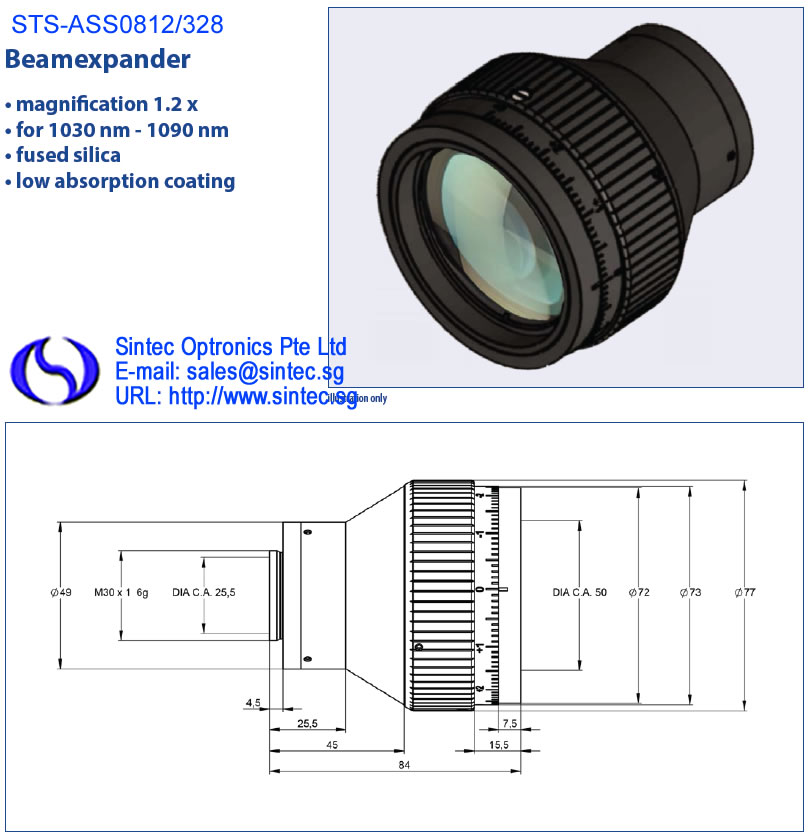

STS-ASS0812/328 1030 - 1090 1.2 25.5 50 77 84 M30x1 not motorised

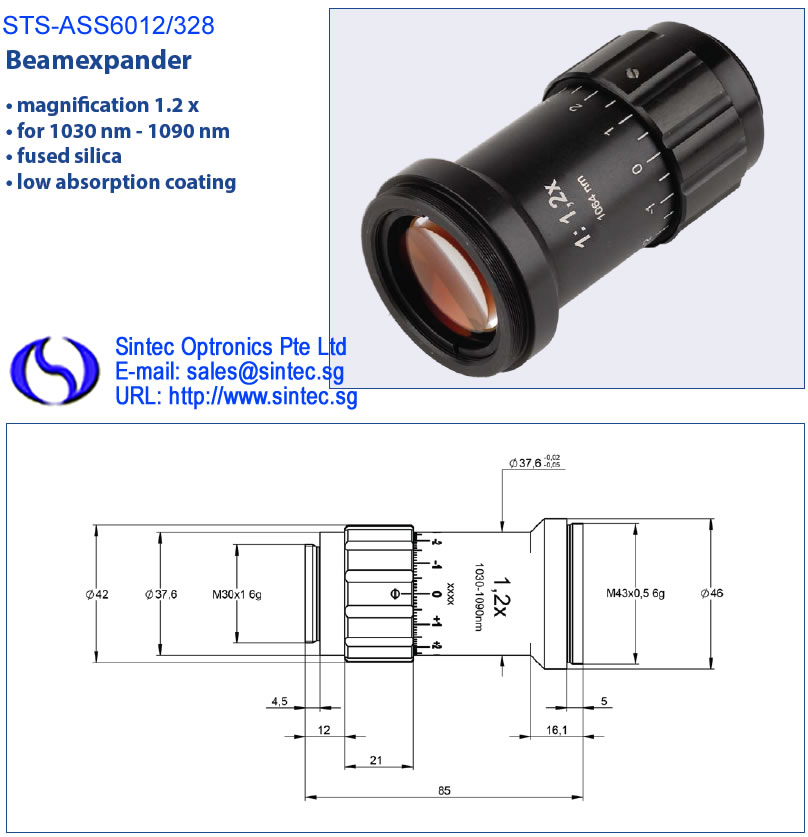

STS-ASS6012/328 1030 - 1090 1.2 12 28 46 85 M30x1 not motorised

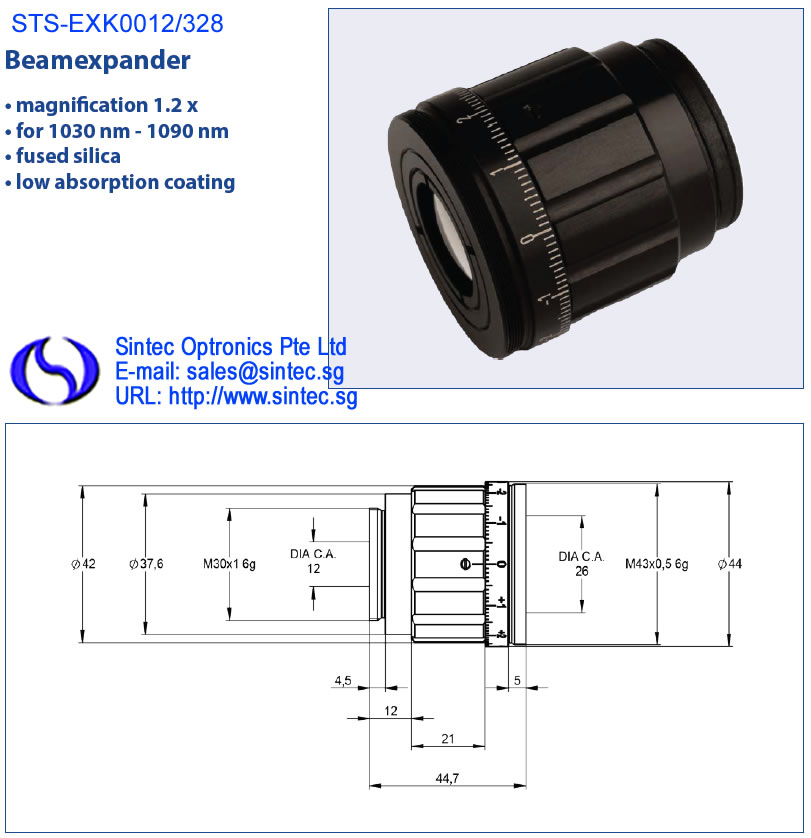

STS-EXK0012/328 1030 - 1090 1.2 12 26 46 44.7 M30x1 not motorised

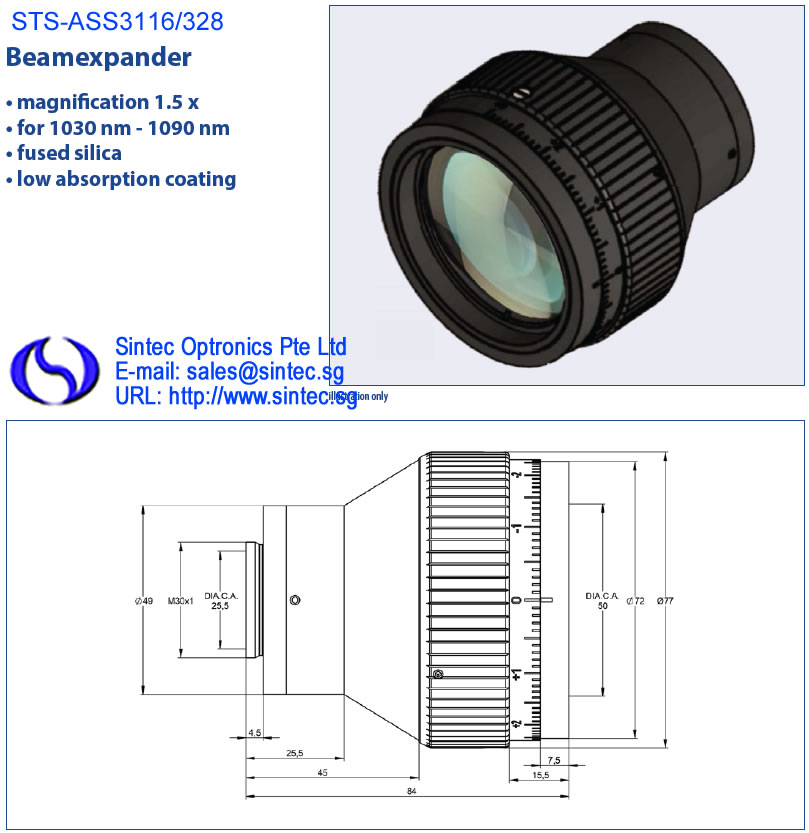

STS-ASS3116/328 1030 - 1090 1.5 25.5 50 77 84 M30x1 not motorised

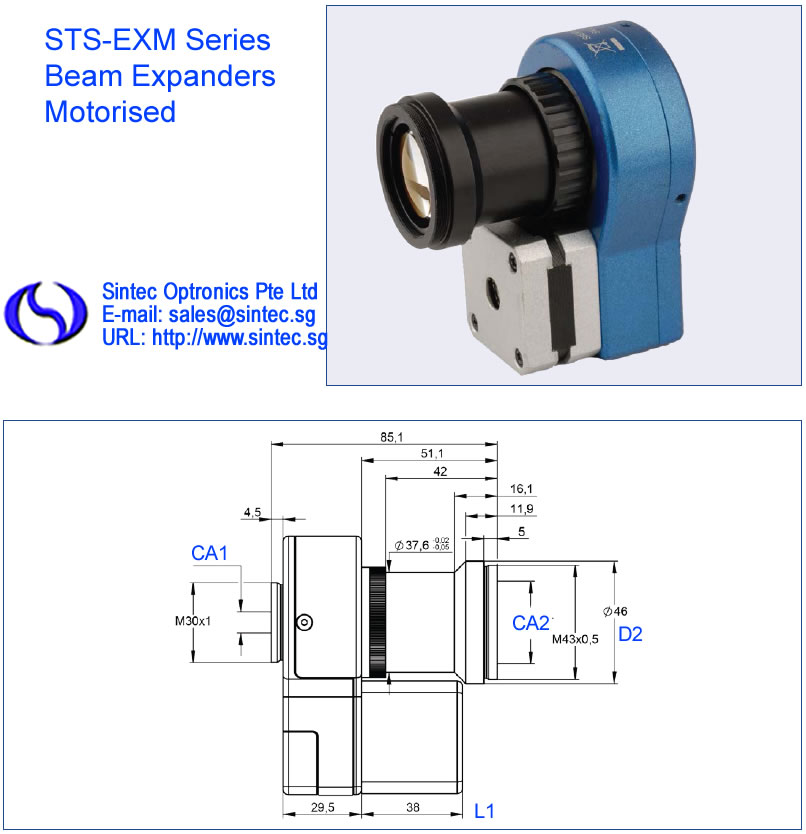

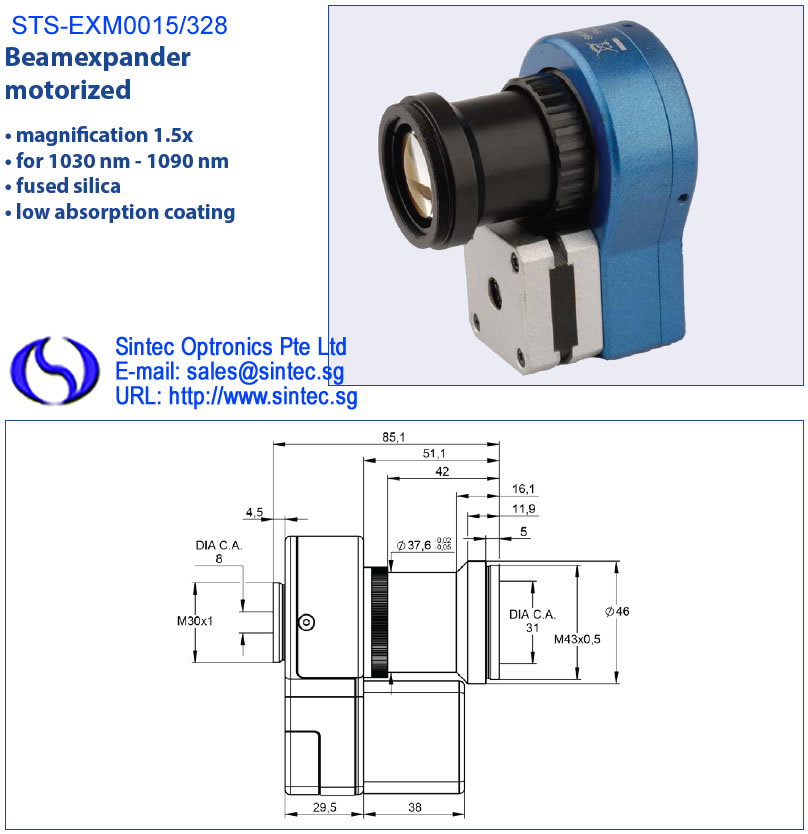

STS-EXM0015/328 1030 - 1090 1.5 8 31 65 85.1 M30x1 pergency motorised

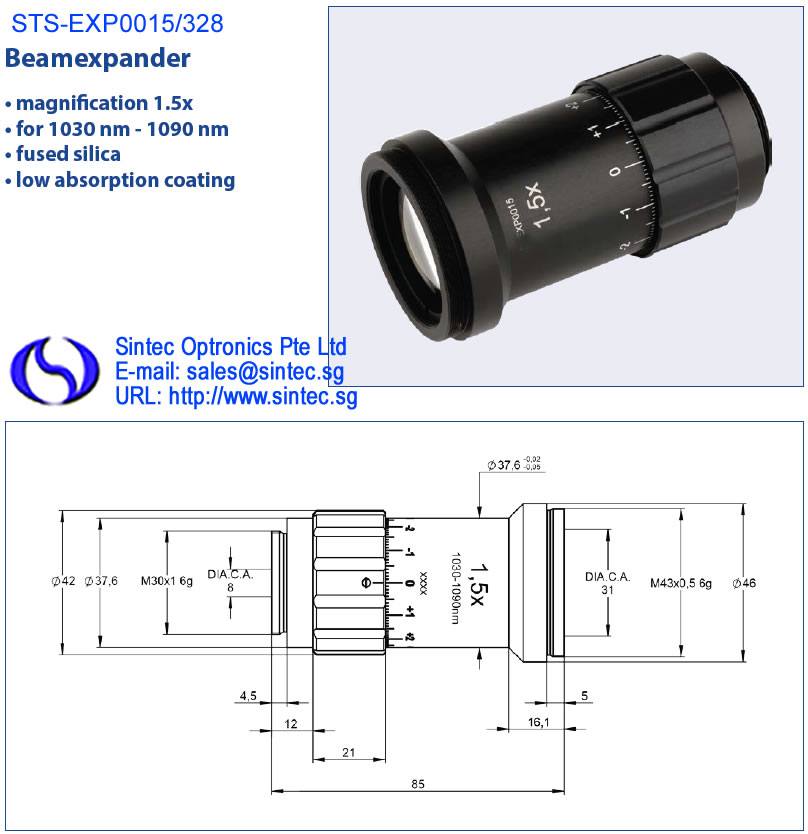

STS-EXP0015/328 1030 - 1090 1.5 8 31 46 85 M30x1 not motorised
STS-EXK0015/328 1030 - 1090 1.5 12 26 46 44.7 M30x1 not motorised

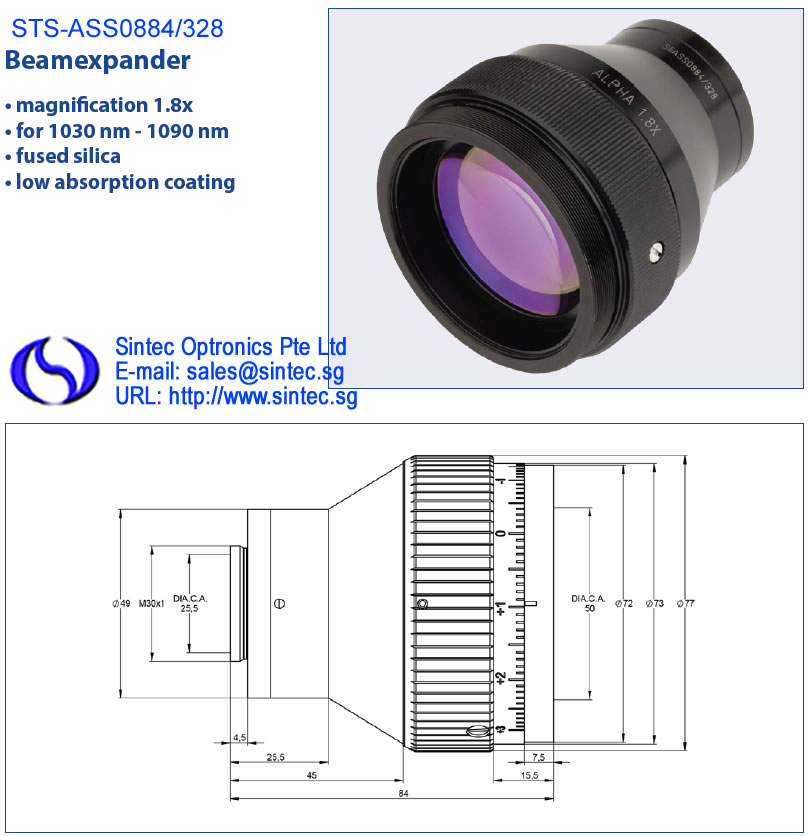

STS-ASS0884/328 1030 - 1090 1.8 25.5 50 77 84 M30x1 not motorised
STS-EXM0100/328 1030 - 1090 10 6 31 65 85.1 M30x1 pergency motorised

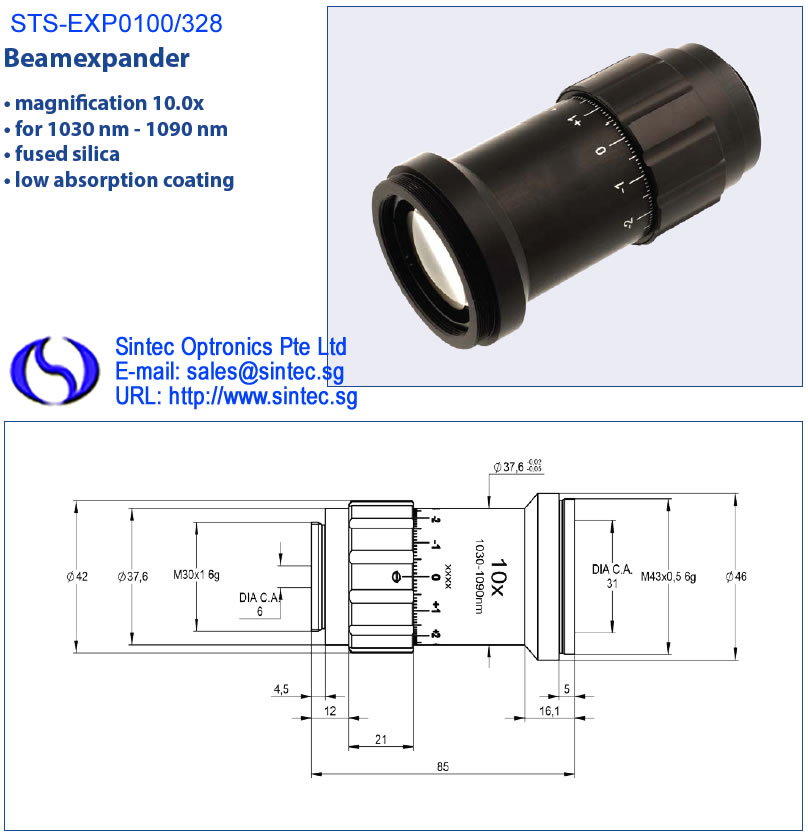

STS-EXP0100/328 1030 - 1090 10 6 31 46 85 M30x1 not motorised
STS-EXM0120/328 1030 - 1090 12 8 31 65 85.1 M30x1 pergency motorised

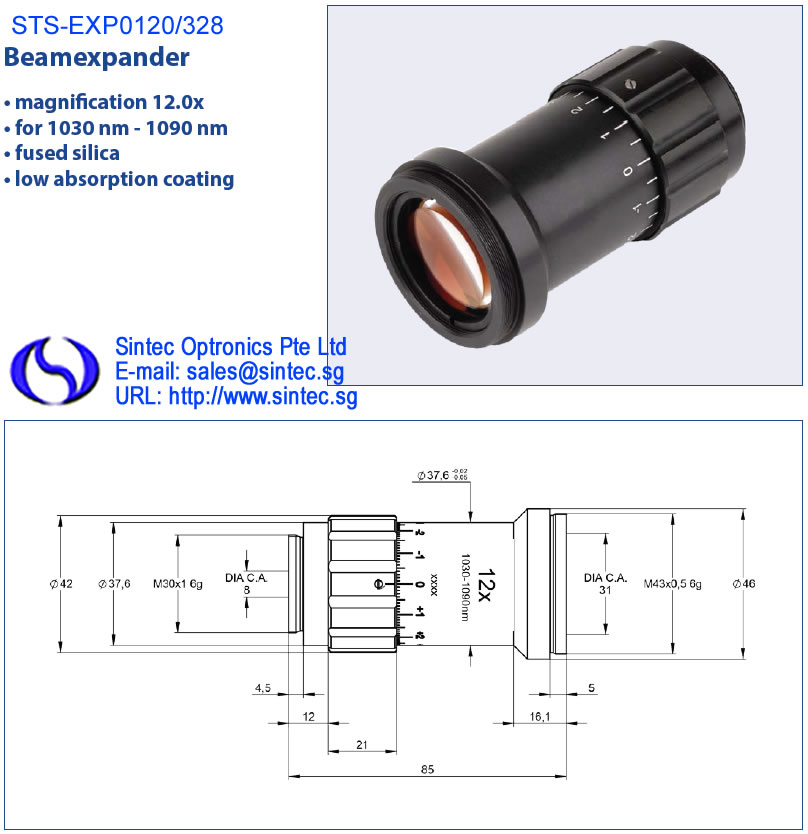

STS-EXP0120/328 1030 - 1090 12 8 31 46 85 M30x1 not motorised

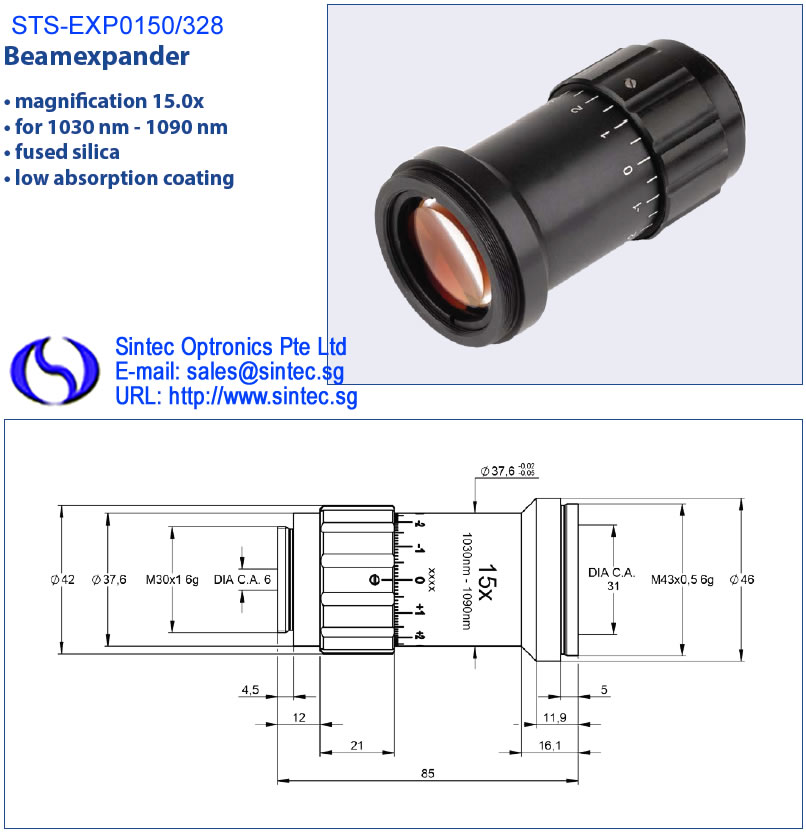

STS-EXP0150/328 1030 - 1090 15 6 31 46 85 M30x1 not motorised
STS-EXM0150/328 1030 - 1090 15 6 31 65 85.1 M30x1 pergency motorised
STS-EXP0020/328 1030 - 1090 2 8 31 46 85 M30x1 not motorised
STS-ASS3121/328 1030 - 1090 2 24 50 77 120.2 M30x1 not motorised
STS-EXK0020/328 1030 - 1090 2 12 26 46 44.7 M30x1 not motorised
STS-EXM0020/328 1030 - 1090 2 8 31 65 85.1 M30x1 pergency motorised

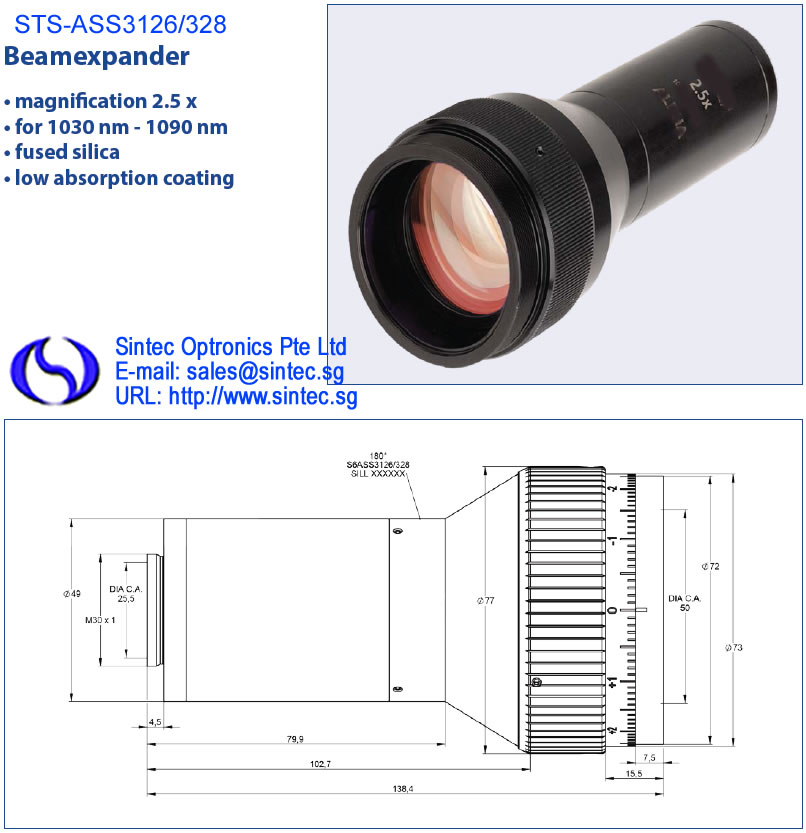

STS-ASS3126/328 1030 - 1090 2.5 25.5 50 77 138.4 M30x1 not motorised

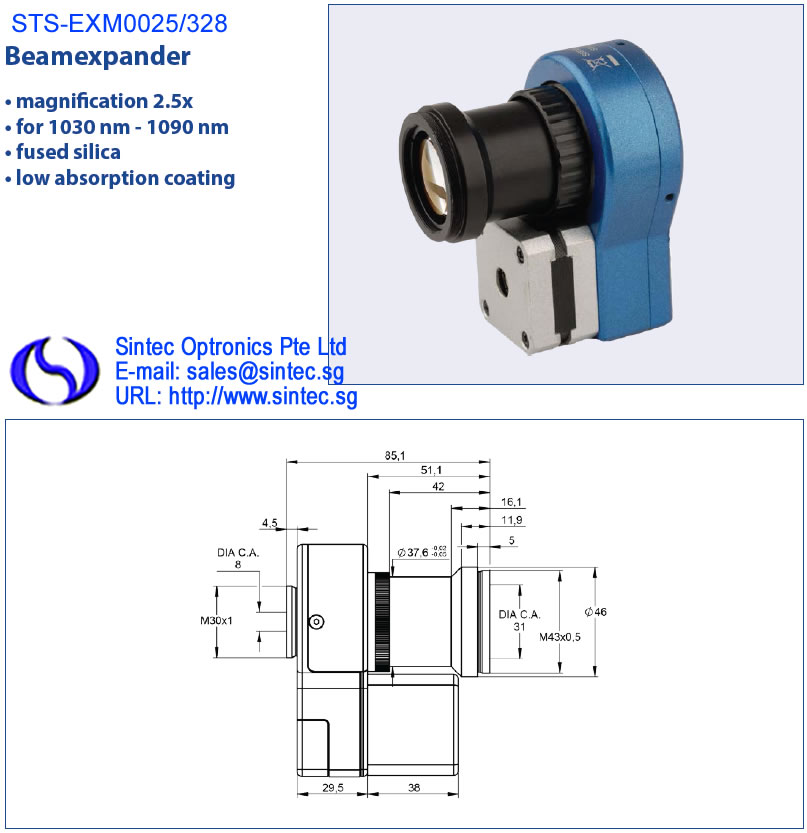

STS-EXM0025/328 1030 - 1090 2.5 8 31 65 85.1 M30x1 pergency motorised
STS-EXP0025/328 1030 - 1090 2.5 8 31 46 85 M30x1 not motorised
STS-EXK0025/328 1030 - 1090 2.5 11 26 46 44.7 M30x1 not motorised

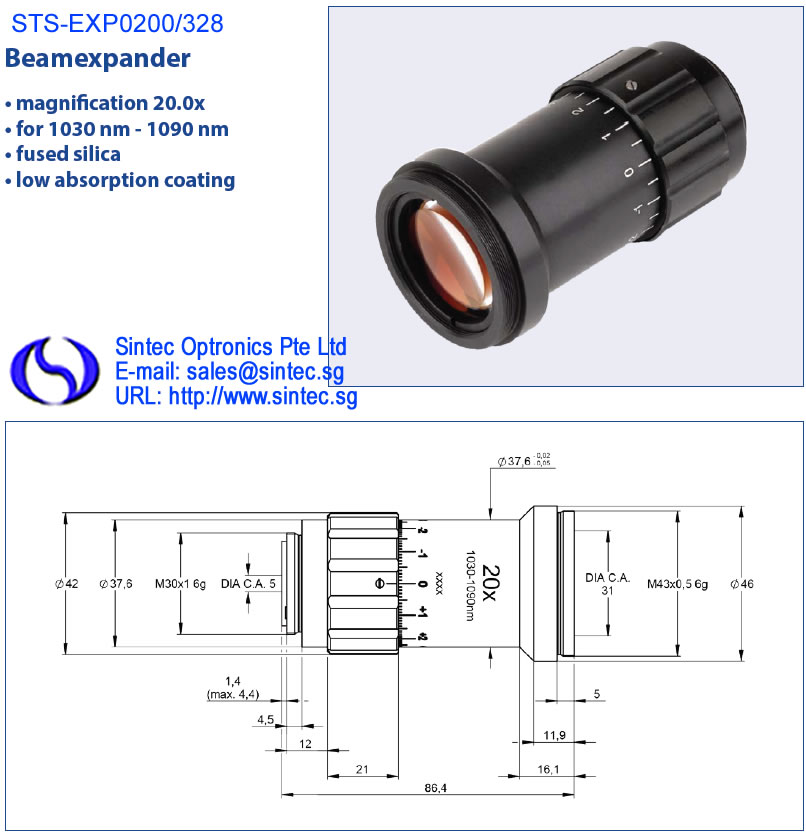

STS-EXP0200/328 1030 - 1090 20 5 31 46 85 M30x1 not motorised

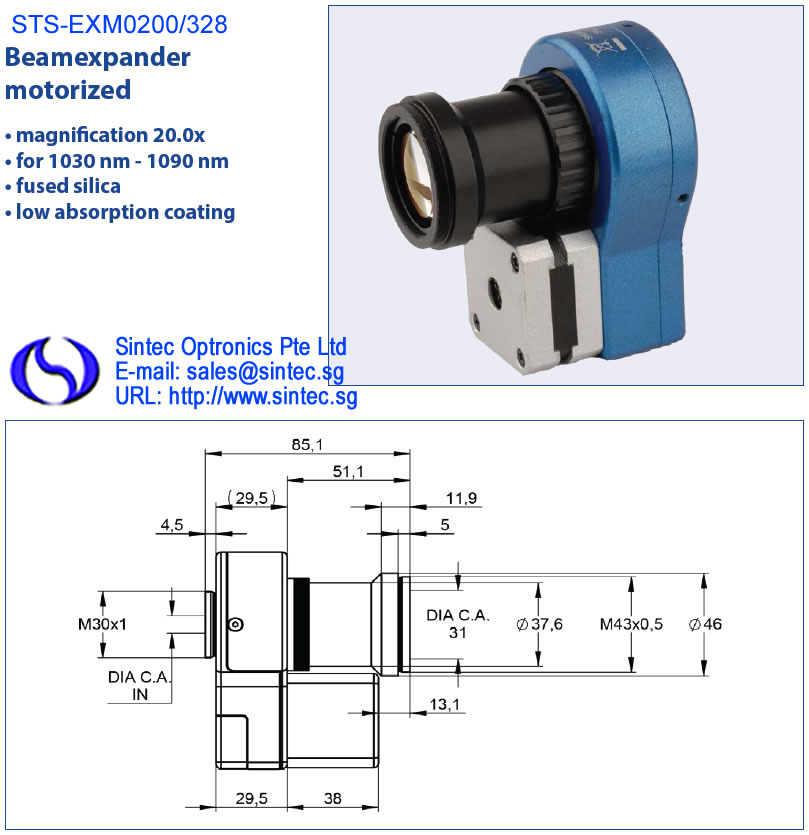

STS-EXM0200/328 1030 - 1090 20 5 31 65 86.4 M30x1 pergency motorised

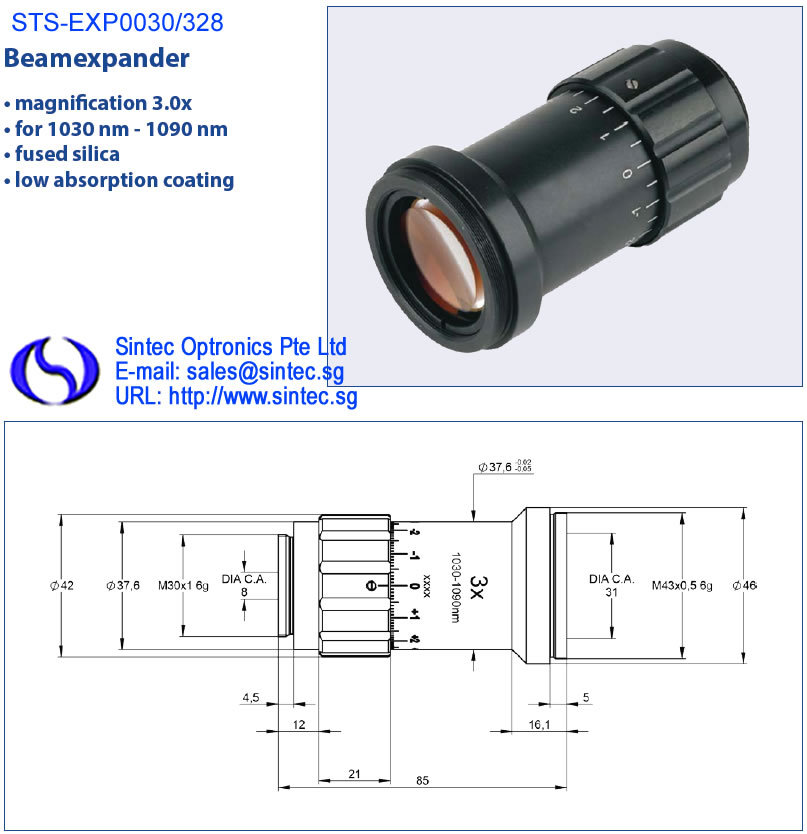

STS-EXP0030/328 1030 - 1090 3 8 31 46 85 M30x1 not motorised
STS-EXM0030/328 1030 - 1090 3 8 31 65 85.1 M30x1 pergency motorised
STS-EXK0030/328 1030 - 1090 3 8 26 46 44.7 M30x1 not motorised

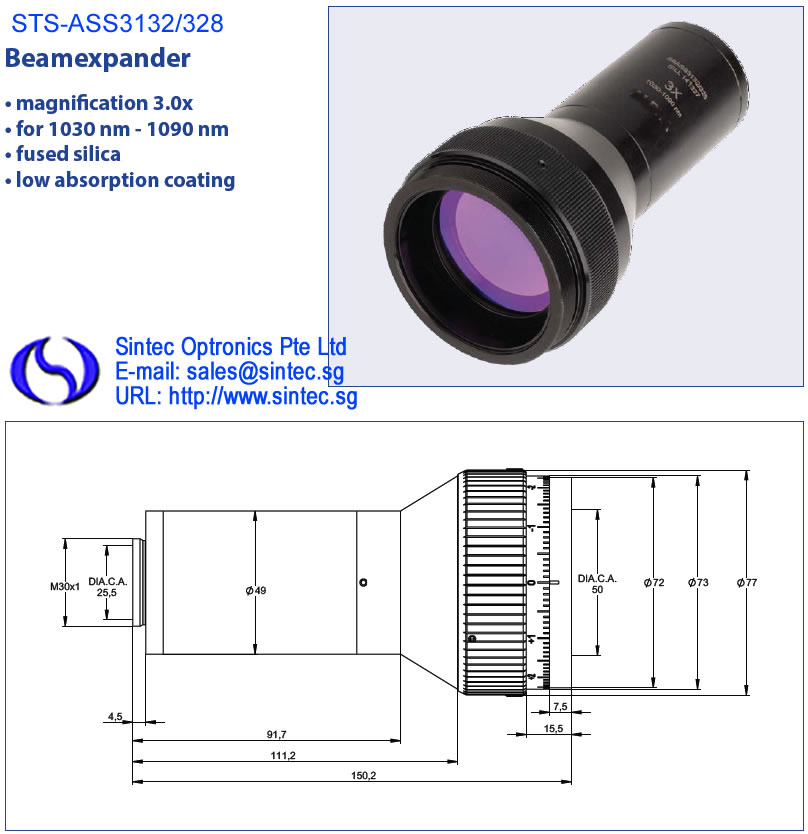

STS-ASS3132/328 1030 - 1090 3 25.5 50 77 150.2 M30x1 not motorised

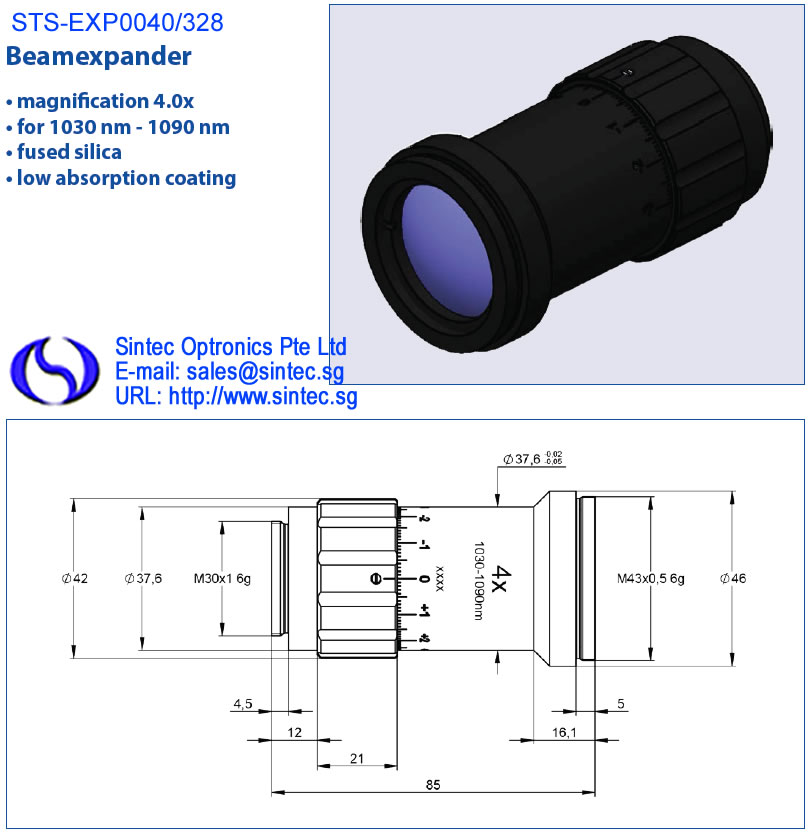

STS-EXP0040/328 1030 - 1090 4 8 31 46 85 M30x1 not motorised
STS-EXK0040/328 1030 - 1090 4 8 20 46 44.7 M30x1 not motorised

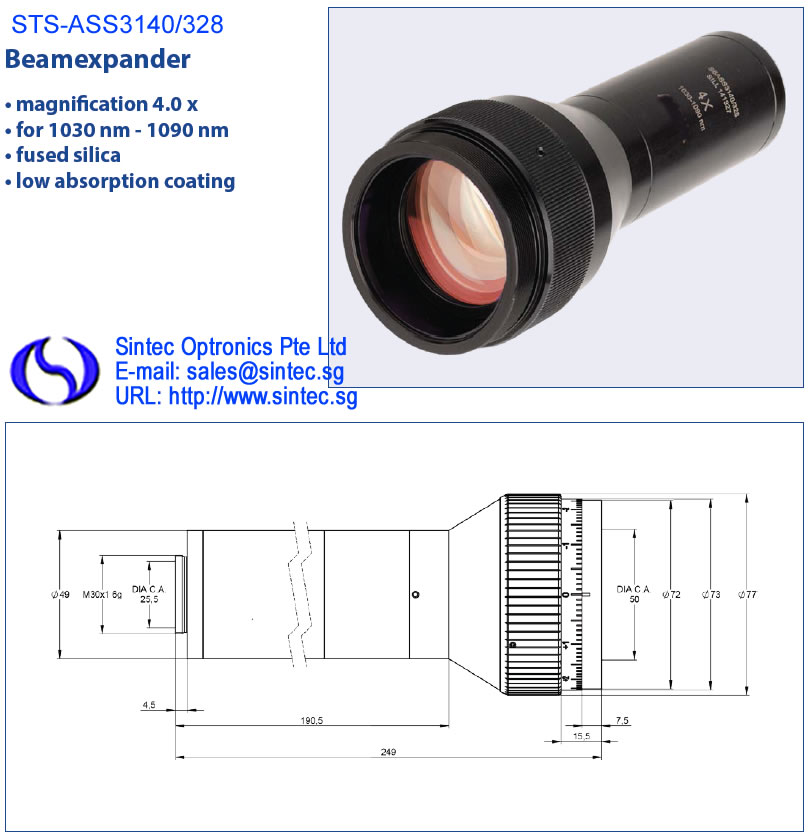

STS-ASS3140/328 1030 - 1090 4 24 50 77 249 M30x1 not motorised

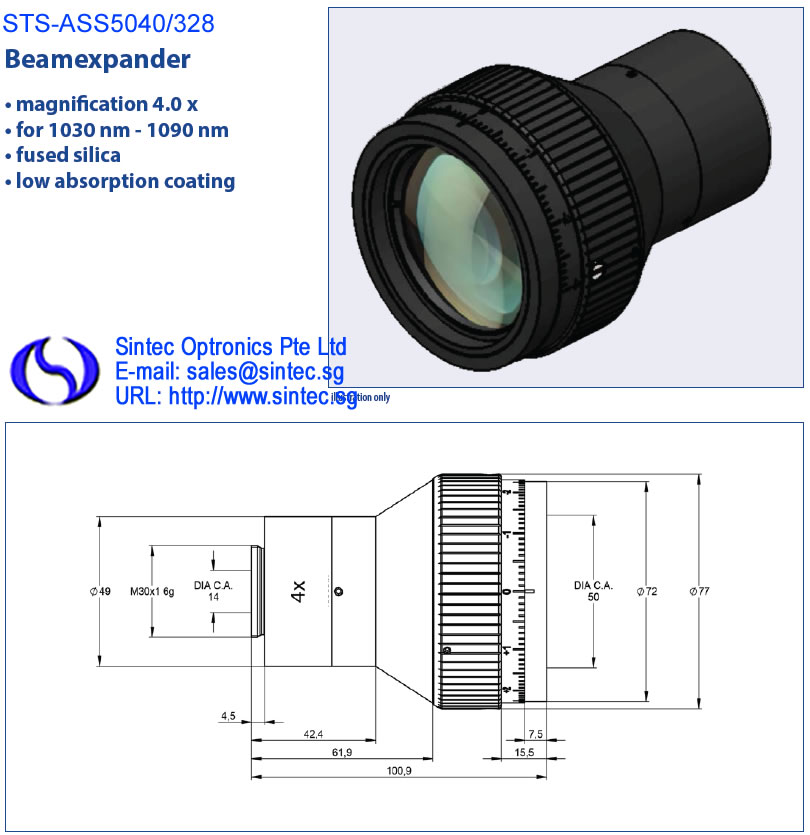

STS-ASS5040/328 1030 - 1090 4 14 50 77 100.9 M30x1 not motorised
STS-EXM0040/328 1030 - 1090 4 8 31 65 85.1 M30x1 pergency motorised
STS-EXM0050/328 1030 - 1090 5 8 31 65 85.1 M30x1 pergency motorised

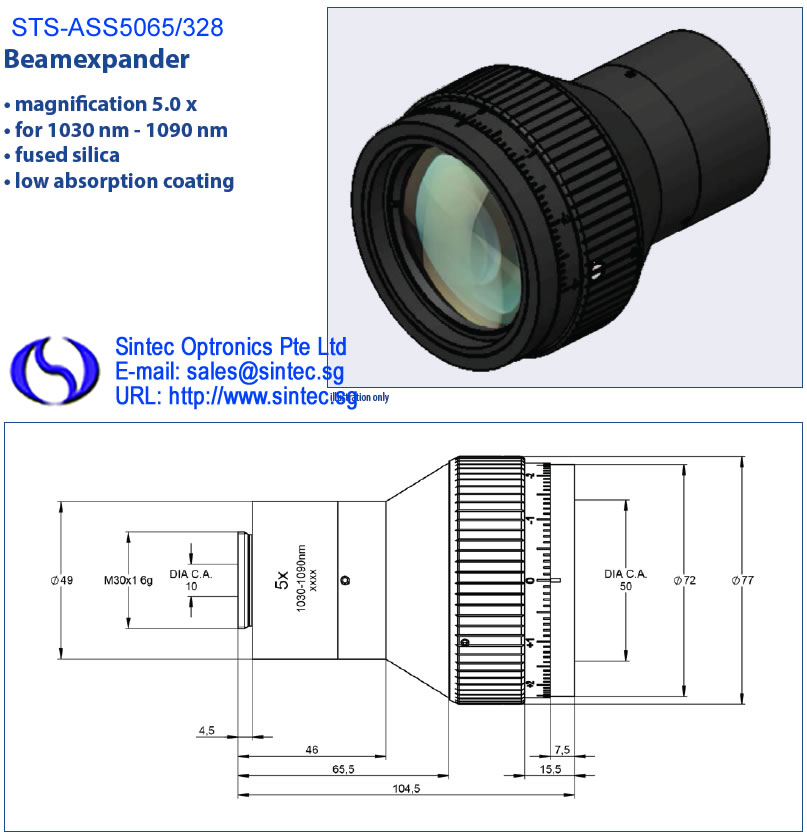

STS-ASS5065/328 1030 - 1090 5 10 50 77 104.5 M30x1 not motorised

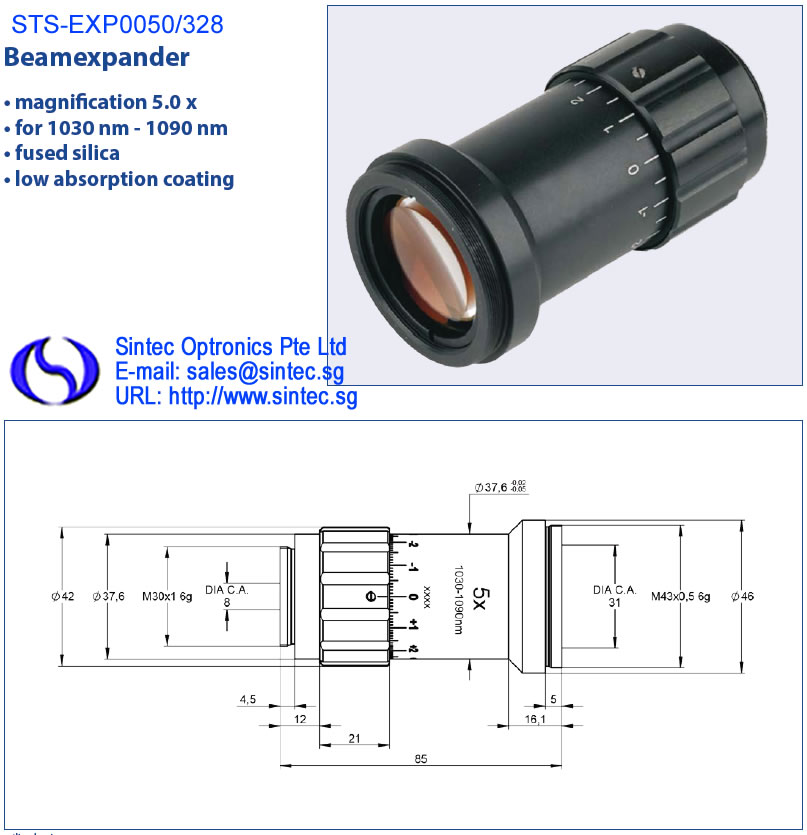

STS-EXP0050/328 1030 - 1090 5 8 31 46 85 M30x1 not motorised

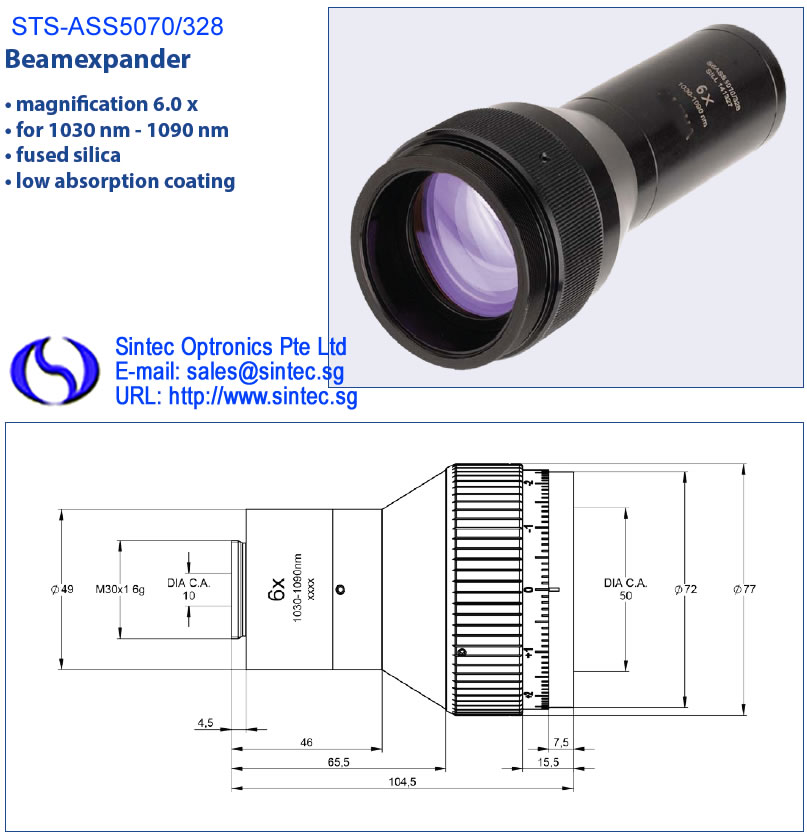

STS-ASS5070/328 1030 - 1090 6 10 50 77 104.5 M30x1 not motorised

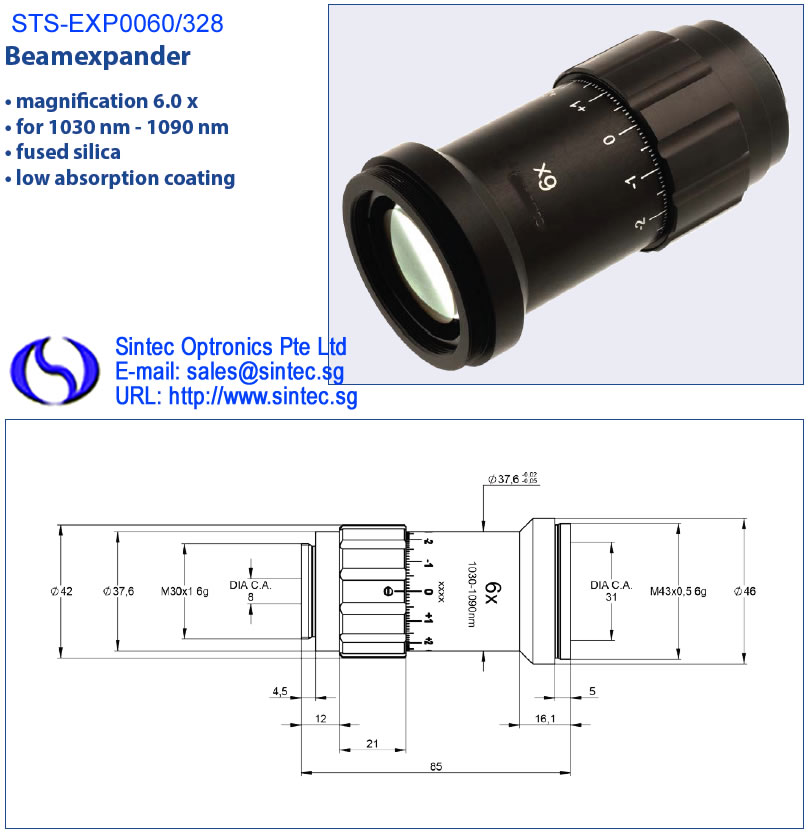

STS-EXP0060/328 1030 - 1090 6 8 31 46 85 M30x1 not motorised
STS-EXM0060/328 1030 - 1090 6 8 31 65 85.1 M30x1 pergency motorised
STS-EXP0070/328 1030 - 1090 7 8 31 46 85 M30x1 not motorised
STS-EXM0070/328 1030 - 1090 7 8 31 65 85.1 M30x1 pergency motorised
STS-EXM0080/328 1030 - 1090 8 8 31 65 85.1 M30x1 pergency motorised

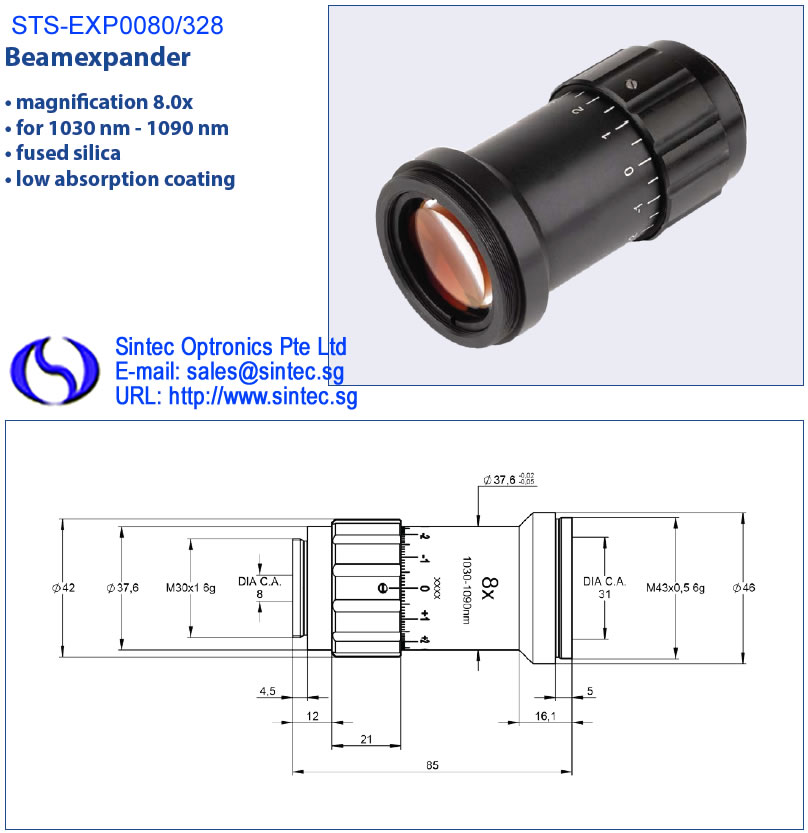

STS-EXP0080/328 1030 - 1090 8 8 31 46 85 M30x1 not motorised
STS-EXP0090/328 1030 - 1090 9 8 31 46 85 M30x1 not motorised
STS-EXM0090/328 1030 - 1090 9 8 31 65 85.1 M30x1 pergency motorised

2. 532nm Beam Expanders

BEST-C Series 532nm Adjustable Beam Expander

New part number Old part number MAG,x CA1,mm CA2,mm OD(D2),mm L1,mm Connection, mm
STY-1.5X-532-C BEST-532-1.5C 1.5 20 33 46 80.5 M30x1+M43x0.5
STY-2X-532-C BEST-532-2C 2 20 33 46 80.5 M30x1+M43x0.5
STY-3X-532-C BEST-532-3C 3 10 33 46 80.5 M30x1+M43x0.5
STY-4X-532-C BEST-532-4C 4 10 33 46 85 M30x1+M43x0.5
STY-5X-532-C BEST-532-5C 5 10 33 46 80.5 M30x1+M43x0.5
STY-6X-532-C BEST-532-6C 6 10 33 46 80.5 M30x1+M43x0.5
STY-7X-532-C BEST-532-7C 7 10 33 46 85 M30x1+M43x0.5
STY-8X-532-C BEST-532-8C 8 10 33 46 85 M30x1+M43x0.5
STY-10X-532-C BEST-532-10C 10 10 33 46 85 M30x1+M43x0.5
STY-12X-532-C BEST-532-12C 12 12 33 46 85 M30x1+M43x0.5
STY-15X-532-C BEST-532-15C 15 10 33 46 85 M30x1+M43x0.5
STY-20X-532-C BEST-532-20C 20 10 33 46 85 M30x1+M43x0.5

BEH Series 532nmFixed Beam Expanders

Part number MAG CA1 (mm) CA2 (mm) Connction (mm) D2xL1 (mm)
BEH-532-1.5 1.5 10.4 21.6 M22x0.75 Φ27x58.4
BEH-532-2 2 10.4 21.6 M22x0.75 Φ27x38.2
BEH-532-3 3 10.4 21.6 M22x0.75 Φ27x67
BEH-532-4 4 10.4 21.6 M22x0.75 Φ27x74
BEH-532-5 5 10.4 21.6 M22x0.75 Φ27x72
BEH-532-6 6 10.4 21.6 M22x0.75 Φ27x71.8
BEH-532-8 8 6 21.6 M22x0.75 Φ27x66
BEH-532-10 10 6 21.6 M22x0.75 Φ27x68
BEH-532-12 12 6 21.6 M22x0.75 Φ27x77.7
BEH-532-15 15 6 21.6 M22x0.75 Φ27x72
BEH-532-20 20 6 21.6 M22x0.75 Φ27x81

BEH Series 532nm Adjustable Beam Expanders

Part number MAG CA1 (mm) CA2 (mm) Connction (mm) D2xL1 (mm)
BEH-532-1.5T 1.5 10.4 21.6 M22x0.75 Φ27x58.4
BEH-532-2T 2 10.4 21.6 M22x0.75 Φ27x38.2
BEH-532-3T 3 10.4 21.6 M22x0.75 Φ27x67
BEH-532-4T 4 10.4 21.6 M22x0.75 Φ27x74
BEH-532-5T 5 10.4 21.6 M22x0.75 Φ27x72
BEH-532-6T 6 10.4 21.6 M22x0.75 Φ27x71.8
BEH-532-8T 8 6 21.6 M22x0.75 Φ27x66
BEH-532-10T 10 6 21.6 M22x0.75 Φ27x68
BEH-532-12T 12 6 21.6 M22x0.75 Φ27x77.7
BEH-532-15T 15 6 21.6 M22x0.75 Φ27x72
BEH-532-20T 20 6 21.6 M22x0.75 Φ27x81

Remark: The input lens is quartz and output lens is optical glass. Optical glass output lens is availableupon request.

BEAL Series Beam Expanders

WL, nm MAG CA1, mm CA2, mm Housing, mm P/N
515-532 1.2X 10 12 Ø30 x 58.2 BEAL-1.2X-0532
1.5X 9 13.5 Ø30 x 57.3 BEAL-1.5X-0532
2X 6 12 Ø30 x 59.6 BEAL-2X-0532
2.5X 6 15 Ø30 x 78.8 BEAL-2.5X-0532
3X 4.5 15 Ø30 x 58.2 BEAL-3X-0532
4X 4 16 Ø30 x 81.7 BEAL-4X-0532
5X 3 15 Ø30 x 87.6 BEAL-5X-0532

STS Series Beam Expanders

Part Number WL [nm] MAG material CA1 [mm] CA2 [mm] D2 [mm] L1
[mm]
thread motor
STS-EXK0008/292 515 - 545 0.8 fs 12 12 46 44.7 M30x1 not motorised
STS-EXK0010/292 515 - 545 1 fs 12 14 46 44.7 M30x1 not motorised
STS-EXK0012/292 515 - 545 1.2 fs 12 26 46 44.7 M30x1 not motorised
STS-EXM0015/292 515 - 545 1.5 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXP0015/292 515 - 545 1.5 fs 8 31 46 85 M30x1 not motorised
STS-EXK0015/292 515 - 545 1.5 fs 12 26 46 44.7 M30x1 not motorised
STS-EXM0100/292 515 - 545 10 fs 6 31 65 85.1 M30x1 pergency motorised
STS-EXP0100/292 515 - 545 10 fs 6 31 46 85 M30x1 not motorised
STS-EXP0120/292 515 - 545 12 fs 8 31 46 85 M30x1 not motorised
STS-EXM0120/292 515 - 545 12 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXP0150/292 515 - 545 15 fs 6 31 46 85 M30x1 not motorised
STS-EXM0150/292 515 - 545 15 fs 6 31 65 85.1 M30x1 pergency motorised
STS-EXP0020/292 515 - 545 2 fs 8 31 46 85 M30x1 not motorised
STS-EXK0020/292 515 - 545 2 fs 12 26 46 44.7 M30x1 not motorised
STS-EXM0020/292 515 - 545 2 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXM0025/292 515 - 545 2.5 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXP0025/292 515 - 545 2.5 fs 8 31 46 85 M30x1 not motorised
STS-EXK0025/292 515 - 545 2.5 fs 11 26 46 44.7 M30x1 not motorised
STS-EXM0200/292 515 - 545 20 fs 5 31 65 85.1 M30x1 pergency motorised
STS-EXP0200/292 515 - 545 20 fs 5 31 46 85 M30x1 not motorised
STS-EXM0030/292 515 - 545 3 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXP0030/292 515 - 545 3 fs 8 31 46 85 M30x1 not motorised
STS-EXK0030/292 515 - 545 3 fs 8 26 46 44.7 M30x1 not motorised
STS-EXP0040/292 515 - 545 4 fs 8 31 46 85 M30x1 not motorised
STS-EXK0040/292 515 - 545 4 fs 8 20 46 44.7 M30x1 not motorised
STS-EXM0040/292 515 - 545 4 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXP0050/292 515 - 545 5 fs 8 31 46 85 M30x1 not motorised
STS-EXM0050/292 515 - 545 5 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXP0060/292 515 - 545 6 fs 8 31 46 85 M30x1 not motorised
STS-EXM0060/292 515 - 545 6 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXP0070/292 515 - 545 7 fs 8 31 46 85 M30x1 not motorised
STS-EXM0070/292 515 - 545 7 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXP0080/292 515 - 545 8 fs 8 31 46 85 M30x1 not motorised
STS-EXM0080/292 515 - 545 8 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXM0090/292 515 - 545 9 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXP0090/292 515 - 545 9 fs 8 31 46 85 M30x1 not motorised

3. 355nm Beam Expanders

BEST-C Series 355nm Adjustable Beam Expander

New part no. Old part number MAG, x CA1,mm CA2,mm OD(D2),mm L1,mm Connection, mm
STY-1.1X-355-2-M30X1 BEST-355-1.1-0.9C +1.1x/-0.9x 14 16 41 75.5 M30x1
STY-1.5X-355-2-M30X1 BEST-355-1.5-0.66C +1.5x/-0.66x 14 16 41 75.5 M30x1
STY-1.5X-355 BEST-355-1.5C 1.5 20 33 46 88 M30x1+M43x0.5
STY-2X-355 BEST-355-2C 2 20 33 46 80.5 M30x1+M43x0.5
STY-2.5X-355 BEST-355-2.5C 2.5 10 33 46 80.5 M30x1+M43x0.5
STY-3X-355 BEST-355-3C 3 10 33 46 80.5 M30x1+M43x0.5
STY-3.5X-355 BEST-355-3.5C 3.5 10 33 46 80.5 M30x1+M43x0.5
STY-4X-355 BEST-355-4C 4 3 33 46 85 M30x1+M43x0.5
STY-5X-355 BEST-355-5C 5 8 33 46 80.5 M30x1+M43x0.5
STY-6X-355 BEST-355-6C 6 8 33 46 80.5 M30x1+M43x0.5
STY-7X-355 BEST-355-7C 7 10 33 46 85 M30x1+M43x0.5
STY-8X-355 BEST-355-8C 8 12 33 46 85 M30x1+M43x0.5
STY-10X-355 BEST-355-10C 10 10 33 46 85 M30x1+M43x0.5
STY-12X-355 BEST-355-12C 12 12 33 46 85 M30x1+M43x0.5
STY-14X-355 BEST-355-14C 14 12 33 46 85 M30x1+M43x0.5
STY-15X-355 BEST-355-15C 15 10 33 46 92.1 M30x1+M43x0.5
STY-20X-355 BEST-355-20C 20 10 33 46 92 M30x1+M43x0.5

BEH Series 355nm Fixed Beam Expanders

Part number MAG CA1 (mm) CA2 (mm) Connction (mm) D2xL1 (mm)
BEH-355-1.5 1.5 6 21.6 M22x0.75 Φ27x37.5
BEH-355-2 2 6 21.6 M22x0.75 Φ27x46.5
BEH-355-3 3 6 21.6 M22x0.75 Φ27x52
BEH-355-4 4 6 21.6 M22x0.75 Φ27x70.7
BEH-355-5 5 6 21.6 M22x0.75 Φ27x76
BEH-355-6 6 6 21.6 M22x0.75 Φ27x62
BEH-355-8 8 6 21.6 M22x0.75 Φ27x64
BEH-355-10 10 6 21.6 M22x0.75 Φ27x66
BEH-355-12 12 6 21.6 M22x0.75 Φ27x84.5
BEH-355-15 15 6 21.6 M22x0.75 Φ27x70.5
BEH-355-20 20 6 21.6 M22x0.75 Φ27x87.1

BEH Series 355nm Adjustable Beam Expanders

Part number MAG CA1 (mm) CA2 (mm) Connction (mm) D2xL1 (mm)
BEH-355-1.5T 1.5 6 21.6 M22x0.75 Φ27x37.5
BEH-355-2T 2 6 21.6 M22x0.75 Φ27x46.5
BEH-355-3T 3 6 21.6 M22x0.75 Φ27x52
BEH-355-4T 4 6 21.6 M22x0.75 Φ27x70.7
BEH-355-5T 5 6 21.6 M22x0.75 Φ27x76
BEH-355-6T 6 6 21.6 M22x0.75 Φ27x62
BEH-355-8T 8 6 21.6 M22x0.75 Φ27x64
BEH-355-10T 10 6 21.6 M22x0.75 Φ27x66
BEH-355-12T 12 6 21.6 M22x0.75 Φ27x84.5
BEH-355-15T 15 6 21.6 M22x0.75 Φ27x70.5
BEH-355-20T 20 6 21.6 M22x0.75 Φ27x87.1

Remark: All the lenses are quartz.

STS Series 355nm Beam Expanders

Part number WL, nm MAG Mat. CA1


mm

CA2


mm

D2


mm

L1


mm

Thread


mm

Motor
STS-EXK0008/574 343 - 355 0.8 fs 12 12 46 44.7 M30x1 not motorised
STS-EXK0010/574 343 - 355 1 fs 12 14 46 44.7 M30x1 not motorised
STS-EXK0012/574 343 - 355 1.2 fs 12 26 46 44.7 M30x1 not motorised
STS-EXM0015/574 343 - 355 1.5 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXP0015/574 343 - 355 1.5 fs 8 31 46 85 M30x1 not motorised
STS-EXK0015/574 343 - 355 1.5 fs 12 26 46 44.7 M30x1 not motorised
STS-EXM0100/574 343 - 355 10 fs 6 31 65 85.1 M30x1 pergency motorised
STS-EXP0100/574 343 - 355 10 fs 6 31 46 85 M30x1 not motorised
STS-EXP0120/574 343 - 355 12 fs 8 31 46 85 M30x1 not motorised
STS-EXM0120/574 343 - 355 12 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXP0150/574 343 - 355 15 fs 6 31 46 85 M30x1 not motorised
STS-EXM0150/574 343 - 355 15 fs 6 31 65 85.1 M30x1 pergency motorised
STS-EXP0020/574 343 - 355 2 fs 8 31 46 85 M30x1 not motorised
STS-EXK0020/574 343 - 355 2 fs 12 26 46 44.7 M30x1 not motorised
STS-EXM0020/574 343 - 355 2 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXK0025/574 343 - 355 2.5 fs 11 26 46 44.7 M30x1 not motorised
STS-EXM0025/574 343 - 355 2.5 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXP0025/574 343 - 355 2.5 fs 8 31 46 85 M30x1 not motorised
STS-EXM0200/574 343 - 355 20 fs 5 31 65 85.1 M30x1 pergency motorised
STS-EXP0200/574 343 - 355 20 fs 5 31 46 85 M30x1 not motorised
STS-EXP0030/574 343 - 355 3 fs 8 31 46 85 M30x1 not motorised
STS-EXM0030/574 343 - 355 3 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXK0030/574 343 - 355 3 fs 8 26 46 44.7 M30x1 not motorised
STS-EXM0040/574 343 - 355 4 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXK0040/574 343 - 355 4 fs 8 20 46 44.7 M30x1 not motorised
STS-EXP0040/574 343 - 355 4 fs 8 31 46 85 M30x1 not motorised
STS-EXM0050/574 343 - 355 5 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXP0050/574 343 - 355 5 fs 8 31 46 85 M30x1 not motorised
STS-EXM0060/574 343 - 355 6 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXP0060/574 343 - 355 6 fs 8 31 46 85 M30x1 not motorised
STS-EXP0070/574 343 - 355 7 fs 8 31 46 85 M30x1 not motorised
STS-EXM0070/574 343 - 355 7 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXP0080/574 343 - 355 8 fs 8 31 46 85 M30x1 not motorised
STS-EXM0080/574 343 - 355 8 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXM0090/574 343 - 355 9 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXP0090/574 343 - 355 9 fs 8 31 46 85 M30x1 not motorised
STS-EXK0008/075 355 0.8 fs 12 12 46 44.7 M30x1 not motorised
STS-EXK0012/075 355 1.2 fs 12 26 46 44.7 M30x1 not motorised
STS-EXP0015/075 355 1.5 fs 8 31 46 85 M30x1 not motorised
STS-EXK0015/075 355 1.5 fs 12 26 46 44.7 M30x1 not motorised
STS-EXM0015/075 355 1.5 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXM0100/075 355 10 fs 6 31 65 85.1 M30x1 pergency motorised
STS-EXP0100/075 355 10 fs 6 31 46 85 M30x1 not motorised
STS-EXP0120/075 355 12 fs 8 31 46 85 M30x1 not motorised
STS-EXM0120/075 355 12 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXP0150/075 355 15 fs 6 31 46 85 M30x1 not motorised
STS-EXM0150/075 355 15 fs 6 31 65 85.1 M30x1 pergency motorised
STS-EXK0020/075 3 55 2 fs 12 26 46 44.7 M30x1 not motorised
STS-EXM0020/075 355 2 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXP0020/075 355 2 fs 8 31 46 85 M30x1 not motorised
STS-EXP0025/075 355 2.5 fs 8 31 46 85 M30x1 not motorised
STS-EXM0025/075 355 2.5 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXK0025/075 355 2.5 fs 11 26 46 44.7 M30x1 not motorised
STS-EXM0200/075 355 20 fs 5 31 65 85.1 M30x1 pergency motorised
STS-EXP0200/075 355 20 fs 5 31 46 85 M30x1 not motorised
STS-EXK0030/075 355 3 fs 8 26 46 44.7 M30x1 not motorised
STS-EXP0030/075 355 3 fs 8 31 46 85 M30x1 not motorised
STS-EXM0030/075 355 3 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXP0040/075 355 4 fs 8 31 46 85 M30x1 not motorised
STS-EXK0040/075 355 4 fs 8 20 46 44.7 M30x1 not motorised
STS-EXM0040/075 355 4 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXP0050/075 355 5 fs 8 31 46 85 M30x1 not motorised
STS-EXM0050/075 355 5 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXP0060/075 355 6 fs 8 31 46 85 M30x1 not motorised
STS-EXM0060/075 355 6 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXM0070/075 355 7 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXP0070/075 355 7 fs 8 31 46 85 M30x1 not motorised
STS-EXM0080/075 355 8 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXP0080/075 355 8 fs 8 31 46 85 M30x1 not motorised
STS-EXM0090/075 355 9 fs 8 31 65 85.1 M30x1 pergency motorised
STS-EXP0090/075 355 9 fs 8 31 46 85 M30x1 not motorised

BEAL Series Beam Expanders

WL, nm MAG CA1, mm CA2, mm Housing, mm Product number
343-355 1.2X 10 12 Ø30 x 56.6 BEAL-1.2X-0355
1.5X 8.5 12.75 Ø30 x 55.7 BEAL-1.5X-0355
2X 5 10 Ø30 x 58.1 BEAL-2X-0355
2.5X 5 12.5 Ø30 x 79.4 FBE-2.5X-0355
3X 5 15 Ø30 x 56.6 FBE-3X-0355
4X 4 16 Ø30 x 80.1 BEAL-4X-0355
5X 3 15 Ø30 x 85.1 BEAL-5X-0355

BEST-W Series 355nm Adjustable Beam Expanders

Part No. MAG CA1 (mm) CA2(mm) M1 M2 L2(mm) L1(mm)
BEST-355-1.5X-W 1.5 7.0 24.0 M30×1 M43x0.5 48.1 76.5
BEST-355-2X-W 2 7.0 24.0 M30×1 M43x0.5 47.2 75.6
BEST-355-3X-W 3 7.0 24.0 M30×1 M43x0.5 48.9 77.3
BEST-355-4X-W 4 8.0 28.0 M30×1 M43x0.5 48.9 75.0
BEST-355-5X-W 5 6.0 28.0 M30×1 M43x0.5 56.5 73.5
BEST-355-7X-W 7 8.0 28.0 M30×1 M43x0.5 73.13 88.13
BEST-355-10X-W 10 6.0 28.0 M30×1 M43x0.5 80.5 96.0
BEST-355-20X-W 20 6.0 28.0 M30×1 M43x0.5 81.3 97.0

4. 266nm Beam Expanders

STS Series Beam Expanders

The material is fused silica.

Part umber MAG CA1[mm] CA2 [mm] D2 [mm] L1 [mm] thread motor
STS-EXP0015/199 1.5 8 31 46 85 M30x1 not motorised
STS-EXM0015/199 1.5 8 31 65 85.1 M30x1 pergency motorised
STS-EXM0100/199 10 6 31 65 85.1 M30x1 pergency motorised
STS-EXP0100/199 10 6 31 46 85 M30x1 not motorised
STS-EXP0020/199 2 8 31 46 85 M30x1 not motorised
STS-EXM0020/199 2 8 31 65 85.1 M30x1 pergency motorised
STS-EXP0030/199 3 8 31 46 85 M30x1 not motorised
STS-EXM0030/199 3 8 31 65 85.1 M30x1 pergency motorised
STS-EXP0050/199 5 8 31 46 85 M30x1 not motorised
STS-EXM0050/199 5 8 31 65 85.1 M30x1 pergency motorised
STS-EXP0070/199 7 8 31 46 85 M30x1 not motorised
STS-EXM0070/199 7 8 31 65 85.1 M30x1 pergency motorised

BEST-W Series 266nm Beam Expanders

Part No. MAG CA1(mm) CA2(mm) D1(mm) D2(mm) L2(mm) L1(mm)
BEST-266-1.5X-W 1.5 8.0 24.0 30.0 30.0 46.2 63.7
BEST-266-2X-W 2 8.0 24.0 30.0 30.0 55.0 73.0
BEST-266-3X-W 3 6.0 30.0 37.6 46.0 71.0 85.0
BEST-266-5X-W 5 6.0 30.0 37.6 46.0 71.0 85.0
BEST-266-10X-W 10 3.0 30.0 37.6 46.0 74.0 88.0
BEST-266-20X-W 20 1.5 30.0 37.6 46.0 75.0 89.5

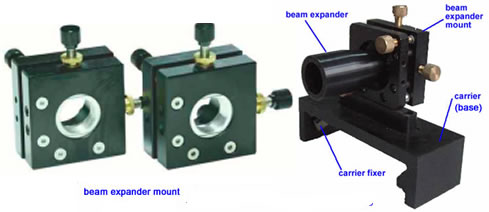

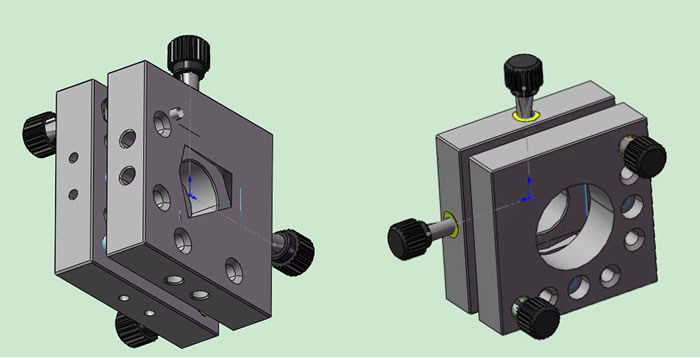

5. Beam Expander Mount

The beam expander mounts are used to hold a beam expander, red pilot diode, mirrors with the screw M22x0.75mm. They are 4D adjustable for optics alignment at angles, positions.

beam expander mount

  • Model: BEM-22x0.75
  • 4D adjustable (4-axil adjustable) (X and Y direction travel ±2mm, X and Z direction tilting ±4 deg)
  • Suitable for the beam expander with a screw of M22x0.75mm
  • Dimension:60x60x45mm

Custom-made beam expander mounts available upon request.
