Zoom Beam Expanders

Zoom Beam Expanders

Variable beam expanders are ideal for systems in which different magnifications and precise control of laser beam divergence are required. We offer Galilean type variable beam expanders with high LIDT AR coatings that minimize ghost reflections. Our v

We offer 3 types of beam expanders: fixed beam expanders, zoom beam expanders and motorised beam expanders at various wavelengths of 213nm, 266nm, 343-355nm, 405nm, 633nm, 515-545nm, 808-980nm, 1030-1090nm, 155nm, 1850-1980nm, 10.6um. Other wavelengths and custom-designed beam expanders are available upon request. For more information, please feel free to contact us.

We may use the following abbreviations in the tables: WL=wavelength, MAG=magnification, CA=clear aperture, CA1=input clear aperture, CA2=output clear aperture, D1=input diameter, D2=output diameter, L1=total length of beam expander, M1=connection or mounting thread, D=diameter.

BEST-E and BEST-F Series 1064/532/355/213nm Zoom Beam Expanders

New part no. Old part number WL, nm MAG, x CA1,mm CA2,mm OD(D2),mm L1,mm Connection, mm
STY-1-2X-1064 BEST-1064-1-2E 1064 1-2 20 20 42 114 M30x1+M43x0.5_Φ46
STY-2-4X-1064 BEST-1064-2-4E 1064 2-4 15 33 48 97.5 Φ42
STY-2-8X-1064 BEST-1064-2-8F 1064 2-8 12 32 42 153 Φ37.6
STY-2-4X-532 BEST-532-2-4E 532 2-4 15 33 46 97.5 M30x1+M43x0.5_Φ46
STY-2-8X-532 BEST-532-2-8F 532 2-8 12 32 42 169 Φ37.6
STY-2-4X-355 BEST-355-2-4E 355 2-4 15 33 46 97.5 M30x1+M43x0.5_Φ46
STY-2-8X-355 BEST-355-2-8F 355 2-8 12 32 42 164 Φ37.6
STY-2-8X-213 BEST-213-2-8F 213 2-8 12 32 42 164 Φ37.6

BEAL Series 355/532/1064nm Zoom Beam Expanders

BEAL Series Motorized Zoom Beam Expanders

BEAL is a zoom beam expander designed for automated applications. It combines multiple lenses to provide variable magnification and automated pergence adjustment from 1x to 6x. Driver and all the motors are integrated in the casing of the beam expander which makes it compact and convenient for usage. High pointing stability (<0.1 mrad) and fast magnification speed (1 sec from 1x to 6x) offers suitable performance for precision and high speed industrial applications.

Features

  • Aberration minimized design
  • Plug & play solution (controller included)
  • Suitable for ultrafast picosecond and femtosecond lasers
  • Direct control from microcontrollers and embedded systems
  • Laser damage threshold up to 100mJ/cm² @ 1064nm, 10ps, 400kHz
  • Custom wavelengths are available in the range of 250-3000nm

Standard specifications:

Wavelength 343-355nm, 515-532nm, 1020-1070nm
Magnification factor 1 - 6 continuous
Pointing stability <0.1mrad
Magnification speed (1x to 6x) <1 sec
Diffraction limited maximum input beam diameter 6mm
Total transmission >98%
Lens material UVFS
LIDT (coating) >10J/cm2 @ 1064nm, 10ns, 10Hz
Dimensions (H x W x L) 62 x 62 x 161 mm
Control interface RS232
Housing material Black anodized aluminum
Collimator hole Yes

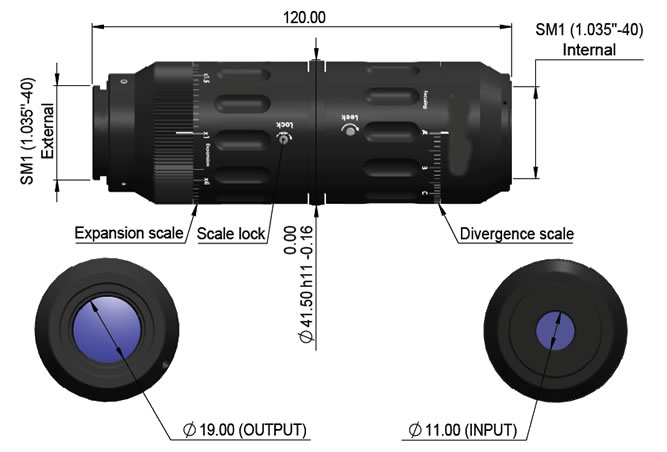

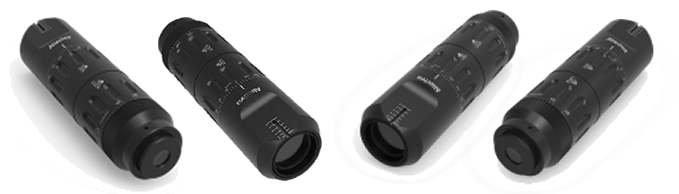

BEAL Series Zoom Beam Expanders

Zoom beam expanders are ideal for systems in which different magnifications and precise control of laser beam pergence are required. We offer Galilean type zoom beam expanders with high LIDT AR coatings that minimize ghost reflections. Our zoom beam expanders allows to separately adjust magnification and pergence. Two main standard products change magnification in the range of 1x-4x and 2x-8x.

Features

  • High pointing stability (<1 mrad)
  • Inpidual reports of beam ellipticity, M2 and pointing stability parameters
  • Mounting adapters at the input, output and middle are available on request
  • Extended lifetime and LIDT for UV applicationsAvailable wavelength range: 266 – 1064 nm
  • Available expansions: 1x-4x or 2x-8x
  • Lens material: UVFS
  • Transmitted wavefront distortion, P-V: <λ/4 @ 632.8 nm
  • Overall transmission: >97%
  • Mounting thread: SM1
  • LIDT: >10 J/cm2 @ 1064 nm, 10 ns, 10 Hz
Wavelength, nm Expansion range Max input beam diameter*, mm Housing dimensions, mm Product ID
343-355 1x-4x 1X
2X
3X
4X
4.0
5.5
3.0
3.0
Ø41 x 120 BEAL-1X-4X-0343-0355-B
2x-8x 2X
3X
4X
5X
6X
7X
8X
5.0
5.0
4.0
3.0
2.5
2.25
2.0
Ø41 x 145 BEAL-2X-8X-0343-0355-B
450 1x-4x 1X
2X
3X
4X
4.0
5.5
3.0
3.0
Ø41 x 120 BEAL-1X-4X-0450-B
515-532 1x-4x 1X
2X
3X
4X
4.5
6.5
4.0
3.5
Ø41 x 120 BEAL-1X-4X-0515-0532-B
2x-8x 2X
3X
4X
5X
6X
7X
8X
5.0
5.0
4.0
3.0
2.5
2.25
2.0
Ø41 x 147.5 BEAL-2X-8X-0515-0532-B
1030-1064 1x-4x 1X
2X
3X
4X
4.5
7.0
5.0
4.0
Ø41 x 120 BEAL-1X-4X-1030-1064-B
2x-8x 2X
3X
4X
5X
6X
7X
8X
5.0
5.0
5.0
4.0
3.0
2.5
2.5
Ø41 x 147.5 BEAL-2X-8X-1030-1064-B

* Max input beam diameter ensuring diffraction limited performance.

YAG Laser Zoom Beam Expanders (266nm, 355nm, 532nm, 1064nm)

1. STS Series YAG Laser Zoom Beam Expanders (266/355/532/1064nm)

  • for collimation of high power lasers
  • variable magnification from 1x up to 8x
  • additional 8 "click into place points" guarantee best
  • reprodution of magnification
  • high pointing stability < 1 mrad
  • Galilei-design
  • available with and without adjustable pergence
  • UV beam expander made completely from quartz material
  • max. exit pupil depending on the model f30mm or f50mm

Our zoom beam expanders (or called as variable beam expander) are highly corrected 4-lens element systems. The version with pergence adjustment is very user friendly, as the magnification setting and the pergence setting are independent from each other, i.e. the pergence remains unchanged while changing the expansion factor. In addition, the total length of the beam expanders remain constant during zooming and/or pergence setting. For remote controlled setting, we developed motorized versions of our zoom beam expanders. A motor adapter can be incorporated to drive the mechanics used for magnification setting.

Part umber Λ [nm] magnification material clear-Ø [mm] max. exit-Ø [mm] max.outside
Ø [mm]
Length
[mm]
thread motor
STS-EZM5075/199 266 1.0 - 8.0 fs 10 30 58 162 C-mount zoom motorised
STS-EXZ5075/199 266 1.0 - 8.0 fs 10.5 31 58 162 C-mount not motorised

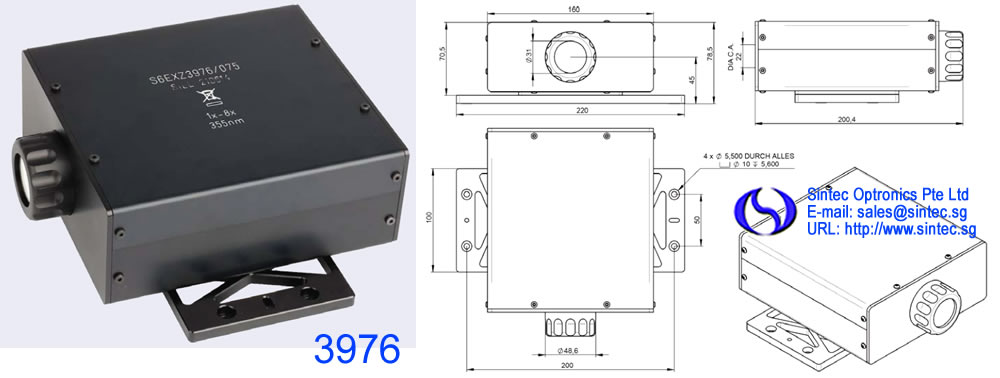

STS-EXZ3976/199 266 1.0 - 8.0 fs 9 30 160.0 x 70.5 200.4 --- zoom motorised

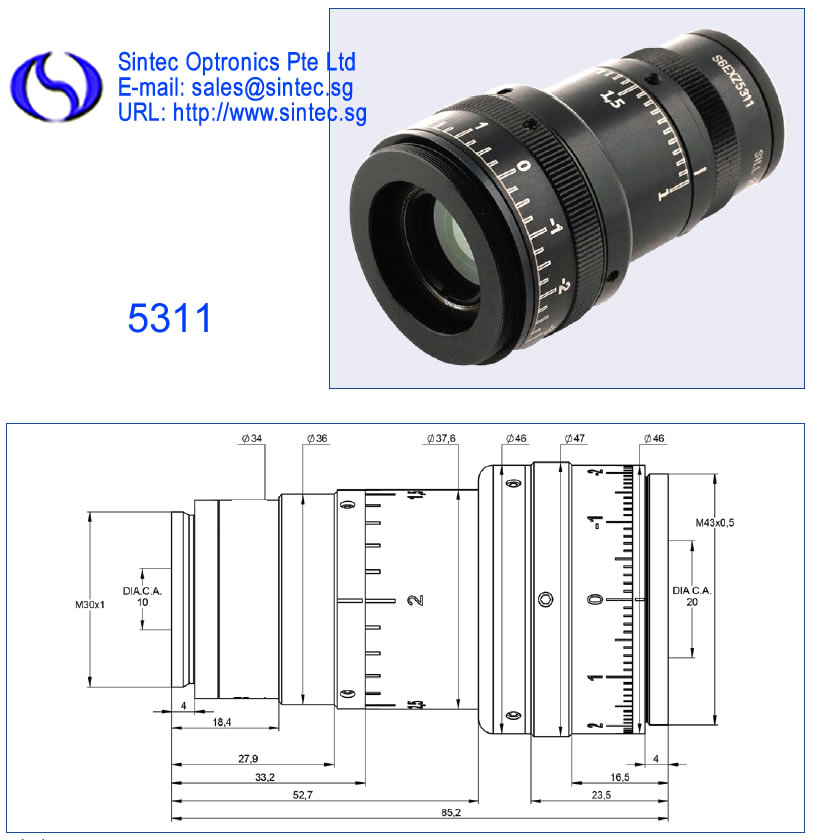

STS-EXZ5311/574 343 - 355 1.0 - 3.0 fs 10.5 20 47 85.2 M30x1 not motorised

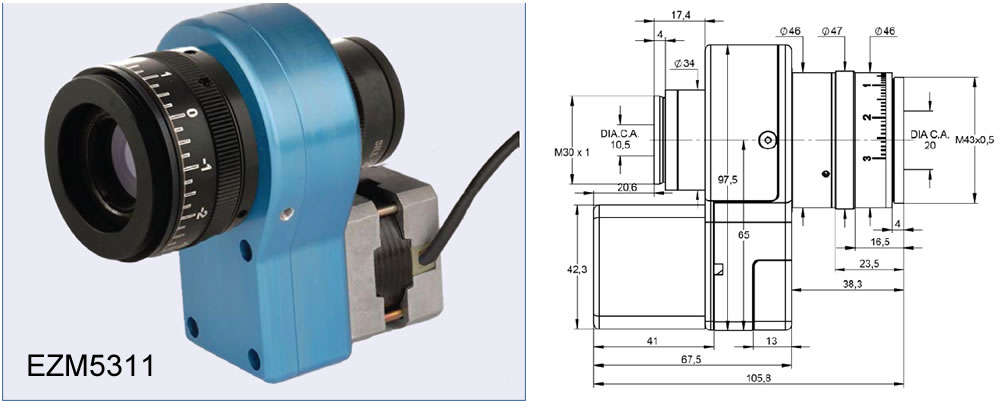

STS-EZM5311/574 343 - 355 1.0 - 3.0 fs 10.5 20 47 85.2 M30x1 zoom motorised

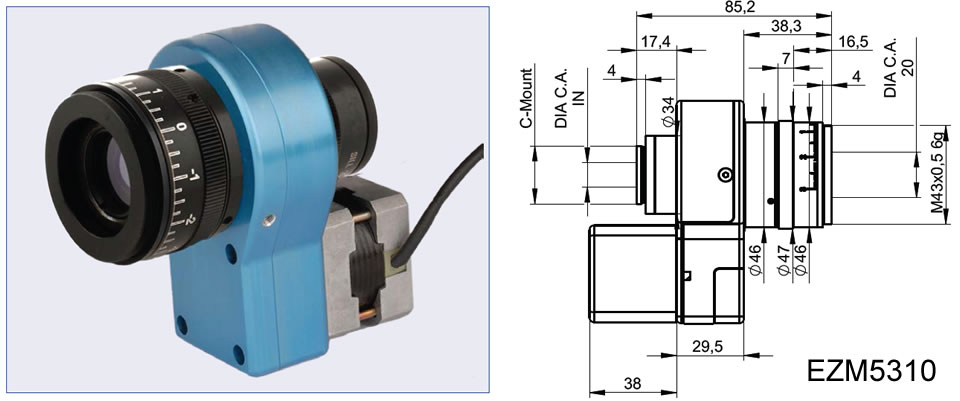

STS-EZM5310/574 343 - 355 1.0 - 3.0 fs 10.5 20 47 105.8 C-mount zoom motorised

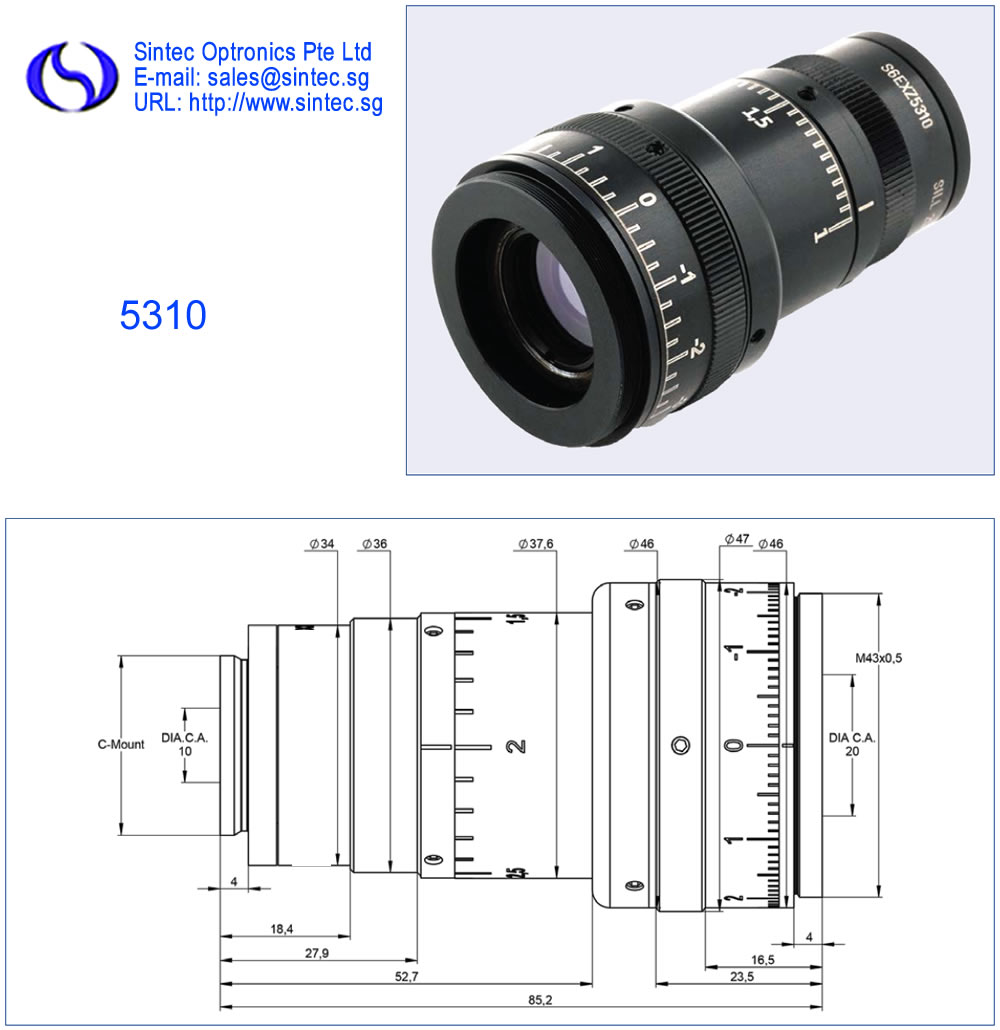

STS-EXZ5310/574 343 - 355 1.0 - 3.0 fs 10.5 20 47 85.2 C-mount not motorised

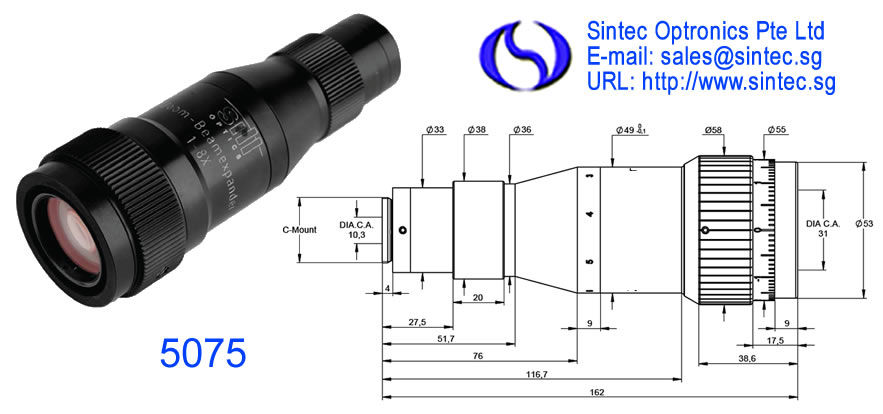

STS-EXZ5075/574 343 - 355 1.0 - 8.0 fs 10.5 31 58 162 C-mount not motorised
STS-EZM5075/574 343 - 355 1.0 - 8.0 fs 10 30 58 162 C-mount zoom motorised
STS-EXZ3976/574 343 - 355 1.0 - 8.0 fs 9 30 160.0 x 70.5 200.4 --- zoom motorised
STS-EXZ5310/075 355 1.0 - 3.0 fs 10.5 20 47 85.2 C-mount not motorised
STS-EZM5311/075 355 1.0 - 3.0 fs 10.5 20 47 85.2 M30x1 zoom motorised
STS-EZM5310/075 355 1.0 - 3.0 fs 10.5 20 47 105.8 C-mount zoom motorised
STS-EXZ5311/075 355 1.0 - 3.0 fs 10.5 20 47 85.2 M30x1 not motorised
STS-EZM5075/075 355 1.0 - 8.0 fs 10 30 58 162 C-mount zoom motorised
STS-EXZ5075/075 355 1.0 - 8.0 fs 10.5 31 58 162 C-mount not motorised
STS-EXZ3976/075 355 1.0 - 8.0 fs 9 30 160.0 x 70.5 200.4 --- zoom motorised
STS-EZM5311/292 515 - 545 1.0 - 3.0 fs 10.5 20 47 85.2 M30x1 zoom motorised
STS-EZM5310/292 515 - 545 1.0 - 3.0 fs 10.5 20 47 85.2 C-mount zoom motorised
STS-EXZ5310/292 515 - 545 1.0 - 3.0 fs 10.5 20 47 105.8 C-mount not motorised
STS-EXZ5311/292 515 - 545 1.0 - 3.0 fs 10.5 20 47 85.2 M30x1 not motorised

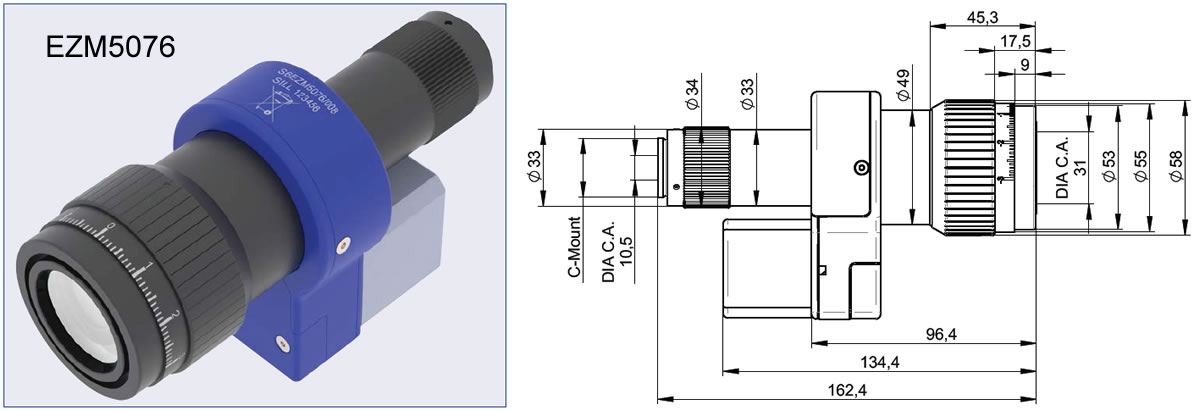

STS-EZM5076/292 515 - 545 1.0 - 8.0 fs 10 30 58 162 C-mount zoom motorised
STS-EXZ5076/292 515 - 545 1.0 - 8.0 fs 10 30 58 162 C-mount not motorised
STS-EXZ3976/292 515 - 545 1.0 - 8.0 fs 9 30 160.0 x 70.5 200.4 --- zoom motorised
STS-EXZ5312/292 515 - 545 1.2 - 3.0 fs 18.5 43 80 230.2 M30x1 not motorised
STS-EZM5310/328 1030 - 1090 1.0 - 3.0 fs 10.5 20 47 105.8 C-mount zoom motorised
STS-EXZ5310/328 1030 - 1090 1.0 - 3.0 fs 10.5 20 47 85.2 C-mount not motorised
STS-EZM5311/328 1030 - 1090 1.0 - 3.0 fs 10.5 20 47 85.2 M30x1 zoom motorised
STS-EXZ5311/328 1030 - 1090 1.0 - 3.0 fs 10.5 20 47 85.2 M30x1 not motorised
STS-EZM5076/328 1030 - 1090 1.0 - 8.0 fs 10 30 58 162 C-mount zoom motorised
STS-EXZ5076/328 1030 - 1090 1.0 - 8.0 fs 10 30 58 162.6 C-mount not motorised
STS-EXZ3976/328 1030 - 1090 1.0 - 8.0 fs 9 30 160.0 x 70.5 200.4 --- zoom motorised
STS-EXZ5312/328 1030 - 1090 1.2 - 3.0 fs 18.5 43 80 230.2 M30x1 not motorised
STS-EXZ5310/008 1550 1.0 - 3.0 fs 10.5 20 47 85.2 C-mount not motorised
STS-EXZ5311/008 1550 1.0 - 3.0 fs 10.5 20 47 85.2 M30x1 not motorised
STS-EXZ5310/159 1850 - 1980 1.0 - 3.0 fs 10.5 20 47 85.2 C-mount not motorised

2. BEST-W Series YAG Laser Zoom Beam Expanders (266/355/532/1064nm)

We are proud to present our new product. It is specially designed to cater for the various variable magnification of 2x up to 8x. It consists of adjustable pergence. These beam expanders are primarily intended for Nd:YAG, Green & UV lasers. They offer diffraction-limited performance at 1064nm wavelength.

  • For collimation of laser power<500kw/cm2
  • Variable magnifications 2x-8x
  • Galilei Design
  • Adjustable pergence

Part No. Magnification Input CA (mm) Output CA (mm) Length (mm) Remark
BEST-1064-1-3X-W 1x-3x 10 20 85.0
BEST-1064-1-3X-AW 1x-3x 20 38 118.0

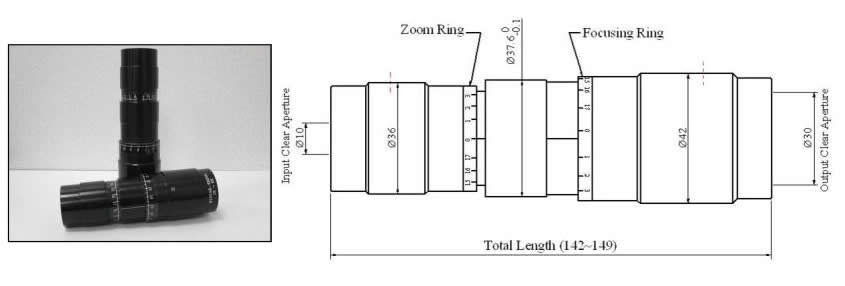

BEST-1064-2-8X-W 2x-8x 10 30 142-149
BEST-1064-2-8X-QW 2x-8x 12 32 195
BEST-1064-2-8X-AW 2x-8x 13 60.67 162-169
BEST-800-2-8X-W 2x-8x 10 30 142-149
BEST-532-1-3X-W 1x-3x 10 20 85.0
BEST-532-2-8X-W 2x-8x 10 30 131.1
BEST-532-2-8X-A-W 2x-8x 11 60 190
BEST-355-1-8X-W 1x-8x 10 30 85-200
BEST-355-2-8X-W 2x-8x 10 30 142-149
BEST-355-1-8X-MOT-W 1X-8X 12 32 188 motorised
BEST-355-2-8X-A-W 2x-8x 11 60 183-192
BEST-266-1-8X-W 1x-8x 10 30 162-200

STS Series 1550nm Zoom Beam Expanders

The material is fused silica.

Model MAG CA1(mm) CA2 (mm) D2(mm) L1(mm) Thread Motorised

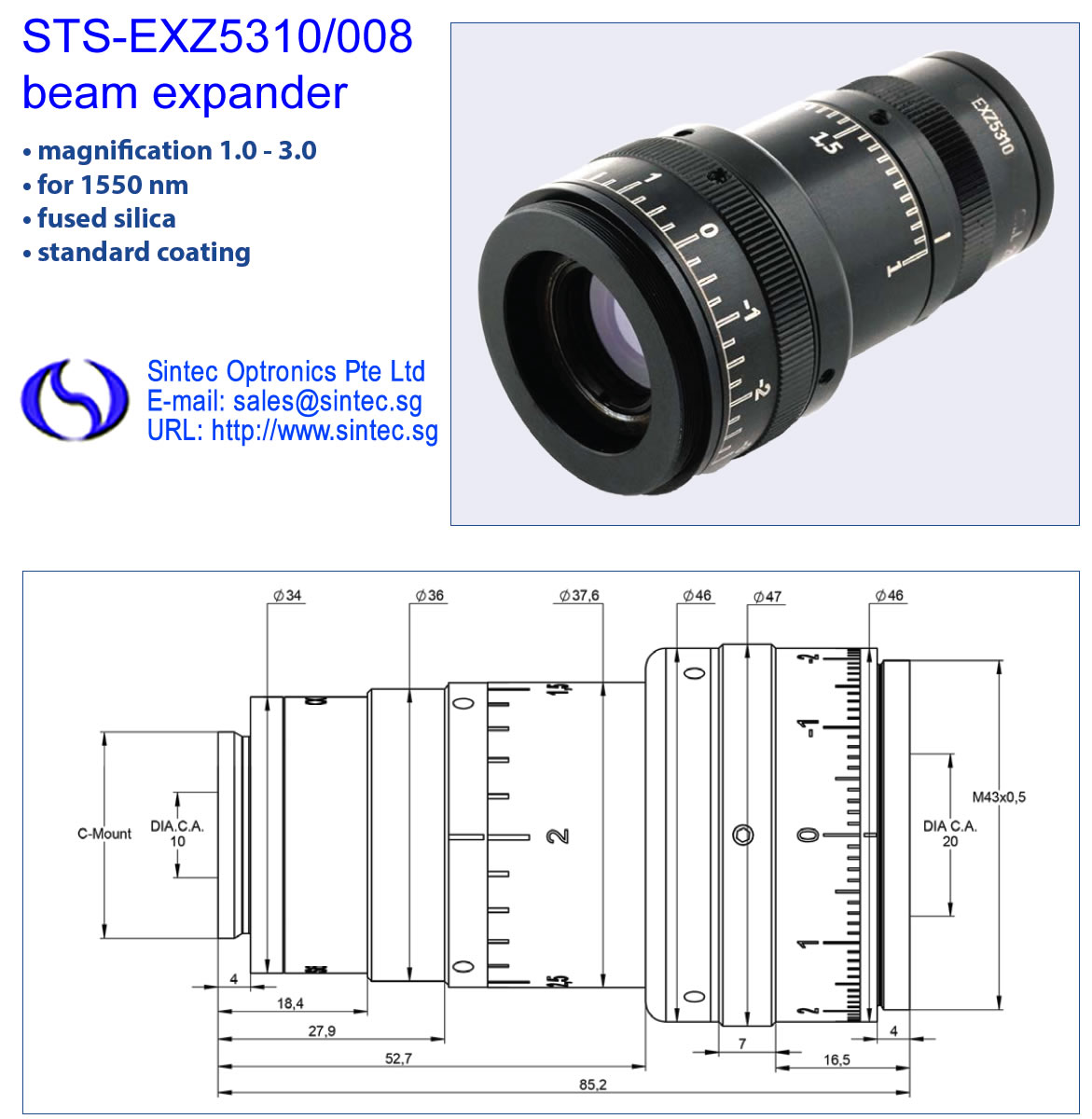

STS-EXZ5310/008 1.0 - 3.0 10.5 20 47 85.2 C-mount not motorised

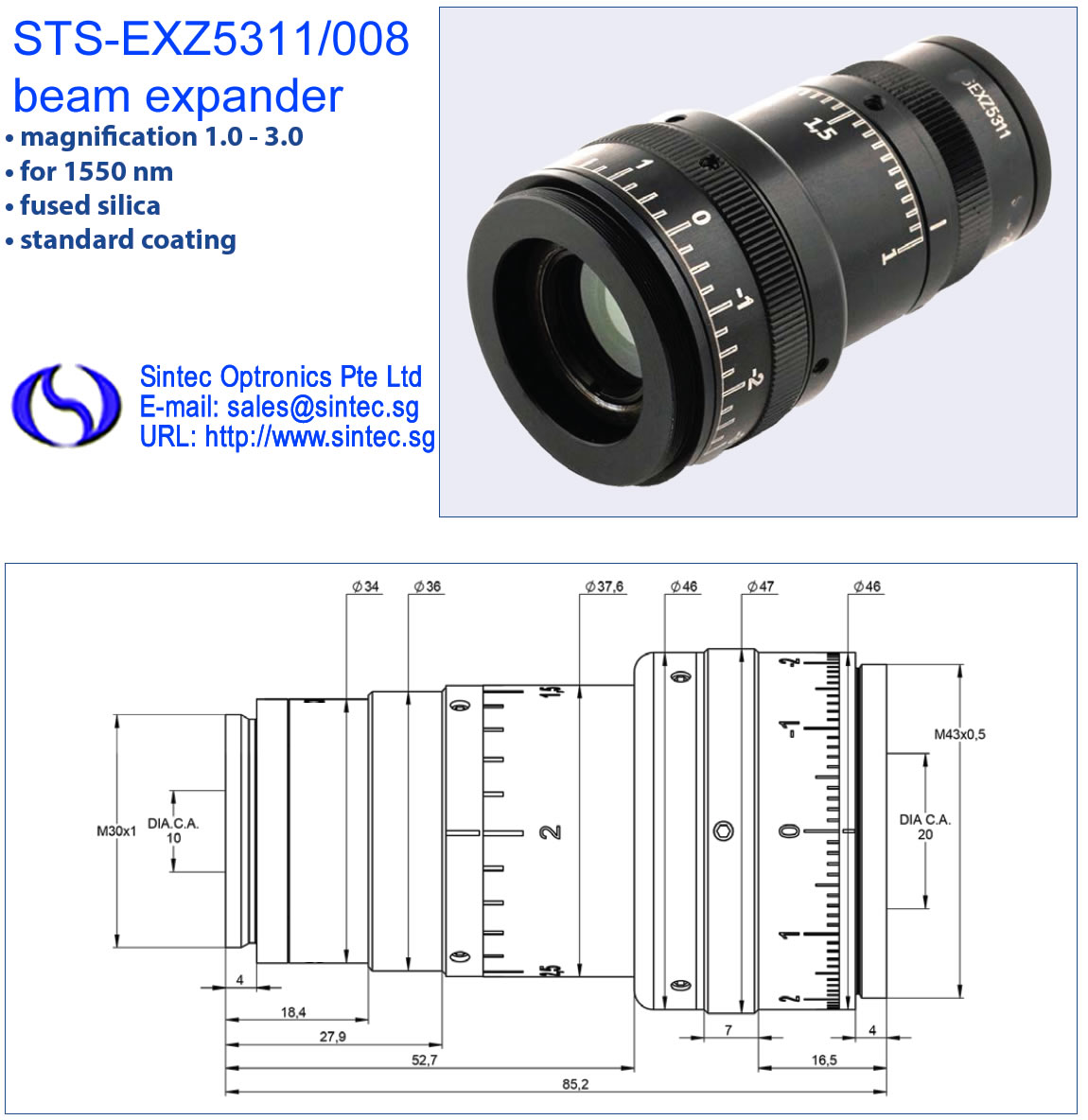

STS-EXZ5311/008 1.0 - 3.0 10.5 20 47 85.2 M30x1 not motorised

STS Series 1850-1980nm Zoom Beam Expanders

The material is fused silica

Model WL(nm) MAG CA1(mm) CA2(mm) D2(mm) L1(mm) Thread Motorised

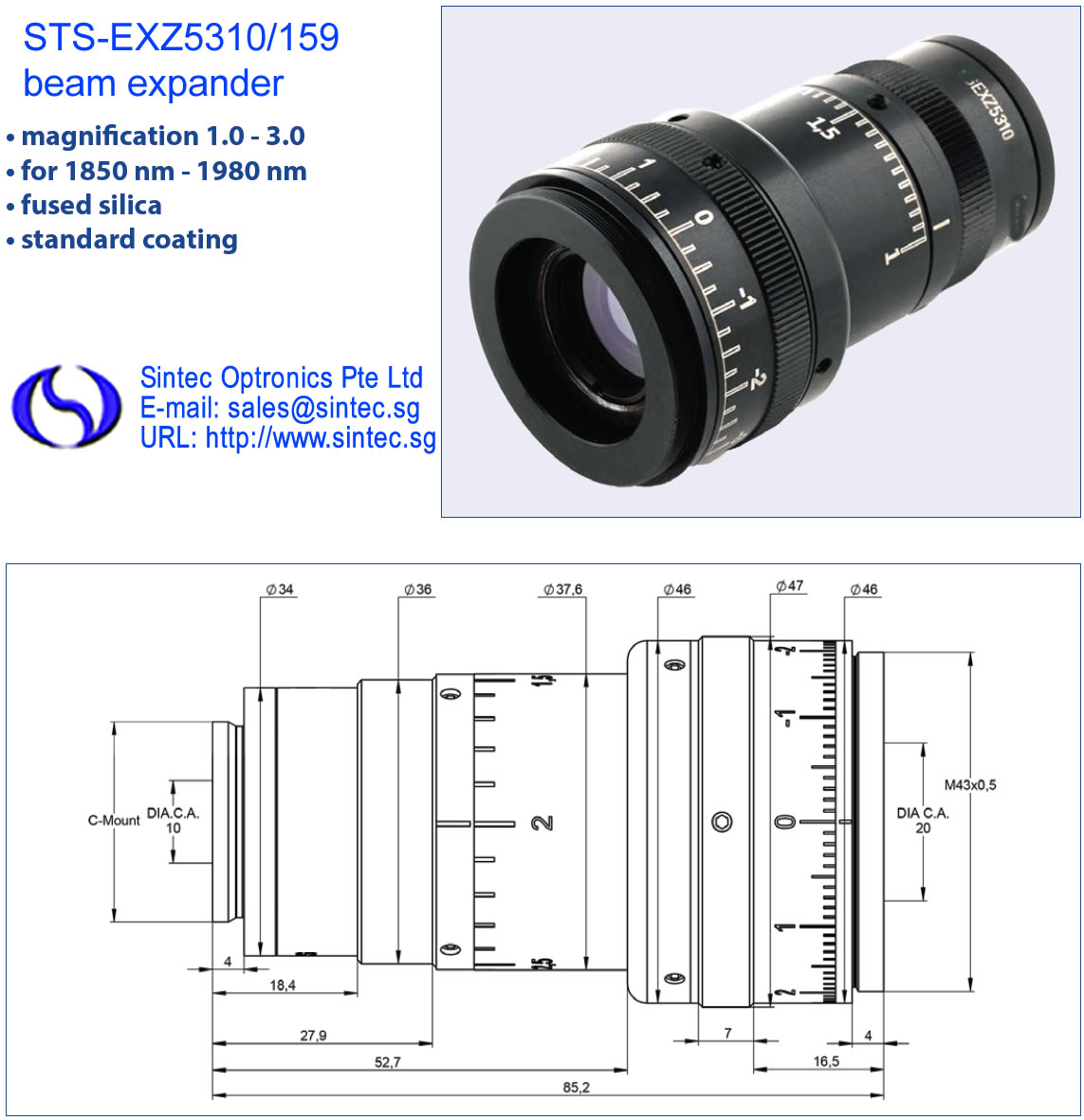

STS-EXZ5310/159 1850 - 1980 1.0 - 3.0 10.5 20 47 85.2 C-mount not motorised

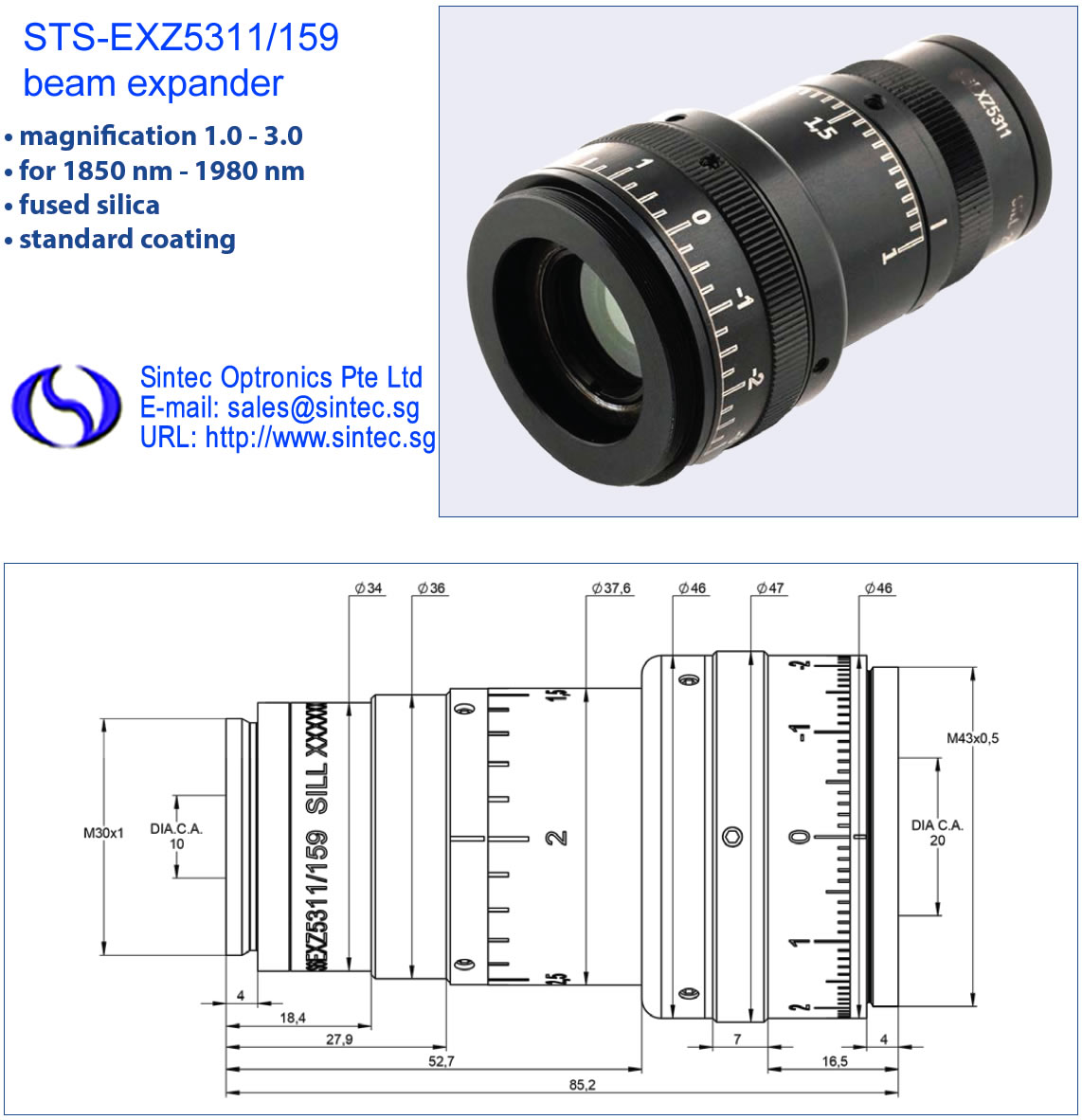

STS-EXZ5311/159 1850 - 1980 1.0 - 3.0 10.5 20 47 82.5 M30x1 not motorised

BEST-W Series 9.4um & 10.6um CO2 Laser Zoom Beam Expanders

  • For collimation of Co2 laser power<1.5KW/cm2
  • Variable magnifications 2X-8X
  • Galilei Design
  • Adjustable pergence

Part No. Magnification Input CA (mm) Output CA (mm) Length (mm)
BEST-10.6-1-4X-W 1X-4X 18 48 135
BEST-10.6-2-6X-W 2X-6X 16 96 205.78-212.37
BEST-9.4-2-8X-W 2X-8X 10 36 168-172
BEST-10.6-2-8X-W 2X-8X 10 36 168-172

BED Series Motorized Zoom Beam Expanders

motorized zoom beam exoanderFor automated applications, we developed motorized zoom beam expanders BED-GCD-14 series. They use the 4 lens element optical designs and the build-in adjustment motors for controlling lens groups. With the motorized systems, both magnification and focus can be controlled independently.

With our optics motorized zoom beam expanders, variable expansion ratio can automatically be set from 1.5X to 6X. This variability helps to reduce machine set up times and provides flexibility to equipment for a wide range of jobs.

Features

  • Continuous variable expansion ratio
  • Wavelength 450-650nm, 780-1080nm or 10.6um
  • Default expansion ratio setting pre-programmed
  • User-defined magnification settings
  • Use-controlled focus adjustment
  • Communication with PC or joystick with a DSB
  • Compact in size at 190x120x103.5mm
Part No. Magnification Wavelength Max. EP
(mm)
Output
Aperture
Damage
Threshold
Transmission
BED-GCD-1401 1.5x ~ 6x 450nm~650nm Ø4 Ø40 200MW/cm2 > 96%
BED-GCD-1402 1.5x ~ 6x 780nm~1080nm Ø4 Ø40 200MW/cm2 > 96%
BED-GCD-1403 1.5x ~ 6x 10.6μm Ø4 Ø40 200MW/cm2 > 96%
