Our zoom beam expanders (or called as variable beam expander) are highly corrected 4-lens element systems with variable magnification from 1x up to 8x and Galilei-design.

Online submission +65 63167112 sales@sintec.sg

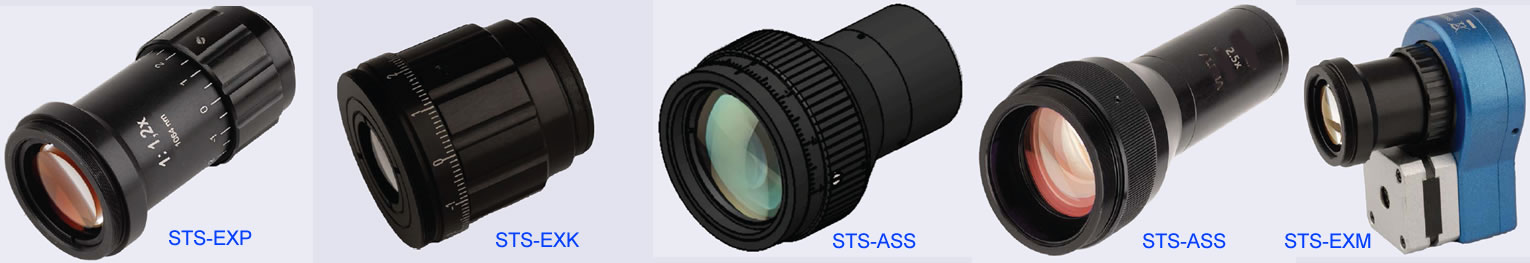

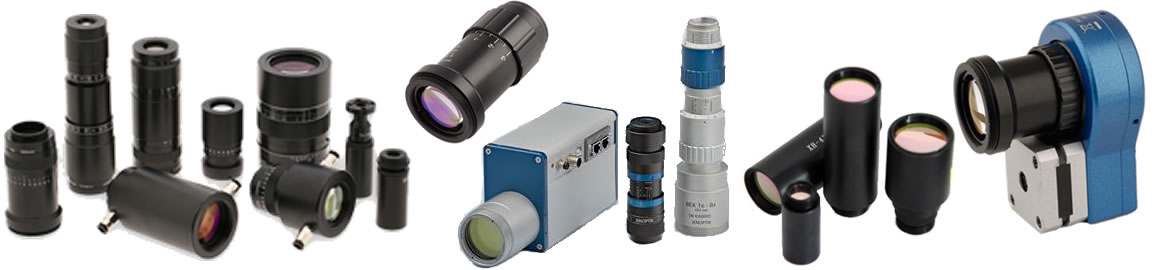

We offer 3 types of beam expanders: fixed beam expanders, zoom beam expanders and motorised beam expanders at various wavelengths of 266nm, 343-355nm, 405nm, 633nm, 515-545nm, 808-980nm, 1030-1090nm, 155nm, 1850-1980nm, 10.6um. Other wavelengths and custom-designed beam expanders are available upon request. For more information, please feel free to contact us.

The specifications of the lenses used in the beam expanders are:

Material: BK7 fine annealed, fused silica and ZnSe depending on laser wavelength.
Diameter: -0.1mm
Thickness: ±0.1mm
Flatness: /4
Surface Quality: 60-40 scratch-dig
Coating: HR dielectric coatings R > 99%

Part number description: BEST-xxx-yy-T-AA
BEST --- BEST series beam expanders, zoom beam expanders.
xxxx------- laser wavelength: 10.6 means 10.6um, 532 means 532nm, 633 means 633nm.
yy -------- expansion ratio (magnification) in times
T ---------- type: T means adjustable/various/zoom beam expander; none means fixed beam expander.
AA -------- special purpose.
Example: BEST-10.6-3: 10.6um fixed beam expander, 3x.
BEST-10.6-3.5T: 10.6um zoom beam expander, max. 3.5x.

We may use the following abbreviations in the tables: WL=wavelength, MAG=magnification, CA=clear aperture, CA1=input clear aperture, CA2=output clear aperture, D1=input diameter, D2=output diameter, L1=total length of beam expander, M1=connection or mounting thread, D=diameter.

Following is the beam expanders at the wavelengths of 405nm, 633nm, 808-980nm, 1550nm, 1850-1980nm.

(1) 405nm Beam Expanders

BEST Series 405nm Beam Expanders

Part No.	MAG	CA1(mm)	CA2(mm)	D2 (mm)	L1 (mm)
BEST-405-1.5X-W	1.5	6.0	30.0	46	85
BEST-405-2X-W	2	6.0	30.0	46	85
BEST-405-3X-W	3	6.0	30.0	46	85
BEST-405-5X-W	5	6.0	30.0	46	85
BEST-405-7X-W	7	4.2	30.0	46	85
BEST-405-10X-W	10	3.0	30.0	46	89
BEST-405-20X-W	20	1.5	30.0	46	95

STS Series 405nm Beam Expanders

Model	WL(nm)	MAG	CA1(mm)	CA2(mm)	D2(mm)	L1(mm)	Thread	Motorised

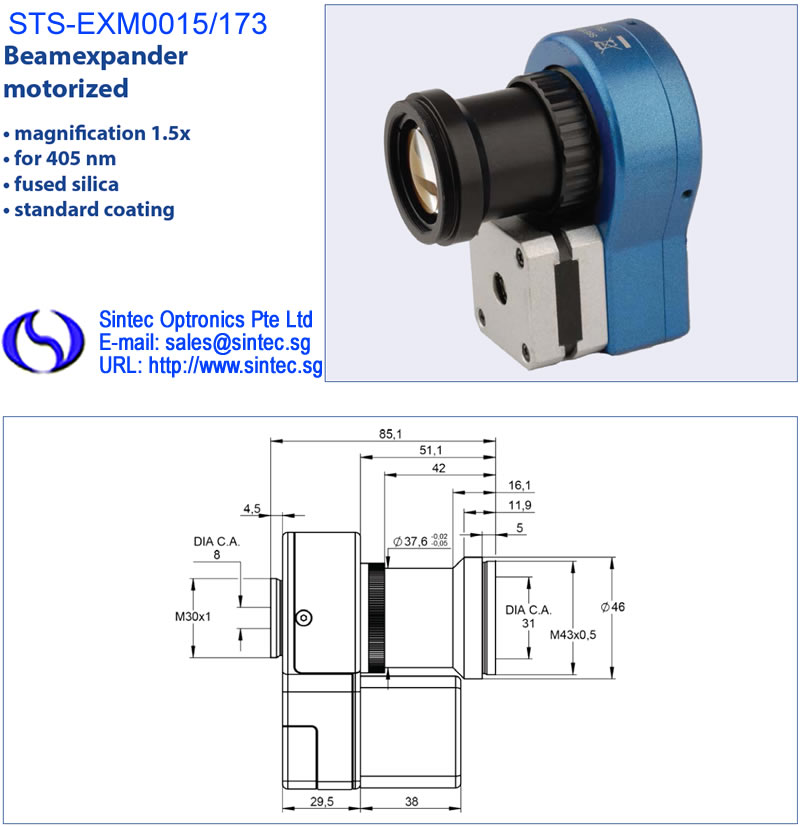

STS-EXM0015/173	405	1.5	8	31	65	85.1	M30x1	pergency motorised
STS-EXM0020/173	405	2	8	31	65	85.1	M30x1	pergency motorised

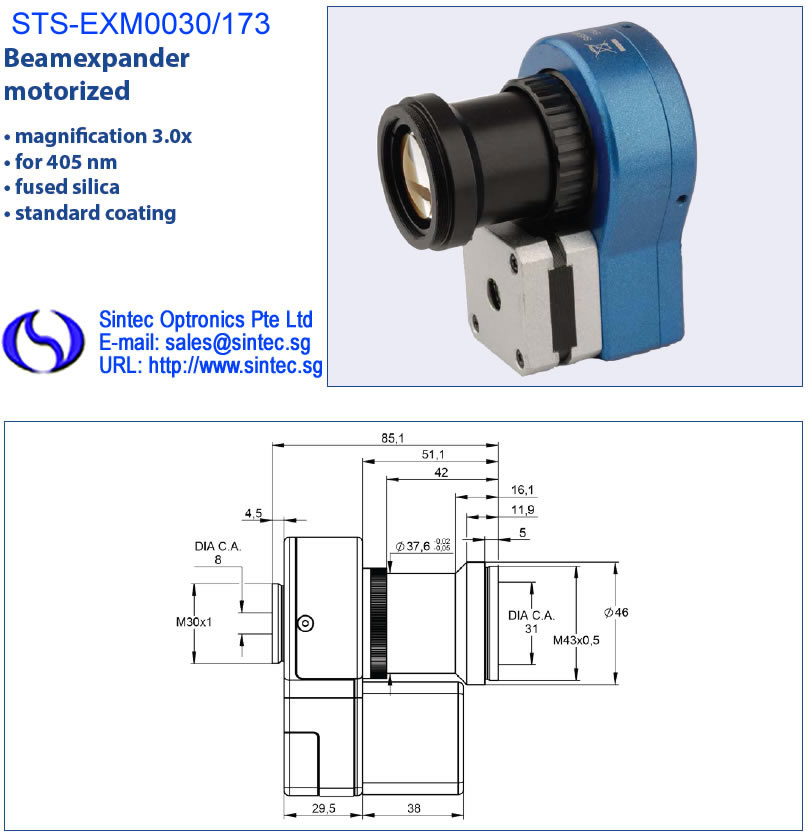

STS-EXM0030/173	405	3	8	31	65	85.1	M30x1	pergency motorised

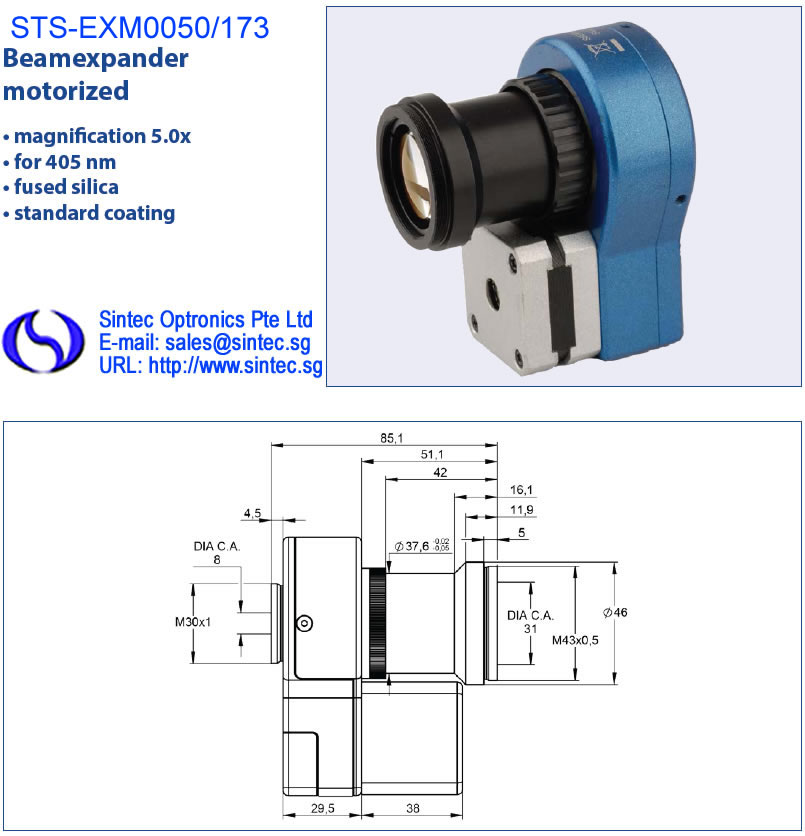

STS-EXM0050/173	405	5	8	31	65	85.1	M30x1	pergency motorised
STS-EXM0070/173	405	7	8	31	65	85.1	M30x1	pergency motorised
STS-EXM0100/173	405	10	6	31	65	85.1	M30x1	pergency motorised
STS-EXM0200/173	405	20	5	31	65	85.1	M30x1	pergency motorised

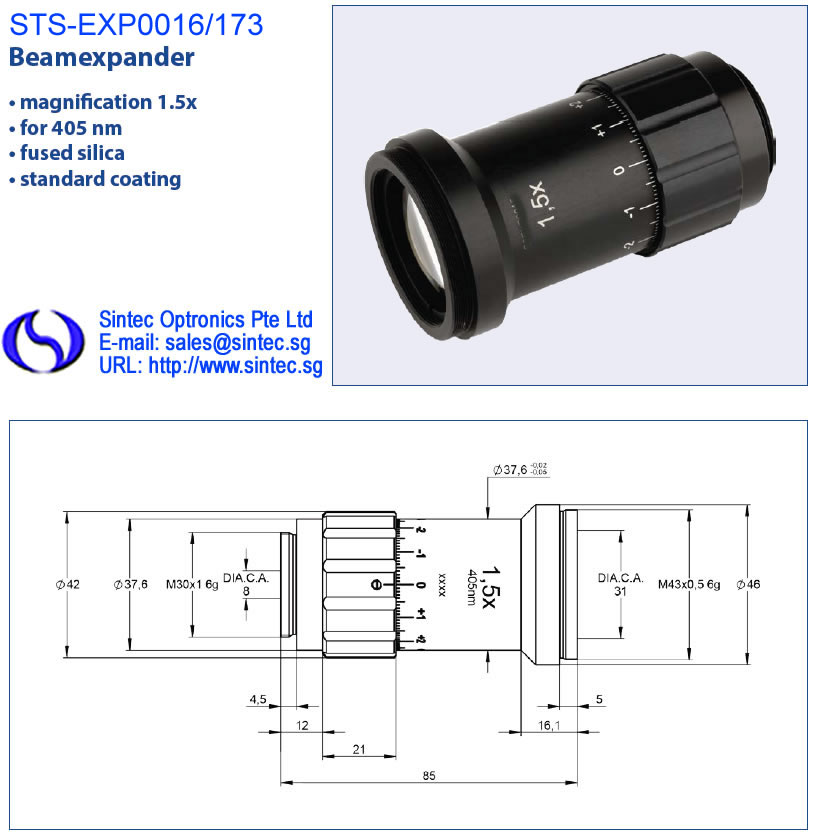

STS-EXP0015/173	405	1.5	8	31	46	85	M30x1	not motorised

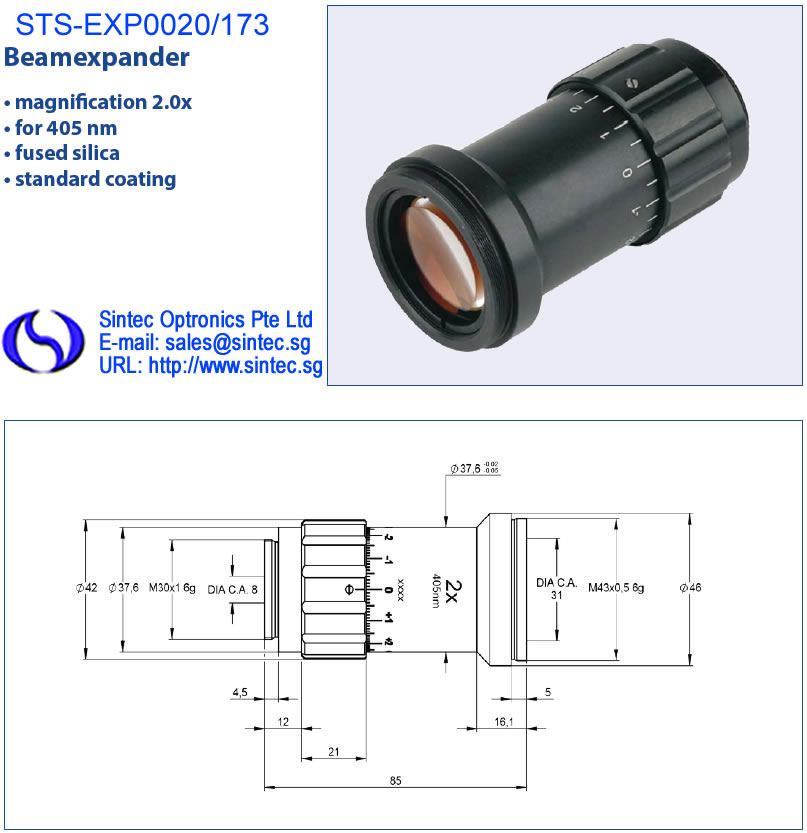

STS-EXP0020/173	405	2	8	31	46	85	M30x1	not motorised
STS-EXP0030/173	405	3	8	31	46	85	M30x1	not motorised
STS-EXP0050/173	405	5	8	31	46	85	M30x1	not motorised
STS-EXP0070/173	405	7	8	31	46	85	M30x1	not motorised
STS-EXP0100/173	405	10	6	31	46	85	M30x1	not motorised
STS-EXP0200/173	405	20	5	31	46	85	M30x1	not motorised

(2) 633nm HeNe Laser Beam Expanders

Part No.	MAG	EP, mm	CA2, mm	L1, mm	L2, mm	OD, mm	MT IN	MT OUT
BEGK-633-2	2	8	18	59.65	11.72	30	M22X0.75	M30X1
BEGK-633-3	3	8	18	60.42	12.48	30	M22X0.75	M30X1
BEGK-633-4	4	8	18	60.06	12.12	30	M22X0.75	M30X1
BEGK-633-5	5	8	18	59.57	11.63	30	M22X0.75	M30X1
BEGK-633-6	6	8	18	59.92	11.99	30	M22X0.75	M30X1
BEGK-633-8	8	6	18	60.43	12.50	30	M22X0.75	M30X1
BEGK-633-10	10	6	18	60.65	12.71	30	M22X0.75	M30X1
BEGK-633-15	15	8	18	99.10	--	30	M22X0.75	--
BEG-633-20	20	8	30	102.19	--	45	M30X1	M43X0.75
BEGK-633-30	30	8	32	149.81	--	45	M22X0.75	M43X0.75
BEGK-633-40	40	8	100	232.6	--	112	M22X0.75	--

(3) 808–980nm Beam Expanders

The material is fused silica.

Model	WL(nm)	MAG	CA1(mm)	CA2(mm)	D2(mm)	L1(mm)	Thread	Motorised
STS-EXM0020/094	808 - 980	2	8	31	65	85.1	M30x1	pergency motorised
STS-EXM0030/094	808 - 980	3	8	31	65	85.1	M30x1	pergency motorised
STS-EXM0050/094	808 - 980	5	8	31	65	85.1	M30x1	pergency motorised
STS-EXM0100/094	808 - 980	10	6	31	65	85.1	M30x1	pergency motorised
STS-EXP0020/094	808 - 980	2	8	31	46	85	M30x1	not motorised
STS-EXP0030/094	808 - 980	3	8	31	46	85	M30x1	not motorised
STS-EXP0050/094	808 - 980	5	8	31	46	85	M30x1	not motorised
STS-EXP0100/094	808 - 980	10	6	31	46	85	M30x1	not motorised

(4) 1550nm Beam Expanders

The material is fused silica.

Model	WL(nm)	MAG	CA1(mm)	CA2(mm)	D2(mm)	L1(mm)	Thread	Motorised
STS-EXM0015/008	1550	1.5	8	31	65	85.1	M30x1	pergency motorised
STS-EXM0020/008	1550	2	8	31	65	85.1	M30x1	pergency motorised
STS-EXM0025/008	1550	2.5	8	31	65	85.1	M30x1	pergency motorised
STS-EXM0030/008	1550	3	8	31	65	85.1	M30x1	pergency motorised
STS-EXM0040/008	1550	4	8	31	65	85.1	M30x1	pergency motorised
STS-EXM0050/008	1550	5	8	31	65	85.1	M30x1	pergency motorised
STS-EXM0060/008	1550	6	8	31	65	85.1	M30x1	pergency motorised
STS-EXM0070/008	1550	7	8	31	65	85.1	M30x1	pergency motorised
STS-EXM0080/008	1550	8	8	31	65	85.1	M30x1	pergency motorised
STS-EXM0090/008	1550	9	8	31	65	85.1	M30x1	pergency motorised
STS-EXM0100/008	1550	10	6	31	65	85.1	M30x1	pergency motorised
STS-EXM0120/008	1550	12	8	31	65	85.1	M30x1	pergency motorised
STS-EXP0015/008	1550	1.5	8	31	46	85	M30x1	not motorised
STS-EXP0020/008	1550	2	8	31	46	85	M30x1	not motorised
STS-EXP0025/008	1550	2.5	8	31	46	85	M30x1	not motorised
STS-EXP0030/008	1550	3	8	31	46	85	M30x1	not motorised
STS-EXP0040/008	1550	4	8	31	46	85	M30x1	not motorised
STS-EXP0050/008	1550	5	8	31	46	85	M30x1	not motorised
STS-EXP0060/008	1550	6	8	31	46	85	M30x1	not motorised
STS-EXP0070/008	1550	7	8	31	46	85	M30x1	not motorised
STS-EXP0080/008	1550	8	8	31	46	85	M30x1	not motorised
STS-EXP0090/008	1550	9	8	31	46	85	M30x1	not motorised
STS-EXP0100/008	1550	10	6	31	46	85	M30x1	not motorised
STS-EXP0120/008	1550	12	8	31	46	85	M30x1	not motorised

(5) 1850-1980nm Beam Expanders

Model	MAG	CA1(mm)	CA2(mm)	D2(mm)	L1(mm)	Thread	Motorised
STS-EXM0015/159	1.5	8	31	65	85.1	M30x1	pergency motorised
STS-EXM0020/159	2	8	31	65	85.1	M30x1	pergency motorised
STS-EXM0025/159	2.5	8	31	65	85.1	M30x1	pergency motorised
STS-EXM0030/159	3	8	31	65	85.1	M30x1	pergency motorised
STS-EXM0040/159	4	8	31	65	85.1	M30x1	pergency motorised
STS-EXM0050/159	5	8	31	65	85.1	M30x1	pergency motorised
STS-EXM0060/159	6	8	31	65	85.1	M30x1	pergency motorised
STS-EXM0070/159	7	8	31	65	85.1	M30x1	pergency motorised
STS-EXM0080/159	8	8	31	65	85.1	M30x1	pergency motorised
STS-EXM0090/159	9	8	31	65	85.1	M30x1	pergency motorised
STS-EXM0100/159	10	6	31	65	85.1	M30x1	pergency motorised
STS-EXM0120/159	12	8	31	65	85.1	M30x1	pergency motorised
STS-EXP0015/159	1.5	8	31	46	85	M30x1	not motorised
STS-EXP0020/159	2	8	31	46	85	M30x1	not motorised
STS-EXP0025/159	2.5	8	31	46	85	M30x1	not motorised
STS-EXP0030/159	3	8	31	46	85	M30x1	not motorised
STS-EXP0040/159	4	8	31	46	85	M30x1	not motorised
STS-EXP0050/159	5	8	31	46	85	M30x1	not motorised
STS-EXP0060/159	6	8	31	46	85	M30x1	not motorised
STS-EXP0070/159	7	8	31	46	85	M30x1	not motorised
STS-EXP0080/159	8	8	31	46	85	M30x1	not motorised
STS-EXP0090/159	9	8	31	46	85	M30x1	not motorised
STS-EXP0100/159	10	6	31	46	85	M30x1	not motorised
STS-EXP0120/159	12	8	31	46	85	M30x1	not motorised

(6) Beam Expander Mount

The beam expander mounts are used to hold a beam expander, red pilot diode, mirrors with the screw M22x0.75mm. They are 4D adjustable for optics alignment at angles, positions.

Model: SMH-13-048
4D adjustable (4-axil adjustable) (X and Y direction travel ±2mm, X and Z direction tilting ±4 deg)
Suitable for the beam expander with a screw of M22x0.75mm
Dimension:60x60x45mm

Custom-made beam expander mounts available upon request.
