Various F-Theta Lenses

Keywords: f-theta lens, scan lens, 1064nm, 980nm, 808nm, 1550nm, 355nm,

Aug 13, 2020
View: 3470
Data Sheet

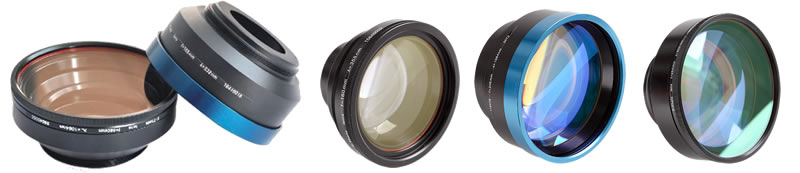

F-theta lenses are used in laser scanners (laser markers) and the laser wavelengths may be 355nm 266nm and other wavelengths. We can provide full range of f-theta lenses according to your applications.

Description of STW series f-theta Lenses: STY-xxxx-yyy-zzz-dd-A

STY--- STY series laser f-theta lenses
xxxx-- laser wavelength, 1064 means 1064nm, 10.6 means 10.6um.
yyy---- mark field (scan field), yyy x yyy mm
zzz---- effective focal length in mm
dd------entrance pupil (allowed maximum input laser beam diameter) in mm (option)
A------ others

Remark: (1) The f-theta lens consists of 3 lenses and one protective window/glass. The coating is a di-electric layer. The transmission is >99% at 1064nm. Two sides of the protective glass are AR-coated at 1064nm.

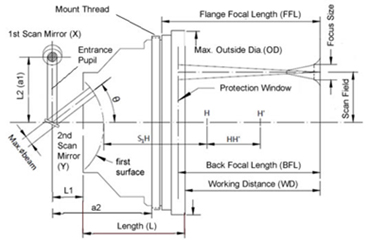

(2) In the following tables, the abbreviations are as follows: FL means effective focal length; EP means max. input beam diameter; SAR means scan area, AS means aperture stop; WD means working distance; OD means max. outside diameter; MT means mount thread, fs means fused silica, SA means max. full diagonal scan angle; L2 (a1) means recommended mirror separation; a2 means 2nd mirror to flange, L1 means the distance 2nd mirror and scan lens, SL means scan length, Length means the total length of the scan lens, WC means water cooled.

Multi-spectral F-theta Lenses

532nm + 1064nm

Model	FL (mm) @532nm	FL (mm) @1064nm	EP (mm)	SAR(mm x mm)	AS(mm)	WD (mm) @532nm	WD (mm) @1064nm	OD (mm)	Length (mm)	MT

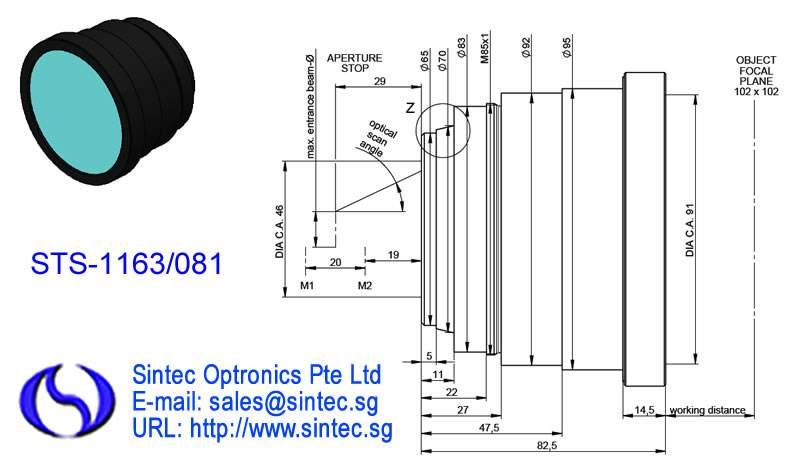

STS-1163/081	163.2	163.2	12	102 x 102	29	159.7	159.7	106	82.5	M85x1

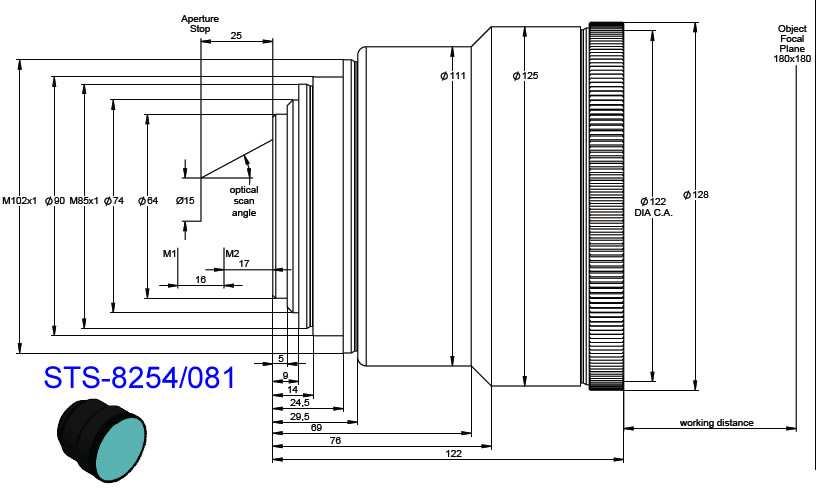

STS-8254/081	254	253.9	15	180 x 180	25	211.4	211.4	128	122	M85x1

355nm + 1064nm

Model	FL (mm) @355nm	FL (mm) @1064nm	EP (mm)	SAR(mm x mm)	AS(mm)	WD (mm) @355nm	WD (mm) @1064nm	OD (mm)	Length (mm)	MT

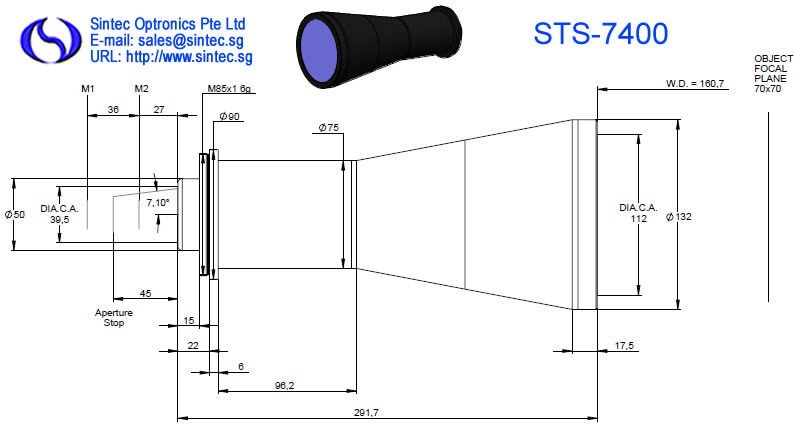

STS-7400	398.9	398.3	15	70 x 70	45	160.7	160.7	132	291.7	M85x1

808nm + 980nm

Model	FL (mm) @808nm	FL (mm) @980nm	EP (mm)	SAR(mm x mm)	AS(mm)	WD (mm) @808nm	WD (mm) @980nm	OD (mm)	Length (mm)	MT
STS-8163	163	163.1	20	102 x 102	22	151.2	151.1	106	90.5	M85x1

450nm+650nm

Model	FL (mm) @450nm	FL (mm) @650nm	EP (mm)	SAR(mm x mm)	AS(mm)	WD (mm) @450nm	WD (mm) @650nm	OD (mm)	Length (mm)	MT

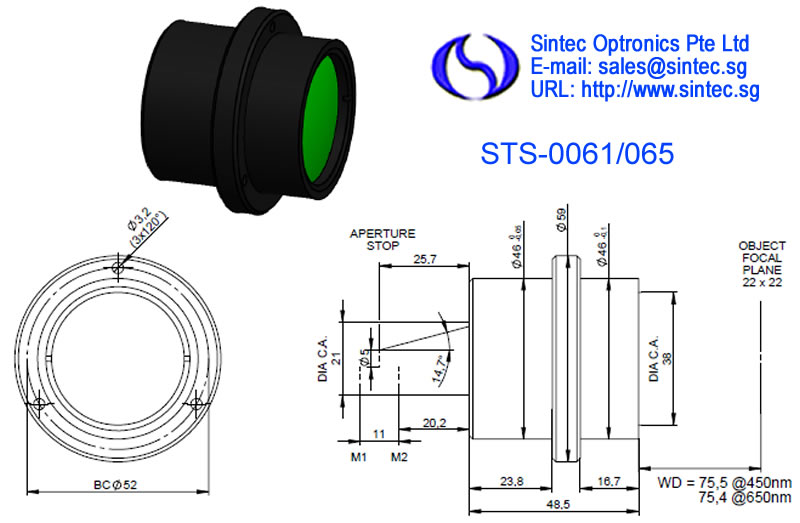

STS-0061/065	60.3	60.5	5	22 x 22	25.7	75.5	75.4	59	48.5	TK 52

405nm+650nm

Model	FL (mm) @405nm	FL (mm) @650nm	EP (mm)	SAR (mm x mm)	AS (mm)	WD (mm) @405nm	WD (mm) @650nm	OD (mm)	Length (mm)	MT

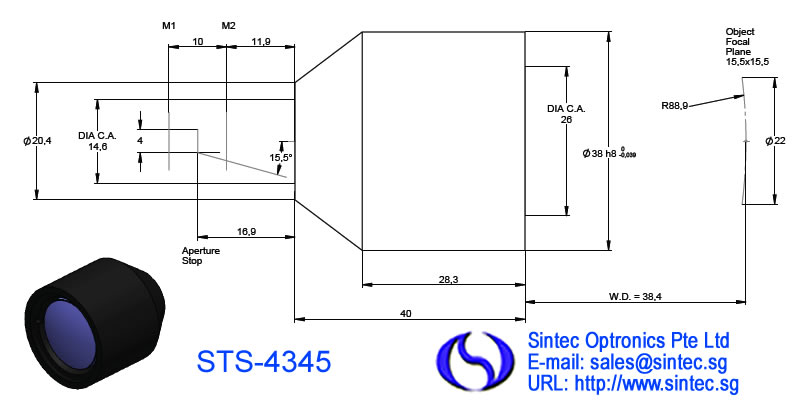

STS-4345	40.2	40.2	4	15.5 x 15.5	16.9	38.4	38.4	38	40	---

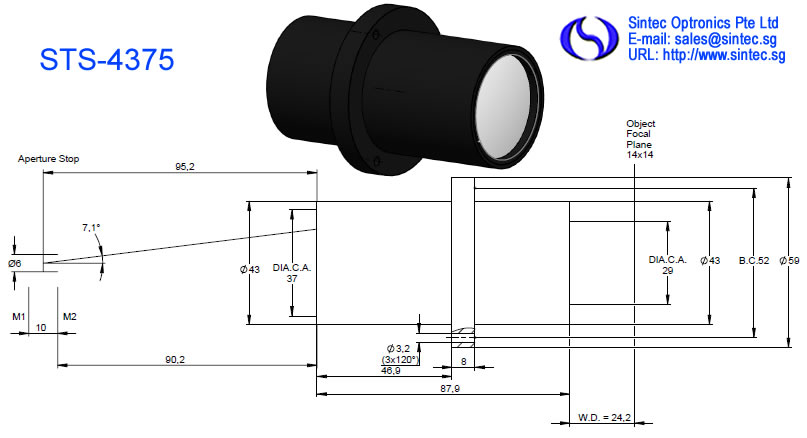

STS-4375	80.2	80.7	6	14 x 14	95.2	24.2	24.2	59	87.9	TK 52

405nm+532nm

Model	FL (mm) @405nm	FL (mm) @532nm	EP (mm)	SAR(mm x mm)	AS(mm)	WD (mm) @405nm	WD (mm) @532nm	OD (mm)	Length (mm)	MT

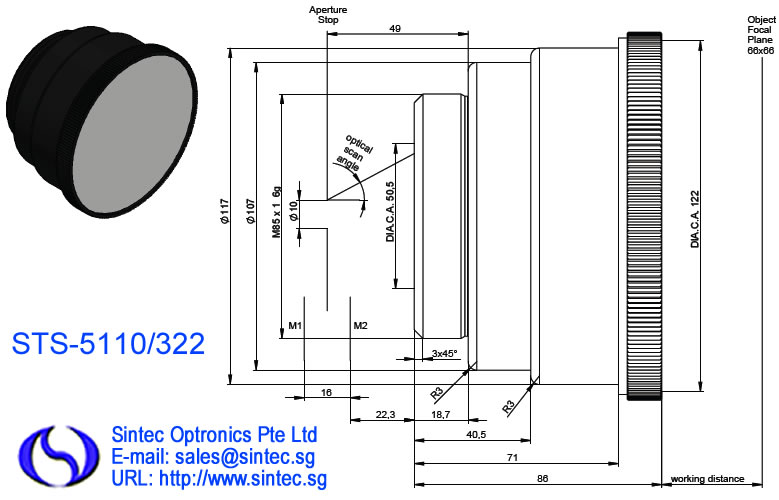

STS-5110/322	98	101.8	10	66 x 66	30.3	125.6	129.6	128	86	M85x1

Wavelength 1850 - 1980nm

STS Series 1850-1980nm Standard F-theta Lenses (Fused Silica)

Model	Wavelength (nm)	FL (mm)	Material	EP (mm)	SAR (mm x mm)	AS (mm)	WD (mm)	OD (mm)	Length (mm)	MT

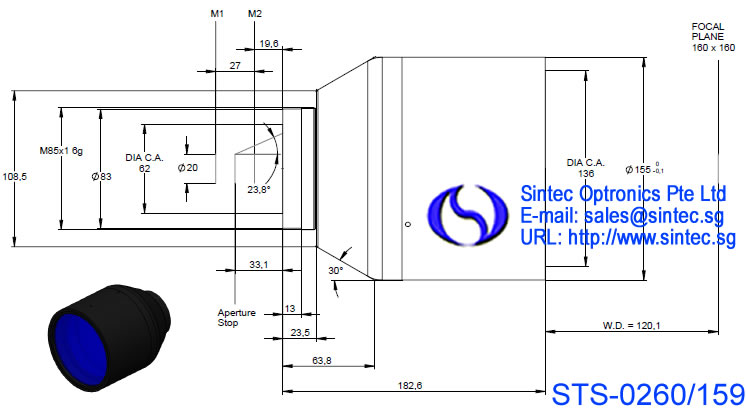

STS-0260/159	1850 - 1980	260	fs	20	160 x 160	33.1	120.1	155	182.6	M85x1

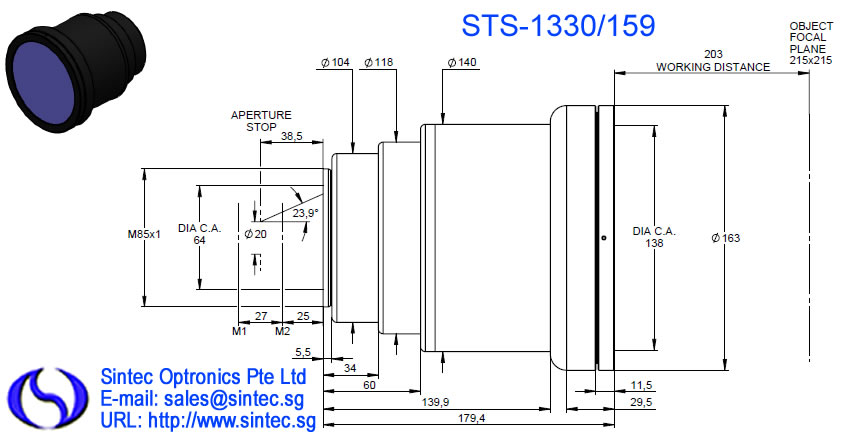

STS-1330/159	1850 - 1980	344.8	fs	20	215 x 215	38.5	203	163	179.4	M85x1

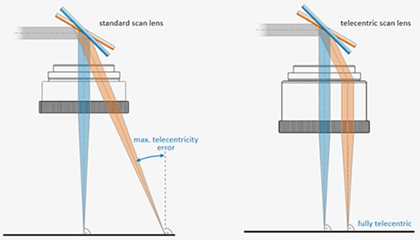

STS Series 1850-1980nm Telecentric F-theta Lenses (Fused Silica)

Model	Wavelength (nm)	FL (mm)	Material	EP (mm)	SAR(mm x mm)	AS(mm)	WD(mm)	OD (mm)	Length (mm)	MT

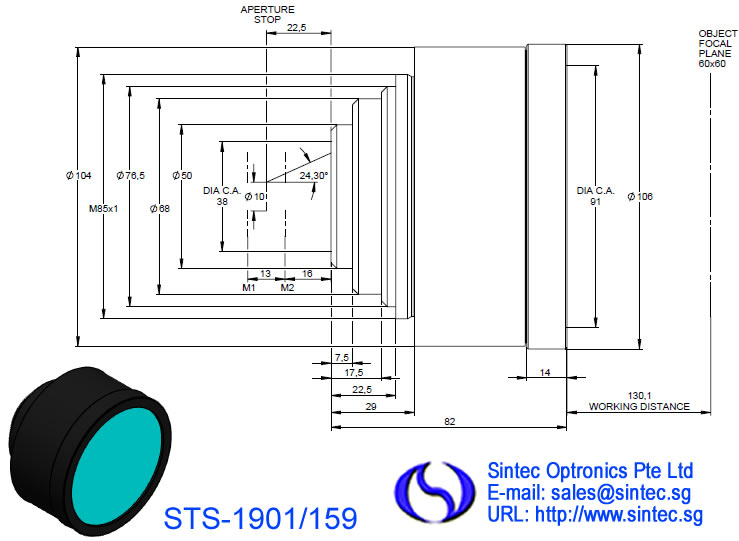

STS-1901/159	1850 - 1980	103.6	fs	10	60 x 60	22.5	130.1	106	82	M85x1

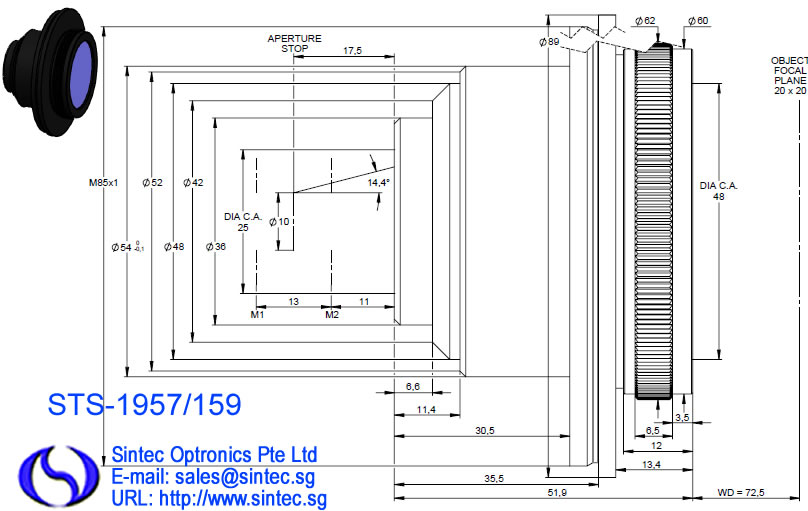

STS-1957/159	1850 - 1980	57.1	fs	10	20 x 20	17.5	72.5	89	51.9	M85x1

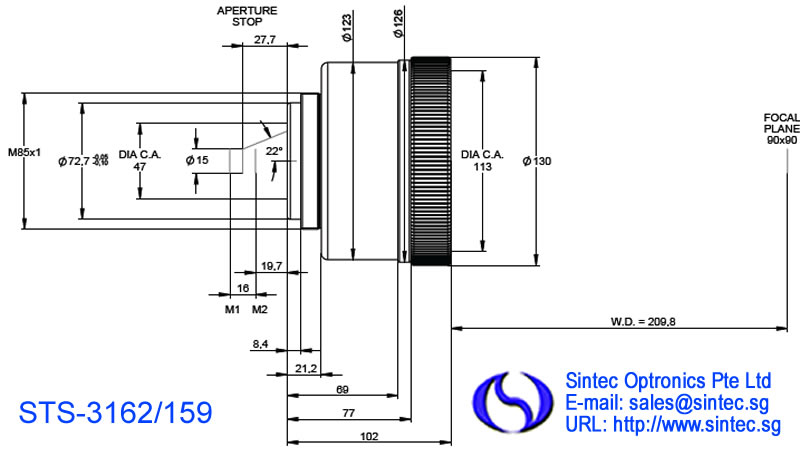

STS-3162/159	1850 - 1980	170.2	fs	15	90 x 90	27.7	209.8	130	102	M85x1

STY Series 1940nm Standard F-theta Lens (Fused Silica)

New Model	Old Model	FL mm	WD mm	EP mm	SA θmax	SAR mm	FSD µm	OD mm	MT
STY-F-160A-14-1940	STY-1940-98-166	166	207.58	14	±24º	Φ139/98x98	40.68	120	M85×1
STY-F-260A-14-1940-2000	STY-1940-2000-175-260	260	323.65	14	±25º	Φ247.5/175x175	64.4	126	M85×1
STY-F-280-1940	STY-1940-190-280	280	346.1	14	±27.5º	Φ269/190x190	71	120	M85×1
STY-F-465-1940	STY-1940-318-465	465	554	14	±27.5 º	Φ446/318x318	117.9	120	M85×1
STY-F-554-1940	STY-1940-380-554	554	655.77	14	±27.5 º	Φ532/380x380	140.49	120	M85×1

STYT Series 1940nm Telecentric F-theta Lens (Fused Silica)

New model	Old model	FL mm	WD mm	EP mm	SA maxi	SAR, mm (round/square)	FSD µm	OD mm	Max IA (o)	MT
STY-F-68T-1940	STYT-1940-26-68	68	88.38	10	±16º	Φ37/26x26	24.1	90	1.25	M85x1
STY-F-100t-1940	STYT-1940-56-100	100	135.66	14	±22.5º	Φ79/56x56	25.5	130	2.1	M85x1

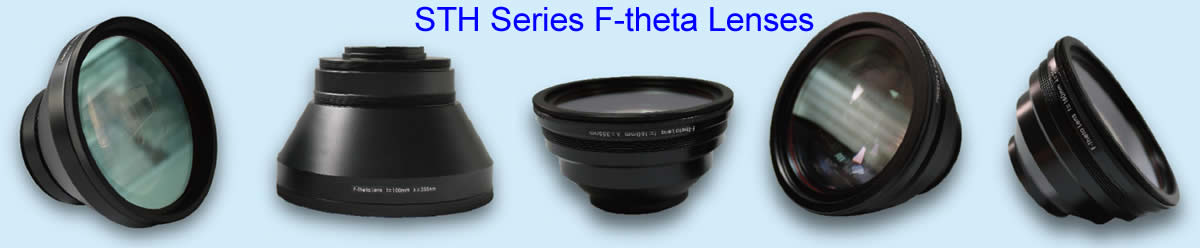

STH Series 1550nm F-theta Lenses

Model	FL mm	WD mm	EP mm	SA max	SAR mm	FSD µm	Mirrors L2/L1 mm	MT
STH-1550-28-63-8	63	77	8	±18º	28x28	22	10/10	M39x1
STH-1550-45-100-8	100	106	8	±18º	45x45	35	10/10	M39x1

STY Series 1550nm Telecentric F-theta Lenses (Fused Silica)

Model	FL mm	WD mm	EP mm	SA maxi	SAR, mm (round/square)	FSD µm	OD mm	Max IA (o)	MT
STY-F-100T-1550	100	126	15	±22º	Φ77/57.5x57.5	18.9	120	2.3	M85x1

STS Series 1550nm F-theta Lenses (Fused Silica)

Model	Wavelength (nm)	FL (mm)	Material	EP (mm)	SAR (mm x mm)	AS (mm)	WD (mm)	OD (mm)	Length (mm)	MT

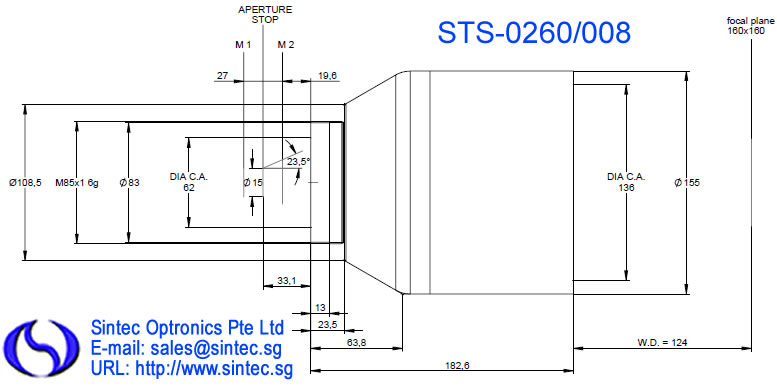

STS-0260/008	1550	264.1	fs	15	160 x 160	33.1	124	155	182.6	M85x1

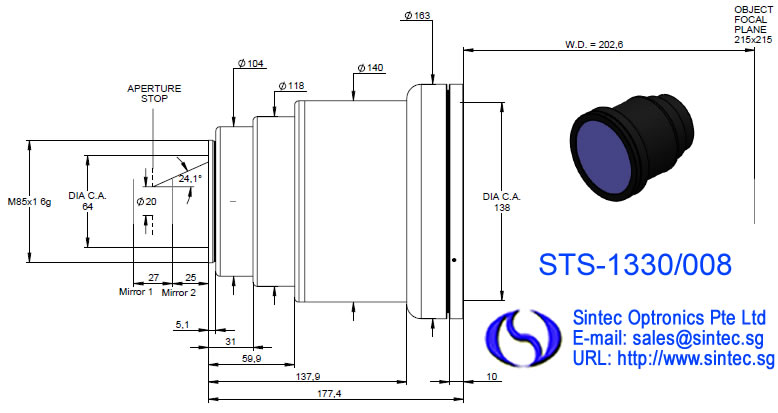

STS-1330/008	1550	342.2	fs	20	215 x 215	38.5	202.6	163	177.4	M85x1

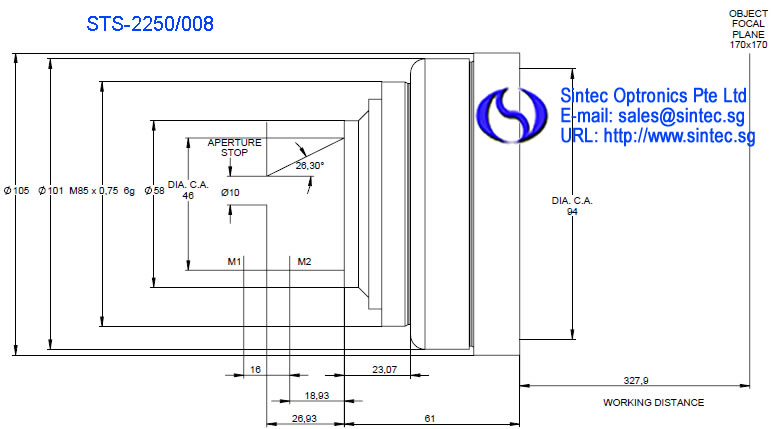

STS-2250/008	1550	264.7	fs	10	170 x 170	26.9	327.9	105	61	M85x1

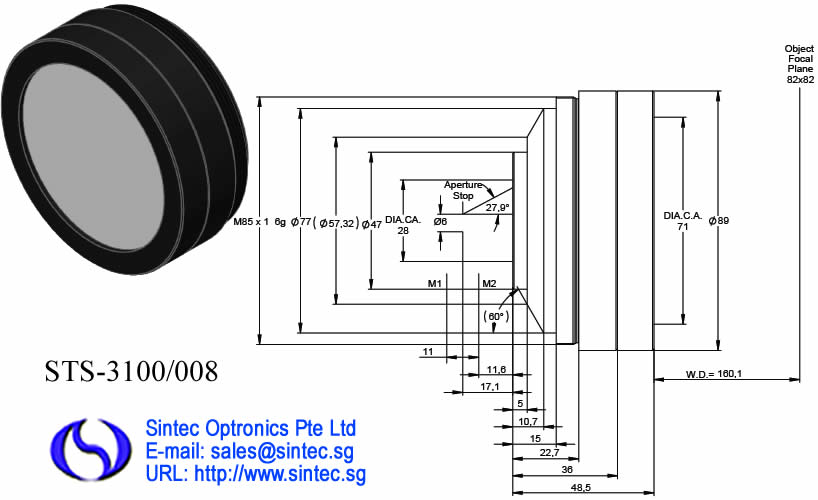

STS-3100/008	1550	118.4	fs	6	82 x 82	17.1	160.1	89	49	M85x1

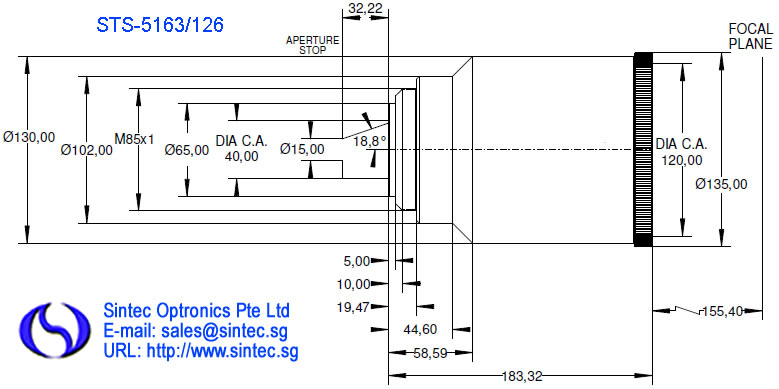

STS-5163/008	1550	163.1	fs	15	73x73	32.2	155.4	135	183.32	M85x1

STS Series 1550nm Telecentric F-theta Lenses

Model	Wavelength (nm)	FL (mm)	Material	EP (mm)	SAR (mm x mm)	AS (mm)	WD (mm)	OD (mm)	Length (mm)	MT

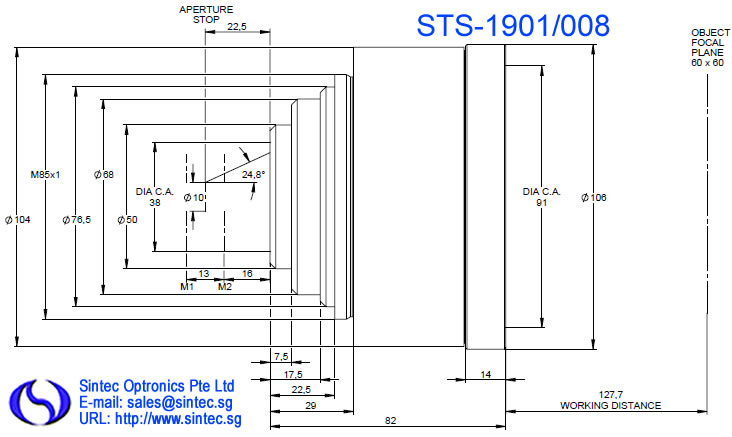

STS-1901/008	1550	101.8	fs	10	60 x 60	22.5	127.7	106	82	M85x1

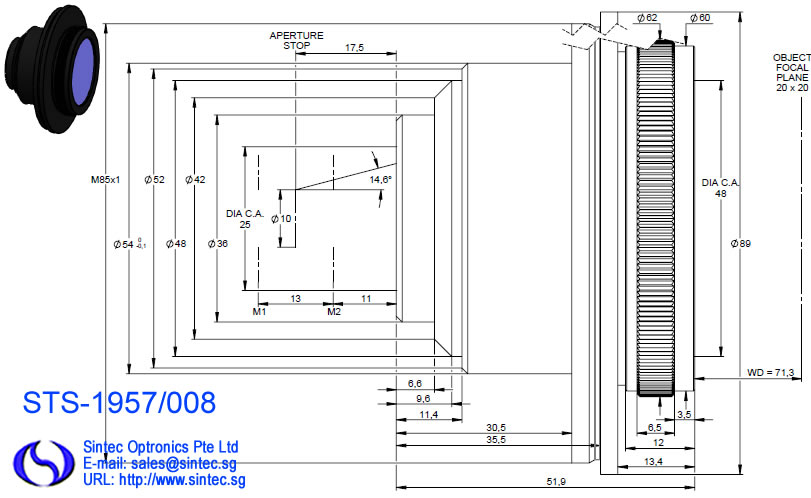

STS-1957/008	1550	56.1	fs	10	20 x 20	17.5	71.3	89	51.9	M85x1

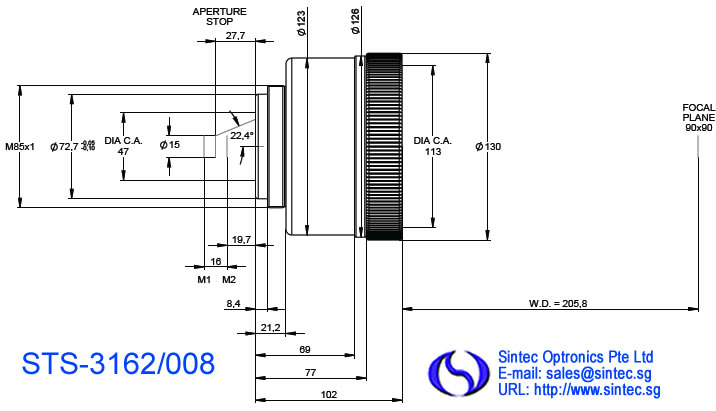

STS-3162/008	1550	167	fs	15	90 x 90	27.7	205.8	130	102	M85x1

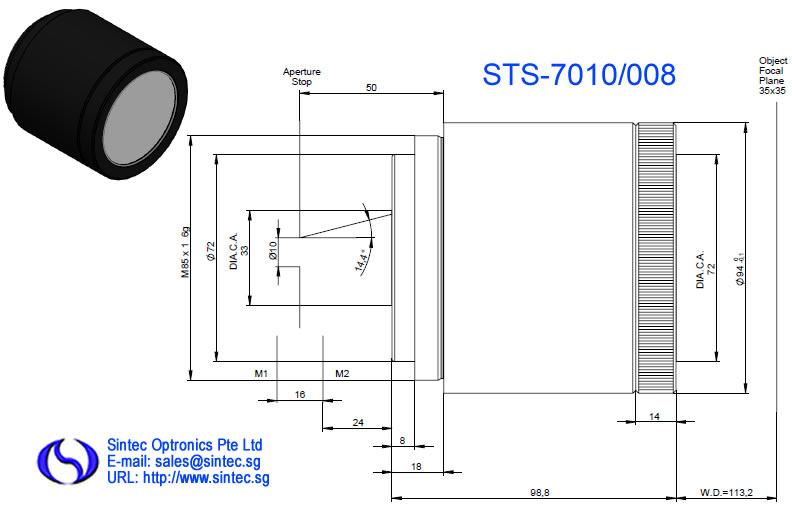

STS-7010/008	1544	100	glass	10	35 x 35	32	113.6	94	98.8	M85x1
STS-7010/008	1560	100	glass	10	35 x 35	32	113.6	94	98.8	M85x1

Wavelength 780-980nm

STY Series 780-980nm F-theta Lens (Optical Glass)

New Model	Old Model	FL mm	WD mm	EP mm	SA	SAR mm	FSD µm	OD mm	MT
STY-F-100-980	STY-980-70-100	100	111.62	12	±28º	Φ100/70x70	16.33	90	M85x1
STY-F-100r-780-980	STY-780-980-70-100R	100	104	12	±28º	Φ100/70x70	15	90	M85x1
STY-F-160-980	STY-980-110-160	160	182.29	12	±28º	Φ158/110x110	25.9	90	M85x1
STY-F-160-20-980	STY-980-100-160	160	181.04	20	±28º	Φ141/100x100	14.62	120	M85x1
STY-F-163-980	STY-980-113-163	163	185	12	±28º	Φ160/113x113	24.43	90	M85x1
STY-F-163-20-980	STY-980-100-163	163	179.61	20	±28º	Φ160/100x100	15.77	115	M85x1
STY-F-165-20-980	STY-980-100-165	165	181.04	20	±28º	Φ141/100x100	14.62	120	M85x1
STY-F-170-30-915-940	STY-915-940-100-170	170	191.97	30	±25º	Φ140/100x100	10.11	140	M85x1
STY-F-170-30-980	STY-980-100-170	170	191.97	30	±25º	Φ144/100x100	10.11	140	M85x1
STY-F-254-14-915-940	STY-915-940-175-254	254	271.07	14-20	±28º	Φ247/175x175	32.5	120	M85x1
STY-F-30-915-980	STY-915-940-156-254	254	286.08	30	±25º	Φ220/156x156	15	140	M85x1
STY-F-254-30-980	STY-980-156-254	254	286.08	30	±25º	Φ220/156x156	15	140	M85x1
STY-F-420-980	STY-980-261-420	420	502.23	30	±25.2º	Φ369/261x261	25.11	140	M85x1
STY-F-510-915		510	565.9	18	±31.5º	Φ565/400X400	47.5	120	M85X1

Remark: STY-980-156-254 and STY-980-261-420 can be used at 940nm & 815nm, too.

STH Series 980nm F-theta Lenses

Model	FL mm	WD mm	EP mm	SA max	SAR mm	FSD µm	Mirrors L2/L1 mm	MT
STH-980-70-100-12	100	114.6	12	±28º	70x70	16	16/16	M85x1
STH-980-110-160-12	160	176	12	±28º	110x110	26	16/16	M85x1

STY Series 980nm Telecentric F-theta Lens (Optical Glass)

New Model	Old Model	FL mm	WD mm	E.P. mm	Scan angle max	SAR, mm (round/square)	Focus size µm	OD mm	Max IA (o)	MT
STY-F-210T-30-980-M95	STYT-532-115-210M95	210	279.63	30	±22º	Φ161/115x115	20	198	3.3	M85x1
STY-F-210T-30-980-M112	STYT-532-115-210M112	210	256.48	30	±22.5º	Φ161/115x115	20	198	2.42	M112x1

STY Series 915nm F-theta Lens (Fused Silica)

New Model	Old Model	FL mm	WD mm	EP mm	Scan angle	SAR mm	FSD µm	OD mm	MT
STY-F-160-20-915	STY-915-100-160	160	203.05	20	±26º	Φ143/100x100	13.4	130	M85x1
STY-F-254-20-915	STY-915-100-170	254	314.17	20	±25º	Φ219/155x155	21.3	130	M85x1
STY-F-330D-20-915	STY-510-550-156-225	330	392.53	20	±28º	Φ325/230x230	27.6	130	M85x1

STH Series 915nm F-theta Lenses

Model	FLmm	WDmm	EPmm	SAmax	SARmm	FSDµm	Mirrors L2/L1mm	MT
STH-915-110-160-12	160	176	12	±28º	110x110	26	16/16	M85x1

STS Series 808nm Standard ƒ-Theta Lenses

Part No.	FL(mm)	SA(±°)	SL(mm)	SAR(mm x mm)	EP(mm)	AS(mm)	Length (mm)	OD(mm)	MT	WD(mm)
STS-0101/094	97.53	28.00	75.71	53x53	10	18.00	40.00	90.00	M85x1	108.90

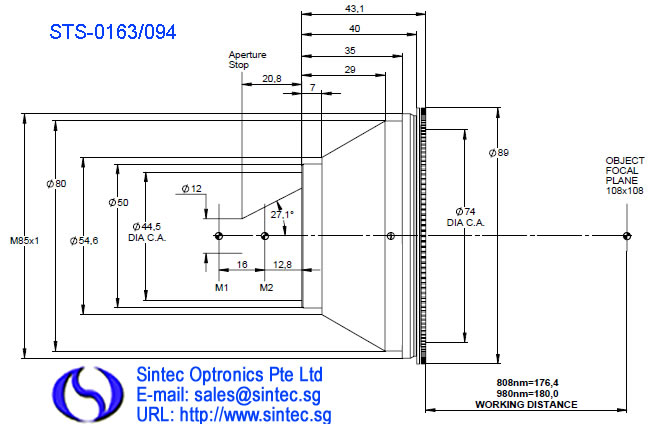

STS-0163/094	158.28	27.60	156.21	108x108	12	20.80	43.30	89.00	M85x1	176.42

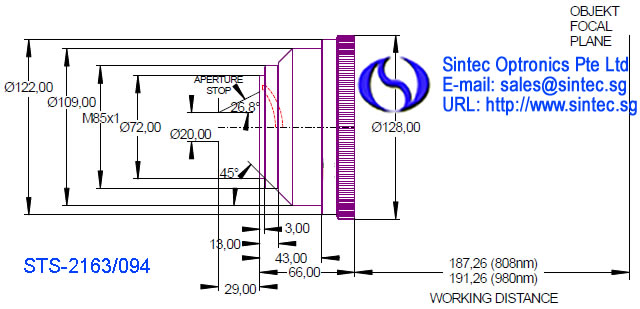

STS-2163/094	158.88	26.80	150.05	103x103	20	29.00	66.00	128.00	M85x1	187.26

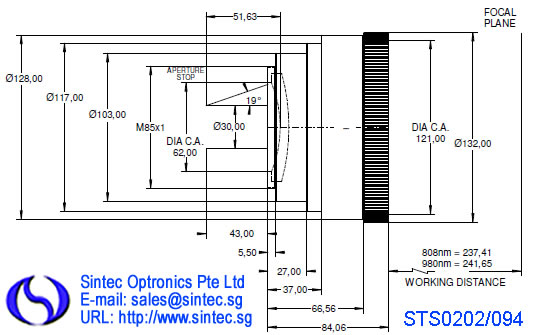

STS-0202/094	196.85	19.00	130.88	90x90	30	43.00	83.10	132.00	M85x1	237.41

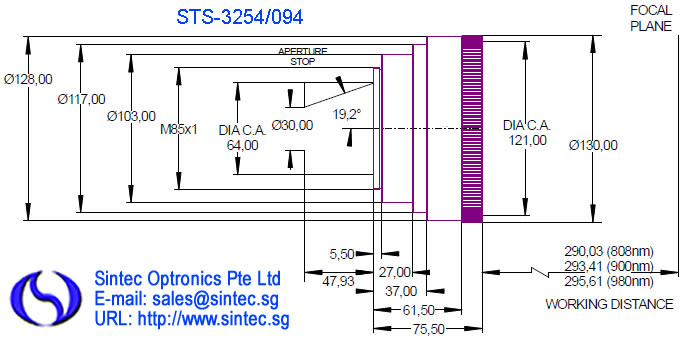

STS-3254/094	248.66	19.20	168.83	115x115	30	47.93	75.50	130.00	M85x1	290.03

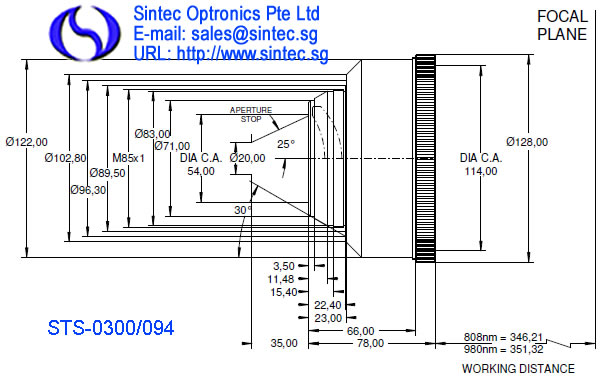

STS-0300/094	294.17	25.00	258.39	175x175	20	35.00	78.00	128.00	M85x1	346.21
STS-0400/094	397.87	21.40	303.07	213x213	20	33.00	53.00	118.00	M85x1	486.87

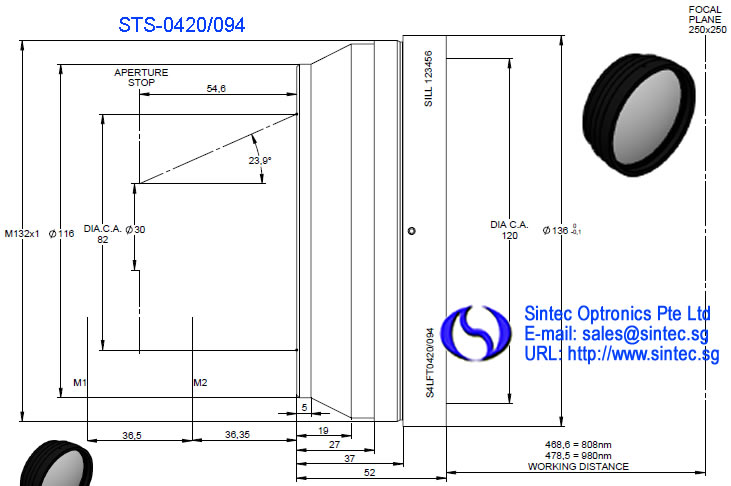

STS-0420/094	410.93	25.20	374.59	250x250	30	54.64	52.00	136.00	M132x1	468.59

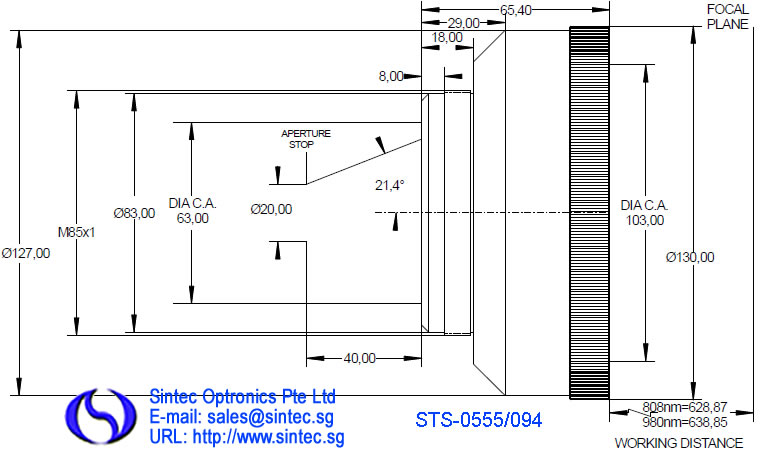

STS-0555/094	556.24	21.40	426.26	290x290	25	40.00	65.40	130.00	M85x1	628.87

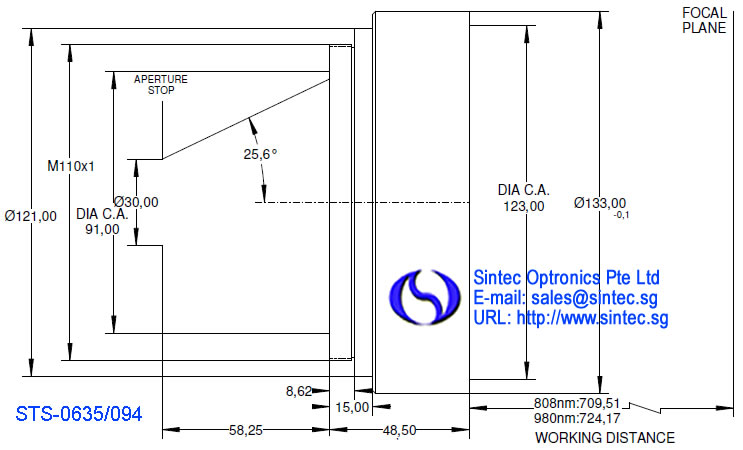

STS-0635/094	636.51	25.60	594.02	415x415	30	58.25	48.50	133.00	M110x1	709.51

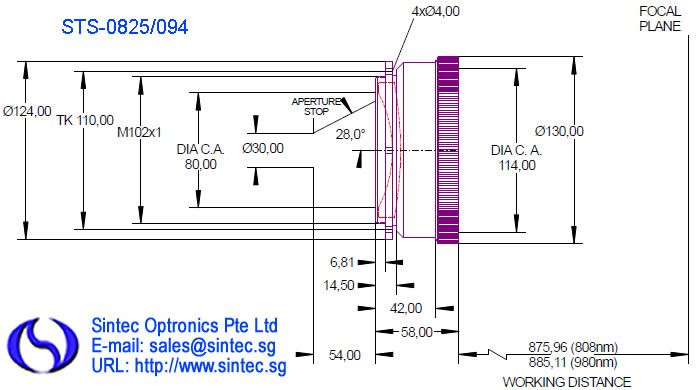

STS-0825/094	803.55	28.00	642.68	450x450	30	54.00	58.00	130.00	M102x1	875.96

STS Series 808nm Telecentric ƒ-Theta Lenses

Part No.	FL(mm)	SA(±°)	SL(mm)	SAR(mm x mm)	EP(mm)	AS(mm)	Length (mm)	OD(mm)	MT	WD(mm)

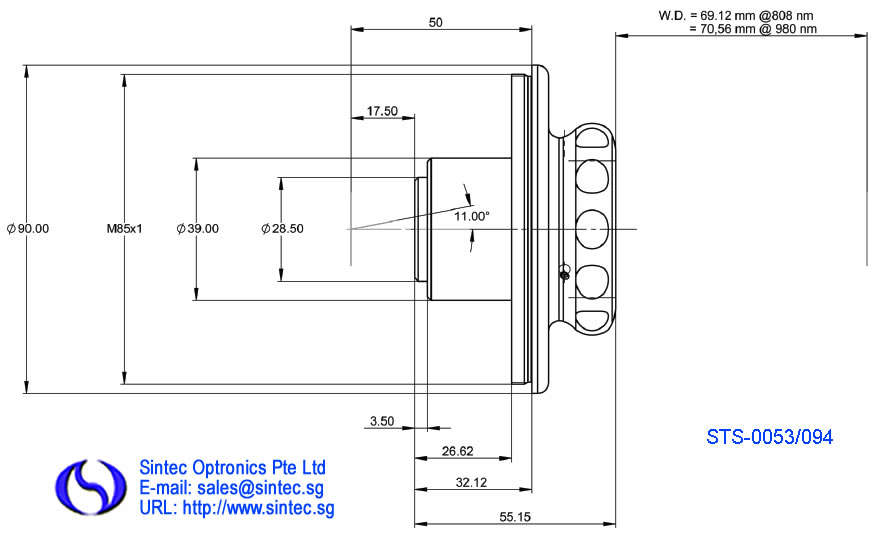

STS-0053/094	56.33	11.00	21.61	14x14	10.00	17.50	55.15	90.00	M85x1	69.12

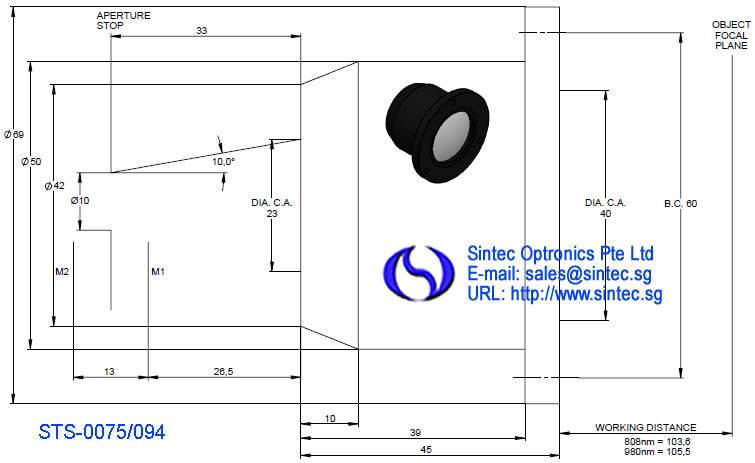

STS-0075/094	76.78	9.80	26.40	19x19	10.00	32.60	45.00	70.00	TK60	103.63

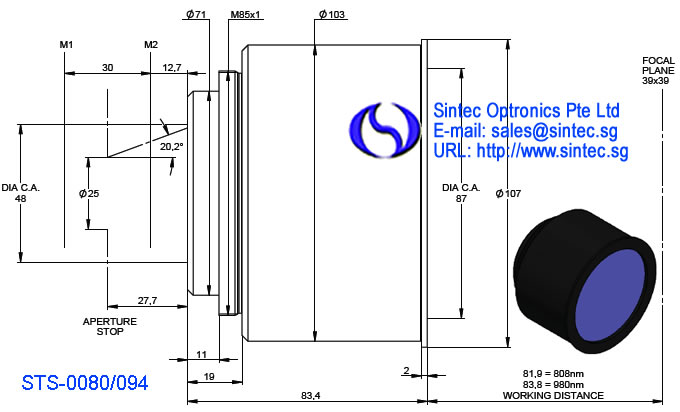

STS-0080/094	79.55	21.20	58.15	39x39	25.00	27.70	83.40	107.00	M85x1	79.53
STS-5100/094	105.63	26.80	96.39	68x68	12.00	35.00	85.50	126.00	M85x1	135.25

STS Series 980nm Standard ƒ-Theta Lenses

Part No.	FL(mm)	SA(±°)	SL(mm)	SAR(mm x mm)	EP(mm)	AS(mm)	Length (mm)	OD(mm)	MT	WD(mm)

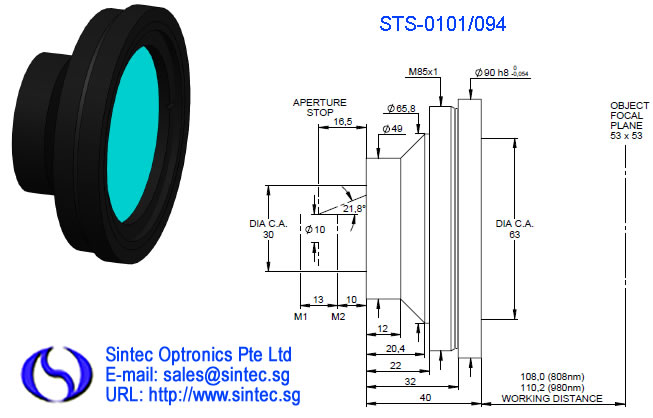

STS-0101/094	99.46	28.00	75.71	53x53	10.00	18.00	40.00	90.00	M85x1	111.17
STS-0163/094	161.38	27.60	156.21	108x108	12.00	20.80	43.30	89.00	M85x1	179.88
STS-2163/094	162.00	26.80	150.05	103x103	20.00	29.00	66.00	128.00	M85x1	191.26
STS-0202/094	200.40	19.00	130.88	90x90	30.00	43.00	83.10	132.00	M85x1	241.65
STS-3254/094	253.12	19.20	168.83	115x115	30.00	47.93	75.50	130.00	M85x1	295.61
STS-0300/094	298.52	25.00	258.39	175x175	20.00	35.00	78.00	128.00	M85x1	351.32

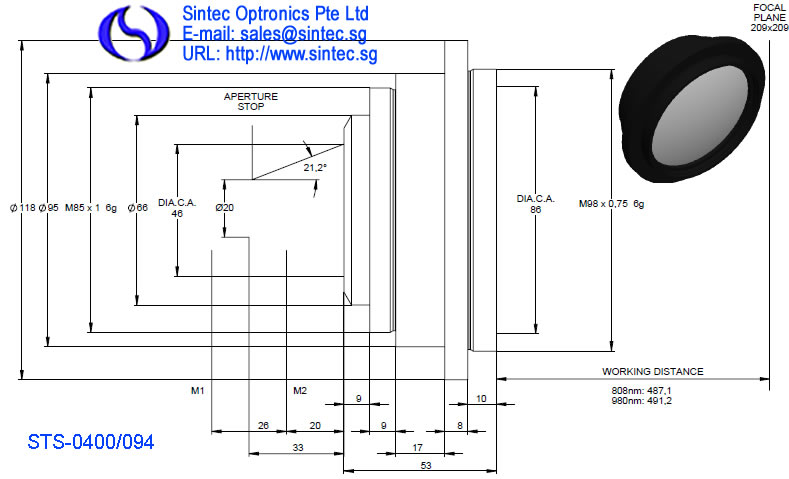

STS-0400/094	400.16	21.40	303.07	213x213	20.00	33.00	53.00	118.00	M85x1	489.16
STS-0420/094	419.58	25.20	374.59	250x250	30.00	54.64	52.00	136.00	M132x1	478.65
STS-0555/094	565.20	21.40	426.26	290x290	25.00	40.00	65.40	130.00	M85x1	638.85
STS-0635/094	649.59	25.60	594.02	415x415	30.00	58.25	48.50	133.00	M110x1	724.17
STS-0825/094	812.18	28.00	642.68	450x450	30.00	54.00	58.00	130.00	M102x1	885.11

STS Series 980nm Telecentric ƒ-Theta Lenses

Part No.	FL(mm)	SA(±°)	SL(mm)	SAR(mm x mm)	EP(mm)	AS(mm)	Length (mm)	OD(mm)	MT	WD(mm)
STS-0053/094	57.39	11.00	21.61	14x14	10	17.50	55.15	90.00	M85x1	70.56
STS-0075/094	78.18	9.80	26.40	19x19	10	32.60	45.00	70.00	TK60	105.56
STS-0080/094	80.96	21.20	58.15	39x39	25	27.70	83.40	107	M85x1	81.30

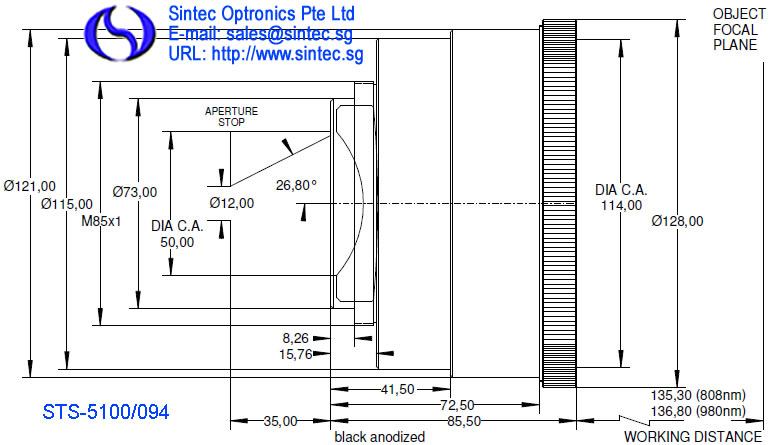

STS-5100/094	107.19	26.80	96.39	68x68	12	35.00	85.50	126	M85x1	137.17

Wavelength 405nm

STH Series 405nm F-theta Lenses

Model	FLmm	WDmm	EPmm	SAmax	SARmm	FSDµm	Mirrors L2/L1mm	MT
STH-405-110-160-12	160	176	12	±28º	110x110	26	16/16	M85x1
STH-405-140-210-12	210	230	12	±28º	140x140	34	16/16	M85x1
STH-405-175-254-16	254	284	16	±28º	175x175	31	16/16	M85x1
STH-405-200-290-16	290	324	16	±28º	200x200	31	16/16	M85x1

STY Series 405nm F-theta Lens (Fused Silica)

New Model	Old Model	FL mm	WD mm	EP mm	SA max	SAR, mm (round/square)	FSD µm	OD mm	MT
	STY-405-300-375	375.4	430.89	10	±31.2º	Φ424/300x300	27.8	116	M92X1
STY-F-750-405	STY-405-520-750	750	839.53	16	±28º	Φ736/520x520	35	120	M85x1
STY-F-840-405	STY-405-600-840	840	941.93	18	±28º	Φ850/600x600	34.59	120	M85x1

STS Series 405nm Standard ƒ-Theta Lenses

Part No.	FL(mm)	SA(±°)	SL(mm)	SAR(mm x mm)	EP(mm)	AS(mm)	Length (mm)	OD(mm)	MT	WD(mm)

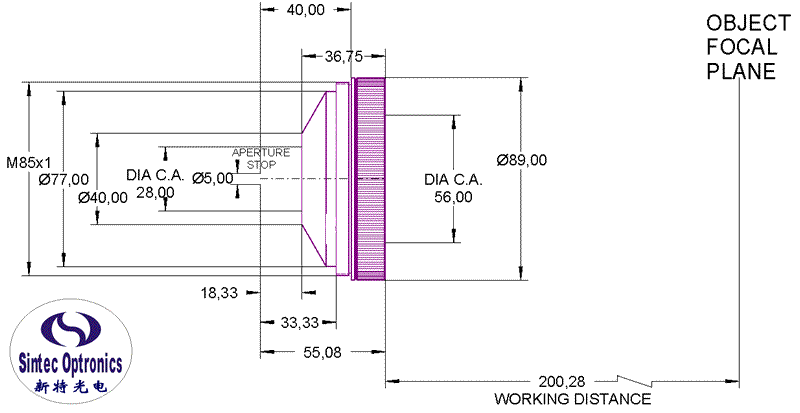

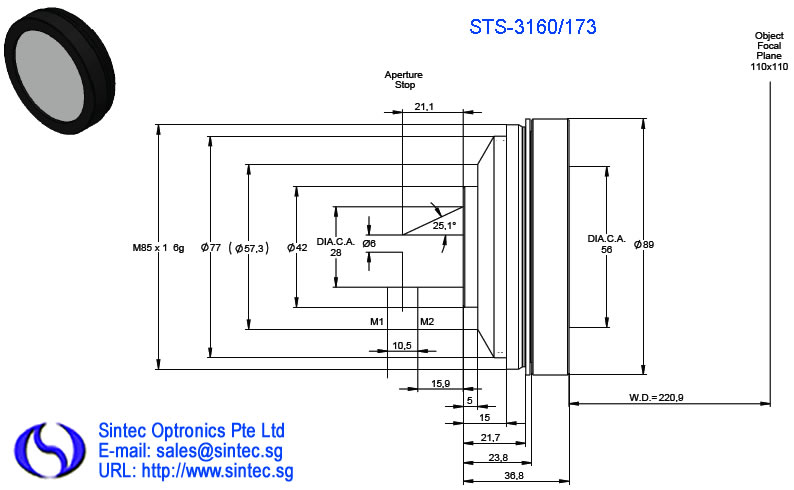

STS-3160/173	175.86	25	154.76	110x110	6.00	21.10	36.75	89	M85x1	220.73

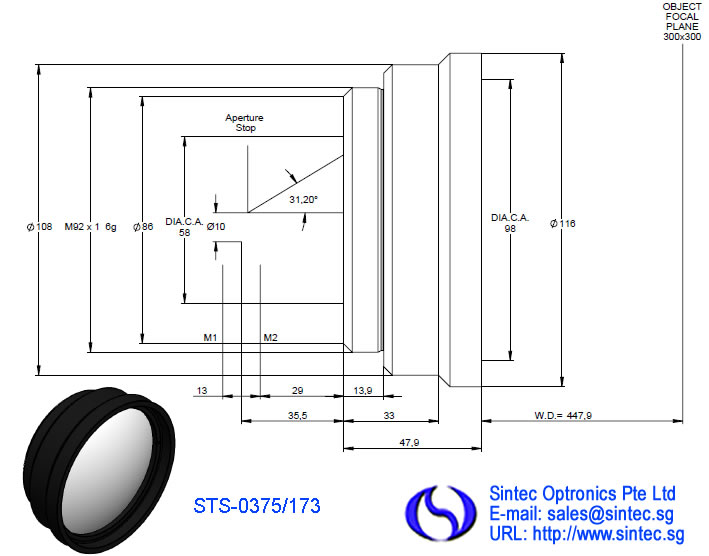

STS-0375/173	375.32	31	420.36	300x300	10.00	35.50	48.00	116	M92x1	447.46

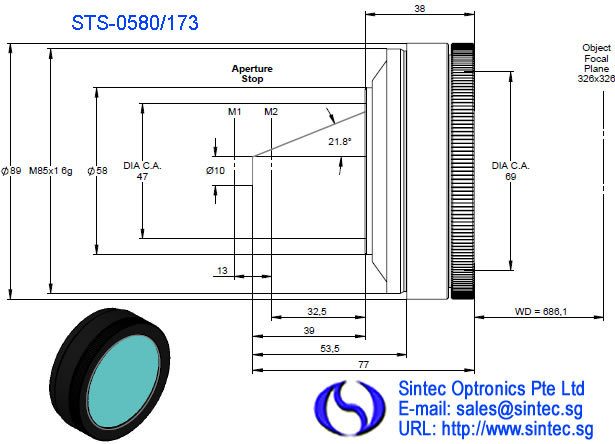

STS-0580/173	594.12	22	466.36	326x326	10.00	39.00	37.96	89	M85x1	686.46

STS Series 405nm Telecentric ƒ-Theta Lenses

Part No.	FL(mm)	SA(±°)	SL(mm)	SAR(mm x mm)	EP(mm)	AS(mm)	Length (mm)	OD(mm)	MT	WD(mm)

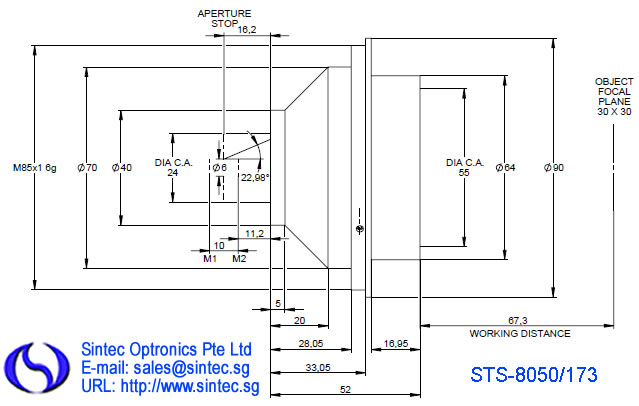

STS-8050/173	55.03	22.80	42.10	29x29	7.50	16.20	52.00	90.00	M85x1	67.20

Wavelength 355nm

STY Series 355nm F-theta Lens (Fused Silica)

New Model	Old Model	FL mm	WD mm	E.P. mm	SA max	SAR, mm (round/square)	FSD µm	OD mm	MT
STY-F-100Q-355	STY-355-65-100	100	121.37	8	±25º	Φ90/65×65	8.36	90	M85x1
STY-F-130-355	STY-355-80-130	130	161.14	10	±25º	113/80x80	8.5	90	M85x1
STY-F-160Q-355	STY-355-100-160	160	193.89	10	±25º	Φ140/100×100	10.3	90	M85x1
STY-F-162B-355	STY-355-110-162	162	200.82	12	±28º	Φ155/110×110	8.77	105	M85x1
STY-F-170R-355	STY-355-105-170	170	210.19	10	±25º	Φ148/105×105	11.04	90	M85x1
STY-F-210R-355	STY-355-135-210	210	250.55	10	±25º	Φ190/135×135	13.6	90	M85x1
STY-F-210C-355	STY-355-130-210	210	236.91	15	±25º	Φ185/130×130	9.1	120	M85x1
STY-F-235-355	STY-355-103-235	235	189.02	10	±17.4’’	Φ146/103×103	15.27	90	M85x1
STY-F-254Q-355	STY-355-175-254-10	254	300.72	10	±25º	Φ247.5/175×175	16.4	90	M85x1
STY-F-254C-355	STY-355-170-254-14	254	318.21	14	±27º	Φ241.2/175×175	11.79	120	M85x1
STY-F-255B-355	STY-355-175-255	255	313.53	10	±28º	Φ221/175×175	16.57	120	M85x1
STY-F-305B-355	STY-355-201-305	305	365.55	16	±26.7º	Φ285/201×201	12.38	120	M85x1
STY-F-330Q-355	STY-355-195-330	330	390.77	10	±24º	Φ276/195×195	21.43	90	M85x1
STY-F-330B-355	STY-355-203-330	330	383.39	14	±25º	Φ288/203×203	15.3	120	M85x1
STY-F-350C-355	STY-355-216-350	350	409.61	10	±25º	Φ305/216×216	16.24	120	M85x1
STY-F-470C-355	STY-355-290-470	470	535.30	16	±25º	Φ410/290×290	19.08	120	M85x1
STY-F-500C-355	STY-355-320-500	500	568.14	14	±26º	Φ452/320×320	23	120	M85x1
STY-F-580B-355	STY-355-360-580	580	663.11	16	±25º	Φ509/360×360	25.22	120	M85x1
STY-F-730Q-355	STY-355-468-730	730	702.04	10	±26º	Φ661/468×468	47.4	90	M85x1
STY-F-750-355	STY-355-520-750	750	823.37	16	±28º	Φ735/520×520	32.3	120	M85x1
STY-F-840-355	STY-355-600-840	840	921.44	18	±29º	Φ850/600×600	30.3	120	M85x1
STY-F-910-355	STY-355-660-910	910	990.84	18	±29.5º	Φ933/660×660	42.2	120	M85x1
STY-F-1090-355	STY-355-780-1090	1090	1177.90	18	±29º	Φ1103/780×780	44.24	120	M85x1
STY-F-1180-355	STY-355-800-1180	1180	1174.87	14	±28º	Φ1130/800x800	54.76	120	M85x1
STY-F-1280-14-355	STY-355-885-1280	1280	1164.59	14	±25º	Φ1251/885x885	59.4	120	M85x1
STY-F-1450-14-355	STY-355-900-1450	1450	1499.77	14	±25º	Φ1272/900×900	67.29	120	M85x1
STY-F-1550-10-355	STY-355-1070-1550	1550	1175.40	10	±28º	Φ1513/1070x1070	174.7	120	M85x1

STH Series 355nm F-theta Lenses (Fused Silica)

Model	FLmm	WDmm	EPmm	SAmax	SARmm	FSDµm	ODxLmm	Mirrors L2/L1, mm	MT

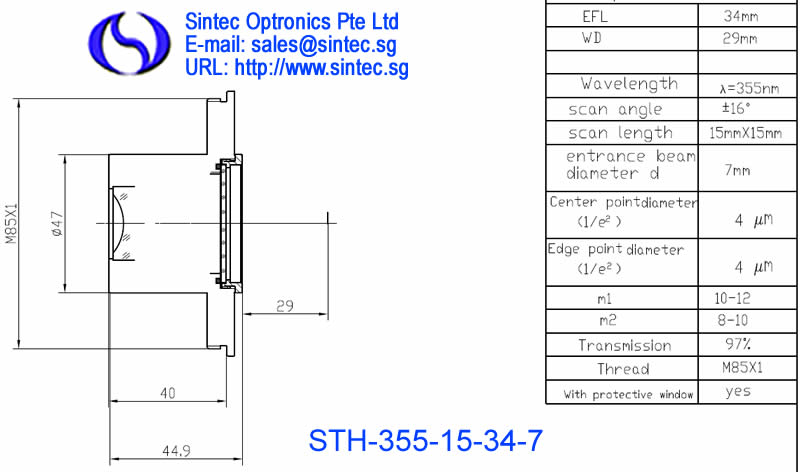

STH-355-15-34-7	34	29	7	±16º	15x15	4	90x44.9	12/10	M85x1

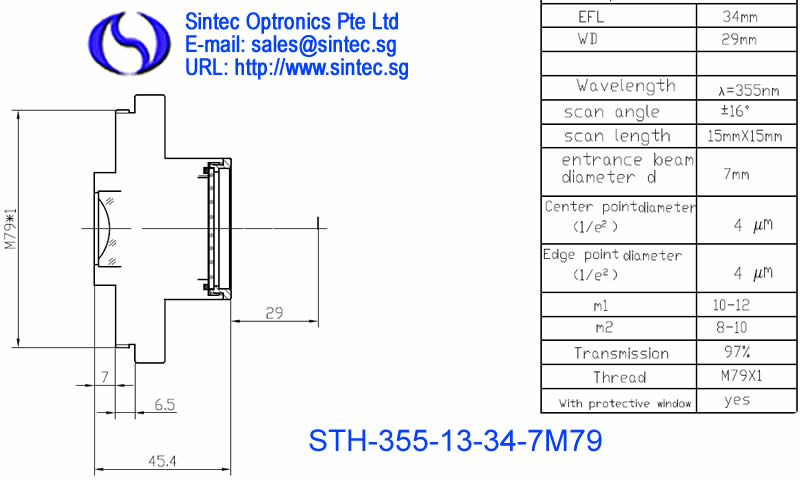

STH-355-13-34-7M79	34	29	7	±16º	13x13	4	85x45.4	12/10	M79x1

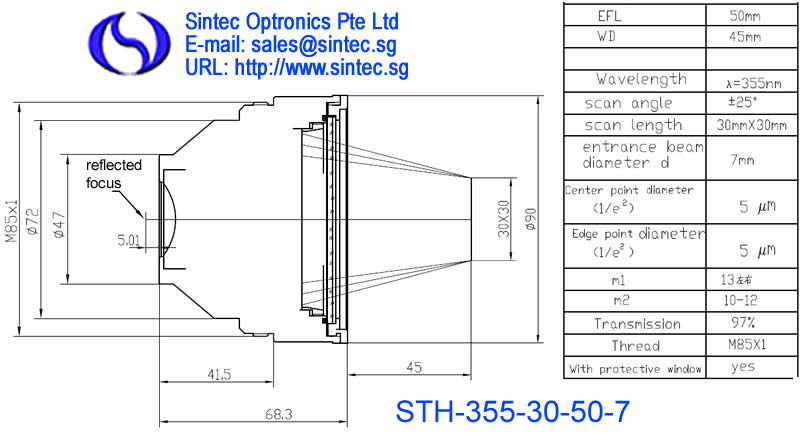

STH-355-30-50-7	50	45	7	±25º	30x30	5	90x68.3	13/12	M85x1
STH-355-50-63-7	63	83	7	±25º	50x50	4	90x60.8	16/16	M85x1

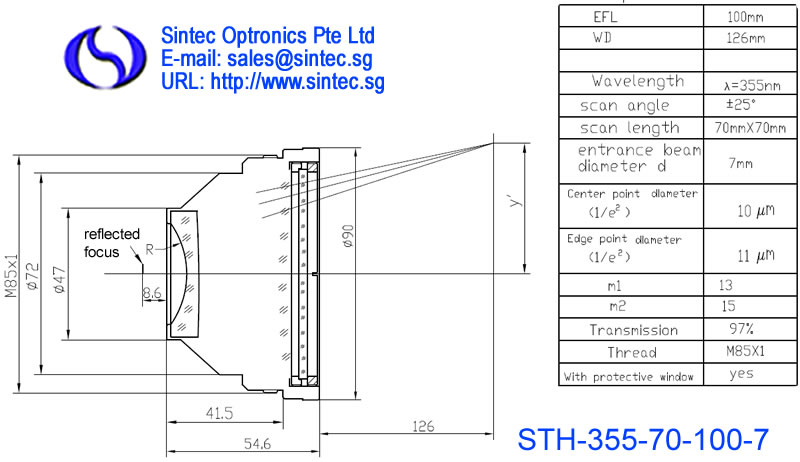

STH-355-70-100-7	100	126	7	±25º	70x70	10	90x54.6	13/15	M85x1

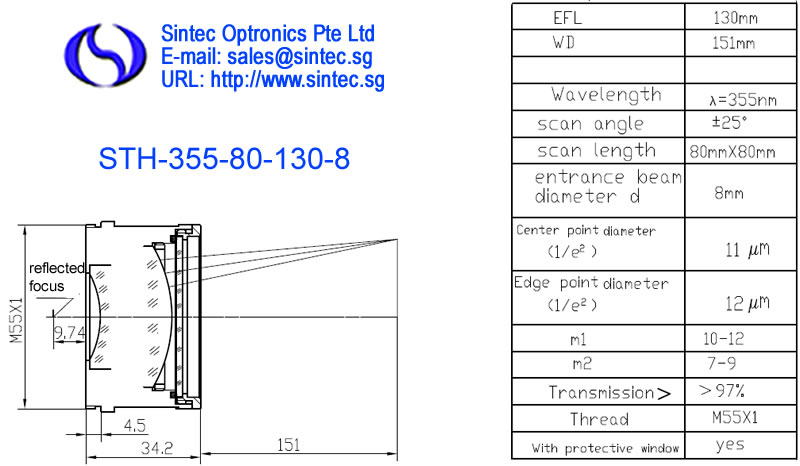

STH-355-80-130-8	130	151	8	±25º	80x80	11	60x34.2	12/9	M55x1

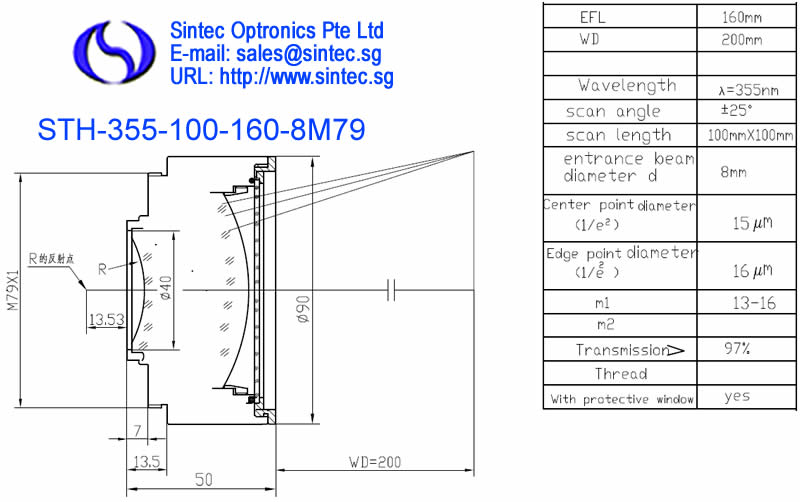

STH-355-100-160-8M79	160	200	8	±25º	100x100	15	90x50	16/16	M79x1

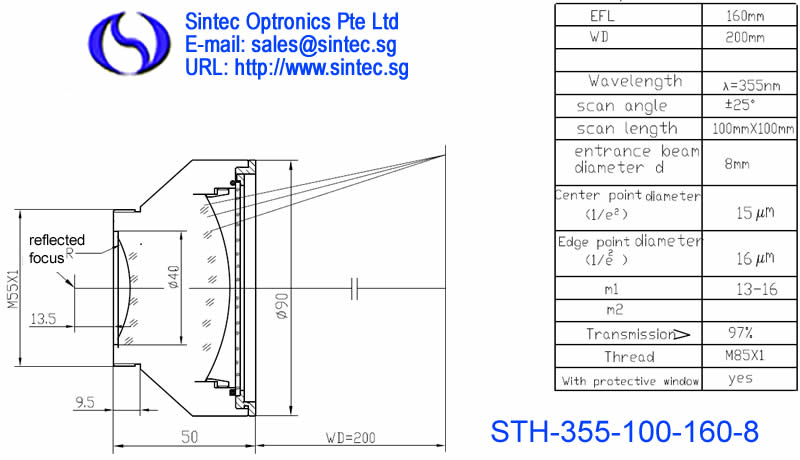

STH-355-100-160-8	160	200	8	±25º	100x100	15	90x50	16/16	M85x1

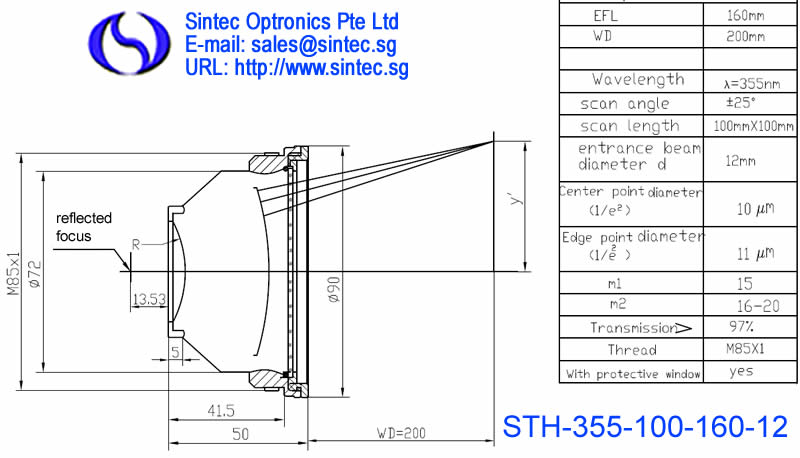

STH-355-100-160-12	160	200	12	±25º	100x100	10	90x50	15/20	M85x1

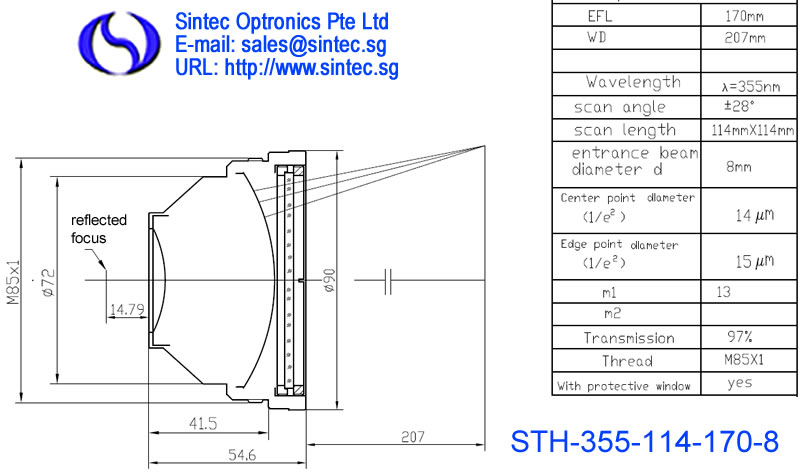

STH-355-114-170-8	170	207	8	±28º	114x114	14	90x54.6	13/13	M85x1

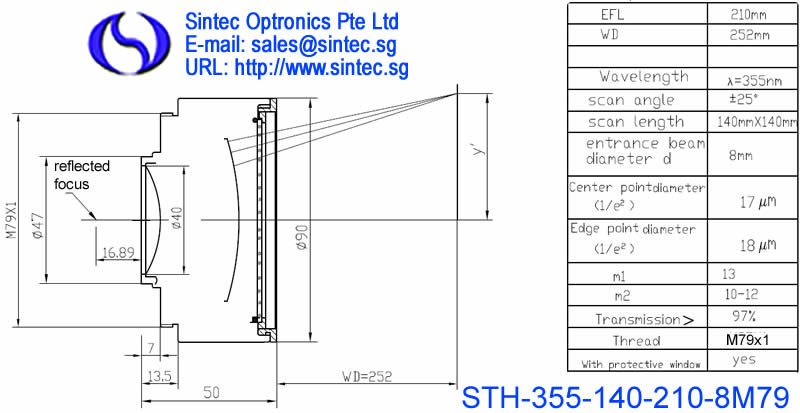

STH-355-140-210-8M79	210	252	8	±25º	140x140	17	90x50	13/12	M79x1

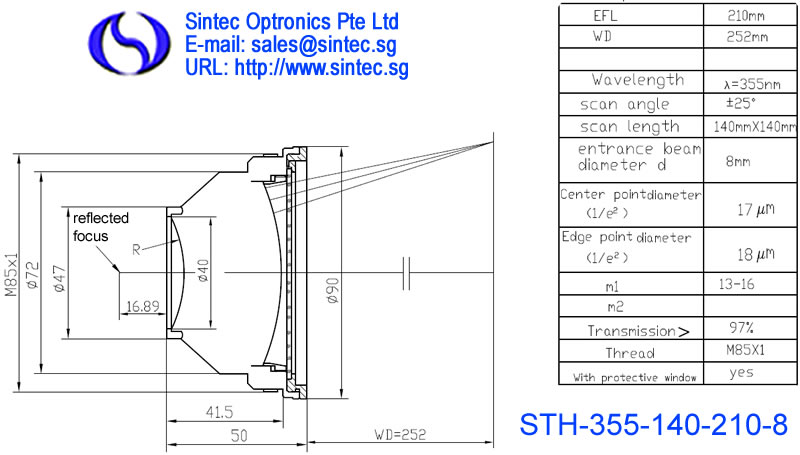

STH-355-140-210-8	210	252	8	±25º	140x140	17	90x50	16/16	M85x1

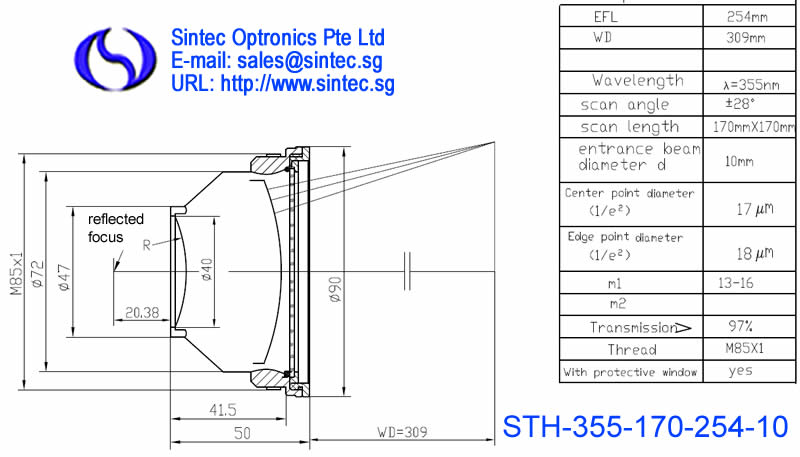

STH-355-170-254-10	254	309	10	±28º	170x170	17	90x50	16/16	M85x1

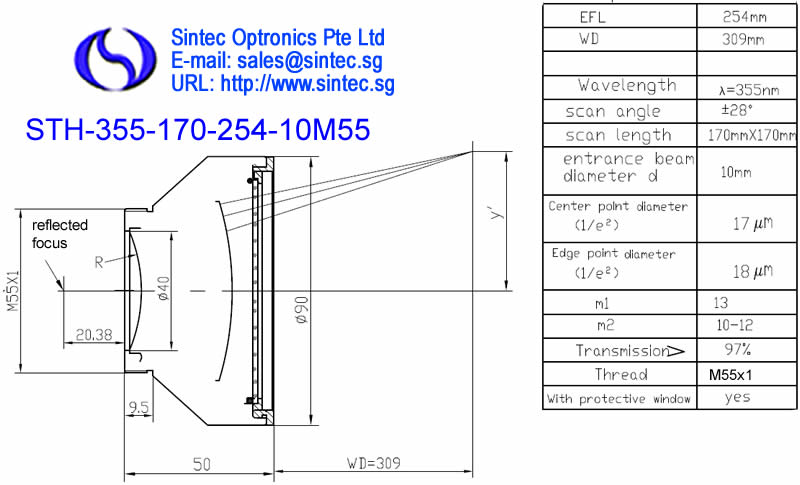

STH-355-170-254-10M55	254	309	10	±28º	170x170	17	90x50	13/12	M55x1

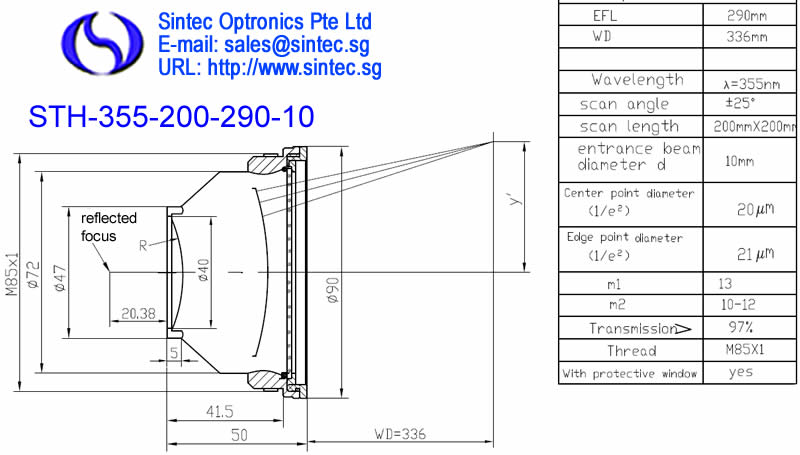

STH-355-200-290-10	290	336	10	±25º	200x200	20	90x50	13/12	M85x1

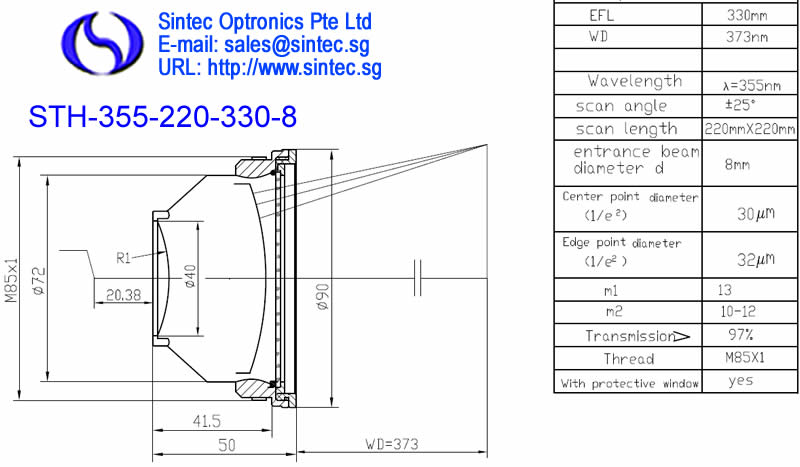

STH-355-220-330-8	330	373	8	±25º	220x220	30	90x50	13/12	M85x1

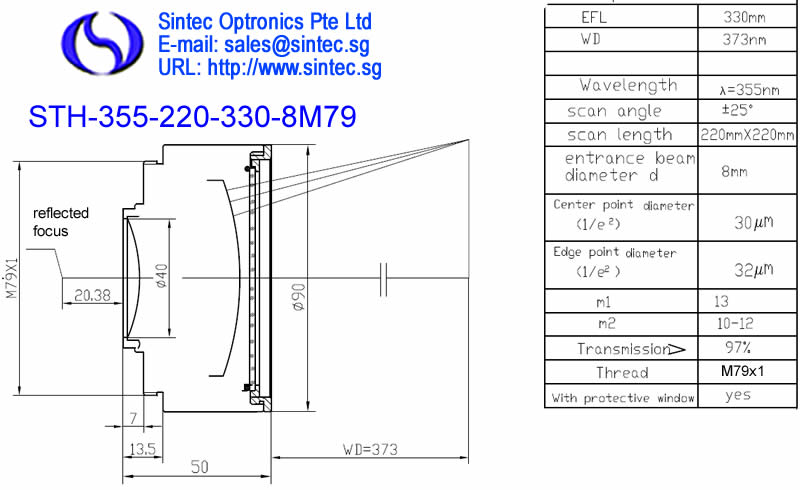

STH-355-220-330-8M79	330	373	8	±25º	220x220	30	90x50	13/12	M85x1

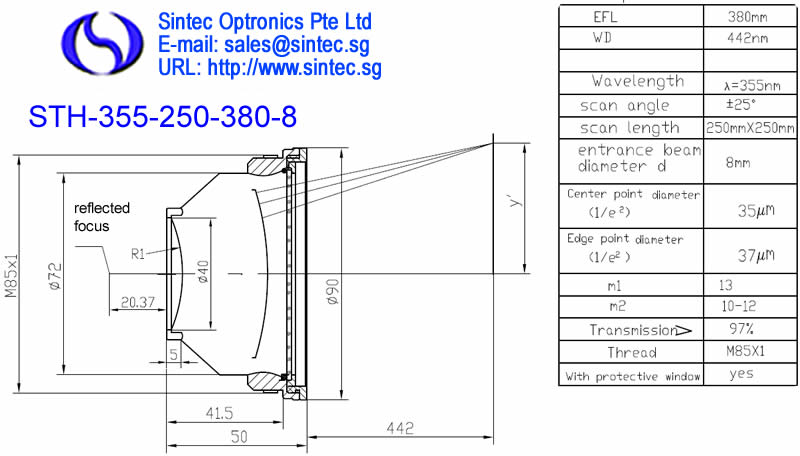

STH-355-250-380-8	380	442	8	±25º	250x250	35	90x50	13/12	M85x1

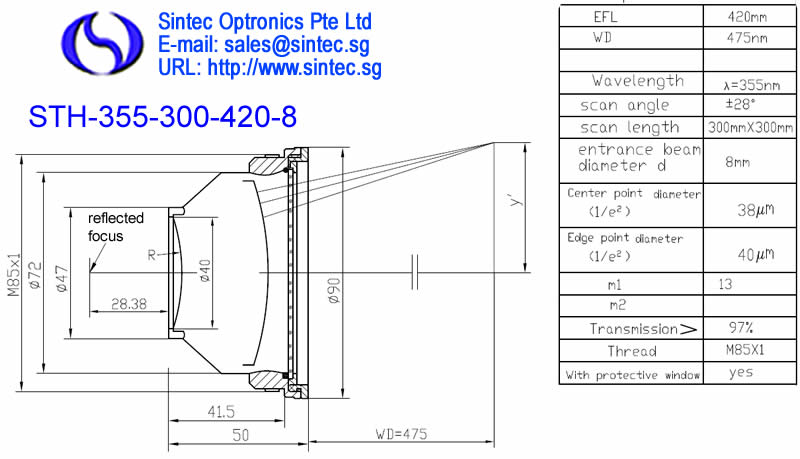

STH-355-300-420-8	420	475	8	±28º	300x300	38	90x50	13/12	M85x1

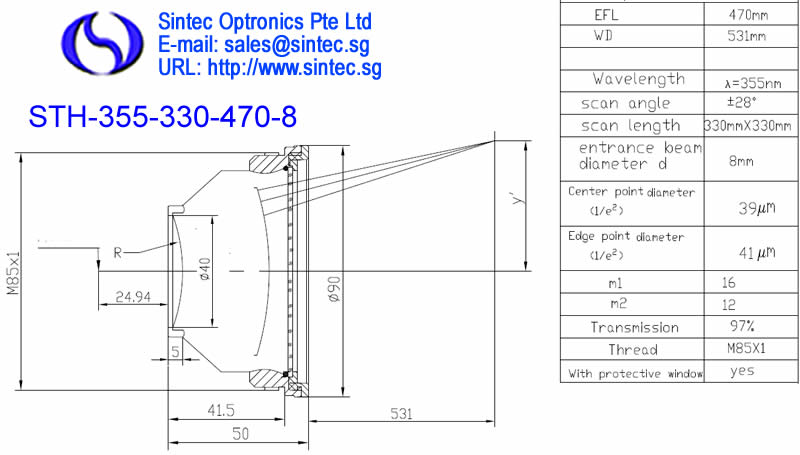

STH-355-330-470-8	470	531	8	±28º	330x330	39	90x50	16/12	M85x1

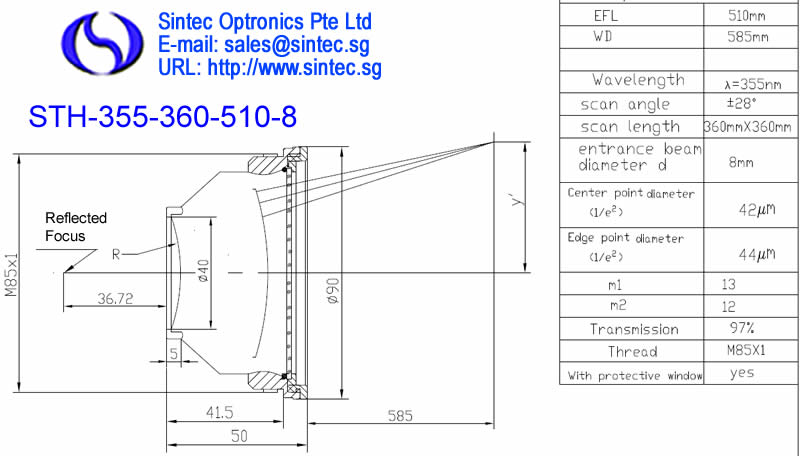

STH-355-360-510-8	510	585	8	±28º	350x350	42	90x50	13/12	M85x1

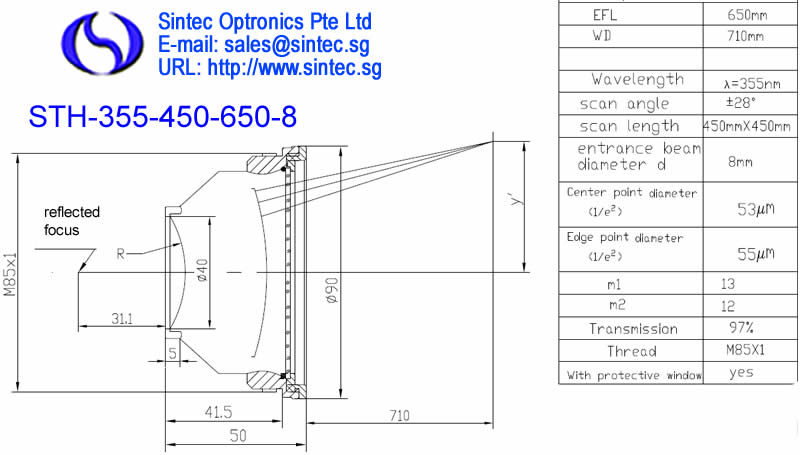

STH-355-450-650-8	650	710	8	±28º	450x450	53	90x50	13/12	M85x1

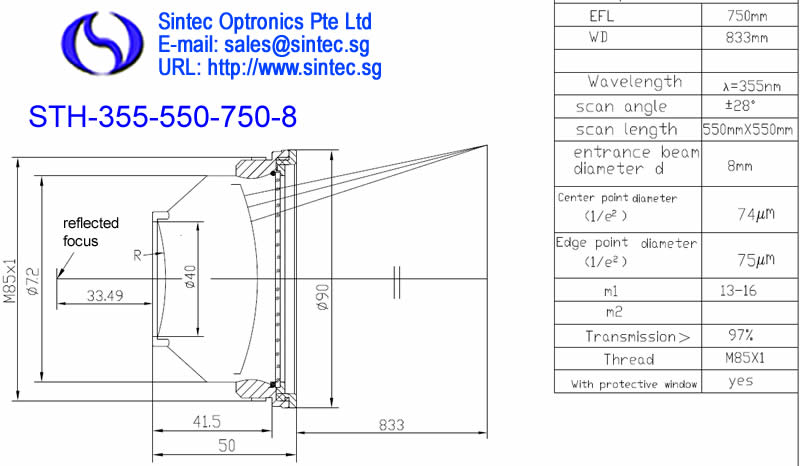

STH-355-550-750-8	750	833	8	±28º	550x550	74	90x50	16/16	M85x1

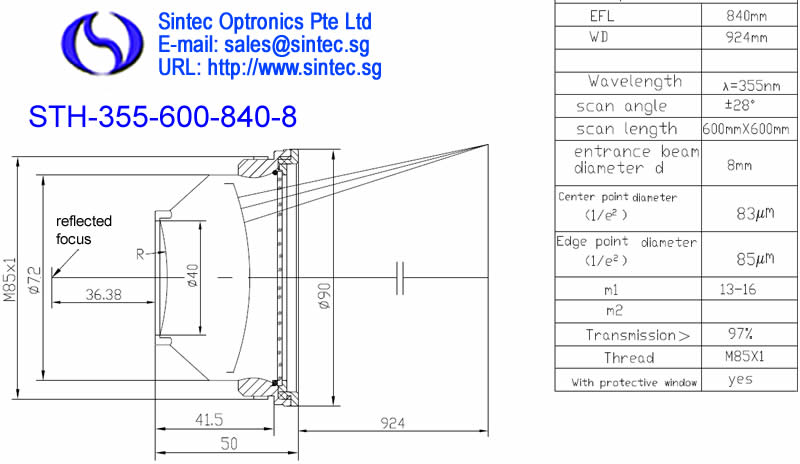

STH-355-600-840-8	840	924	8	±28º	600x600	83	90x50	16/16	M85x1

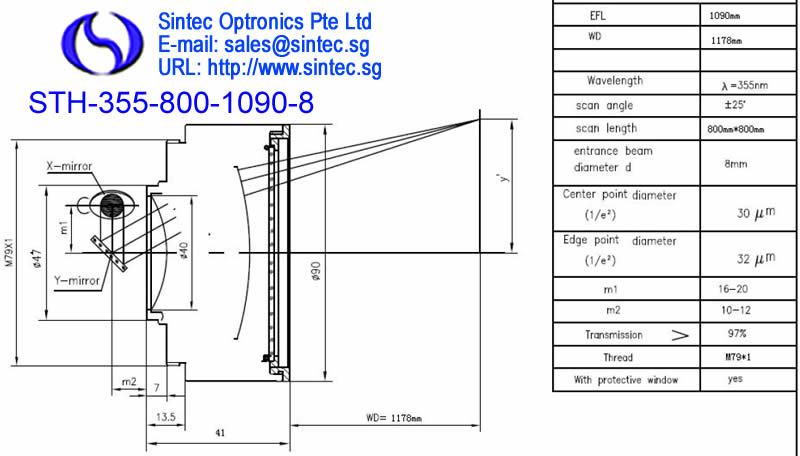

STH-355-800-1090-8	1090	1178	8	±25º	800x800	30	90x41	20/12	M85x1

Remark: M79x1mm or others available upon request.

STHT Series 355nm Tele-centric F-theta Lenses (Fused Silica)

Model	FLmm	WDmm	E.P.mm	SAmax	SAR, mm	FSDµm	Mirrors L2/L1mm	ODxLmm	Max IA(o)	MT
STHT-355-50-63-8	63	90	8	±25º	50x50	8	16/20	90x60.8	1.5	M85x1
STHT-355-60-100-8	100	133	8	±25º	60x60	11	14/20	120x83.8	1.5	M85x1

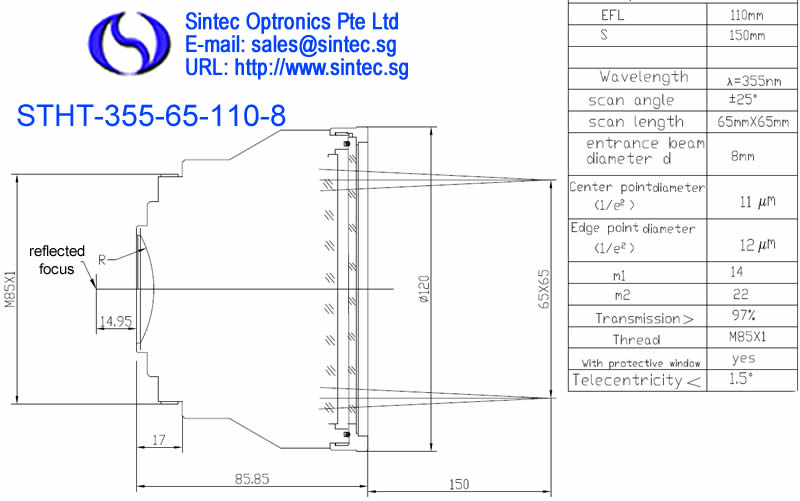

STHT-355-65-110-8	110	150	8	±25º	65x65	11	14/22	120x85.8	1.5	M85x1

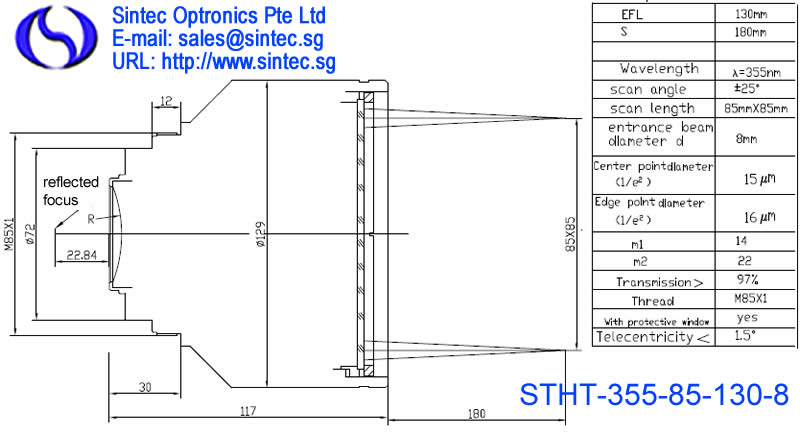

STHT-355-85-130-8	130	180	8	±25º	80x80	15	14/22	129x117	1.5	M85x1

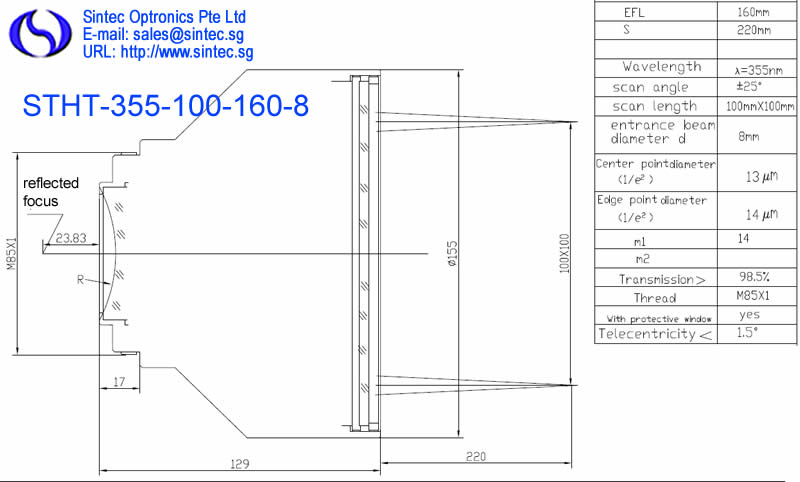

STHT-355-100-160-8	160	220	8	±25º	100x100	13	14/22	155x129	1.5	M85x1

STY Series 355nm Tele-centric F-theta Lens (Fused Silica)

New Model	Old Model	FL mm	WD mm	E.P. mm	SA max	SAR, mm (round/square)	FSD µm	OD mm	Max IA (o)	MT
STY-F-30T-355	STYT-355-8-30	30	35.35	10	±10.5º	Φ8.5/8x8	1.95	90	1.8	M85x1
STY-F-32T-355B	STYT-355-1-32	32	26.34	10	±7.6º	Φ8.5/1x1	3.2	90	2	M85x1
STY-F-60T-355	STYT-355-22-60	60	73.65	10	±16º	Φ31/22x22	11.5	90	1.26	M85x1
STY-F-65T-355	STYT-355-15-65	65	81.1	10	±9.4º	Φ21.2/15x15	4.2	94	1.8	M85x1
STY-F-70T-355	STYT-355-28-74	74	91.35	10	±16º	Φ40/28x28	4.5	90	1.0	M85x1
STY-F-100T-355	STYT-355-50.8-100	100	107.68	14	±20.4º	Φ71/50.8x50.8	6.69	120	1.6	M85x1
STY-F-100T-14-355B	STYT-355-50-100	100	135.48	14	±21º	Φ70.7/50x50	5	120	0.5	M85x1
STY-F-103T-355	STYT-355-51-103	103	136.13	12	±20.4’’	Φ72/51x51	5.58	100	1.93	M85x1
STY-F-110T-355	STYT-355-65-110	110	153.88	8	±24º	Φ92/65x65	8.9	120	1.6	M85x1
STY-F-120T-355	STYT-355-65-120	120	149.1	10	±22.5º	Φ92/65x65	8	118	1.5	M85x1
STY-F-130T-355	STYT-355-60-130	130	159.92	10	±19º	Φ85/60x60	8.45	120	0.98	M85x1
STY-F-167T-10-355	STYT-355-90-167	167	211.25	10	±24º	Φ127/90x90	10.8	130	5.28	M85x1
STY-F-167T-14-355	STYT-355-70-167	167	234.52	14	±18º	Φ99/70x70	7.8	140	0.48	M85x1
STY-F-167T-14-355B	STYT-355-90-166.57	166.57	229.16	14	±22º	Φ127/90x90	7.7	159	<2	M85x1
STY-F-295T-14-355	STYT-355-172-295	295	426.75	14	±23.7º	Φ244/172x172	13	280	1.7	M85x1
STY-F-330T-355	STYT-355-173-330	330	681.58	14	±20º	Φ245/173x173	15.3	270	1.35	M85x1

STW Series 355nm F-theta Lenses

Part No.	FL (mm)	SA (±°)	SL (mm)	SAR (mm)	EP (mm)	FSD (um)	Length (mm)	WD (mm)
STW-355-60-100	100.0	25°	85.0	60x60	6.0	15.5	56.0	130.5
STW-355-76-108	108.3	28.4°	107.7	76x76	6.0	-	49.0	146.0
STW-355-109-174	173.9	25°	153.2	109x109	6.0	-	36.8	218.4
STW-355-112-160	160.0	20°	158.0	112x112	7.0	13.5	50.0	177.79
STW-355-112-160Q	160.0	29°	160.0	112x112	6.0	18	50.36	206.6
STW-355-155-250	250.3	25.4°	219.2	155x155	10.0	-	61.0	309.6
STW-355-160-254	254.0	25°	220.0	160x160	12.0	22.0	55.0	311.0
STW-355-130-269	269.3	19.0°	183.0	130x130	4.0	-	47.0	276.1
STW-355-180-290	290.0	25.5°	255.0	180x180	20.0	40.0	65.0	332.5

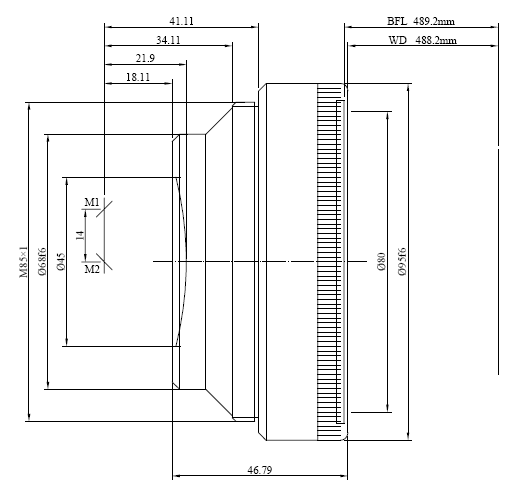

STW-355-250-410	410.0	25°	354.0	250x250	10.0	7.0	46.8	488.2
STW-355-320-580	580.0	22°	455.0	320x320	10.0	27.0	38.0	668.0
STW-355-350-580	580.0	25°	495.0	350x350	15.0	24.0	46.0	689.0
STW-355-500-810	810.0	28°	850.0	500x500	24.0	55.0	57.0	880.0
STW-355-440-831	831.1	21.4°	624.5	440x440	14.0	-	62.5	983.2
STW-355-470-912	919.2	20.8°	678.0	470x470	14.0	-	40.0	1032.0

STS Series 355nm Standard ƒ-Theta Lenses

Part No.	FL(mm)	SA(±°)	SL(mm)	SAR(mm x mm)	EP(mm)	AS(mm)	Length (mm)	OD(mm)	WD(mm)

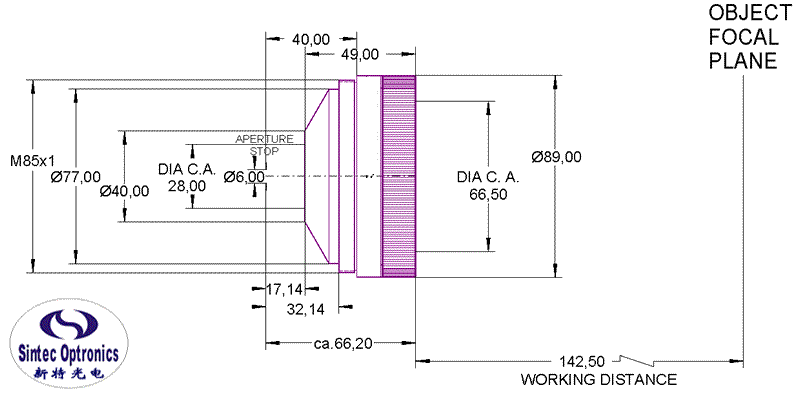

STS-3100/075	108.34	28.40	107.70	76x76	6.00	17.14	49.00	89	145.95
STS-3160/075	173.90	25.00	153.15	109x109	6.00	21.10	36.75	89	218.40
STS-3260/075	250.26	25.40	219.17	155x155	10.00	28.05	61.00	105	309.62

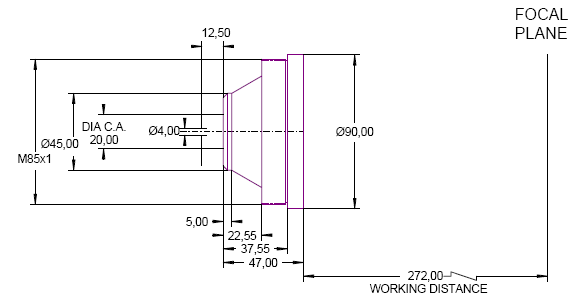

STS-0257/075	269.29	19.00	183.00	130x130	4.00	13.50	47.00	900	276.08

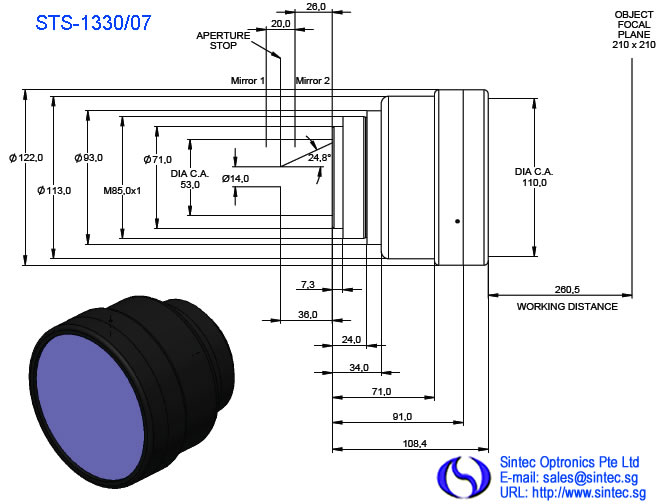

STS-1330/075	328.18	25.20	303.39	212x212	14.00	36.00	108.4	1220	260.21

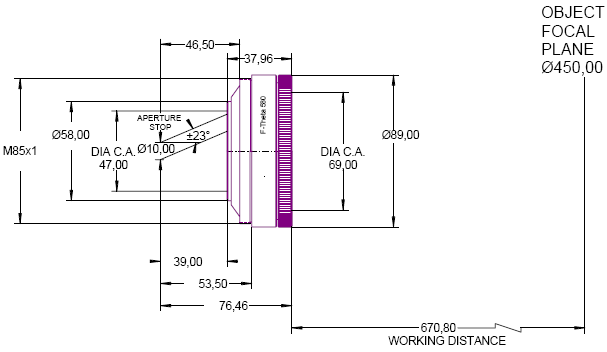

STS-0580/075	580.80	22.00	455.60	320x320	10.00	39.00	37.96	890	671.66

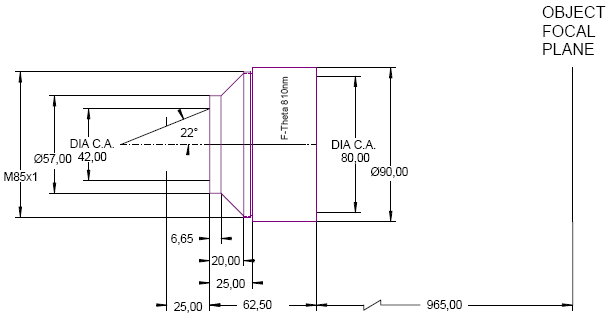

STS-0815/075	831.05	21.40	624.49	440x440	14.00	25.00	62.50	900	983.23

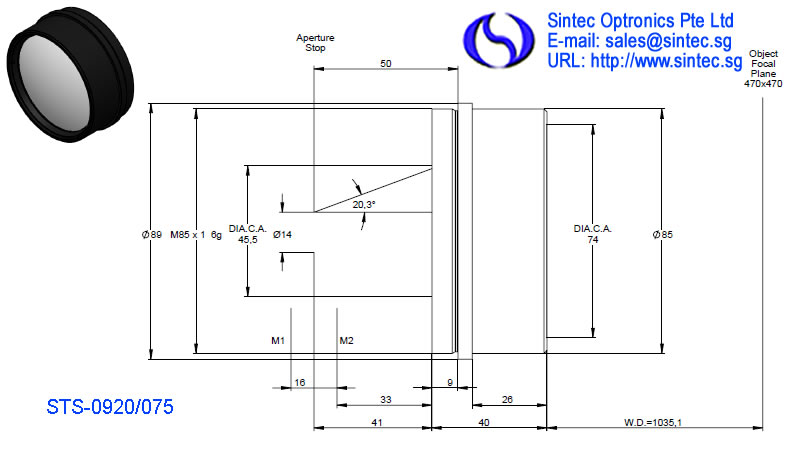

STS-0920/075	919.21	20.80	678.02	470x470	14.00	40.97	40.00	89	1032.00

STS Series 355nm Telecentric ƒ-Theta Lenses

Part No.	FL(mm)	SA(±°)	SL(mm)	SAR(mm x mm)	EP(mm)	AS(mm)	Length (mm)	OD(mm)	WD(mm)

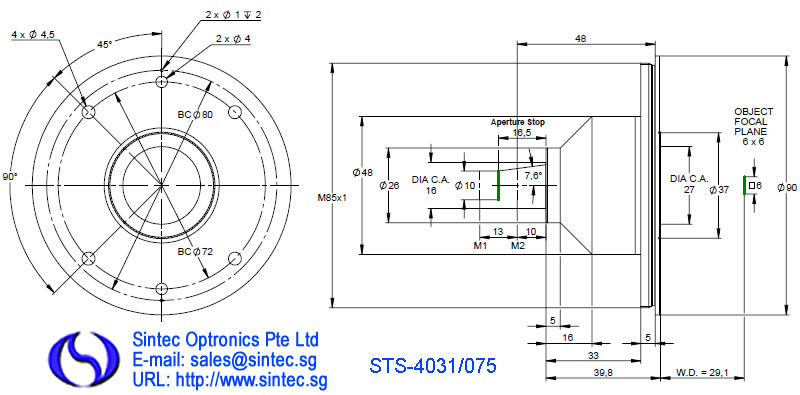

STS-4031/075	32.04	8.00	8.90	6x6	10.00	16.50	39.85	90	28.99
STS-3050/075	56.01	15.20	29.35	20x20	6.00	19.50	39.79	87	75.89

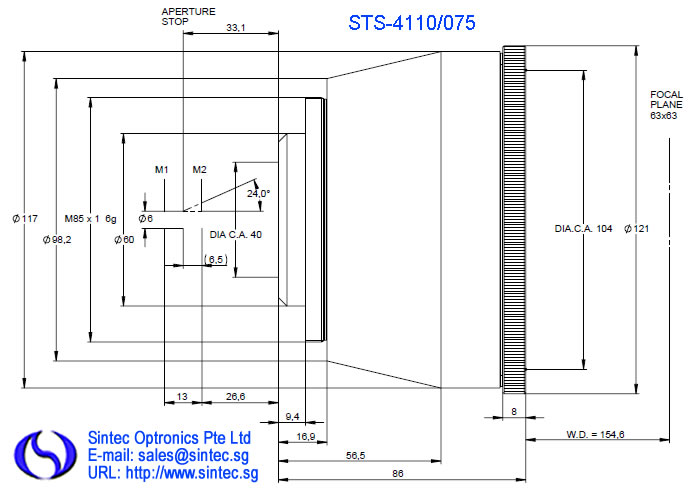

STS-4110/075	109.38	24.20	89.79	63x63	6.00	33.07	86.00	121	154.57

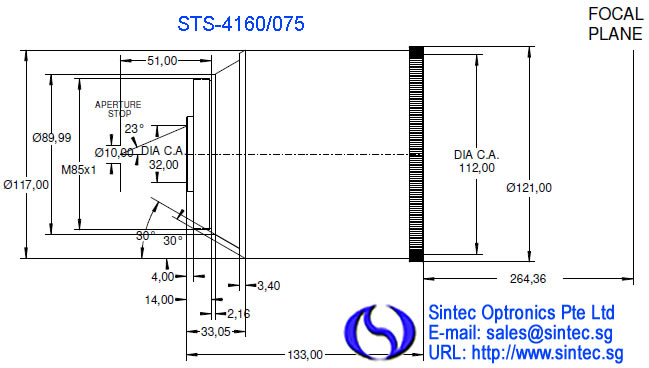

STS-4160/075	167.22	15.60	90.05	64x64	10.00	37.20	133.00	121	264.36

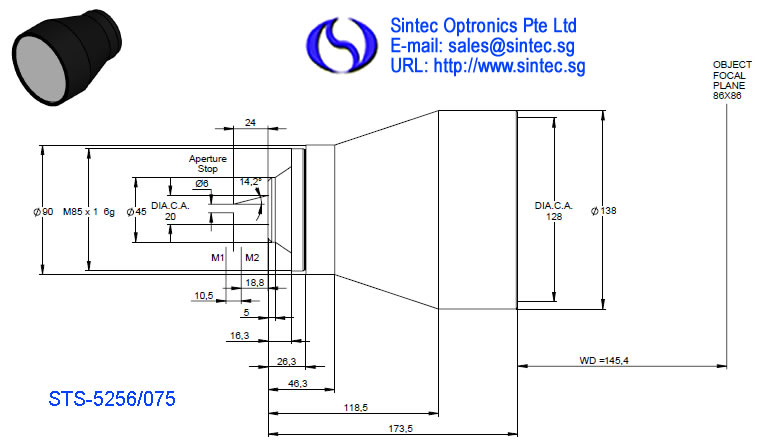

STS-5256/075	256.82	14.60	124.46	86x86	6.00	24.00	173.50	138	145.16

STK Series 355nm Telecentric F-theta Lenses

Model	FL (mm)	EP (mm)	SAR (mm)	SA (deg)	WD (mm)	FSD (mm)	Tele-centricity	OD (mm)	Length (mm)	MT
STK-355-25-70	70	8	Φ36/25x25		78.6	10	<1.0o			M85x1
STK-355-50-103	103	9	Φ70/50x50		143		<1.2o			M85x1
STK-355-90-165	165	10	Φ127/90x90		226	11	<1.0o			M85x1
STK-355-118-220	220	14	Φ167/118x118		280	13	<1.5o			M85x1
STK-355-130-265	265		Φ186/130x130		353	10	<1.0o			M85x1

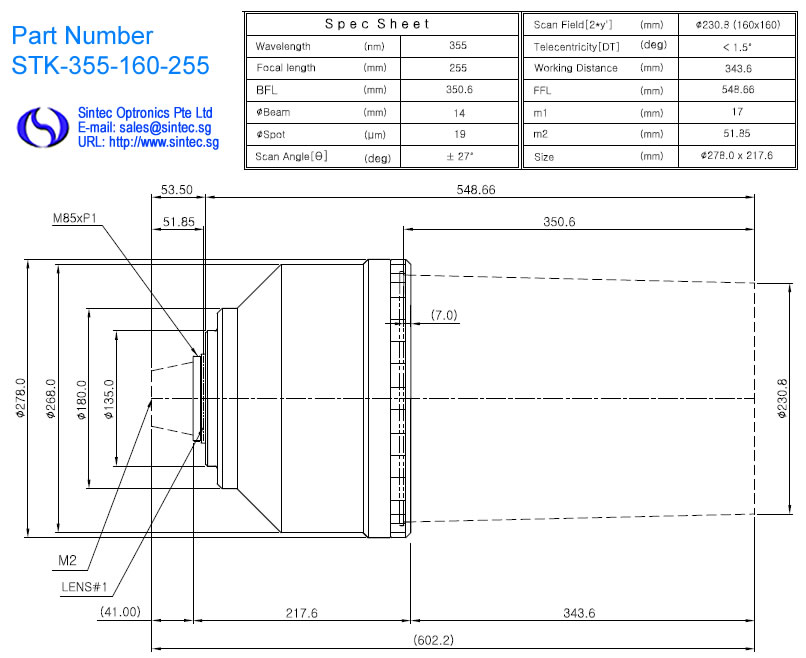

STK-355-160-255	255	14	Φ230.8/160x160	±27	344	19	<1.5o	278	218	M85x1
STK-355-180-320	320	14	Φ254/180x180		422	19	<1.5o			M85x1

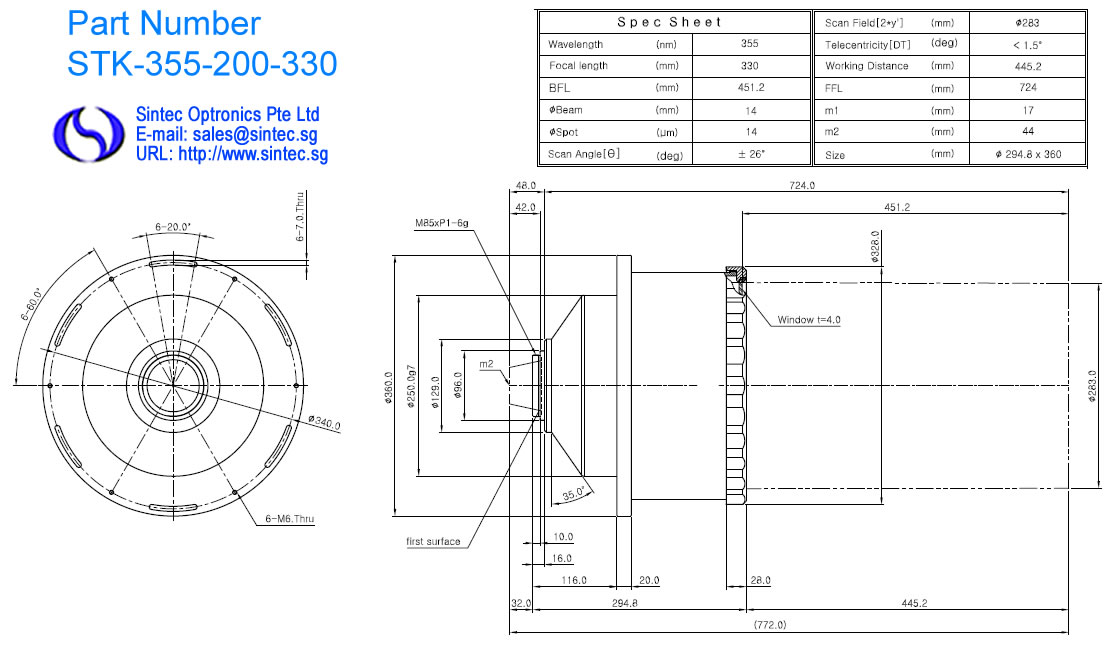

STK-355-200-330	330	14	Φ283/200x200	±26	445	14	<1.5o	295	360	M85x1
STK-355-230-356	356	14	Φ325/230x230		498	22	>1.0 o			M85x1

Wavelength 266nm

STYW Series 266nm F-theta Lenses

Part No.	FL (mm)	SA (±°)	SL (mm)	SAR (mm)	EP (mm)	FSD (um)	Length (mm)	WD (mm)
STW-266-70-100	100.0	28°	95.0	70x70	5.0	8.0	49.0	137.0
STW-266-110-160	160.0	28°	160.0	110x110	5.0	10.0	36.7	200.0
STW-266-90-254	254.0	18°	156.0	90x90	4.0	16.0	47.0	25.0

STS Series 266nm Standard ƒ-Theta Lenses

Part No.	FL(mm)	SA(±°)	SL(mm)	SAR(mm x mm)	EP(mm)	AS(mm)	Length (mm)	OD(mm)	MT	WD(mm)

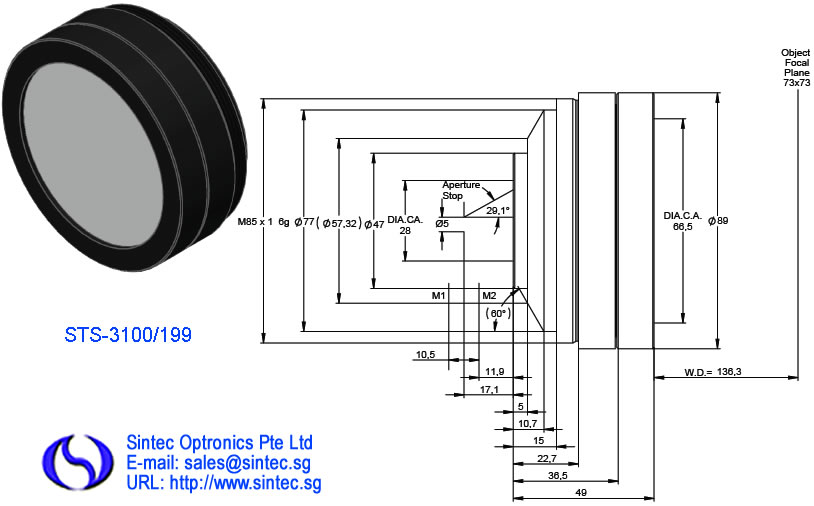

STS-3100/199	101.49	29.20	100.68	73x73	5.00	17.14	49.00	89.00	M85x1	136.52

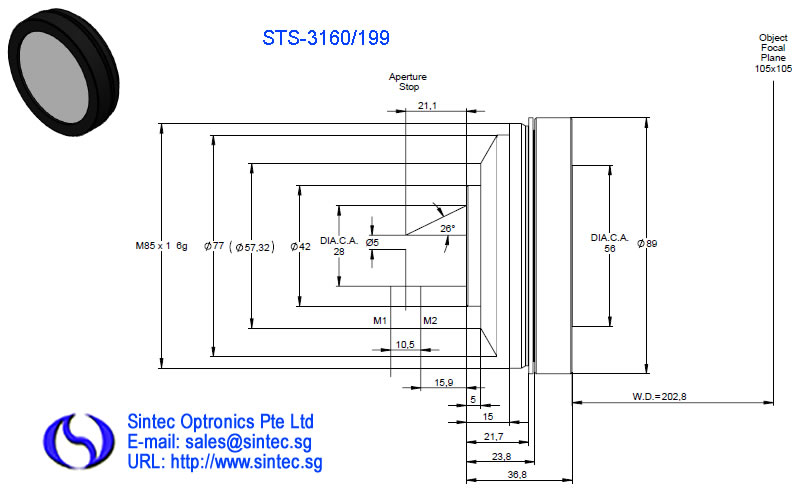

STS-3160/199	162.31	25.00	142.66	105x105	5.00	21.10	36.75	89.00	M85x1	204.47

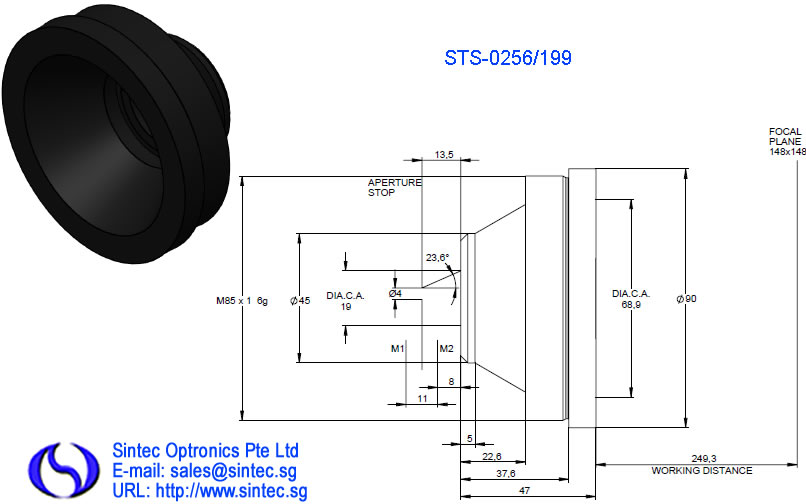

STS-0256/199	249.50	24.20	218.90	148x148	4.00	13.50	47.00	90.00	M85x1	254.00

STS Series 266nm Telecentric F-theta Lens

Model	Wavelength (nm)	FL (mm)	Material	EP (mm)	SAR (mm x mm)	AS (mm)	WD (mm)	OD (mm)	Length (mm)	MT
STS-3050/199	266	53.5	fs	6	20 x 20	17.8	72	87	39	M85x1

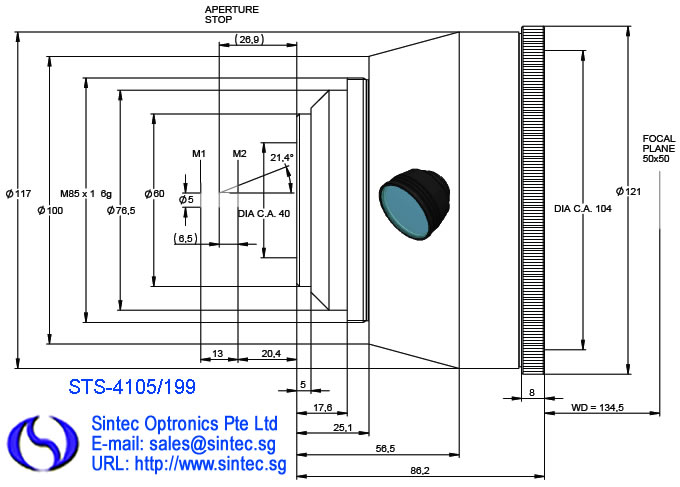

STS-4105/199	266	96.1	fs	5	50 x 50	26.9	134.5	121	86.2	M85x1

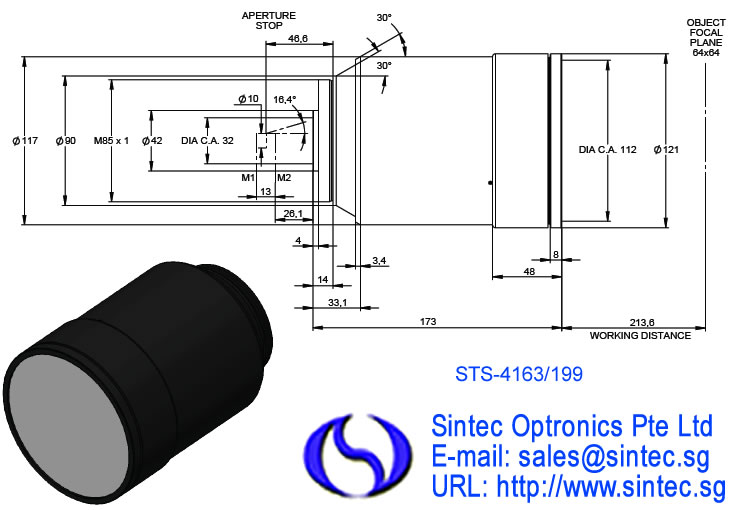

STS-4163/199	266	159.8	fs	10	64 x 64	32.6	213.6	121	173	M85x1
STS-4263/199	266	162.9	fs	10	70 x 70	35.2	218.4	121	110.4	M85x1

STS Series 266nm Telecentric ƒ-Theta Lenses

Part No.	FL(mm)	SA(±°)	SL(mm)	SAR(mm x mm)	EP(mm)	AS(mm)	Length (mm)	OD(mm)	MT	WD(mm)
STS-4030/199	30.10	14.60	15.00	10x10	6.00	12.72	55.54	47	M85x1	28.90

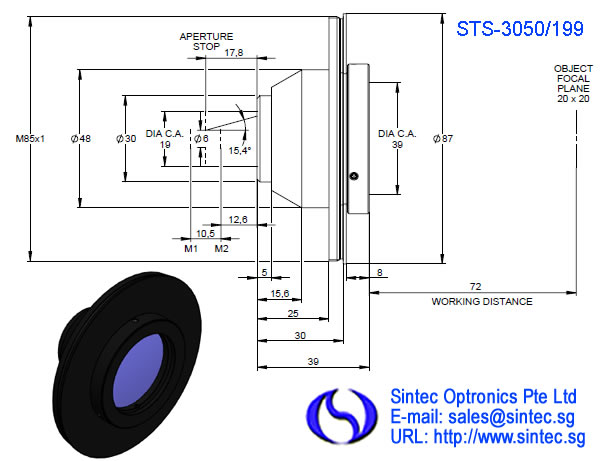

STS-3050/199	53.46	16.00	29.40	20x20	6.00	17.80	39.79	87	M85x1	71.70
STS-4105/199	99.30	21.00	72.08	50x50	5.00	26.90	86.20	121	M85x1	142.17
STS-4163/199	159.78	16.20	90.27	64x64	10.00	32.30	133.00	121	M85x1	253.67

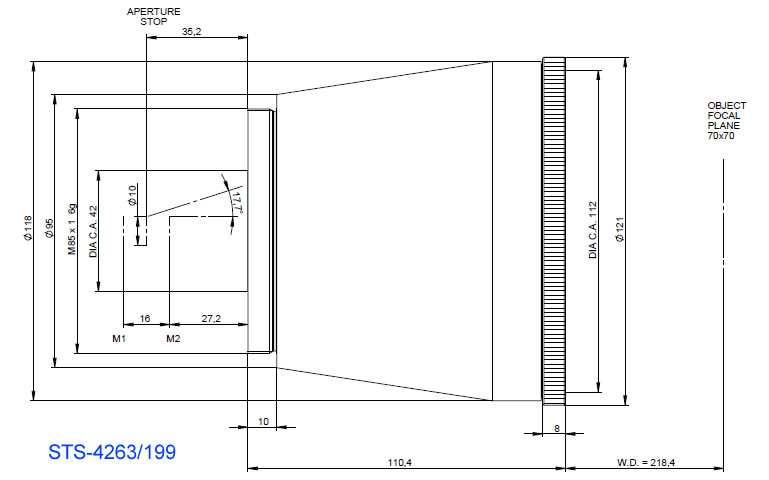

STS-4263/199	162.9	17.70	98.98	70x70	10.00	35.2	110.4	121	M85x1	218.4

Achromatic F-theta Lenses

Achromatic f-theta lenses are designed to focus laser beam and visible light on the same focal planes of laser processing field and CCD monitoring field, which allows a full CCD monitoring during laser processing. STW Series 355nm Achromatic F-theta Lenses

STY Series 355nm Achromatic F-theta Lens

New Model	Old Model	FL mm	WD mm	E.P. mm	Scan angle max	SAR, mm (round/square)	FSD µm	OD mm	MT
STY-F-140-10-355-635	STY-355-635-50-140	140	100.29	10-12	±14.5º	Φ70.7/50x50	9.1	90	M85x1
STY-F-170-10-355-532	STY-355-532-60-170	170	135	10	±15º	Φ80/60x60	11.1	105	M85x1
STY-F-254-10-355-633	STY-355-633120-254	254	222.49	10	±19º	Φ170/120x120	16.49	105	M85x1

STY Series 532nm Achromatic F-theta Lens

New Model	Old Model	FL mm	WD mm	E.P. mm	Scan angle max	SAR, mm (round/square)	FSD µm	OD mm	MT
STY-F-500-14-532-633	STY-532-633-50-140	500	517.29	14	±28º	Φ495/350x350	34.8	105	M85x1

STY Series 915nm Achromatic F-theta Lens

New Model	Old Model	FL mm	WD mm	E.P. mm	SA max	SAR, mm (round/square)	FSD µm	OD mm	MT
STY-F-210G-14-915-940-633	STY-915-633-130-210	210	229.76	30	±25º	Φ184/130x130	12.06	132	M102x1;M121x1
STY-F-500-30-915-680-2000	STY-915-680-300-500	500	535.43	30	±25º	Φ424/300x300	27.9	140	M102x1

STY Series 1064nm Achromatic F-theta Lens

New Model	Old Model	FL mm	WD mm	E.P. mm	SA max	SAR, mm (round/square)	FSD µm	OD mm	MT
STY-F-100-10-1064-633	STY-1064-633-70-100	100	102.84	10	±25º	Φ100/70x70	19.5	90	M85x1
STY-F-160-10-1064-633	STY-1064-633-110-160-10	160	169.87	10	±28º	Φ155/110x110	31	105	M85x1
STY-F-160-12-1064-633	STY-1064-633-110-160-12	160	172.47	12	±28º	Φ156/110x110	25.9	105	M85x1
STY-F-170-30-1064-633	STY-1064-633-100-170	170	179.99	30	±25º	Φ150/100x100	11	140	M112x1;M102x1;M95x1
STY-F-210-30-1064-633	STY-1064-633-130-210	210	232.31	30	±25º	Φ185/145x130	13.65	140	M112x1;M102x1;M95x1
STY-F-254-10-1064-633	STY-1064-633-175-254	254	261.75	10	±25º	Φ247/175x175	49.4	90	M85x1
STY-F-254-30-1064-633	STY-1064-633-157-254	254	269.27	30	±25º	Φ222/157x157	30	140	M112x1;M102x1;M95x1
STY-F-255-10-1064-633	STY-1064-468-176-255	255	262.43	10	±28º	Φ248/176x176	49.4	90	M85x1
STY-F-260-15-1064-633	STY-1064-633-180-260	260	253.45	15	±28º	Φ255/180x180	33.75	135	M85x1
STY-F-330-30-1064-633	STY-1064-633-200-330	330	356.13	30	±25º	Φ283/200x200	21.4	140	M112x1;M102x1;M95x1
STY-F-420-30-1064-633	STY-1064-633-260-420	420	455.42	30	±25º	Φ368/260x260	27.3	140	M112x1;M102x1;M95x1

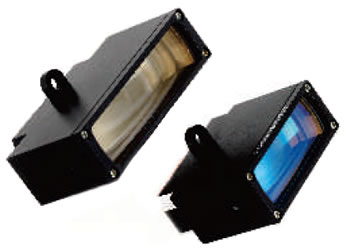

Scan Lenses for Laser Cleaning

The scan lenses are designed for laser cleaning. These portable f-theta lenses have the advantages on small size and light weight and thus used for hand-hold laser cleaning systems.

New part number	Old part number	FL mm	WD mm	EP mm	SA max	SAR, mm (square)	FSD µm	OD mm	MT
STY-F-330Q-405-200x10	STY-405-200x1-330Q	330	401.37	10	±17.5º	200x10	24.5	75x21x44.5	D4.5x285x1
STY-F-160-20-1030-1080-70x8	STY-1030-1080-70X8-160	160	204.03	20	±12.5 º	70x8	15.57	90x49x75	D4.5x285x1
STY-F-160Q-1070-650-80x5	STY-1070-650-80X5-160Q	160	199.9	10	±14.7 º	80x5	31.15	63.5x21x42.7	D4.5x285x1
STY-F-255-20-1030-1080-80x10	STY-1030-1080-80X10-255	255	320.34	20	±10 º	80x10	30	90x49x82	D4.5x285x1

If you can not find a suitable f-theta lens, please download the form here and email us your filled form. We can custom-desing and make the lenses according to your specific requirements.

Data Sheet

Online submission

Prev532nm F-Theta Lens

NextCO2 Beam Expander

Optics & Crystals

Products Categories

Hot Products

Various F-Theta Lenses

Multi-spectral F-theta Lenses

532nm + 1064nm

355nm + 1064nm

808nm + 980nm

450nm+650nm

405nm+650nm

405nm+532nm

Wavelength 1850 - 1980nm

STS Series 1850-1980nm Standard F-theta Lenses (Fused Silica)

STS Series 1850-1980nm Telecentric F-theta Lenses (Fused Silica)

STY Series 1940nm Standard F-theta Lens (Fused Silica)

STYT Series 1940nm Telecentric F-theta Lens (Fused Silica)

STH Series 1550nm F-theta Lenses

STY Series 1550nm Telecentric F-theta Lenses (Fused Silica)

STS Series 1550nm F-theta Lenses (Fused Silica)

STS Series 1550nm Telecentric F-theta Lenses

Wavelength 780-980nm

STY Series 780-980nm F-theta Lens (Optical Glass)

STH Series 980nm F-theta Lenses

STY Series 980nm Telecentric F-theta Lens (Optical Glass)

STY Series 915nm F-theta Lens (Fused Silica)

STH Series 915nm F-theta Lenses

STS Series 808nm Standard ƒ-Theta Lenses

STS Series 808nm Telecentric ƒ-Theta Lenses

STS Series 980nm Standard ƒ-Theta Lenses

STS Series 980nm Telecentric ƒ-Theta Lenses

Wavelength 405nm

STH Series 405nm F-theta Lenses

STY Series 405nm F-theta Lens (Fused Silica)

STS Series 405nm Standard ƒ-Theta Lenses

STS Series 405nm Telecentric ƒ-Theta Lenses

Wavelength 355nm

STY Series 355nm F-theta Lens (Fused Silica)

STH Series 355nm F-theta Lenses (Fused Silica)

STHT Series 355nm Tele-centric F-theta Lenses (Fused Silica)

STY Series 355nm Tele-centric F-theta Lens (Fused Silica)

STW Series 355nm F-theta Lenses

STS Series 355nm Standard ƒ-Theta Lenses

STS Series 355nm Telecentric ƒ-Theta Lenses

STK Series 355nm Telecentric F-theta Lenses

Wavelength 266nm

STYW Series 266nm F-theta Lenses

STS Series 266nm Standard ƒ-Theta Lenses

STS Series 266nm Telecentric ƒ-Theta Lenses

Achromatic F-theta Lenses

STY Series 355nm Achromatic F-theta Lens

STY Series 532nm Achromatic F-theta Lens

STY Series 915nm Achromatic F-theta Lens

STY Series 1064nm Achromatic F-theta Lens

Scan Lenses for Laser Cleaning

Related products

Fiber-coupled Laser Diodes

1535nm Er:glass Lasers

Various F-Theta Lenses

Diode Chip/Bar/Stack

Single Frequency Lasers

Microchip Lasers

IR-UV Lasers Sorted by Wavelengths

Scan Mirrors

Kr & Xe Laser Lamps

Marking Head (Scanner)

AOM (Acousto-Optic Modulator)

Electro-Optic Q-switch (Pockel cell)

Spatial Light Modulator

Send us a message

Contact Us

Products

News & Download

Notice
