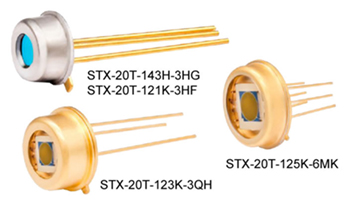

STX series photodetectors are high quality InGaAs/InP PIN photodiodes designed for optical power monitoring and measurement applications. They are assembled into a hermetically-sealed TO package with flat window. Active areas are 300m, 1000m, 3000m an
STX series photodetectors are high quality InGaAs/InP PIN photodiodes designed for optical power monitoring and measurement applications. They are assembled into a hermetically-sealed TO package with flat window. Active areas are 300μm, 1000μm, 3000μm and 5000μm respectively.
FEATURES
Long Wavelength Operation.
Low Dark Current.
High Responsivity.
TO46, TO5, TO8 packages available.
Excellent Reliability, qualified based on MIL-STD-883 and GR-468-CORE.
APPLICATIONS
Optical power monitoring.
Industrial watching and controlling.
Measuring instrument.
SPECIFICATIONS
Absolute Maximum Rating
Unit | STX-20T-143H-3HG | STX-20T-121K-3HF | STX-20T-123K-3QH | STX-20T-125K-6MK | |
Active detection diameter | μm | 300 | 201000 | 3000 | 5000 |
Reverse voltage | V | 20 | 20 | 20 | 20 |
Maximum input optical power | mW | 10 | 10 | 10 | 10 |
Forward current | mA | 10 | 10 | 10 | 10 |
Reverse current | mA | 2 | 2 | 2 | 2 |
Storage temp. | oC | -40-100 | -40-100 | -40-100 | -40-100 |
Operating tem. | oC | -40-85 | -40-85 | -40-85 | -40-85 |
Relative humidity | % | 5-95 | 5-95 | 5-95 | 5-95 |
Lead soldering | oC/s | 260/10 | 260/10 | 260/10 | 260/10 |
Power supply voltage | V | 5 | 5 | 5 | 5 |
Package & drawing | TO46 | TO46 | TO5 | TO8 |
E-O and O-E Characteristics (Tc=25 oC unless specified)
Unit | STX-20T-143H-3HG | STX-20T-121K-3HF | STX-20T-123K-3QH | STX-20T-125K-6MK | |
Wavelength range | nm | 700-1700 | 700-1700 | 700-1700 | 700-1700 |
Responsivity@850nm | A/W | 0.23 | 0.23 | ||
Responsivity@1310nm | A/W | 0.95 | 0.95 | 0.95 | 0.85 |
Responsivity@1550nm | A/W | 1.05 | 1.05 | 1.0 | 0.9 |
Responsivity / temperature@1550nm | %/ oC | 0.03 | 0.03 | ||
Responsivity / input power | % | -5-5 | -5 - 5 | ||
Responsivity / wavelength | % | -5-5 | -5 - 5 | ||
Dark current@25 oC | nA | 0.3-1.5 | 1.5-5 | ||
Dark current@85 oC | nA | 17-30 | 17-100 | 7-50 | 10-50 |
Bandwidth | MHz | 300-600 | 35-50 | ||
Reverse breakdown voltage@10uA | V | 30 | 20 | ||
Forward voltage@1mA | V | 1.2 | 0.6 | 0.6 | |
Saturated optical power | dBm | 10 | 10 | ||
Capacitance@1MHz | pF | 3-5 | 35-50 | 35-50 | 1.2-1.5 |
Laser pulse duration, usually refers to the interval between the time when the laser power maintains at a certain value. The pulse duration of different lasers can vary greatly.
High-speed photodetector combined with oscilloscope can monitor ultra-fast pulsed laser and measure pulse duration, frequency, period and other parameters of lasers.
Product name | High-speed photodetector |
Part number | STC-PD |
Wavelength | 200-1100nm |
Rise time | 1ns, 5ns(optional) |
Dimensions | Ultra-thin body [3/4 inch (19.1 mm)] can measure in narrow space |
Battery | Internal A23 bias battery (accessory) |
