Laser Pulse Parameter Measurement

Keywords: measuring pulse parameter, pulse duration, pulse width, perio

Jun 03, 2020 View: 2066 Data Sheet

Laser pulse duration, usually refers to the interval between the time when the laser power maintains at a certain value. The pulse duration of different lasers can vary greatly. High-speed photodetector combined with oscilloscope can monitor ultra-fas

Online submission +65 63167112 sales@sintec.sg

1. Laser Pulse Parameter Measurement (High-speed Photodetector)

Laser pulse duration, usually refers to the interval between the time when the laser power maintains at a certain value. The pulse duration of different lasers can vary greatly.

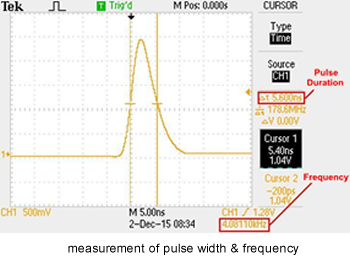

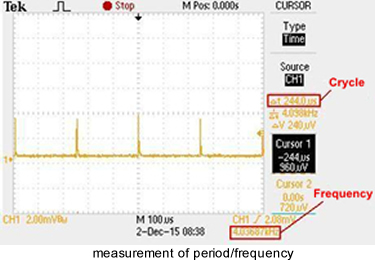

High-speed photodetector combined with oscilloscope can monitor ultra-fast pulsed laser and measure pulse duration, frequency, period and other parameters of lasers.

Product name	High-speed photodetector
Part number	STC-PD
Wavelength	200-1100nm
Rise time	1ns, 5ns（optional）
Dimensions	Ultra-thin body [3/4 inch (19.1 mm)] can measure in narrow space
Battery	Internal A23 bias battery (accessory)

2. Advanced Ultrashort Laser Pulse Characterization Device

STF series advanced ultrashort laser pulse characterization device is a real-time ultrashort laser pulse characterization device specifically engineered to provide a high-resolution measurement for ultrafast oscillators and amplifiers. It is an essential piece of equipment for everyone who depends on accurate information about properties of their ultra-short pulses. With the device you get more than just a single result. You can watch your pulse evolving in real time.

Part number	STF
Fourier transform-limited pulse duration	60 - 400 fs
Input central wavelength	1010 - 1070 nm (other on request)
Maximum chirped pulse duration	4 ps
Maximum dispersion	＜80000 fs2
Repetition rate	1 kHz — 200 MHz
Sensitivity	＞0.5nJ at 80MHz; ＞100nJ at 1kHz
Input polarization	Linear, vertical
Integrated high-resolution spectrometer (USB 2.0)	Included
User-friendly software and manual	Included
Automated tuning	Optional
Electrical: Manual version Automated version	USB powered (5V, 500mA) 100-240VAC, 50/60Hz, ＜70W
Operating temperature	15-25oC
Operating humidity	Non-condensing

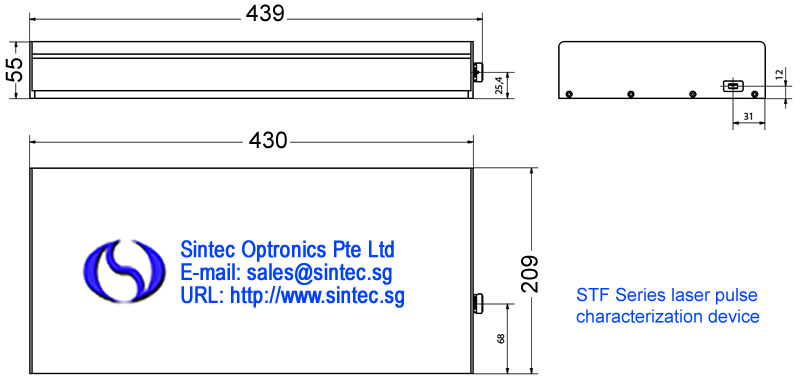

Size (including spectrometer) (LxWxH)	430x200x55mm
