CO2 Laser Marker

CO2 Laser Marker

Keywords: Laser Machines,CO2 Laser Marker, Synrad, Universal, ULS, benchtop, OEM
Aug 29, 2020 View: 2482 Data Sheet

OEM CO2 laser markers and integrated CO2 laser markers are available at various levels of laser powers such as 10W 30W 50W & 100W to be used in laser marking of non-metals.

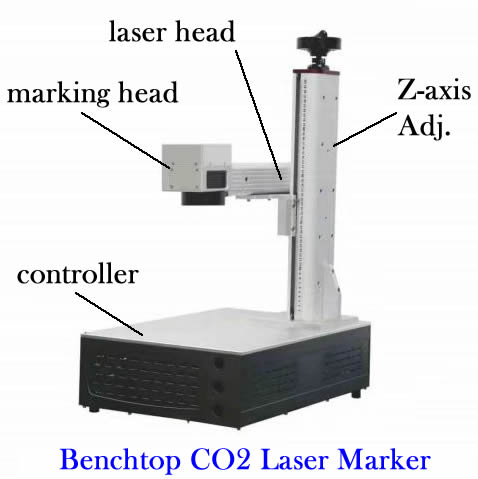

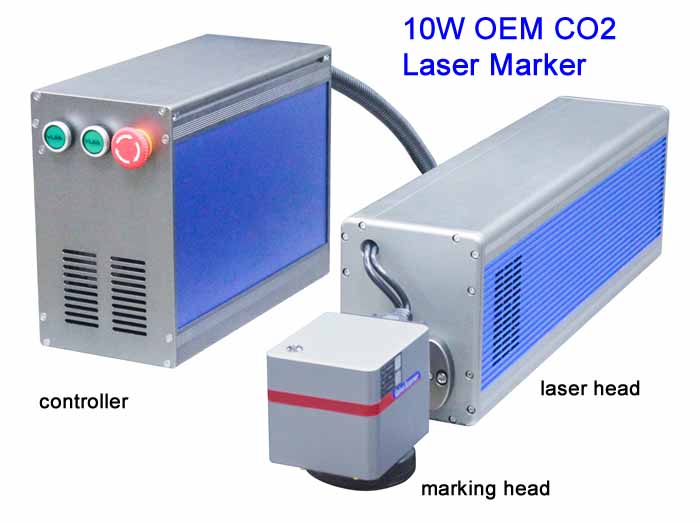

For OEM users or laser integrators or the end users for the production line, we can provide OEM laser markers at more attractive prices.  The OEM laser marker consists of 2 parts: a laser head with marking head and a control box. The marking card may be integrated into the control box. A chiller may be needed depending on the CO2 lasers used.

  • The above pictures are for reference only and the actual dimension, weight and colour may be different and please contact us to confirm the details.

Specifications:

Laser wavelength10.6um
Laser power10W/30W/50W
Mark linewidth0.15mm
Marking field (mm)50x50, 105x105, 140x140, 175x175,.... or 250x250, ....
Marking speed<5m/sec
Weight & dimensiondepending on configuration
Electric200VAC, 50/60Hz

Remarks:

  •  Various brands of CO2 lasers available according to customers’ applications and request.

  • Other laser power levels and marking fields available upon request..

  • Custom-design and –making available.

Typical Applications:

  1. Laser marking of non-metal materials and products: acrylic, ceramics, plastics, polycarbonate, organics, wood, thermo-elastomer rubbers, paper, button.

  2. Electronic industry: capacitor, inductor, PCB, IC, connector, control panel, instrument.

  3. Others: button, cosmetics, food package, bottle, gift, advertisement & sign crafts, craft & gift making.

Other CO2 lasers & customised laser marking systems available upon request.
