Flying Laser Marker

Keywords: flying,marker,DPSS, on-fly, marking, fiber laser, pcb
Aug 29, 2020 View: 3334 Data Sheet

Can be used on many materials like metal plastic leather alloy etc. Suitable for industry such as jewellery engraving medical devices phone case engraving hardware industry stainless steel tableware electronic components marking and etc.

Wide range:

Can be used on many materials like metal, plastic, leather, alloy etc. Suitable for industry such as jewellery engraving, medical devices, phone case engraving, hardwar industry, stainless steel tableware, electronic components marking and etc.

Permanent marking:

Laser marking is a permanent marking. It won’t fade, run or become less discernable as time passes like traditional marking including ink jet, hand engraving, dot-peen marking.

Long service time: Fiber laser model has over 100,000 hours working life. Maintenance free

Easy to operate:

Support almost any Windows-based software like Coreldraw, AutoCAD, and Photoshop. No need to adjust Q-switch easier than YAG diode marking machine.

High precision: 0.0025mm re-position accuracy.  0.01 line width.

Non-contact process:

Won’t cause mechanical extrusion or mechanical stress to materials. Laser beam won’t move the work piece.

Portable:

Small footprint, easy to move and transportation. Computer case sizes.

Overview

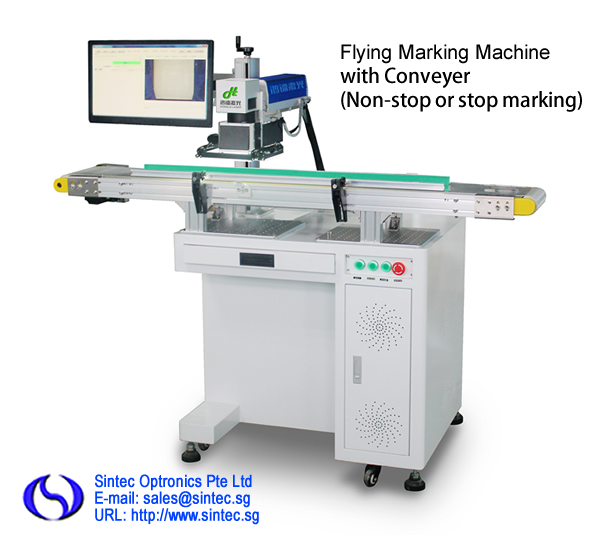

A flying laser marker consists a laser marker (laser + marking head & software), automatic feeder (conveyor) and relevant support. It integrates laser technology, accurate mechanism, electronic technology and computing science. In general, a CO2 laser or a fiber laser is used and also an optical galvanometer scanner (marking head) Is used to scan the laser beam.

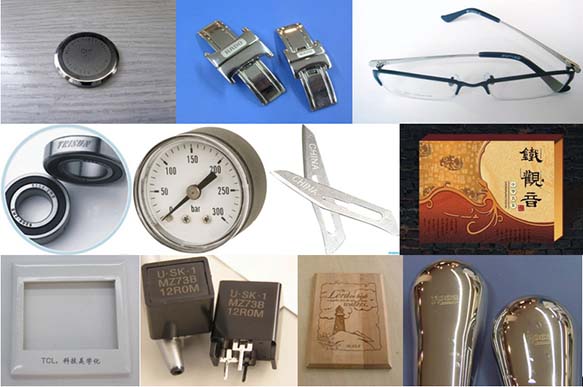

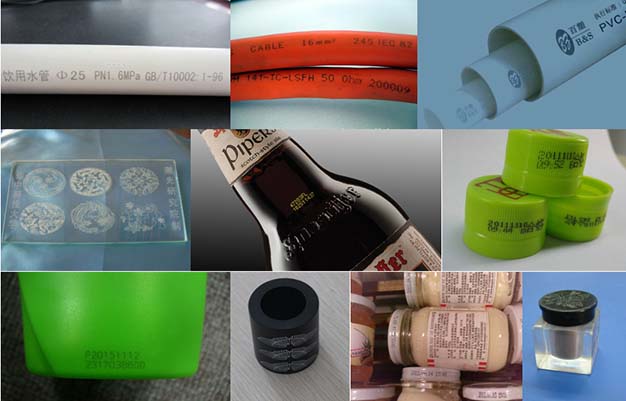

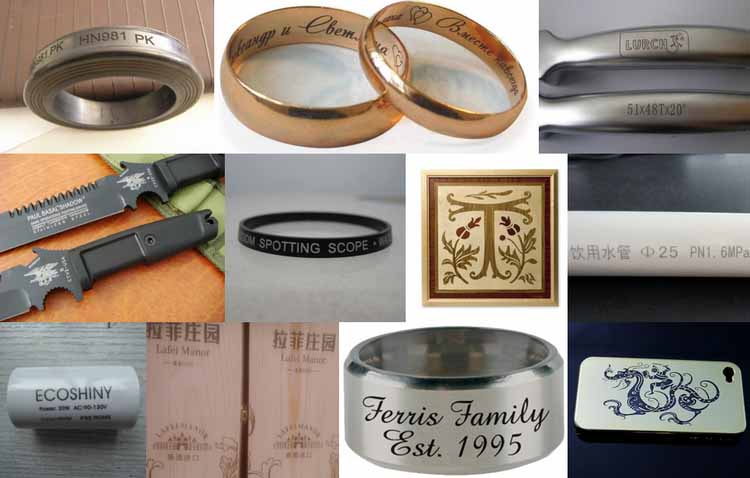

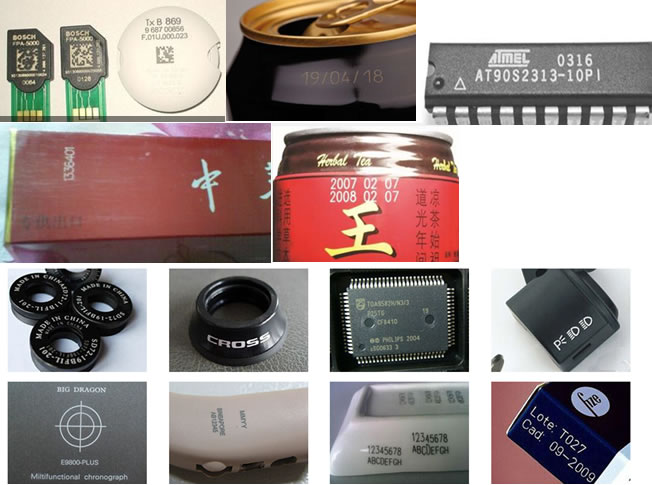

The flying marker is widely used in electronic, medical, tobacco, package, byproduct industries. It is used for marking and encoding in costume accessories, food and drink packaging, leather, rubber, crafts, textiles, electronic parts, name plates, construction ceramic, pharmaceutical etc.

Main technical specifications:

  • Laser wavelength: 1064nm,10.6um (others available upon request)

  • Laser power: 30W or 50W (others available upon request)

  • Marking field of marking head: 100x100mm (others available upon request)

  • Maximum flying speed: 28m/min (others available upon request)

As an example, a fiber laser flying marker's specifications are listed as follows:

ModelHL-MF-10RHL-MF-20RHL-MF-30RHL-MF-50R
Laser typeFiber laserFiber laserFiber laserFiber laser
Ave. laser power10W20W30W50W
Marking speed7000mm/s7000mm/s7000mm/s7000mm/s
Marking depth0.01-0.5mm0.01-0.5mm≥0.8mm≥0.8mm
Standard mark area100x100mm100x100mm100x100mm100x100mm
Repetition rate0.002mm0.002mm0.002mm0.002mm
Min line width0.01mm0.01mm0.01mm0.01mm
Min sign width≥0.2mm≥0.2mm≥0.2mm≥0.2mm
Electric power required220V /50HZ220V /50HZ220V /50HZ220V /50HZ

Remark: 1) CO2 laser available upon request. 2) Other laser power levels available upon request. 3) other marking area and custom-made available upon request.

For non-stop online flying marking, please watch the video at https://www.sintec.sg/Videoes/177.html . For non-stop and/or stop flying marking, please watch the video at https://www.sintec.sg/Videoes/606.html . Please feel free to contact us if you have any further questions.
