Fiber Laser Markers

Fiber Laser Markers

Keywords: Fiber Laser Marker
Aug 29, 2020 View: 3279 Data Sheet

The quality fiber lasers are used in our laser marking machines. The excellent beam quality and power stability of the fiber lasers make our fibre laser markers a multi-purpose tool.

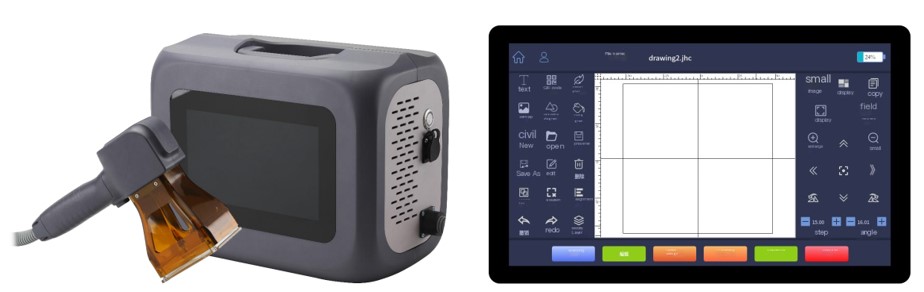

SJC Series Portable Handheld Laser Marking Machine

This product has a wide range of applications. It is suitable for standard metals and alloys (all metals such as iron, copper, aluminum, magnesium, zinc, etc.), rare metals and alloys (gold, silver, titanium), metal oxides (all kinds of metal oxides), special surface treatment (phosphating, aluminum anodizing, electroplating surface), and other materials. It can mark and engrave on common hardware tools, knives, kitchenware, metal jewelry, buttons, integrated circuits, packaging bottles, glasses frames. This marking machine can mark a clear, high resolution and provide long lasting markings on materials. The environmental requirements are simple and flexible and there is no special requirement on constant temperature and humidity, and water cooling to operate. This laser marking machine is small size, light weight, small footprint, and portable for online marking.

Product features:

  • Accurate positioning: The scanning galvanometer adopts high-performance scanning devices and advanced photoelectric sensing technology. The differential photosensors can exactly detects the position of the motor rotor. It is with good linearity, has a small drift during operation, marks with high resolution and has a high accuracy on repeated positioning.

  • Convenient to move: It is a portable type that can be carried anytime and anywhere, with lightweight and convenient hand tools and easy operation.

  • Stable performance: with the software developed by our company, it can operate with high stability and smoothly.

  • Humanized operation: with adoption of touch screen technology, the operation is simple and easy to use. It supports switching between Chinese and English language, and able to handle multiple file formats such as QR codes and barcodes through USB.

  • Widely applicable materials: Suitable for most of metal materials, such as stainless steel, carbon steel, aluminum, iron, copper, zinc, etc., with clear and high-resolution markings.

  • Various application industries: widely used in electronic components, hardware tools, electrical products, consumer goods, sensors, auto parts, 3C electronics, handicrafts, precision equipment, gift accessories, medical equipment, high and low voltage electrical appliances, bathroom industry, battery industry, IT industry and other fields.

Product model:

SJC - Laser wavelength - Laser power - Marking area, such as SJC-1064-20-70.

Technical specifications:

Shell material

Engineering Plastic

Laser type

1064nm fiber   laser

Marking format

70×70mm (standard)/ 100 ×   100mm (optional)

Marking speed

8000mm/s (marked as 1mm high   singlet)

Power supply

220VAC 50/60Hz

Battery capacity

16AH

Full charge time

Approximately 2.5H (measured   in of 25°C laboratory environment)

Usage time

Approximately 4H   (measured in 25°C laboratory environment)

Average laser power

≥20W

Max Power consumption

≤330W

Cooling method

Air cooling

Operating system

Linux

Expansion port

2×USB3.0

Screen brightness

300cd/m ²

Support file formats

Vector files (DXF, PLT, SVG), Image   files (bmp, jpg, png), QR codes, barcodes

working temperature

0°C - 45 °C

Storage temperature

-10°C - 60 °C

Chassis size ((L x W x H)

345×311×222 (mm)

Hand tool weight

~0.9kg

Overall weight (hand   tools + machine)

~9.7kg


STX Series Fiber Laser Markers

The pulsed fiber lasers are used in the fiber laser marking machines. The excellent beam quality and power stability of the fiber lasers make our fibre laser markers a multi-purpose tool. Maintenance and lifetime of the product is no more an issue. The simple integration of the system requires no after-installation service. The fiber laser machine is the ideal solution for a broad range of indus­trial applications. Our laser marking systems are being widely used in laser marking of hard, fragile or soft products or materials in production lines.

  • High quality lasers used

  • Powerful software

  • Reliable and easy operation

  • Various combinations

Machine Parameters:

Model:STX-F20/30/50/100
Laser parametersOptical laserFiber Laser
Laser wavelength1064nm
Average output power20/30/50/100W
Modulation frequency range20kHz~80kHz
Galvo ParametersMaximum speed7000mm/s
resolution0.001mm
Repositioning precision±0.003mm
Optical Output CharacteristicsMarking area110*110mm/200*200mm/300*300mm
Minimum line width0.01mm
Minimum height of characters0.2mm
Cooling systemCooling wayAir cooling
System PropertiesLaser power supply0.5KW/AC220V/50Hz~60Hz(optional 110V)
Manual working table strokeMovements itinerary 285 mm (desktop type)
Environmental requirements0 ~ 35 ° C, 90% or humidity

Typical Applications:

  • Laser marking of metal & non-metal materials and products: stainless steel, copper, aluminium alloy,  ceramics, plastics, organics, thermo-elastomer rubbers, paper, name cards, turbine blades

  • Electronic industry: capacitor, inductor, PCB, IC, connector, control panel, instrument

  • Others: cosmetics, food package, bottle, gift, advertisement & sign crafts, craft & gift making

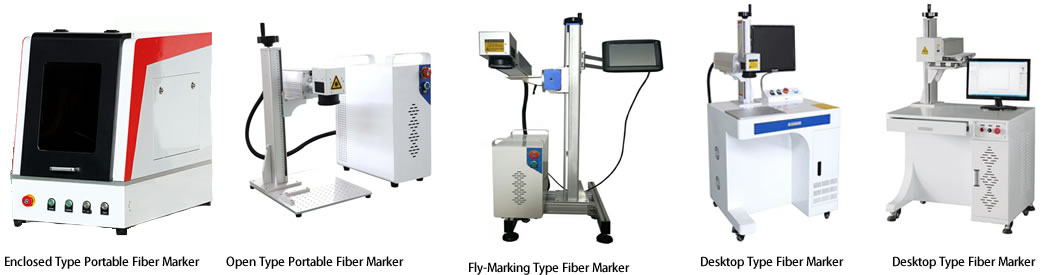

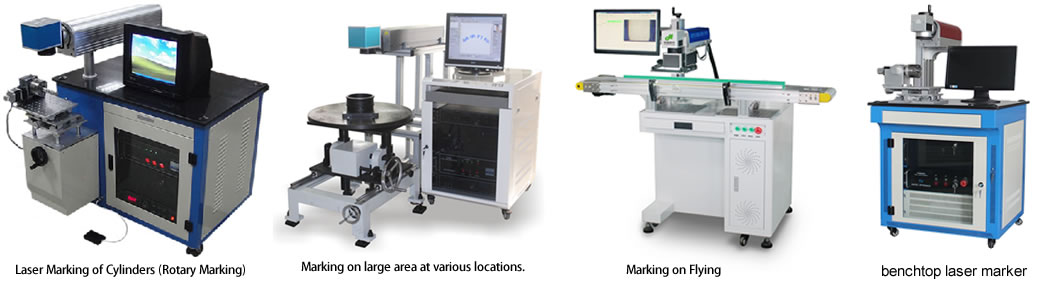

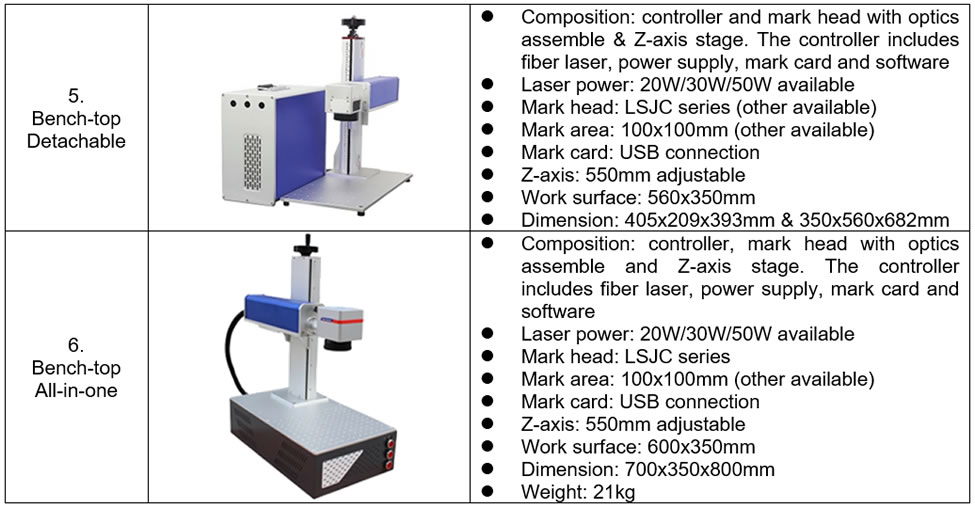

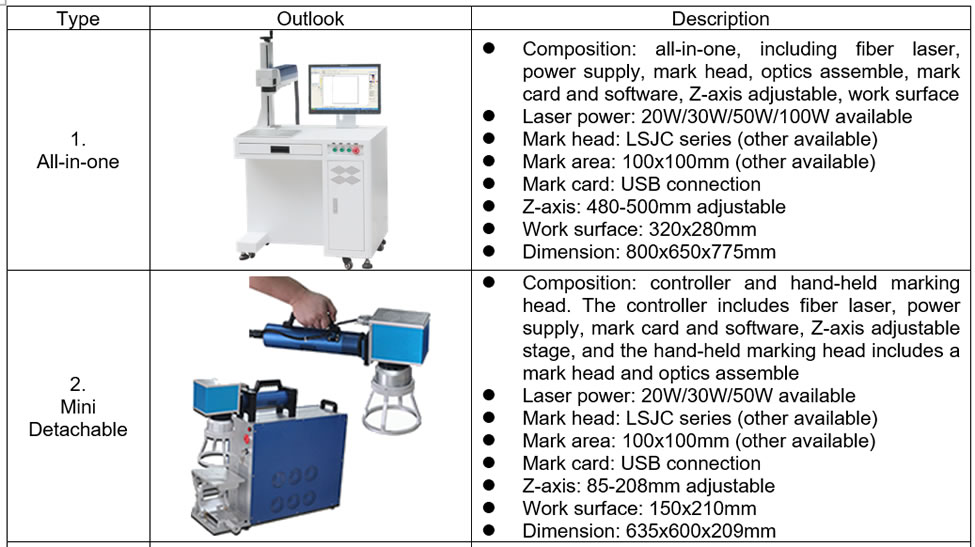

Above is our standard marker configurations. We can provides more and custom-designed configurations according to your specific needs such as OEM, integrated, portable, enclosed and mini fiber laser markers. For portable laser marker, you may need a lab jack to place your workpiece. For integrated marker, the laser is placed on a Z-axis adjustable table to mark the workpieces with various height. For safety, you can use an enclosure to cover the laser. For OEM laser marker, you just buy these inpidual parts/system and then you assemble these parts into your own marking system.

Also there are many brands of fiber lasers to be selected according to your needs on quality and pricing. Please call us if you have any further questions.

ST Series Fiber Laser Markers

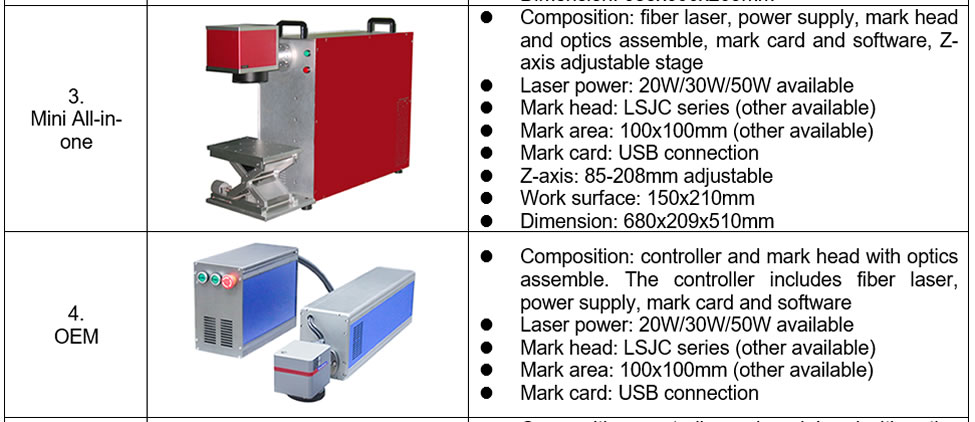

MarkerFiber2.jpg"/>

We also can custom-design and -make various marking machines for your specific applications such as

Specifications:

For the detailed information on the components used in the machine, please refer to the following:

Outlooks Available

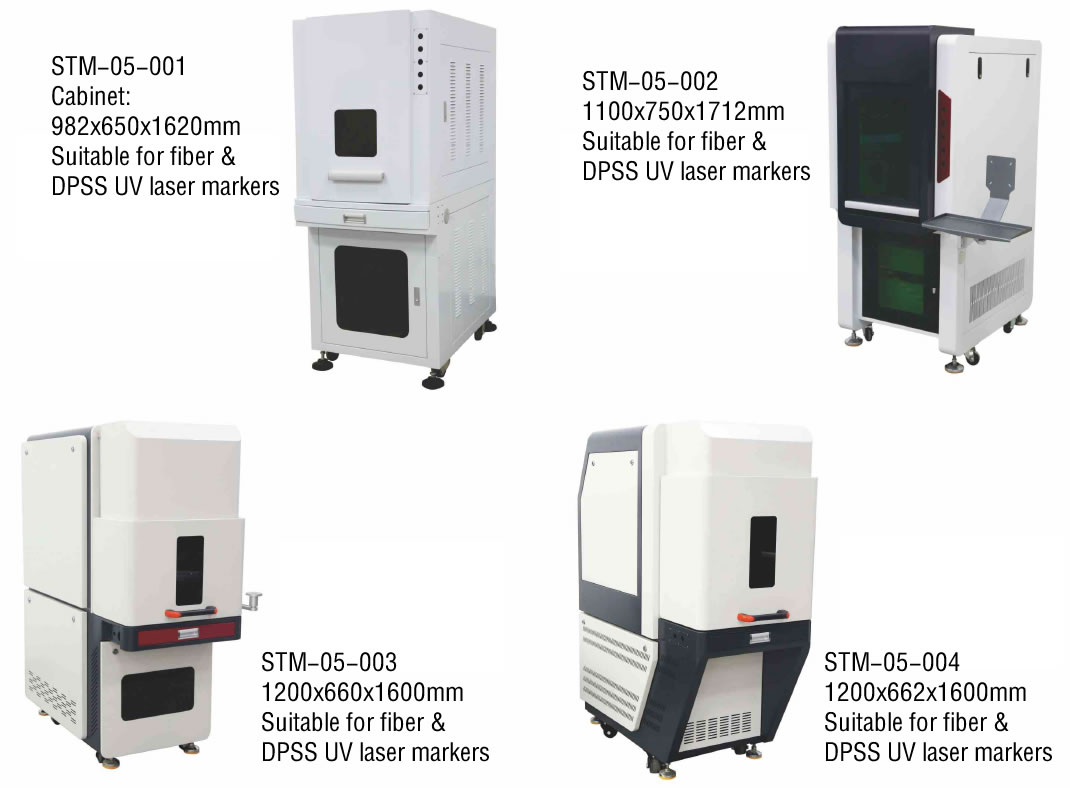

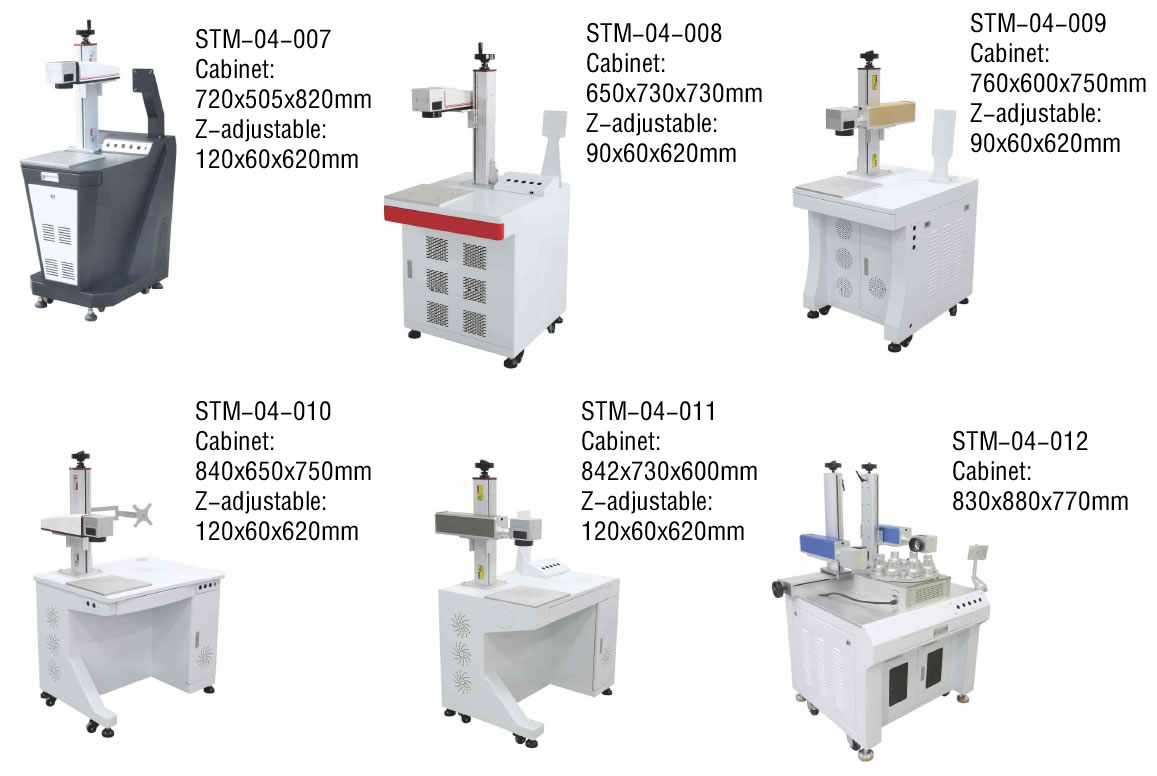

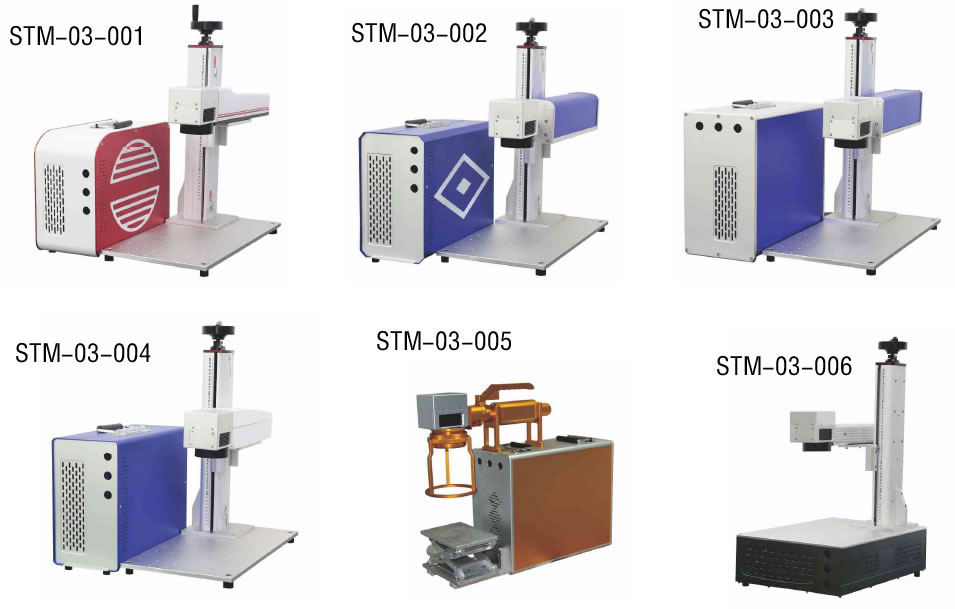

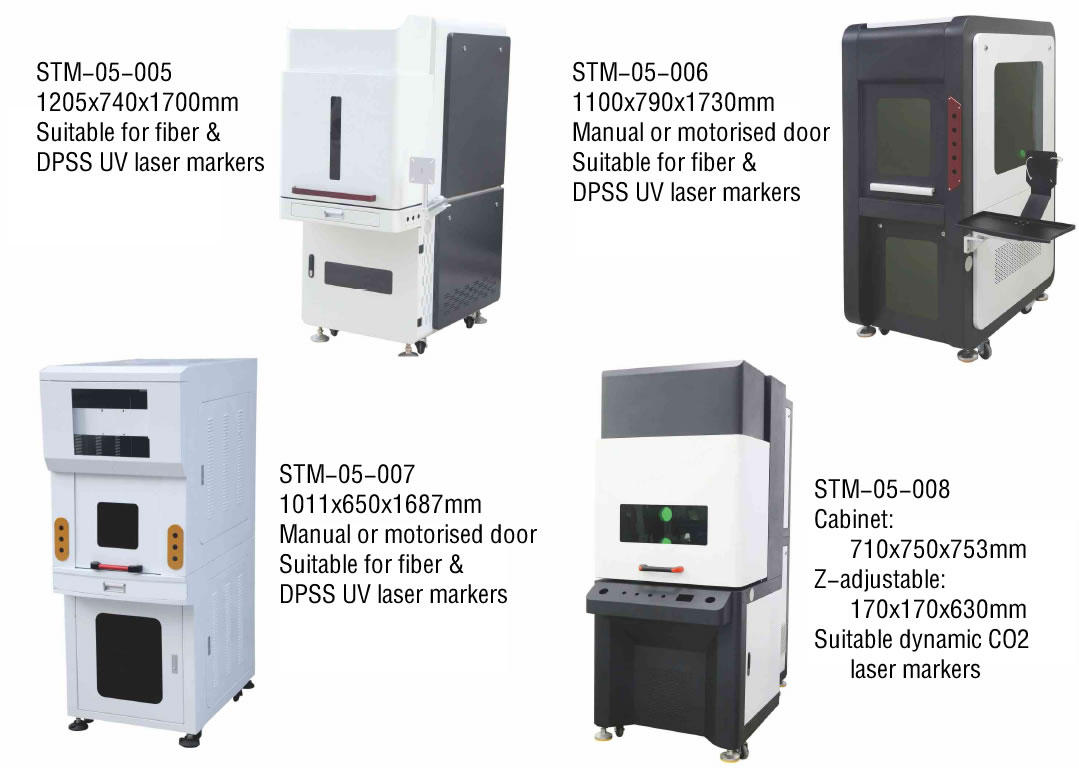

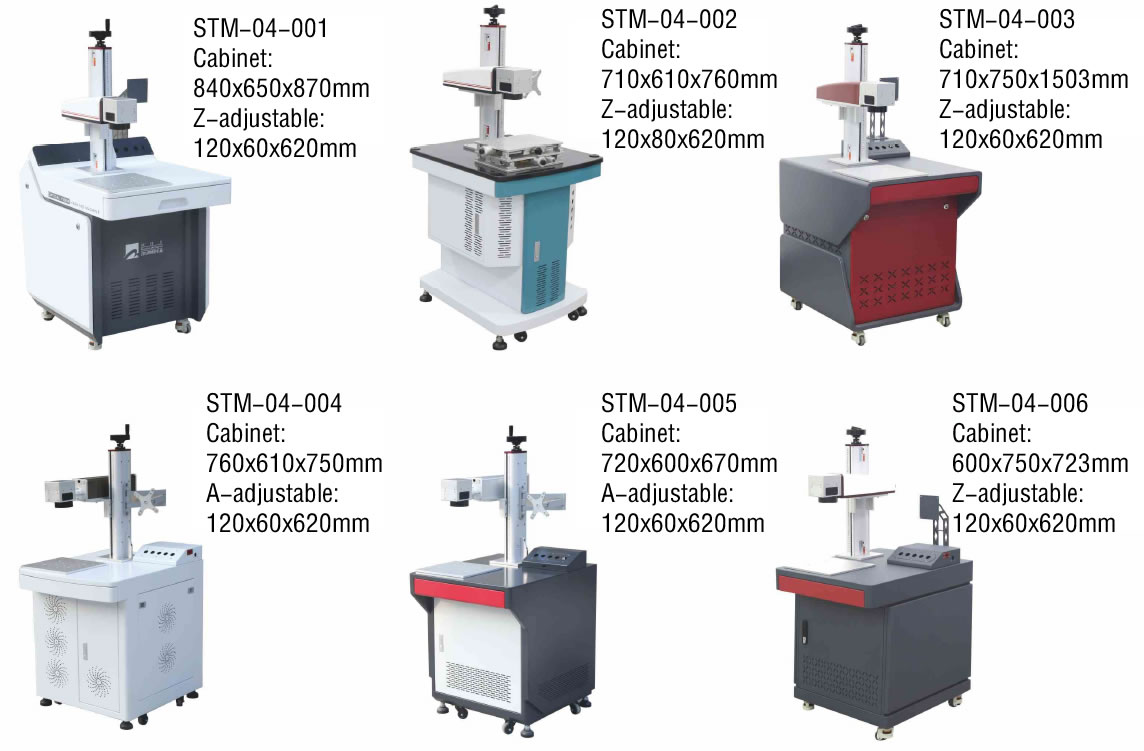

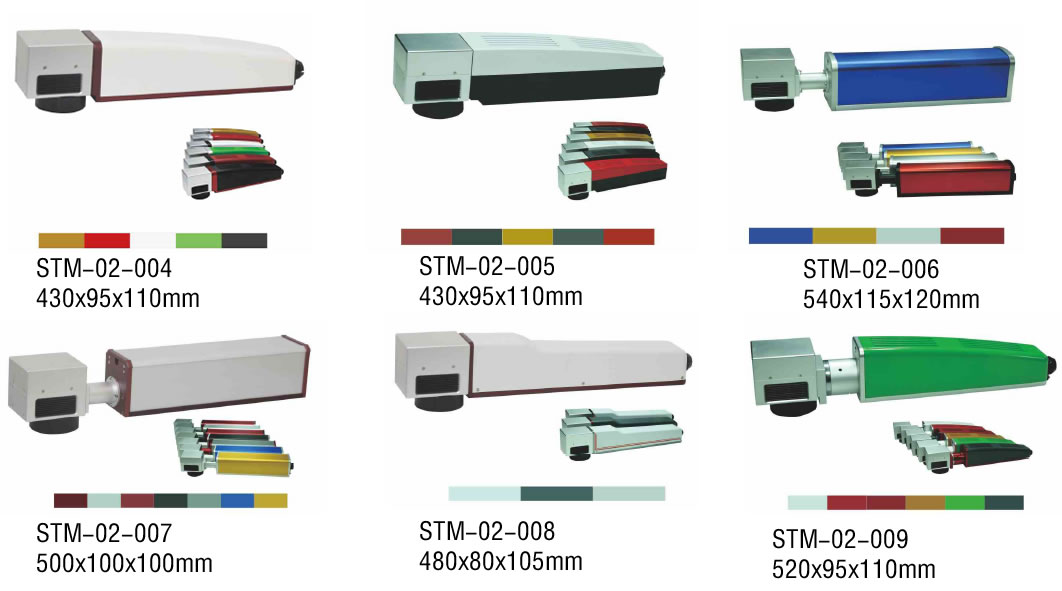

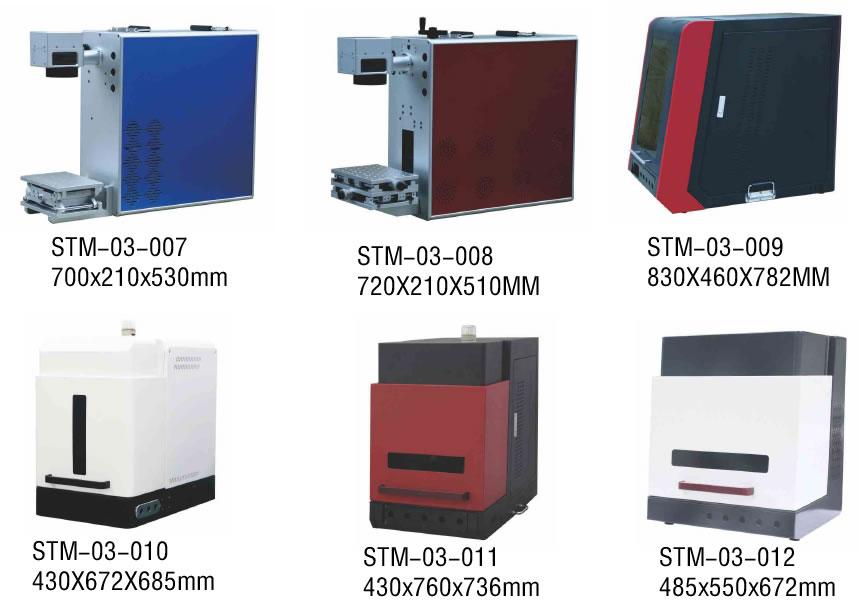

We have the following more stages, tables and outlooks for your selection: Custom-made available upon request.

fiber laser markers

fiber laser markers

fiber laser marker

fiber laser marker

fiber laser marker

fiber laser marker

fiber laser marker

fiber laser marker

Application Notes:

  • Marking field: Marking field depends on scan lens (f-theta lens) once other parameters and parts are confirmed. Large field sizes demand the use of lenses of long focal length. In turn, this leads to increase focused spot size and decrease laser power density on the workpiece. Thus reasonable mark field should be carefully selected. If both small focused beam diameter (narrow line width) and large marking field are simultaneously required, a XY moving table is recommended for best performance. However, there may be a little alignment along the junction edges of neighbour pisions since the moving accuracy and resolution are always limited.

  • Focused beam diameter: The focused beam diameter is related to f-theta lens, beam expander and laser parameter (beam quality, beam diameter, beam pergence etc). Higher laser power always needs larger beam diameter and thus results in worse beam quality (such as larger pergence angle etc) and further results in larger focused beam diameter.

  • Mark linewidth: in order to get narrow linewidth, 1) you may use the f-theta lens with smaller mark field and beam expander with larger beam expansion ratio. 2) You may increase beam quality by inserting an aperture inside laser resonator. 3) you may increase the marking speed.
