Pulsed Fiber Lasers

Keywords: Q-Switched Pulse, fiber laser, Mopa pulsed

Jun 16, 2021 View: 2942 Data Sheet

The pulsed fiber laser have many industrial applications in the field of solar photovoltaic, thin film cutting, sheet material cutting, welding, surface cleaning of materials, fine marking and material deepening, etc.

Online submission +65 63167112 sales@sintec.sg

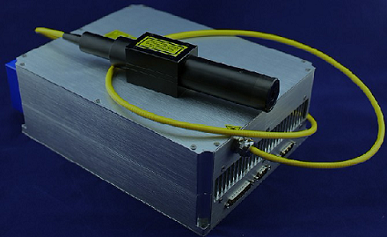

1. STR Series 10-100W Q-Switched Pulse Fiber Laser

The STR Series 10-100W Q-Switched Pulse Fiber Laser is the industrial marking and micromachining laser. This series pulse laser has high peak power, high single-pulse energy and optional spot diameter and can be widely applied in the fields, such as marking, precision processing, graphic engraving of non-metal, gold, silver, copper and aluminum with altitude stress resistance, stainless materials without altitude stress resistance. Its marking process features lower cost and more stable performance compared with traditional laser. All components of the 10-100W Q-switched pulse fiber laser are developed by us independently, with high product reliability. And its good compatibility has well recognized by the market and its quality has reached the international advanced level.

Features:

Highly stable laser output
High single-pulse energy
High marking efficiency
Short pulse setup time
High reliability
Maintenance-free operation

Technical specifications:

Model	STR-P10QE	STR-P20QE	STR-P30Q	STR-P50Q	STR-P50QB	STR-P100Q
Average output power (W)	10	20	30	50	50	100
Central wavelength	1064
Pulse repetition rate (kHz)	20-60		30-60	50-100		20-200
Output power stability	<3%					<5%
Output beam diameter (mm)	7±1					6.5±1
Polarization	Random
Pulse width (ns)	80-100	90-130		90-150		50-130
Maximum pulse energy (mJ)	0.5	1
Delivery cable length (m)	2
Power supply (VDC)	24
Power range (%)	10-100
Power consumption (W)	120	170	240	340	340	450
Size (mm)	391x260x120			396x360x123	391x260x120	396x360x123
Cooling	Air
Operation temperature (°C)	0-40

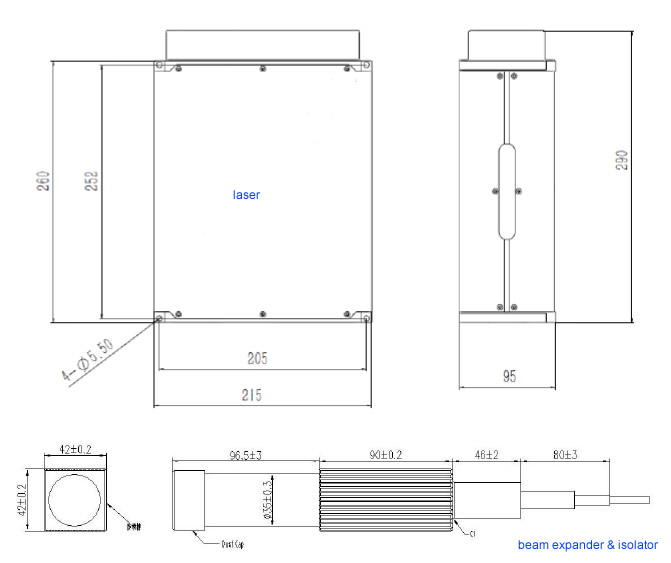

Pulsed fiber laser	STR-P20QB	STR-P30QB
Wavelength(nm)	1060~1085	1060~1085
Polarization	Random	Random
Optical isolator	Yes	Yes
Nominal average output power (W)	≥20	≥30
Single pulse energy (mJ)	1@20kHz	1@30kHz
Beam quality(M2)	<1.5	<1.5
Beam Diameter(mm)	7±1	7±1
Pulse duration(ns)	<120@20kHz	<120@30kHz
Pulse repetition rate(kHz)	20 - 60	30 - 60
Output Power Tunability(%)	10-100	10-100
Output Fiber Cable length(m)	2.0	2.0
Working voltage(VDC)	24±1	24±1
Power consumption(W)	200@20℃	300@20℃
Cooling	Forced Air Cooled	Forced Air Cooled
Dimension W×D×H(mm)	215×286×95	215×286×95
Operating temperature(℃)	0～40
Store temperature(℃)	-20～60
Operating Humidity(%)	≤80%

Model	STR-P20QS	STR-P30QS
Average output power (W)	≥20	≥30
Central wavelength	1064	1064
Pulse repetition rate (kHz)	30 - 60	40 - 60
Output power stability	<3%	<3%
Output beam diameter (mm)	6-8	6-8
Polarization	Random	Random
Pulse width (ns)	110-140 @30kHz	130-150 @40kHz
Maximum pulse energy (mJ)	0.67	0.75
Beam quality (M2)	<1.5	<1.6
Power supply (VDC)	24±1	24±1
Power range (%)	10-100	10-100
Power consumption (W)	200@20℃	300@20℃
Size (mm)	29021595	29021595
Cooling	Air	Air
Operation temperature (°C)	0～40	0～40

Remarks: STR-PQE, -P20QS and –P30QS are economic versions. Others are high-quality versions.

2. STR Series Short-pulse High-power Fiber Lasers

The brand-new short pulse fiber laser Series has a variety of pulse width options, including high average power (10-2000W), high-peak power (≤15kW) and 2-350ns, adjustable repetition frequencies of 10-1000kHz, short pulse setup time (≤100µs), online modifiable pulse width and other characteristics. It is ideal for industrial applications in the field of solar photovoltaic, thin film cutting, sheet material cutting, welding, surface cleaning of materials, fine marking and material deepening, etc.

Features:

Common control interface
Extremely wide operating frequency range
A variety of pulse width options
Online modifiablepulse width
Short pulse setup time
High light beam quality
Aircoolingdesign

Technical specifications:

Model	STR-P200	STR-P300	STR-P500
Central Emission wavelength (nm)	1064	1064	1064
Nominal average output power (W)	200@20-50kHz	300@30-50kHz	500@20-50kHz
Nominal average output power (W)	100@10kHz	250@20kHz	200@10kHz
Pulse repetition rate (kHz)	10-50	20-50	10-50
Laser power stability (8hrs)	<5%	<5%	<5%
Polarisation	Random	Random	Random
Pulse width (ns)	90-130	120-140	80-160
Maximum Pulse energy (mJ)	10@20kHz	12.5@20kHz	25@20kHz
Fiber core dia. (um)	100	100	200
Fiber length (m)	5.0	5.0	10.0
Output power tunability (%)	10-100	10-100	10-100
Operating voltage	220VAC	220VAC	220VAC
Cooling	Air	Water	Water
Operating temperature (oC)	0-40	0-40	0-40
Dimension WxDxH (mm)	485x237x764	485x237x764	502x254x755

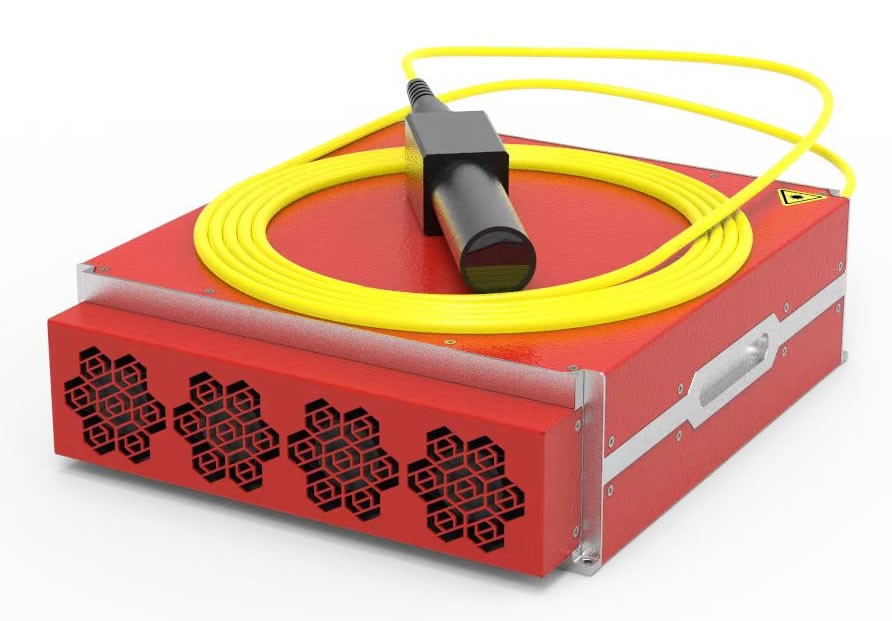

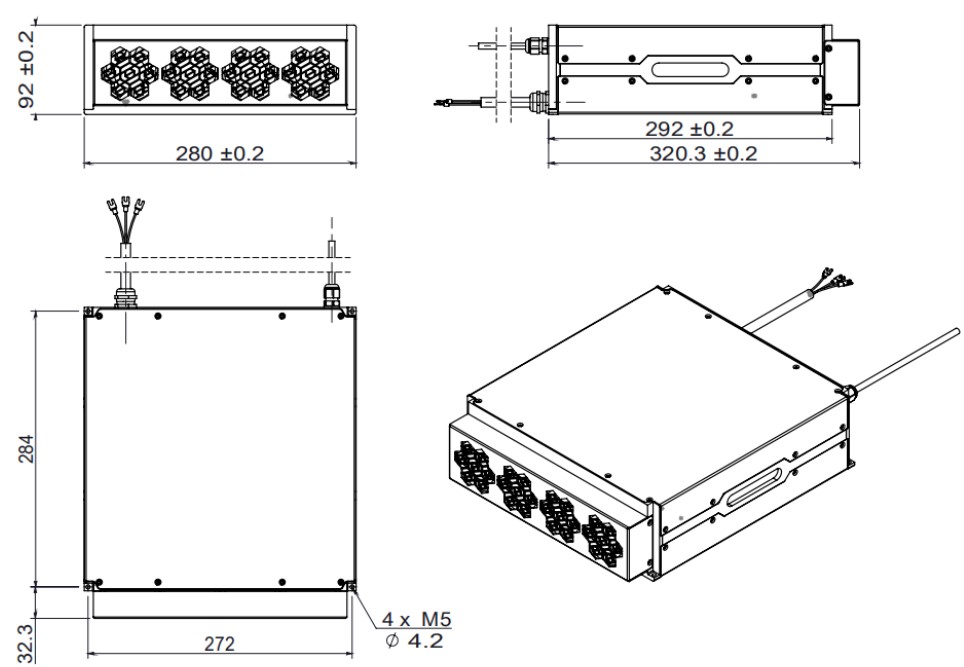

3. MOPA Pulsed Fiber Lasers

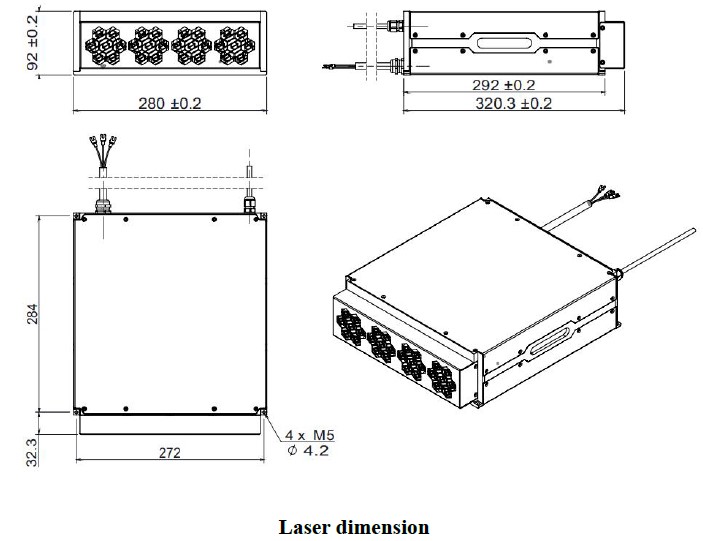

3.1 STR Series MOPA Pulsed Fiber Lasers

The MOPA pulsed fiber lasers have the features such as high average power (20-200W), high peak power (15kW), tunable pulse widths from 2ns to 500ns and as high pulse repetition rate as 2000kHz. These lasers are ideal for applications such as solar , film cutting, thin material cutting, high resolution marking etc.

Technical specifications:

Model	STR-P20MB	STR-P60M	STR-P100M
Central Emission wavelength (nm)	1064	1064	1064
Polarization	Random	Random	Random
Nominal average output power (W)	20	60	100
Maximum Pulse energy (mJ)	0.5	1.0	1.0
Pulse repetition rate (kHz)	10-1000	20-1000	20-1000
Pulse width (ns)	2-350	10-350	10-350
Typical beam quality (M2)	<1.3	<1.6	<1.6
Collimated beam diameter (mm)	6-8	6-8	5.5-7.5
Output power tunability (%)	10-100	10-100	10-100
Long term power stability (8hrs)	<3%	<3%	<5%
Length of beam delivery fiber (m)	2.0	2.0	2.0
Operating voltage	24VDC	24VDC	220VAC
Typical power consumption (W)	150	350	450
Cooling	Air	Air	Air
Operating temperature (oC)	0-40	0-40	0-40
Dimension WxDxH (mm)	286x215x95	340x260x120	396x360x123

3.2 STJ-LP-Series MOPA Fiber Lasers

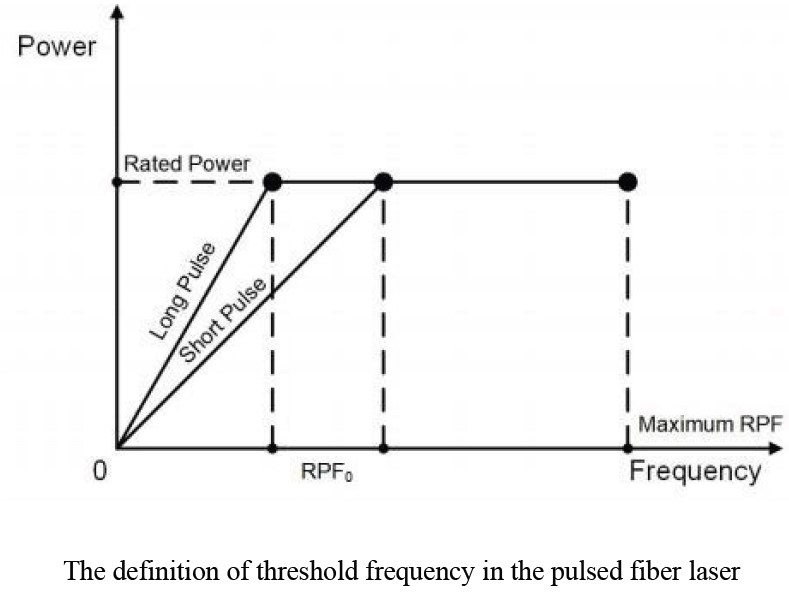

STJ-LP-Series Fiber Lasers adopts MOPA (Master Oscillator Power Amplifier) structure, diode laser as seed light, and fiber based power amplification. This laser integrates independence adjustment of pulse width and frequency, to make sure a constant pulse energy output, which provides a good combining solution to the requirements of high power laser source and high marking speed.

The extremely flexible pulse width and frequency adjustment, which plays a significant impact on colour formation, enables colour or silver shining marking on stainless steel.

Features:

Flexible & independent control of pulse width & frequency
Selectable pulse shape
High repetition frequency
No laser leakage

Applications:

Marking / Colour marking
Ablation
Cutting
Drilling
Scribing
Soldering
Trimming
Engraving

Technical specifications:

Model	STJ-LP-20	STJ-LP-30	STJ-LP-60	STJ-LP-100
M2	<1.3		<1.8
Output cable length (m)	2		3
Average output power (W)	>20	> 30	>60	>100
Maximum pulse energy (mJ)	0.8		1.2
Pulse repetition rate at Maximum power (kHz)	25~400	37 ~400	50~400	83~400
Pulse repetition rate (kHz)	1~400
Pulse width (ns)	200		250
Output power stability (%)	<5
Cooling	Air
Power supply (V)	24
Current (A)	<8	< 10	<15	<20
Maximum power consumption (W)	120	140	300	450
Central wavelength (nm)	1064
Pulse width @3dB (ns)	<15
Polarization	Random
Resist of high reflection	Yes
Beam diameter (mm)	7±0.5		6±0.5
Power range (%)	0~100
Operation temperature (°C)	0~40
Storage temperature (°C)	-10~60
Weight (kg)	8		10	13.4

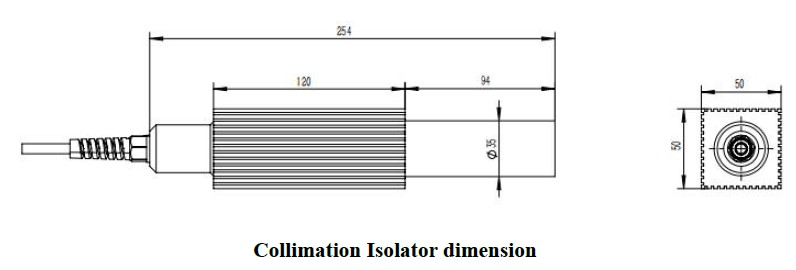

Size (mm)	laser:315×220×103, isolator: 42.5x42.4x262.5		315×275×99	337×278×120

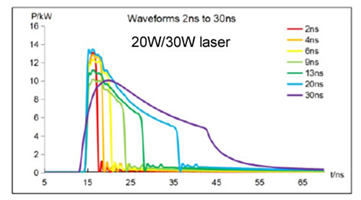

3.3 STJ-M7 Series MOPA Fiber Lasers

STJ-M7 series high power pulsed fiber lasers make use of master oscillator power amplifier (MOPA) configuration, and show excellent laser performance as well as high level of temporal pulse shaping controllability. As compared to the Q-switching technology, the pulse repetition frequency (PRF) and pulse width can be controlled independently in MOPA configuration, through adjusting different combination of the above parameters, the peak power of laser can be well maintained. These lasers are suitable for more material processing which Q-switch limited. The higher output power makes its advantages especially in high speed marking applications.

Application Advantages

Scribing, drilling
Surface treatment
Sheet metal cutting, welding
Marking on fly
Metal surface processing, peeling coating

Product number		STJ-M7-20-SR	STJ-M7-30-SR
M2		<1.3	<1.3
Delivery Cable Length	m	2	2
Nominal Average Output Power	W	>20	>30
Maximum Pulse Energy	mJ	0.8	0.8
Pulse Repetition Rate Range	kHz	1~4000	1 ~ 4000
Pulse Duration	ns	2~350	2 ~ 350
Output Power Stability	%	<5	<5
Cooling Method		Air	Air
Supply DC Voltage (VDC)	V	24	0.8
Current Consumption	A	<5	<6
Environmental Supply Current	A	>5	>6
Power@20℃	W	<120	<144
Central Emission Wavelength	nm	1064	1064
Emission Bandwidth@3dB	nm	<15	<15
Polarization		Random	Random
Output Beam Diameter	mm	7±0.5	7±0.5
Output Power Tuning Range	%	0~100	0 ~ 100
Operation Temperature	℃	0 ~40	0 ~ 40
Storage Temperature	℃	-10~60	-10 ~ 60
Weight	kg	4.4	4.5
Size(L×W×H)	mm	245×200×65	245 × 200 × 65

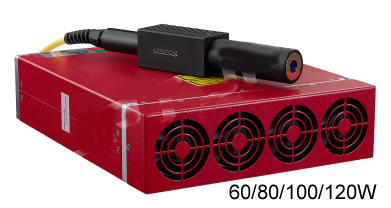

Product Number		STJ-M7-60-L1-R	STJ-M7-80-L1-R	STJ-M7-100-L1-R	STJ-M7-120-L1-R
M2		<1.8	<1.8	<1.8	<1.8
Delivery Cable Length	m	3	3	3	3
Nominal Average Output Power	W	>60	>80	>100	>120
Maximum Pulse Energy	mJ	1.5	2.0	1.5	1.5
Pulse Repetition Rate Range	kHz	1 ~ 4000	1 ~ 4000	1 ~ 4000	1 ~ 4000
Pulse Duration	ns	2~500	2~500	2~500	2~500
Output Power Stability	%	<5	<5	<5	<5
Cooling Method		Air Cooled	Air Cooled	Air Cooled	Air Cooled
Supply DC Voltage (VDC)	V	48	48	48	48
Current Consumption	A	<6	<7	<8	<9
Environmental Supply Current	A	>6	>7	>8	>9
Power@20℃	W	<260	<300	<400	<450
Central Emission Wavelength	nm	1064	1064	1064	1064
Emission Bandwidth@3dB	nm	<15	<15	<15	<15
Polarization		Random	Random	Random	Random
Output Beam Diameter	mm	7±0.5	7±0.5	7±0.5	7±0.5
Output Power Tuning Range	%	0~100	0~100	0~100	0~100
Operation Temperature	℃	0 ~40	0 ~40	0 ~40	0 ~40
Storage Temperature	℃	-10~60	-10~60	-10~60	-10~60
N.W	KG	8.5	8.5	13.2	13.2
Size(L×W×H)	mm	325 × 260 × 75	325 × 260 × 75	350 × 280 × 112	350 × 280 × 112

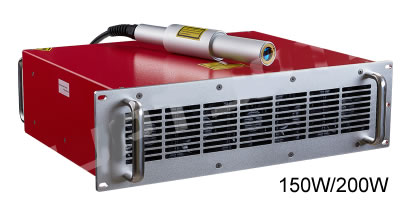

Product Number		STJ-M7-150-L1-R	STJ-M7-200-L1-R
M2		<1.8	<1.8
Delivery Cable Length	m	5	5
Nominal Average Output Power	W	>150	>200
Maximum Pulse Energy	mJ	1.5	1.5
Pulse Repetition Rate Range	kHz	1~4000	1~4000
Pulse Duration	ns	4 ~ 500	8 ~ 500
Output Power Stability	%	<5	<5
Cooling Method		Air Cooled	Air Cooled
Supply DC Voltage (VDC)	V	48	48
Current Consumption	A	<12	<16
Environmental Supply Current	A	>12	>16
Power@20℃	W	<600	<800
Central Emission Wavelength	nm	1064	1064
Emission Bandwidth@3dB	nm	<20	<20
Polarization		Random	Random
Output Beam Diameter	mm	7±0.5	7±0.5
Output Power Tuning Range	%	0~100	0~100
Operation Temperature	℃	0 ~ 40	0 ~ 40
Storage Temperature	℃	-10~60	-10~60
N.W	KG	24.8	24.8
Size(L×W×H)	mm	430×351×133	430×351×133

4. STC Series Compact Fiber Lasers

We offer fiber lasers with compact OEM modular design which is ideal for systems integration. They are widely used in communication, lidar, medical cosmetology, optical instrument, interference, holography, spectrum analysis, pump source, measurement, physics experiment, etc. The 1550 nm and 1064nm fiber laser are in single longitudinal and polarized mode. The pulsed mode up to 1MHz modulation and pulse duration variation are also available.

Model	Wavelength (nm)	Output power(mW)	Pulse width	Modulation rate	Longitudinal mode	Polarization
STC-FL-266-PS	266	1-10	<10 ps	20-60 MHz	Multi-	>15dB
STC-FL-343-PS	343	1-50	<10 ps	20-50 MHz	Multi-	>15dB
STC-FL-355-PS	355	1-50	<10 ps	20-60 MHz	Multi-	>15dB
STC-FL-515-PS	515	1-200	<10 ps	20-50 MHz	Multi-	>15dB
STC-FL-532-PS	532	1-150	<10 ps	20-60 MHz	Multi-	>15dB
STC-FL-1030-PS	1030	1-2000	<10 ps	20-50 MHz	Multi-	Random/ >15dB
STC-FL-1030-PS-Seed	1030	0.5-1	<10 ps	20-50 MHz	Multi-	Random/ >15dB
STC-FL-1064-PS	1064	1-2000	<10 ps	20-60 MHz	Multi-	Random/ >15dB
STC-FL-1064-PS-Seed	1064	0.5-1	<10 ps	20-60 MHz	Multi-	Random/ >15dB

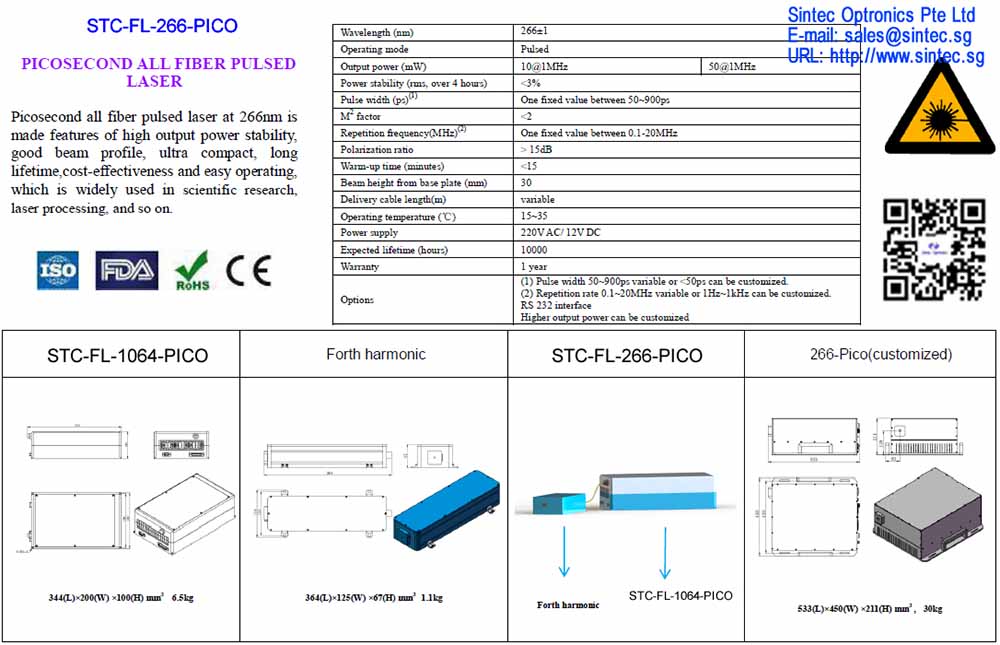

STC-FL-266-Pico	266	1-50	100-900 ps	0.1-20 MHz	Multi-	>15dB
STC-FL-343-Pico	343	1-50	100-900 ps	0.1-20 MHz	Multi-	>15dB
STC-FL-355-Pico	355	1-50	100-900 ps	0.1-20 MHz	Multi-	>15dB
STC-FL-515-Pico	515	1-1000	100-900 ps	0.1-20 MHz	Multi-	>15dB
STC-FL-532-Pico	532	1-1000	100-900 ps	0.1-20 MHz	Multi-	>15dB
STC-FL-535-Pico	535	1-1000	100-900 ps	0.1-20 MHz	Multi-	>15dB
STC-FL-1030-Pico	1030	10-5000	100-900 ps	0.1-20 MHz	Multi-	Random/ >15dB
STC-FL-1064-Pico	1064	10-5000	100-900 ps	0.1-20 MHz	Multi-	Random/ >15dB
STC-FL-1070-Pico	1070	10-5000	100-900 ps	0.1-20 MHz	Multi-	Random/ >15dB
STC-FL-1030-S	1030	1 uW-200 mW Peak power	5-100 ns (Adjustable)	1 Hz-10 MHz	Multi-	Random/ >15dB

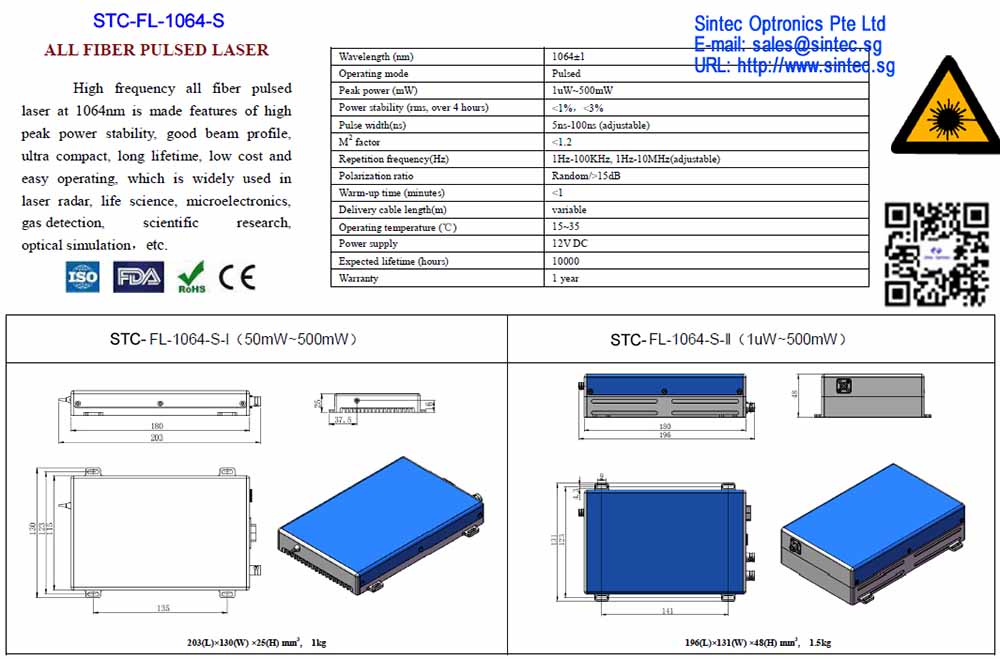

STC-FL-1064-S	1064	1 uW-500 mW Peak power	5-100 ns (Adjustable)	1 Hz-10 MHz	Multi-	Random/ >15dB
STC-FL-1550-S	1550	1uW-10 mW Peak power	5-100 ns (Adjustable)	1 Hz-10 MHz	Multi-	Random/ >15dB

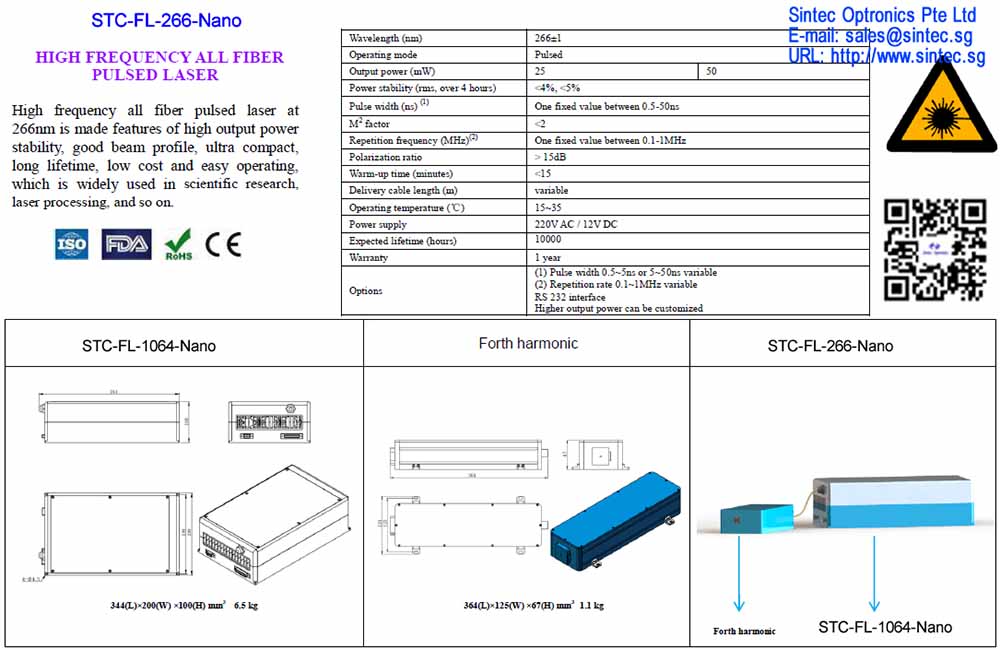

STC-FL-266-Nano	266	1-50	0.5-50 ns	0.1-1 MHz	Multi-	>15dB
STC-FL-343-Nano	343	10-300	0.5-50 ns	0.1-1 MHz	Multi-	>15dB
STC-FL-355-Nano	355	1-300	0.5-50 ns	0.1-1 MHz	Multi-	>15dB
STC-FL-515-Nano	515	1-1000	0.5-50 ns	0.1-1 MHz	Multi-	>15dB
STC-FL-532-Nano	532	1-1000	0.5-50 ns	0.1-1 MHz	Multi-	>15dB
STC-FL-535-Nano	535	1-1000	0.5-50 ns	0.1-1 MHz	Multi-	>15dB
STC-FL-1030-Nano	1030	0.5-10 W	0.5-250 ns (Variable)	0.1-1 MHz	Multi-	Random/ >15dB
STC-FL-1064-Nano	1064	1000-5000	0.5-250 ns (Variable)	0.1-1 MHz	Multi-	Random/ >15dB
STC-FL-1070-Nano	1070	0.5-10 W	0.5-250 ns (Variable)	0.1-1 MHz	Multi-	Random/ >15dB
STC-FL-1550-Nano	1550	50-1000	0.5-50 ns (Variable)	50-1000 kHz	Multi-	Random/ >15dB

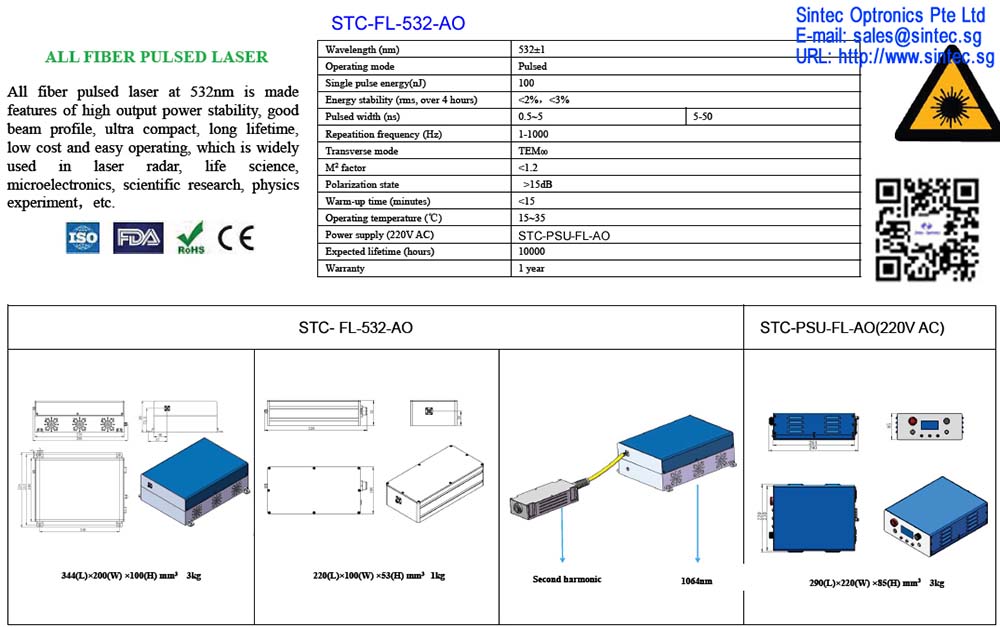

STC-FL-532-AO	532	10-100 nJ	0.5-50 ns	1-1000 Hz	Multi-	Random/ >15dB
STC-FL-1064-AO	1064	1-20 uJ	0.5-50 ns	1-1000 Hz	Multi-	Random/ >15dB
STC-FL-1550-AO	1550	1-20 uJ	0.5-50 ns	1-200 Hz	Multi-	Random/ >15dB

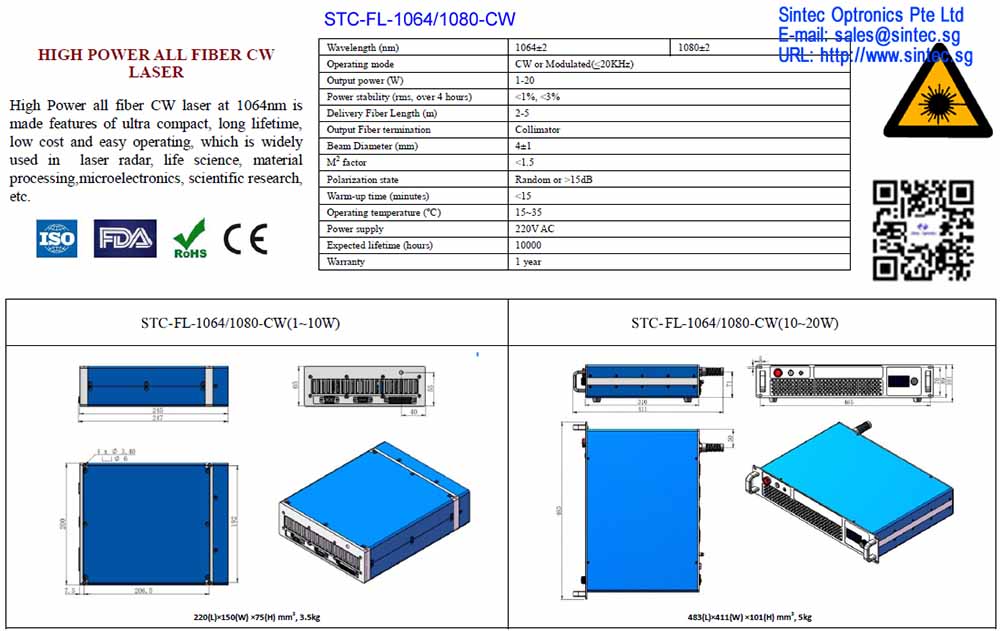

STC-FL-1064-CW	1064	1-20 W	N/A	CW/ modulated	Multi-	Random/ >15dB
STC-FL-1080-CW	1080	1-20 W	N/A	CW/ modulated	Multi-	Random/ >15dB
STC-FL-1550-CW	1550	1-20 W	N/A	CW/ modulated	Multi-	Random/ >15dB
STC-FL-1064-SF	1064	1-500	N/A	CW	Single	>15dB
STC-FL-1550-SF	1550	1-1000	N/A	CW	Single	>15dB

5. STM Series Nanosecond Pulsed Fiber Lasers

775nm pulsed fiber of Nanosecond Pulsed Fiber Lasers have been designed to allow users flexibility in their application refinement. With user selectable pulse-widths and repetition rates, these lasers put more options into the hands of the user than traditional lasers with fixed parameters. In addition, the ability to externally trigger pulses on some of the models make these laser an extremely flexible tool.

Based on an all-fiber laser cavity design and offering excellent beam quality and wall plug efficiency, these compact air-cooled lasers are an ideal choice for your application.

Repetition Rate: 20 - 40 MHz*
Average Power Stability: < 3%
Pulse to Pulse Stability: <5%

Features

All -fiber laser cavity
Excellent beam quality
High wall plug efficiency
Graphical User Interface
Highly reliable, maintenance free
Safety interlock
Compact & air-cooled

Applications

Structured Illumination Microscopy
Super Resolution Microscopy
3rd Generation DNA Sequencing
Entertainment
Military, and Scientific Research

	Wavelength	Energy/Pulse	Pulse duration**
External or Internal Triggering	1028, 1064, 1550 nm	100 nJ	1.5 - 4 ns
External or Internal Triggering	514, 532 nm	50 nJ	1.3 - 4 ns
External or Internal Triggering	775 nm	30 nJ	1.3 - 4 ns
Internal Triggering	1120, 1240 nm	60 nJ	1.1 - 4 ns
Internal Triggering	560, 620 nm	10 nJ	0.5 - 2 ns

* Other repetition rates custom
** Other models available

6. STG Series High-energy Pulsed Fiber Lasers

6.1 STG-MOPA-50-DC1 High-energy Pulsed Fiber Laser

Product Model		STG-MOPA-50-DC1
N	Characteristic	Min	Typ	Max	Test Result	Unit	Test Conditions
1	Average Power	50	51	52	51.45	W	@190ns, 20kHz
2	Power Instability		2	5	0.86	%	@190ns, 20kHz,2h
3	Central Wavelength	1060	1064	1080	1069	nm
4	Spectral Width	1	10	20	12	nm	@3dB
5	Pulse Width	190		400	Pass	ns
6	Power Tuning Range	0		100	Pass	%
7	Frequency Tuning Range	1		25	Pass	kHz	7-15 kHz@ 2.5mJ
8	Beam Quality	1.1	1.3	1.5	1.34		@4σ
9	Beam Diameter	6	7	8	6.58	mm	@4σ
10	Guide Laser Power	0.3	1	2	1.76	mw

Pulse width and frequency parameters

Pulse (ns)	Frequency（kHz)	FWHM (ns)	Energy (mJ)
190	20	70	2.59
190	15	70	2.58
190	14	70	2.57
190	13	70	2.55
190	12	70	2.53
190	11	70	2.50
190	10	70	2.48
190	9	70	2.47
190	8	70	2.46
190	7	70	2.44
190	6	70	2.43
190	5	70	2.40

Dimension:

6.2 STG-MOPA-40-DC3 High-energy Pulsed Fiber Laser

Optical characteristics

No.	Characteristics	Parameter value	Unit
1	Central wavelength	1060-1080	nm
2	Spectral width @3dB	<15	nm
3	Maximum pulse energy	2.5	mJ
4	Output power	40@16kHz	W
5	Power turning range	0-100	%
6	Frequency turning range	5-16	kHz
7	Laser switching ON/OFF time	<20	μs
8	Pulse width	190	ns
9	Output power stability	<3	%
10	Beam quality M²	<1.5	/
11	Polarization direction	Random	/
12	Resist high reaction	Yes	/
13	Indicator red light	0.3-2	mW
14	Collimated beam diameter (4σ)	5.5-8.5	mm
15	Delivery cable length	0.4	m

Electrical characteristics

No.	Characteristics	Parameter value	Unit
16	Power supply voltage	24	VDC
17	Working current	<8	A
18	Power consumption	<192	W
19	Recommended power supply	≥200	W

Environmental requirements

No.	Characteristics	Parameter value	Unit
20	Operating temperature	0 - 40	℃
21	Storage temperature	-10 - 60	℃
22	Cooling Method	Air cooling	/

Structural characteristics

No.	Characteristics	Parameter value	Unit
23	Laser dimension	32028092	mm3
24	Isolator dimension	2545050	mm3
25	Net weight	<15	kg

Dimension:

7. Beam Combiner Modules

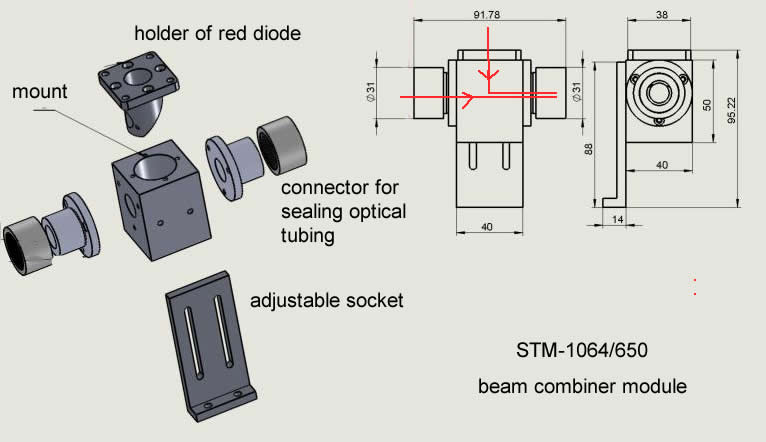

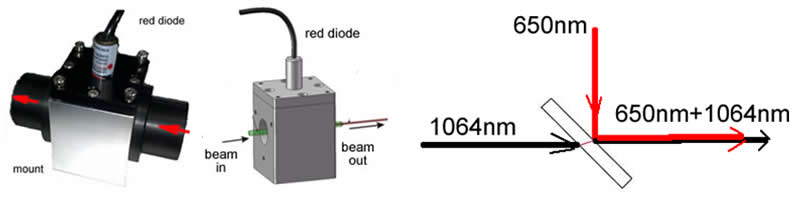

We also provide beam combiner modules (or called as red aiming module), which is designed for the use with the fiber lasers (or Nd:YAG lasers etc). Inside there is a beam combiner. A red diode is vertically fixed and the fiber laser beam horizontally goes through the module.

The beam combiner module STM-1064/650 is designed for combining 1064nm and 650nm laser beams. The matchedred diodeis ST-SD650-5G1 and the beam combiner is the diemsnion Φ20x1.5mm (or Φ20x2mm, Φ20x3mm etc) such as STJ-1064-BC-20-2. For other laser wavelengths, just select other beam combiners and the beam combiner modules at other wavelengths are available upon request. Please contact us for more information.
