The articulated arm delivery system is used in conjunction with various types of CO2, YAG, and other wavelength laser systems as a means of delivering the laser energy from the laser launch to the process point. A six or
The articulated arm delivery system is used in conjunction with various types of CO2, YAG, and other wavelength laser systems as a means of delivering the laser energy from the laser launch to the process point. A six or seven joint articulated arm for the delivery of laser energy. Attachment to the laser is accomplished with a laser mount plate and various coupling devices, and process end is attached to the hand piece by the use of an adapter at the end of the arm.

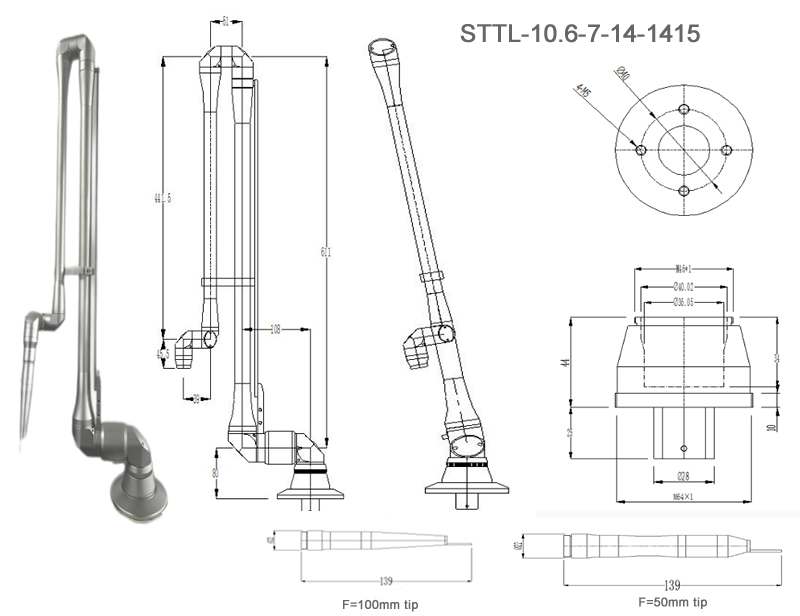

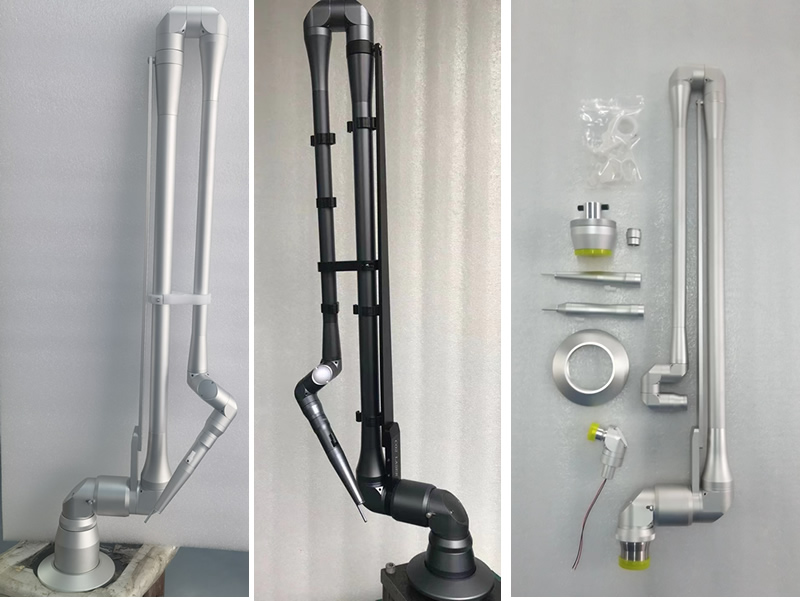

Part number | STTL-10.6-7-14-1415 |
Laser wavelength (mm) | 10.6 |
Number of joints | 7 |
Max. beam aperture (mm) | Φ14 |
Extension length (mm) | 1415=80+108+611+51+441.5+39+39+45.5 |
Optical path deviation (mm) | ±0.3 |
Dimension of mirrors (mm) | Φ25.4x3 (4pcs), Φ18x3 (3pcs) |
Total reflectivity | ≥85%@10.6mm |
Mount connection (mm) | M20x1 |
Colour | Silver; Blue-black |
Tip | F=50mm; F=100mm |

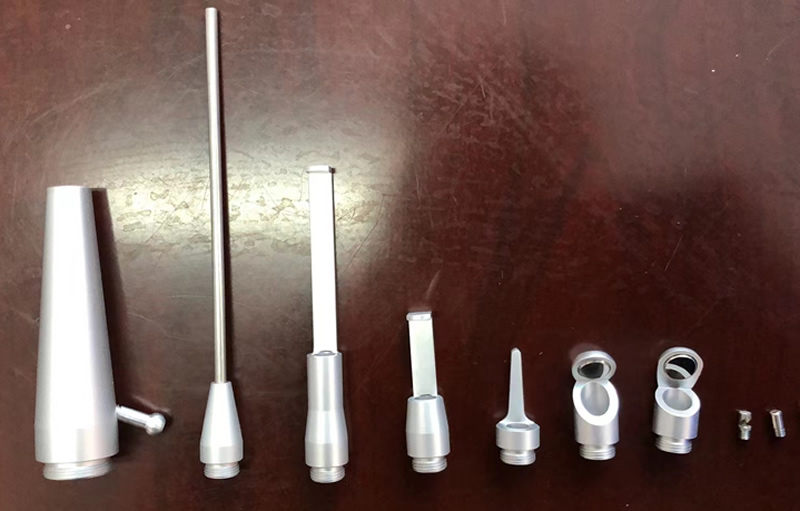

Accessories (options):
1. Articulated Arms for Nd:YAG Laser

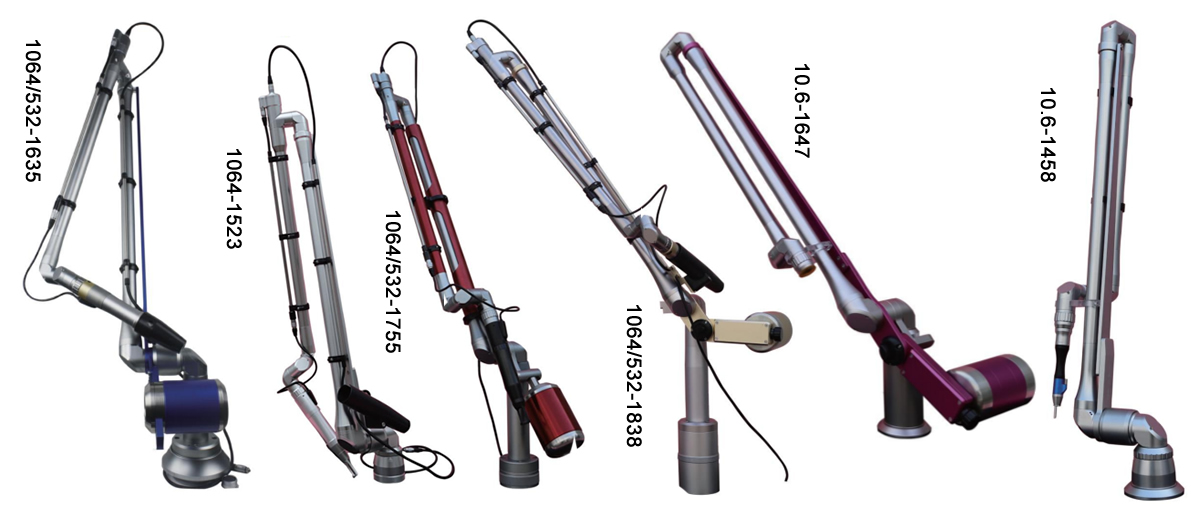

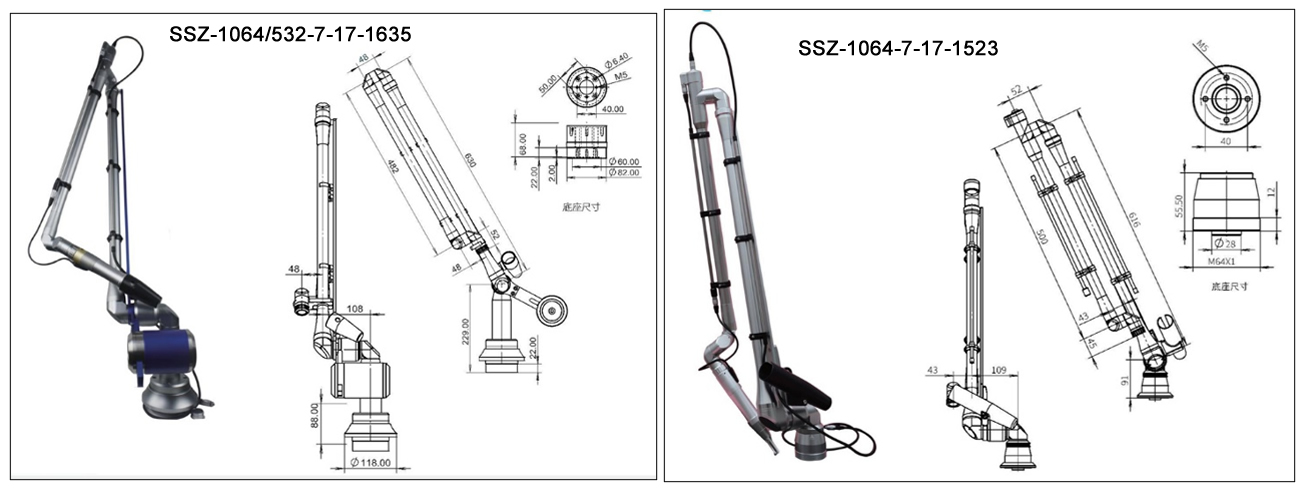

Part number | SSZ-1064/532-7-17-1635 | SSZ-1064-7-17-1523 |
Laser wavelength | 1064+532nm | 1064nm |
Number of joints | 7 | 7 |
Max. beam aperture | Φ17mm | Φ17mm |
Extension length (mm) | 1635=219+108+630+48+482+48+48+52 | 1523=90+109+616+52+500+52+52+52 |
Optical path deviation | ±0.3mm | ±0.3mm |
Dimension of mirrors | Φ25x3mm | Φ25x3mm |
Reflectivity | 99.6%@1064nm, 98%@532nm | 99.6%@1064nm, 98%@532nm |
Mount connection | M22x1.5mm | M22x1.5mm |

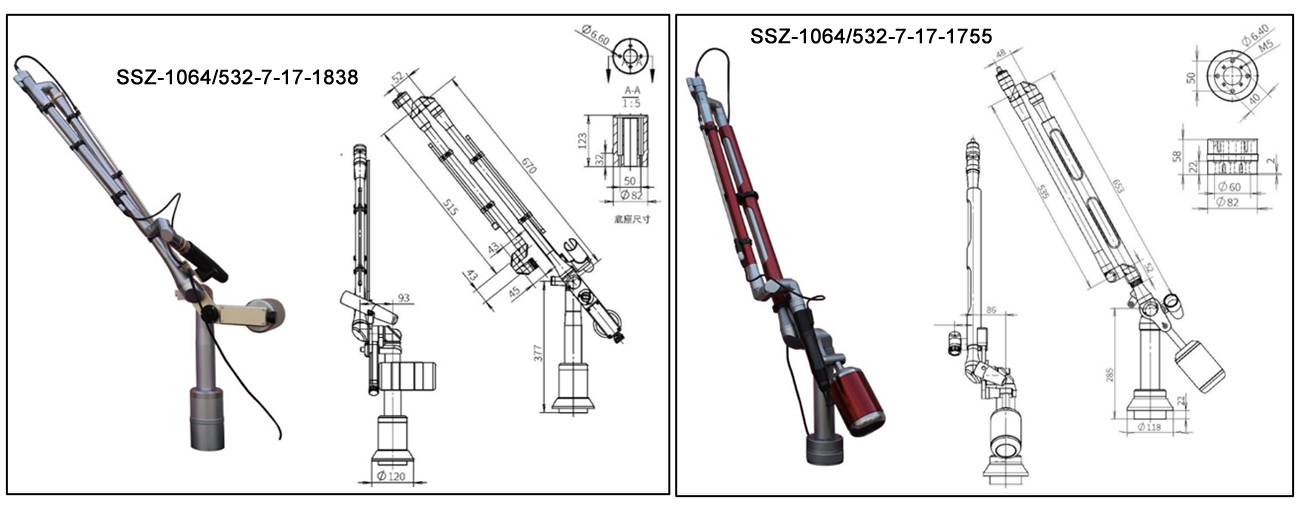

Part number | SSZ-1064/532-7-17-1838 | SSZ-1064/532-7-17-1755 |
Laser wavelength | 1064+532nm | 1064+532nm |
Number of joints | 7 | 7 |
Max. beam aperture | Φ17mm | Φ17mm |
Extension length (mm) | 1838=377+93+670+52+515+43+43+45 | 1755=285+86+653+48+535+48+52 |
Optical path deviation | ±0.3mm | ±0.3mm |
Dimension of mirrors | Φ25x3mm | Φ25x3mm |
Reflectivity | 99.6%@1064nm, 98%@532nm | 99.6%@1064nm, 98%@532nm |
Mount connection | M22x1.5mm | M22x1.5mm |
2. Articulated Arms for CO2 Laser

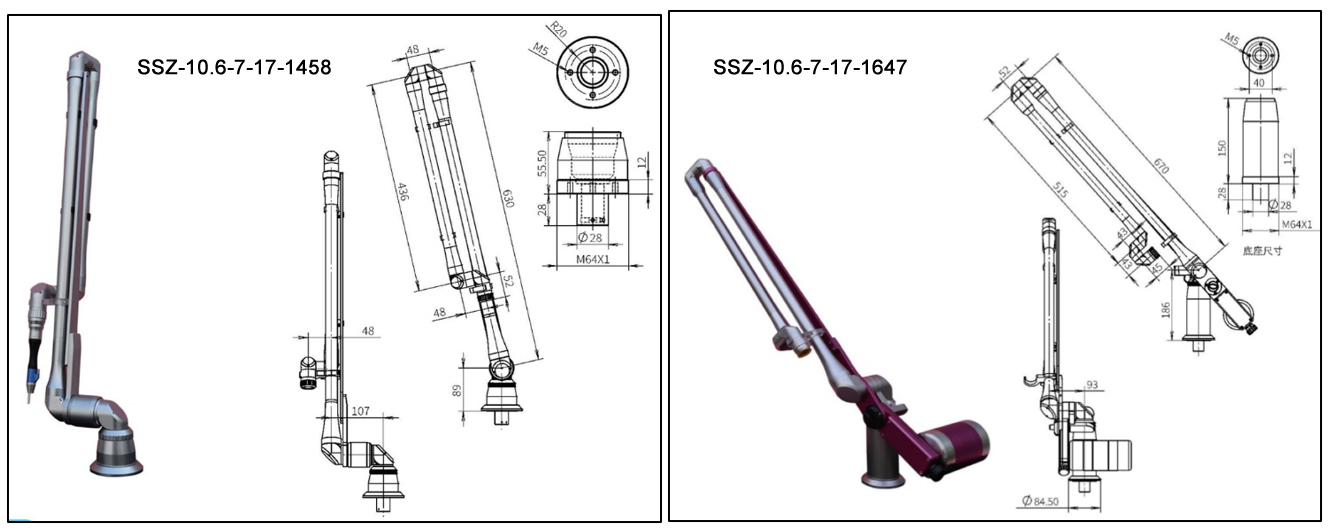

Part number | SSZ-10.6-7-17-1458 | SSZ-10.6-7-17-1647 |
Laser wavelength | 10.6um | 10.6um |
Number of joints | 7 | 7 |
Max. beam aperture | Φ17mm | Φ17mm |
Extension length (mm) | 1458=89+107+630+48+436+48+48+52 | 1647=186+93+670+52+515+43+43+45 |
Optical path deviation | ±0.3mm | ±0.3mm |
Dimension of mirrors | Φ25x3mm | Φ25x3mm |
Reflectivity | 98%@10.6um | 98%@10.6um |
Mount connection | M20x1mm | M20x1mm |
