Laser Welding Head (Cladding Head)

Laser Welding Head (Cladding Head)

Keywords: Laser Welding Head, cutting, self-floating, cladding head
Dec 22, 2020 View: 4061 Data Sheet

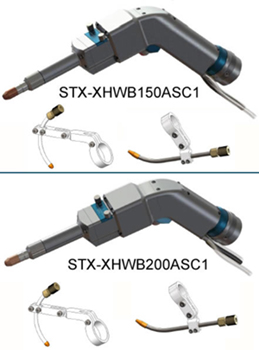

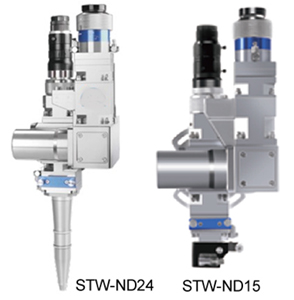

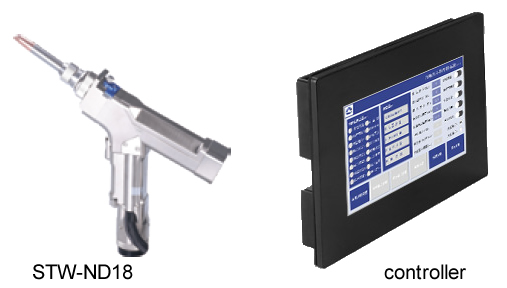

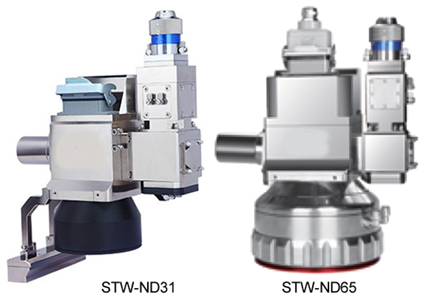

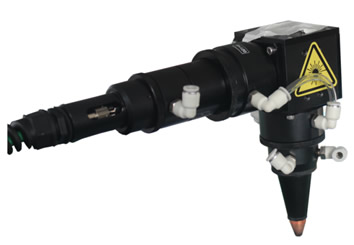

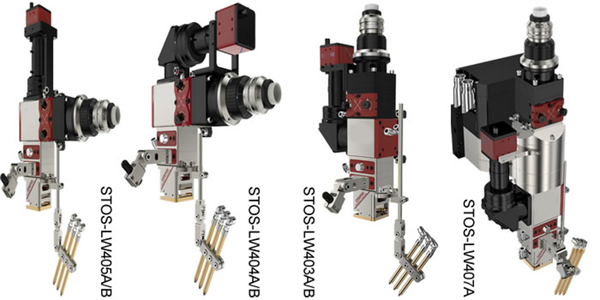

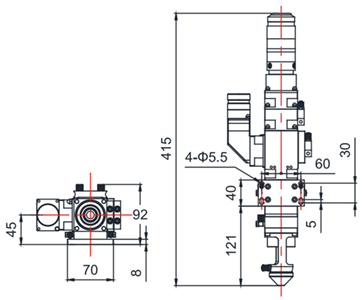

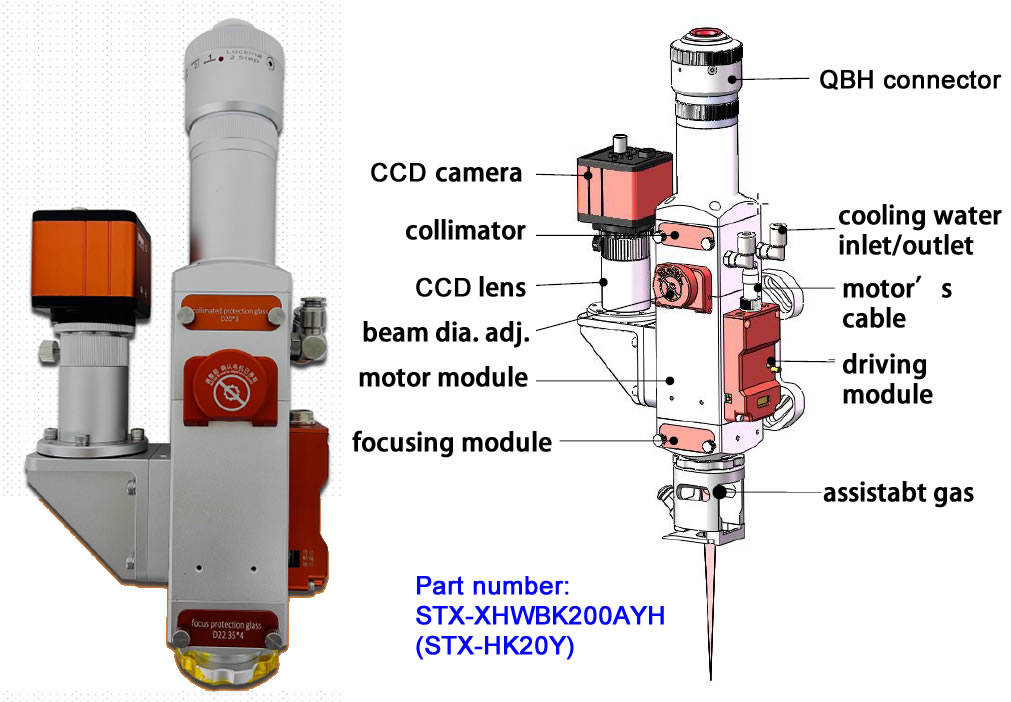

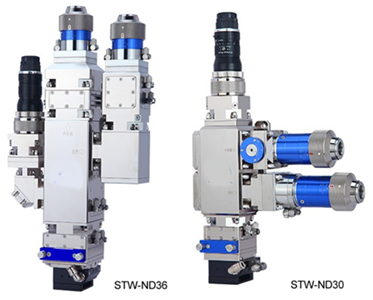

Fiber laser welding head has advantages over thin plate and tiny parts welding application. Complete sealed internal structure prevents optical part from polluted by dusts CAM structure focusing.

SJQ Series Blue+IR Dual-wavelength Laser Welding Heads

Infrared fiber lasers:

Low absorption, splash, pores, internal defects, low mechanical properties and conductivity, low productivity.

Blue Diode laser:

High absorption rate, small thermal impact area, reflected light to the lens and other structures of the high risk of high-reverse damage, can be composite welding.

Applied Research:

Cu + Al

500W 0.5mm SUS304

1000W 1mm SUS304



Composite welding case-:

Blue LD 1KW for welding + Fiber laser 3KW for preheating

Composite welding case-2:

Blue LD 1KW for welding + Fiber laser 3KW for preheating

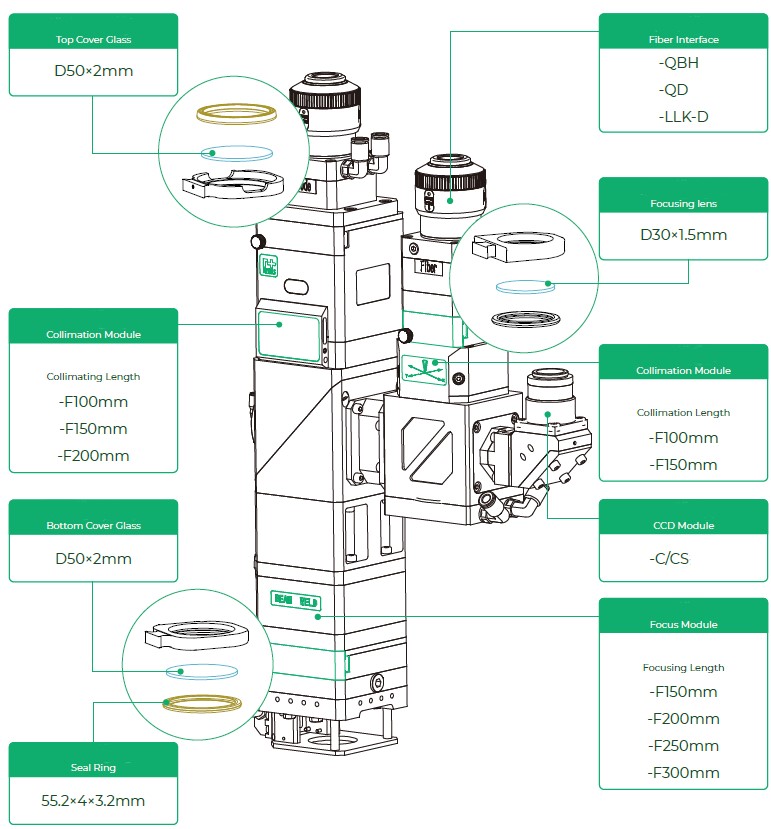

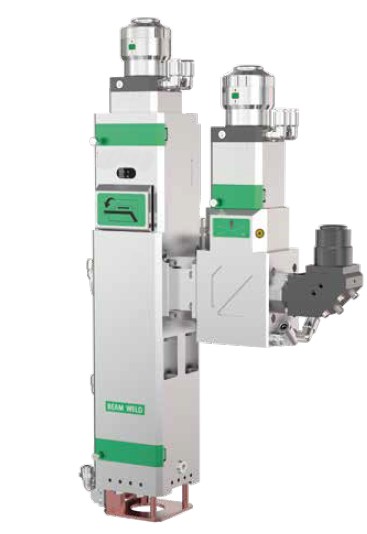

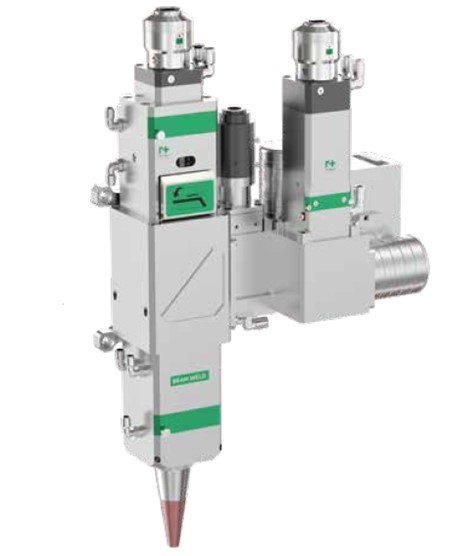

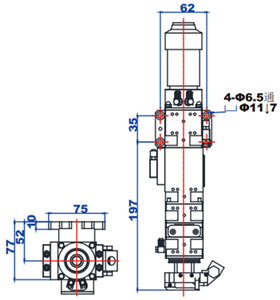

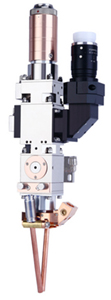

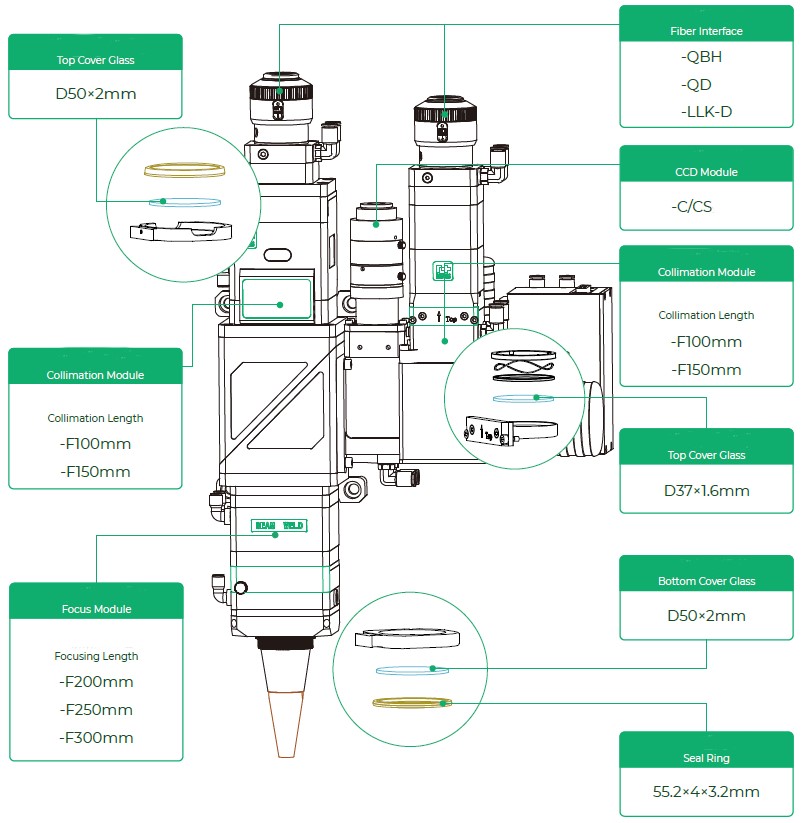

1. SJQ Series Hybrid Wavelength Welding Head, SJQ-BW290-6D

  • Excellent Welding Effect

Mainly used for welding of high-reflection materials and to secure the quality and consistency of welding seam.

  • Rich Function Expanding

Modules like seam tracking and positioning are optional for expanding of function. Make it easy to realize auto welding.

  • Drawer Type Lens Holder

Drawer type cover glass holder to facilitate replacement

  • Efficient Cooling

Dual water cooling structure with interfaces on both the cover glass hold er and the laser head to extend the working duration.

  • Excellent Dustproof

Reliable sealing design to avoid contamination to optical lens and prolong the lifespan.

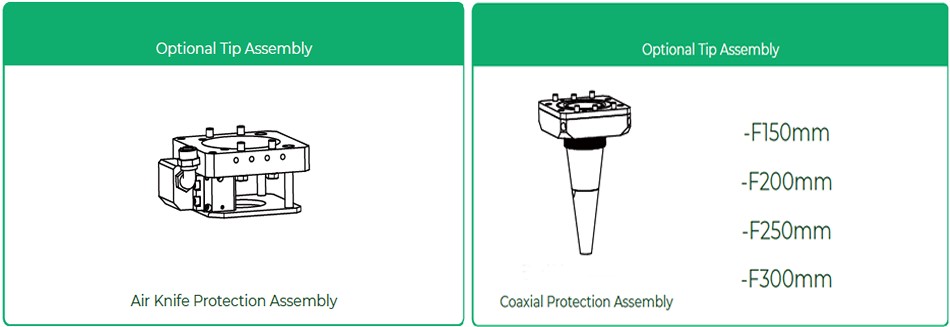

Technical Data

Power ratingFiber 4000W+Diode 2000W
Laser wavelengthFiber 1064nm+Diode 915/450nm
Clear apertureFiber 35mm, Diode 48mm
Weight~9.0kg



2. SJQ Series Dual-Wavelength Hybrid Wobble Welding Head, SJQ-BW290-6B

  • High Power Rating

Dual-wavelength (fiber laser 4kW with wobble feature+ diode 2kW) optics system.

  • Excellent Welding Effect

With low porosity, high mechanical properties and high-quality welding surface.

  • Various Scanning Patterns

Support for continuous circle, continuous square, continuous line, continuous ellipse and continuous 8 type, etc.

  • Drawer Type Lens Holder

Drawer type cover glass holder to facilitate replacement

  • Excellent Dustproof

Reliable sealing design to avoid contamination to optical lens and prolong the lifespan.

  • Efficient Cooling

Dual water-cooling structure with interfaces on both the cover glass holder and the laser head to extend the working duration

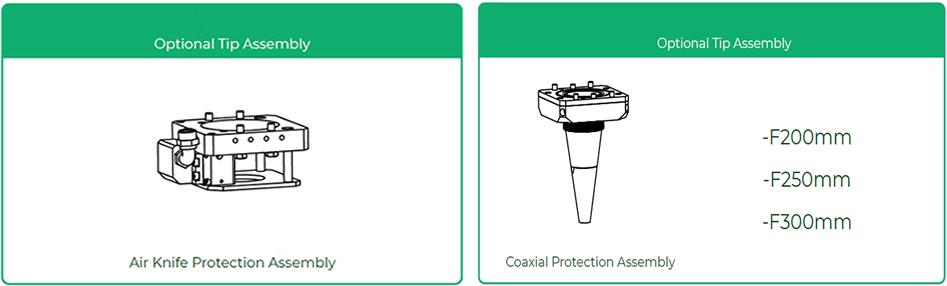

Technical Data

Power ratingFiber 4000W+Diode 2000W
Laser wavelengthFiber 1064nm+Diode 915/450nm
Clear apertureFiber 35mm, Diode 48mm
Weight~12.0kg
