Handheld Laser Welding Machine (Air Cooling) " Fiber continuous handheld laser welding machine " consists of an integrated cabinet, fiber laser source, laser control system and handheld welding head. This product is widely used in metal advertising word welding, stainless steel engineering

Handheld Laser Welding Machine (Air Cooling)

Handheld Laser Welding Machine

" Fiber continuous handheld laser welding machine " consists of an integrated cabinet, fiber laser source, laser control system and handheld welding head. This product is widely used in metal advertising word welding, stainless steel engineering welding, sheet metal cabinet welding and large sheet metal structure welding.

Features:

  • The welding speed is fast, 2-10 times faster than traditional welding. One machine can save at least 2 welders a year.

  • Laser welding requires less consumables and has a long service life.

  • The operation is simple, and you can start working without a work permit, and you can weld beautiful products without a teacher.

  • The weld is smooth and beautiful, reducing the subsequent grinding process, saving time and cost.

  • There is no deformation or scar in the welding work, and the welding is firm.

  • Safer and more environmentally friendly.

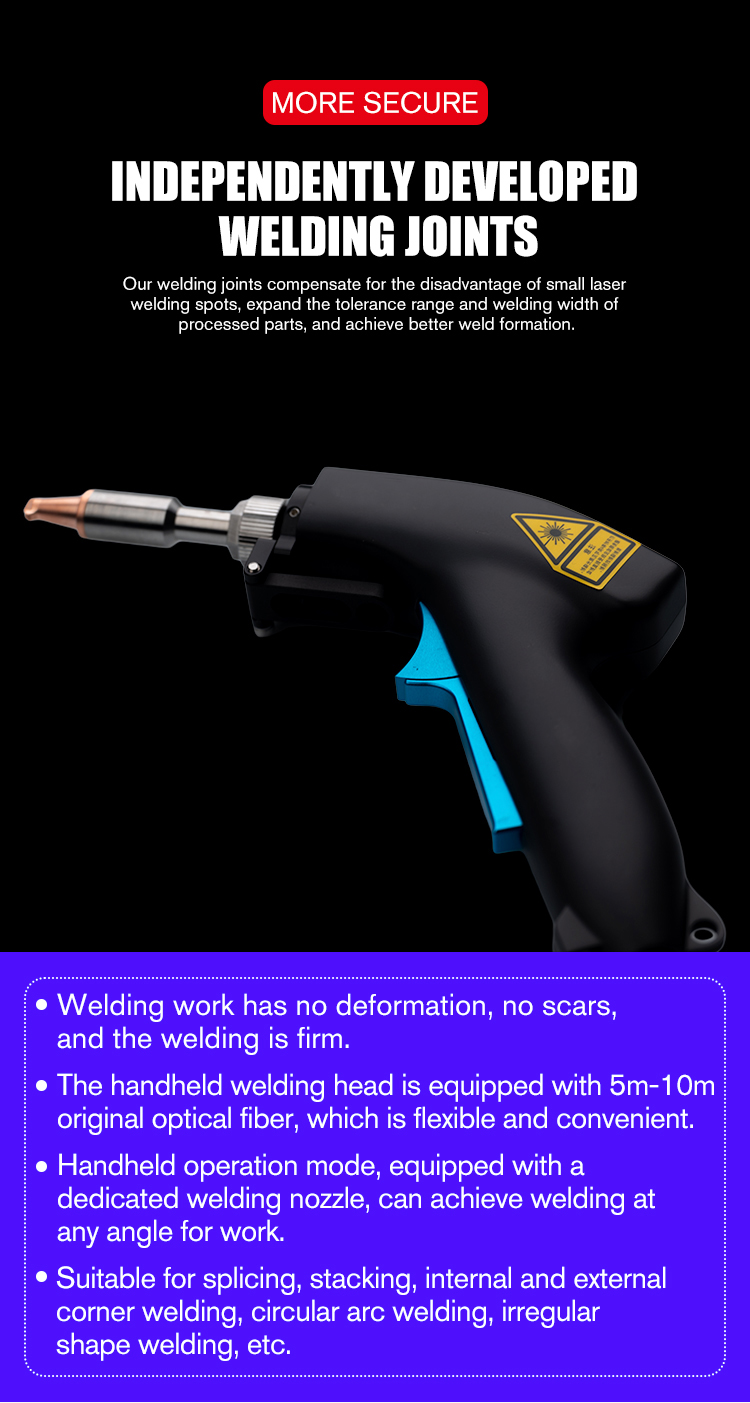

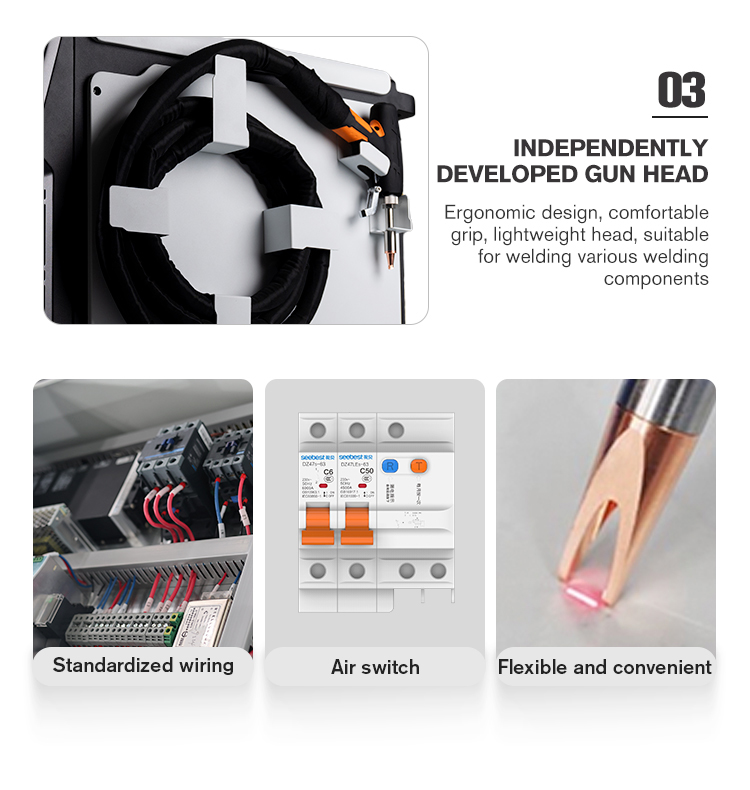

  • The independently developed stirring welding head makes up for the disadvantage of the small laser welding spot, expands the tolerance range and welding width of the processed parts, and obtains better weld formation.

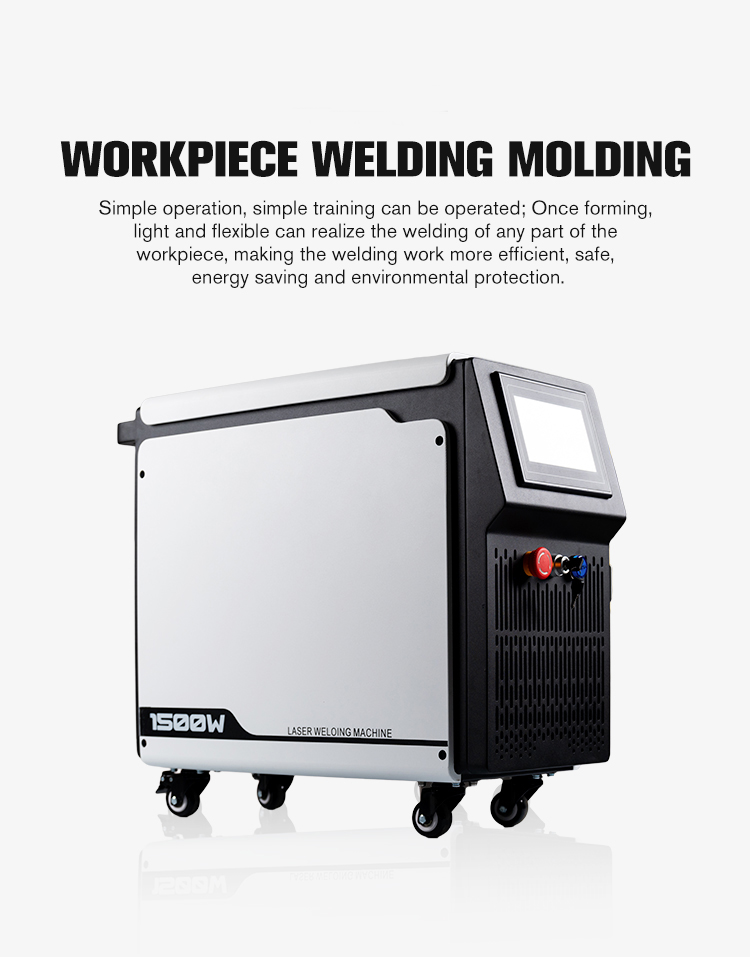

  • The integrated cabinet integrates laser, software control, etc., and has unique advantages such as small footprint, easy mobility, and strong functionality.

  • The handheld welding head is equipped with 5m-10m original optical fiber, which is flexible and convenient.

  • Handheld operation mode, equipped with a special welding nozzle, can achieve welding at any part and any angle of the work.

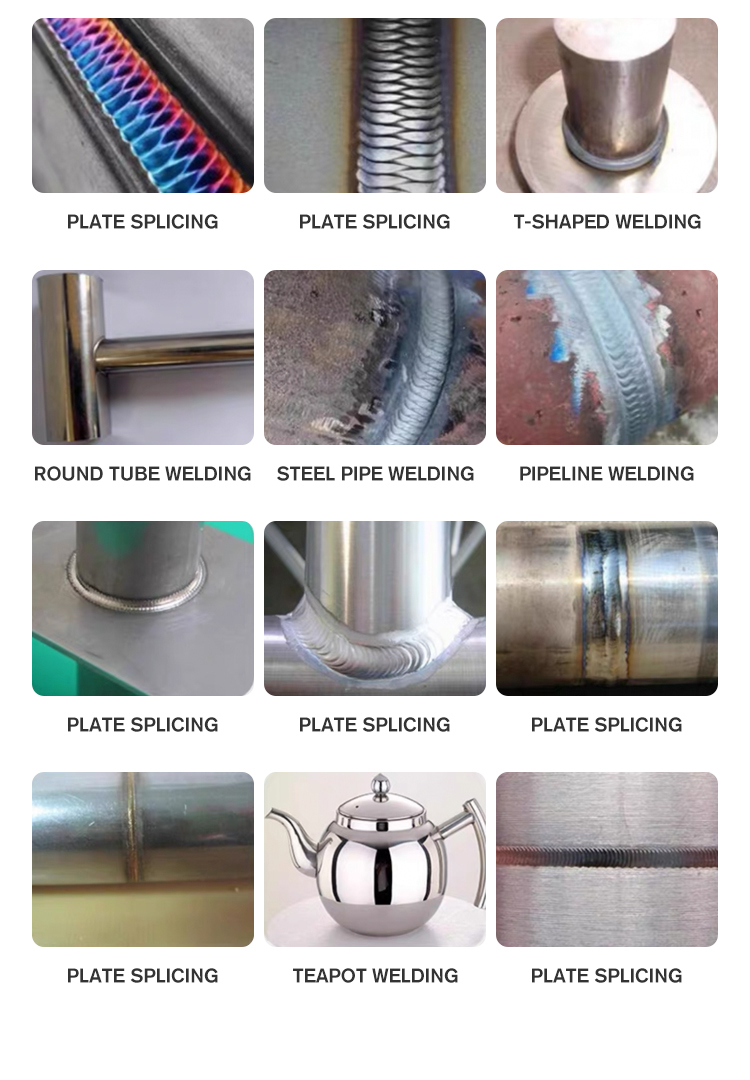

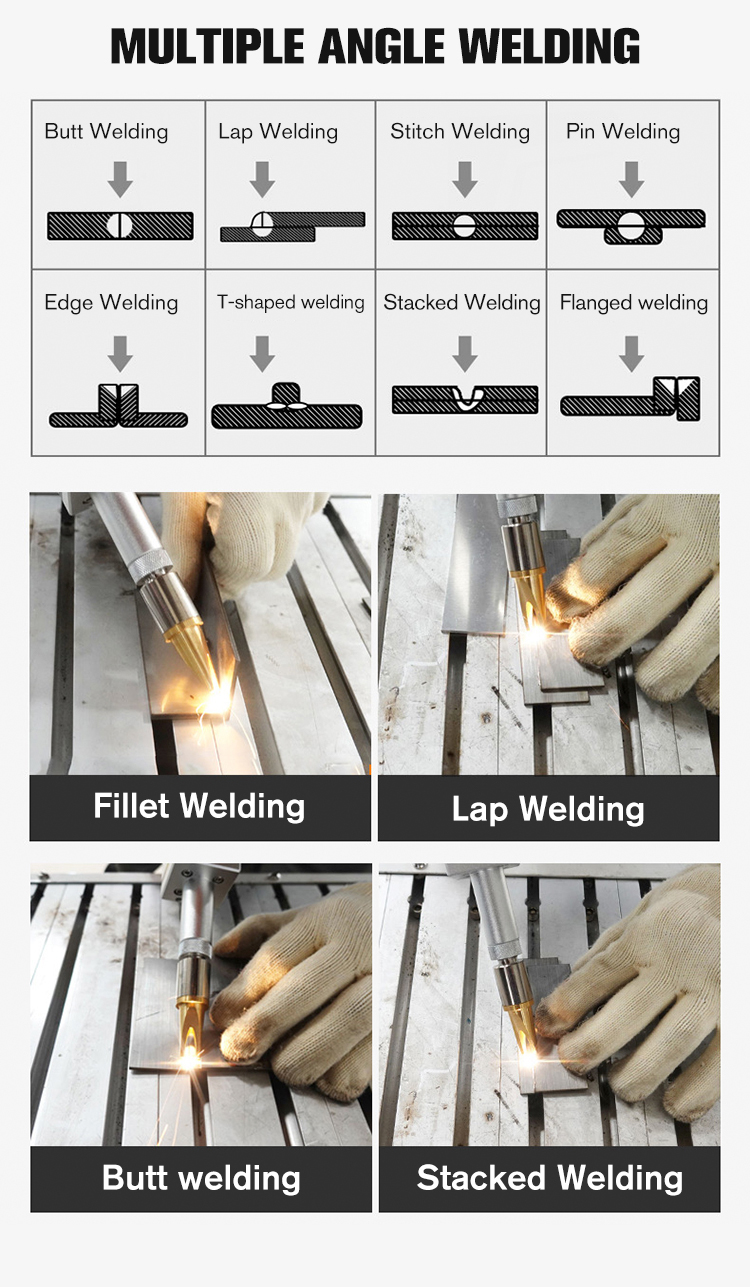

  • Suitable for butt welding, lap welding, internal and external fillet welding, arc welding, irregular shape welding, etc.

  • Proprietary laser safety operation protection function ensures the safety of operators during work.

Parameterindex:

ModelSTD-80FLSTD-15LSTD-15FTSTD-20FT
Laser power750W1200W1500W2000W
Working modeContinuous or modulate
Laser wavelength1064 NM
Beam qualityM2<1.1M2<1.2M2<1.2M2<1.2
Power supplyAC220V      ± 5 %      50/60Hz      10AAC220V      ± 5 %      50/60Hz      16AAC220V      ± 5 %      50/60Hz      16AAC220V      ±5%      50/60Hz      20A
Total power≤2300 W≤3000 W≤3500 W≤4500 W
Cooling systemAir Cooling
Fiber length10M Customizable
Temperature range of working environment0 ~ 38 ℃
Applicable materialsCarbon steel, stainless steel, galvanized sheet, etc
Penetration thickness rangeMAX 2 mmMAX 3 mmMAX 4 mmMAX 4 mm
Weld requirements< 0.5 mm

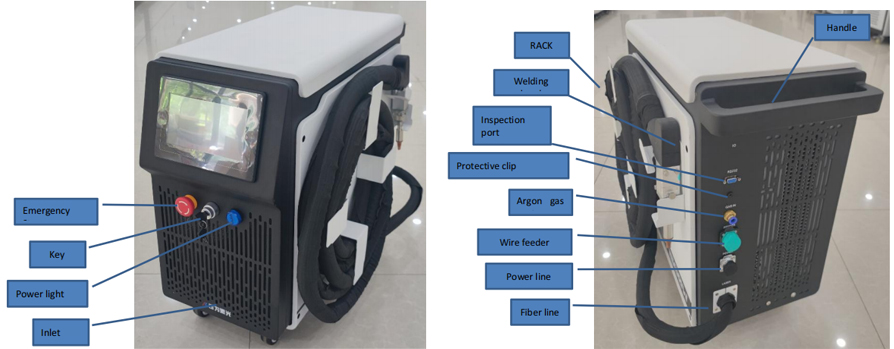

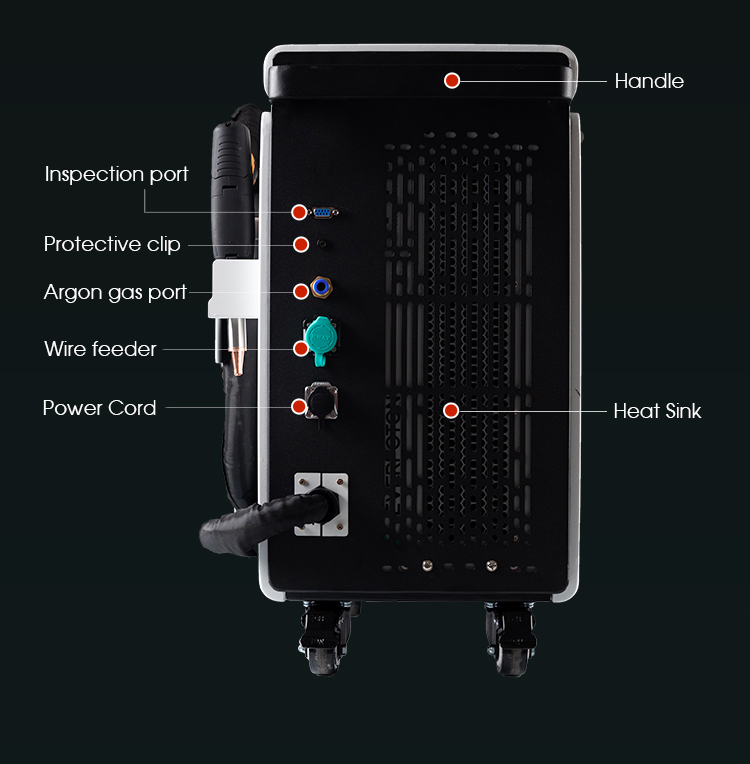

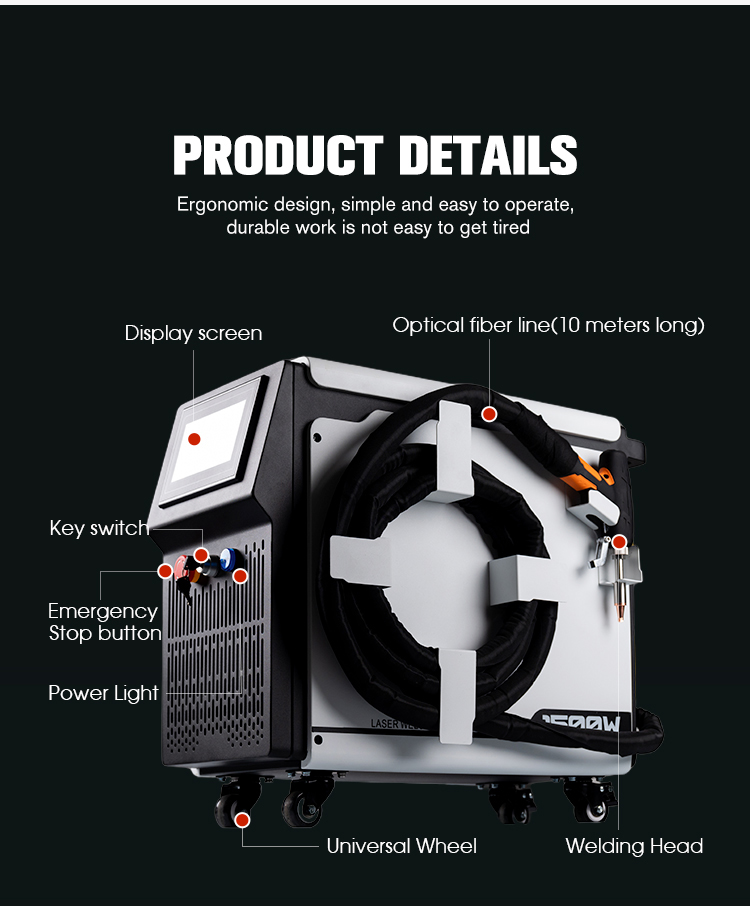

Appearance and function

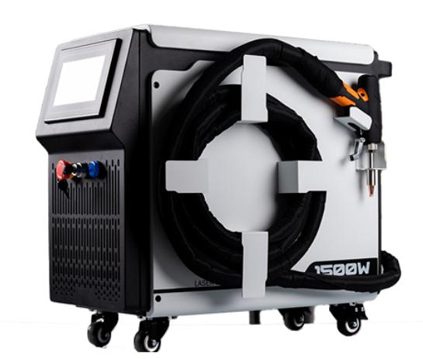

Handheld Laser Welding Machine

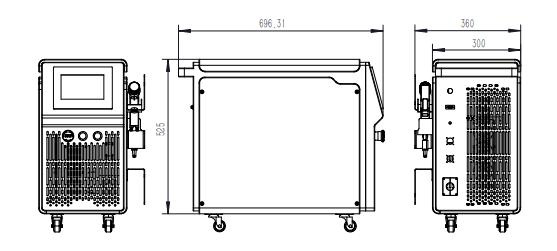

External Dimensions: 697 * 360 * 532MM (kg)

Handheld Laser Welding Machine

Handheld Laser Welding Machine

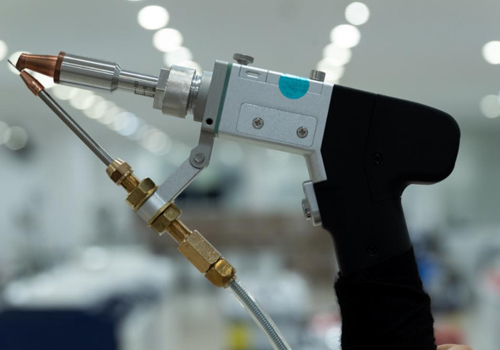

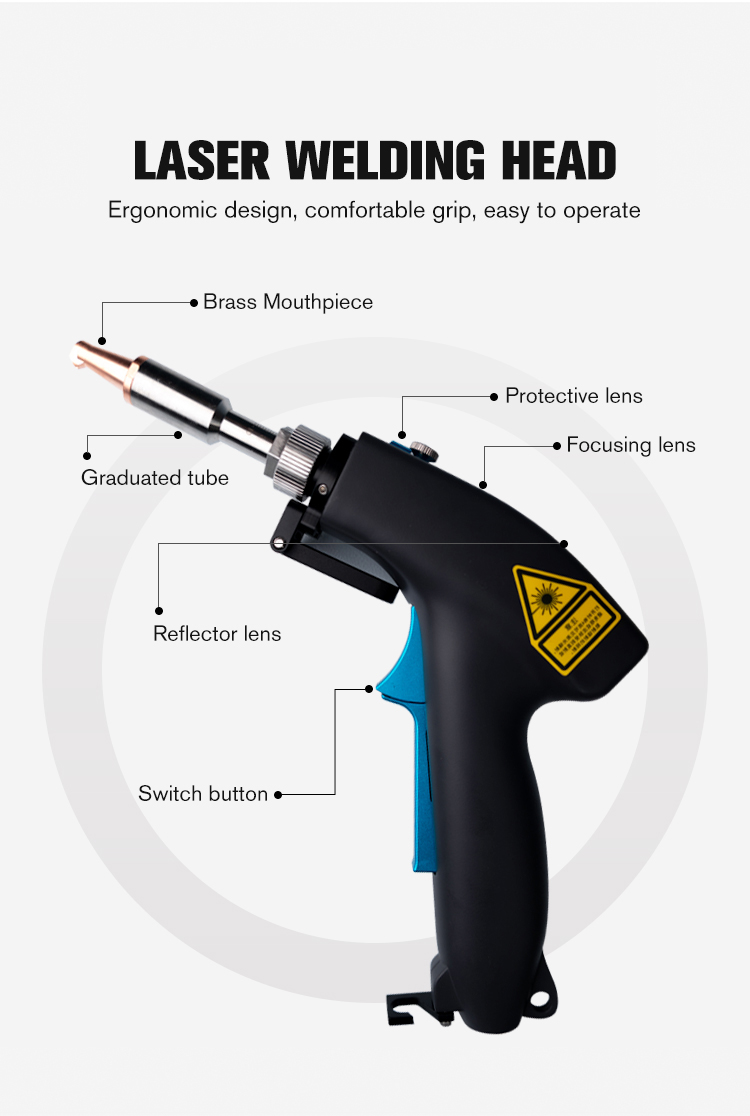

Welding Head

Handheld Laser Welding Machine

Handheld Laser Welding Machine

Handheld Laser Welding Machine

Handheld Laser Welding Machine

Handheld Laser Welding Machine

Handheld Laser Welding Machine

Handheld Laser Welding Machine

Handheld Laser Welding Machine

Handheld Laser Welding Machine

Handheld Laser Welding Machine

Handheld Laser Welding Machine

Handheld Laser Welding Machine

Handheld Laser Welding Machine

Handheld Laser Welding Machine
