Homogenizer product line flexibly converts any collimated input laser beam into a well-defined beam with homogenized intensity and desired shape.

Submit Inquiry +65 63167112 sales@sintec.sg

Homogenizer product line flexibly converts any collimated input laser beam into a well-defined beam with homogenized intensity and desired shape.

Using our Beam Homogenizer product, you can convert any collimated input beam profile into a well-defined beam with homogenized intensity. Any desired shape, for any wavelength can be achieved.

A Beam Homogenizer is very useful in many applications requiring a well-defined beam shape with a randomly-diffused intensity profile.

The output of the Beam Homogenizers will depend on the input beam profile:

A multi-mode laser beam actually has an advantage when used with beam homogenizer, as their degraded coherence will reduce the visibility of speckles and therefore create a more uniform intensity profile than with single mode laser input.

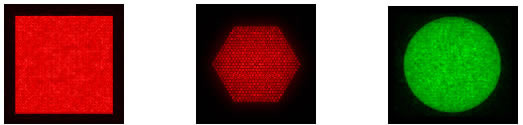

Square / Hexagonal / Round

PN	λ[nm]	θf [deg]	Image size*** [mm] for EFL=100mm	Element Size [mm]	Image Shape	Remarks
HM-260-I-Y-A	1064	2	3.49	25.4	Line
DF-200-I-Y-A	1064	0.50x0.50	0.87x0.87	11	Square	replaced by HM-283
HH-209-I-Y-A	1064	20.00x20.00	35.27x35.27	10x10	Square	High Homogeneity
HH-214-I-Y-A	1064	2.00x2.00	3.49x3.49	11	Square	High Homogeneity
HM-200-I-Y-A	1064	0.50x0.50	0.87x0.87	11	Square	replaced by HM-283
HM-201-I-Y-A	1064	0.50x0.50	0.87x0.87	25.4	Square	replaced by HM-212
HM-203-I-Y-A	1064	2.00x2.00	3.49x3.49	25.4	Square	replaced by HM-271
HM-208-I-Y-A	1064	2.75x2.75	4.80x4.80	25.4	Square
HM-210-I-Y-A	1064	2.00x2.00	3.49x3.49	11	Square	replaced by HM-284
HM-211-I-Y-A	1064	2.00x2.00	3.49x3.49	25.4	Square	replaced by HM-271
HM-212-I-Y-A	1064	0.50x0.50	0.87x0.87	25.4	Square
HM-213-I-Y-A	1064	1.00x1.00	1.75x1.75	22	Square	High Efficiency
HD-200-I-Y-A	1064	2.15	3.75	18	Hexagonal
HM-271-I-Y-A	1064	2.00x2.00	3.49x3.49	25.4	Square
HM-273-I-Y-A	1064	10.00x10.00	17.50x17.50	10x10	Square
HM-274-I-Y-A	1064	20.00x20.00	35.27x35.27	10x10	Square
HM-283-I-Y-A	1064	0.50x0.50	0.87x0.87	11	Square
RH-215-I-Y-A	1064	4	6.98	25.4	Round	High Homogeneity
RD-204-I-Y-A	1064	2	3.49	25.4	Round
RD-206-I-Y-A	1064	2	3.49	11	Round
RD-211-I-Y-A	1064	0.5	0.87	11	Round	replaced by RD-228
RD-215-I-Y-A	1064	4	6.98	25.4	Round
RD-216-I-Y-A	1064	1.6	2.79	25.4	Round
RD-228-I-Y-A	1064	0.5	0.87	11	Round
HM-263-I-Y-A	1064	0.5	0.87	11	Line
HM-264-I-Y-A	1064	0.60x0.60	1.05x1.05	25.4	Square
HM-267-I-Y-A	1064	8	13.99	48	Line
ED-204-I-Y-A	1064	1.71x0.84	2.98x1.47	25.4	Elliptical
HM-272-I-Y-A	1064	0.55x0.55	0.96x0.96	25.4	Square
ED-205-I-Y-A	1064	2.76x1.87	4.82x3.26	25.4	Elliptical
ED-206-I-Y-A	1064	3.80x2.92	6.63x5.10	25.4	Elliptical
HM-276-I-Y-A	1064	1.00x1.00	1.75x1.75	25.4	Square
HM-281-I-Y-A	1064	2	3.49	11	Line
RH-220-I-Y-A	1064	4	6.98	20	Round	High Homogeneity
HM-284-I-Y-A	1064	2.00x2.00	3.49x3.49	11	Square
HM-285-I-Y-A	1064	0.36x0.66	0.63x1.15	25.4	Rectangular
RH-218-I-Y-A	1064	2	3.49	18	Round	High Homogeneity
HM-288-I-Y-A	1064	0.54x0.54	0.94x0.94	38.1	Square
HM-289-I-Y-A	1064	1	1.75	11	Line
HM-290-I-Y-A	1064	4.00x4.00	6.98x6.98	11	Square
HM-291-I-Y-A	1064	4	6.98	11	Line
HM-303-I-Y-A	1064	3.60x14.40	6.29x25.27	15	Rectangular
RH-217-I-Y-A	1064	2	3.49	25.4	Round	High Homogeneity
RH-224-I-Y-A	1064	4	6.98	15	Round	High Homogeneity
RH-206-I-Y-A	1064	2	3.49	11	Round	High Homogeneity
RD-254-I-Y-A	1064	1	1.75	20	Round	M-Shape
RD-253-I-Y-A	1064	5.27	9.2	15	Round
ED-201-I-Y-A	1064	1.23x0.79	2.15x1.38	15	Elliptical
RD-252-I-Y-A	1064	3.44	6.01	15	Round
RD-251-I-Y-A	1064	6.87	12	15	Round
RD-247-I-Y-A	1064	0.5	0.87	25.4	Round	M-Shape
HM-320-I-Y-A	1064	5.78x1.44	10.10x2.51	15	Rectangular
RD-246-I-Y-A	1064	3	5.24	15	Round
HM-322-I-Y-A	1064	2.06x7.55	3.60x13.20	18	Rectangular
HM-323-I-Y-A	1064	0.3	0.52	25.4	Square
HM-327-I-Y-A	1064	3	5.24	11	Line
HM-328-I-Y-A	1064	5.00x5.00	8.73x8.73	11	Square
RD-237-I-Y-A	1064	4	6.98	11	Round
RD-231-I-Y-A	1064	1	1.75	20	Round
RD-203-I-Y-A	1064	0.5	0.87	25.4	Round
HH-208-I-Y-A	1064	2.75x2.75	4.80x4.80	25.4	Square	High Homogeneity
ED-202-I-Y-A	1064	1.23x0.79	2.15x1.38	11	Elliptical
RD-208-I-Y-A	1064	16	28.11	11	Round
HH-211-I-Y-A	1064	2.00x2.00	3.49x3.49	25.4	Square	High Homogeneity
RD-213-I-Y-A	1064	0.5	0.87	11	Round
HM-217-I-Y-A	1064	2.06x7.55	3.60x13.20	18	Rectangular
ED-203-I-Y-A	1064	1.23x0.79	2.15x1.38	25.4	Elliptical
RD-220-I-Y-A	1064	0.33	0.58	11	Round
RD-221-I-Y-A	1064	0.16	0.28	11	Round
RD-222-I-Y-A	1064	0.16	0.28	15	Round
RD-232-I-Y-A	1064	2	3.49	11	Round	M-Shape
RD-227-I-Y-A	1064	1	1.75	25.4	Round
HM-262-I-Y-A	1064	0.5	0.87	25.4	Line
HM-315-I-Y-A	1064	25	44.34	10x10	Line
RD-226-I-Y-A	1064	27.4	48.75	15x15	Round
RH-221-I-Y-A	1064	27.4	48.75	15x15	Round	High Homogeneity
HM-286-I-Y-A	1064	22.9	40.51	7.25x7.25	Line
HM-307-I-Y-A	1064	0.50x0.50	0.87x0.87	25.4	Square	High Efficiency
HM-312-I-Y-A	1064	10	17.5	10x10	Line
HM-321-I-Y-A	1064	5	8.73	15x15	Line
HM-319-I-Y-A	1064	45	82.84	10x10	Line
HM-318-I-Y-A	1064	40	72.79	10x10	Line
HM-317-I-Y-A	1064	35	63.06	10x10	Line
RD-202-I-Y-A	1064	0.75	1.31	25.4	Round	High Efficiency
HM-314-I-Y-A	1064	20	35.27	10x10	Line
HM-313-I-Y-A	1064	15	26.33	10x10	Line
HM-316-I-Y-A	1064	30	53.59	10x10	Line
RD-256-I-Y-A	1064	0.5	0.87	14.1x14.1	Round
RD-255-I-Y-A	1064	1	1.75	14.1x14.1	Round
RD-245-I-Y-A	1064	0.19	0.33	12.7x12.7	Round	High Efficiency
RD-239-I-Y-A	1064	13.86	24.31	15x15	Round
RD-238-I-Y-A	1064	11.9	20.84	15x15	Round
ED-207-I-Y-A	1064	1.71x0.84	2.98x1.47	25.4x25.4	Elliptical
ML-001-I-Y-A	1064	81.59x81.59	172.60x172.60	20x20	MultiLines	15 Lines

STA Series Homogenizers

Part numbers: STA-xxxx-DxDxCT, where xxxx means laser wavelength, DxDxCT is the element size.

Part Number	STA-1064-0.5-30x30x2	STA-940-1.09-18x18x0.58
Input Parameters
Wavelength, mm	1064	940
Beam Mode	SM or MM	SM or MM
Element Parameters
Element Type	Transmissive	Transmissive
Material	Fused silica	Fused silica
Element Size, mm	30x30	18x18
Thickness, mm	2	0.58
Coating	No	No
Output Parameters
Output Shape	Square	Square
Full angle, mrad	0.5x0.5@1064nm	1.09x1.09@940nm
Transmission Efficiency	92%	92%
Overall Efficiency	72%~82.8%	72%~82.8%
Non-homogeneity	<5%	<5%

Remark:

The above specifications are with regards to the collimated laser beam. If the beam is not collimated, the specifications may change a little.
The above specifications are with regards to the un-coated elements. If coating, the transmission will be higher in about 8%.
A focusing lens may be required for smaller beam size.
