Customised Optics

Progressive control and automated Ion-Beam Sputtering processes allow the deposition of complex structures of several hundred thin film layers. The advantages of spectral control include sharper features, higher contrasts, repeatable performance and t

Manufacturing Capabilities

We aim for the highest possible accuracy, repeatability and quality. This is possible with innovative Ion-Beam Sputtering, where progressive control and automated processes allow the deposition of complex structures of several hundred thin film layers. The advantages of spectral control include sharper features, higher contrasts, repeatable performance and tighter tolerances.

Atoms, sputtered from target material, feature high kinetic energy and are extremely mobile. Any defects in accumulated particle film are eliminated by the energetic atoms, what results in homogeneous and near bulk layers. Advantages of sputtering process are low intrinsic absorption, resistance to moisture and heat and long-term stability of optical properties.

Ion Beam Sputtering Magnetron Sputtering Electron Beam Evaporation Ion Assisted Deposition
Absorption <2 ppm <10 ppm <100 ppm <50 ppm
Total Scattering <1.5 Å RMS <5 Å RMS ≥10 Å RMS ≥8 Å RMS
Laser Damage Threshold (1064 HR) >70 J/cm2, 20 ns >10 J/cm2, 20 ns 5-30 J/cm2, 20 ns 5-30 J/cm2, 20 ns
Thermal Conductivity High High Low Medium
Density Near Bulk Near Bulk Porous Dense
Adhesion and Durability Excellent Very Good Low Good
Humidity Sensitivity No No Yes Yes, small
Aging Effects No No Yes Yes, small
Stress 800 MPa 400 MPa <100 MPa 100 MPa

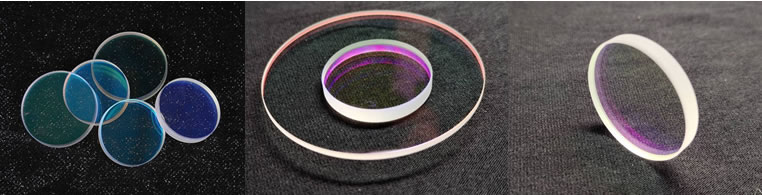

Custom optical components, which meet the highest market standards


Reflectance R>99.95% for Laser Line Mirrors

Residual reflectance R<0.05% for AR coatings

Size range 5-100 mm

Spectral range 213-3000 nm

Surface quality 10-5 S-D

Roughness<1.5 Å

LIDT>70 J/cm2 @ 1064 nm

Flatness and irregularity <λ/10 @ 633 nm

Extinction ratio >3000:1For TF polarizers

GDD less then -2000 fs2for chirped mirrors

Custom Shapes

Patterned Coatings

Mirrors


Laser Line Mirrors

Broadband Dielectric Mirrors

Multi-Wavelength Mirrors

Ultra-High Reflectivity Mirrors

Low GDD Ultrafast Laser Line Mirrors

Low GDD Ultrafast Broadband Mirrors

Gires-Tournois Interferometer (GTI) Mirrors

Thin Film Polarizers


45° TF Polarizers

BrewsterbType TF Polarizers

Broadband TF P

Beam Splitters & Wavelength Seperators


Non-polarizing Beamsplitters

Partial Reflection Mirrors

Output Couplers

Dichroic Mirrors (Wavelength Separators)

Anti-Reflective Coated Optics


AR Coated Windows and Filters

AR Coated Lenses

OEM Optics by Applications


Optics for DPSS Lasers

Optics for Ultrafast Lasers

Optics for Laser Micromachining Systems

Optics for Defense Application

Optics for multi kW Laser Systems

Optics for Medical Laser Systems

Patterned Coatings
