EO Q-switched lasers with 1064nm/532nm/355nm/266nm energy up to 10J at 10Hz 1064nm repetition rate up to 30Hz. They have high reliability and stability.

1. STHE Series EO Q-switched Lasers

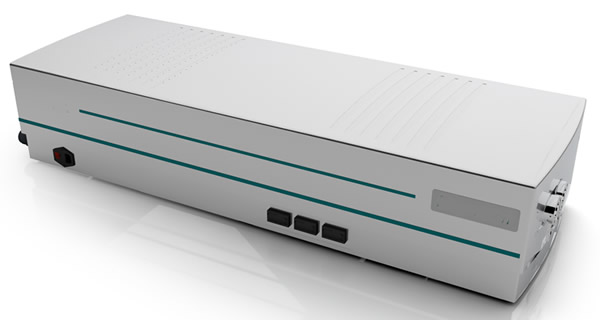

1.1 STHE Series High Energy EO Q-switched Nd: YAG Lasers

The lamp pumped Q-switched laser is a high energy laser with high stability, high conversion efficiency and high quality laser beam. With compact structure, easy installation and convenience to move, there are many options such as double pulse or more impulsive intervals and pulse output range. The system is equipped with adjustable control box and computer interface hand size limit, suitable for space and requirements and other equipment outside applications.

EO Q-swthced lasers

Features:

  • Super gauss beam output
  • Maximum output power can reach 100 joules
  • Industrial design, good reliability and no adjustment
  • Manual control box control, also can use computer operation

Typical Applications:

  • Laser rangefinder
  • Laser radar
  • Laser remote sensing
  • Strong Field of physics
  • Pump OPO lasers, fast, dye laser pump, Raman lasers
  • Laser fluorescence inspire
  • Plasma measurement
  • Optoelectronic detection
  • Optoelectronic countermeasures

Specifications:

Model STHE-1000 STHE-2000 STHE-5000 STHE-10000 STHE-20000 STHE-50000 STHE-100000
Pulse Width (FWHM) -A: <10ns, -B: <2ns; -C: <200ps
(-S) for single pulse design; (-D) for double pulse design; (-T) for multi pulse design
Energy (m J) on different Wavelength 1064nm 1000 2000 5000 10,000 20,000 50,000 100,000
532nm 500 1000 2500 5000 Option Option Option
355nm 200 400 Option Option Option Option Option
266nm 80 150 Option Option Option Option Option
213nm 15 30 Option Option Option Option Option
Beam Mode -M (TEM00); -V(VRM)
Repeat Frequency 3~30KHz 1-5 Hz
Work method Pulsed
Power instability rate Excel than 3%
Pump method Lamp pumped
Beam Diameter <10mm <16mm <20mm <25mm <25mm <25mm
Divergence <0.5mrad <0.3mrad
Cooling method pure water cooling (-W) ( or anti-freezing liquid cooling –A)
Current AC220V±20V/10A/50Hz±1
Voltage 1 phase 3 phases
Marking head Size (mm) 450×100×120 (L×W×H) 650×200×120
(L×W×H)
800×300×120
(L×W×H)
800×300×220
(L×W×H)
800×500×320
(L×W×H)
900×500×420
(L×W×H)
1200×600×420
(L×W×H)

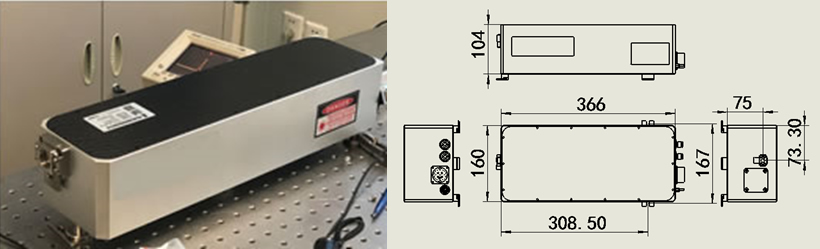

1.2 STHE Series 532nm EO Q-switched Lasers

EOQ

Part number STHE-532-400
Laser Wavelength 532nm
Pulse Energy ≥400 mJ
Initial Beam Diameter 8 mm
Pulse width ≤8ns
PRF (Variable up to 10 Hz) 1-10 Hz
Single pulse operation Yes
Divergence @ 532 nm ≤0.5 mrad
Line width ≤2 cm-1
PC interface USB/RS232/Ethernet
Power Requirement 220V, 50 Hz AC
Weight with second harmonic 9.6 Kg
Integrated Cooling unit with power supply < 30 Kg

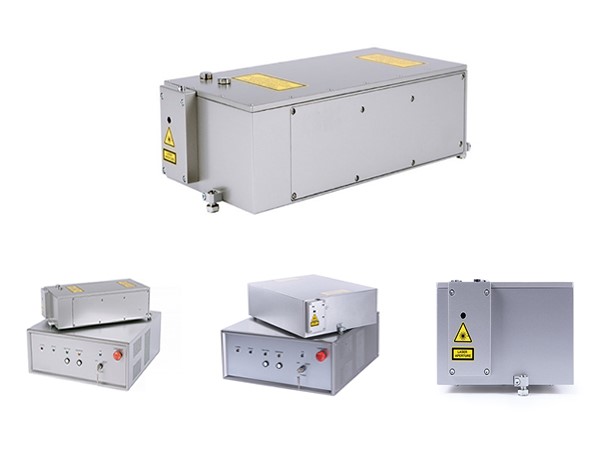

1.3 Low-medium Power 1064nm ns Lasers

Our compact lamp-pumped EO Q-switched nano-second laser is a low-medium energy pulsed solid-state laser. It has the features of small size, easy operation, stability. It also has a good reliability due to modular design. Thus these lasers are widely used in LIBS measurement, OPO pumping, laser cleaning etc.

EO Q-switched oulse laser

Features:

  • Compact in size for easy integration
  • Sealing in water and air
  • All-in-one design
  • Red pilot available upon request
  • TEM00/VRM beam mode output
  • Controllable via mobile phone or computer

Typical Applications:

  • LIBS measurement
  • Laser radar
  • Laser cleaning
  • Pump OPO lasers, fast, dye laser pump, Raman lasers
  • Plasma measurement
  • Laser communications

EO Q-switched pulse laser

Specifications:

  • Part number: STHE-P-200
  • Laser wavelength: 1064nm
  • Pulse energy: >=200mJ@1064nm
  • Energy stability: <=2%
  • Pulse repetition rate: 1Hz
  • Pulse width: <=15ns
  • Beam diameter: 6mm~10mm
  • Beam divergence: £1mrad
  • Pumping: flashlamp pumping
  • Warm up time: <10min
  • Store temp: -15-45℃
  • Environment humility: 20%-70%
  • Power input: 230VAC, 50Hz, single phase
  • Laser head dimension: 375x115x89 mm (LxWxH)
  • Laser head weight: 7.2kg
  • Power supply weight: 42kg

2. STLT Series EO Q-switched Nd:YAG Lasers

2.1 STLT Series High Energy EO Q-switched Nd: YAG Lasers

This series product is compact with a special EO Q-switch. They can provide high efficiency and stable signal pulse energy at 1064nm and the pulse width can be adjusted from 0.5μs to2.0μs.

Features:

  • Very compact and stable design;
  • Easy flash lamps replacement;
  • Energy can be adjusted from 15mJ to 400 mJ
  • Highly flexible design with repetition rate from 1Hz, 5Hz, 10Hz & 20Hz;
  • Can provide multiple triggering capabilities, such as internal trigger, external TTL trigger. Control lamps and Q-switch for precise laser pulse timing control.
  • Convenient operation. Controlled by single power supply and equipped with closed- loop water cooling system;
  • Thermally compensated resonator assures stable operation.

Typical Applications:

  • Burning blaze detected;
  • Laser Medical
Repetition Rate 1, 5, 10, 20Hz
Energy >100mJ @ 1064nm, max. 800mJ
Energy Stability ± < 5%
Pulse Width 0.5 - 2.0μs
Power Supply 220V 50Hz AC
Cooling System closed- loop water cooling system

Remarks: We also supply the customized lasers, such as four laser beams or more beams products.

Ordering Information: STLT-xxxx-yyy-zzz, where xxxx means wavelength in nm, yyy means pulse energy in nJ and zzz means pulse repetition rate in Hz.

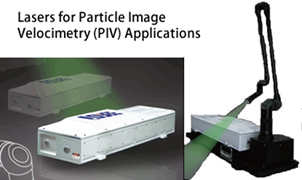

2.2 STLT Series PIV Lasers

These lasers have dual or multiple laser-heads with compact size. They can provide high efficiency and stable green light source for Particle Image Velocimetry (PIV) applications. It is suitable for most liquid experiments and many air-based 2D/3D PIV ones.

EO Qswitched lasers

Features:

  • Very compact and stable design;
  • Easy flash lamps replacement;
  • Energy can be adjusted from 15mJ to 400 mJ
  • Highly flexible design with repetition rate from 1Hz to 15Hz or 1Hz to 30Hz;
  • Can provide multiple triggering capabilities, such as internal trigger, external TTL trigger. Control lamps and Q-switch for precise laser pulse timing control.
  • Convenient operation, Control by single power supply and equipped with closed- loop cooling system;
  • Thermally compensated resonator assures stable operation;

Typical Applications:

  • Suitable for liquid experiments;
  • Air-based 2D/3D PIV;
  • Wind tunnel research;
  • Water tunnel research;
  • Micro-fluidic measurement;
  • Spray or flame research
  • Thermally compensated resonator assures stable operation;

Specifications:

Model STLT-600 STLT-610 STLT-620 STLT-630 STLT-640 STLT-650 STLT-660 STLT-670
Repetition Rate (Hz) 15 30 15 15 15 10 100 200
Pulse Energy(mJ)
532nm
30 30 80 120 200 360 100 50
Energy Stability (RMS)(%)532nm 3 3 4 4 4 4 4 4
Wavelength 532 532 532 532 532 532 532 532
Beam Size ≤4 ≤4 ≤7 ≤7 ≤8 ≤10 ≤7 ≤7
Pulse width (ms) ≤10 ≤10 ≤10 ≤10 ≤10 ≤10 ≤10 ≤10
Divergency (mrad) ≤3 ≤3 ≤3 ≤3 ≤3 ≤2 ≤4 ≤4
Spatial Profile VRM Mode VRM Mode VRM Mode VRM Mode VRM Mode VRM Mode VRM Mode VRM Mode
Timing Jitter (ns) ≤2 ≤2 ≤2 ≤2 ≤2 ≤2 ≤2 ≤2

Remarks: We also supply the customized lasers, such as four laser beams or more beams products

3. STLB Series EO Q-switched Lasers

3.1 STLB-LA Series Air-cooled EO Q-switched DPSS Lasers

  • Diode pumped with 1 billion shots lifetime
  • Air cooling without maintenance
  • EOQ switched with accurate timing
  • 1064 nm with over 80 mJ energy output
  • Higher harmonics available
  • Portable design with compact size
  • Easy for system integration

STLA series DPSS lasers are with uniform pumping and conduction cooling technologies to realize real portable nanosecond laser source. This series provide the new solution to various scientific, industrial and military applications.

Diode pumping has the features such as low energy consumption, high efficiency and long lifetime. TEC conduction cooling technology is used to avoid any water usage while keeping the operation stability. Electro-optical Q-switched technology is used to provide accurate timing, which is key to analysis instrument.

Based on all these features, our lasers are the perfect choice for applications like LIDAR, mass spectroscopy, laser ultrasonic and LIBS.

Part number STLB-LA-20-xxxx STLB-LA-80-xxxx
Pulse repetition rate (Hz) 1-100 20
Pulse energy (mJ) 1064nm 20 80
532nm 12 50
355nm 4 15
266nm 2 8
Energy stability2 RMS 1064nm <1% <0.5%
532nm <2% <2%
355nm <4% <4%
266nm <4% <4%
Pulse width3 (ns) 10 10
Divergence4 (mrad) 2 2
Pointing stability (urad) <50 <50
Beam dia.5 (mm) 3 4
Polarization Horizontal Horizontal
Jitter6 (RMS) (ns) <1 <1
Cooling Air Air
Power input 220VAC/50-60Hz, 10A 220VAC/50-60Hz, 10A
Power consumption (W) 800 800
Operation temp. (oC) 5-30 5-30
Storage temp. (oC) 5-50 5-50

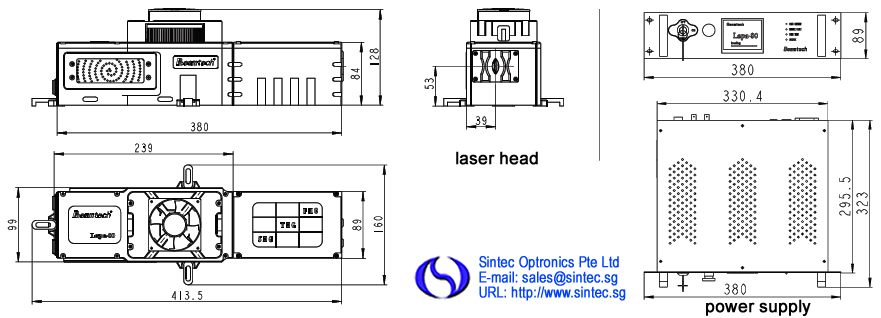

Dimension7 (mm) Head 413x160x128 413x160x128
Power 380x323x89 380x323x89
  1. All the specifications unless otherwise stated are for Q-switched 1064nm operation. The xxxx in the part numbers is laser wavelength.
  2. Dev to average (shot to shot for 99% of pulses)
  3. Full width half max. (FWHM)
  4. Full angle at 1/e2 of the peak
  5. With respect to external trigger
  6. Measured at the laser output
  7. All the dimensions are the lasers with 4th harmonic generation (266nm).

3.2 STLB-DA Series Lamp-pumped EO Q-switched Nd:YAG Lasers

  • Fundamental wavelength covers 10-300 mJ output
  • Higher harmonics available
  • Module design and easy to use
  • Industrial design to ensure long term operation
  • Humanization design and easy for integration
  • Customization version available

STLB-DA series lasers are designed for an industrial level laser that greatly fits OEM system integration. The energy level is relatively low, from 10-300 mJ. The SHG, THG and FHG are available.

The lasers provides both multimode and variable reflectivity mirror (VRM) mode beam with good beam quality. The scientific and industrial design ensures the good beam quality. Features as optical shutter, flow sensor, power supply interlock make sure the safety use as the top priority. The lasers passed CE certification in 2014.

The lasers are suitable for many applications, including LIBS, LIDAR, LIF, PIV, laser ultrasonic, laser spark plug, laser cleaning, LCD repair etc.

Part number STLB-DA-50-xxxx STLB-DA-100-xxxx STLB-DA-200-xxxx STLB-DA-300-xxxx
Pulse repetition rate (Hz) 1-20 1-20 1-20 1-10
Pulse energy (mJ) 1064nm 50 100 200 300
532nm 25 50 100 150
355nm 10 20 40 60
266nm 5 10 20 30
Energy stability2 RMS 1064nm <1% <1% <1% <1%
532nm <2% <2% <2% <2%
355nm <4% <4% <4% <4%
266nm <4% <4% <4% <4%
Pulse width3 (ns) 1064nm <9 <9 <8 <7
532nm <8 <8 <7 <6
355nm <7 <7 <6 <5
266nm <7 <7 6 <5
Divergence4 (mrad) 1064nm Multi-mode, <3mrad;
Flat-top, <1rmad
Multi-mode, <3mrad;
Flat-top, <1rmad
Multi-mode, <3mrad;
Flat-top, <1rmad
Multi-mode, <3mrad;
Flat-top, <1rmad
Pointing stability (urad) <50 <50 <50 <50
Jitter5 (RMS) (ns) <1 <1 <1 <1
Beam dia.6 (mm) 1064nm 5 5 6 7

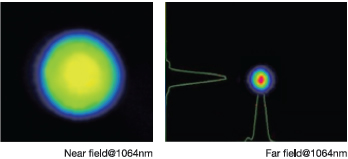

Spatial mode profile Near field >70% >70% >70% >70%
Far field >95% >95% >95% >95%
Cooling Air to water Air to water Air to water Air to water
Power input 220VAC/50-60Hz, 10A 220VAC/50-60Hz, 10A 220VAC/50-60Hz, 10A 220VAC/50-60Hz, 10A
Power consumption (W) 500 500 500 500
Cable length (m) Control 3 3 3 3
Power 1.8 1.8 1.8 1.8
Umbilical 3 3 3 3
Operation temp. (oC) 5-30 5-30 5-30 5-30
Storage temp. (oC) 5-50 5-50 5-50 5-50

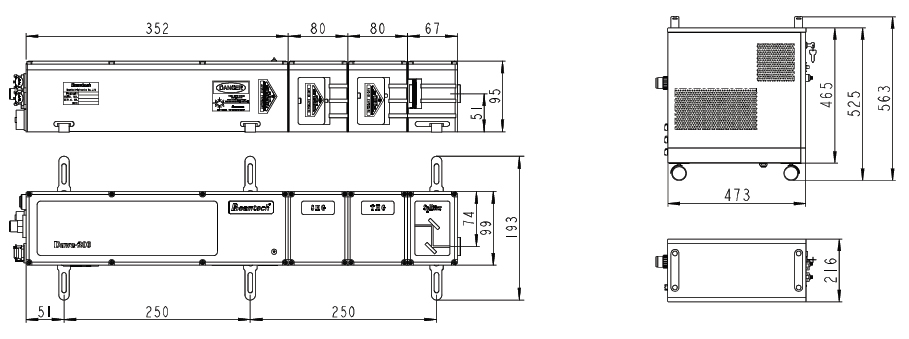

Dimension7 (mm) Head 579x193x95 579x193x95 579x193x95 579x193x95
Power 473x216x563 473x216x563 473x216x563 473x216x563
  1. All the specifications unless otherwise stated are for Q-switched 1064nm operation. The xxxx in the part numbers is laser wavelength.
  2. Dev to average (shot to shot for 99% of pulses)
  3. Full width half max. (FWHM)
  4. Full angle at 1/e2 of the peak
  5. With respect to external trigger
  6. Measured at the laser output
  7. All the dimensions are the lasers with 3th harmonic generation (355nm).

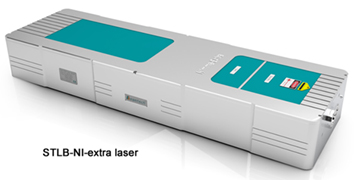

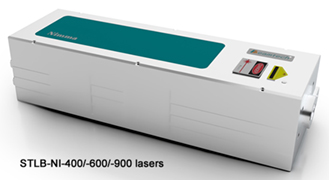

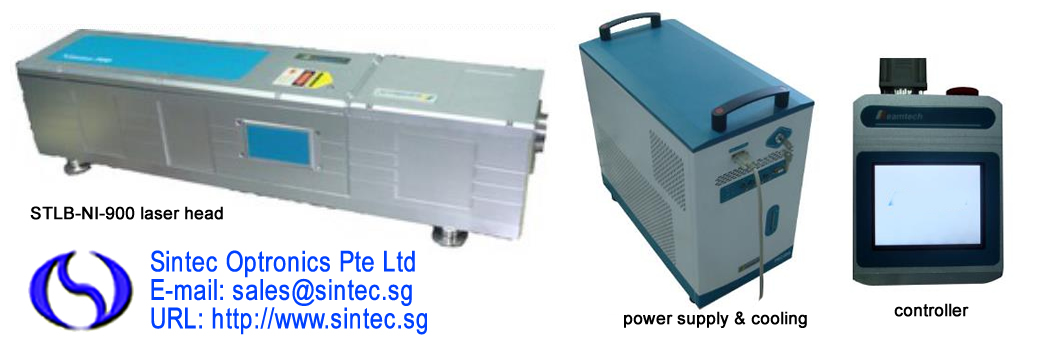

3.3 STLB-NI Series Lamp-pumped EO Q-switched Nd:YAG Lasers

  • Compact size
  • High uniformity of beam profile
  • Industrial design to ensure long term operation
  • High SHG and UV efficiency
  • Built to withstand various environment
  • Easy for system integration

STNI series lasers are middle energy level Q-switched nanosecond Nd:YAG laser. The fundamental wavelength covers energy level from 400 mJ to 2000 mJ. These lasers possess the features of compact size, good pointing stability, high energy stability, high reliability, etc. The SHG, THG and FHG are available.

These lasers provide two types of laser mode, multimode and VRM mode. The scientific and industrial design ensures the good beam quality. Features as optical shutter, flow sensor, power supply interlock make sure the safety use as the top priority.

Up to now, around 4000 units have been delivered all over the world. They are the perfect choice for various kinds of scientific and industrial applications such as pump dye laser, pump OPO, pump Ti:Sapphire laser, laser shock peening, LCD repair, laser ablation, laser sintering, LIDAR.

Part number STLB-NI-400-xxxx STLB-NI-600-xxxx STLB-NI-900-xxxx STLB-NI-Extra-xxxx
Pulse repetition rate (Hz) 1-10 1-10 1-10 1-10
Pulse energy (mJ) 1064nm 450 650 900 2000
532nm 250 350 480 1000
355nm 90 150 270 600
266nm 50 65 90 150
Energy stability2 RMS 1064nm <=1% <=1% <=1% <=1%
532nm <=2% £2% <=2% <=2%
355nm <=4% <=4% <=4% <=4%
266nm <=4% <=4% <=4% <=4%
Pulse width3 (ns) 1064nm <=9 <=9 <=9 <=9
532nm <=8 <=8 <=8 <=8
355nm <=7 <=7 <=7 <=7
266nm <=7 <=7 <=7 <=7
Divergence4 (mrad) 1064nm <=0.6 <=0.6 <=0.6 <=0.6
Pointing stability (urad) <=30 <=30 £30 <=5
Jitter5 (RMS) (ns) <=1 <=1 <=1 <=1
Beam dia.6 (mm) 1064nm 8 8 9 11
Spatial mode profile Near field >70% >70% >70% >70%
Far field >95% >95% >95% >95%
Polarization Horizontal 1064/355/266nm 1064/355/266nm 1064/355/266nm 1064/355/266nm
Vertical 532nm 532nm 532nm 532nm
Cooling Air to water Air to water Air to water Chiller
Power input 220VAC/50-60Hz, 10A 220VAC/50-60Hz, 10A 220VAC/50-60Hz, 10A 220VAC/50-60Hz, 10A
Power consumption (kW) 2 2 2 3
Cable length (m) Control 3 3 3 3
Power 1.8 1.8 1.8 1.8
Umbilical 3 3 3 3
Operation temp. (oC) 5-30 5-30 5-30 5-30
Storage temp. (oC) 5-50 5-50 5-50 5-50

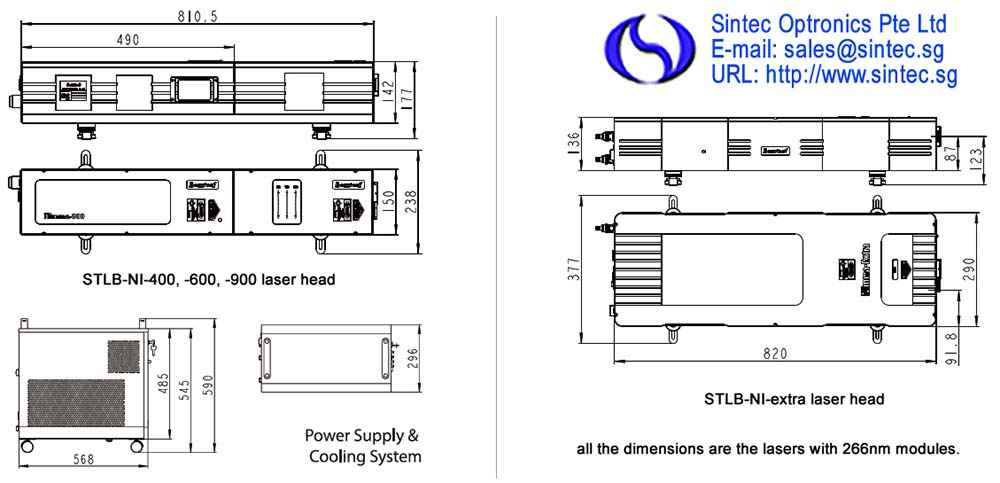

Dimension7 (mm) Head 810.5x150x142 810.5x150x142 810.5x150x142 820x290x136
Power 568x296x590 568x296x590 568x296x590 568x296x590
  1. All the specifications unless otherwise stated are for Q-switched 1064nm operation. The xxxx in the part numbers is laser wavelength. For example, STNI-400-532 is 532nm laser and it includes 1064nm and 532nm modules.
  2. Dev to average (shot to shot for 99% of pulses)
  3. Full width half max. (FWHM)
  4. Full angle at 1/e2 of the peak
  5. With respect to external trigger
  6. Measured at the laser output
  7. All the dimensions are the lasers with 4th harmonic generation (266nm).

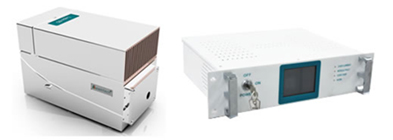

3.4 STLB-SGR Series Q-Switched Nd:YAG Laser

STLB-SGR Series Super-Gaussian Resonator series Q-Switched Nd:YAG lasers combine VRM (variable reflectivity mirror) with unstable resonator design creating a cavity with large TEM00 mode volume for excitation and energy extraction. A “flat-top-hat” can be specified with uniform energy distribution or “VRM Gaussian” profiles.

STLB-GR Series close-coupled diffuse pump chamber delivers uniform pumping of the laser rod for optimum lasing excitation efficiency and allows for higher stored energy by eliminating parasitic oscillations within the pump chamber. The pump chamber uses chemically inert materials to withstand high pumping energy and absorb unwanted UV and IR radiation emitted by the flash lamps. One or more amplifiers can be added to the oscillator for higher energy output. With scientific or industrial grade models available, the STGR series will fit right in with your scientific research, medical or OEM industrial application.

Features:

  • Fundamental wavelength covers 2-6 J output
  • Higher harmonics available
  • Repetition rate up to 50 Hz
  • Injection seeded for narrow linewidth
  • RS232 and TTL interface for remote or external control
  • Invar structure inside

Applications:

  • Photo chemistry
  • Molecular chemistry
  • Non-linear optics
  • Laser illumination
  • LIDAR
  • Laser cleaning
  • Laser ablation

  • Optical remote sensing
  • LIF (Laser Induces Florescence)
  • PLD (Pulsed Laser Deposition)
  • Plasma diagnostics

Technical Specifications

Part no. STLB-SGR-10 STLB-SGR-20 STLB-SGR-30 STLB-SGR-40 STLB-SGR-50 STLB-SGR-60
Rep. rate 10 10 20 30 50 5 10 5 10 5 10 5 10
Energy (mJ) 1064nm 1000 2000 2000 2000 1500 3000 3000 4000 4000 5000 5000 6000 6000
532nm 500 1000 1000 1000 750 1500 1500 2000 2000 2500 2500 3000 3000
355nm 250 500 400 400 300 750 750 1000 1000 1250 1250 1500 1500
266nm 90 180 100 90 50 250 200 300 300 400 350 500 400
Power stability2 RMS 1064nm <1%
532nm <2%
355nm <4%
266nm <4%
Power drfit3 1064nm <3%
532nm <5%
355nm <6%
266nm <8%
Pulse width4 1064nm: 8-10ns; other wavelength: 7-10ns
Spatial profile5 Near field >70%
Far field >90%
Beam dia.6 (mm) 10 12 12 12 12 15 15 15 15 17 17 20 20
Divergence7 <0.5mrad
Pointing stability <50urad
Jitter8 (RMS) <1ns
Linewidth Standard <1cm-1
Injection seeded <0.0031cm-1

Part no. STLB-SGR-S400 STLB-SGR-S500 STLB-SGR-S600 STLB-SGR-S600
Rep. rate (Hz) 10 20/30/50 20/30 10
Energy (mJ) 1064nm 400 500 600 800
532nm 200 250 300 400
355nm 100 100 150 200
266nm 40 40 50 80
Divergence7 <0.7mrad <0.5mrad <0.5mrad <0.5mrad
Beam dia.8 8mm 8mm 8mm 8mm
Other specifications Please refer to the table above Please refer to the table above Please refer to the table above Please refer to the table above
  1. All specifications unless otherwise stated are for 1064nm operation.
  2. Dev. To average (shot to shot for 99% of pulses).
  3. Average for 8 hours with room temp. variation less than +/-3 deg.
  4. Full width half max (FWHM)
  5. Near field profiles measured at the focal plane, least square fit to Gaussian profile.
  6. Measured at the laser output.
  7. Full angle at 1/e2 of the peak.
  8. With respect to external trigger.

Other Specifications

STLB-SGR-S STLB-SGR-10 STLB-SGR-20/30/40 STLB-SGR-60
Size (LxWxH) (mm) Laser head 1162x333x290.5 1162x410x290.5 1162x410x290.5 1266x565x243
Power supply 476x443x200 914x520x737 914x520x737 914x520x737
Cooling system N/A N/A 240x170x70 836x688x1125
Power input 220V-50Hz-16A 220V-50Hz-16A 220V-50Hz-16A 380V-50Hz-25A
Operation temp. 5-30oC 5-30oC 5-30oC 5-30oC
Cables Control line 3m 3m 3m 3m
Power line 1.8m 1.8m 1.8m 1.8m
Umbilical line 3m 3m 3m 3m

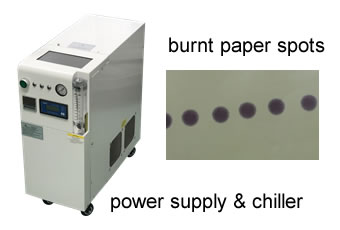

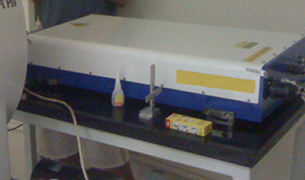

3.5 STLB-SGRE Series High-energy EO Q-switched Lasers

STLB-SGRE series lasers have been developed since 2007 as high energy nanosecond laser systems which are suitable for laser peening, pump source, plasma physics, etc. STLB-SGRE series lasers provide the customization service. Specifications such as wavelength, repetition rate, energy, pulse width, beam profile, SLM are all available for customization. We also developed and gained much experience on burst mode technique and vehicular applications during this process. As a result, we can provide the ideal laser source solution for the customer in various applications.

EO Q-switched laser

Main Features:

  • High output energy up to 50J@1064 nm
  • 8-26ns pulse width, high peak power
  • Unique cavity design to ensure uniform beam profile
  • Good stability for long term operation
  • Local and remote control interface with compatibility
  • Customization version available

EOQ

Applications:

  • Laser peening
  • Pump Ti:Sapphire laser
  • Plasma diagnostics
  • Nonlinear optics
  • LIDAR
  • Laser cleaning
10-12ns, 15-20ns optional
Model1 STLB-SGRE-04 STLB-SGRE-06 STLB-SGRE-08 STLB-SGRE-10 STLB-SGRE-12 STLB-SGRE-15 STLB-SGRE-20 STLB-SGRE-25 STLB-SGRE-30 STLB-SGRE-40 STLB-SGRE-50
Wavelength2

1064nm

Rep rate, Hz 20/30/50 5/10 5/10 5/10 5 5 2 2 5 2 2
Pulse energy at 1064nm 3-4J 6J 8J 10J 12J 15J 20J 25J 30J 40J 50J
Pulse width at 1064nm3 12-15ns, 15-20ns optional

Divergence4

<=0.5mrad for VRM, <=4mrad for MM

Peak to average

<=1.8:1

Polarisation

Linear 100:1

Cross
Energy stability5 RMS

<1%

Power drift RMS

<5%

Pointing stability

<50urad

Jitter6 RMS

<1ns

Warm up time7

<5min

  • 1. All specifications unless otherwise stated are for 1064nm operation.
  • 2. SHG, THG, FGH are available upon request.
  • 3. Full width half max (FWHM). The rising time can be cut down to <5-10ns by slice as option.
  • 4. Full angle at 1/e2 of the peak.
  • 5. Dev. To average (shot to shot for 99% of pulses).
  • 6. With respect to external trigger.
  • 7. Time to full energy.

Mechanical & Utilities

Size (LxWxH), mm Customisation
Electrical input 380VAC 50Hz, 50A, 3-phase
Water cooling Distilled water, chiller
Operation temperature 10-30 degree
Storage temperature 0-40 degree

4. STLQ Series EO Q-switched Lasers

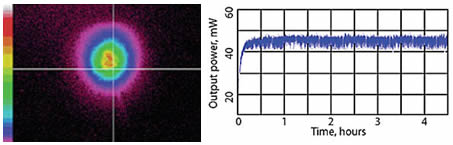

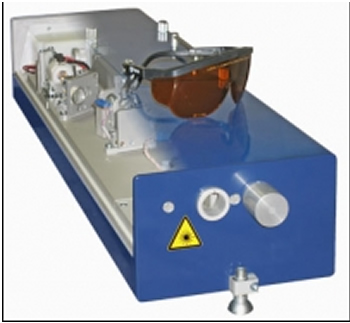

4.1 Compact Air-cooled Nd:YAG Laser Model STLQ115

Up to 90mJ @ 1064nm and built in harmonic generators 532nm, 355nm, 266nm

FEATURES:

  • No cooling water required
  • Compact & rigid design
  • Excellent beam profile
  • Continuous operation mode
  • Built-in harmonics
  • Turn-key operation
  • Remote control

The STLQ115 is an ultra-compact model of air-cooled Nd:YAG laser for applications requiring compact and undemanding laser source.

Due to application of original high-efficiency heat exchanger the STLQ115 laser unlike most air-cooled laser models can work continuously with PRR up to 3Hz and cyclically with PRR up to 5Hz. The above operating modes are realised at output energies conventionally attained at water-cooled lasers.

The STLQ115 laser provides up to 90mJ output pulse energy at the fundamental with possibility of further conversion of IR radiation into the second harmonic as well as into the third or fourth harmonic.

All the harmonic generators are built-in and temperature stabilised. This peculiarity together with optimised rigid laser head design ensures output radiation long-term stability comparable to that of standard laboratory lasers.

Unlike most compact lasers using DKDP-based Pockels cells, the STLQ115 incorporates LiNbO3 electrooptical Q-Switch. Such Q-Switch is not hygroscopic and retains its parameters within a wide temperature range and ensures reliable and stable laser operation.

Dust-proof laser head design allows to align main optical components without removing the cover that increases their life in the field.

To reduce your time expenses on routine service of the STLQ115 laser we use only long lifetime flash lamps by Heraeus Noblelight Ltd. Besides, the flash lamp replacement procedure is elementarily easy even for a unskilled user.

Absence of water cooling system gives to the STLQ115 laser a number of essential operational advantages:

  • Footprint of both the laser head and power supply is considerably reduced.
  • Integration of the laser into different mobile systems is facilitated.
  • Technical reliability of the device operation is increased.
  • Operating costs are reduced.
Model STLQ115 (1064 nm) STLQ115 (532 nm)
PRR, Hz 1 2 3 1 2 3
Output energy, mJ, not less than 1064 nm 90 90 75 90 90 75
532 nm 45 40 30
355 nm
266 nm
Pulse-to-pulse energy stability, ±%1) 3 3.5 4.5 3 3.5 4.5
Model STLQ115 (1064 nm) STLQ115 (532 nm)
PRR, Hz 1 2 3 1 2 3
Output energy, mJ, not less than 1064 nm 90 90 75 90 90 75
532 nm 45 40 30
355 nm
266 nm
Pulse-to-pulse energy stability, ±%1) 3 3.5 4.5 3 3.5 4.5
Model STLQ115 (355 nm) STLQ115 (266 nm)
Pulse repetition frequency, Hz 1 2 3 1 2 3
Output energy, mJ, not less than 1064 nm 90 90 75 90 90 75
532 nm 35 30 22 45 40 30
355 nm 20 20 15 - - -
266 nm - - - 6 5 4
Pulse-to-pulse energy stability, ±%1) 3 3.5 4.5 3 3.5 4.5
Model For all the models
Pulse duration, ns1) 5…9
Beam diameter, mm1) ≤ 4.5
Divergence, mrad1) ≤ 3
Jitter, ns2) ≤ 3.5
Power consumption, W ≤ 200
Dimensions (LxWxH), mm Laser head 410 x 125 x 130
Power supply 320 x 370 x 150

* Specifications are subject to change without notice. 1) At 1064 nm. 2) Relative to the Q-Switch driver external trigger pulse.

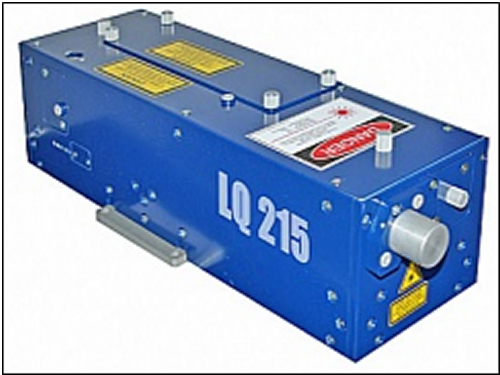

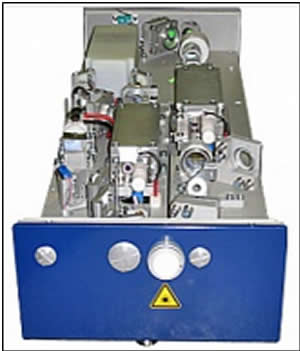

4.2 Compact Nd:YAG Laser Model STLQ215

Up to 180mJ @ 1064nm and harmonic generators up to 213nm

FEATURES:

  • Excellent beam quality
  • Built-in harmonic generators up to 213 nm
  • Dust- and water-proof design
  • Reliability of industrial equipment
  • Compact single phase power supply
  • No need for external water

The STLQ215 laser is built on the basis of a model produced for aerospace industry and combines excellent beam quality required for advanced scientific research with a highest reliability of industrial equipment.

Original and reliable optical scheme ensures compensation of both astigmatism and thermooptical distortions and places at your disposal laser radiation of the highest quality.

One more peculiarity of the laser optical scheme is that all the components operate at loads considerably lower than the admissible values. Such a smooth operation mode not only increases life time of the components but also ensures unique operational reliability of the whole laser. As a result, you can use the

STLQ215 laser for your experiments day-to-day and year-to-year having forgotten about repairs and other unpleasant operation costs.

All the laser optical components are installed on a rigid base fixed to the housing with specially developed dampers. Due to this, mechanical vibrations and housing stress no way influence the quality of the cavity alignment.

All the critical components of the laser are thermally stabilised which in combination with vibration-proof design ensures unsurpassed long-term output radiation stability. The efficient thermostats used in the STLQ215 ensure warm-up time of less than 10min.

To reduce your time expenses on routine service of the STLQ215 we provided flash lamp life time of more than 50 million pulses and foreseen easy and quick procedure of its replacement.

It should be noted that the laser design allows to replace the flash lamp without removing the laser head upper cover. Such a technical solution considerably reduces risks of the optical components contamination as well as increases operational reliability of the device.

Closed-loop water-to-air cooling system is integrated into a compact single-phase laser power supply which can be controlled both from PC and via the remote control unit.

If you plan to use the STLQ215 in laboratory experiments, as a bonus you will get unsurpassed operational reliability and minimization of accompanying expenses.

If you are attracted by the reliability of the STLQ215 laser and you will use it for industrial or field applications, in addition to a highest reliability you get beam quality conventionally available only for high-precision laboratory equipment.

The STLQ215 is an ideal instrument for such applications as:

  • Ti:Sapphire Lasers and OPO Pumping
  • Dye Lasers Pumping
  • Spectroscopy
  • LIDAR
  • LIF (Laser Induced Fluorescence)
  • LIBS (Laser Induced Breakdown Spectroscopy)
  • Education
  • PIV (Particle Image Velocimetry)
  • Range-Finding
  • Ablation
  • Marking
  • TFT-LCD Repair
  • Flat Panel Display (FPD) Manufacturing

Model STLQ215 (1064 nm) STLQ215 (532 nm) STLQ215 (355 nm) STLQ215 (266 nm) STLQ215 (213 nm)
PRR, Hz 10 20 10 20 10 20 10 20 10 20
Output energy, mJ, not less than 1064 nm 180 180 180 180 180
532 nm - 100 80 100 80
355 nm (HPV)1) - 60 60 - 60 60
355 nm 50 45 - 50 45
266 nm - 35 -
213 nm (HPV)1), 2) - 8 6
213 nm2) 6 5
Model For all the Models
Pulse-to-pulse energy stability, ±%3) < 2.5
Pulse duration, ns3) 6…10
Beam diameter, mm3) ≤ 5
Divergence, mrad3) ≤ 1.5
Jitter, ns4) ≤ 1.5
Power consumption, W ≤ 500
Cooling system water-to-air
Dimensions (LxWxH), mm Laser head 455 x 165 x 140
Power supply 620 x 330 x 670
  1. For the high-power version at 355 nm.
  2. With the LG105 external fifth harmonic generator.
  3. At 1064 nm.
  4. Relative to the Q-Switch driver external trigger pulse.

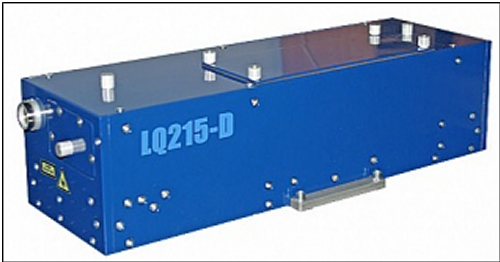

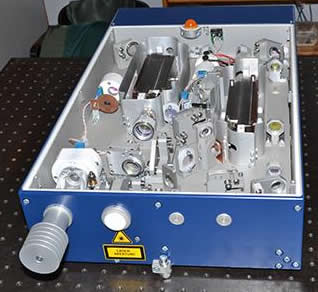

4.3 Dual-Pulse Compact Nd:YAG Laser Model STLQ215-D

Up to 100mJ @ 1064nm and 50mJ @ 532nm in each pulse

FEATURES

  • Excellent beam quality
  • 1064 nm or 532 nm output wavelength
  • Beam pointing stability
  • Dust- and water-proof design
  • Reliability of industrial equipment
  • Compact single phase power supply
  • No need for external water

The STLQ215-D is built on the basis of a laser produced for aerospace industry and combines excellent beam quality required for advanced scientific research and a highest reliability of industrial equipment.

The design of conventional lasers generating dual pulse is based either on combining two lasers or on successive generation of nanosecond pulses by one active element during one flash lamp discharge pulse.

The first solution allows to build a system with the maximum capabilities for the user but leads to increase of its cost and dimensions. The second approach allows to create low-cost and compact systems but leads to reduction of each pulse energy and of laser beam profile worsening and stability as well as limits the delay range between the pulses.

The STLQ215-D design demonstrates advantages of both the variants but eliminates their disadvantages: output radiation is generated by two separate cavities while both the Nd:YAG rods are installed in one pump chamber and are pumped by one flash lamp. Both the cavities are integrated into a common laser head controlled by a common power supply that provides to the user minimum dimensions and convenience in controlling dual pulse parameters.

Original and reliable optical scheme ensures compensation of both astigmatism and thermooptical distortions and places at your disposal laser radiation of the highest quality.

One more peculiarity of the laser optical scheme is that all the components operate at loads considerably lower than the admissible values. Such a smooth operation mode not only increases life time of the components but also ensures unique operational reliability of the whole laser. As a result, you can use the STLQ215-D laser for your experiments day-to-day and year-to-year having forgotten about repairs and other unpleasant operation costs.

All the laser optical components are installed on a rigid base fixed to the housing with specially developed dampers. Due to this, mechanical vibrations and housing stress no way influence the quality of the cavity alignment.

All the critical components of the laser are thermally stabilised which in combination with vibration-proof design ensures unsurpassed long-term output radiation stability. The efficient thermostats used in the STLQ215-D ensure warm-up time of less than 10min.

To reduce your time expenses on routine service of the STLQ215-D we provided flash lamp life time of more than 50 million pulses and foreseen easy and quick procedure of its replacement.

It should be noted that the laser design allows to replace the flash lamp without removing the laser head upper cover. Such a design concept considerably reduces risks of the optical components contamination as well as increases operational reliability of the device.

Closed-loop water-to-air cooling system is integrated into a compact single-phase laser power supply which can be controlled both from PC and via the remote control unit.

Model STLQ215-D
Maximum PRR, Hz 1) 20
Each pulse output energy, mJ, not less than 2) 1064nm 100
532nm 50
Pulse duration, ns 2) 6…10
Adjustable delay between pulses, μs 0…80
Step of adjustable delay between pulses, μs 1 (0.1 – upon request)
Beam diameter, mm 3) ≤ 5
Divergence, mrad 3) ≤ 1.5
Pulse-to-pulse energy stability, ±% 3) < 2.5
Beam pointing stability, mrad, not worse than 3) 0.1
Jitter, ns 4) < 1
Power consumption, W ≤ 500
Cooling system water-to-air
Dimensions (LxWxH), mm Laser head 534 x 190 x 135
Power supply 620 x 330 x 670

* Specifications are subject to change without notice.

  1. The laser operates at fixed PRR stipulated on placing an order. The PRR can be from 1Hz to 20Hz. All the parameters are specified for 20Hz PRR.
  2. The difference between pulse energies in the dual pulse does not exceed ± 5%.
  3. At 1064 nm.
  4. Relative to the Q-Switch driver external trigger pulse.

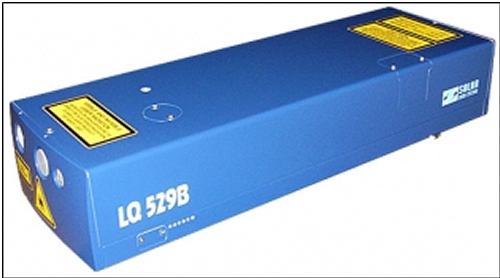

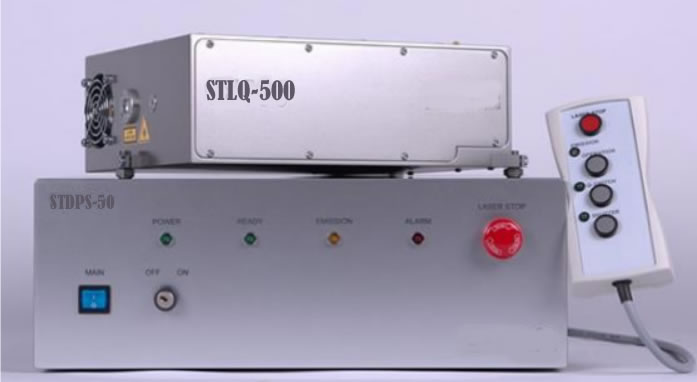

4.4 Pulsed Nd:YAG Laser Model STLQ529

Up to 500mJ at 1064nm and harmonic generators up to 213nm

FEATURES:

  • High PRR
  • High pulse energy up to 0.5 J
  • Excellent beam quality
  • All harmonics available up to 213 nm
  • Compact single-phase power supply
  • No external water requirements

The STLQ529 is a series of popular compact lamp-pumped Nd:YAG lasers offering uncompromising combination of the main parameters: high output power, exceptional beam quality and minimum laser head and power supply dimensions.

All the lasers of the STLQ529 series are based on ring cavity and incorporate a pump chamber with diffuse ceramic reflector. Due to this technical solution the STLQ529 lasers, unlike the lasers with traditional linear cavity, provide homogeneous close to flat-top laser beam profile and possess exceptional stability of output energy and spatial radiation parameters. Beam pointing stability of the STLQ529 is better than 20 μrad in the vertical plane and 80 μrad in the horizontal plane.

All the critical components of the laser are thermally stabilised which in combination with vibration-proof design ensures unsurpassed long-term output radiation stability. The efficient thermostats used in the STLQ529 ensure warm-up time of less than 10 min.

To reduce your time expenses on routine service of the STLQ529 we provided flash lamp life time of more than 30 million pulses and foreseen easy and quick procedure of its replacement.

Closed-loop water-to-air cooling system is integrated into a compact single-phase laser power supply which can be controlled both from PC and via the remote control unit.

Model STLQ529A (1064 nm) STLQ529A (532 nm) STLQ529A (355 nm) STLQ529A (266 nm) STLQ529A (213 nm)
PRR, Hz 5 10 5 10 5 10 5 10 5 10
Output energy, mJ, not less than 1064 nm 500 500 500 500 500
532 nm - 280 225 280 225
355 nm (HPV)1) - 130 130 - 130 130
355 nm 110 100 - 110 100
266 nm - 85 70 -
213 nm (HPV)1), 2) - 25 20
213 nm2) 20 15
Beam diameter, mm3) ≤ 8
Power consumption, W ≤ 600
Model STLQ529B (1064 nm) STLQ529B (532 nm) STLQ529B (355 nm) STLQ529B (266 nm) STLQ529B (213 nm)
PRR, Hz 10 20 10 20 10 20 10 20 10 20
Output energy, mJ, not less than 1064 nm 350 350 350 350 350
532 nm - 190 140 190 140
355 nm (HPV)1) - 100 100 - 100 100
355 nm 90 80 - 90 80
266 nm - 60 40 -
213 nm (HPV)1), 2) - 18 15
213 nm2) 15 12
Beam diameter, mm3) ≤ 6
Power consumption, W ≤ 800
Model STLQ529C (1064 nm) STLQ529C (532 nm) STLQ529C (355 nm) STLQ529C (266 nm) STLQ529C (213 nm)
PRR, Hz 50
Output energy, mJ, not less than 1064 nm 150 150 150 150 150
532 nm - 80 65 80 65
355 nm - 40 - 40
266 nm - 20 -
213 nm2) - 4,5
Beam diameter, mm3) ≤ 5
Power consumption, W ≤ 1000
Model For all the Models
Pulse-to-pulse energy stability, ±%2) < 2,5
Pulse duration, ns3) 10…13
Divergence, mrad3) ≤ 1.5
Jitter, ns4) ≤ 1
Cooling system water-to-air
Dimensions (LxWxH), mm Laser head 615 x 180 x 120
Power supply 620 x 330 x 670

* Specifications are subject to change without notice.

  1. For the high-power version at 355 nm.
  2. With the STLG105 external fifth harmonic generator.
  3. At 1064 nm.
  4. Relative to the Q-Switch driver external trigger pulse.

4.5 100 Hz Nd:YAG Laser Model STLQ629

Up to 200mJ @ 1064nm and harmonic generators up to 213nm

FEATURES:

  • High PRR
  • High pulse energy
  • Excellent beam quality
  • All harmonics available up to 213 nm
  • Compact single-phase power supply
  • No external water requirements

The combination of high laser pulse energy, high PRR and excellent beam quality unattainable for most conventional models is the peculiarity of the STLQ629 laser.

Active elements of master oscillator and amplifier are installed in one pump chamber and are pumped by a single flash lamp. The master oscillator is based on the time-proven ring cavity design ensuring excellent beam quality while the classical single-pass amplifier is supplemented with the optics compensating thermooptical aberrations.

Particularly due to this technical solution the STLQ629 provides unique combination of parameters in a compact, reliable and inexpensive-in-operation design.

All the critical components of the laser are thermally stabilised which in combination with vibration-proof design ensures unsurpassed long-term stability of output radiation. The efficient thermostats used in the STLQ629 ensure warm-up time of less than 10min.

To reduce your time expenses on routine service of the STLQ629 we provided flash lamp life time of more than 50 million pulses and foreseen easy and quick procedure of its replacement.

It should be noted that the laser design allows to replace the flash lamp without removing the laser head upper cover. Such a design concept considerably reduces risks of the optical components contamination as well as increases operational reliability of the device.

Closed-loop water-to-air cooling system is integrated into a compact single-phase laser power supply which can be controlled both from PC and via the remote control unit.

Model STLQ629 (1064 nm) STLQ629 (532 nm) STLQ629 (355 nm) STLQ629 (266 nm) STLQ629 (213 nm)
Output energy, mJ, not less than 1064 nm 200 200 200 200 200
532 nm - 90 80 90 80
355 nm - 50 - 50
266 nm - 15 -
213 nm1) - 5.5
Model For all the Models
PRR, Hz 100
Beam diameter, mm2) ≤ 5
Pulse-to-pulse energy stability, ±%2) ± 1.5
Pulse duration, ns2) 9…12
Divergence, mrad2) ≤ 1.5
Jitter, ns3) ± 1.5
Power consumption, W ≤ 2000
Cooling system water-to-air
Dimensions (LxWxH), mm Laser head 740 x 180 x 125
Power supply 620 x 330 x 670

* Specifications are subject to change without notice.
1) With the STLG105 external fifth harmonic generator.
2) At 1064 nm.
3) Relative to the Q-Switch driver external trigger pulse.

4.6 TEM00 High-Power Pulsed Nd:YAG Laser Model STLQ830

Up to 700mJ @ 1064nm in the TEM00 mode and harmonic generators up to 213nm

FEATURES:

  • TEM 00 , M 2 < 2
  • Oscillator-amplifier configuration
  • High pulse energy up to 0.7 J
  • Divergence of 0.25 mrad
  • High-power radiation in the VIS and UV ranges
  • All the harmonics available up to 213 nm
  • Compact single-phase power supply
  • No external water requirements

The STLQ830 is a new model of lamp-pumped Nd:YAG laser possessing unique laser radiation characteristics: linewidth of less than 0.1 cm-1, low angular pergence of less than 0.25 mrad and high pulse energy up to 700 mJ at 1064 nm.

Master oscillator with high-stability ring cavity, preamplifier and high-power amplifier form at the laser output TEM00 diffractionally limited beam with high pulse energy and Gaussian profile in the far field.

High spectral radiation brightness with linewidth not more than 10pm and high coherence length of more than 10 cm is ensured by intracavity Fabry-Perot interferometer.

All the critical components of the laser are thermally stabilised which in combination with vibration-proof design ensures unsurpassed long-term stability of output radiation. The efficient thermostats used in the STLQ830 ensure warm-up time of less than 10 min.

To reduce your time expenses on routine service of the StLQ830 we provided flash lamp life time of more than 30 million pulses and foreseen easy and quick procedure of its replacement.

Closed-loop water-to-air cooling system is integrated into a compact single-phase laser power supply which can be controlled both from PC and via the remote control unit.

Model STLQ830 (1064 nm) StLQ830 (532 nm) STLQ830 (355 nm) STLQ830 (266 nm) STLQ830 (213 nm)
Output energy, mJ, not less than 1064 nm 700 700 700 700 700
532 nm - 450 350 450 315
355 nm - 300 - 300
266 nm - 130 -
213 nm 1) - 50
Model For all the models
PRR, Hz 10
Beam quality TEM 00 , M 2 <2
Divergence, mrad 2) ≤0.25
Beam diameter, mm 2) 9±0.5
Output linewidth, cm -1 , not more than 2) 1
Output linewidth with interferometer, cm -1 , not more than 2) 0.1
Pulse duration, ns 2), 3) 6…9
Beam pointing stability, µrad, not worse than 2) horizontal plane
vertical plane
±6
±20
Pulse-to-pulse energy stability, ±% 2) ≤ 2
Jitter, ns 3), 4) ± 1
Power consumption, W ≤ 1000
Cooling system water-to-air
Dimensions (LxWxH), mm Laser head 650 x 324 x 119
Power supply 700 x 366 x 693

* Specifications are subject to change without notice.

  1. With the STLG105 external fifth harmonic generator.
  2. At 1064 nm.
  3. Without the interferometer.
  4. Relative to the Q-Switch driver external trigger pulse.

4.7 High-Power Pulsed Nd:YAG Lasers Model STLQ929

Up to 1400mJ @ 1064nm and harmonic generators up to 213nm

FEATURES:

  • Oscillator-amplifier configuration
  • High pulse energy up to 1.5 J
  • Excellent beam quality
  • All the harmonics available up to 213 nm
  • Compact single-phase power supply
  • No external water requirements

The STLQ929 is a series of compact lamp-pumped Nd:YAG lasers built under the scheme master-oscillator – one-pass amplifier and having uncompromising combination of the main parameters: high output power, exceptional beam quality and minimum laser head and power supply dimensions.

The master oscillator of the STLQ929 laser series, just as that of the STLQ529 has ring cavity. The principle of operation of the ring cavity scheme and utilisation of pump chambers with high-efficiency diffuse reflectors provide output laser radiation with homogeneous beam profile and exceptional stability of output energy and spatial radiation parameters.

All the critical components of the laser are thermally stabilised which in combination with vibration-proof design ensures unsurpassed long-term stability of output radiation. The efficient thermostats used in the STLQ929 ensure warm-up time of less than 10 min.

To reduce your time expenses on routine service of the STLQ929 we provided flash lamp life time of more than 30 million pulses and foreseen easy and quick procedure of its replacement.

Closed-loop water-to-air cooling system is integrated into a compact single-phase laser power supply which can be controlled both from PC and via the remote control unit.

Model STLQ929A (1064 nm) STLQ929A (532 nm) STLQ929A (355 nm) STLQ929A (266 nm) STLQ929A (213 nm)
PRR, Hz 5 10 5 10 5 10 5 10 5 10
Output energy, mJ, not less than 1064 nm 1400 1400 1400 1400 1400
532 nm - 800 630 800 630
355 nm (HPV) 1), 2) - 420 420 - 420 420
355 nm 2) 390 350 - 390 350
266 nm 3) - 210 190 -
213 nm (HPV) 1), 4) - 45 40
213 nm 4) 40 35
Beam diameter, mm 5) ≤ 11
Model STLQ929B (1064 nm) STLQ929B (532 nm) STLQ929B (355 nm) STLQ929B (266 nm) STLQ929B (213 nm)
PRR, Hz 5 10 5 10 5 10 5 10 5 10
Output energy, mJ, not less than 1064 nm 1000 1000 1000 1000 1000
532 nm - 600 450 600 450
355 nm (HPV) 1), 2) - 300 300 - 300 300
355 nm 2) 280 250 - 280 250
266 nm 3) - 200 180 -
213 nm (HPV) 1), 4) - 45 40
213 nm 4) 40 35
Beam diameter, mm 5) ≤ 10
Model For all the Models
Pulse-to-pulse energy stability, ±% 5) < 2.5
Pulse duration, ns 5) 10…12
Divergence, mrad 5) ≤ 1.5
Jitter, ns 6) ±1
Power consumption, W ≤ 1200
Cooling system water-to-air
Dimensions (LxWxH), mm Laser head 625 x 220 x 125
Power supply 700 x 366 x 693

* Specifications are subject to change without notice.

  1. For the high-power version at 355 nm.
  2. With the LG103T external third harmonic generator.
  3. With the LG103F external fourth harmonic generator.
  4. With the LG105 external fifth harmonic generator.
  5. At 1064 nm.
  6. Relative to the Q-Switch driver external trigger pulse.
